Komatsu HB365LC-3,HB365NLC-3 Hydraulic Excavator Shop Manual UENBM00451 PDF

Description

Komatsu HB365LC-3,HB365NLC-3 Hydraulic Excavator Shop Manual UENBM00451 – PDF DOWNLOAD

FILE DETAILS:

Komatsu HB365LC-3,HB365NLC-3 Hydraulic Excavator Shop Manual UENBM00451 – PDF DOWNLOAD

Language : English
Pages : 3080
Downloadable : Yes
File Type : PDF

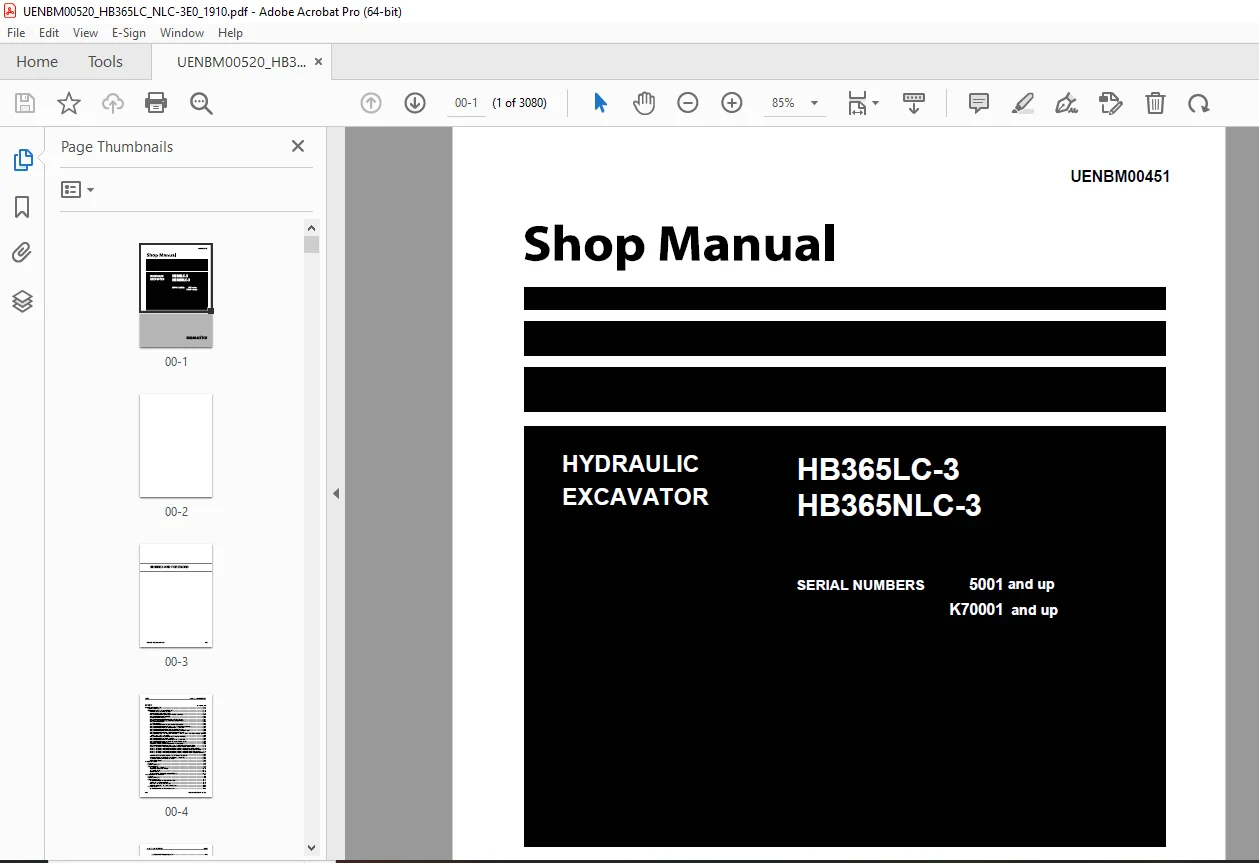

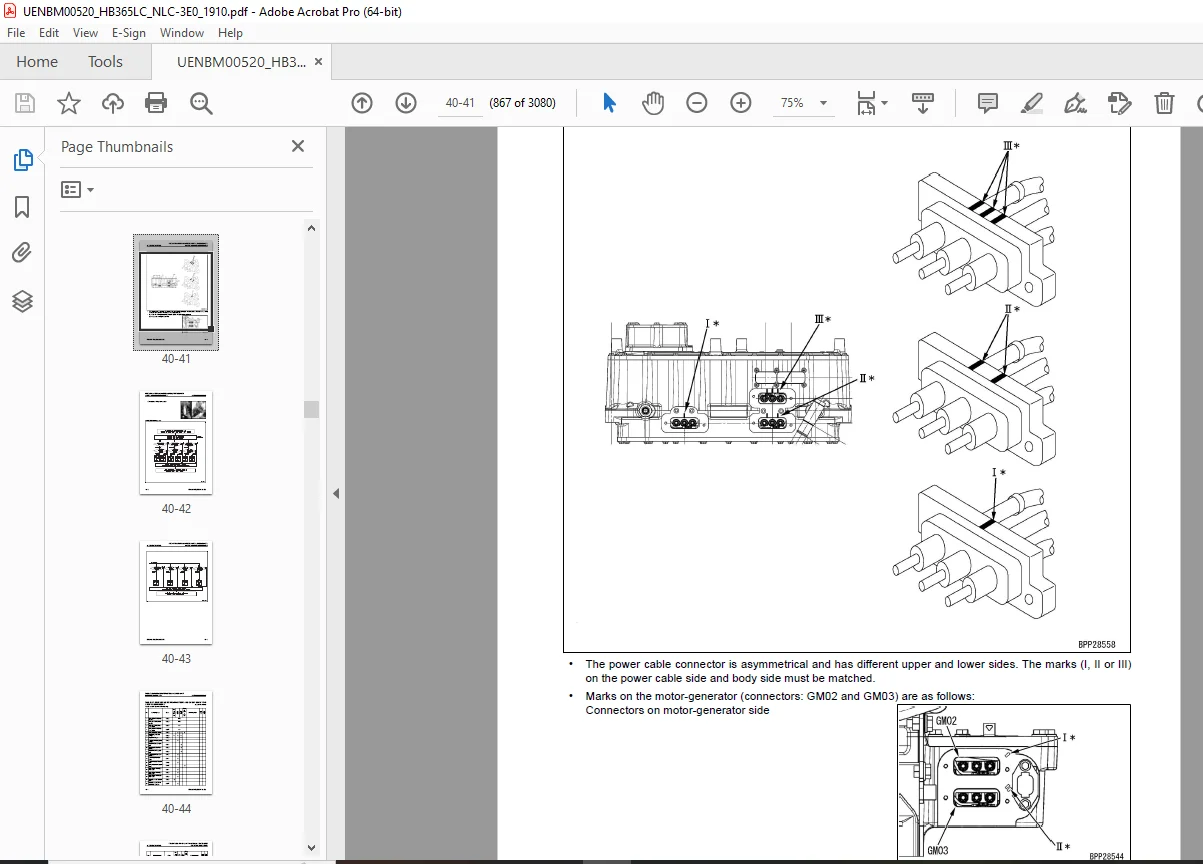

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Komatsu HB365LC-3,HB365NLC-3 Hydraulic Excavator Shop Manual UENBM00451 – PDF DOWNLOAD

SERIAL NUMBERS

• 5001 and up
• K70001 and up

00 INDEX AND FOREWORD . 3
INDEX . 4
ABBREVIATION LIST . 23
FOREWORD, SAFETY, BASIC INFORMATION . 29
HOW TO READ THE SHOP MANUAL . 29
SAFETY NOTICE FOR OPERATION . 31
PRECAUTIONS PARTICULARLY FOR HYBRID MACHINES 39
PRECAUTIONS TO PREVENT FIRE . 40
ACTIONS IF FIRE OCCURS 42
PRECAUTIONS FOR DISPOSING OF WASTE MATERIALS 43
ACTIONS TAKEN TO MEET EXHAUST GAS REGULATIONS . 44
PRECAUTIONS FOR DEF . 45
GENERAL CHARACTER AND PRECAUTIONS FOR HANDLING 45
PRECAUTIONS FOR ADDING 45
PRECAUTIONS FOR STORING . 45
PRECAUTIONS FOR FIRE HAZARD AND LEAKAGE . 45
THE OTHER PRECAUTIONS . 45
STORE AdBlue/DEF 46
PRECAUTIONS FOR HANDLING HYDRAULIC EQUIPMENT 47
PRECAUTIONS FOR DISCONNECTION AND CONNECTION OF PIPINGS . 50
PRECAUTIONS FOR HANDLING ELECTRICAL EQUIPMENT . 57
PRECAUTIONS FOR MAINTENANCE OF HYBRID SYSTEM 59
PRECAUTIONS AGAINST HIGH VOLTAGE AND HIGH TEMPERATURE . 60
PRECAUTIONS FOR NORMAL CHECK AND MAINTENANCE 61
PRECAUTIONS FOR THE MACHINE NOT TO BE TIPPED OVER AND FOR HYBRID COMPONENTS NOT TO BE DAMAGED . 62
PRECAUTIONS FOR THE MACHINE NOT TO BE SUBMERGED . 63
PRECAUTIONS FOR THE COLD SEASON . 64
PRECAUTIONS FOR HANDLING FUEL SYSTEM EQUIPMENT 65
PRECAUTIONS FOR HANDLING INTAKE SYSTEM EQUIPMENT 66
PRACTICAL USE OF KOMTRAX 67
DISCONNECT AND CONNECT PUSH-PULL TYPE COUPLER . 68
METHOD FOR DISCONNECTING AND CONNECTING TYPE 1 PUSH-PULL TYPE COUPLER . 68
METHOD FOR DISCONNECTING AND CONNECTING TYPE 2 PUSH-PULL TYPE COUPLER . 69
METHOD FOR DISCONNECTING AND CONNECTING TYPE 3 PUSH-PULL TYPE COUPLER . 70
PRECAUTIONS FOR DISCONNECTION AND CONNECTION OF CONNECTORS 72
METHOD FOR DISCONNECTING AND CONNECTING DEUTSCH CONNECTOR . 76
METHOD FOR DISCONNECTING AND CONNECTING SLIDE LOCK TYPE CONNECTOR . 77
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH LOCK TO PULL . 79
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH LOCK TO PUSH . 80
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH HOUSING TO ROTATE 82
HOW TO READ THE CODES (SYMBOLS) FOR ELECTRIC CABLE 83
EXPLANATION OF TERMS FOR MAINTENANCE STANDARD . 89
STANDARD TIGHTENING TORQUE TABLE 92
CONVERSION TABLE 99
01 SPECIFICATIONS . 105
CONTENTS 106
ABBREVIATION LIST . 107
SPECIFICATIONS 113
SPECIFICATION DRAWING . 113
SPECIFICATION DRAWING: HB365LC-3E0, HB365NLC-3E0 113
WORKING RANGE DRAWINGS 114
WORKING RANGE: HB365LC-3E0, HB365NLC-3E0 114
SPECIFICATIONS 115
SPECIFICATIONS: HB365LC-3E0, HB365NLC-3E0 . 115
WEIGHT TABLE 119
WEIGHT TABLE: HB365LC-3E0, HB365NLC-3E0 . 119
TABLE OF FUEL, COOLANT, AND LUBRICANTS 121
10 STRUCTURE AND FUNCTION . 123
CONTENTS 124
ABBREVIATION LIST . 128
UREA SCR SYSTEM . 134
LAYOUT DRAWING OF UREA SCR SYSTEM . 134
UREA SCR SYSTEM DIAGRAM . 138
FUNCTION OF UREA SCR SYSTEM . 139
FUNCTION OF AdBlue/DEF SYSTEM . 139
INDUCEMENT STRATEGY . 141
COMPONENT PARTS OF UREA SCR SYSTEM 159
AdBlue/DEF MIXING TUBE 159
SCR ASSEMBLY 159
AdBlue/DEF TANK . 162
AdBlue/DEF PUMP . 164
AdBlue/DEF INJECTOR . 165
AdBlue/DEF HOSE . 166
AdBlue/DEF TANK HEATING VALVE . 167
BOOT-UP SYSTEM 168
LAYOUT DRAWING OF BOOT-UP SYSTEM 168
SYSTEM OPERATING LAMP SYSTEM 170
SYSTEM OPERATING LAMP SYSTEM DIAGRAM 170
FUNCTION OF SYSTEM OPERATING LAMP SYSTEM 170
BATTERY DISCONNECT SWITCH . 172
FUNCTION OF BATTERY DISCONNECT SWITCH . 172
ENGINE SYSTEM . 173
LAYOUT DRAWING OF ENGINE SYSTEM . 173
FUNCTION OF ENGINE SYSTEM . 174
ENGINE CONTROL SYSTEM . 175
ENGINE CONTROL SYSTEM DIAGRAM . 175
FUNCTION OF ENGINE CONTROL SYSTEM . 176
AUTO-DECELERATION SYSTEM 178
AUTO-DECELERATION SYSTEM DIAGRAM 178
FUNCTION OF AUTO-DECELERATION SYSTEM 178
OPERATION OF AUTO-DECELERATION SYSTEM . 179
ENGINE AUTOMATIC WARM-UP SYSTEM . 180
ENGINE AUTOMATIC WARM-UP SYSTEM DIAGRAM . 180
FUNCTION OF ENGINE AUTOMATIC WARM-UP SYSTEM . 181
OVERHEAT PREVENTION SYSTEM 182
OVERHEAT PREVENTION SYSTEM DIAGRAM 182
FUNCTION OF OVERHEAT PREVENTION SYSTEM 183
TURBOCHARGER PROTECTION SYSTEM 185
TURBOCHARGER PROTECTION SYSTEM DIAGRAM 185
FUNCTION OF TURBOCHARGER PROTECTION SYSTEM 186
AUTOMATIC IDLE STOP SYSTEM 187
AUTOMATIC IDLE STOP SYSTEM DIAGRAM 187
FUNCTION OF AUTOMATIC IDLE STOP SYSTEM 187
COMPONENT PARTS OF ENGINE SYSTEM 191
VGT . 191
EGR SYSTEM 194
EGR VALVE . 196
EGR COOLER 198
KCCV SYSTEM . 199
KCCV VENTILATOR . 201
KDPF 202
COOLING SYSTEM 207
LAYOUT DRAWING OF COOLING SYSTEM 207
SPECIFICATIONS OF COOLING SYSTEM 208
HYBRID SYSTEM . 209
LAYOUT DRAWING OF HYBRID SYSTEM . 209
SYSTEM DIAGRAM OF HYBRID SYSTEM . 210
STRUCTURE OF HYBRID SYSTEM 211
HYBRID PROTECTION SYSTEM 212
SYSTEM DIAGRAM OF HYBRID PROTECTION SYSTEM 212
FUNCTION OF HYBRID PROTECTION SYSTEM 212
COOLING SYSTEM OF HYBRID COMPONENTS . 214
SYSTEM DIAGRAM OF COOLING SYSTEM OF HYBRID COMPONENTS . 214
INTERLOCK SYSTEM OF HYBRID COMPONENTS . 215
SYSTEM DIAGRAM OF INTERLOCK SYSTEM OF HYBRID COMPONENTS . 215
FUNCTION OF INTERLOCK SYSTEM OF HYBRID COMPONENTS . 215
WORKER PROTECTION SYSTEM FOR WHEN DISASSEMBLING THE HYBRID COMPONENTS . 216
SYSTEM DIAGRAM OF WORKER PROTECTION SYSTEM FOR WHEN DISASSEMBLING THE HYBRID COMPONENTS . 216
FUNCTION OF WORKER PROTECTION SYSTEM FOR WHEN DISASSEMBLING THE HYBRID COMPONENTS . 217
COMPONENT PARTS OF HYBRID SYSTEM 218
MOTOR-GENERATOR . 218
ELECTRIC CONTROL UNIT . 219
HIGH VOLTAGE WIRING (POWER CABLE) . 220
HYBRID WATER PUMP . 221
INVERTER (HYBRID CONTROLLER) 222
CONTROL SYSTEM 225
LAYOUT DRAWING OF CONTROL SYSTEM 225
MACHINE MONITOR SYSTEM 228
MACHINE MONITOR SYSTEM DIAGRAM 228
FUNCTION OF MACHINE MONITOR SYSTEM 228
KomVision SYSTEM 230
LAYOUT DRAWING OF KOMVISION SYSTEM 230
KomVision SYSTEM DIAGRAM 231
FUNCTION OF KomVision SYSTEM 232
KOMTRAX SYSTEM 234
KOMTRAX SYSTEM DIAGRAM 234
FUNCTION OF KOMTRAX SYSTEM 234
PPC LEVERS 235
LH PPC LEVER 235
RH PPC LEVER 236
AUTOMATIC GREASE SYSTEM . 237
OUTLINE OF AUTO GREASE SYSTEM . 237
COMPONENT PARTS OF CONTROL SYSTEM . 252
MACHINE MONITOR . 252
KomVision CONTROLLER 265
KomVision CAMERA 269
KOMTRAX TERMINAL 270
PUMP CONTROLLER . 272
RESISTOR FOR PC-EPC VALVE . 276
CAN TERMINATING RESISTOR 277
ENGINE CONTROLLER . 278
FUEL CONTROL DIAL . 284
HYDRAULIC SYSTEM 286
LAYOUT DRAWING OF HYDRAULIC SYSTEM 286
CLSS 289
STRUCTURE OF CLSS . 289
OPERATION OF UNLOAD VALVE AND LS PRESSURE . 291
PUMP SWASH PLATE ANGLE (OIL FLOW) CONTROL . 292
PRESSURE COMPENSATION CONTROL . 305
ENGINE AND PUMP COMBINED CONTROL SYSTEM . 308
ENGINE AND PUMP COMBINED CONTROL SYSTEM DIAGRAM . 308
FUNCTION OF ENGINE AND PUMP COMBINED CONTROL SYSTEM . 309
PUMP AND VALVE CONTROL SYSTEM . 314
PUMP AND VALVE CONTROL SYSTEM DIAGRAM . 314
FUNCTION OF PUMP AND VALVE CONTROL SYSTEM . 315
COMPONENT PARTS OF HYDRAULIC SYSTEM . 317
HYDRAULIC TANK 317
MAIN PUMP . 319
CONTROL VALVE . 346
WORK EQUIPMENT SYSTEM . 400
LAYOUT DRAWING OF WORK EQUIPMENT SYSTEM . 400
STRUCTURE OF VALVE CONTROL 406
ONE-TOUCH POWER MAXIMIZING SYSTEM . 407
ONE-TOUCH POWER MAXIMIZING SYSTEM DIAGRAM . 407
FUNCTION OF ONE-TOUCH POWER MAXIMIZING SYSTEM . 408
MACHINE PUSH-UP SYSTEM 409
MACHINE PUSH-UP SYSTEM DIAGRAM 409
FUNCTION OF MACHINE PUSH-UP SYSTEM 410
PPC LOCK SYSTEM . 411
PPC LOCK SYSTEM DIAGRAM . 411
FUNCTION OF PPC LOCK SYSTEM . 411
WORK EQUIPMENT AND TRAVEL AUTOMATIC LOCK SYSTEM . 412
WORK EQUIPMENT AND TRAVEL AUTOMATIC LOCK SYSTEM DIAGRAM . 412
FUNCTION OF WORK EQUIPMENT AND TRAVEL AUTOMATIC LOCK SYSTEM . 412
OPERATION OF WORK EQUIPMENT AND TRAVEL AUTOMATIC LOCK SYSTEM 413
OIL FLOW ADJUSTER SYSTEM FOR ATTACHMENT . 414
OIL FLOW ADJUSTER SYSTEM DIAGRAM FOR ATTACHMENT . 414
FUNCTION OF OIL FLOW ADJUSTER SYSTEM FOR ATTACHMENT . 415
COMPONENT PARTS OF WORK EQUIPMENT SYSTEM 416
WORK EQUIPMENT AND SWING PPC VALVE 416
1ST-LINE ATTACHMENT PPC VALVE (WITH EPC VALVE) 421
2ND-LINE ATTACHMENT PPC VALVE . 426
SOLENOID VALVE 428
ANTI-DROP VALVE FOR BOOM 431
ANTI-DROP VALVE FOR ARM . 434
ATTACHMENT CIRCUIT SELECTOR VALVE . 438
PILOT CIRCUIT ACCUMULATOR . 441
SWING SYSTEM 442
LAYOUT DRAWING OF SWING SYSTEM 442
SWING CONTROL SYSTEM DIAGRAM 445
FUNCTION OF SWING CONTROL SYSTEM 446
COMPONENT PARTS OF SWING SYSTEM . 448
ELECTRIC SWING MOTOR 448
SWING MACHINERY WITH SWING PARKING BRAKE 449
SWING CIRCLE 451
TRAVEL SYSTEM . 452
LAYOUT DRAWING OF TRAVEL SYSTEM . 452
TRAVEL CONTROL SYSTEM DIAGRAM . 456
FUNCTION OF TRAVEL CONTROL SYSTEM . 457
COMPONENT PARTS OF TRAVEL SYSTEM 458
TRAVEL MOTOR 458
FINAL DRIVE . 471
TRAVEL PPC VALVE 472
CENTER SWIVEL JOINT . 477
UNDERCARRIAGE AND FRAME . 479
LAYOUT DRAWING OF UNDERCARRIAGE . 479
SPECIFICATIONS OF UNDERCARRIAGE . 479
WORK EQUIPMENT 481
STRUCTURE OF WORK EQUIPMENT . 481
FUNCTION OF WORK EQUIPMENT 482
WORK EQUIPMENT CLEARANCE ADJUSTMENT SHIM 483
FUNCTION OF WORK EQUIPMENT CLEARANCE ADJUSTMENT SHIM 483
BUCKET CLEARANCE ADJUSTMENT SHIM 484
FUNCTION OF BUCKET CLEARANCE ADJUSTMENT SHIM 484
CAB AND ITS ATTACHMENTS . 485
ROPS CAB 485
STRUCTURE OF ROPS CAB . 485
FUNCTION OF ROPS CAB 485
CAB MOUNT . 486
STRUCTURE OF CAB MOUNT 486
FUNCTION OF CAB MOUNT . 486
CAB TIPPING STOPPER . 487
STRUCTURE OF CAB TIPPING STOPPER 487
FUNCTION OF CAB TIPPING STOPPER . 487
20 STANDARD VALUE TABLE . 489
CONTENTS 490
ABBREVIATION LIST . 491
STANDARD VALUE TABLE FOR ENGINE . 497
STANDARD VALUE TABLE FOR ENGINE:HB365LC-3E0, HB365NLC-3E0 . 497
STANDARD VALUE TABLE FOR MACHINE 503
STANDARD VALUE TABLE FOR MACHINE: HB365LC-3E0, HB365NLC-3E0 . 503
MACHINE POSTURE AND PROCEDURE FOR MEASURING PERFORMANCE . 520
30 TESTING AND ADJUSTING 525
CONTENTS 526
ABBREVIATION LIST . 529
RELATED INFORMATION ON TESTING AND ADJUSTING 535
TOOLS FOR TESTING AND ADJUSTING . 535
SKETCH OF TOOLS FOR TESTING AND ADJUSTING . 542
ENGINE AND COOLING SYSTEM . 544
TEST ENGINE SPEED . 544
METHOD FOR TESTING ENGINE SPEED . 544
TEST BOOST PRESSURE . 547
METHOD FOR TESTING BOOST PRESSURE ON MACHINE MONITOR 547
METHOD FOR TESTING BOOST PRESSURE . 548
TEST EXHAUST GAS COLOR 549
METHOD FOR TESTING EXHAUST GAS COLOR BY HANDY SMOKE CHECKER . 549
METHOD FOR TESTING EXHAUST GAS COLOR BY SMOKE METER . 550
TEST AND ADJUST VALVE CLEARANCE . 552
METHOD FOR TESTING VALVE CLEARANCE 552
METHOD FOR ADJUSTING VALVE CLEARANCE 554
TEST COMPRESSION PRESSURE . 555
METHOD FOR TESTING COMPRESSION PRESSURE . 555
TEST BLOWBY PRESSURE 558
METHOD FOR TESTING BLOWBY PRESSURE 558
TEST ENGINE OIL PRESSURE 560
METHOD FOR TESTING ENGINE OIL PRESSURE 560
TEST EGR VALVE AND VGT OIL PRESSURE . 562
METHOD FOR TESTING EGR VALVE AND VGT OIL PRESSURE . 562
TEST FUEL PRESSURE 564
METHOD FOR TESTING FUEL PRESSURE 565
TEST FUEL DISCHARGE, RETURN AND LEAKAGE . 572
METHOD FOR TESTING FUEL DISCHARGE, RETURN AND LEAKAGE . 573
BLEED AIR FROM FUEL SYSTEM 580
METHOD FOR BLEEDING AIR FROM FUEL SYSTEM 580
TEST FUEL CIRCUIT FOR LEAKAGE . 581
METHOD FOR TESTING FUEL CIRCUIT FOR LEAKAGE . 581
HANDLE CYLINDER CUT-OUT MODE OPERATION 583
HANDLE NO-INJECTION CRANKING OPERATION 584
TEST AND ADJUST AIR CONDITIONER COMPRESSOR BELT TENSION . 585
METHOD FOR CHECKING AIR CONDITIONER COMPRESSOR BELT . 585
METHOD FOR ADJUSTING AIR CONDITIONER COMPRESSOR BELT 585
TEST COOLING FAN SPEED 587
METHOD FOR TESTING COOLING FAN SPEED 587
WRITE ASH IN SOOT ACCUMULATION CORRECTION TO ENGINE CONTROLLER 588
METHOD FOR WRITING ASH IN SOOT ACCUMULATION CORRECTION TO ENGINE CONTROLLER . 588
TEST SCR RELATED FUNCTIONS 589
TEST AdBlue/DEF PUMP RAISED PRESSURE 592
TEST INJECTION AMOUNT FROM AdBlue/DEF INJECTOR 595
TEST AdBlue/DEF LINE HEATER RELAY 1 . 599
TEST AdBlue/DEF LINE HEATER RELAY 2 . 601
TEST AdBlue/DEF PUMP HEATER RELAY . 604
TEST AdBlue/DEF TANK HEATER VALVE . 607
TEST DENITRATION EFFICIENCY OF SCR 610
CLEAN AdBlue/DEF TANK . 614
METHOD FOR CLEANING AdBlue/DEF TANK . 614
HYBRID SYSTEM . 619
PRECAUTIONS FOR USING HYBRID SYSTEMS 619
DRAIN, REFILLING, AIR BLEEDING OF HYBRID SYSTEM COOLANT . 620
METHOD FOR DRAINING THE HYBRID SYSTEM COOLANT . 621
REFILLING, AIR BLEEDING OF HYBRID SYSTEM COOLANT 624
WATER PRESSURE TEST OF THE HYBRID SYSTEM COOLANT 626
METHOD FOR TESTING THE WATER PRESSURE OF THE HYBRID SYSTEM COOLANT 626
TEST LUBRICATION CIRCUIT OIL PRESSURE OF HYBRID SYSTEM 628
TEST LUBRICATION CIRCUIT OIL PRESSURE OF ELECTRIC SWING MOTOR CASE 628
TEST LUBRICATION CIRCUIT OIL PRESSURE OF MOTOR-GENERATOR OIL CASE . 628
TEST SWING PARKING BRAKE PRESSURE . 630
METHOD FOR TESTING THE SWING PARKING BRAKE PRESSURE . 630
TEST AND CLEAN DELIVERY FILTER OF SWING MOTOR . 632
METHOD FOR CHECKING AND CLEANING ELECTRIC SWING MOTOR COOLING OIL DELIVERY FILTER . 632
POWER TRAIN . 633
TEST SWING CIRCLE BEARING CLEARANCE . 633
METHOD FOR TESTING SWING CIRCLE BEARING CLEARANCE . 633
UNDERCARRIAGE AND FRAME . 634
TEST AND ADJUST TRACK TENSION . 634
METHOD FOR TESTING TRACK TENSION 634
METHOD FOR ADJUSTING TRACK TENSION 634
HYDRAULIC SYSTEM 636
RELEASE REMAINING PRESSURE FROM HYDRAULIC SYSTEM 636
METHOD FOR RELEASING REMAINING PRESSURE FROM HYDRAULIC TANK . 636
METHOD FOR RELEASING REMAINING PRESSURE IN HYDRAULIC CYLINDER CIRCUIT . 636
METHOD FOR RELEASING REMAINING PRESSURE FROM TRAVEL MOTOR CIRCUIT . 639
TEST AND ADJUST OIL PRESSURE IN WORK EQUIPMENT AND TRAVEL CIRCUITS 640
METHOD FOR TESTING OIL PRESSURE IN WORK EQUIPMENT, AND TRAVEL CIRCUITS 641
METHOD FOR ADJUSTING OIL PRESSURE IN WORK EQUIPMENT,AND TRAVEL CIRCUITS . 646
TEST OIL PRESSURE OF CONTROL CIRCUIT 649
METHOD FOR TESTING OIL PRESSURE OF CONTROL CIRCUIT 649
TEST AND ADJUST OIL PRESSURE IN PUMP PC CONTROL CIRCUIT . 651
METHOD FOR TESTING PC VALVE OUTLET PRESSURE (SERVO PISTON INLET PRESSURE) . 651
METHOD FOR TESTING PC-EPC VALVE OUTLET PRESSURE . 652
METHOD FOR ADJUSTING OIL PRESSURE IN PUMP PC CONTROL CIRCUIT 653
TEST AND ADJUST OIL PRESSURE IN PUMP LS CONTROL CIRCUIT . 655
METHOD FOR TESTING LS DIFFERENTIAL PRESSURE WITH MACHINE MONITOR 655
METHOD FOR TESTING LS DIFFERENTIAL PRESSURE . 656
METHOD FOR TESTING LS VALVE OUTLET PRESSURE (SERVO PISTON INLET PRESSURE) . 658
METHOD FOR TESTING LS-EPC VALVE OUTLET PRESSURE . 660
METHOD FOR ADJUSTING LS VALVE . 660
TEST OUTLET PRESSURE OF SOLENOID VALVE 662
METHOD FOR TESTING OUTLET PRESSURE OF SOLENOID VALVE 662
OPERATING CONDITION OF SOLENOID VALVE . 663
TEST PPC VALVE OUTPUT PRESSURE 666
METHOD FOR TESTING PPC VALVE OUTLET PRESSURE 666
ADJUST WORK EQUIPMENT AND SWING PPC VALVES 668
METHOD FOR ADJUSTING PLAY OF WORK EQUIPMENT AND SWING PPC VALVES 668
MEASURING AND ADJUSTING QUICK COUPLER CONTROL VALVE OUTPUT PRESSURE . 669
TEST PUMP SWASH PLATE SENSOR 671
METHOD FOR TESTING PUMP SWASH PLATE SENSOR 671
TEST THE PARTS CAUSING HYDRAULIC DRIFT IN WORK EQUIPMENT 672
METHOD FOR TESTING THE PARTS CAUSING HYDRAULIC DRIFT OF BOOM CYLINDER AND BUCKET CYLINDER . 672
METHOD FOR TESTING THE PARTS CAUSING HYDRAULIC DRIFT OF ARM CYLINDER 672
METHOD FOR TESTING THE PARTS CAUSING HYDRAULIC DRIFT OF PPC VALVE . 673
TEST OIL LEAKAGE 674
METHOD FOR TESTING OIL LEAKAGE FROM BOOM CYLINDER . 674
METHOD FOR TESTING OIL LEAKAGE FROM ARM CYLINDER 675
METHOD FOR TESTING OIL LEAKAGE FROM BUCKET CYLINDER . 675
METHOD FOR TESTING OIL LEAKAGE FROM TRAVEL MOTOR 676
BLEED AIR FROM HYDRAULIC CIRCUIT 677
METHOD FOR BLEEDING AIR FROM HYDRAULIC CIRCUIT 677
CAB AND ITS ATTACHMENTS . 680
TEST CAB TIPPING STOPPER 680
METHOD FOR TESTING CAB TIPPING STOPPER 680
METHOD FOR ADJUSTING MIRRORS 681
PROCEDURE FOR ADJUSTING MACHINE LEFT FRONT MIRROR (A) . 681
PROCEDURE FOR ADJUSTING REGULAR POSITION OF MACHINE LEFT FRONT MIRROR (A) . 682
PROCEDURE FOR ADJUSTING MACHINE RIGHT FRONT MIRROR (B) 683
PROCEDURE FOR ADJUSTING REGULAR POSITION OF MACHINE RIGHT FRONT MIRROR (B) 684
PROCEDURE FOR ADJUSTING MACHINE RIGHT SIDE MIRROR (C) . 685
ELECTRICAL SYSTEM . 687
SET AND OPERATE MACHINE MONITOR . 687
OPERATOR MODE . 690
DISPLAY FUNCTION OF TECHNICIAN IDENTIFICATION STATUS SCREEN . 691
DISPLAY FUNCTION OF OPERATOR IDENTIFICATION INPUT SCREEN 691
CHECKING FUNCTION BY LCD (LIQUID CRYSTAL DISPLAY) . 692
CHECKING FUNCTION OF SERVICE METER 692
METHOD FOR SETTING USAGE LIMITATION AND CHANGING PASSWORD . 692
SERVICE MODE 695
METHOD FOR OPERATING SERVICE MODE . 695
METHOD FOR CHECKING PRE-DEFINED MONITORING INFORMATION 697
METHOD FOR CHECKING SELF-DEFINE MONITORING INFORMATION 706
ABNORMALITY RECORD MENU . 719
METHOD FOR CONFIRMING MAINTENANCE RECORD 723
METHOD FOR OPERATING MAINTENANCE MODE SETTING . 724
METHOD FOR OPERATING PHONE NUMBER ENTRY SETTING . 728
DEFAULT MENU 729
DIAGNOSTIC TESTS MENU . 737
ADJUSTMENT MENU . 751
METHOD FOR PERFORMING NO-INJECTION CRANKING . 771
KOMTRAX SETTINGS MENU . 772
METHOD FOR DISPLAYING SERVICE MESSAGE . 775
METHOD FOR STARTING UP KOMTRAX TERMINAL . 777
ADJUST REARVIEW CAMERA ANGLE 782
METHOD FOR ADJUSTING REAR VIEW CAMERA ANGLE . 782
ADJUST KomVision CAMERA ANGLE . 785
METHOD FOR ADJUSTING KomVision CAMERA ANGLE . 786
ADJUST KomVision RELATED ITEMS 790
SETTING OF KomVision (MAIN SETTING) . 790
SETTING OF KomVision (CAMERA SETTING) . 792
SETTING OF KomVision (CAMERA CALIBRATION) . 794
KomVision screen – Check 12 m visibility 807
HANDLE VOLTAGE CIRCUIT OF ENGINE CONTROLLER . 810
HANDLE BATTERY DISCONNECT SWITCH 811
TEST DIODES . 812
METHOD FOR TESTING DIODE USING DIGITAL TESTER . 812
METHOD FOR TESTING DIODE USING ANALOG TESTER 812
Pm CLINIC . 813
Pm CLINIC SERVICE . 813
Pm CLINIC CHECK SHEET:HB365LC-3E0, HB365NLC-3E0 . 814
40 TROUBLESHOOTING 827
CONTENTS 828
ABBREVIATION LIST . 841
RELATED INFORMATION ON TROUBLESHOOTING 847
GENERAL TROUBLESHOOTING POINTS 847
TROUBLESHOOTING POINTS FOR UREA SCR SYSTEM 849
SEQUENCE OF EVENTS IN TROUBLESHOOTING . 861
PRECAUTIONS FOR USING HYBRID SYSTEMS, TROUBLESHOOTING FOR HIGH-VOLTAGE EQUIPMENT 863
TABLE OF SELF-DEFINE MONITORING ITEMS AND CHECK SHEET FOR HYBRID COMPONENTS . 870
CHECKS BEFORE TROUBLESHOOTING . 876
INSPECTION PROCEDURE BEFORE TROUBLESHOOTING . 878
WALK-AROUND CHECK . 878
TESTING IN ACCORDANCE WITH TESTING PROCEDURE 880
CHECK FUEL LEVEL AND TYPE . 880
CHECK IMPURE INGREDIENT IN FUEL . 880
CHECK FUEL PREFILTER 881
WATER SEPARATOR – CHECK / DRAIN WATER AND SEDIMENT 881
METHOD FOR REPLACING FUEL PREFILTER CARTRIDGE . 882
CHECK MAIN FILTER . 885
CHECK ENGINE OIL LEVEL (OIL AMOUNT IN OIL PAN) 887
CHECK OIL LEVEL IN MOTOR-GENERATOR CASE . 888
CHECK COOLANT LEVEL (RESERVOIR TANK) 889
CHECK CLOGGING OF AIR CLEANER . 890
OUTER ELEMENT – CLEAN . 891
ELEMENTS – REPLACE 893
CHECK HYDRAULIC OIL LEVEL . 895
CHECK HYDRAULIC OIL STRAINER 896
CHECK HYDRAULIC FILTER 896
CHECK CAPACITOR . 898
CHECK OIL LEVEL IN ELECTRIC SWING MOTOR CASE 898
CHECK OIL LEVEL IN SWING MACHINERY CASE . 899
CHECK OIL LEVEL IN FINAL DRIVE CASE . 900
BLEED AIR FROM FUEL SYSTEM 901
BLEED AIR FROM HYDRAULIC SYSTEM . 901
METHOD FOR CHECKING ELECTRIC EQUIPMENTmethod 901
AUTOMATIC GREASE SYSTEM . 906
FINDING MALFUNCTIONS 906
MALFUNCTION FINDING PROCEDURES 908
PREPARATION FOR TROUBLESHOOTING OF ELECTRICAL SYSTEM 910
PREPARATION FOR TROUBLESHOOTING OF MACHINE MONITOR 910
PREPARATION FOR TROUBLESHOOTING OF ENGINE CONTROLLER 910
PREPARATION FOR TROUBLESHOOTING OF PUMP CONTROLLER 911
PREPARATION FOR TROUBLESHOOTING OF KOMTRAX TERMINAL . 911
PREPARATION FOR TROUBLESHOOTING OF KomVision CONTROLLER . 911
PREPARATION FOR TROUBLESHOOTING OF INVERTER (HYBRID CONTROLLER) . 912
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH SPECIAL LOCK . 912
PROCEDURE FOR TESTING AND TROUBLESHOOTING . 916
SYMPTOMS OF FAILURE AND TROUBLESHOOTING NUMBERS . 919
INFORMATION DESCRIBED IN TROUBLESHOOTING TABLE 923
TROUBLESHOOTING METHOD FOR OPEN CIRCUIT IN WIRING HARNESS OF PRESSURE SENSOR SYSTEM . 925
CONNECTOR LIST AND LAYOUT . 928
CONNECTOR CONTACT IDENTIFICATION 942
T-BRANCH BOX AND T-BRANCH ADAPTER TABLE . 982
FUSE LOCATION TABLE . 988
PRECAUTIONS FOR CLEANING AND REPLACING KDPF (KCSF and KDOC) . 990
PREPARATION OF SHORT CIRCUIT ELECTRICAL CONNECTOR (FOR FAILURE CODES [CA1883] AND [CA3135]) . 994
FAILURE CODES TABLE . 996
TROUBLESHOOTING BY FAILURE CODE (DISPLAY OF CODE) .1017
FAILURE CODE [879AKA] .1017
FAILURE CODE [879AKB] .1018
FAILURE CODE [879BKA] .1019
FAILURE CODE [879BKB] .1021
FAILURE CODE [879CKA] .1023
FAILURE CODE [879CKB] .1024
FAILURE CODE [879DKZ] .1025
FAILURE CODE [879EMC] .1027
FAILURE CODE [879FMC] .1028
FAILURE CODE [879GKX] .1029
FAILURE CODE [989L00] .1031
FAILURE CODE [989M00] .1032
FAILURE CODE [989N00] .1033
FAILURE CODE [A1U0N3] .1034
FAILURE CODE [A1U0N4] .1036
FAILURE CODE [A900FR] .1038
FAILURE CODE [A900N6] .1039
FAILURE CODE [A900NY] .1040
FAILURE CODE [AA10NX] .1041
FAILURE CODE [AB00KE] .1043
FAILURE CODE [AQ10N3] .1045
FAILURE CODE [AS00N3] .1047
FAILURE CODE [AS00R2] .1049
FAILURE CODE [AS00R3] .1050
FAILURE CODE [AS00R4] .1051
FAILURE CODE [AS00R5] .1052
FAILURE CODE [AS00R6] .1053
FAILURE CODE [AS00ZK] .1054
FAILURE CODE [AS10KM] .1055
FAILURE CODE [AS10NR] .1056
FAILURE CODE [AS10NT] .1057
FAILURE CODE [B@BAZG] .1058
FAILURE CODE [B@BAZK] .1059
FAILURE CODE [B@BCNS] .1061
FAILURE CODE [B@BCZK] .1062
FAILURE CODE [B@HANS] .1063
FAILURE CODE [CA115] 1064
FAILURE CODE [CA122] 1065
FAILURE CODE [CA123] 1067
FAILURE CODE [CA131] 1069
FAILURE CODE [CA132] 1071
FAILURE CODE [CA144] 1073
FAILURE CODE [CA145] 1075
FAILURE CODE [CA153] 1077
FAILURE CODE [CA154] 1080
FAILURE CODE [CA187] 1083
FAILURE CODE [CA221] 1085
FAILURE CODE [CA222] 1087
FAILURE CODE [CA227] 1089
FAILURE CODE [CA234] 1090
FAILURE CODE [CA238] 1091
FAILURE CODE [CA239] 1093
FAILURE CODE [CA249] 1095
FAILURE CODE [CA256] 1097
FAILURE CODE [CA271] 1099
FAILURE CODE [CA272] 1101
FAILURE CODE [CA281] 1103
FAILURE CODE [CA322] 1104
FAILURE CODE [CA323] 1106
FAILURE CODE [CA324] 1108
FAILURE CODE [CA325] 1110
FAILURE CODE [CA331] 1112
FAILURE CODE [CA332] 1114
FAILURE CODE [CA343] 1116
FAILURE CODE [CA351] 1117
FAILURE CODE [CA352] 1118
FAILURE CODE [CA356] 1121
FAILURE CODE [CA357] 1123
FAILURE CODE [CA386] 1125
FAILURE CODE [CA428] 1126
FAILURE CODE [CA429] 1128
FAILURE CODE [CA435] 1130
FAILURE CODE [CA441] 1132
FAILURE CODE [CA442] 1134
FAILURE CODE [CA449] 1135
FAILURE CODE [CA451] 1138
FAILURE CODE [CA452] 1141
FAILURE CODE [CA488] 1143
FAILURE CODE [CA515] 1144
FAILURE CODE [CA516] 1146
FAILURE CODE [CA553] 1148
FAILURE CODE [CA555] 1149
FAILURE CODE [CA556] 1150
FAILURE CODE [CA559] 1151
FAILURE CODE [CA595] 1155
FAILURE CODE [CA687] 1156
FAILURE CODE [CA689] 1158
FAILURE CODE [CA691] 1163
FAILURE CODE [CA692] 1165
FAILURE CODE [CA697] 1167
FAILURE CODE [CA698] 1168
FAILURE CODE [CA731] 1169
FAILURE CODE [CA778] 1171
FAILURE CODE [CA1117] .1176
FAILURE CODE [CA1664] .1177
FAILURE CODE [CA1669] .1179
FAILURE CODE [CA1673] .1180
FAILURE CODE [CA1677] .1181
FAILURE CODE [CA1678] .1182
FAILURE CODE [CA1682] .1183
FAILURE CODE [CA1683] .1185
FAILURE CODE [CA1684] .1187
FAILURE CODE [CA1686] .1189
FAILURE CODE [CA1691] .1190
FAILURE CODE [CA1694] .1193
FAILURE CODE [CA1695] .1196
FAILURE CODE [CA1696] .1197
FAILURE CODE [CA1712] .1199
FAILURE CODE [CA1713] .1202
FAILURE CODE [CA1714] .1204
FAILURE CODE [CA1715] .1205
FAILURE CODE [CA1776] .1206
FAILURE CODE [CA1777] .1209
FAILURE CODE [CA1843] .1212
FAILURE CODE [CA1844] .1214
FAILURE CODE [CA1879] .1216
FAILURE CODE [CA1881] .1219
FAILURE CODE [CA1883] .1221
FAILURE CODE [CA1885] .1224
FAILURE CODE [CA1887] .1226
FAILURE CODE [CA1921] .1228
FAILURE CODE [CA1922] .1231
FAILURE CODE [CA1942] .1236
FAILURE CODE [CA1993] .1237
FAILURE CODE [CA2185] .1240
FAILURE CODE [CA2186] .1241
FAILURE CODE [CA2249] .1243
FAILURE CODE [CA2265] .1244
FAILURE CODE [CA2266] .1246
FAILURE CODE [CA2271] .1248
FAILURE CODE [CA2272] .1250
FAILURE CODE [CA2288] .1253
FAILURE CODE [CA2311] .1254
FAILURE CODE [CA2349] .1255
FAILURE CODE [CA2353] .1258
FAILURE CODE [CA2357] .1260
FAILURE CODE [CA2381] .1261
FAILURE CODE [CA2382] .1263
FAILURE CODE [CA2383] .1266
FAILURE CODE [CA2386] .1269
FAILURE CODE [CA2387] .1271
FAILURE CODE [CA2555] .1272
FAILURE CODE [CA2556] .1275
FAILURE CODE [CA2637] .1278
FAILURE CODE [CA2639] .1280
FAILURE CODE [CA2771] .1283
FAILURE CODE [CA2777] .1289
FAILURE CODE [CA2976] .1292
FAILURE CODE [CA3133] .1294
FAILURE CODE [CA3134] .1296
FAILURE CODE [CA3135] .1298
FAILURE CODE [CA3142] .1301
FAILURE CODE [CA3143] .1302
FAILURE CODE [CA3144] .1303
FAILURE CODE [CA3146] .1305
FAILURE CODE [CA3147] .1306
FAILURE CODE [CA3148] .1307
FAILURE CODE [CA3151] .1309
FAILURE CODE [CA3165] .1315
FAILURE CODE [CA3229] .1317
FAILURE CODE [CA3231] .1319
FAILURE CODE [CA3232] .1321
FAILURE CODE [CA3235] .1325
FAILURE CODE [CA3239] .1327
FAILURE CODE [CA3241] .1330
FAILURE CODE [CA3242] .1333
FAILURE CODE [CA3251] .1336
FAILURE CODE [CA3253] .1338
FAILURE CODE [CA3254] .1341
FAILURE CODE [CA3255] .1344
FAILURE CODE [CA3256] .1348
FAILURE CODE [CA3311] .1350
FAILURE CODE [CA3312] .1352
FAILURE CODE [CA3313] .1355
FAILURE CODE [CA3314] .1356
FAILURE CODE [CA3315] .1357
FAILURE CODE [CA3316] .1359
FAILURE CODE [CA3317] .1360
FAILURE CODE [CA3318] .1361
FAILURE CODE [CA3319] .1363
FAILURE CODE [CA3321] .1364
FAILURE CODE [CA3322] .1366
FAILURE CODE [CA3419] .1368
FAILURE CODE [CA3421] .1370
FAILURE CODE [CA3497] .1372
FAILURE CODE [CA3498] .1373
FAILURE CODE [CA3543] .1374
FAILURE CODE [CA3545] .1380
FAILURE CODE [CA3547] .1382
FAILURE CODE [CA3558] .1383
FAILURE CODE [CA3559] .1385
FAILURE CODE [CA3562] .1387
FAILURE CODE [CA3563] .1389
FAILURE CODE [CA3567] .1392
FAILURE CODE [CA3568] .1395
FAILURE CODE [CA3571] .1399
FAILURE CODE [CA3572] .1401
FAILURE CODE [CA3574] .1403
FAILURE CODE [CA3575] .1405
FAILURE CODE [CA3577] .1407
FAILURE CODE [CA3578] .1409
FAILURE CODE [CA3582] .1411
FAILURE CODE [CA3583] .1417
FAILURE CODE [CA3596] .1419
FAILURE CODE [CA3649] .1422
FAILURE CODE [CA3681] .1424
FAILURE CODE [CA3682] .1429
FAILURE CODE [CA3713] .1434
FAILURE CODE [CA3717] .1437
FAILURE CODE [CA3718] .1438
FAILURE CODE [CA3725] .1439
FAILURE CODE [CA3741] .1442
FAILURE CODE [CA3748] .1443
FAILURE CODE [CA3751] .1446
FAILURE CODE [CA3755] .1448
FAILURE CODE [CA3866] .1450
FAILURE CODE [CA3867] .1454
FAILURE CODE [CA3868] .1457
FAILURE CODE [CA3899] .1461
FAILURE CODE [CA3911] .1463
FAILURE CODE [CA3912] .1467
FAILURE CODE [CA3932] .1469
FAILURE CODE [CA3933] .1471
FAILURE CODE [CA3934] .1473
FAILURE CODE [CA3935] .1476
FAILURE CODE [CA3936] .1478
FAILURE CODE [CA4151] .1480
FAILURE CODE [CA4152] .1484
FAILURE CODE [CA4155] .1488
FAILURE CODE [CA4156] .1490
FAILURE CODE [CA4157] .1493
FAILURE CODE [CA4158] .1495
FAILURE CODE [CA4159] .1496
FAILURE CODE [CA4161] .1497
FAILURE CODE [CA4162] .1500
FAILURE CODE [CA4163] .1503
FAILURE CODE [CA4164] .1505
FAILURE CODE [CA4165] .1507
FAILURE CODE [CA4166] .1509
FAILURE CODE [CA4168] .1511
FAILURE CODE [CA4169] .1514
FAILURE CODE [CA4171] .1516
FAILURE CODE [CA4249] .1519
FAILURE CODE [CA4251] .1521
FAILURE CODE [CA4259] .1523
FAILURE CODE [CA4261] .1526
FAILURE CODE [CA4277] .1529
FAILURE CODE [CA4281] .1533
FAILURE CODE [CA4459] .1537
FAILURE CODE [CA4461] .1540
FAILURE CODE [CA4658] .1543
FAILURE CODE [CA4731] .1547
FAILURE CODE [CA4732] .1548
FAILURE CODE [CA4739] .1549
FAILURE CODE [CA4768] .1550
FAILURE CODE [CA4769] .1552
FAILURE CODE [CA4842] .1554
FAILURE CODE [CA4952] .1558
FAILURE CODE [CA5115] .1560
FAILURE CODE [CA5179] .1563
FAILURE CODE [CA5181] .1565
FAILURE CODE [CA5383] .1567
FAILURE CODE [D110KB] .1569
FAILURE CODE [D19JKZ] .1571
FAILURE CODE [D811MC] .1574
FAILURE CODE [D862KA] .1575
FAILURE CODE [D8ALKA] .1576
FAILURE CODE [D8ALKB] .1578
FAILURE CODE [D8AQKR] .1580
FAILURE CODE [DA20MC] .1585
FAILURE CODE [DA22KK] .1586
FAILURE CODE [DA25KP] .1589
FAILURE CODE [DA26KP] .1591
FAILURE CODE [DA29KQ] .1594
FAILURE CODE [DA2LKA] .1596
FAILURE CODE [DA2LKB] .1598
FAILURE CODE [DA2QKR] .1600
FAILURE CODE [DA2RKR] .1605
FAILURE CODE [DAF0KM] .1610
FAILURE CODE [DAF0MB] .1611
FAILURE CODE [DAF0MC] .1612
FAILURE CODE [DAF8KB] .1613
FAILURE CODE [DAF9KQ] .1615
FAILURE CODE [DAFGMC] .1616
FAILURE CODE [DAFLKA] .1617
FAILURE CODE [DAFLKB] .1619
FAILURE CODE [DAFQKR] .1621
FAILURE CODE [DAZ9KQ] .1625
FAILURE CODE [DAZQKR] .1626
FAILURE CODE [DB2QKR] .1630
FAILURE CODE [DB2RKR] .1635
FAILURE CODE [DBP0KM] .1640
FAILURE CODE [DBP0KT] .1641
FAILURE CODE [DBPQKR] .1642
FAILURE CODE [DDNRKA] .1647
FAILURE CODE [DDNRKY] .1649
FAILURE CODE [DDNS00] .1651
FAILURE CODE [DGH2KA] .1653
FAILURE CODE [DGH2KB] .1655
FAILURE CODE [DHA4KA] .1657
FAILURE CODE [DHAAMA] .1659
FAILURE CODE [DHACMA] .1661
FAILURE CODE [DHPAMA] .1663
FAILURE CODE [DHPBMA] .1665
FAILURE CODE [DHS3MA] .1667
FAILURE CODE [DHS4MA] .1669
FAILURE CODE [DHS8MA] .1671
FAILURE CODE [DHS9MA] .1673
FAILURE CODE [DHSAKZ] .1675
FAILURE CODE [DHSBKZ] .1677
FAILURE CODE [DHSCMA] .1679
FAILURE CODE [DHSDMA] .1681
FAILURE CODE [DHSFMA] .1683
FAILURE CODE [DHSGMA] .1685
FAILURE CODE [DHSHMA] .1687
FAILURE CODE [DHSJMA] .1689
FAILURE CODE [DHVAKZ] .1691
FAILURE CODE [DHVAL8] .1693
FAILURE CODE [DHVAMA] .1695
FAILURE CODE [DHVBKZ] .1696
FAILURE CODE [DHVBL8] .1698
FAILURE CODE [DHVBMA] .1700
FAILURE CODE [DKR0MA] .1701
FAILURE CODE [DKR1MA] .1703
FAILURE CODE [DKULKA] .1705
FAILURE CODE [DKULKB] .1707
FAILURE CODE [DKULKY] .1709
FAILURE CODE [DLM5KA] .1710
FAILURE CODE [DLM5MB] .1712
FAILURE CODE [DR10KA] .1714
FAILURE CODE [DR21KX] .1717
FAILURE CODE [DUMBKA] .1719
FAILURE CODE [DUMBKB] .1721
FAILURE CODE [DV20KB] .1723
FAILURE CODE [DW43KA] .1725
FAILURE CODE [DW43KB] .1727
FAILURE CODE [DW43KY] .1728
FAILURE CODE [DW45KA] .1729
FAILURE CODE [DW45KB] .1732
FAILURE CODE [DW45KK] .1735
FAILURE CODE [DW45KY] .1737
FAILURE CODE [DW4CKY] .1739
FAILURE CODE [DW91KA] .1740
FAILURE CODE [DW91KB] .1742
FAILURE CODE [DW91KY] .1743
FAILURE CODE [DWA2KA] .1744
FAILURE CODE [DWA2KB] .1746
FAILURE CODE [DWA2KY] .1747
FAILURE CODE [DWK0KA] .1748
FAILURE CODE [DWK0KB] .1750
FAILURE CODE [DWK0KY] .1752
FAILURE CODE [DWK2KA] .1753
FAILURE CODE [DWK2KB] .1755
FAILURE CODE [DWK2KY] .1757
FAILURE CODE [DWN5KA] .1758
FAILURE CODE [DWN5KB] .1760
FAILURE CODE [DWN5KY] .1761
FAILURE CODE [DXA8KA] .1762
FAILURE CODE [DXA8KB] .1765
FAILURE CODE [DXA9KA] .1767
FAILURE CODE [DXA9KB] .1770
FAILURE CODE [DXE0KA] .1772
FAILURE CODE [DXE0KB] .1774
FAILURE CODE [DXE4KA] .1775
FAILURE CODE [DXE4KB] .1777
FAILURE CODE [DXE4KY] .1778
FAILURE CODE [DXE5KA] .1779
FAILURE CODE [DXE5KB] .1781
FAILURE CODE [DXE6KA] .1783
FAILURE CODE [DXE6KB] .1785
FAILURE CODE [DXE7KA] .1787
FAILURE CODE [DXE7KB] .1789
FAILURE CODE [DXE7KY] .1791
FAILURE CODE [DXE8KA] .1793
FAILURE CODE [DXE8KB] .1795
FAILURE CODE [DXE8KY] .1797
FAILURE CODE [DXE9KA] .1799
FAILURE CODE [DXE9KB] .1801
FAILURE CODE [DXE9KY] .1803
FAILURE CODE [DXEAKA] .1805
FAILURE CODE [DXEAKB] .1807
FAILURE CODE [DXEAKY] .1809
FAILURE CODE [DY20KA] .1811
FAILURE CODE [DY20MA] .1813
FAILURE CODE [DY2CKB] .1815
FAILURE CODE [DY2DKB] .1817
FAILURE CODE [DY2EKB] .1819
FAILURE CODE [GA00NS] .1821
FAILURE CODE [GA01KA] .1822
FAILURE CODE [GA02KZ] .1824
FAILURE CODE [GA04KG] .1827
FAILURE CODE [GA05KG] .1830
FAILURE CODE [GA05KP] .1833
FAILURE CODE [GA06KZ] .1836
FAILURE CODE [GA08KG] .1837
FAILURE CODE [GA09KG] .1845
FAILURE CODE [GA09KP] .1853
FAILURE CODE [GA0AKZ] .1854
FAILURE CODE [GA0BKZ] .1855
FAILURE CODE [GA10MA] .1862
FAILURE CODE [GA10MC] .1869
FAILURE CODE [GA12NK] .1870
FAILURE CODE [GA13KP] .1876
FAILURE CODE [GA13KY] .1878
FAILURE CODE [GA15KZ] .1880
FAILURE CODE [GA17KR] .1888
FAILURE CODE [GA17MB] .1889
FAILURE CODE [GA18MC] .1890
FAILURE CODE [GA19KR] .1895
FAILURE CODE [GA19KT] .1896
FAILURE CODE [GA1BMA] .1897
FAILURE CODE [GA1FKR] .1899
FAILURE CODE [GA1FMA] .1900
FAILURE CODE [GA1GKR] .1903
FAILURE CODE [GA1GKT] .1904
FAILURE CODE [GA1GMB] .1905
FAILURE CODE [GA1HKZ] .1906
FAILURE CODE [GA1JKZ] .1907
FAILURE CODE [GA1KKZ] .1908
FAILURE CODE [GA1LKZ] .1909
FAILURE CODE [GA1MKZ] .1910
FAILURE CODE [GA1NNS] .1911
FAILURE CODE [GA1SFS] .1912
FAILURE CODE [GA1SMC] .1913
FAILURE CODE [GA1TKP] .1914
FAILURE CODE [GA1TNS] .1917
FAILURE CODE [GA1UKZ] .1920
FAILURE CODE [GA1VFS] .1923
FAILURE CODE [GA1VMC] .1924
FAILURE CODE [GA1XKZ] .1925
FAILURE CODE [GA1YNS] .1926
FAILURE CODE [GA1ZKZ] .1927
FAILURE CODE [GA1ZNS] .1928
FAILURE CODE [GA22NS] .1929
FAILURE CODE [GA23KZ] .1930
FAILURE CODE [GA24KZ] .1931
FAILURE CODE [GA25MA] .1932
FAILURE CODE [GA25NS] .1936
FAILURE CODE [GA26MA] .1937
FAILURE CODE [GA26NS] .1941
FAILURE CODE [GA27KZ] .1942
FAILURE CODE [GA2QKR] .1943
FAILURE CODE [GA2RKR] .1948
FAILURE CODE [GA60MC] .1953
FAILURE CODE [GA60N1] .1955
FAILURE CODE [GA61KZ] .1957
FAILURE CODE [GA61NS] .1959
FAILURE CODE [GA62KY] .1960
FAILURE CODE [GA62KZ] .1965
FAILURE CODE [GA62MA] .1969
FAILURE CODE [GA63KY] .1970
FAILURE CODE [GA63KZ] .1975
FAILURE CODE [GA63MA] .1979
FAILURE CODE [GA64KY] .1980
FAILURE CODE [GA64KZ] .1985
FAILURE CODE [GA64MA] .1989
FAILURE CODE [GA70KB] .1990
FAILURE CODE [GA70MD] .1993
FAILURE CODE [GA70NS] .1995
FAILURE CODE [GA71KZ] .1996
FAILURE CODE [GA72MA] .1998
FAILURE CODE [GA72MC] .2000
FAILURE CODE [GA81KZ] .2002
FAILURE CODE [GAA0KB] .2005
FAILURE CODE [GAA2KB] .2007
FAILURE CODE [GAA6KP] .2009
FAILURE CODE [GAA6KY] .2011
FAILURE CODE [GACA00] .2013
TROUBLESHOOTING OF ELECTRICAL SYSTEM (E-MODE) .2014
E-1 ENGINE DOES NOT START (ENGINE DOES NOT CRANK) .2014
E-2 MANUAL PREHEATING SYSTEM DOES NOT WORK 2020
E-3 AUTOMATIC PREHEATING SYSTEM DOES NOT WORK .2023
E-4 WHILE PREHEATING IS WORKING, PREHEATING MONITOR DOES NOT LIGHT UP .2025
E-5 WHEN STARTING SWITCH IS TURNED TO ON POSITION, MACHINE MONITOR DISPLAYS NOTHING .2027
E-6 WHILE STARTING SWITCH IS TURNED TO ON POSITION (WITH ENGINE STOPPED), ENGINE OIL LEVEL MONITOR LIGHTS UP IN YELLOW 2030
E-7 WHILE STARTING SWITCH IS TURNED TO ON POSITION (WITH ENGINE STOPPED), RADIATOR COOLANT LEVEL MONITOR LIGHTS UP IN YELLOW 2031
E-8 ENGINE COOLANT TEMPERATURE MONITOR LIGHTS UP IN WHITE WHILE ENGINE IS RUNNING .2032
E-9 HYDRAULIC OIL TEMPERATURE MONITOR LIGHTS UP IN WHITE WHILE ENGINE IS RUNNING 2033
E-10 AIR CLEANER CLOGGING MONITOR LIGHTS UP IN YELLOW WHILE ENGINE IS RUNNING .2034
E-11 CHARGE LEVEL MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING 2035
E-12 FUEL LEVEL MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING 2036
E-13 WATER SEPARATOR MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING .2037
E-14 ENGINE COOLANT TEMPERATURE MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING 2038
E-15 ENGINE OIL PRESSURE MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING .2039
E-16 HYDRAULIC OIL TEMPERATURE MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING .2040
E-17 FUEL GAUGE DISPLAY DOES NOT MOVE FROM MINIMUM OR MAXIMUM .2041
E-18 DISPLAY OF FUEL GAUGE DIFFERS FROM ACTUAL FUEL LEVEL .2043
E-19 ENGINE COOLANT TEMPERATURE GAUGE DISPLAY DOES NOT MOVE FROM MINIMUM OR MAXIMUM .2044
E-20 DISPLAY OF ENGINE COOLANT TEMPERATURE GAUGE DIFFERS FROM ACTUAL COOLANT TEMPERATURE 2045
E-21 HYDRAULIC OIL TEMPERATURE GAUGE DISPLAY DOES NOT MOVE FROM MINIMUM OR MAXIMUM 2046
E-22 DISPLAY OF HYDRAULIC OIL TEMPERATURE GAUGE DIFFERS FROM ACTUAL OIL TEMPERATURE .2048
E-23 MONITOR TEMPERATURE GAUGE OF HYBRID SYSTEMS DOES NOT INDICATE CORRECT TEMPERATURE 2049
E-24 SOME AREAS OF MACHINE MONITOR SCREEN ARE NOT DISPLAYED .2050
E-25 FUNCTION SWITCH DOES NOT OPERATE .2051
E-26 AUTOMATIC WARM-UP SYSTEM DOES NOT WORK (IN COLD WEATHER) .2052
E-27 WHEN AUTO-DECELERATOR SWITCH IS OPERATED, AUTO-DECELERATOR MONITOR DOES NOT LIGHT UP OR DOES NOT GO OFF 2053
E-28 AUTO-DECELERATOR IS NOT OPERATED OR CANCELED WITH LEVER 2054
E-29 WHEN WORKING MODE SWITCH IS OPERATED, WORKING MODE SELECTION SCREEN IS NOT DISPLAYED .2055
E-30 WHEN WORKING MODE IS CHANGED, SETTING OF ENGINE AND HYDRAULIC PUMP IS NOT CHANGED 2056
E-31 WHEN TRAVEL SPEED SWITCH IS OPERATED, TRAVEL SPEED MONITOR DOES NOT CHANGE .2057
E-32 WHEN TRAVEL SPEED SELECTION IS CHANGED, ACTUAL TRAVEL SPEED DOES NOT CHANGE 2058
E-33 ALARM BUZZER CANNOT BE CANCELED 2059
E-34 SERVICE METER IS NOT DISPLAYED, WHILE STARTING SWITCH IS IN OFF POSITION .2060
E-35 SERVICE MODE CANNOT BE SELECTED 2061
E-36 ALL OF WORK EQUIPMENTS, SWING, AND TRAVEL MECHANISM DO NOT MOVE 2062
E-37 ALL OF WORK EQUIPMENT, SWING, AND TRAVEL MECHANISM DO NOT LOCK .2064
E-38 WHEN SWING BRAKE CANCEL SWITCH IS SET TO CANCEL POSITION, MACHINE CANNOT SWING .2065
E-39 WHEN SWING BRAKE CANCEL SWITCH IS SET TO NORMAL POSITION, SWING HOLDING BRAKE DOES NOT OPERATE .2068
E-40 ONE-TOUCH POWER MAXIMIZING FUNCTION DOES NOT OPERATE PROPERLY, OR INDICATOR NOT DISPLAYED ON MONITOR .2070
E-41 ONE-TOUCH POWER MAXIMIZING FUNCTION IS NOT CANCELLED .2072
E-42 ALARM DOES NOT SOUND DURING TRAVEL .2073
E-43 ALARM DOES NOT STOP SOUNDING WHILE MACHINE IS STOPPED 2075
E-44 HORN DOES NOT SOUND 2076
E-45 HORN DOES NOT STOP SOUNDING 2079
E-46 WHEN WIPER SWITCH IS OPERATED, WIPER MONITOR DOES NOT LIGHT UP OR GO OFF .2081
E-47 WHEN WIPER SWITCH IS OPERATED, WINDSHIELD WIPER DOES NOT OPERATE .2082
E-48 WHEN WINDOW WASHER SWITCH IS OPERATED, WINDOW WASHER DOES NOT OPERATE 2084
E-49 BOOM RAISE INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION 2085
E-50 BOOM LOWER INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION 2086
E-51 ARM OUT INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION .2087
E-52 ARM IN INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION 2088
E-53 BUCKET DUMP INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION .2089
E-54 BUCKET CURL INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION .2090
E-55 SWING INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION .2091
E-56 TRAVEL INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION 2092
E-57 SERVICE INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION .2093
E-58 ATTACHMENT HYDRAULIC CIRCUIT CANNOT BE CHANGED .2095
E-59 KOMTRAX SYSTEM DOES NOT OPERATE NORMALLY .2096
E-60 MACHINE PUSH-UP FUNCTION CANNOT BE CANCELED 2097
E-61 MACHINE PUSH-UP FUNCTION DOES NOT OPERATE 2099
TROUBLESHOOTING FOR HYDRAULIC AND MECHANICAL SYSTEMS (H MODE) .2100
INFORMATION MENTIONED IN TROUBLESHOOTING TABLE (H MODE) .2100
FAILURE MODE AND CAUSE TABLE 2101
H-1 ALL WORK EQUIPMENTS OR TRAVEL DOES NOT OPERATE 2111
H-2 ALL WORK EQUIPMENT AND TRAVEL SPEED OR POWER IS LOW .2112
H-3 FINE CONTROL PERFORMANCE OR RESPONSE IS POOR 2114
H-4 UNUSUAL NOISE IS HEARD FROM AROUND HYDRAULIC PUMP .2115
H-5 ENGINE SPEED DROPS LARGELY OR ENGINE STOPS 2116
H-6 SPEED OR POWER OF BOOM IS LOW .2118
H-7 ARM SPEED OR POWER IS LOW .2124
H-8 BUCKET SPEED OR POWER IS LOW 2129
H-9 WORK EQUIPMENT DOES NOT MOVE IN SINGLE OPERATION 2132
H-10 HYDRAULIC DRIFT OF BOOM IS LARGE .2133
H-11 HYDRAULIC DRIFT OF ARM IS LARGE 2135
H-12 HYDRAULIC DRIFT OF BUCKET IS LARGE .2137
H-13 WHEN SINGLE WORK EQUIPMENT IS RELIEVED HYDRAULICALLY, OTHER WORK EQUIPMENT MOVES .2138
H-14 TIME LAG OF WORK EQUIPMENT IS LARGE 2139
H-15 ONE-TOUCH POWER MAXIMIZING FUNCTION DOES NOT OPERATE .2140
H-16 MACHINE PUSH-UP FUNCTION DOES NOT OPERATE 2141
H-17 ATTACHMENT CIRCUIT CANNOT BE CHANGED .2142
H-18 OIL FLOW IN ATTACHMENT CIRCUIT CANNOT BE CHANGED .2143
H-19 IN COMBINED OPERATION OF WORK EQUIPMENT, EQUIPMENT HAVING HEAVIER LOAD MOVES SLOWER 2144
H-20 MACHINE DOES NOT TRAVEL STRAIGHT .2145
H-21 MACHINE IS NOT STEERED WELL OR STEERING POWER IS LOW .2147
H-22 TRAVEL SPEED IS LOW 2150
H-23 ONE OF TRACKS DOES NOT RUN .2152
H-24 TRAVEL SPEED DOES NOT CHANGE, OR TRAVEL SPEED IS TOO SLOW OR FAST 2154
H-25 FAN SPEED IS ABNORMAL (TOO HIGH OR LOW, OR STATIONARY) .2155
H-26 UNUSUAL NOISE IS HEARD FROM AROUND FAN .2156
H-27 Quick coupler cylinder will not extend .2157
H-28 Quick coupler cylinder will not retract (but buzzer doesnot sound) .2159
H-29 Buzzer does not sound (but quick coupler cylinder doesretract) .2161
H-30 Quick coupler cylinder extends and retracts slowly .2163
TROUBLESHOOTING OF ENGINE (S-MODE) 2164
INFORMATION MENTIONED IN TROUBLESHOOTING TABLE (S MODE) .2164
S-1 ENGINE DOES NOT CRANK WHEN STARTING SWITCH IS TURNED TO START POSITION 2165
S-2 ENGINE CRANKS BUT NO EXHAUST GAS COMES OUT 2166
S-3 FUEL IS BEING INJECTED BUT ENGINE DOES NOT START (MISFIRING: ENGINE CRANKS BUT DOES NOT START) 2167
S-4 ENGINE STARTABILITY IS POOR .2169
S-5 ENGINE DOES NOT PICK UP SMOOTHLY 2171
S-6 ENGINE STOPS DURING OPERATION .2173
S-7 ENGINE RUNS ROUGH OR IS UNSTABLE 2175
S-8 ENGINE LACKS POWER 2176
S-9 KDPF GETS CLOGGED IN A SHORT TIME .2178
S-10 ENGINE OIL CONSUMPTION IS EXCESSIVE 2180
S-11 OIL BECOMES CONTAMINATED QUICKLY .2181
S-12 FUEL CONSUMPTION IS EXCESSIVE 2182
S-13 OIL IS IN COOLANT (OR COOLANT SPURTS BACK OR COOLANT LEVEL GOES DOWN) 2183
S-14 OIL PRESSURE DROPS .2184
S-15 FUEL MIXES INTO ENGINE OIL .2186
S-16 WATER MIXES INTO ENGINE OIL (MILKY) 2187
S-17 COOLANT TEMPERATURE RISES TOO HIGH (OVERHEATING) .2188
S-18 UNUSUAL NOISE IS HEARD .2190
S-19 VIBRATION IS EXCESSIVE .2191
S-20 AIR CANNOT BE BLED FROM FUEL CIRCUIT .2192
S-21 ACTIVE REGENERATION IS EXECUTED FREQUENTLY .2193
S-22 ACTIVE REGENERATION TAKES TIME .2195
S-23 WHITE SMOKE IS EXHAUSTED DURING ACTIVE REGENERATION 2196
S-24 AdBlue/DEF CONSUMPTION IS EXCESSIVE 2197
S-25 THERE IS UNUSUAL SMELL (IRRITATING ODOR) .2199
S-26 FOREIGN MATERIALS ENTER AdBlue/DEF (AdBlue/DEF INCREASES) 2200
TROUBLESHOOTING FOR HYBRID SYSTEMS (Y MODE) .2201
PRECAUTIONS FOR USING HYBRID SYSTEMS 2201
Y-1 HYBRID MONITOR DOES NOT GO OUT 2202
Y-2 UPPER STRUCTURE DOES NOT SWING BOTH TO THE RIGHT AND LEFT .2204
Y-3 UPPER STRUCTURE SWINGS ONLY TO THE RIGHT OR LEFT 2205
Y-4 SWING ACCELERATION PERFORMANCE IS POOR OR SWING SPEED IS LOW IN BOTH DIRECTIONS (RIGHT AND LEFT) 2206
Y-5 SWING ACCELERATION PERFORMANCE IS POOR OR SWING SPEED IS LOW IN ONLY ONE DIRECTION 2207
Y-6 UPPER STRUCTURE OVERRUNS EXCESSIVELY WHEN IT STOPS SWINGING (BOTH RIGHT AND LEFT) .2208
Y-7 UPPER STRUCTURE OVERRUNS EXCESSIVELY WHEN IT STOPS SWINGING (EITHER RIGHT OR LEFT) 2209
Y-8 SHOCK IS LARGE WHEN UPPER STRUCTURE STOPS SWINGING 2210
Y-9 LARGE UNUSUAL NOISE IS HEARD WHEN UPPER STRUCTURE STOPS SWINGING 2211
Y-10 SWING DRIFT ON A SLOPE IS LARGE (WHILE PARKING BRAKE IS APPLIED) .2212
Y-11 SWING DRIFT ON A SLOPE IS LARGE (WHILE PARKING BRAKE IS RELEASED) 2213
Y-12 ELECTRIC SWING MOTOR TEMPERATURE INCREASES ABNORMALLY 2214
Y-13 MOTOR-GENERATOR TEMPERATURE INCREASES ABNORMALLY .2217
Y-14 INVERTER TEMPERATURE INCREASES ABNORMALLY 2219
Y-15 CAPACITOR TEMPERATURE INCREASES ABNORMALLY .2221
50 DISASSEMBLY AND ASSEMBLY .2225
CONTENTS 2226
ABBREVIATION LIST .2231
RELATED INFORMATION ON DISASSEMBLY AND ASSEMBLY .2237
HOW TO READ THIS MANUAL .2237
COATING MATERIALS LIST 2239
SPECIAL TOOLS LIST 2243
SKETCHES OF SPECIAL TOOLS .2262
ENGINE AND COOLING SYSTEM .2270
REMOVE AND INSTALL SUPPLY PUMP ASSEMBLY .2270
METHOD FOR REMOVING SUPPLY PUMP ASSEMBLY 2270
METHOD FOR INSTALLING SUPPLY PUMP ASSEMBLY 2274
REMOVE AND INSTALL INJECTOR ASSEMBLY 2282
METHOD FOR REMOVING INJECTOR ASSEMBLY .2282
METHOD FOR INSTALLING INJECTOR ASSEMBLY .2288
REMOVE AND INSTALL CYLINDER HEAD ASSEMBLY .2300
METHOD FOR REMOVING CYLINDER HEAD ASSEMBLY 2300
METHOD FOR INSTALLING CYLINDER HEAD ASSEMBLY 2309
REMOVE AND INSTALL EGR VALVE ASSEMBLY .2326
METHOD FOR REMOVING EGR VALVE ASSEMBLY 2326
METHOD FOR INSTALLING EGR VALVE ASSEMBLY 2327
REMOVE AND INSTALL EGR COOLER ASSEMBLY 2329
METHOD FOR REMOVING EGR COOLER ASSEMBLY .2329
METHOD FOR INSTALLING EGR COOLER ASSEMBLY .2330
REMOVE AND INSTALL STARTER ASSEMBLY .2332
METHOD FOR REMOVING STARTER ASSEMBLY 2332
METHOD FOR INSTALLING STARTER ASSEMBLY 2333
REMOVE AND INSTALL ALTERNATOR BELT 2334
METHOD FOR REMOVING ALTERNATOR BELT .2334
METHOD FOR INSTALLING ALTERNATOR BELT .2337
REMOVE AND INSTALL RADIATOR ASSEMBLY 2340
METHOD FOR REMOVING RADIATOR ASSEMBLY .2340
METHOD FOR INSTALLING RADIATOR ASSEMBLY .2343
REMOVE AND INSTALL HYDRAULIC OIL COOLER ASSEMBLY 2346
METHOD FOR REMOVING HYDRAULIC OIL COOLER ASSEMBLY .2346
METHOD FOR INSTALLING HYDRAULIC OIL COOLER ASSEMBLY .2350
REMOVE AND INSTALL AFTERCOOLER ASSEMBLY .2353
METHOD FOR REMOVING AFTERCOOLER ASSEMBLY 2353
METHOD FOR INSTALLING AFTERCOOLER ASSEMBLY 2355
REMOVE AND INSTALL FAN CLUTCH ASSEMBLY 2357
METHOD FOR REMOVING FAN CLUTCH ASSEMBLY .2357
METHOD FOR INSTALLING FAN CLUTCH ASSEMBLY .2360
REMOVE AND INSTALL FAN 2364
METHOD FOR INSTALLING FAN .2364
METHOD FOR REMOVING FAN .2364
REMOVE AND INSTALL ENGINE, MOTOR-GENERATOR, AND MAIN PUMP ASSEMBLY 2365
METHOD FOR REMOVING ENGINE, MOTOR-GENERATOR, AND MAIN PUMP ASSEMBLY .2366
METHOD FOR INSTALLING ENGINE, MOTOR-GENERATOR, AND MAIN PUMP ASSEMBLY .2375
REMOVE AND INSTALL ENGINE FRONT OIL SEAL 2387
METHOD FOR REMOVING ENGINE FRONT OIL SEAL .2387
METHOD FOR INSTALLING ENGINE FRONT OIL SEAL .2389
REMOVE AND INSTALL ENGINE REAR OIL SEAL .2391
METHOD FOR REMOVING ENGINE REAR OIL SEAL 2391
METHOD FOR INSTALLING ENGINE REAR OIL SEAL 2392
REMOVE AND INSTALL ENGINE HOOD ASSEMBLY .2400
METHOD FOR REMOVING ENGINE HOOD ASSEMBLY 2400
METHOD FOR INSTALLING ENGINE HOOD ASSEMBLY 2401
REMOVE AND INSTALL FUEL TANK ASSEMBLY .2404
METHOD FOR REMOVING FUEL TANK ASSEMBLY 2404
METHOD FOR INSTALLING FUEL TANK ASSEMBLY 2407
REMOVE AND INSTALL AdBlue/DEF TANK ASSEMBLY .2410
METHOD FOR REMOVING AdBlue/DEF TANK ASSEMBLY 2410
METHOD FOR INSTALLING AdBlue/DEF TANK ASSEMBLY 2416
REMOVE AND INSTALL AdBlue/DEF TANK SENSOR FLANGE ASSEMBLY .2421
METHOD FOR REMOVING AdBlue/DEF TANK SENSOR FLANGE ASSEMBLY 2421
METHOD FOR INSTALLING AdBlue/DEF TANK SENSOR FLANGE ASSEMBLY 2428
REMOVE AND INSTALL AdBlue/DEF TANK SENSOR .2432
METHOD FOR REMOVING AdBlue/DEF TANK SENSOR 2432
METHOD FOR INSTALLING AdBlue/DEF TANK SENSOR 2432
REMOVE AND INSTALL AdBlue/DEF TANK STRAINER .2434
METHOD FOR REMOVING AdBlue/DEF TANK STRAINER 2434
METHOD FOR INSTALLING AdBlue/DEF TANK STRAINER 2434
REMOVE AND INSTALL KDPF ASSEMBLY 2435
METHOD FOR REMOVING KDPF ASSEMBLY .2435
METHOD FOR INSTALLING KDPF ASSEMBLY .2438
DISASSEMBLE AND ASSEMBLE OF KDPF ASSEMBLY .2441
METHOD FOR DISASSEMBLING KDPF ASSEMBLY 2442
METHOD FOR ASSEMBLING KDPF ASSEMBLY .2445
REMOVE AND INSTALL SCR ASSEMBLY .2450
METHOD FOR REMOVING SCR ASSEMBLY 2450
METHOD FOR INSTALLING SCR ASSEMBLY 2453
REMOVE AND INSTALL KDPF, SCR ASSEMBLY .2456
METHOD FOR REMOVING KDPF, SCR ASSEMBLY 2457
METHOD FOR INSTALLING KDPF, SCR ASSEMBLY 2463
REMOVE AND INSTALL KDPF, SCR ASSEMBLY BRACKET .2468
METHOD FOR REMOVING KDPF, SCR ASSEMBLY BRACKET 2468
METHOD FOR INSTALLING KDPF, SCR ASSEMBLY BRACKET 2471
REMOVE AND INSTALL KCCV ASSEMBLY 2475
METHOD FOR REMOVING KCCV ASSEMBLY .2475
METHOD FOR INSTALLING KCCV ASSEMBLY .2476
REMOVE AND INSTALL AdBlue/DEF MIXING TUBE .2478
METHOD FOR REMOVING AdBlue/DEF MIXING TUBE 2479
METHOD FOR INSTALLING AdBlue/DEF MIXING TUBE 2482
REMOVE AND INSTALL AdBlue/DEF INJECTOR 2486
METHOD FOR REMOVING AdBlue/DEF INJECTOR .2486
METHOD FOR INSTALLING AdBlue/DEF INJECTOR .2488
REMOVE AND INSTALL AdBlue/DEF PUMP 2492
METHOD FOR REMOVING AdBlue/DEF PUMP .2492
METHOD FOR INSTALLING AdBlue/DEF PUMP .2495
REMOVE AND INSTALL AdBlue/DEF HOSE 2498
METHOD FOR REMOVING AdBlue/DEF HOSE .2499
METHOD FOR INSTALLING AdBlue/DEF HOSE .2505
REMOVE AND INSTALL AIR CLEANER ASSEMBLY .2513
METHOD FOR REMOVING AIR CLEANER ASSEMBLY 2513
METHOD FOR INSTALLING AIR CLEANER ASSEMBLY 2515
REMOVE AND INSTALL AIR CONDITIONER COMPRESSOR ASSEMBLY 2518
METHOD FOR REMOVING AIR CONDITIONER COMPRESSOR ASSEMBLY .2518
METHOD FOR INSTALLING AIR CONDITIONER COMPRESSOR ASSEMBLY .2519
REMOVE AND INSTALL AIR CONDITIONER CONDENSER ASSEMBLY .2521
METHOD FOR REMOVING AIR CONDITIONER CONDENSER ASSEMBLY 2521
METHOD FOR INSTALLING AIR CONDITIONER CONDENSER ASSEMBLY 2522
HYBRID SYSTEM .2525
REMOVE AND INSTALL HYBRID RADIATOR ASSEMBLY .2525
METHOD FOR REMOVING HYBRID RADIATOR ASSEMBLY 2525
METHOD FOR INSTALLING HYBRID RADIATOR ASSEMBLY 2527
REMOVE AND INSTALL HYBRID WATER PUMP ASSEMBLY .2529
METHOD FOR REMOVING HYBRID WATER PUMP ASSEMBLY 2529
METHOD FOR INSTALLING HYBRID WATER PUMP ASSEMBLY 2531
REMOVE AND INSTALL INVERTER ASSEMBLY 2534
METHOD FOR REMOVING INVERTER ASSEMBLY .2534
METHOD FOR INSTALLING INVERTER ASSEMBLY .2538
REMOVE AND INSTALL INVERTER AND CAPACITOR ASSEMBLY 2543
METHOD FOR REMOVING INVERTER AND CAPACITOR ASSEMBLY .2543
METHOD FOR INSTALLING INVERTER AND CAPACITOR ASSEMBLY .2548
REMOVE AND INSTALL MOTOR-GENERATOR AND HOUSING ASSEMBLY .2553
METHOD FOR REMOVING MOTOR-GENERATOR AND HOUSING ASSEMBLY 2554
METHOD FOR INSTALLING MOTOR-GENERATOR AND HOUSING ASSEMBLY 2557
REMOVE AND INSTALL ELECTRIC SWING MOTOR .2564
METHOD FOR REMOVING ELECTRIC SWING MOTOR 2564
METHOD FOR INSTALLING ELECTRIC SWING MOTOR 2568
POWER TRAIN .2574
REMOVE AND INSTALL TRAVEL MOTOR AND FINAL DRIVE ASSEMBLY 2574
METHOD FOR REMOVING TRAVEL MOTOR AND FINAL DRIVE ASSEMBLY .2574
METHOD FOR INSTALLING TRAVEL MOTOR AND FINAL DRIVE ASSEMBLY .2575
DISASSEMBLE AND ASSEMBLE FINAL DRIVE ASSEMBLY .2577
METHOD FOR DISASSEMBLING FINAL DRIVE ASSEMBLY .2578
METHOD FOR ASSEMBLING FINAL DRIVE ASSEMBLY 2582
REMOVE AND INSTALL ELECTRIC SWING MOTOR AND SWING MACHINERY ASSEMBLY 2590
METHOD FOR REMOVING ELECTRIC SWING MOTOR AND SWING MACHINERY ASSEMBLY .2590
METHOD FOR INSTALLING ELECTRIC SWING MOTOR AND SWING MACHINERY ASSEMBLY .2594
DISASSEMBLE AND ASSEMBLE SWING MACHINERY ASSEMBLY .2599
METHOD FOR DISASSEMBLING SWING MACHINERY ASSEMBLY .2599
METHOD FOR ASSEMBLING SWING MACHINERY ASSEMBLY 2606
REMOVE AND INSTALL SWING CIRCLE ASSEMBLY 2619
METHOD FOR REMOVING SWING CIRCLE ASSEMBLY .2619
METHOD FOR INSTALLING SWING CIRCLE ASSEMBLY .2619
UNDERCARRIAGE AND FRAME .2621
SEPARATION AND CONNECTION OF TRACK ASSEMBLY .2621
METHOD FOR SEPARATING TRACK ASSEMBLY 2621
METHOD FOR INSTALLING TRACK ASSEMBLY 2623
REMOVE AND INSTALL SPROCKET .2626
METHOD FOR REMOVING SPROCKET 2626
METHOD FOR INSTALLING SPROCKET 2626
REMOVE AND INSTALL IDLER AND IDLER CUSHION ASSEMBLY .2628
METHOD FOR REMOVING IDLER AND IDLER CUSHION ASSEMBLY 2628
METHOD FOR INSTALLING IDLER AND IDLER CUSHION ASSEMBLY 2629
DISASSEMBLE AND ASSEMBLE IDLER ASSEMBLY .2631
METHOD FOR DISASSEMBLING IDLER ASSEMBLY .2631
METHOD FOR ASSEMBLING IDLER ASSEMBLY 2632
DISASSEMBLE AND ASSEMBLE OF IDLER CUSHION ASSEMBLY 2636
METHOD FOR DISASSEMBLING IDLER CUSHION ASSEMBLY .2636
METHOD FOR ASSEMBLING IDLER CUSHION ASSEMBLY 2637
DISASSEMBLE AND ASSEMBLE TRACK ROLLER ASSEMBLY 2639
METHOD FOR DISASSEMBLING TRACK ROLLER ASSEMBLY 2640
METHOD FOR ASSEMBLING TRACK ROLLER ASSEMBLY .2641
DISASSEMBLEAND ASSEMBLE CARRIER ROLLER ASSEMBLY .2643
METHOD FOR DISASSEMBLING CARRIER ROLLER ASSEMBLY 2643
METHOD FOR ASSEMBLING CARRIER ROLLER ASSEMBLY .2645
REMOVE AND INSTALL REVOLVING FRAME ASSEMBLY .2648
METHOD FOR REMOVING REVOLVING FRAME ASSEMBLY 2648
METHOD FOR INSTALLING REVOLVING FRAME ASSEMBLY 2650
REMOVE AND INSTALL COUNTERWEIGHT ASSEMBLY .2653
METHOD FOR REMOVING COUNTERWEIGHT ASSEMBLY 2653
METHOD FOR INSTALLING COUNTERWEIGHT ASSEMBLY 2654
HYDRAULIC SYSTEM 2657
REMOVE AND INSTALL CENTER SWIVEL JOINT ASSEMBLY .2657
METHOD FOR REMOVING CENTER SWIVEL JOINT ASSEMBLY 2657
METHOD FOR INSTALLING CENTER SWIVEL JOINT ASSEMBLY 2659
DISASSEMBLE AND ASSEMBLE CENTER SWIVEL JOINT ASSEMBLY .2662
METHOD FOR DISASSEMBLING CENTER SWIVEL JOINT ASSEMBLY .2663
METHOD FOR ASSEMBLING CENTER SWIVEL JOINT ASSEMBLY 2664
REMOVE AND INSTALL HYDRAULIC TANK ASSEMBLY 2665
METHOD FOR REMOVING HYDRAULIC TANK ASSEMBLY .2665
METHOD FOR INSTALLING HYDRAULIC TANK ASSEMBLY .2668
REMOVE AND INSTALL MAIN PUMP ASSEMBLY .2672
METHOD FOR REMOVING MAIN PUMP ASSEMBLY 2672
METHOD FOR INSTALLING MAIN PUMP ASSEMBLY 2675
REMOVE AND INSTALL CONTROL VALVE ASSEMBLY .2678
METHOD FOR REMOVING CONTROL VALVE ASSEMBLY 2678
METHOD FOR INSTALLING CONTROL VALVE ASSEMBLY 2685
DISASSEMBLE AND ASSEMBLE CONTROL VALVE ASSEMBLY .2692
METHOD FOR REPLACING PRESSURE COMPENSATION VALVE SEAL RING 2692
METHOD FOR ASSEMBLING CONTROL VALVE ASSEMBLY 2694
DISASSEMBLE AND ASSEMBLE WORK EQUIPMENT PPC VALVE ASSEMBLY 2699
METHOD FOR DISASSEMBLING WORK EQUIPMENT PPC VALVE ASSEMBLY 2699
METHOD FOR ASSEMBLING WORK EQUIPMENT PPC VALVE ASSEMBLY .2700
DISASSEMBLE AND ASSEMBLE TRAVEL PPC VALVE ASSEMBLY 2702
METHOD FOR DISASSEMBLING TRAVEL PPC VALVE ASSEMBLY 2702
METHOD FOR ASSEMBLING TRAVEL PPC VALVE ASSEMBLY .2703
REMOVE AND INSTALL QUICK COUPLER VALVE 2705
WORK EQUIPMENT 2707
REMOVE AND INSTALL BUCKET ASSEMBLY 2707
METHOD FOR REMOVING BUCKET ASSEMBLY .2707
METHOD FOR INSTALLING BUCKET ASSEMBLY .2707
REMOVE AND INSTALL ARM ASSEMBLY .2709
METHOD FOR REMOVING ARM ASSEMBLY 2709
METHOD FOR INSTALLING ARM ASSEMBLY 2710
REMOVE AND INSTALL WORK EQUIPMENT ASSEMBLY 2712
METHOD FOR REMOVING WORK EQUIPMENT ASSEMBLY .2712
METHOD FOR INSTALLING WORK EQUIPMENT ASSEMBLY .2714
DISASSEMBLE AND ASSEMBLE WORK EQUIPMENT CYLINDER ASSEMBLY .2717
METHOD FOR DISASSEMBLING WORK EQUIPMENT CYLINDER ASSEMBLY .2717
METHOD FOR ASSEMBLING WORK EQUIPMENT CYLINDER ASSEMBLY 2720
CAB AND ITS ATTACHMENTS .2727
REMOVE AND INSTALL OPERATOR’S CAB ASSEMBLY 2727
METHOD FOR REMOVING OPERATOR CAB ASSEMBLY .2727
METHOD FOR INSTALLING OPERATOR CAB ASSEMBLY .2734
REMOVE AND INSTALL OPERATOR CAB GLASS (ADHERED GLASS) .2742
METHOD FOR REMOVING OPERATOR CAB GLASS (ADHERED GLASS) 2744
METHOD FOR INSTALLING OPERATOR CAB GLASS (ADHERED GLASS) 2744
REMOVE AND INSTALL FRONT WINDOW ASSEMBLY 2755
METHOD FOR REMOVING FRONT WINDOW ASSEMBLY .2755
METHOD FOR INSTALLING FRONT WINDOW ASSEMBLY .2758
REMOVE AND INSTALL FLOOR FRAME ASSEMBLY .2764
METHOD FOR REMOVING FLOOR FRAME ASSEMBLY 2764
METHOD FOR INSTALLING FLOOR FRAME ASSEMBLY 2769
REMOVE AND INSTALL AIR CONDITIONER UNIT ASSEMBLY 2774
METHOD FOR REMOVING AIR CONDITIONER UNIT ASSEMBLY .2774
METHOD FOR INSTALLING AIR CONDITIONER UNIT ASSEMBLY .2779
REMOVE AND INSTALL OPERATOR’S SEAT 2785
METHOD FOR REMOVING OPERATOR’S SEAT .2785
METHOD FOR INSTALLING OPERATOR’S SEAT .2787
REMOVE AND INSTALL SEAT BELT 2790
METHOD FOR REMOVING SEAT BELT .2790
METHOD FOR INSTALLING SEAT BELT .2790
REMOVE AND INSTALL FRONT WIPER ASSEMBLY .2792
METHOD FOR REMOVING FRONT WIPER ASSEMBLY 2792
METHOD FOR INSTALLING FRONT WIPER ASSEMBLY 2797
ELECTRICAL SYSTEM .2806
REMOVE AND INSTALL ENGINE CONTROLLER ASSEMBLY .2806
METHOD FOR REMOVING ENGINE CONTROLLER ASSEMBLY 2806
METHOD FOR INSTALLING ENGINE CONTROLLER ASSEMBLY 2808
REMOVE AND INSTALL PUMP CONTROLLER ASSEMBLY .2812
METHOD FOR REMOVING PUMP CONTROLLER ASSEMBLY 2812
METHOD FOR INSTALLING PUMP CONTROLLER ASSEMBLY 2815
REMOVE AND INSTALL KomVision CONTROLLER ASSEMBLY 2818
METHOD FOR REMOVING KomVision CONTROLLER ASSEMBLY .2818
METHOD FOR INSTALLING KomVision CONTROLLER 2819
REMOVE AND INSTALL MACHINE MONITOR ASSEMBLY .2820
METHOD FOR REMOVING MACHINE MONITOR ASSEMBLY 2820
METHOD FOR INSTALLING MACHINE MONITOR ASSEMBLY 2822
REMOVE AND INSTALL PUMP SWASH PLATE SENSOR 2826
METHOD FOR REMOVING PUMP SWASH PLATE SENSOR .2826
METHOD FOR INSTALLING PUMP SWASH PLATE SENSOR .2826
REMOVE AND INSTALL MASS AIR FLOW AND TEMPERATURE SENSOR .2828
METHOD FOR REMOVING MASS AIR FLOW AND TEMPERATURE SENSOR 2828
METHOD FOR INSTALLING MASS AIR FLOW AND TEMPERATURE SENSOR 2829
REMOVE AND INSTALL KCCV CRANKCASE PRESSURE SENSOR .2831
METHOD FOR REMOVING KCCV CRANKCASE PRESSURE SENSOR 2831
METHOD FOR INSTALLING KCCV CRANKCASE PRESSURE SENSOR 2832
REMOVE AND INSTALL SCR TEMPERATURE SENSOR .2833
METHOD FOR REMOVING SCR TEMPERATURE SENSOR 2833
METHOD FOR INSTALLING SCR TEMPERATURE SENSOR 2834
REMOVE AND INSTALL KomVision CAMERA .2836
METHOD FOR REMOVING KomVision CAMERA 2836
METHOD FOR INSTALLING KomVision CAMERA 2837
REMOVE AND INSTALL KOMTRAX TERMINAL ASSEMBLY 2839
METHOD FOR REMOVING KOMTRAX TERMINAL ASSEMBLY .2839
METHOD FOR INSTALLING KOMTRAX TERMINAL ASSEMBLY .2840
60 MAINTENANCE STANDARD .2843
CONTENTS 2844
ABBREVIATION LIST .2845
ENGINE AND COOLING SYSTEM .2851
MAINTENANCE STANDARD OF ENGINE MOUNT 2851
MAINTENANCE STANDARD OF COOLING SYSTEM 2853
POWER TRAIN .2855
MAINTENANCE STANDARD OF SWING CIRCLE 2855
MAINTENANCE STANDARD OF SWING MACHINERY WITH SWING PARKING BRAKE 2856
MAINTENANCE STANDARD OF FINAL DRIVE .2858
MAINTENANCE STANDARD OF SPROCKET 2860
MAINTENANCE STANDARD OF SPROCKET TOOTH PROFILE FULL-SCALE DRAWING .2861
UNDERCARRIAGE AND FRAME .2863
MAINTENANCE STANDARD OF TRACK FRAME AND IDLER CUSHION .2863
MAINTENANCE STANDARD OF IDLER .2865
MAINTENANCE STANDARD OF TRACK ROLLER 2867
MAINTENANCE STANDARD OF CARRIER ROLLER 2869
MAINTENANCE STANDARD OF TRACK SHOE 2870
MAINTENANCE STANDARD OF TRIPLE SHOE .2873
HYDRAULIC SYSTEM 2874
MAINTENANCE STANDARD OF HYDRAULIC TANK 2874
MAINTENANCE STANDARD OF MAIN PUMP .2875
MAINTENANCE STANDARD OF MAIN PUMP LS-EPC VALVE 2877
MAINTENANCE STANDARD OF MAIN PUMP PC-EPC VALVE 2878
MAINTENANCE STANDARD OF TRAVEL MOTOR 2879
MAINTENANCE STANDARD OF CONTROL VALVE .2882
MAINTENANCE STANDARD OF ANTI-DROP VALVE FOR BOOM 2894
MAINTENANCE STANDARD OF ANTI-DROP VALVE FOR ARM .2896
MAINTENANCE STANDARD OF WORK EQUIPMENT AND SWING PPC VALVE 2898
MAINTENANCE STANDARD OF TRAVEL PPC VALVE 2901
MAINTENANCE STANDARD OF 1ST-LINE ATTACHMENT PPC VALVE (WITH EPC VALVE) 2904
MAINTENANCE STANDARD OF EPC VALVE OF 1ST-LINE ATTACHMENT PPC VALVE 2905
MAINTENANCE STANDARD OF 2ND-LINE ATTACHMENT PPC VALVE .2907
MAINTENANCE STANDARD OF SOLENOID VALVE 2909
MAINTENANCE STANDARD OF ATTACHMENT CIRCUIT SELECTOR VALVE .2910
MAINTENANCE STANDARD OF CENTER SWIVEL JOINT .2911
WORK EQUIPMENT 2912
MAINTENANCE STANDARD OF WORK EQUIPMENT LINKAGE 2912
DIMENSION OF ARM 2917
DIMENSIONS OF BUCKET 2919
MAINTENANCE STANDARD OF BOOM CYLINDER .2921
MAINTENANCE STANDARD OF ARM CYLINDER 2922
MAINTENANCE STANDARD OF BUCKET CYLINDER .2923
80 APPENDIX .2925
CONTENTS 2926
ABBREVIATION LIST .2928
AIR CONDITIONER SYSTEM 2934
PRECAUTIONS FOR REFRIGERANT .2934
AIR CONDITIONER COMPONENT .2935
SPECIFICATIONS OF AIR CONDITIONER .2937
CONFIGURATION AND FUNCTION OF REFRIGERATION CYCLE .2938
OUTLINE OF REFRIGERATION CYCLE 2939
COMPONENT PARTS OF AIR CONDITIONER SYSTEM .2941
AIR CONDITIONER UNIT 2941
CONFIGURATION DIAGRAM OF AIR CONDITIONER UNIT .2941
FUNCTION OF AIR CONDITIONER UNIT 2943
COMPONENT PARTS OF AIR CONDITIONER UNIT .2945
FUNCTION OF EVAPORATOR AS AIR CONDITIONER UNIT COMPONENT 2946
FUNCTION OF HEATER CORE AS AIR CONDITIONER UNIT COMPONENT .2946
FUNCTION OF EVAPORATOR TEMPERATURE SENSOR AS AIR CONDITIONER UNIT COMPONENT .2946
FUNCTION OF SERVO MOTOR AS AIR CONDITIONER UNIT COMPONENT .2946
STRUCTURE OF EXPANSION VALVE AS AIR CONDITIONER UNIT COMPONENT 2947
FUNCTION OF EXPANSION VALVE AS AIR CONDITIONER UNIT COMPONENT .2947
OPERATE EXPANSION VALVE AS AIR CONDITIONER UNIT COMPONENT .2947
FUNCTION OF DUAL PRESSURE SWITCH 2948
AIR CONDITIONER CONTROLLER 2949
STRUCTURE OF AIR CONDITIONER CONTROLLER .2949
COMPRESSOR 2950
STRUCTURE OF COMPRESSOR .2950
SPECIFICATIONS OF COMPRESSOR 2950
FUNCTION OF COMPRESSOR 2950
CONDENSER .2951
STRUCTURE OF CONDENSER 2951
SPECIFICATIONS OF CONDENSER .2951
FUNCTION OF CONDENSER .2951
RECEIVER DRIER 2952
STRUCTURE OF RECEIVER DRIER .2952
SPECIFICATIONS OF RECEIVER DRIER 2952
FUNCTION OF RECEIVER DRIER 2952
SENSORS FOR AIR CONDITIONER SYSTEM 2953
STRUCTURE OF SUNLIGHT SENSOR 2953
FUNCTION OF SUNLIGHT SENSOR .2953
STRUCTURE OF AMBIENT TEMPERATURE SENSOR .2953
FUNCTION OF AMBIENT TEMPERATURE SENSOR 2953
EXPLANATION OF PROCEDURE FOR TESTING AND TROUBLESHOOTING OF AIR CONDITIONER .2955
CIRCUIT DIAGRAM AND ARRANGEMENT OF CONNECTOR PINS FOR AIR CONDITIONER .2957
AIR CONDITIONER SYSTEM DIAGRAM 2959
INPUT AND OUTPUT SIGNALS OF AIR CONDITIONER CONTROLLER 2960
FUNCTION OF AIR CONDITIONER CONTROLLER 2961
INSTALLATION LOCATIONS OF AIR CONDITIONER PARTS AND ARRANGEMENT OF CONNECTORS .2962
TESTING AIR LEAKAGE (DUCT) 2966
METHOD FOR TESTING AIR LEAKAGE (DUCT) .2966
TESTING AIR CONDITIONER USING SELF-DIAGNOSIS FUNCTION .2968
HOW TO OPEN THE ELECTRICAL SYSTEM ABNORMALITY RECORD SCREEN IN SERVICE MODE OF THE MACHINE MONITOR 2969
TEST VENT (MODE) CHANGEOVER .2970
METHOD FOR TESTING VENT (MODE) CHANGEOVER .2970
TESTING FRESH/RECIRC AIR CHANGEOVER .2972
METHOD FOR TESTING FRESH/RECIRC AIR CHANGEOVER 2972
TEST SUNLIGHT SENSOR 2973
METHOD FOR TESTING SUNLIGHT SENSOR 2973
TEST (DUAL) PRESSURE SWITCH FOR REFRIGERANT .2974
METHOD FOR TESTING (DUAL) PRESSURE SWITCH FOR REFRIGERANT .2974
TEST RELAYS .2976
METHOD FOR TESTING RELAYS .2976
AIR CONDITIONER TROUBLESHOOTING CHART 1 .2977
AIR CONDITIONER TROUBLESHOOTING CHART 2 .2979
INFORMATION DESCRIBED IN TROUBLESHOOTING TABLE 2982
FAILURE CODE [879AKA] .2984
FAILURE CODE [879AKB] .2985
FAILURE CODE [879BKA] .2986
FAILURE CODE [879BKB] .2988
FAILURE CODE [879CKA] .2990
FAILURE CODE [879CKB] .2991
FAILURE CODE [879DKZ] .2992
FAILURE CODE [879EMC] .2994
FAILURE CODE [879FMC] .2995
FAILURE CODE [879GKX] .2996
A-1 TROUBLESHOOTING FOR POWER SUPPLY SYSTEM (AIR CONDITIONER DOES NOT OPERATE) 2998
A-2 TROUBLESHOOTING FOR COMPRESSOR AND REFRIGERANT SYSTEM (AIR IS NOT COOLED) .3000
A-3 TROUBLESHOOTING FOR BLOWER MOTOR SYSTEM (NO AIR COMES OUT OR AIR FLOW IS ABNORMAL) 3003
A-4 TROUBLESHOOTING FOR FRESH/RECIRC AIR CHANGEOVER .3005
TROUBLESHOOTING USING GAUGE PRESSURE 3007
CONNECTION OF SERVICE TOOL 3010
METHOD FOR CONNECTING SERVICE TOOL 3010
PRECAUTIONS FOR DISCONNECTING AND CONNECTING HOSES AND TUBES IN AIR CONDITIONER PIPINGS .3012
HANDLE COMPRESSOR OIL .3014
90 CIRCUIT DIAGRAMS .3017
CONTENTS 3018
ABBREVIATION LIST .3019
HYDRAULIC CIRCUIT DIAGRAM .3025
SYMBOLS USED IN HYDRAULIC CIRCUIT DIAGRAM .3025
HYDRAULIC CIRCUIT DIAGRAM (1/2) .3029
HYDRAULIC CIRCUIT DIAGRAM (2/2) .3031
ELECTRICAL CIRCUIT DIAGRAM 3033
SYMBOLS USED IN ELECTRICAL CIRCUIT DIAGRAM 3033
ELECTRICAL CIRCUIT DIAGRAM (1/12) .3037
ELECTRICAL CIRCUIT DIAGRAM (2/12) .3039
ELECTRICAL CIRCUIT DIAGRAM (3/12) .3041
ELECTRICAL CIRCUIT DIAGRAM (4/12) .3043
ELECTRICAL CIRCUIT DIAGRAM (5/12) .3045
ELECTRICAL CIRCUIT DIAGRAM (6/12) .3047
ELECTRICAL CIRCUIT DIAGRAM (7/12) .3049
ELECTRICAL CIRCUIT DIAGRAM (8/12) .3051
ELECTRICAL CIRCUIT DIAGRAM (9/12) .3053
ELECTRICAL CIRCUIT DIAGRAM (10/12) 3055
ELECTRICAL CIRCUIT DIAGRAM (11/12) 3057
ELECTRICAL CIRCUIT DIAGRAM (12/12) 3059
INDEX 3061

DESCRIPTION:

Komatsu HB365LC-3,HB365NLC-3 Hydraulic Excavator Shop Manual UENBM00451 – PDF DOWNLOAD

SERIAL NUMBERS

• 5001 and up
• K70001 and up

FOREWORD, SAFETY, BASIC INFORMATION
HOW TO READ THE SHOP MANUAL
Composition of the shop manual
This shop manual contains technical information necessary to perform services in workshops. It is divided into
the following chapters for the ease of use.
00 INDEX AND FOREWORD
This section describes the index, foreword, safety, and basic information.
01 SPECIFICATIONS
This section describes the specifications of the machine.
10 STRUCTURE AND FUNCTION
This section describes the structure and operation of each component with respect to each system. “STRUCTURE
AND FUNCTION” is helpful in not only understanding the structure of each component but performing
troubleshooting.
20 STANDARD VALUE TABLE
This section describes the standard values for new machine and failure criteria for testing and adjusting, and
troubleshooting. Use the standard values table to check the standard values for testing and adjusting, and judge
troubles in troubleshooting.
30 TESTING AND ADJUSTING
This section describes the measuring tools and measuring methods for testing and adjusting as well as the adjusting
method of each part. The standard values and repair limit for TESTING AND ADJUSTING are described
in “STANDARD VALUE TABLE”.
40 TROUBLESHOOTING
This section describes troubleshooting of failure part and its remedy method on the occurrence of the failure.
Descriptions of troubleshooting are sorted by failure mode.
50 DISASSEMBLY AND ASSEMBLY
This section describes the special tools, work procedures, and safety precautions necessary for removal, installation,
disassembly, and assembly of the components and parts. In addition, tightening torques, quantity, and
weight of the coating materials, lubricants, and coolant necessary to these works are shown.
60 MAINTENANCE STANDARD
This section describes the maintenance standard value of each component. The maintenance standard shows
the criteria and remedies for disassembly and assembly.
80 THE OTHER INFORMATION
This section describes the structure and function, testing and adjusting, and troubleshooting for all of the other
components or equipment which cannot be separately classified in the appendix.
90 Circuit diagrams
This section describes hydraulic circuit diagrams and electrical circuit diagrams

G.B 31/12/24
