SERIAL NUMBER
WH713-1 WH714-1 WH714H-1 WH716-1
395F70001 and up 395F70002 and up 395F70003 and up 395F70004 and up
Description
Komatsu FORKLIFT WH713-1 WH714-1 WH714H-1,WH716 Telescopic Handler Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Komatsu FORKLIFT WH713-1 WH714-1 WH714H-1,WH716 Telescopic Handler Parts Manual – PDF DOWNLOAD
Language :English
Pages :307
Downloadable : Yes
File Type : PDF

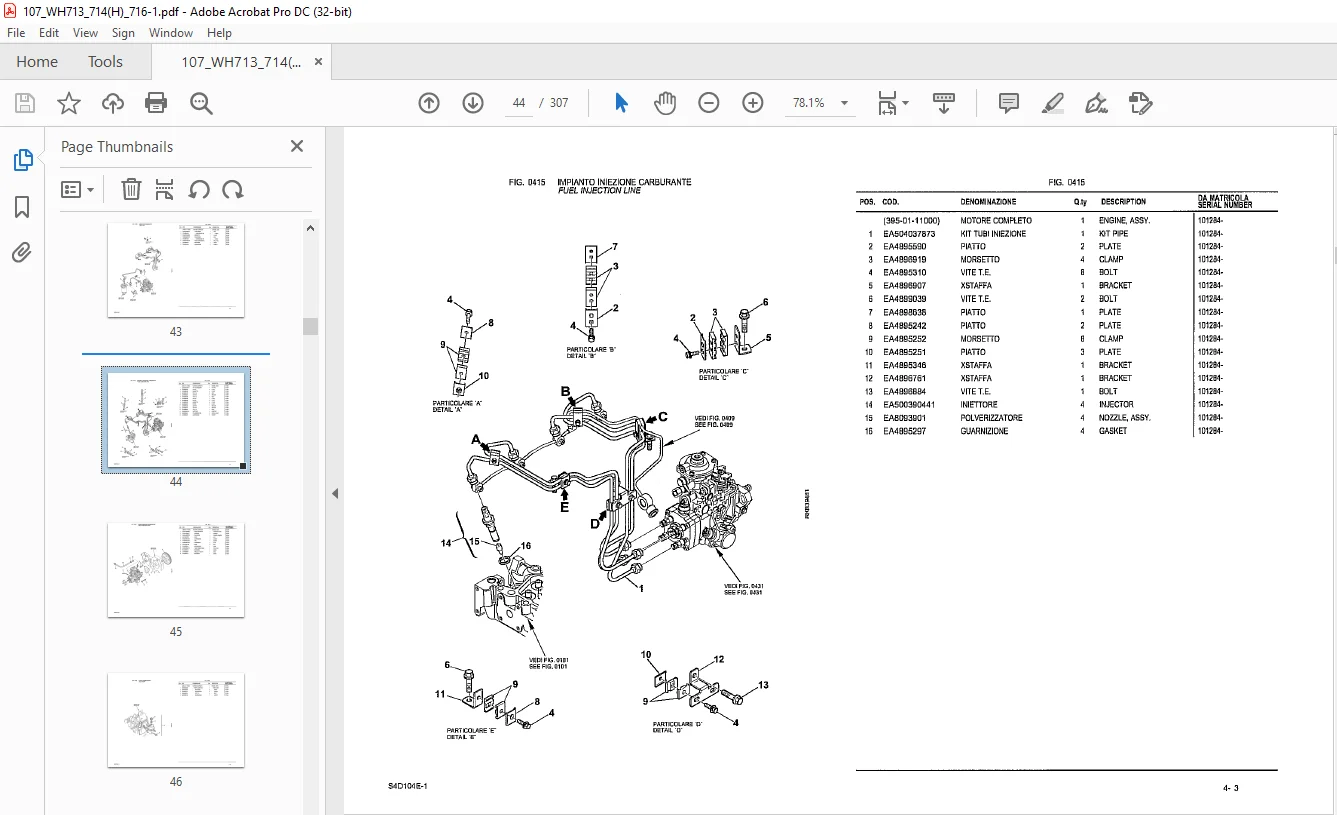

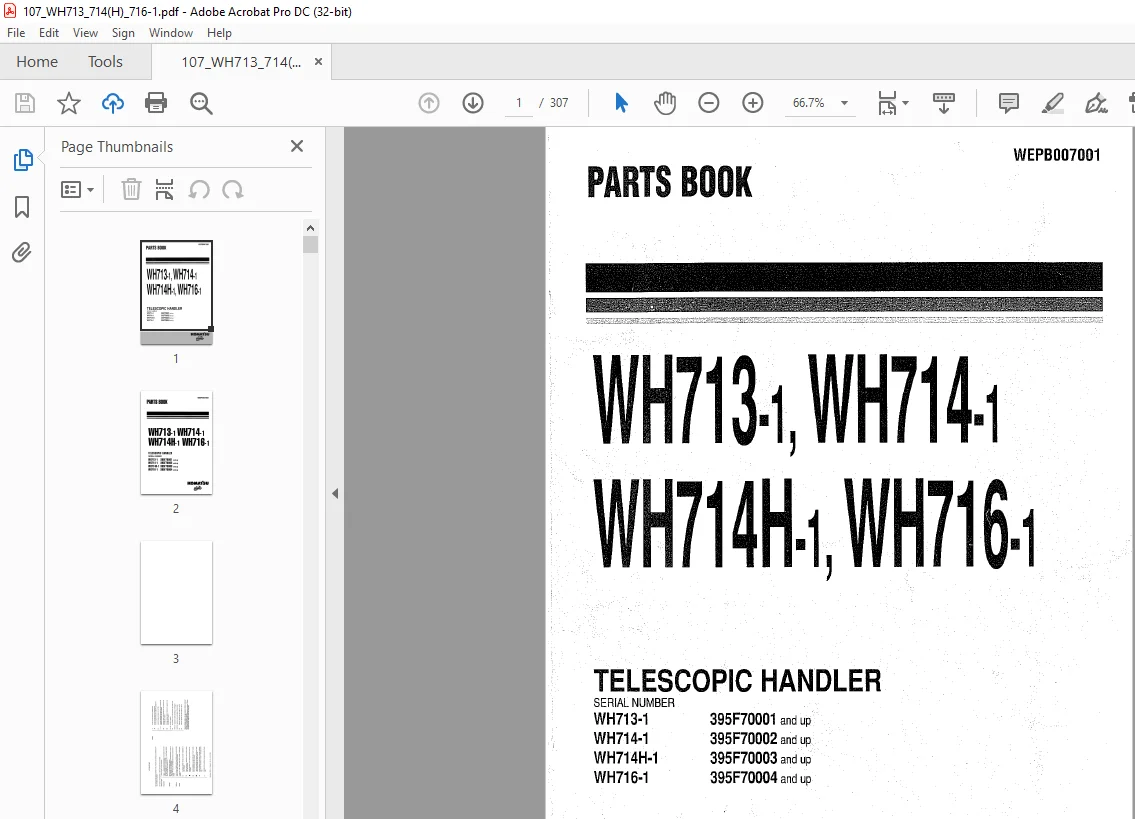

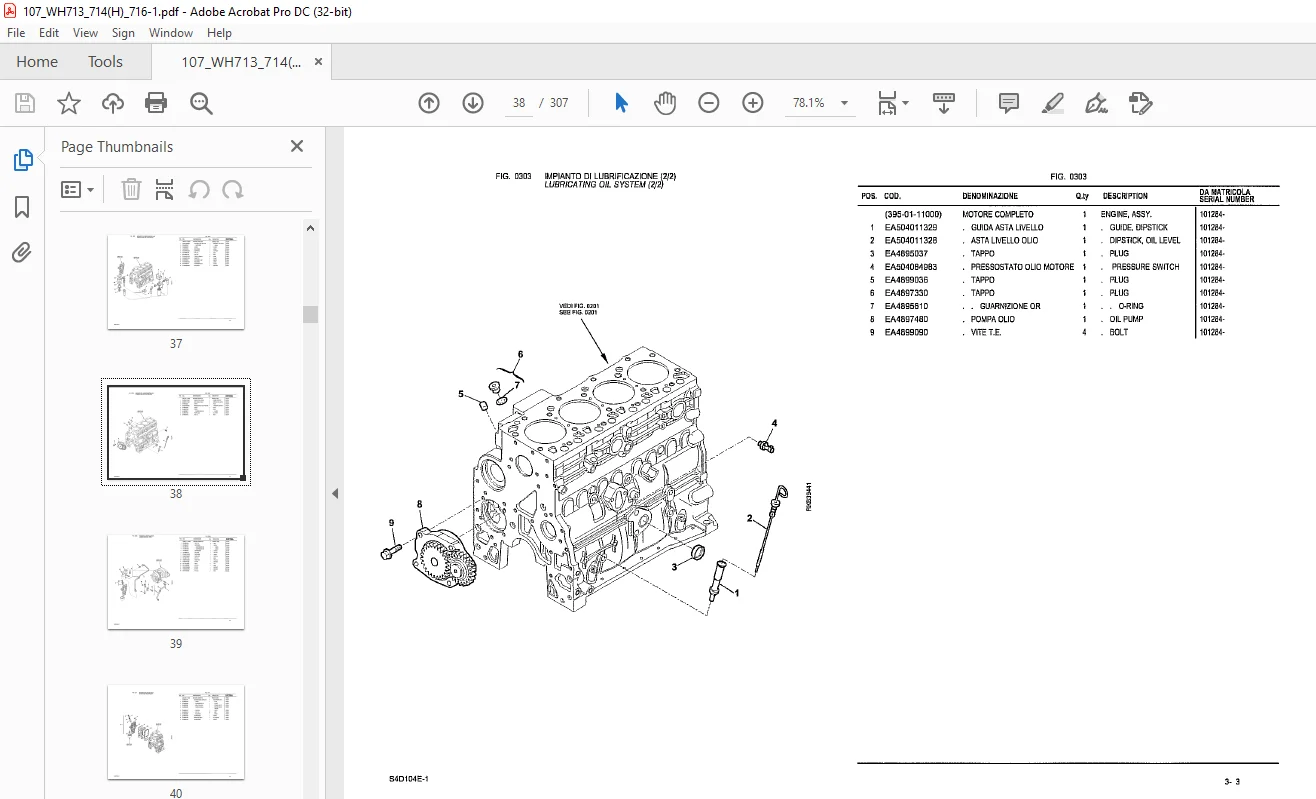

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Komatsu FORKLIFT WH713-1 WH714-1 WH714H-1,WH716 Telescopic Handler Parts Manual – PDF DOWNLOAD
SERIAL NUMBER
WH713-1 WH714-1 WH714H-1 WH716-1
395F70001 and up 395F70002 and up 395F70003 and up 395F70004 and up
FOREWORD
When ordering a part, please specify the model number, the engine serlal number and the read Ing of
the service meter.
TABLE OF CONTENTS:
Komatsu FORKLIFT WH713-1 WH714-1 WH714H-1 WH716 Telescopic Handler Parts Manual – PDF DOWNLOAD
SERIAL NUMBER
WH713-1 WH714-1 WH714H-1 WH716-1
395F70001 and up 395F70002 and up 395F70003 and up 395F70004 and up
0 MOTORE • ENGINE
01 TESTATA • CYLINDER HEAD
TESTATA (112)
CYLINDER HEAD (112)
TESTATA (2/2)
CYLINDER HEAD (212)
COPERCHI TESTATA MOTORE (1/2)
CYLINDER HEAD COVERS (112)
COPERCHI TESTATA MOTORE (2/2)
CYLINDER HEAD COVERS (212)
COLLETTORE ASPIRAZIONE
AIR INTAKE MANIFOLD
COLLETTORE Dl SCARICO (1/3)
EXHAUST MANIFOLD (113)
COLLETTORE DI SCARICO (2/3)
EXHAUST MANIFOLD (213)
COLLETTORE DI SCARICO (313)
EXHAUST MANIFOLD (313)
02 MONOBLOCCO • CYLINDER BLOCK
MONOBLQCCO
CYLINDER BLOCK
CDPERCHIO INGRANAGGI
GEAR HOUSING
COPEACHIO ANTERIORE
FRONT COVER
COPPA DUO
LUBRICATING OIL SUMP
COPERCHID CDPRIVOLANO
FLYWHEEL HOUSING
ALBERO A CAMME E INGRANAGGIO
CAMSHAFT AND DRIVING GEAR
ALBERO A GOMITI
CRANKSHAFT
PISTONE
PISTON
03 IMPIANTO DI LUBAIFICAZIONE • LUBRICATING OIL SYSTEM
IMPIANTO DI LUBAIFICAZIONE (1/2)
LUBRICATING OIL SYSTEM (112)
IMPIANTO DI LUBRIFICAZIONE (2/2)
LUBRICATING OIL SYSTEM (212)
lUBAZIONt LUBRIFICAZIONE
LUBRICATING OIL PIPIN
SCAMBIATOAE ACQUA
0/L-WATHER EXCHANGER
04 IMPIANTO COMBUSTIBILE • FUEL SYSTEM
IMPIANTO CARBURANTE
FUEL LINE
IMPIANTO INIEZIONE CARBURANTE
FUEL INJECTION LINE
POMPA INIEZIONE GARBURANTE
FUEL INJECTION PUMP
POMPA COMBUSTIBILE
FEED PUMP
FILTRO GOMBUSTIBILE
0439
FUEL FILTER
05 IMPIANTO DI RAFFREDDAMENTO • COOLING SYSTEM
COMANDO POMPA ACQUA
0501
WATER PUMP DRIVE
POMPA AGQUA
WATER PUMP
COOLING WATER SYSTEM
REGOLATORE DI TEMPERATURA
TEMPERATURE REGULATOR
AIR CONDITION/NG COMPRESSOR PULLEY
0,6 IMPJANTO ELETTRICO • ELECTRICAL SYSTEM
GENERATORE
0601
GENERATOR
MOTORINO AVVIAMENTO
STARTER MOTOR
10 PARTICOLAAI MOTORE E IMPIANTO ELETTRICO • ENGINE RELATED PARTS AND ELECTRICAL SYSTEM
SUPPORT! MOTORE
1000
ENGINE MOUNTING PARTS
VENTOLA MOTOAE
1020
ENGINE FAN
IMPIANTO ASPIRAZIONE
1100
AIR CLEANER AND MOUNTING
FILTRO
AIR FILTER
PREFILTRO A CICLONE (OPZIONALE)
1120
PREFILTER (OPTIONAL)
IMPIANTO TUBO DI SGAAIGO
1130
MUFFLER AND PIPING
MARMITTA
1160
MUFFLER
AADIATOAE (1/2}
RADIATOR (112)
AADIATOAE (2/2)
RADIATOR (212)
ELECTRICAL SYSTEM (ENGINE LINE) (112)
IMPJANTO ELETTRICO LINEA MOTOAE (212)
ELECTRICAL SYSTEM (ENGINE LINE) (212)
IMPIANTO ELETTRICO {LINEA ANTEAIOAE)
ELECTRICAL SYSTEM (FRONT LINE)
IMPJANTO ELETTRICO (LINEA POSTEAlORE)
ELECTRICAL SYSTEM (REAR LINE)
LAMPADA ROTANTE (OPZIDNALE)
REVOLVING LIGHT (OPTIONAL)
SENSORE SOLLEVAMENTO BRACCIO
LIFTING BOOM SENSOR
SENSORE DI CARICO
LOAD SENSOR
AVVISATOAE ACUSTICO DI AETAOMAACIA (OPZIONALE)
REVERSE ALARM (OPTIONAL)
FAAI DI LAVOAO ANTEAIORI (OPZIONALI)
FRONT WORK LIGHTS (OPTIONAL)
FARO DI LAVORO POSTEAIORE (OPZIONALE)
REAR WORK LIGHT (OPTIONAL)
TELAID (1/2)
FRAME(112)
TELAIO (2/2)
FRAME (212)
ZAVOARA
COUNTER WEIGHT
ZAVORRA (250 kg) (OPZIONALE) (WH714H•WH716)
COUNTER WEIGHT (250 kg) (OPTIONAL) (WH714H•WH716)
ZAVORRA (300 kg) (OPZlONALE) (WH714H·WH716)
COUNTER WEIGHT (300 kg) (OPTIONAL) (WH714H•WH716)
PROTEZJONE TUBAZIONI
PIPING PROTECTION
FISSAGGIO
AXLES FIXING
TRASMJSSIONE DEL
PROPELLER SHAFT
TRASMISSIONE (FISSAGGIO)
TRANSMISSION FIXING
TRASMISSIONE (1/14)
TRANSMISSION (1114)
TAASMISSIONE (2/14)
TRANSMISSION (2114)
TRASMISSIONE (3/14)
TRANSMISSION (3114)
TRASMISSIONE {4/14)
TRANSMISSION (4/14)
TRASMJSSIONE (5/14)
TRANSMISSION (5114)
lRASMISSIONE (6/14)
TRANSMISSION (6114)
TRASMISSIONE (7/14)
TRANSMISSION (7114)
TAASMISSIONE (B/14) WH7 AN’iAfWfj N (B1141 WH714H-WH716
TRANSMISSION (9/14)
TRASMISSIONE (10114)
TRANSMISSION (10114)
TRASMISSIONE (11114)
TRANSMISSION (11/14)
TRASMISSIONE (12/14)
TRANSMISSION (12114)
TRASMISSIONE (13114)
TRANSMISSION (13114}
TRASMISSIONE (14114)
TRANSMISSION (14114)
ASSALE ANTERIORE (1/6)
FRONT AXLE (116)
ASSALE ANTERIORE (2/6)
FRONT AXLE (216)
ASSALE ANTERIORE (3/6)
FRONT AXLE (316)
ASSALE ANTEAIORE (4/6)
FRONT AXLE (416)
ASSALE ANTERIORE (5/6)
FRONT AXLE (5/6)
ASSALE ANTERIORE (6/6)
FRONT AXLE (BIB)
ASSALE POSTERIOAE (116)
REAR AXLE (1/B)
ASSALE POSTERIORE (2/6)
REAR AXLE (216)
ASSALE POSTERIORE (316)
REAR AXLE (316)
ASSALE POSTERIORE (4/6)
REAR AXLE (4/6)
ASSALE POSTERIORE
REAR AXLE (516)
ASSALE POSTERIORE (616)
REAR AXLE (6/6)
LIVELLAMENTO TELAIO
FRAME LEVEL
BLOCCAGGIO ASSALE POSTERIORE (OPZIONALE)
REAR AXLE LOCKING (OPTIONAL)
AUOTE
WHEELS
AUOTE (OPZIONALI)
WHEELS (OPTIONAL)
PARAFANGHI
MUDGUARD
ACCELERATORE SU MOTOAE
ACCELERATOR (ENGINE)
TELAIO MOTOAE (113)
ENGINE FRAME (113)
TELAIO MOTORE (2/3)
ENGINE FRAME (213)
TELAIO MOTORE (3/3)
ENGINE FRAME (3/3)
50 COFANATURE E CABINA- GUARD AND OPERATOR’S CAB
COFANATURE VANO MOTORE
ENGINE SIDE COVER
INSONORIZZAZIDNE
SOUND-PROOFING
FISSAGGIO CABINA
CABIN FIXING
CABINA (1/11)
GAB (1111)
CAB (5/11)
GABINA (6/11),
CAB (6/11)
CAB (B/11)
CAB (10111)
CABINA (11111)
GAB (11111)
IMPIANTO ELETTR1CO CABINA (1/4)
ELECTRICAL SYSTEM (OPERATOR’S CAB) (114)
IMPlANTO ELETTRICO CABINA (214)
ELECTRICAL SYSTEM (OPERATOR’S CAB) (214)
IMPIANTO ELETTAICO CABINA (3/4)
ELECTRICAL SYSTEM (OPERATOR’S CAB) (314)
IMPIANTO ELETTAlCO CABINA (4/4)
ELECTRICAL SYSTEM (OPERATOR’S CAB) (5/4)
COFANATURA CABINA (PER RISCALDAMENTO E CONDIZIDNAMENTO) (113)
CABIN COVER (FOR HEATING AND CONDITION/NG) (1/3)
COFANATURA CABINA (PER RISCALDAMENTO) (213)
CABIN COVER (FOR HEATING) (213)
COFANATURA CABINA (PER CDNDIZIONATORE) (213)
CABIN COVER (FOR CONDITION/NG) (213)
COFANATURA CABINA (PEA RJSCALOAMENTO) (313)
CABIN COVER (FOR HEATING) (3/3)
COFANATURA CABINA (PER CONDIZIONATOAE)
CABIN COVER (FOR CONDITIONING) (313)
TERGICAISTALLO TE”TTO CABINA
WINDSH/ELD WIPER (ROOF)
PROTEZIONE FRONTALE (PER CABINA)
FRONT GUARD (FOR CAB)
SUPPORTI FARI ANTERIOR!
FRONT LIGHTS SUPPORTS
SUPPORTO FARO POSTERIORE
REAR LIGHT SUPPORTS
WH713 – WH714 WH714H- WH716
FRENO DI STAZlONAMENTO
PARKING BRAKE
SEDJLE OPERATORE
OPERATOR’S SEAT
SEDILE OPERATORE (OPZIONALE)
OPERATOR’S SEAT (OPTIONAL)
IMPIANTO RISCALDAMENTO
HEATING SYSTEM (112)
IMPIANTO RISCALDAMENTO
HEATING SYSTEM (212}
IMPIANTO ARIA CONDIZIONATA
AIR CONDITIONING SYSTEM
60 IMPIANTO 1DAAULICO ATTAEZZATURE DI LAVORO • WORI( EQUIPMENT CONTROL SYSTEM
SERBATOIO DUO
OIL TANK
DISTRIBUTORE (115) (WH713-WH714-WH714H)
CONTROL VALVE (115) (WH713-WH714·WH714HJ
DISTRIBUTORE (2/5) (WH713-WH714-WH714H)
CONTROL VALVE (215) (WH713-WH714-WH714H)
DISTRIBUTORE (315) (WH713-WH714·WH714H),
CONTROL VALVE (315) (WH713-WH714-WH714H)
DISTRIBUTORE (4/5) (WH713-WH714•WH714H)
CONTROL VALVE (415) (WH713-WH714-WH714H)
DISTRIBUTORE (5/5) (WH713-WH714-WH7111H)
CONTROL VALVE (515) (WH713-WH714-WH714H)
DISTRIBUTOAE (1/5) (WH716)
CONTROL VALVE (1/S) (WH716)
OISTRIBUTORE (2/5) (WH716)
CONTROL VALVE(215) (WH716)
DISTRIBUTORE (315) (WH716)
CONTROL VALVE(3/5) (WH716)
DISTRIBUTOAE (4/5) (WH716)
CONTROL VALVE(4/5) (WH716}
DISTRIBUTORE (5/5} (WH716)
CONTROL VALVE(S/5) (WH716)
POMPA FRENI
BRAKE PUMP
MANIPOLATORE
PPG VALVE
RACCORDI DISTRIBUTORE (WH713•WH714-WH714H)
CONTROL VALVE FITTING (WH713-WH714-WH714H)
RACCORDI DISTRIBUTORE (WH716)
CONTROL VALVE FITTING (WH716)
BLOCCO ELETTROVALVOLE (4 ELEMENT!)
SOLENOID VALVE GROUP (4-SPOOL)
IMPIANTO IDRAULICO ASPIRAZIONE
HYDRAULIC PIPING (SUCT/ONA LINE)
IMPIANTO IDRAULICO MANDATA (1/2)
HYDRAULIC PIPING (DELIVERY LINE) (112)
IMPJANTO IDRAULICO MANDATA (2/2)
HYDRAULIC PIPING (DELIVERY LINE) (212)
IMPIANTO IDRAULICO SCARICO (112)
HYDRAULIC PIPING (OIL COOLER AND RETURN LINE) (1/2)
IMPIANTO IDRAULICO SCARICO (212)
HYDRAULIC PIPING (OIL COOLER AND RETURN LINE) (212)
HYDRAULIC PIPING (TRANSMISSION)
IMPIANTO IDRAULICO LOAD SENSING
HYDRAULIC PIPING (LOAD SENSING)
JMPIANTO IDRAULICO MANDATA SERVOCOMANOI
HYDRAULIC PIPING (PPG VALVE DELIVERY LINE)
IMPIANTO lDRAULICO SERVOCOMANDO
HYDRAULIC PIPING (PPG PIPING)
IMPIANTO IDRAULICO FRENI {113)
HYDRAULIC PIPING (BRAKE LINE) (113)
IMPIANTO IDRAULICO FRENI (2/3)
HYDRAULIC PIPING (BRAl(E LINE) (213)
IMPIANTO IDRAULICO FRENI (3/3)
HYDRAULIC PIPING (BRAKE LINE) (313)
JMPIANTO IDRAULICO SERVOSTERZO (1/4)
HYDRAULIC PIPING (STEERING LINE) (114)
IMPIANTO IDRAULJCO SERVOSTERZO (2/4)
HYDRAULIC PIPING (STEERING LINE) (214)
IMPIANTO IDRAULICO SERVOSTERZO (3{4)
HYDRAULIC PIPING (STEERING LINE) (3/4)
IMPIANTO IDRAULICO SERVOSTERZO (414)
HYDRAULIC PIPING (STEERING LINE) (414)
IMPIANTO IDRAULICO LIVELLAMENTO TELAIO
HYDRAULIC PIPING (FRAME LEVEL CYLINDER)
JMPIANTO IDRAULICO BLOCCAGGIO ASSALE POSTERIOAE (OPZIONALE)
HYDRAULIC PIPING (REAR AXLE LOCKING CYLINDER) (OPTIONAL)
IMPIANTO IDRAULICO SOLLEVAMENTO BAACCIO
HYDRAULIC PIPING (ARM LIFTING CYLINDER)
IMPIANTO IDRAULICO CILINDRO DI COMPENSAZIONE
HYDRAULIC PIPING (COMPENSATING CYLINDER)
IMPIANTO IDRAULICO ESTENSIONE BRACCIO (1/2)
HYDRAULIC PIPING (BOOM EXTENSION CYLINDER) (1/2)
IMPIANTO IDRAULICO ESTENSIONE BRACCIO (2/2) HYDRAULIC PIPING (BOOM EXTENSION CYLINDER) (212)
lMPIANTO l□RAULICOROVESCIAMENTO (112)
HYDRAULIC PIPING (TILTING CYLINDER) (112)
IMPIANTO IDRAULICO ROVESCIAMENTO (2/2) (WH713-WH714-WH714H)
HYDRAULIC PIPING (TILTING CYLINDER) (212) (WH713-WH714-WH714H)
IMPIANTO IDRAULICO AOVESCIAMENTO {2/2) (WH716)
HYDRAULIC PIPING (TILTING CYLINDER) (212) (WH716)
IMPIANTO IDRAULICO AUSILIAAIO (1/2)
HYDRAULIC PIPING (AUXILIARY) (1/2)
IMPIANTO IDAAULICO AUSILIAR10 (2/2) (WH713-WH714-WH714H)
HYDRAULIC PIPING (AUXILIARY) (212) (WH713-WH714-WH714H)
IMPJANTO IDRAULICO AUSILIARIO (2/2) (WH716)
HYDRAULIC PIPING (AUXILIARY) (212) (WH716)
IMPIANTO IDAAULICO STABILIZZATORJ (1/2)
HYDRAULIC PIPING (OUTRIGGER CYLINDER LINE} (112}
IMPIANTO JDAAULICO STABILIZZATORI (2/2)
HYDRAULIC PIPING (OUTRIGGER CYLINDER LINE) (212)
ATTAEZZATURE DI LAVORO • WORK EQUIPMENT
BRACCIO PRINCIPALE (WH713-WH714-WH714HJ
BASIC BOOM (WH713-WH714-WH714H)
BRACCIO PRINCIPALE (WH716J
BASIC BOOM (WH716)
GRUPPO MARTINETTI SOLLEVAMENTO DI COMPENSAZIONE (1/2)
LIFTING AND COMPENSATING CYLINDERS (112)
GRUPP□ MARTINETTI SOLLEVAMENTO DI COMPENSAZIONE (2/2)
LIFTING AND COMPENSATING CYLINDERS (212)
MARTINETTO SOLLEVAMENTO
LIFTING CYLINDER
MARTINETTO DI COMPENSAZIONE
COMPENSATING CYLINDER
PROTEZIONE TUBAZJONI
PIPING PROTECT/ON
BRACCID INTERMEOIO (WH71JWH714•WH714H)
INTERMEDIATE BOOM (WH713•WH714-WH714H)
BRACCIO INTERMEDIO (WH716)
INTERMEDIATE BOOM (WH716)
BRACCIO FINALE (WH71JWH714•WH714H)
FINAL BOOM (WH713-WH714-WH714H)
BRACCIO FINALE (WH716)
FINAL BOOM (WH716)
ACCESSORI BRACCIO (1/2)
BOOM ACCESSORY (112)
ACCESSORI BRACCIO (2/2) (WH713)
BOOM ACCESSORY (212) (WH713)
ACCESSORI BRACCIO (2/2) {WH714-WH714HJ
BOOM ACCESSORY (212) (WH714-WH714H)
ACCESSDRI BAACCIO (2/2) (WH716)
BOOM ACCESSORY (212) (WH71B)
PATTINO DI SCORRIMENTO BRACCIO
BOOM SLIDING PAD
CHJUSURA POSTERIORE BRACCIO
BOOM REAR COVER
CHIUSURA POSTERIOAE BAACCIO (PER GERMANIAJ
BOOM REAR COVER (FOR GERMANY)
PRDTEZIONE TUBAZJONI
PIPING PROTECTION
CATENE BRACCIO (1/2) (WH713-WH714-WH714H)
CHAINS (112) (WH713-WH714•WH714H)
CATENE BRACCIO (1/2) (WH716)
CHAINS (112) (WH716)
CATENE BRACCIO (2/2) (WH71JWH714-WH714H)
CHAINS (2/2) (WH713-WH714-WH714HJ
CATENE BRACCIO (2/2) (WH716)
CHAINS (212) (WH71B)
MARTINETTO ESTENSIONE BRACCIO
EXTENSION BOOM CYLINDER (1/3)
MARTINETTO ESTENSIONE BRACC:10 (213) (WH713)
EXTENSION BOOM CYLINDER (213) (WH713)
MARTINETTO ESTENSIONE BRACCIO (213) (WH714-WH714H)
EXTENSION BOOM CYLINDER (2/3) (WH714-WH714H)
MARTINETTO ESTENSIONE BRACCIO (213) (WH716)
EXTENSION BOOM CYLINDER (2/3) (WH716)
MARTINETTO ESTENSIONE BAACCIO (313) (WH713)
EXTENSION BOOM CYLINDER (313) (WH713)
MARTINETTO ESTENSIDNE BRACCIO (3/3) (WH71-4-WH714H)
EXTENSION BOOM CYLINDER (3/3) (WH714-WH714H)
MARTINETTO ESTENS10NE BRACCIO (3/3) (WH716)
EXTENSION BOOM CYLINDER (313) (WH716)
MARTINETTO DI ROVESC1AMENTO
TILTING CYLINDER
SENNA (L= 232D mm) (OPZIONALE)
BUCKET (L= 2320 mm) (OPTIONAL)
SENNA (L=2420 mm) (OPZIONALE)
BUCKET (L”‘ 2420 mm) (OPTIONAL)
BENNA • 4 IN 1 (1/2)
BUCKET – 4 IN 1 (112)
SENNA· 4 IN 1 (2/2)
BUCKET· 4 IN 1 (212)
FORCA PALLET (WH713)
FORK (WH713)
FORCA PALLET (WH714-WH714H-WH716)
FORK (WH714-WH714H-WH716)
STASILIZZATORI ANTERIORl(t/2)
FRONT OUTRIGGER (112)
STABILIZZATORI ANTERIOR!
FRONT OUTRIGGER
MARTINETTO COMANDO STABILIZZATORI
OUTRIGGER
TELAIO PORTA ATTREZZI
EQUIPMENT CARRIER
PROTEZIONE TELAIO PORTA ATTREZZI
EQUIPMENT CARRIER GUARD
FISSAGGIO TELAlO PORTA ATTREZZI
FIXING EQUIPMENT CARRIER
ATTACCO RAPIDO IDRAULICO (1/2)
HYDRAULIC QUICK COUPLING (112)
ATTACCO RAPIDO IDRAULICO (2/2)
HYDRAULIC QUICK COUPLING (212)
MARTINETTO TELAIO ATTACCO RAPIOO
HYDRAULIC FAST COUPLING CYLINDER
TELAIO ATTACCO RAPIDO (OPZIONALE)
QUICK COUPLING FRAME (OPTIONAL)
TELAIO ATTACCO RAPID□(OPZIONALE) (FORCHE 3,7 ton)
QU/C/( COUPLING FRAME (OPTIONAL) (FORK 3 7 ten)
MARTINETTO LIVELLAMENTO TELAIO
FRAME LEVEL CYLINDER
MARTINETTO SLOCCAGGIO ASSALE POSTERIORE (OPZIONALE)
REAR AXLE LOCKING CYLINDER (OPTIONAL)
90 DECALCO • MARK PLATE DECALCO (WH713)
MARI( PLATE (WH713)
DECALCO (WH714)
MARK PLATE (WH714)
DECALCO (WH714H)
MARK PLATE (WH714H)
DECALCO (WH716)
MARK PLATE (WH716)
DIAGRAMMA DI CARICO (WH713)
(CON FORCHE STANDARD E RUOTE 155/B0-2412PA),
LOAD CHART (WITH STANDARD FORKS AND WHEELS 155/80-24 14PR)
DIAGRAMMA DI CARICO (WH713)
(CON FORCHE STANDARD, BLOCCAGGIO ASSALE POSTERIOAE E RUOTE 155/60-24 14PR)
LOAD CHART (WITH STANDARD FORKS REAR AXLE LOCKING AND WHEELS 155/B0-24 14PR)
DlAGRAMMA DI CARICO (WH713)
(CON FORCHE STANDARD E RUOTE 15,5/60·24 12PR) (WH713)
WAD CHART (WITH STANDARD FORKS AND WHEELS 155/BCJ24 14PR) (WH713}
DIAGRAMMA DI CARICO (WH713)
(CON FORCHE STANDARD, BLOCCAGGIO ASSALE POSTERIORE E RUOTE 155160-24 14PR)
LOAD CHART(WITH STANDARD FORKS, REAR AXLE LOCmNG AND WHEELS 155/BCJ24 14PR
DIAGRAMMA DI CARICO (CON FORCHE STANDARD) (WH714)
LOAD CHART (WITH STANDARD FORKS} (WH714)
DIAGRAMMA DI CARICO
(CON FORCHE STANDARD E BLOCCAGGIO ASSALE POSTERIORE (WH714)
LOAD CHART (WITH STANDARD FORKS AND REAR AXLE LOCKING) (WH714}
DJAGRAMMA DI CARICO (CON FORCHE STANDARD) (WH714H)
LOAD CHART (WITH STANDARD FORKS) (WH714H}
DIAGRAMMA DI CARICO
(CON FORCHE STANDARD E BLOCCAGGIO ASSALE POSTERIORE) (WH714H) ,
LOAD CHART (WITH STANDARD FORKS AND REAR AXLE LOCKING) (WH714HJ
DIAGRAMMl DI CARICO
LOAD CHARTS (WH716}
ATTREZZI IN DOTAZIONE
TOOLS
ACCESSORI PER CIRCOLAZIONE STRADALE
EQUIPMENT (FOR ROAD CIRCULATION)
ACCESSORI PER GERMANIA (SOLO VERSIONE 20 KM/H)
ACCESSOIRES FOR GERMANY (20 KM/H VERSION) (1/3)
ACCESSORI PER GERMANIA (SOLO VERSIONE 20 KM/H)
ACCESSOIRES FOR GERMANY (20 KM/H VERSION) (213)
ACCESSORI PER GERMANIA (SOLO VERSIONE 20 KM/H)
ACCESSO/RES FOR GERMANY (20 KM/H VERSION) (3/3)
ACCESSORI PER GERMANIA (SOLO VERSIONE 40 KM/H)
ACCESSOJRES FOR GERMANY (4D KM/H VERSION) (1/3)
ACCESSORI PER GERMANIA (SOLO VERSIONE 40 KM/H)
ACCESSOIRES FOR GERMANY (40 KM/H VERSION) (213)
ACCESSORI PER GERMANIA (SOLO VERSIONE 40 KM/H)
ACCESSOIRES FOR GERMANY (4D KM/H VERSION) (313)
ACCESSORI PER GERMANIA (WH716)
ACCESSOIRES FOR GERMANY (WH716)
BLOCCO
BLOCK FORK
INDICE ALFANUMERICO • ALPHANUMERIC INDEX
INDICE ALFANUMERICO
ALPHANUMERIC INDEX
PAOTEZIONE VENTOLA
FAN PROTECTION
SEABATOIO GASOL10
FUEL TANK
IMPIANTO COMBUSTIBILE
FUEL PIPING
BATTERlA
BATTERY
S.M 26/1/25
