Komatsu Forklift FG (D)20/25/30-11 FG (D) 20H/25H-11 F030H-11 FG (D) 20N/25N/30N-11 FORK LIFT TRUCK (CHASSIS) Parts Manual

Description

Komatsu Forklift FG (D)20/25/30-11 FG (D) 20H/25H-11 F030H-11 FG (D) 20N/25N/30N-11 FORK LIFT TRUCK (CHASSIS) Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Komatsu Forklift FG (D)20/25/30-11 FG (D) 20H/25H-11 F030H-11 FG (D) 20N/25N/30N-11 FORK LIFT TRUCK (CHASSIS) Parts Manual – PDF DOWNLOAD

Language :English
Pages :219
Downloadable : Yes
File Type : PDF

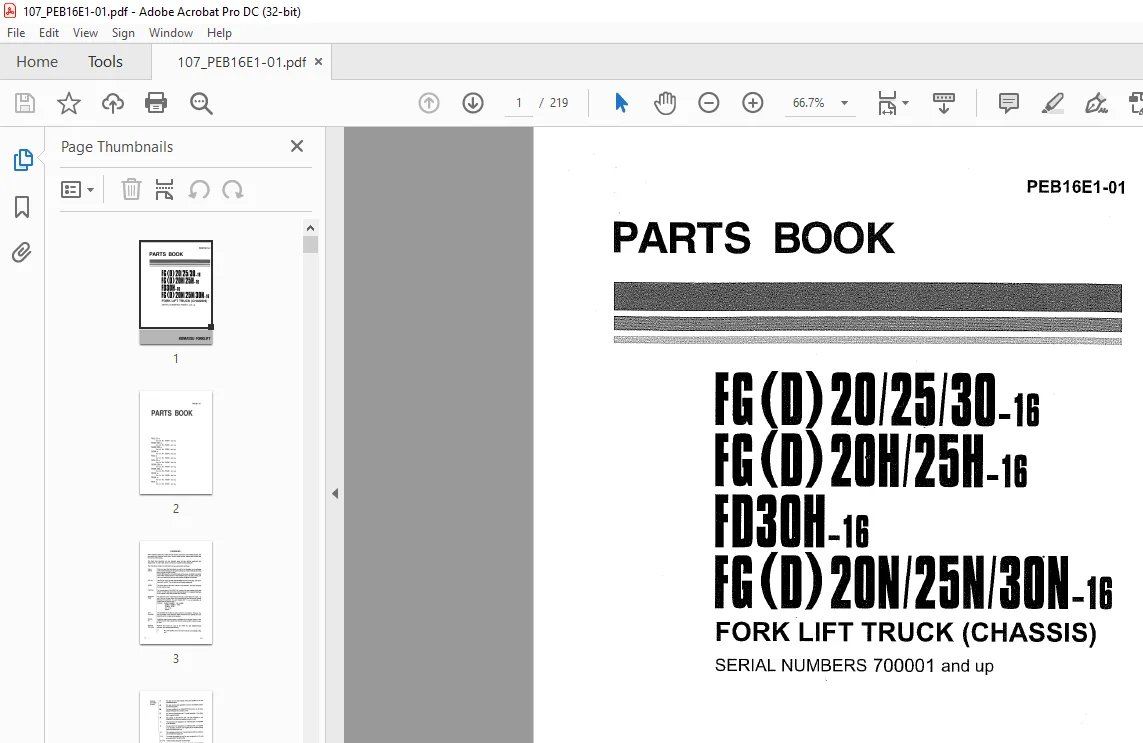

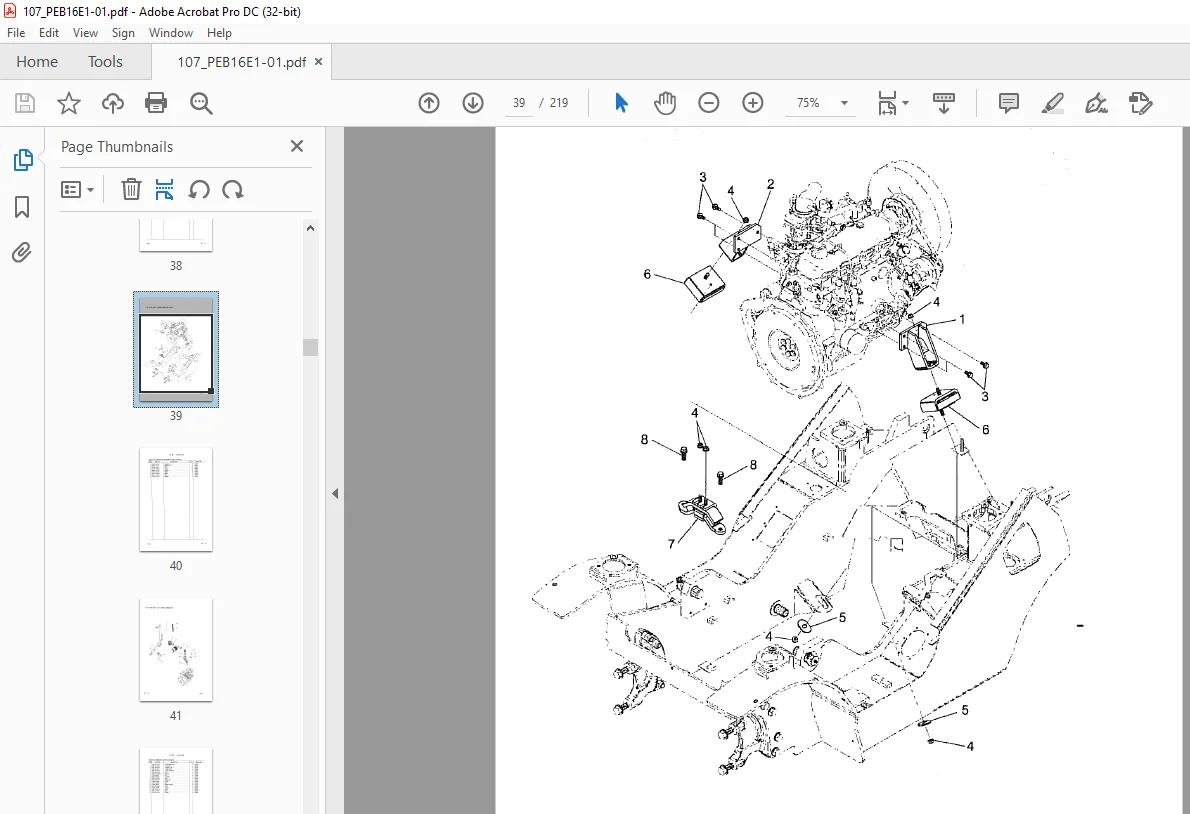

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Komatsu Forklift FG (D)20/25/30-11 FG (D) 20H/25H-11 F030H-11 FG (D) 20N/25N/30N-11 FORK LIFT TRUCK (CHASSIS) Parts Manual – PDF DOWNLOAD

FOREWORD OF- 2
CONTENTS OCAO[
ENGINE RELATED PARTS] FIG NO PAGE
ENGINE UNIT (DRY CLUTCH AND TORQUE CONVERTER SPEC)
(01, Dl N, D2, D2N) M 110-01 AO AO- 2
ENGINE UNIT (DRY CLUTCH AND TORQUE CONVERTER SPEC) (D1H,D2H) A4110-01A2 AO- 4
ENGINE UNIT (DRY CLUTCH AND TORQUE CONVERTER SPEC) (Gl,GlN) A4110-01A5 AO- 6
ENGINE UNIT (DRY CLUTCH AND TORQUE CONVERTER SPEC) (G1H,G2,G2N) A4110-01AB AO- 8
ENGINE MOUNTING PARTS (D1,D1H,D1N,D2,D2H,D2N) A4120-01AO AO- 10
ENGINE MOUNTING PARTS (G1,G1H,G1N,G2,G2N) A4120-01A5 AO- 12
AIR INTAKE CONNECTION (01 DlN, D2, 02N) A4140-01AO AO- 14
AIR INTAKE CONNECTION (DlH, D2H) A4140-01A2 AO- 16
AIR INTAKE CONNECTION (G1,G1H,G1N,G2,G2N) A4140-01A5 AO- 18
BO[EXHAUST PARTS]
MUFFLER AND EXHAUST CONNECTION (D1,D1H,02,D2H) 84110-0lAO BO- 2
MUFFLER AND EXHAUST CONNECTION (D1N,02N) 84110-01A1 80- 4
MUFFLER AND EXHAUST CONNECTION (G1,G1H,G2) B4110-01A5 BO- 6
MUFFLER AND EXHAUST CONNECTION (GlN, G2N) B4110-01A6 BO- B
CO[COOLING SYSTEM]
RADIATOR (DRY CLUTCH SPEC) (D1, D2) C4110-01AO co- 2
RAD !ATOR (DRY CLUTCH SPEC) (G1, G1H, G2) C4110-01A4 co- 4
RADIATOR (TORQUE CONVERTER SPEC) (G1, G1H,G1N,G2G2N) C4110-01A5 co- 6
SHROUD AND HOSE (D1,D1H,01N,02,D2H,D2N) C4130-01AO co- 8
SHROUD AND HOSE (G1, G1H, G1N, G2, G2N) C4130-01A1 co- 10
TORQUE CONVERTER COOLER PIPING (D1D1N,D2,D2N,G1,G1H,G1N,G2,G2N) C4140-01AO co- 12
TORQUE CONVERTER COOLER PIPING (DlH, 02H) C4140-01A1 co- 14
RESERVOIR TANK (01, DlH, DlN, D2, D2H, D2N) C4160-01AO co- 16
RESERVOIR TANK (G1,G1H,G1N,G2,G2N) C4160-01A1 co- 18
BACK COVER (DRY AND WET CLUCH SPEC) (D1D1H02,D2H) C4170-01AO co- 20
BACK COVER (TORQUE CONVERTER SPEC) (D1,01ND2D2N) C4170-01A1 co- 22
BACK COVER (TORQUE CONVERTER SPEC) (DlH, 02H) C4170-01A2 co- 24
BACK COVER (DRY AND WET CLUCH SPEC) (Gl, G1H, G2) C4170-01A5 co- 26
BACK COVER (TORQUE CONVERTER SPEC) (G1,G1H,G1N,G2,G2N) C4170-01A6 co- 28
DO[FUEL TANK AND RELATED PARTS]
FUEL SYSTEM (D1,01H,01N,D2,D2H,02N) D4110-01AO DO- 2
BX-4 oc- 1
FIG NO PAGE
FUEL SYSTEM (G1,G1H,G1N,G2,G2N) 04110-DlAl 00- 4
FO[POWER TRAIN AND FRONT AXLE]
DRIVE AXLE (HOUSING AND HUB) (1/4) (D1,D1H,G1,G1H) F4100-01AO FO- 2
DRIVE AXLE (HOUSING AND HUB) (1/4) (02, 02H, G2) F4100-01A1 FO- 4
DRIVE AXLE (HOUSING AND HUB) (1/4) (DlN, D2N, GlN, G2N) F4100-D1A3 FO- 6
DRIVE AXLE (DIFFERENTIAL GEAR) (2/4) F4100-02AO FO- 8
DR I VE AXLE (COUPLING SHAFT AND WHEEL BRAKE) (3/ 4)
(01 D1H, DlN, 02N, G1 GlH, GlN, G2N) F4100-03AO FO- 10
ORI VE AXLE (COUPLING SHAFT AND WHEEL BRAKE) (3/4) (02, D2H, G2) F4100-03A1 FO- 12
DRIVE AXLE (WHEEL BRAKE INNNER PARTS) (4/4)
(01, DlH, DlN, 02N, G1, GlH, GlN, G2N) F4100-51AO FO- 14
ORI VE AXLE (WHEEL BRAKE INNNER PARTS) (4/4) (02, 02H, G2) F4100-51A1 FO- 16
DRY CLUTCH (01, DlH 02, 02H, G1 G1H, G2) F4160-01AO FO- 18
WET CLUTCH (D1D1HD2D2H,G1,G1H,G2) F4160-11AO FO- 20
TORQUE CONVERTER MOUNTING PARTS AND INNER PARTS (1/2) F4160-21AO FO- 22
TORQUE CONVERTER MOUNTING PARTS AND INNER PARTS (2/2)
(01 DlH, 02, D2H, Gl, GlH, G2) F4160-22AO FO- 24
TORQUE CONVERTER MOUNTING PARTS AND INNER PARTS (D1N,D2N,G1N,G2N) F4160-22A1 FO- 26
DIRECT DRIVE TRANSMISSION (1/3) (D1,D1HD2,D2H, G1,G1H,G2) F4160-31AO FO- 28
DIRECT DRIVE TRANSMISSION (2/3) (D1,D1H,D2,D2H,G1,G1H,G2) F4160-32AO FO- 30
DIRECT DRIVE TRANSMISSION (2/3) (FOR VEHICLE INSPECTION SPEC)
(01 02, G1, G2) F4160-32A1 FO- 32
DIRECT DRIVE TRANSMISSION (3/3) (FOR DRY CLUTCH)
(01, DlH, 02, 02H, G1, GlH, G2) F4160-33AO FO- 34
DIRECT DRIVE TRANSMISSION (3/3) (FOR DRY CLUTCH) (FOR VEHICLE
INSPECTION SPEC) (01, 02, Gl G2) F4160-33A1 FO- 36
DIRECT DRIVE TRANSMISSION (3/3) (FOR WET CLUTCH)
(D1D1H,D2,D2H,G1,G1H,G2) F4160-33A2 FO- 38
TORQUE FLOW DRIVE TRANSMISSION (1/6) F4160-41AO FO- 40
TORQUE FLOW DRIVE TRANSMISSION (2/6) F4160-42AO FO- 42
TORQUE FLOW DR I VE TRANSMISSION (3/6) F4160-43AO FO- 44
TORQUE FLOW DRIVE TRANSMISSION (4/6) F4160-44AO FO- 46
TORQUE FLOW DRIVE TRANSMISSION (5/6) (SOLENOID VALVE INNER PARTS) F4160-45AO FO- 48
TORQUE FLOW DRIVE TRANSMISSION (6/6) F4160-46AO FO- 50
CLUTCH RELEASE CYLINDER (D1D1HD2,D2H,G1,G1HG2) F4160-51AO FO- 52
QC- 2 BX-4
HO[STEERING SYSTEM AND REAR AXLE] FIG NO PAGE
STEERING AXLE (1/2) (INCLUDE POWER STEERING CYLINDER BOOT SPEC)
(D1D1HG1G1H) H4110-01BO HO- 2
STEERING AXLE (1/2) (INCLUDE POWER STEERING CYLINDER BOOT SPEC)
(D2, D2H, G2) H4110-01B1 HO- 4
STEERING AXLE (2/2) (INCLUDE POWER STEERING CYLINDER BOOT SPEC)
(D1 D1H D2 D2H Gl G1H G2) H4110-02BO HO- 6
STEERING AXLE (1/2) (INCLUDE POWER STEERING CYLINDER BOOT SPEC)
(Dl N D2N, GlN G2N) H4110-11BO HO- 8
STEERING AXLE (2/2) (INCLUDE POWER STEERING CYLINDER BOOT SPEC)
(D1ND2NG1NG2N) H4110-12BO HO- 10
STEERING AXLE (POWER CYLINDER INNER PARTS) (D1ND2NG1NG2N) H4110-61AO HO- 12
JO[FRONT AND REAR WHEELS]
FRONT WHEEL (700-12-12PR) (J-LUG) (D1D1H,G1G1H) J4110-01AO JO- 2
FRONT WHEEL (7 00-12) (ELASTIC CUSHION) (J-LUG) (D1 D1H, G1, GlH) J4110-01A3 JO- 4
FRONT WHEEL (22 1/4X7 1/2-15/550) (SSC T) (D1N,D2NG1N,G2N) J4110-01A6 JO- 6
FRONT WHEEL (SOLID CUSHION TIRE) (PRESS ON-TYPE) (FOR VEHICLE
INSPECT ION) (D1N, D2N, G1N, G2N) J4110-01A7 JO- 8
FRONT WHEEL (28X9-15-12PR) (J-LUG) (D2 D2H G2) J4110-01B1 JO- 10
FRONT WHEEL (28X9-15) (ELASTIC CUSHION) (J-LUG) (D2,D2H,G2) J4110-01B4 JO- 12
FRONT WHEEL (700-12-12PR) (WIDE TREAD) (J-LUG) (D1,D1H,G1,G1H) J4110-11AO JO- 14
FRONT WHEEL (28X9-15-12PR) (WI DE TREAD) (J-LUG) (D2, D2H, G2) J4110-11 A 1 JO- 16
FRONT WHEEL (7 00-12) (WIDE TREAD) (ELASTIC CUSHION) (J-LUG)
(D1, DlH Gl, GlH) J4110-11A2 JO- 18
FRONT WHEEL (28X9-15) (WI DE TREAD) (ELASTIC CUSH I ON) (J-LUG)
(D2, D2H G2) J4110-11A3 JO- 20
FRONT WHEEL (5 50-15-8PR) (DOUBLE TIRE) (J-LUG) (D1 DlH, Gl G1H) J4110-21AO JO- 22
FRONT WHEEL (6 00-15-lOPR) (DOUBLE TIRE) (J-LUG) (D2, D2H G2) J4110-21A1 JO- 24
FRONT WHEEL (5 50-15) (DOUBLE TI RE) (ELASTIC CUSH I ON) (J-LUG)
(D1 DlH, Gl GlH) J4110-21A3 JO- 26
FRONT WHEEL (6 00-15) (DOUBLE TI RE) (ELASTIC CUSH I ON) (J-LUG)
(D2 D2H G2) J4110-21A4 JO- 28
REAR WHEEL (6 00-9-lOPR) (J-LUG) (Dl, DlH, G1 GlH) J4120-01AO JO- 30
REAR WHEEL (6 50-10-lOPR) (J-LUG) (D2, D2H, G2) J4120-01A1 JO- 32
REAR WHEEL (6 00-9) (ELASTIC GUSHI ON) (J-LUG) (Dl, DlH, G1, GlH) J4120-01A3 JO- 34
REAR WHEEL (650-10) (ELASTIC CUSHION) (J-LUG) (D2D2H,G2) J4120-01A4 JO- 36
REAR WHEEL (17 1/2X6-10/5 00) (S S C T) (Dl N, D2N, Gl N, G2N) J4120-01 A6 JO- 38
BX-4 OG- 3
FIG NO PAGE
REAR WHEEL (16 1/4X6X11 1/4) (SOLID CUSHION TIRE) (PRESS
ON-TYPE) (FOR VEHICLE INSPECT I ON) (Dl N D2N Gl N G2N) J4120-01 A 7 JO- 40
TIRE CHAIN (FOR SINGLE TIRE) (D1D1H,D2,D2H,G1,G1H,G2) J4130-01AO JO- 42
TIRE CHAIN (FOR DOUBLE TIRE) (D1D1H,D2,D2H,G1,G1H,G2) J4130-01A1 JO- 44
FRONT WHEEL HUB NUT (FOR SINGLE TIRE) J4140-01AO JO- 46
FRONT WHEEL HUB NUT (FOR DOUBLE TIRE) (D1,D1H,D2,D2H,G1,G1H,G2) J4140-01A1 JO- 48
FENDER (WIDE TREAD) (Dl, DlH, Gl, GlH) J4150-01AO JO- 50
FENDER (WI DE TREAD) (D2, D2H, G2) J4150-01 A 1 JO- 52
FENDER (FOR DOUBLE TIRE) (D1D1H,G1,G1H) J4150-01A2 JO- 54
FENDER (FOR DOUBLE TI RE) (D2, D2H, G2) J4150-01 A3 JO- 56
KO[BRAKE SYSTEM]
PARKING BRAKE LEVER K4120-01AO KO- 2
BRAKE PIPING K4130-01AO KO- 4
LO[TRAVEL CONTROL]
STEER I NG COLUMN L4110-01BO LO- 2
POWER STEERING VALVE (INNER PARTS) L4110-51BO LO- 4
STEER I NG WHEEL L4120-01 AO LO- 6
TRANSMISSION SHIFT LEVER (A-TYPE) (D1,D1H,D2,D2H,G1,G1H,G2) L4140-01AO LO- 8
BRAKE AND CLUTCH PEDAL (DRY CLUTCH SPEC)
(Dl, DlH, D2, D2H, Gl, GlH, G2) L4150-01AO LO- 10
BRAKE AND INCHING PEDAL (TORQUE CONVERTER SPEC) L4150-01A2 LO- 12
MASTER CYLINDER (FOR BRAKE) L4150-51AO LO- 14
BRAKE AND CLUTCH PEDAL (CLUTCH RELEASE CYLINDER INNER PARTS)
(Dl, DlH, D2, D2H, Gl, GlH, G2) L4150-52AO LO- 16
BRAKE AND CLUTCH PEDAL (RESERVOIR INNER PARTS) (DRY CLUTCH
SPEC ) (Dl, Dl H, D2, D2H, Gl Gl H, G2) L4150-53AO LO- 18
BRAKE AND CLUTCH PEDAL (RESERVOIR INNER PARTS) (TORQUE CONVERTER
SPEC) L4150-53A2 LO- 20
ACCELERATOR PEDAL (Dl Dl H 01 N, 02, 02H, D2N) L4160-01AO LO- 22
ACCELERATOR PEDAL (Gl GlH, GlN, G2, G2N) L4160-01A1 LO- 24
MO[FRAME RELATED PARTS]
FRAME (Dl, DlH, D2, 02H, Gl, GlH, G2) M4110-01AO MO- 2
FRAME (DlN 02N, GlN G2N) M4110-01A3 MO- 4
COUNTER WEIGHT (Dl DlH, 02, D2H, Gl, GlH, G2) M4120-01AO MO- 6
COUNTER WEIGHT (DlN, D2N, GlN, G2N) M4120-01A3 MO- 8
COUNTER WEIGHT CAP M4150-01AO MO- 10
DC- 4 BX-4
FIG NO PAGE
FUEL CAP (D1,D1H,D2,D2H,Gl,G1H,G2) M4170-01AO MO- 12
FUEL CAP (D1N,D2N,G1NG2N) M4170-01A3 MO- 14
PO[GUARD AND OPERATOR’S COMPARTMENT]
OPERATOR’S SEAT P4110-01AO PO- 2
OPERATOR’S SEAT (INNER PARTS) P4110-51AO PO- 4
DASH BOARD P4120-01 AO PO- 6
STEP AND TILT CYLINDER COVER (D1,D1H,D2,D2H,G1, G1H,G2) P4140-01AO PO- 8
STEP AND TILT CYLINDER COVER (D1N,D2N,G1N,G2N) P4140-01A3 PO- 10
FLOOR MAT (CLUTCH SPEC) (D1,D1H,D2,D2H,G1,G1H,G2) P4150-01AO PO- 12
FLOOR MAT (TORQUE CONVERTER SPEC) P4150-01A1 PO- 14
FLOOR PLATE (CLUTCH SPEC ) (Dl, Dl H D2, D2H, G1, Gl H, G2) P4160-01 AO PO- 16
FLOOR PLATE (TORQUE CONVERTER SPEC) P4160-01A1 PO- 18
DASHBOARD COVER P4170-01 AO PO- 20
BONNET P4180-01 AO PO- 22
SUB BONNET P4190-01AO PO- 24
HEAD GUARD P4210-01AO PO- 26
ROOF COVER P4220-01 AO PO- 28
MON I TOR PANEL (TORQUE CONVERTER SPEC ) P4260-01 BO PO- 30
MONITOR PANEL (CLUTCH SPEC) (D1,D1H,D2,D2H,G1, G2) P4260-01B1 PO- 32
MONITOR PANEL (INNER PARTS) (TORQUE CONVERTER SPEC) P4260-51BO PO- 34
MONITOR PANEL ( INNER PARTS) (CLUTCH SPEC) (01, Dl H, D2, D2H, Gl, G2) P4260-51B1 PO- 36
COMBINATION SWITCH (INNER PARTS) (TORQUE CONVERTER SPEC) P4260-52AO PO- 38
COMBINATION SWITCH (INNER PARTS) (CLUTCH SPEC)
(Dl, DlH, D2, D2H, Gl, GlH, G2) P4260-52A1 PO- 40
HEAD GUARD MOUNT I NG PARTS P4280-01 AO PO- 42
ENGINE UNDER COVER (D1D1HD2,D2H,G1,G1H,G2) P4290-01AO PO- 44
ENGINE UNDER COVER (DlN, D2N GlN G2N) P4290-01A1 PO- 46
INSULATOR (UNDER COVER) (D1,D1HD2,D2H,G1,G1H,G2) P4310-01AO PO- 48
INSULATOR (UNDER COVER) (DlN, D2N, GlN, G2N) P4310-01A1 PO- 50
INSULATOR (BONNET AND STEP) P4320-01AO PO- 52
QO[ELECTRICAL SYSTEM]
ELECTRICAL SYSTEM (DASHBOARD WIRING) (D1,D1H,D1N,D2,D2H,D2N) 04110-0180 QO- 2
ELECTRICAL SYSTEM (DASHBOARD WIRING) (G1,G1H,G1N,G2,G2N) 04110-0181 ao- 4
ELECTRICAL SYSTEM (HEAD LAMP AND COMBINATION LAMP) 04120-0lAO 00- 6
ELECTRICAL SYSTEM (BATTERY) (D1,D1H,D1N,D2,D2H,D2N) ········ 04130-0180 ao- 8
ELECTRICAL SYSTEM (BATTERY) (Gl, GlH, GlN, G2, G2N) 04130-0181 00- 10
ELECTRICAL SYSTEM (BACK-UP BUZZER) 04150-0lAO ao- 12
BX-4 oc- 5
FIG NO PAGE
ELECTRICAL SYSTEM (ENGINE WIRING) (D1,D1H,D1N,D2,D2H,D2N) ·• 04210-0lAO ao- 14
ELECTRICAL SYSTEM (ENGINE WIRING) (G1,G1HG1NG2G2N) 04210-0lAl ao- 16
ELEGTR I GAL SYSTEM (ENG I NE HARNESS) (FOR CLUTCH SPEG )
(D1D1HD2,D2H,G1,G1HG2) 04212-01AO ao- 18
ELECTRICAL SYSTEM (ENGINE HARNESS) (FOR TORQUE CONVERTER SPEC) 04212-0lAl 00– 20
ELECTRICAL SYSTEM (FUEL SENDING UNIT) 04220-0lAO QO– 22
SIDE VIEi’/ MIRROR Q4250–01AO ao- 24
RO[HYDRAULIG SYSTEM]
HYDRAULIC PUMP AND MOUNTING PARTS (DRY CLUTCH AND TORQUE
CONVERTER SPEG) (01 DlH DlN, 02 D2H 02N) R4110–01AO RO- 2
HYDRAULIC PUMP AND MOUNTING PARTS (DRY CLUTCH AND TORQUE
CONVERTER SPEC) (Gl, GlH, GlN, G2, G2N) R4110-01A5 RD– 4
HYDRAULIC PUMP AND MOUNTING PARTS (WET CLUTCH SPEC) (G1,G1HG2) R4110–01A6 RO- 6
HYDRAULIC PUMP (INNER PARTS) (DRY CLUTCH AND TORQUE CONVERTER
SPEC) (01,DlH, DlN,02, 02H, 02N) R4110-51AO RO- 8
HYDRAULIC PUMP (INNER PARTS) (WET CLUTCH SPEG) (01 01 H 02, 02H) R4110-51A1 RO- 10
HYDRAULIC PUMP (INNER PARTS) (DRY CLUTCH AND TORQUE CONVERTER
SPEC ) (Gl Gl H Gl N, G2, G2N) R4110-51 AS RO- 12
HYDRAULIC PUMP (INNER PARTS) (WET CLUTCH SPEC) (G1,G1H,G2) R4110-51A6 RD– 14
FLOW DIVIDER (INNER PARTS) R4110-61AO RO- 16
2-SPOOL CONTROL VALVE AND MOUNTING PARTS R4140-01AO RO- 18
3-SPOOL CONTROL VALVE AND MOUNTING PARTS R4140–11AO RO- 20
4-SPOOL CONTROL VALVE AND MOUNTING PARTS R4140-21AO RO- 22
5-SPOOL CONTROL VALVE AND MOUNTING PARTS
(01,DlH, D2,D2H,G1, GlH, G2) R4140-31AO RD– 24
2-SPDOL CONTROL VALVE LEVER R4150–01AO RD– 26
3-SPOOL CONTROL VALVE LEVER R4150–01A1 RO- 28
4-SPODL CONTROL VALVE LEVER R4150-01A2 RD– 30
5-SPOOL CONTROL VALVE LEVER (D1,D1H,D2,D2H,G1,G1H,G2) R4150-01A3 RD– 32
TILT CYLINDER (FOR 20 TON) CD1,D1H,D1NG1,G1HG1N) R4170-01AO RO– 34
TILT GYL I NDER (FOR 3 0 TON) (02 02H, D2N G2, G2N) R4170–01 A3 RO- 36
TILT CYLINDER SPACER (FOR 20 TON) (TILT ANGLE 6′ /6)
(01, DlH, DlN, Gl, GlH, GlN) R4190-01AO RD– 38
TILT CYLINDER SPACER (FOR 3 O TON) (TILT ANGLE 6″ /6′)
(02, 02H, 02N GlH, G2, G2N) R4190–01A3 RO- 40
TANK GOVER (DRY CLUTCH AND TORQUE CONVERTER SPEC)
(01, DlH, 02, 02H G1, G1 H G2) R421 D–01AO RO- 42
oc- 6 BX-4
FIG NO PAGE
TANK COVER (DRY CLUTCH AND TORQUE CONVERTER SPEC) (FOR
30M-3 7M MAST) (D1D1HD2D2HG1G1HG2) R4210-01A1 RD- 44
TANK COVER (D1N D2N G1N, G2N) R4210-01A3 RD- 46
TANK COVER (FOR 30M-3 7M MAST) (D1ND2N,G1NG2N) R4210-01A4 RO- 48
HYDRAULIC PIPING (TANK TO CONTROL VALVE) (DRY CLUTCH AND TORQUE
CONVERTER SPEC) (Dl D1H D1N D2 D2H D2N) R4220-01AO RD- 50
HYDRAULIC PIPING (TANK TO CONTROL VALVE) (DRY CLUTCH AND TORQUE
CONVERTER SPEC ) (G1 G1 H G1 N G2 G2N) R4220-01 A5 RO- 52
HYDRAULIC PIPING (TANK TO CONTROL VALVE) (FOR WET CLUTCH SPEC
AND FG35A) (G1 G1H G2) R4220-01A6 RD- 54
HYDRAULIC PIPING (TILT CYLINDER LINE) R4230-01AD RO- 56
HYDRAULIC PIPING (POWER STEERING LINE) (D1ND2NG1NG2N) R4250-01A1 RD- 58
HYDRAULIC PIPING (RETURN LINE) (DRY CLUTCH AND TORQUE CONVERTER
SPEC ) R4260-01 AD RO- 60
HYDRAULIC PIPING (RETURN LINE) (FOR WET CLUTCH SPEC AND
FGD35A) ) (D1 D1H, D2 D2H G1 G1H G2) R4260-01A1 RD- 62
HYDRAULIC PIPING (LIFT CYLINDER LINE) (FOR FV MAST) R4270-01AD RO- 64
HYDRAULIC PIPING (POWER STEERING PIPING RETRUN LINE) (FOR DRY
CLUTCH AND TORQUE CONVERTER SPEC) R4310-01AD RD- 66
HYDRAULIC PIPING (CONTROL VALVE SUCTION TUBE) R4340-D 1 AO RD- 68
HYDRAULIC PIPING (OIL COOLER LINE) (FOR WET CLUTCH AND FGD35A)
(D1 D1 H D2 D2H G1 G1 H G2) R4370-01 AD RO- 70
HYDRAULIC PIPING (RELIEF VALVE) (INNER PARTS)
(D1D1HD2D2HG1G1HG2) R4370-51AO RD- 72
SO[MAST)
FV MAST (1/2) (MAST AND LIFT CYLINDER) (D1D1HG1G1H) S4010-01AO so- 2
FV MAST (1/2) (MAST AND LIFT CYLINDER) (D2 D2H G2) S4010-01A1 so- 6
FV MAST (1/2) (MAST AND LIFT CYLINDER) (D1NG1N) S4010-01A5 so- 10
FV MAST (1/2) (MAST AND LIFT CYLINDER) (D2N G2N) S4010-01A7 so- 14
FV MAST (2/2) (MAST ATTACHING PARTS) <D1D1HG1G1H) S4010-02AO so- 18
FV MAST (2/2) (MAST ATTACHING PARTS) (02, D2H G2) S4010-D2A1 so- 20
FV MAST (2/2) (MAST ATTACHING PARTS) (D1N,G1N) S4010-02A5 so- 22
FV MAST (2/2) (MAST ATTACH ING PARTS) (D2N G2N) S4010-02A7 so- 24
FOR FV MAST LIFT CYLINDER (40-50M) (D1D1HD1NG1G1HG1N) S4010-03A1 so- 26
FOR FV MAST LIFT CYLINDER (55-60M) (D1D1HD1N,G1G1H,G1N) S4010-03A2 so- 28
FOR FV MAST LIFT CYLINDER (40-5DM) (D2D2H,D2N,G2,G2N) S4010-03A4 so- 30
MAST PIPING (RETURN LINE) (FOR 40-6DM FV MAST) S4020-01A1 so- 32
BX-4 oc- 7
TO[WORK EQUIPMENT] FIG NO PAGE
FORK CARRIAGE (FOR FV MAST) (01 01H 01N Gl GlH GlN) T4010-01AO TO- 2
FORK CARR !AGE (FOR FV MAST) (02 02H D2N G2 G2N) T 4010-01 A 1 TO- 4
BACK REST (01,01H01NG1G1HG1N) T4040-01AO TO- 6
BACK REST (02 02H 02N G2 G2N) T4040-01A1 TO- B
BACK REST (D101H01NG1G1HG1N) T4040-01BO TO- 10
BACK REST (02 02H 02N G2 G2N) T 4040-01 B1 TO- 12
FORK (01, 01 H 01 N Gl G1H Gl N) T 4050-01 AO TO- 14
FORK (02, D2H, 02N, G2, G2N) T 4050-01 A 1 TO- 16
VO[MARKS AND PLATES]
MARKS ANO PLATES V4010-01AO VO- 2
MARKS AND PLATES V4010-01A1 VO- 4
ZZ [NUMER I CAL I NDEX] zzoc

DESCRIPRION:

Komatsu Forklift FG (D)20/25/30-11 FG (D) 20H/25H-11 F030H-11 FG (D) 20N/25N/30N-11 FORK LIFT TRUCK (CHASSIS) Parts Manual – PDF DOWNLOAD

FG20/25-16
Serial No.700001 and up
FG20H/25H-16
Serial No.700001 and up
FG20N/25N-16
Serial No.700001 and up
FG30N-16
Serial No.700001 and up
FG30-16
Serial No.700001 and up
FD20/25-16
Serial No.700001 and up
FD20H/25H-16
Serial No.700001 and up
FD20N/25N-16
Serial No.700001 and up
FD30H-16
Serial No.700001 and up
FD30N-16
Serial No.700001 and up

FD30-16
Serial No.700001 and up

FOREWORD

When ordering a spare part, specify the part number, part name, and quantity required, and also specify your machine model code, machine serial number, engine serial number and the service meter reading. This Parts Book describes not only standard items but also optional equipment and attachments. To order a part, please contact your nearest Komatsu distributor. This Parts Book contains the information and special symbols as follows:

S.M 27/01/25
