Komatsu FORKLIFT DA220 Diesel Engine Parts Manual – PDF DOWNLOAD

Description

Komatsu FORKLIFT DA220 Diesel Engine Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Komatsu FORKLIFT DA220 Diesel Engine Parts Manual – PDF DOWNLOAD

Language :English
Pages :103
Downloadable : Yes
File Type : PDF

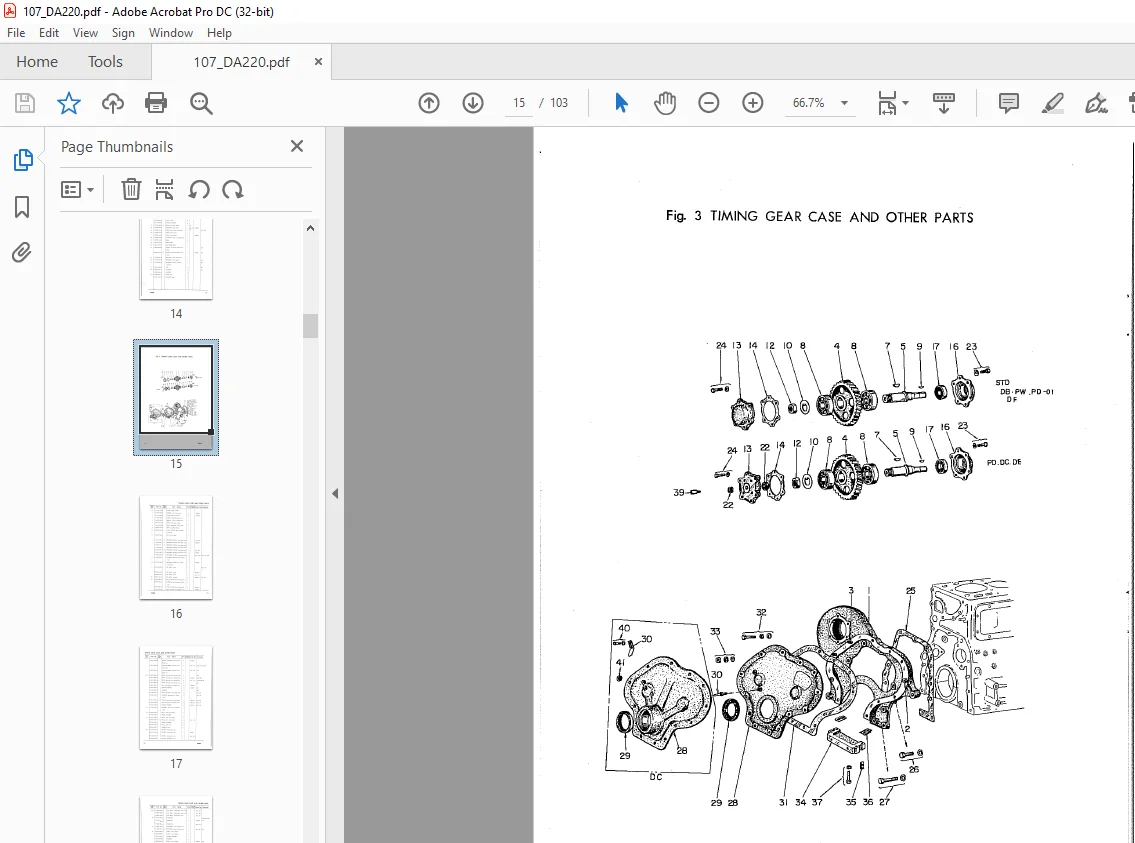

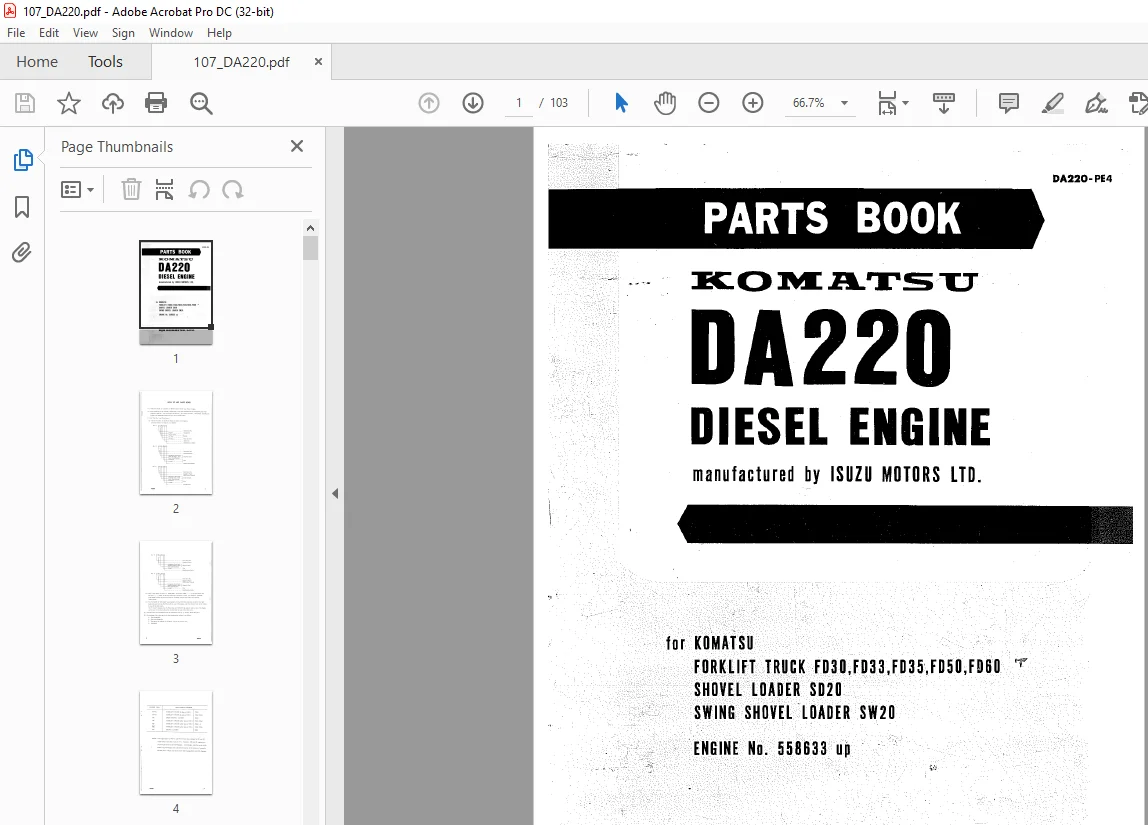

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Komatsu FORKLIFT DA220 Diesel Engine Parts Manual – PDF DOWNLOAD

HOW TO USE PARTS BOOK
(1) This Parts Book is applicable to ISUZU model DAZZO type Diesel Engine,
(2) Each equipment of the vehicle is illustrated, being disassembled into the component parts with
respective Key No.. By referring to the Key No., the relative Part No., Part Name, Quantity per
Vehicle and Applicable Model and Year can be found easily.
(3) On 11Part No. 11 and 11Part Name 1

(a) All the Part Nos. in this Parts Book are shown in ten figures,
Analysis of those ten figures is as follows:

TABLE OF CONTENTS:

Komatsu FORKLIFT DA220 Diesel Engine Parts Manual – PDF DOWNLOAD

Cylinder Head and Other Parts
Cylinder Body and Other Parts 2 10
Timing Gear Case and Other Parts 3 14
lywheel Housing and Oil Pan 4 18
Cranks haft and Related Parts
Camshaft and Related Parts
Oil Filter and Exhaust Manifold
Inlet Manifold and Related Parts
Oil Pipe and Related Parts
Throttle Valve and Fuel Pipe
Water Pump and Cooling Fan
Oil Pump 12 52
Oil Filter 13 54
Fuel Filter ·· 14 56
Air Cleaner 15 58
Special Parts 19 60
Engine Control 20 62
Injection Pump 21 66
Governor 22 70
Fuel Feed Pump 23 74
Coupling 24 78
Nozzle Holder 25 80
Starter 26 82
Generator 2 7 86
Dynamo 28 90
Regulator 29 93
