Komatsu FG50/60/70-5 FD50/60/70-5 FD50E/60E/70-5 FD60H/70H/80H-5 Forklift Truck Shop Manual SM024 – PDF

Description

Komatsu FG50/60/70-5 FD50/60/70-5 FD50E/60E/70-5 FD60H/70H/80H-5 Forklift Truck Shop Manual SM024 FD50_80.5-BE2 – PDF DOWNLOAD

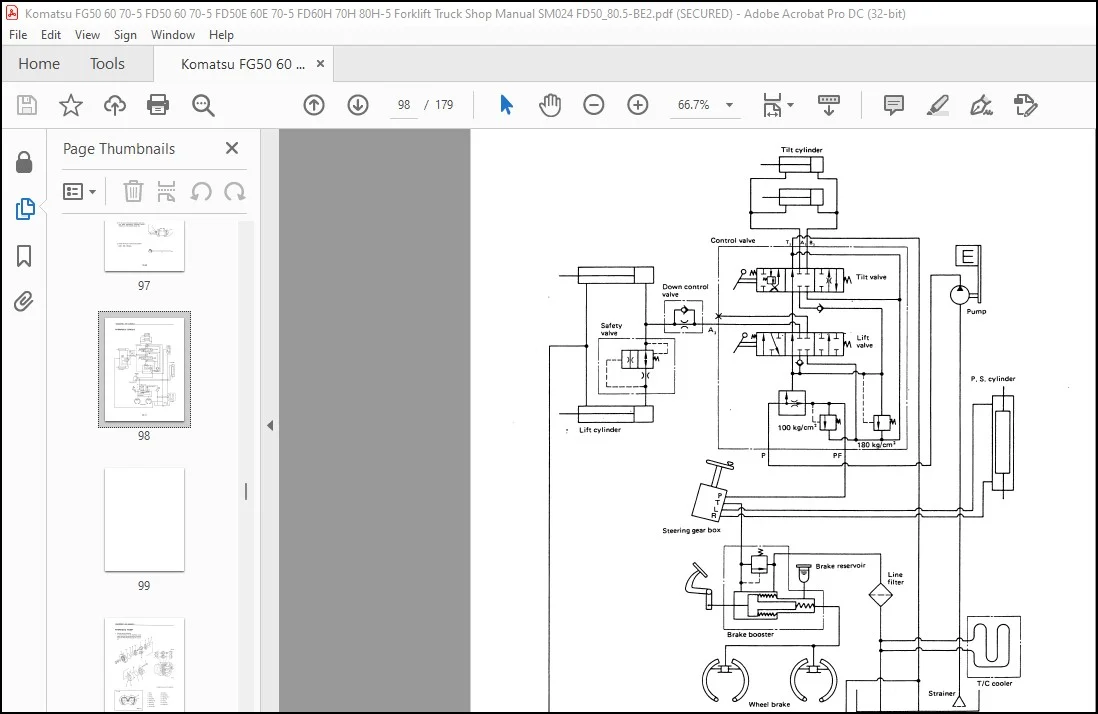

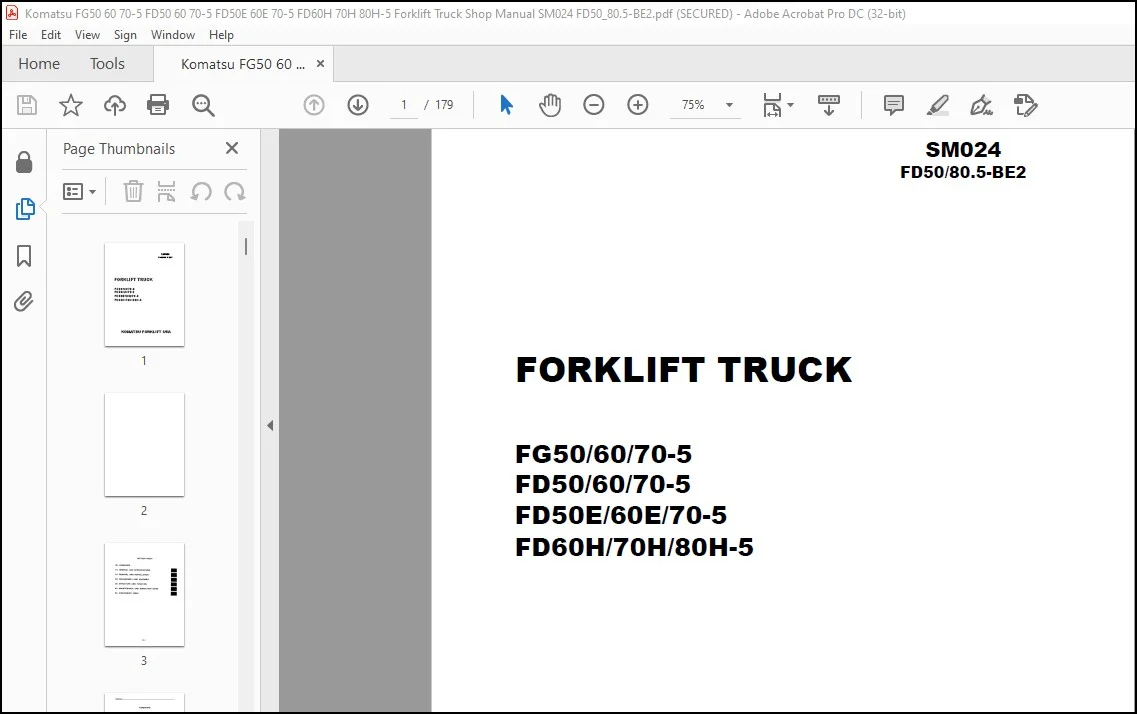

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Komatsu FG50/60/70-5 FD50/60/70-5 FD50E/60E/70-5 FD60H/70H/80H-5 Forklift Truck Shop Manual SM024 FD50_80.5-BE2 – PDF DOWNLOAD

Komatsu FG50-5 FG60-5 FG70-5 FD50-5 FD60-5 FD70-5 FD50E-5 FD60E-5 FD70-5 FD60H-5 FD70H-5 FD80H-5 Forklift Truck Shop Manual SM024 FD50_80.5-BE2 – PDF DOWNLOAD

FOREWORD:

• Proper operation. maintenance. trouЫeshooting and repairs are necessary to preserve the performance of vehicles
  and engines (engine-powered forklift trucks) over а long period of time and to ensure that fault and breakdowns
  do not occur.
• The object of this Shop Manual is to provide the information necessary especially in connection with the performance
  of inspections and repairs mainly in the maintenance areas.
• For this purpose. it includes sections on “General Specifications”, “Checks and Adjustments”, “General DisassemЫy
  and AssemЫy”, “DisassemЫy and AssemЬly of Components” and the “Electrical System”.
• Maintenance data necessary for the performance of maintenance on the machines is also included, but reference
  should Ье made to the Operation and Maintenance Manual for further details.

Reference should also Ье made to this manual in connection with correct operation of the machine.
The content of the items mentioned above is as follows.

General and Specifications:
This chapter indicates the name of each part of the machine. and the installation positions of the operating
devices and instruments.
Checks and Adjustments:
This chapter gives the details required for the disassemЫy and reassemЬly of machines such as tightening
torque. allowances. as well as the wear limits of the parts. However, when necessary, data in line with the procedure
mentioned in the following sections. “General DisassemЫy and AssemЬly” and “DisassemЫy and AssemЫy
of Components” is indicated.
General DisassemЫy and AssemЬly:

• The procedure when disassemЫing а machine comes within one of the two following categories. ln the first,
  the machine, including the frame, is made up roughly of seven component parts, i.e.: а mast section, а cylinder
  section, а reach leg, а transfer section, а motor section, а pump section and а frame.
• This chapter contains details of how to disassemЫe and assemЫe these components. The other category of
  disassemЬly and assemЬly is the disassemЫx and assemЬly of component parts referred to in the following
  chapter.

TABLE OF CONTENTS:

Komatsu FG50/60/70-5 FD50/60/70-5 FD50E/60E/70-5 FD60H/70H/80H-5 Forklift Truck Shop Manual SM024 FD50_80.5-BE2 – PDF DOWNLOAD

00. FOREWORD
01. GENERAL AND SPECIFICATIONS
1О. REMOVAL AND INSTALLATION
20. DISASSEMBLY AND ASSEMBLY
30. STRUCTURE AND FUNCTION
40. MAINTENANCE AND INSPECTION GUIDE
50. CONVERSION TABLE
