KOHLER ENGINE twin cylinder engine K482 K532 K582 K662 SERVICE MANUAL – PDF DOWNLOAD
Video Preview:
Image Preview:
Description:
KOHLER ENGINE twin cylinder engine K482 K532 K582 K662 SERVICE MANUAL – PDF DOWNLOAD
- The 2 cylinder engines have positive pressure gear type oil pumps which supply oil through internal galleys to main bearing. camshaft bearing, connecting rod and other wear areas. On K662 models, transfer sleeves are used to direct oil to the anti-friction type main bearings.
- On some early K482 engines, oil is picked up through a floating oil screen–a fixed oil screen is used on most K482 and ill K532, K662 models. OIL LEVEL The lubricating oil level must be maintained in the 11safe 11 operating range at all times. Oil level must be between the L (low) and F (full) marks on the dipstick. Always clean area around dipstick so that dirt does not fall into engine when dipstick is removed.
- Check daily and add oil as necessary to maintain proper level–D0 NOT OVERFILL–oil level must not exceed the F mark. There are several different types of dipsticks in use. On the shorter type, which consists of a combined dipstick-oil fill plug, turn plug all the way out of crankcase, remove and wipe oil off dipstick then reinsert–shoulder plug on top of hole (do not turn plug in) before removing for reading.
- With the extended oil fill tube and bayonette type dipstick, push or twist cap until dipstick is all the way down on tube, then remove and take reading. Check gasket (or O ring) inside cap occasionally to make sure it is clean and in good condition. CAUTION: New engines are usually shipped from factory with dry sump–check to make sure proper amount of oil is in the engine or added before engine is started for the first time. (Also add oil as needed to driven equipment such as wet type clutch.)

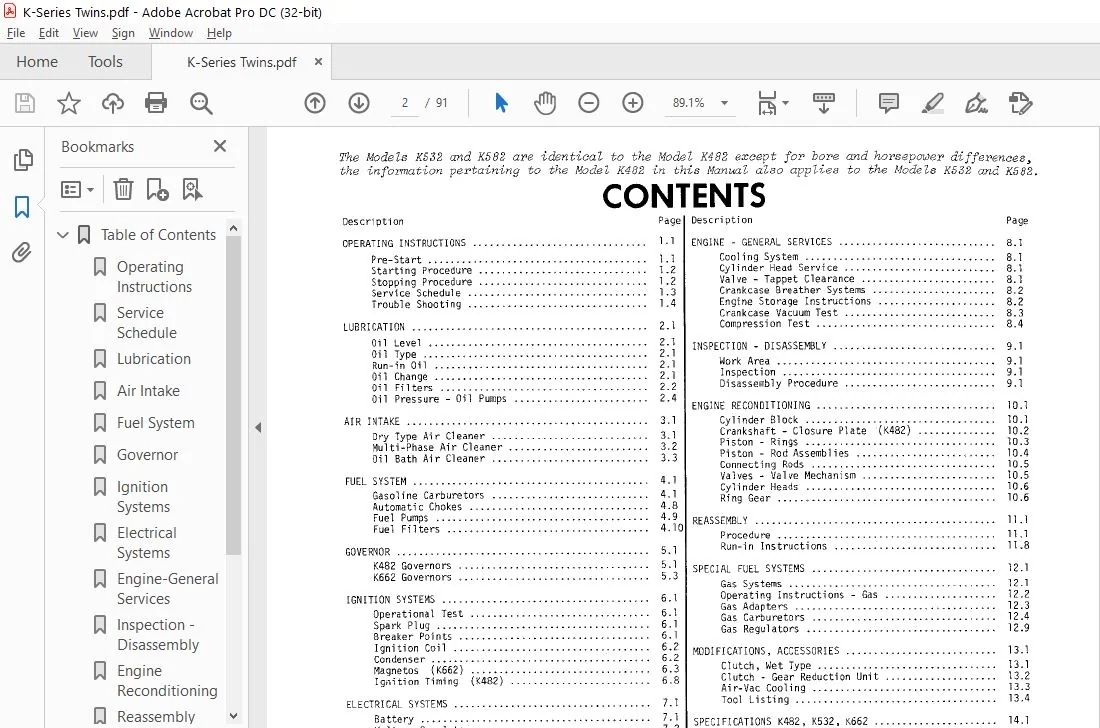

Table Of Contents:
KOHLER ENGINE twin cylinder engine K482 K532 K582 K662 SERVICE MANUAL – PDF DOWNLOAD
Table of Contents.............................. 2 Operating Instructions..................... 3 Service Schedule........................... 5 Lubrication................................ 7 Air Intake.................................11 Fuel System................................15 Governor...................................25 Ignition Systems...........................29 Electrical Systems.........................37 Engine-General Services....................49 Inspection - Disassembly...................53 Engine Reconditioning......................57 Reassembly.................................63 Special Fuel Systems.......................71 Modifications, Accessories.................84 Specifications and Tolerances..............88 Torque Values & Sequences for Fasteners....90
Please Note:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
