Kioti DK751 DK901 Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Kioti DK751 DK901 Parts Manual – PDF DOWNLOAD
Language : English
Pages : 513
Downloadable : Yes
File Type : PDF

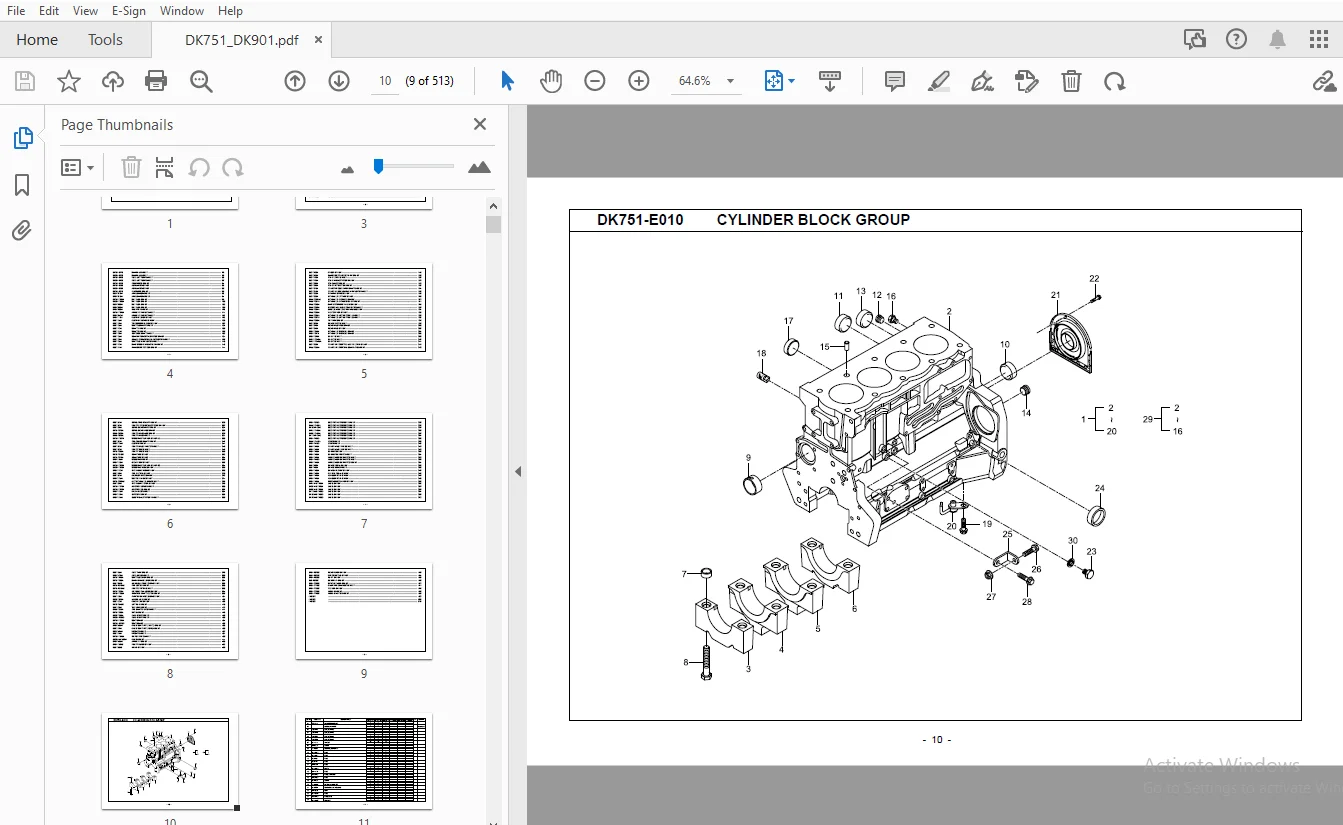

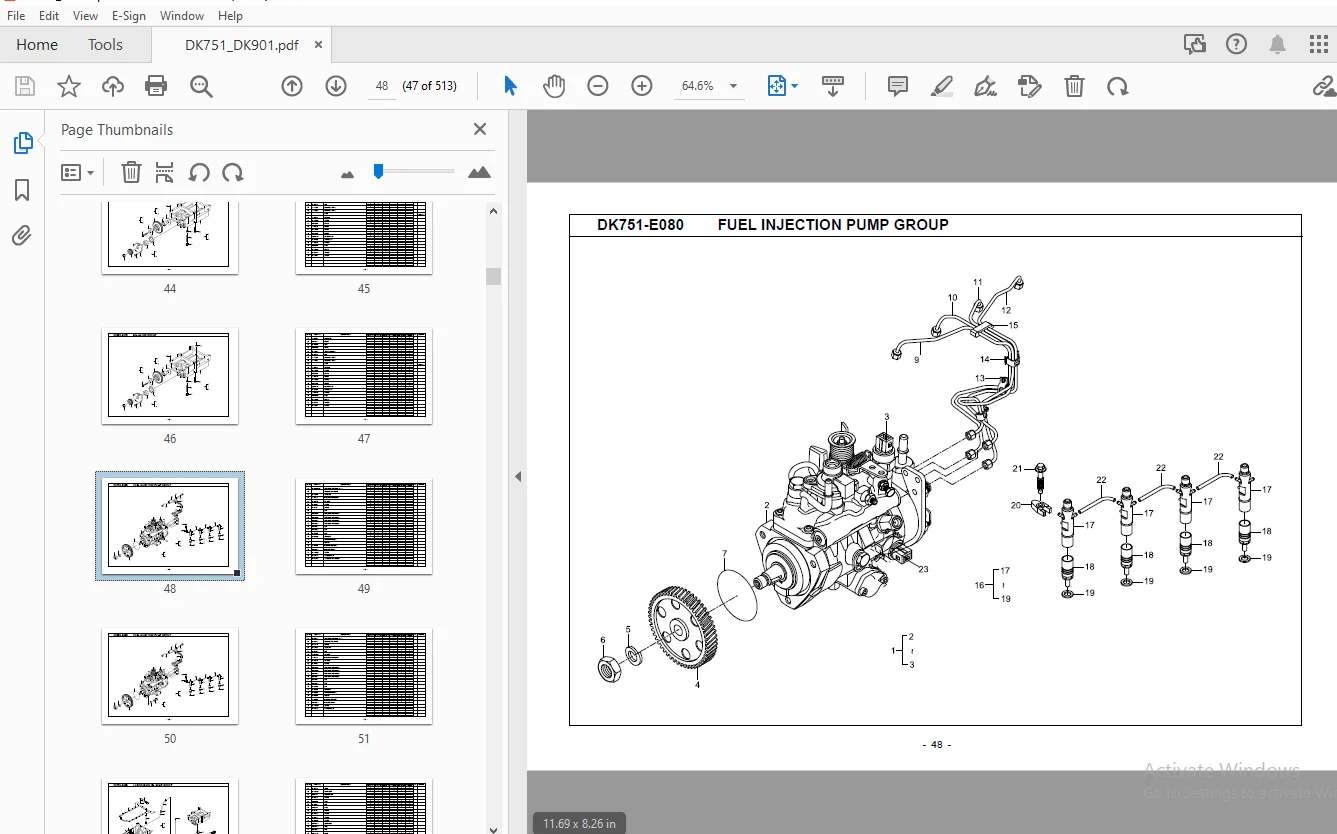

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Kioti DK751 DK901 Parts Manual – PDF DOWNLOAD
DK751-E010 CYLINDER BLOCK GROUP 10
DK801-E010 CYLINDER BLOCK GROUP 14
DK751-E020 PISTON, CRANKSHAFT GROUP 18
DK801-E020 PISTON, CRANKSHAFT GROUP 20
DK751-E030 CYLINDER HEAD GROUP 22
DK801-E030 CYLINDER HEAD GROUP 26
DK751-E040 ROCKER ARM GROUP 30
DK801-E040 ROCKER ARM GROUP 32
DK751-E050 TIMING CASE GROUP 34
DK801-E050 TIMING CASE GROUP 38
DK751-E060 WATER PUMP GROUP 42
DK751-E070 BALANCER GROUP 44
DK801-E070 BALANCER GROUP 46
DK751-E080 FUEL INJECTION PUMP GROUP 48
DK801-E080 FUEL INJECTION PUMP GROUP 50
DK901-E080 FUEL INJECTION PUMP GROUP 52
DK751-E090 LUBRICATION OIL SUMP GROUP 54
DK751-E100 CYLINDER HEAD COVER GROUP 56
DK751-E110 BREATHER GROUP 58
DK801-E110 BREATHER GROUP 60
DK801-E120 OIL HOSE GROUP 62
DK751-E130 OIL COOLER GROUP 64
DK801-E130 OIL COOLER GROUP 66
DK751-E140 OIL FILTER GROUP 68
DK751-E150 COOLING FAN GROUP 70
DK801-E150 COOLING FAN GROUP 72
DK751-E160 ALTERNATOR GROUP 74
DK751-E170 MANIFOLD GROUP 76
DK801-E170 MANIFOLD GROUP 78
DK751-E180 FUEL LIFT PUMP GROUP 80
DK801-E180 FUEL LIFT PUMP GROUP 82
DK751-E190 PRE-FILTER GROUP 84
DK751-E200 AUXILIARIES GROUP 86
DK801-E200 AUXILIARIES GROUP 88
DK751-E210 FLYWHEEL GROUP 90
D651-T010A AIRCLEANER GROUP 92
D701-T010A AIRCLEANER GROUP 94
DK751-T020A MUFFLER GROUP 96
DK801-T020A MUFFLER GROUP 100
D651-T020A MUFFLER GROUP 102
D701-T020A MUFFLER GROUP 106
D701-T030A RADIATOR GROUP 110
DK751-T040A AIRCON BRACKET GROUP 114
D701-T040A AIRCON BRACKET GROUP 116
D701-T110A CLUTCH LEVER GROUP 118
D68-T125A CLUTCH HOUSING GROUP 120
D68-T130A TRANSMISSION CASE GROUP 122
D68-T135A SHUTTLE SHAFT GROUP 124
D62-T140A SHAFT 1 GROUP 126
D62-T145A SHAFT 2 GROUP 128
D62-T150A REVERSE SHAFT GROUP 132
D68-T155A REAR DIFFERENTIAL SYSTEM GROUP 134
D62-T160A REAR DIFFERENTIAL LOCK SYSTEM GROUP 138
D62-T165A SHUTTLE FORK LEVER GROUP 140
D68-T170A MAIN SPEED CHANGE FORK GROUP 142
D62-T175A RANGE SHIFT SPEED GROUP 144
– 5 –
D62-T180A CREEP GROUP 146
D68-T185A RANGE SHIFT CREEP FORK GROUP 150
D68-T190A PTO CLUTCH GROUP 152
D62-T195A PTO CHANGE SYSTEM GROUP 156
D62-T200A PTO SHAFT GROUP 158
D62-T205A PTO SHIFT SYSTEM GROUP 162
D62-T210A FRONT WHEEL DRIVING SHAFT GROUP 164
D62-T215A FRONT WHEEL DRIVING FORK LEVER GROUP 166
D62-T220A PARKING BRAKE GROUP 168
D62-T225A HYDRAULIC LIFT ARM GROUP 170
DK65-T230AU HYDRAULIC CYLINDER GROUP 172
DK65-T231A HYDRAULIC CYLINDER BODY GROUP 174
DK65-T232A MAIN DISTRIBUTOR VALVE GROUP 176
DK65-T233A DETENT DOUBLE ACTING VALVE GROUP 180
DK65-T234A SINGLE, DOUBLE ACTING VALVE GROUP 184
DK65-T235A VALVE COVER GROUP 188
DK65-T236A HYDRAULIC LIFT CONTROL 1 GROUP 190
DK65-T237A HYDRAULIC LIFT CONTROL 2 GROUP 192
DK65-T238A TOP LINK GROUP 196
D68-T235A BRAKE CASE GROUP 198
D68-T240A REAR AXLE CASE GROUP 200
D68-T245A REAR AXLE GROUP 202
D701-T246A HYDRAULIC SYSTEM 1 GROUP 204
D701-T247A HYDRAULIC SYSTEM 2 GROUP 206
D701-T248A BODY 1 GROUP 208
DK751-T249A BODY 2 GROUP 212
DK751-T2495A BODY 3 GROUP 214
D62-T250A FRONT DIFFERENTIAL LOCK CLUTCH GROUP 216
DK65-T255A FRONT DIFFERENTIAL GEAR CASE GROUP 218
– 6 –
D62-T260A BEVEL PINION SHAFT GROUP 220
D62-T265A FRONT DIFFERENTIAL SYSTEM GROUP 222
D85-T270A BEVEL GEAR SHAFT GROUP 224
DK75-T275A BEVEL GEAR CASE GROUP 226
DK65-T280A FRONT AXLE CASE GROUP 230
DK65-T285A FRONT AXLE GROUP 234
DK751-T287A STEERING CYLINDER GROUP (1) 238
D68-T290A PROPELLER SHAFT GROUP 242
D701-T295A CLUTCH GROUP 244
D68-T300A FRONT AXLE BRACKET GROUP 246
D85-T305A FRONT TIRE GROUP 248
DK75-T305A FRONT TIRE GROUP 250
DK80-T310M REAR TIRE GROUP 252
DK75-T310A REAR TIRE GROUP 254
D701-T315A STEERING GROUP 256
D701-T320A GEAR PUMP GROUP 262
DK751-T330A STEERING CYLINDER GROUP (2) 264
DK801-T335A STEERING HOSE GROUP 266
D701-T340A HYDRAULIC HOSE GROUP 268
D70-T345A PTO CLUTCH GROUP 270
D52-T350A OIL INLET HOSE GROUP 272
D701-T355A SUCTION HOSE GROUP 274
DK75-T360AU OUT HYDRAULIC HOSE GROUP 276
D56-T370A HYDRAULIC FILTER GROUP 278
DK751-T375A JOYSTICK LEVER GROUP 280
DK751-T380A JOYSTICK (1) GROUP 282
D701-T385A OIL COOLER GROUP 284
D701-T390A BATTERY GROUP 286
D701-T395A ELECTRICAL SYSTEM 1 GROUP 288
– 7 –
D701-T395C ELECTRICAL SYSTEM 1 GROUP 290
DK651-T400A ELECTRICAL SYSTEM 2 GROUP 292
DK651-T400C ELECTRICAL SYSTEM 2 GROUP 296
DK751-T405A ELECTRICAL SYSTEM 3 GROUP 300
DK901-T405A ELECTRICAL SYSTEM 3 GROUP 302
DK751-T405C ELECTRICAL SYSTEM 3 GROUP 304
D701-T405C ELECTRICAL SYSTEM 3 GROUP 306
DK651-T410A LIGHT GROUP 308
D701-T410C LIGHT GROUP 312
D651-T415A FRONT AXLE FRAME GROUP 316
D701-T415A FRONT AXLE FRAME GROUP 318
D701-T420A BONNET GROUP 320
D701-T430A BONNET SUPPORT GROUP 324
D701-T440A AIRCLEANER SUPPORT GROUP 328
D701-T440C AIRCLEANER SUPPORT GROUP 330
D701-T445A AIRCLEANER SUPPORT 2 GROUP 334
D65-T450A BRAKE PEDAL GROUP 336
D65-T455A BRAKE HOSE GROUP 338
D701-T460A BRAKE OIL TANK GROUP 340
D701-T465A CLUTCH PEDAL GROUP 342
D651-T470A ACCELERATOR GROUP 346
D701-T470A ACCELERATOR GROUP 348
D701-T475A INSTRUMENT COVER GROUP 350
DK751AU-T480A LABEL GROUP 352
DK801AU-T480A LABEL GROUP 356
DK901AU-T480A LABEL GROUP 360
DK751AU-T480C LABEL GROUP 364
DK801AU-T480C LABEL GROUP 368
DK901AU-T480C LABEL GROUP 372
D62-T485A FUEL TANK GROUP 376
D701-T490A FUEL HOSE GROUP 380
DK75-T495A SHUTTLE LEVER GROUP 382
DK75-T500A MAIN CHANGE LEVER GROUP 384
D65-T505B DOUBLE ACTING LEVER GROUP 386
DK75-T510AU PTO LEVER GROUP 390
DK75-T515AU FRONT DRIVING GROUP 392
DK75-T520A DIFFERENTIAL LEVER GROUP 394
DK751-T525A POSITION DRAFT LEVER GROUP 398
D65-T530A PARKING BRAKE LEVER GROUP 404
DK80-T535A LOWER LINK GROUP 406
D52-T540A CHECK LINK GROUP 408
DK80-T545M LIFT ROD GROUP 410
D65-T550A TOP LINK GROUP 412
DK65-T555A PTO SHAFT COVER GROUP 414
DK75-T560A HITCH GROUP 416
DK80-T565A FLOOR MAT GROUP 418
DK801-T565C FLOOR MAT GROUP 420
DK751-T570A SEAT GROUP 424
DK751-T570C SEAT GROUP 426
D701-T585A CABIN SUPPORT (FRONT) GROUP 428
D62-T590A CABIN SUPPORT (REAR) GROUP 430
D581-T595A WEIGHT GROUP 432
D85-T595A WEIGHT GROUP 434
DK751-T615A ROPS FRAME GROUP 436
DK801AU-T620A CABIN GROUP 444
D701-T625A AIRCON 1 GROUP 450
D701-T650E FRONT GLASS GROUP 452
D65-T660E DOOR GROUP 456
D701-T670E REAR GLASS GROUP 460
D651-T675E WIPER MOTOR GROUP 464
D701-T680E ROOF GROUP 466
D52-T690E SUNROOF GROUP 468
D701-T700E SWITCH PANEL GROUP 472
D701-T710E CABIN WIRE HARNESS GROUP 474
D701-T720E FENDER GROUP 476
D701-T730E AIRCON GROUP 478
D701-T740E AIRCON COVER GROUP 480
INDEX1 482
INDEX2 505
INDEX3 510
S.S 08/24
