KCM 95Z7B Wheel Loader ISUZU 6WG1 Engine SHOP MANUAL – PDF
$32.95
KCM 95Z7B Wheel Loader(Disassembly & Reassembly) ISUZU 6WG1 Engine SHOP MANUAL – PDF DOWNLOAD
SN 97J2-5001 and up
PN 93215-00740
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
KCM 95Z7B Wheel Loader(Disassembly & Reassembly) ISUZU 6WG1 Engine SHOP MANUAL – PDF DOWNLOAD
FILE DETAILS:
KCM 95Z7B Wheel Loader(Disassembly & Reassembly) ISUZU 6WG1 Engine SHOP MANUAL – PDF DOWNLOAD
SN 97J2-5001 and up
PN 93215-00740
Language : English
Pages : 713
Downloadable : Yes
File Type : PDF
Pages : 713
Downloadable : Yes
File Type : PDF

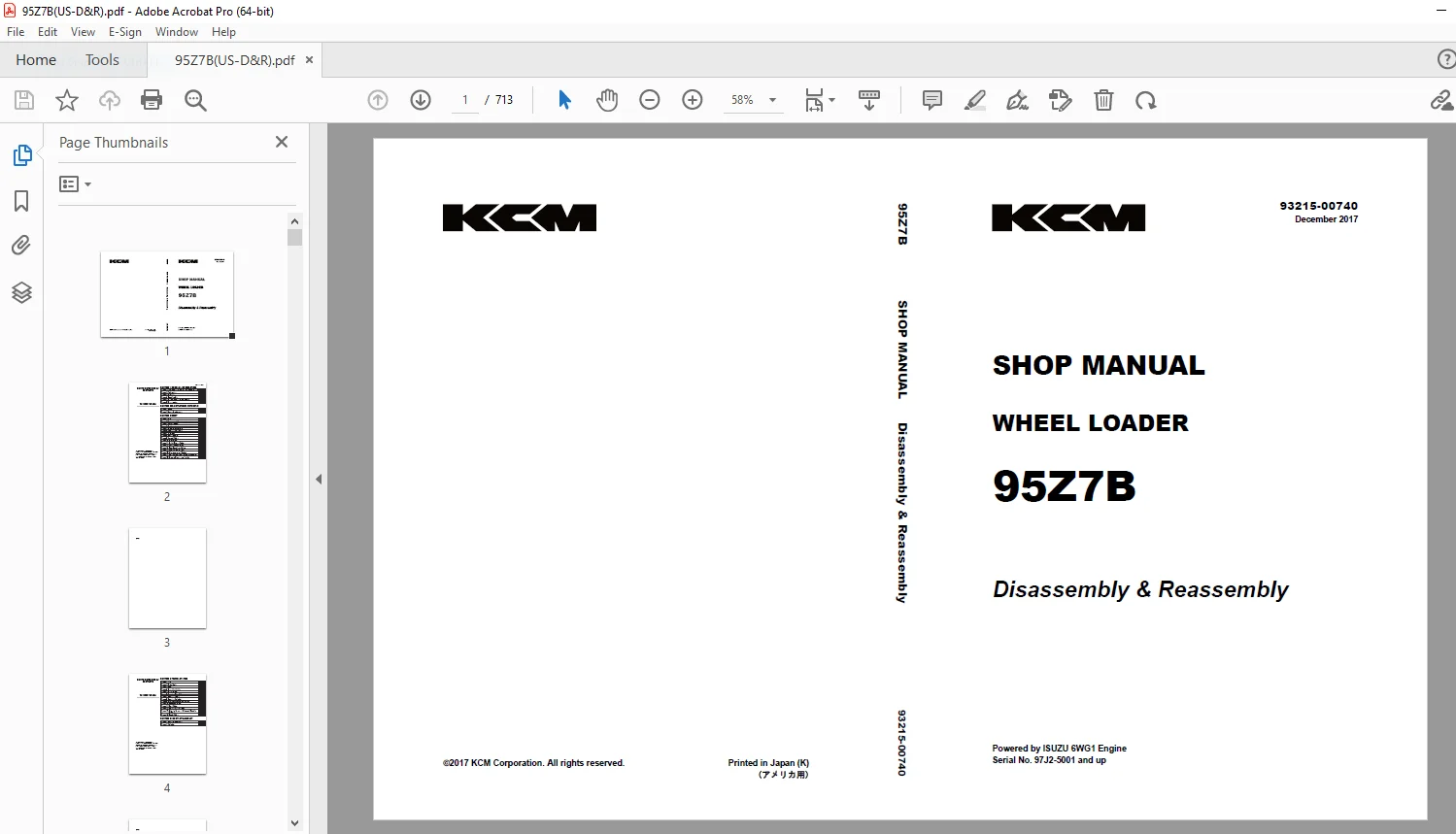

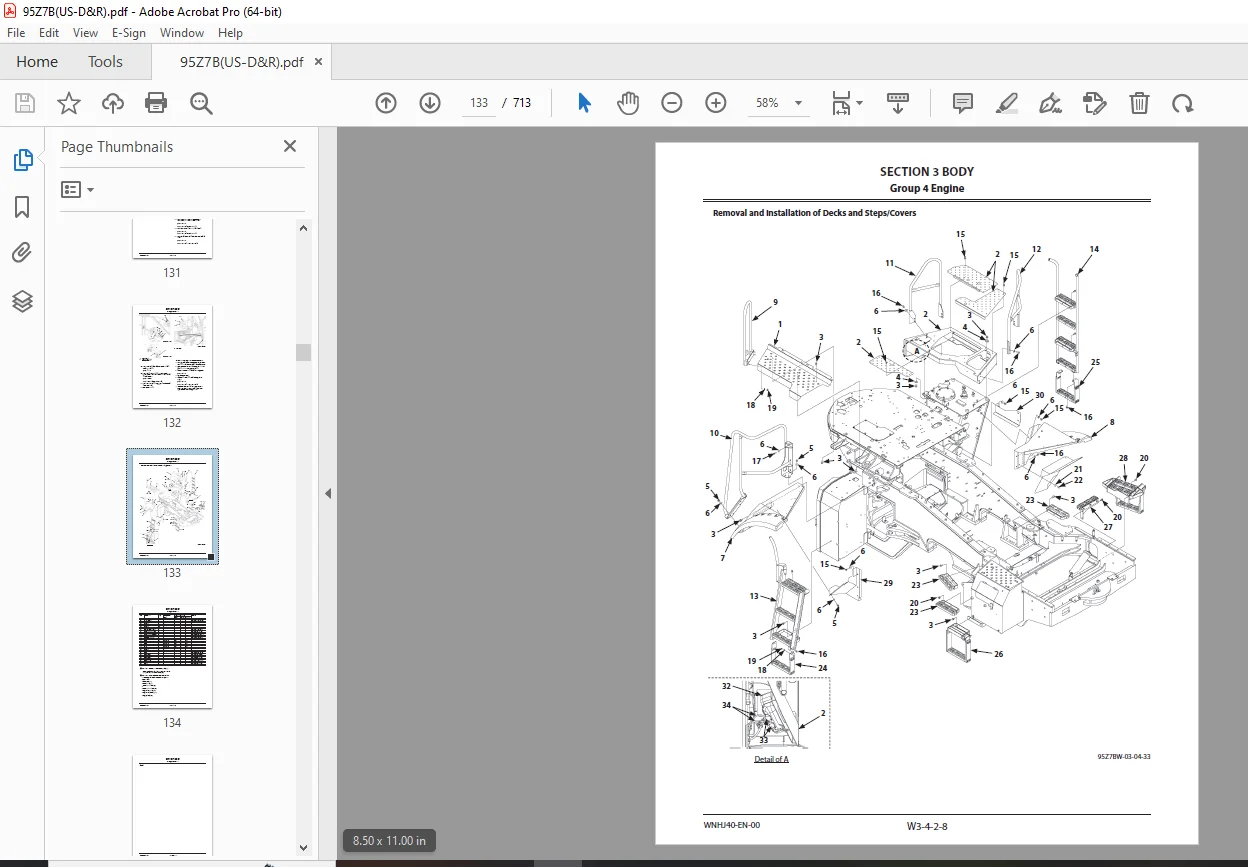

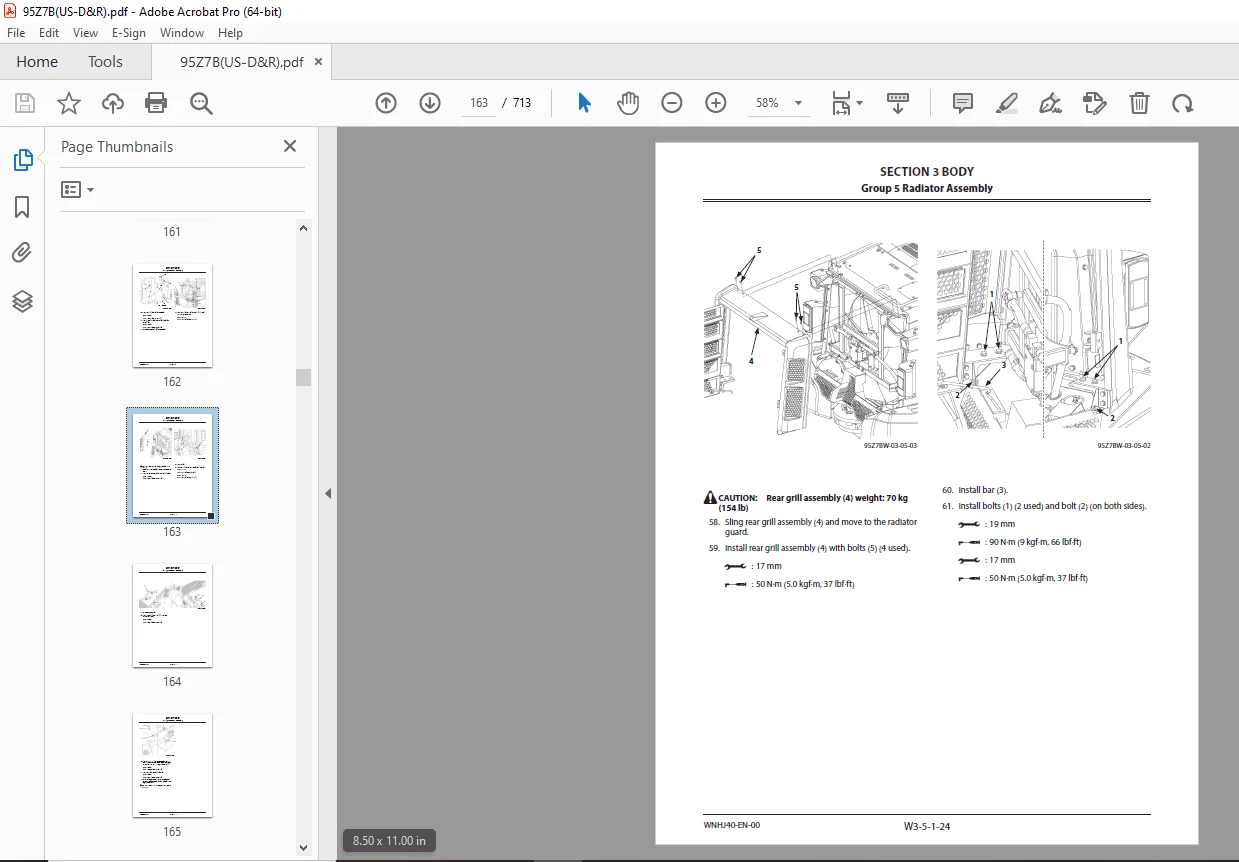

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
KCM 95Z7B Wheel Loader(Disassembly & Reassembly) ISUZU 6WG1 Engine SHOP MANUAL – PDF DOWNLOAD
SN 97J2-5001 and up
PN 93215-00740
SECTION 1 GENERAL INFORMATION
Group 1 Precautions for Disassembling and Assembling
Group 2 Tightening
Group 3 Painting
Group 4 Bleeding Air
Group 5 Pressure Release Procedure
Group 6 Preparation
SECTION 2 MAINTENANCE STANDARD
Group 1 Body
Group 2 Front Attachment
SECTION 3 BODY
Group 1 Cab
Group 2 Counterweight
Group 3 Center Hinge
Group 4 Engine
Group 5 Radiator Assembly
Group 6 Hydraulic Oil Tank
Group 7 Fuel Tank
Group 8 Pump Device
Group 9 Control Valve
Group 10 Pilot Valve
Group 11 Brake Charge Valve
Group 12 Combination Valve
Group 14 Flow Regulator Valve
Group 15 Cooling Fan System
Group 16 Aftertreatment Device
Group 17 Ride Control Valve and Accumulator
Group 18 Battery Disconnect Switch
Group 1 Precautions for Disassembling and Assembling
Group 2 Tightening
Group 3 Painting
Group 4 Bleeding Air
Group 5 Pressure Release Procedure
Group 6 Preparation
SECTION 2 MAINTENANCE STANDARD
Group 1 Body
Group 2 Front Attachment
SECTION 3 BODY
Group 1 Cab
Group 2 Counterweight
Group 3 Center Hinge
Group 4 Engine
Group 5 Radiator Assembly
Group 6 Hydraulic Oil Tank
Group 7 Fuel Tank
Group 8 Pump Device
Group 9 Control Valve
Group 10 Pilot Valve
Group 11 Brake Charge Valve
Group 12 Combination Valve
Group 14 Flow Regulator Valve
Group 15 Cooling Fan System
Group 16 Aftertreatment Device
Group 17 Ride Control Valve and Accumulator
Group 18 Battery Disconnect Switch
SECTION 4 TRAVEL SYSTEM
Group 1 Tire
Group 2 Drive Unit
Group 3 Axle
Group 4 Propeller Shaft
Group 5 Brake Valve
Group 6 Steering Pilot Valve
Group 7 Steering Valve
Group 8 Steering Cylinder
Group 9 Emergency Steering Device
Group 10 Reducing Valve
Group 11 Stop Valve
Group 12 Main Pressure Block
Group 13 Priority Hammer Valve and Shuttle
Valve
Group 14 Check Valve
SECTION 5 FRONT ATTACHMENT
Group 1 Front Attachment
Group 2 Cylinder
Group 1 Tire
Group 2 Drive Unit
Group 3 Axle
Group 4 Propeller Shaft
Group 5 Brake Valve
Group 6 Steering Pilot Valve
Group 7 Steering Valve
Group 8 Steering Cylinder
Group 9 Emergency Steering Device
Group 10 Reducing Valve
Group 11 Stop Valve
Group 12 Main Pressure Block
Group 13 Priority Hammer Valve and Shuttle
Valve
Group 14 Check Valve
SECTION 5 FRONT ATTACHMENT
Group 1 Front Attachment
Group 2 Cylinder
DESCRIPTION:
KCM 95Z7B Wheel Loader(Disassembly & Reassembly) ISUZU 6WG1 Engine SHOP MANUAL – PDF DOWNLOAD
SN 97J2-5001 and up
PN 93215-00740
Precautions for Disassembling and Assembling:
Precautions for Disassembling:
- Clean the Machine Thoroughly wash the machine before bringing it into the shop. Bringing a dirty machine into the shop may cause machine components to be contaminated during disassembling / assembling, resulting in damage to machine components, as well as decreased efficiency in service work.
- Inspect the Machine Be sure to thoroughly understand all disassembling / assembling procedures beforehand to help avoid incorrect disassembling of components as well as personal injury. Check and record the items listed below to prevent problems from occurring in the future.
- The machine model, machine serial number, and hour meter reading.
- Reason for disassembly (symptoms, failed parts, and causes).
- Clogging of filters and oil, water or air leaks, if any. Capacities and condition of lubricants.
- Loose or damaged parts.
- Prepare and Clean Tools and Disassembly Area Prepare the necessary tools to be used and the area for disassembling work. Precautions for Disassembling and Assembling
- Precautions for Disassembling
- Cap the open ends in case the hoses and pipes have been disconnected. In addition, attach an identification tag onto the connectors, hoses, and pipes for assembling.
- Before disassembling, clean the exterior of the components and place on a workbench.
- Drain hydraulic oil and gear oil from the hydraulic components and reduction gear.
- Be sure to provide appropriate containers for draining fluids.
- Use matching marks for easier reassembling if necessary.
- Be sure to use the specified special tools when instructed.
Maintenance Standard Terminology “Standard” :
1. Dimension for parts on a new machine.
2. Dimension of new components or assemblies adjusted to specification. Allowable errors will be indicated if necessary.
G.B 06/02/25
