KCM 90Z7/92Z7 Wheel Loader HINO E13C-VV ENGINE Shop Manual – PDF
$29.95
KCM 90Z7/92Z7 Wheel Loader(General Information Function & Structure) HINO E13C-VV ENGINE Shop Manual – PDF DOWNLOAD
SN 90H1-5001 and up
92H1-5001 and up
PN 93213-00593
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
KCM 90Z7/92Z7 Wheel Loader(General Information Function & Structure) HINO E13C-VV ENGINE Shop Manual – PDF DOWNLOAD
FILE DETAILS:
KCM 90Z7/92Z7 Wheel Loader(General Information Function & Structure) HINO E13C-VV ENGINE Shop Manual – PDF DOWNLOAD
SN 90H1-5001 and up
92H1-5001 and up
PN 93213-00593
Language : English
Pages : 489
Downloadable : Yes
File Type : PDF
Pages : 489
Downloadable : Yes
File Type : PDF

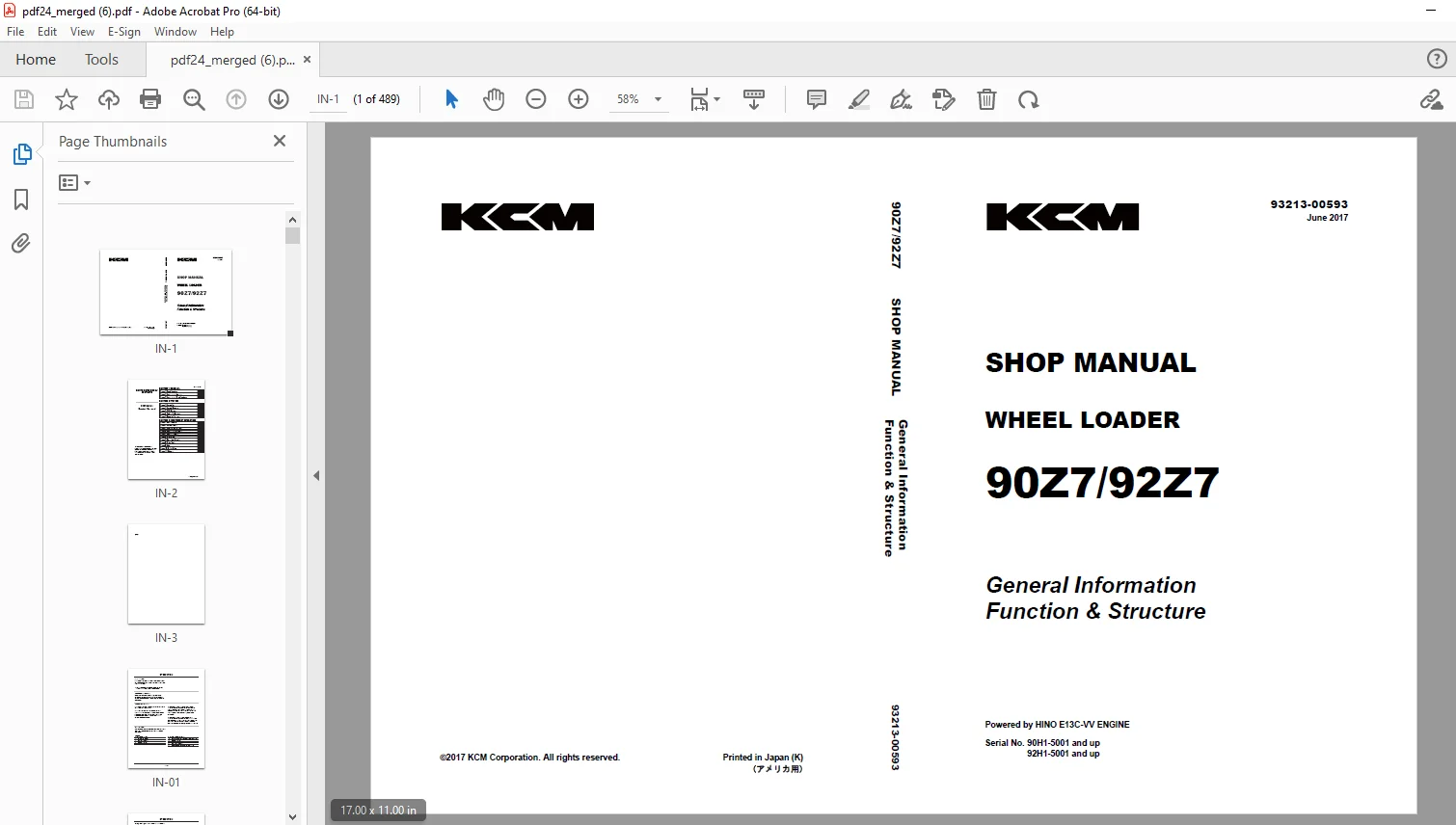

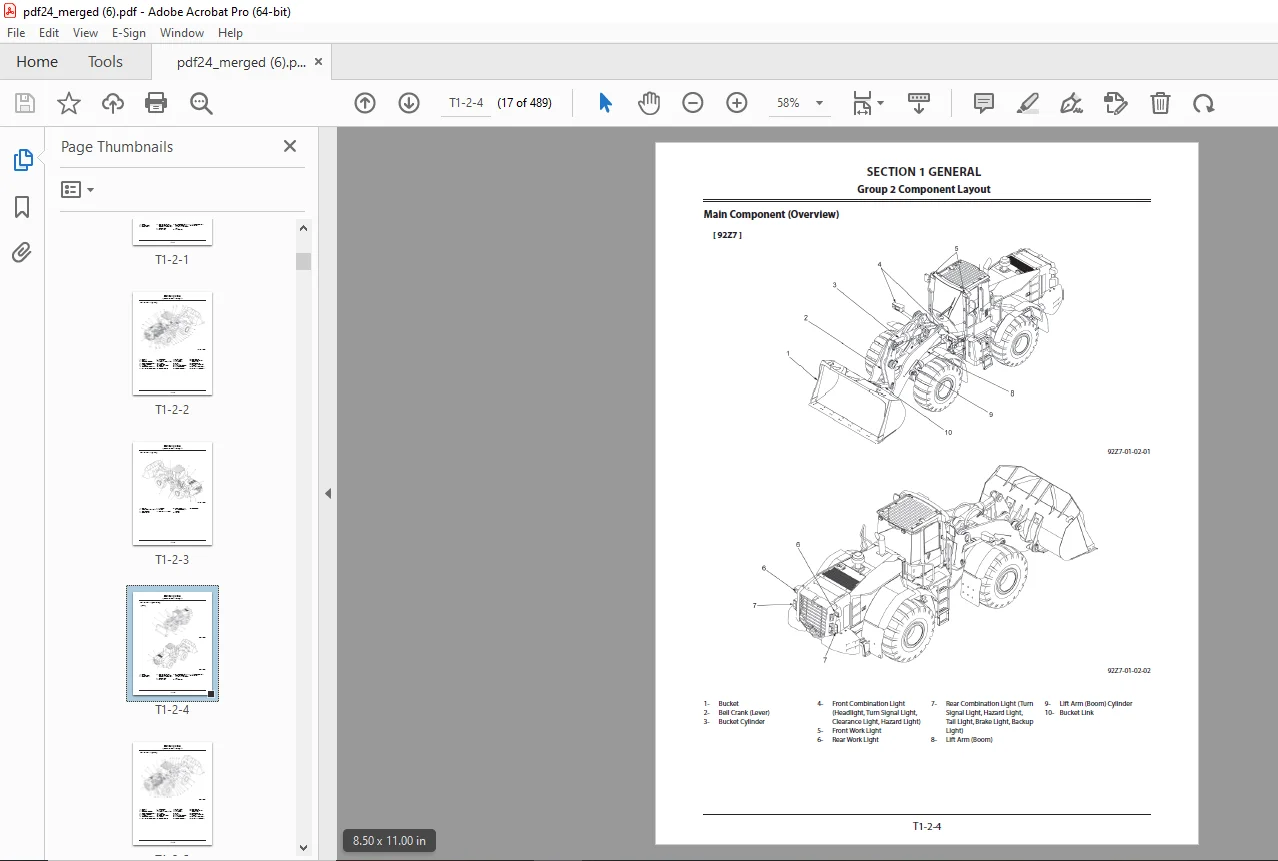

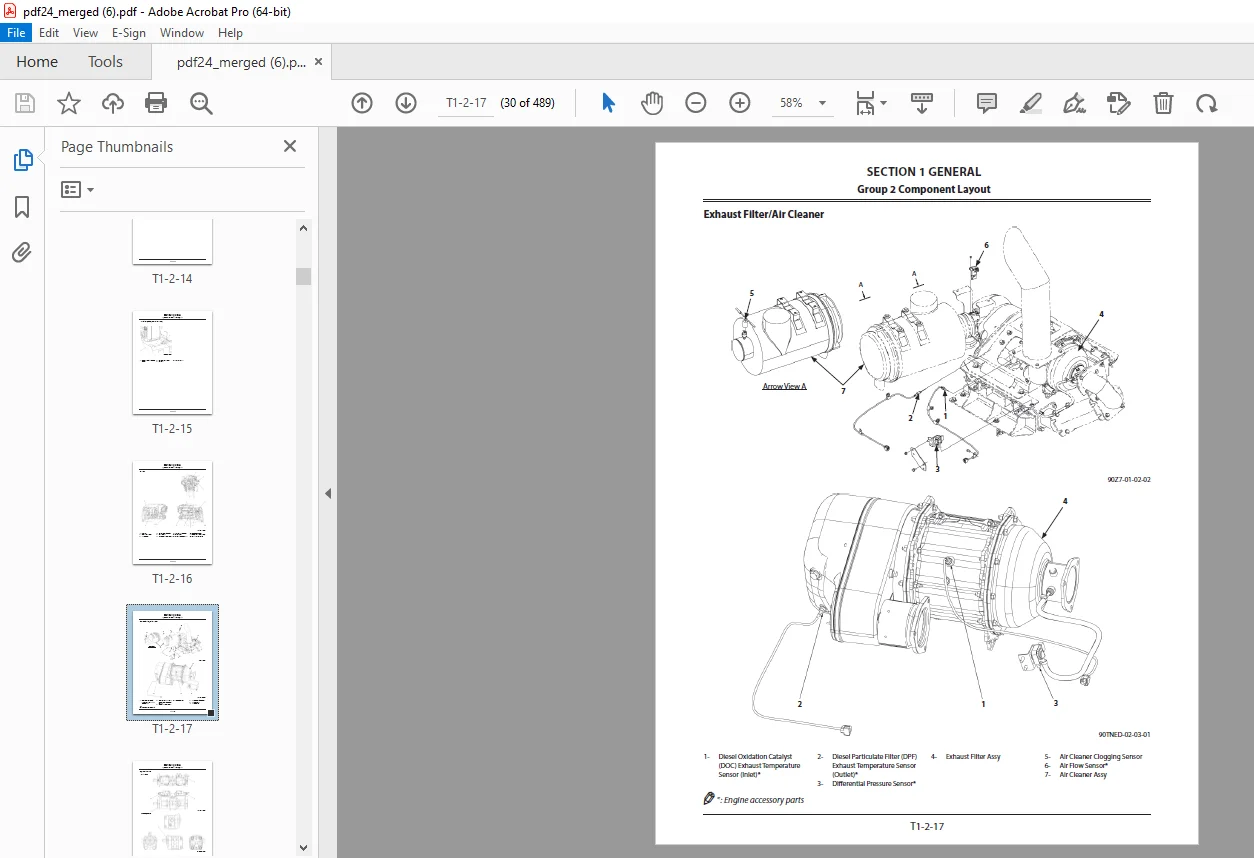

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
KCM 90Z7/92Z7 Wheel Loader(General Information Function & Structure) HINO E13C-VV ENGINE Shop Manual – PDF DOWNLOAD
SN 90H1-5001 and up
92H1-5001 and up
PN 93213-00593
SECTION 1 GENERAL
Group 1 Specifications
Group 2 Component Layout
Group 3 Component Specifications
SECTION 2 SYSTEM
Group 1 Controller
Group 2 Control System
Group 3 ECM System
Group 4 Hydraulic System
Group 5 Electrical System
SECTION 3 COMPONENT OPERATION
Group 1 Pump Device
Group 2 Control Valve
Group 3 Cooling Fan System
Group 4 Steering Pilot Valve
Group 5 Steering Valve
Group 6 Pilot Valve
Group 7 Charging Circuit
Group 8 Drive Unit
Group 9 Axle
Group 10 Brake Valve
Group 11 Others
Group 1 Specifications
Group 2 Component Layout
Group 3 Component Specifications
SECTION 2 SYSTEM
Group 1 Controller
Group 2 Control System
Group 3 ECM System
Group 4 Hydraulic System
Group 5 Electrical System
SECTION 3 COMPONENT OPERATION
Group 1 Pump Device
Group 2 Control Valve
Group 3 Cooling Fan System
Group 4 Steering Pilot Valve
Group 5 Steering Valve
Group 6 Pilot Valve
Group 7 Charging Circuit
Group 8 Drive Unit
Group 9 Axle
Group 10 Brake Valve
Group 11 Others
DESCRIPTION:
KCM 90Z7/92Z7 Wheel Loader(General Information Function & Structure) HINO E13C-VV ENGINE Shop Manual – PDF DOWNLOAD
SN 90H1-5001 and up
92H1-5001 and up
PN 93213-00593
TO THE READER:
- This manual is written for trained and skilled technicians to provide technical information needed to maintain and repair this machine.
- Be sure to thoroughly read this manual for correct product information and service procedures.
MANUAL COMPOSITION:
- This manual consists the Technical Manual, the Workshop Manual and the Engine Manual.
- Information included in the Technical Manual: Technical information needed for machine pre-delivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures.
- Information included in the Workshop Manual: Technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal / installation and assembly / disassembly procedures.
- Information included in the Engine Manual: Technical information needed for machine pre-delivery and delivery and maintenance and repair of the engine, operation and activation of all devices and systems, troubleshooting and assembly / disassembly procedures.
G.B 05/02/25
