Kawasaki WHEEL LOADER AUTHENT 115ZA-2 115ZN-3 PARTS CATALOG MANUAL – PDF DOWNLOAD

Description

Kawasaki WHEEL LOADER AUTHENT 115ZA-2 115ZN-3 PARTS CATALOG MANUAL – PDF DOWNLOAD

FILE DETAILS:

Kawasaki WHEEL LOADER AUTHENT 115ZA-2 115ZN-3 PARTS CATALOG MANUAL – PDF DOWNLOAD

Language :English_Japanese_Spanish_French_
Pages :245
Downloadable : Yes
File Type : PDF

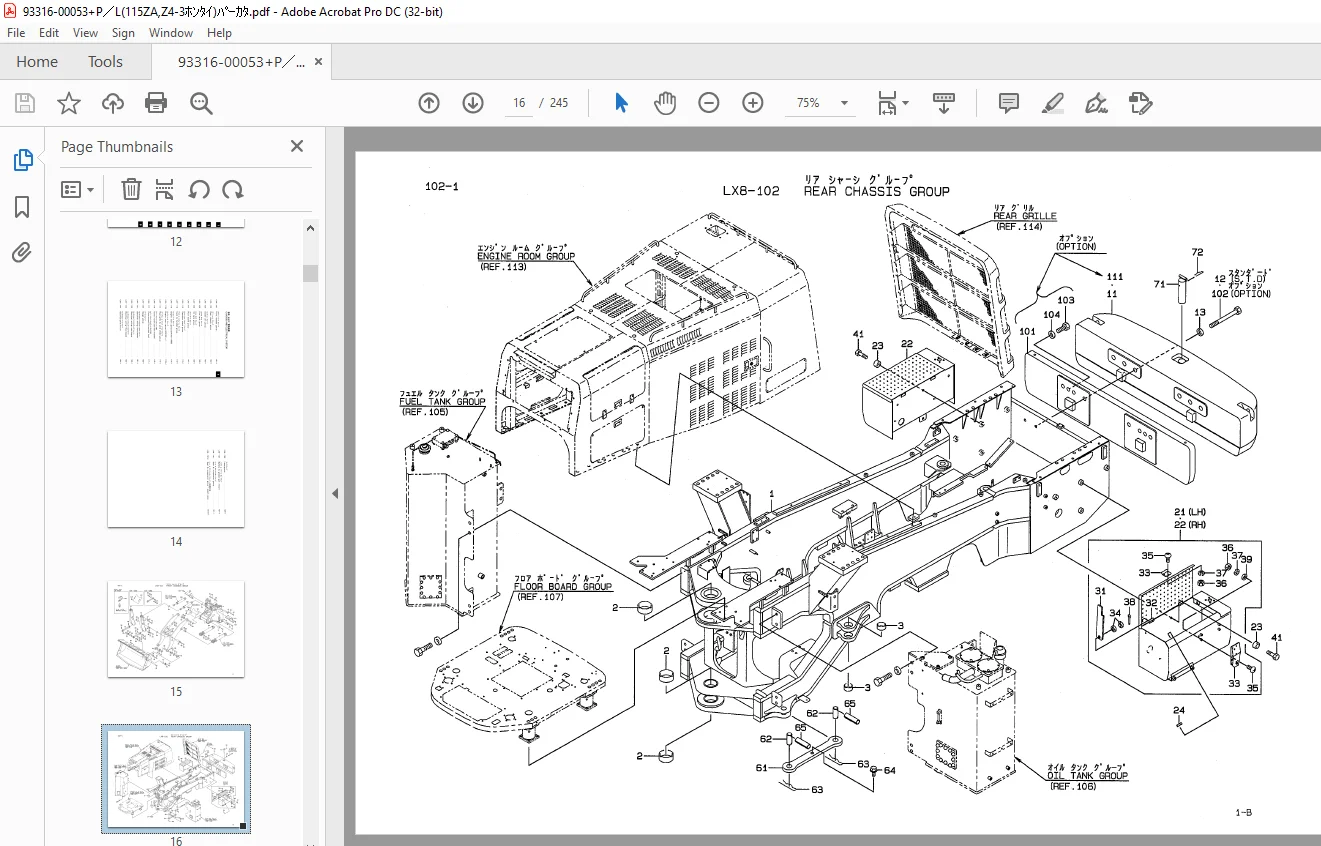

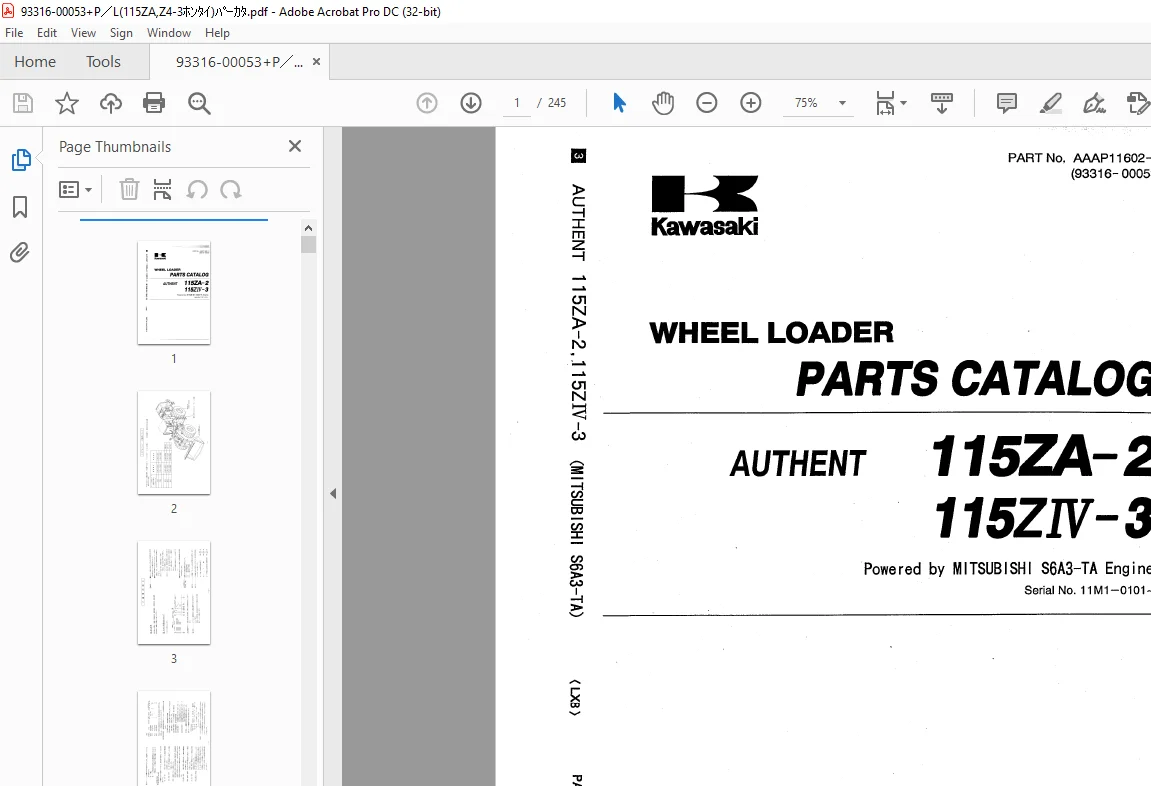

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kawasaki WHEEL LOADER AUTHENT 115ZA-2 115ZN-3 PARTS CATALOG MANUAL – PDF DOWNLOAD

PART No. AAAP11602- 3
(93316- 00053)
WHEEL LOADER
PARTS CATALOG
AUTHENT 115ZA- 2
115ZIV-3
Powered by MITSUBISHI S6A3-TA Engine
Serial No. 11M1-0101~

PREFACE

When ordering parts, be sure to specify the following:

• When ordering parts, be sure to state “Model”, “Serial No.”, “Section No.”, “Parts No.”, “Parts Name” and “Quantity”. When ordering parts of the bucket, be sure to state “Bucket type number” marked on the bucket body also.

For bucket-related parts, also mention the “Bucket type number” marked on the bucket body.

HOW TO USE THE LIST

The following example shows how to use the parts list:

Model Code
Example: X X X – X X X (iv)

® (Section No.) It is a title number for each explosion-figure page.

@ (Symbol) It is a key for finding out parts No. from illustration. The symbol to which three zeros are prefixed, e.g., OOOA, 000B, etc. tells that the unit is an assembly. The individual parts not numbered in illustration will not be sold
separately.

© (Unit Q’ty)

O It indicates number of piece(s) for a set where as in case three zeros are prefixed it indicates that for one unit.

2} In case indicated as IM, 2M … the part will be as pieces meter, 2 meter .long where as actual length values are indicated in the REMARK. (Example 1) In case of the indication “Q’ty 2M REMARK L=l 700” the part will be sold as a piece 2 meter long where as actually a Piece 9f 1700 mm length is required. (Example 2) In case of the indication “Q’ty 2M REMARK L=1400 x Q’ty 2” the part will be sold as a piece 3 meter long where as actually 2 pieces of 1400 mm length are required.

3) The abbreviation “A/R”, means that necessary quantity as well as size vary with repairing purposes as the case may be.

TABLE OF CONTENTS:

Kawasaki WHEEL LOADER AUTHENT 115ZA-2 115ZN-3 PARTS CATALOG MANUAL – PDF DOWNLOAD

PART No. AAAP11602- 3
(93316- 00053)
WHEEL LOADER
PARTS CATALOG
AUTHENT 115ZA- 2
115ZIV-3
Powered by MITSUBISHI S6A3-TA Engine
Serial No. 11M1-0101~

LX8-125
ランプグループ
Lamp group
バッテリ グリースガン マウント
Battery & grease gun mount..
LX8-127
シート&サスペンション グループ
LXB-131
Seat & suspension group.
シート&サスペンション グループ 標準仕様
LXB-131E Seat & suspension group export speo.

S.M 9/2/2025
