Kawasaki WHEEL LOADER 65ZV SHOP MANUAL 93207-00330 – PDF DOWNLOAD
FILE DETAILS:
Kawasaki WHEEL LOADER 65ZV SHOP MANUAL 93207-00330 – PDF DOWNLOAD
Language :English
Pages :79
Downloadable : Yes
File Type : PDF

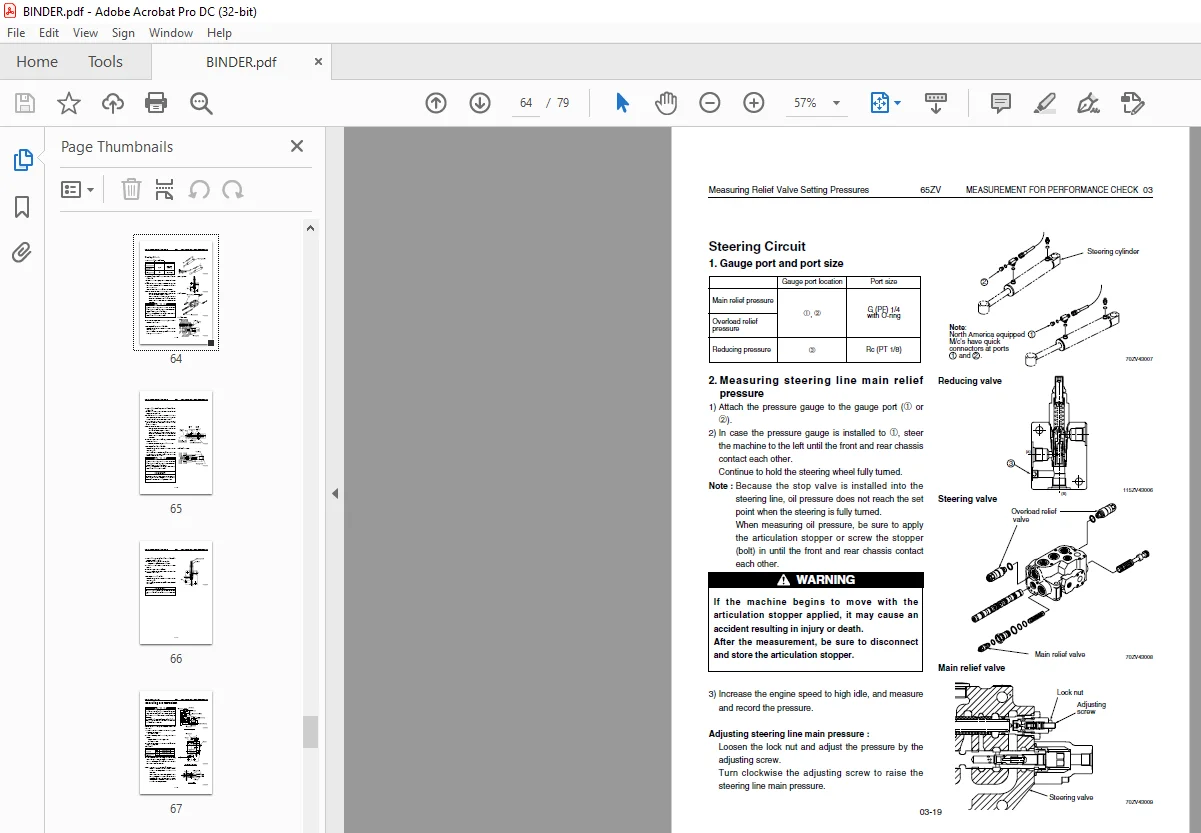

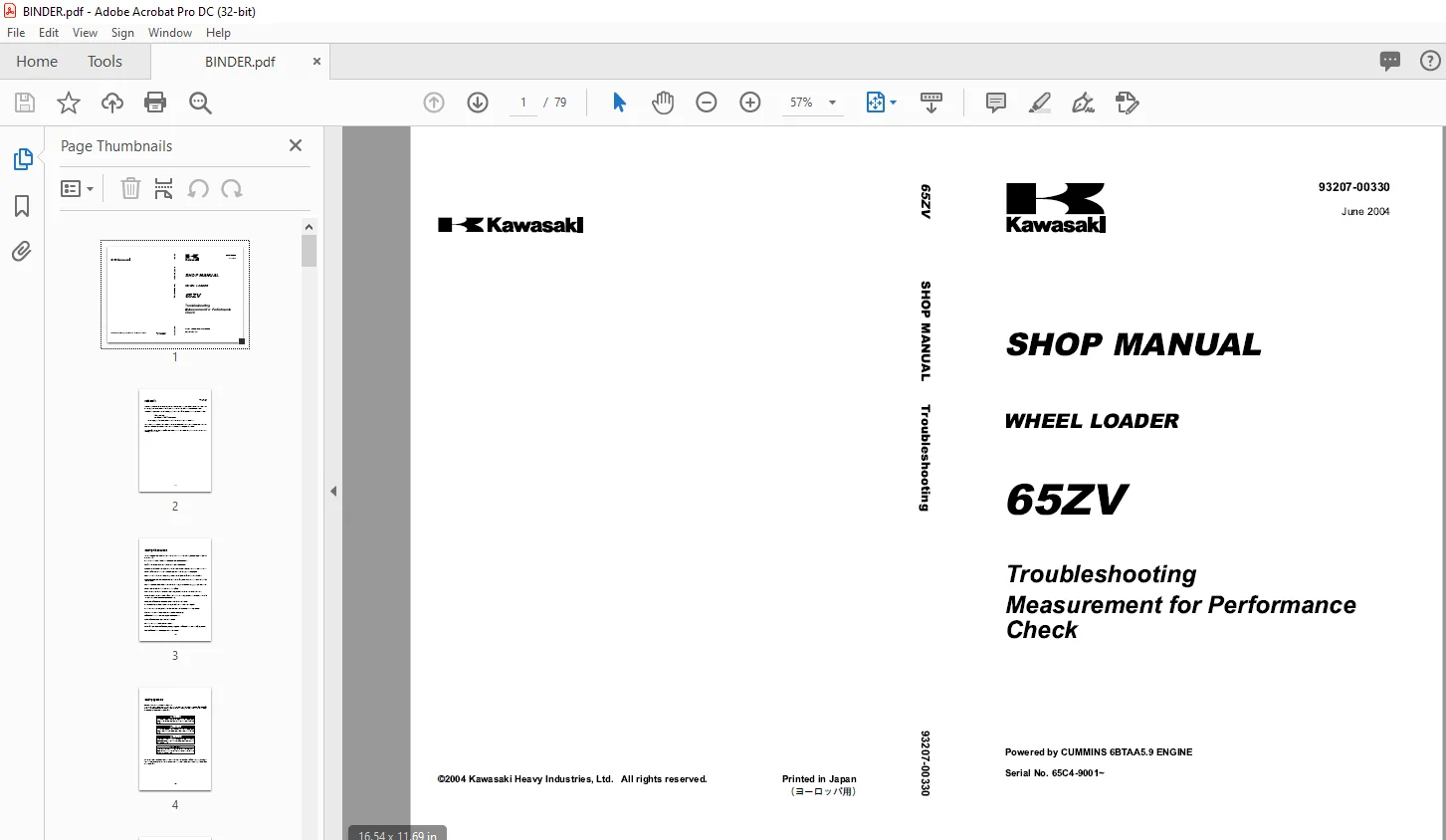

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Kawasaki WHEEL LOADER 65ZV SHOP MANUAL 93207-00330 – PDF DOWNLOAD
Powered by CUMMINS 6BTAA5.9 ENGINE
Serial No. 65C4-9001~
Troubleshooting
Measurement for Performance
Check
Foreword
- To ensure good machine performance, reduce failures or problems, and prolong the
service life of each component, it is necessary to operate the machine as is directed in the
Operator and Maintenance Manual. - To effectively diagnose and repair the machine, it is important to follow the guidelines laid out
in this Shop Manual.
Measurement for Performance Check
- For the engine, refer to the engine Shop Manual provided by the engine manufacturer.
- The purpose of this manual is to provide information on the product and the correct
maintenance and repair methods. Please read this manual to ensure correct troubleshooting and
good repair service. - This manual will be periodically reviewed and revised for more satisfactory content. If you have
any opinion or requests, please inform us.
Safety Precautions
The most important point in providing repair service is safety. To ensure safety,
observe the general cautions described below.
- eThis manual is intended for properly trained and equipped service technicians.
- eAny work on the machine must be performed by the trained personnel only.
- eCarefully read this manual to thoroughly understand the operation method before you operate or
repair the machine. - eBe sure to wear appropriate clothes and protectors, such as safety boots, hard hat and goggles.
- ePlace the machine on level and solid ground, and place chocks against the wheels to prevent
movement. - eRemove the cable from the battery before starting the service work, and attach a “DO NOT OPERATE!”
tag to the steering wheel. - eBe sure to release the internal pressure before you remove a pipe, such as the hydraulic oil, air,
or engine coolant pipe. - eBe sure to apply the articulation stopper before starting work.
- eWhile supporting the bottom of the chassis using a jack, be sure to support the chassis using the
blocks. - eWhen the boom or bucket is raised or when a unit is lifted by a crane, be sure to place a stand or
adequate cribbing under the unit to prevent unexpected dropping. - eDo not start to work in an enclosed area if adequate ventilation is not provided.
- eTo remove a heavy unit (20kgf (40 lbs) or more), be sure to use a crane or other lifting tool.
- eJust after stopping operation, be careful not to directly touch a hot component. You may get
burned. - eContact tire manufacturer’s local dealer for tire servicing and changing. eAlways store the tools
in good condition, and use them properly. eKeep the work area clean. Clean up spills immediately.
eAvoid the use of flammable solvents and cleaners. - eWhen working outdoors keep work areas, ladders, steps, decks and work platforms clear of snow,
ice, and mud. - eUse safe work platforms to reach higher areas of the machine.
TABLE OF CONTENTS:
Kawasaki WHEEL LOADER 65ZV SHOP MANUAL 93207-00330 – PDF DOWNLOAD
Powered by CUMMINS 6BTAA5.9 ENGINE
Serial No. 65C4-9001~
Troubleshooting
Measurement for Performance
Check
Cautions Regarding Troubleshooting 01-3
How to Use Quick Troubleshooting Table 01-4
Safety Precautions
01-5
Quick Troubleshooting Table
Torque Converter and Transmission Group
1 Machine does not move in any shift lever position 01-6
2 Machine does not move at a certain shift lever position 01-7
(or: Machine moves only in a certain shift lever position)
3 Machine moves at the neutral position 01-8
(Example: Machine moves forward at the neutral position)
4 Large shock at starting or changing speeds / direction 01-9
5 Large time lag at starting or changing speed / direction 01-10
6 Low power
(Defective torque converter or transmission)
7 Torque converter oil is overheating 01-12
8 Machine moves reverse when starting to
climb up on a slope using inching brake 01-13
9 Automatic speed change is not possible 01-14
10 QUAD switch does not work 01-15
S.M 5/2/2025
