Kawasaki 95ZIV Wheel Loader CUMMINS NTA-855-C Engine Parts Manual PDF
$28.95
Kawasaki 95ZIV Wheel Loader CUMMINS NTA-855-C Engine Parts Manual – PDF DOWNLOAD
SN 97C2-5001
PN AAAP09815-0
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Kawasaki 95ZIV Wheel Loader CUMMINS NTA-855-C Engine Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Kawasaki 95ZIV Wheel Loader CUMMINS NTA-855-C Engine Parts Manual – PDF DOWNLOAD
SN 97C2-5001
PN AAAP09815-0
Language : English
Pages : 380
Downloadable : Yes
File Type : PDF
Pages : 380
Downloadable : Yes
File Type : PDF

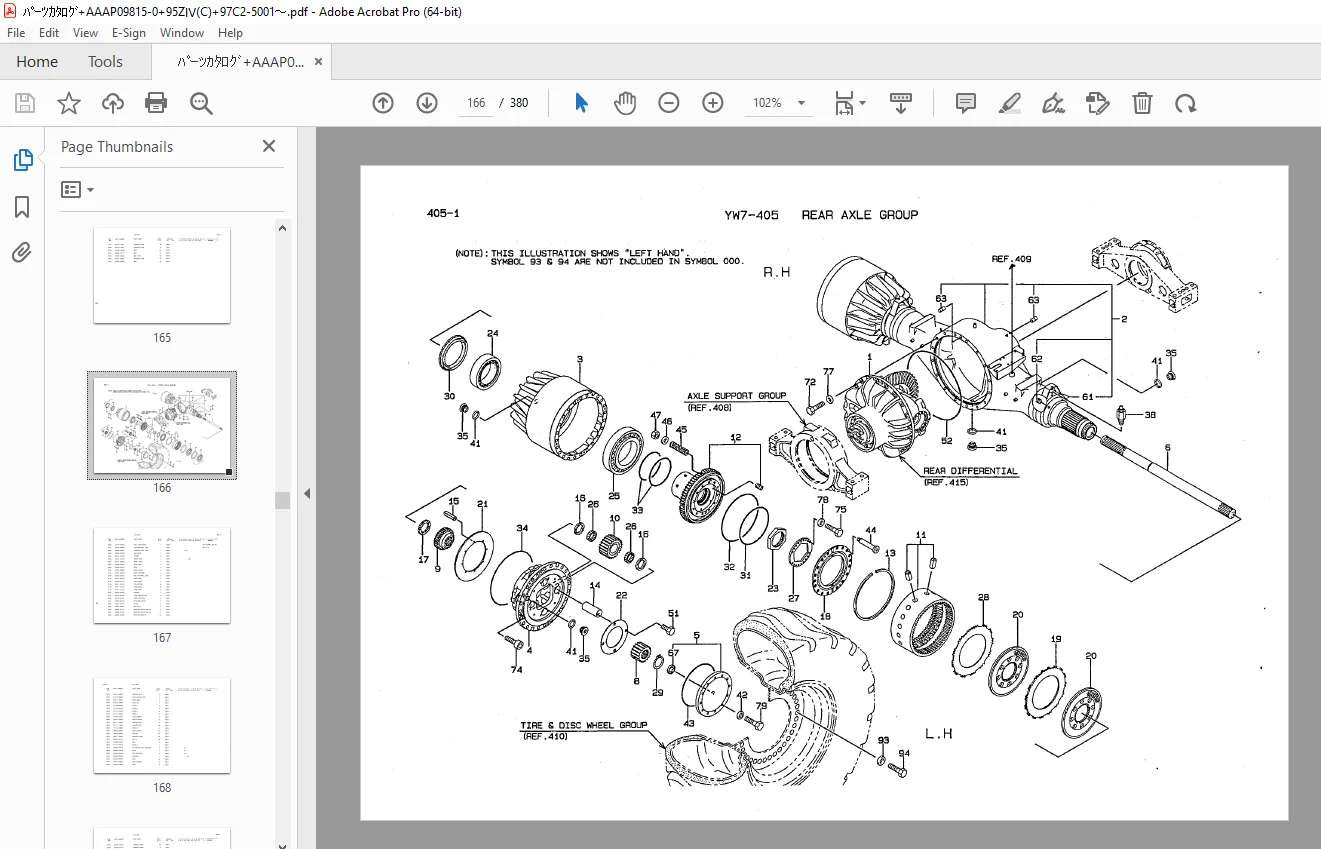

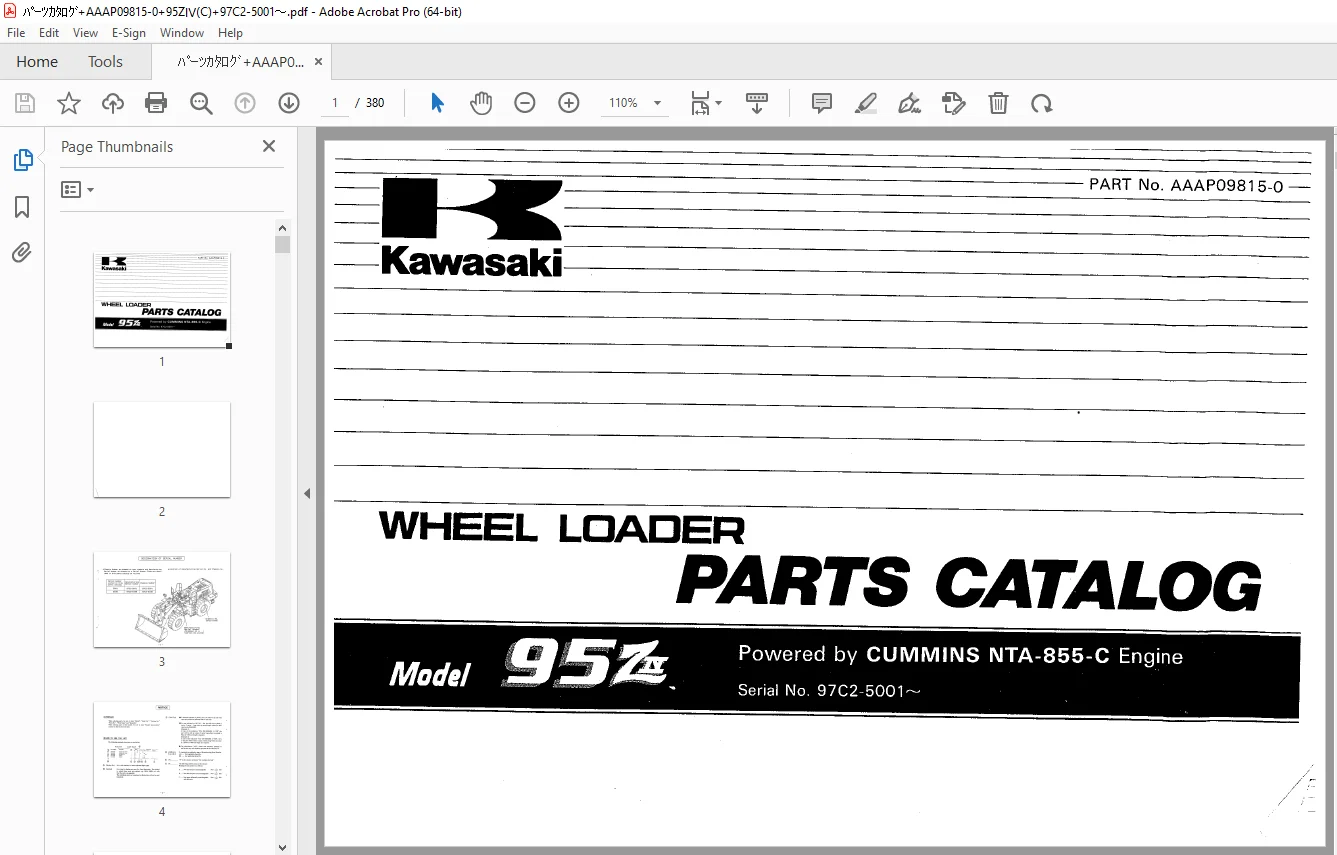

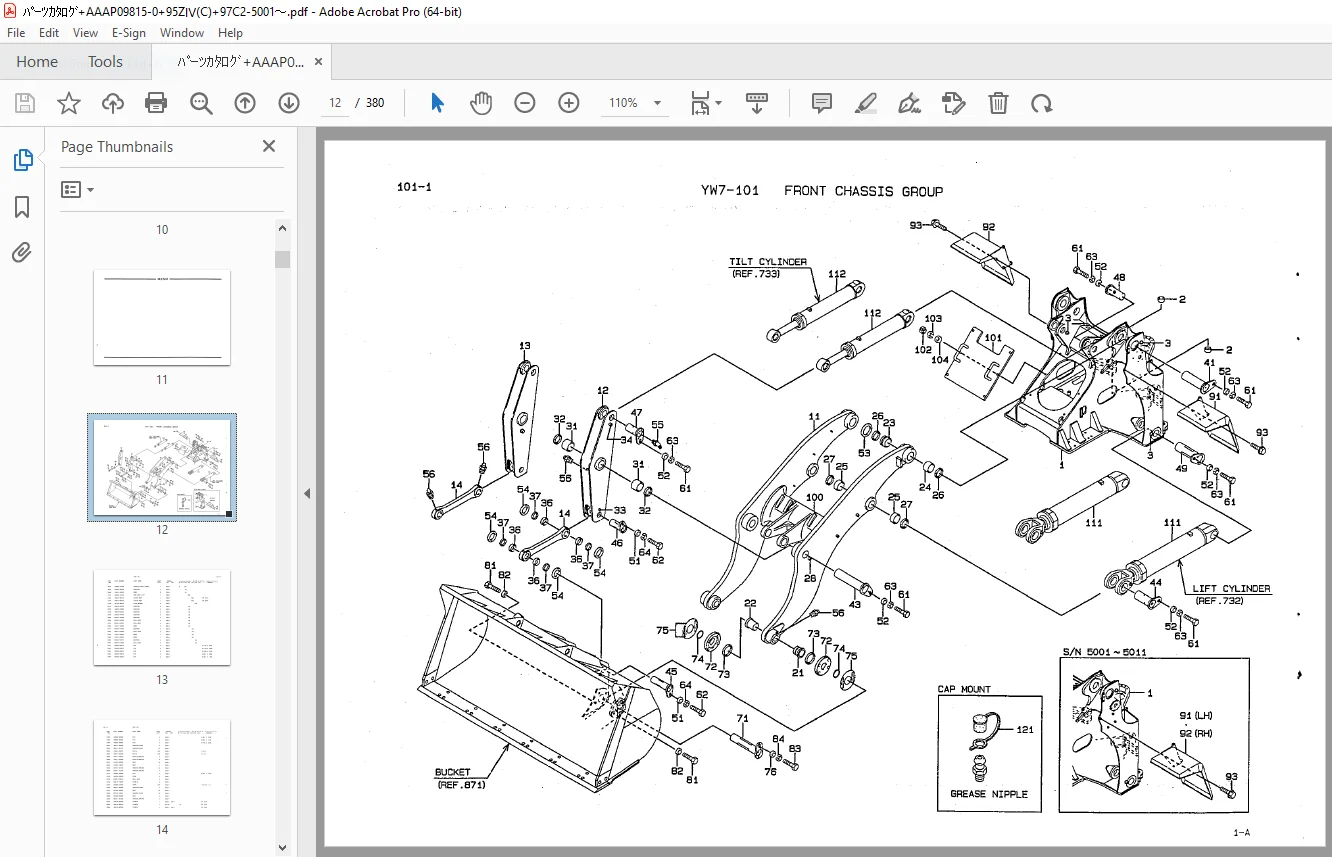

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Kawasaki 95ZIV Wheel Loader CUMMINS NTA-855-C Engine Parts Manual – PDF DOWNLOAD
SN 97C2-5001
PN AAAP09815-0
SECTION INDEX
1. CHASSIS AND ELECTRICAL SYSTEM
2. POWER SYSTEM
3. TORQUE CONVERTER AND TRANSMISSION SYSTEM
4. AXLE AND DIFFERENTIAL
5. BRAKE SYSTEM
6. CONTROL SYSTEM
7. LOADING HYDRAULIC SYSTEM
8. ACCESSORIES, BUCKET. ETC.
CHASSIS AND ELECTRICAL SYSTEM
YW7-101
Front chassis group
101-1
YW7-102
Rear chassis group
102-1
YW7-103
Center pin group
103-1
YW7-105
Fuel tank group
105-1
YW7-106
Oil tank group
106-1
YW7-107
Floor board group
107-1
YW7-110
Operation stand group
YW7-112
Deck & handrail group
110-1
112-1
YW7-113
Engine room group
113-1
YW7-114
Rear grille & wind shield group
114-1
YW7-115
Cover mount (for rear chassis)
115-1
YW7-117
Cover mount (for control box)
117-1
YW7-120
Gauge group
120-1
YW7-121
Electrical wiring-front chassis
121-1
YW7-122
Electrical wiring-rear chassis
122-1
YW7-123
Electrical wiring-floor board
123-1
YW7-124
Electrical parts mount
124-1
YW7-125
Lamp group
125-1
YW7-127
Battery & grease gun mount
127-1
YW7-131
Seat &
suspension group
131-1
1. CHASSIS AND ELECTRICAL SYSTEM
2. POWER SYSTEM
3. TORQUE CONVERTER AND TRANSMISSION SYSTEM
4. AXLE AND DIFFERENTIAL
5. BRAKE SYSTEM
6. CONTROL SYSTEM
7. LOADING HYDRAULIC SYSTEM
8. ACCESSORIES, BUCKET. ETC.
CHASSIS AND ELECTRICAL SYSTEM
YW7-101
Front chassis group
101-1
YW7-102
Rear chassis group
102-1
YW7-103
Center pin group
103-1
YW7-105
Fuel tank group
105-1
YW7-106
Oil tank group
106-1
YW7-107
Floor board group
107-1
YW7-110
Operation stand group
YW7-112
Deck & handrail group
110-1
112-1
YW7-113
Engine room group
113-1
YW7-114
Rear grille & wind shield group
114-1
YW7-115
Cover mount (for rear chassis)
115-1
YW7-117
Cover mount (for control box)
117-1
YW7-120
Gauge group
120-1
YW7-121
Electrical wiring-front chassis
121-1
YW7-122
Electrical wiring-rear chassis
122-1
YW7-123
Electrical wiring-floor board
123-1
YW7-124
Electrical parts mount
124-1
YW7-125
Lamp group
125-1
YW7-127
Battery & grease gun mount
127-1
YW7-131
Seat &
suspension group
131-1
DESCRIPTION:
Kawasaki 95ZIV Wheel Loader CUMMINS NTA-855-C Engine Parts Manual – PDF DOWNLOAD
SN 97C2-5001
PN AAAP09815-0
PREFACE:
When ordering parts, be sure to state “Model”, “Serial No.”, “Section No.”, “Parts No.”, “Parts Name” and “Quantity”.
When ordering parts of the bucket, be sure to state “Bucket type number” marked on the bucket body also.
When ordering parts, be sure to state “Model”, “Serial No.”, “Section No.”, “Parts No.”, “Parts Name” and “Quantity”.
When ordering parts of the bucket, be sure to state “Bucket type number” marked on the bucket body also.
(Section No.) It is a title number for each explosion-figure page. ® (Symbol)
It is a key for finding out parts No. from illustration. The symbol
to which three zeros are prefixed, e.g., 000A, 000B, etc. tells that the unit is an assembly.
The individual parts not numbered in illustration will not be sold separately.
HOW TO USE THIS LIST:
It is a key for finding out parts No. from illustration. The symbol
to which three zeros are prefixed, e.g., 000A, 000B, etc. tells that the unit is an assembly.
The individual parts not numbered in illustration will not be sold separately.
HOW TO USE THIS LIST:
It indicates number of piece(s) for a set where as in case three zeros are prefixed it indicates that for one unit.
In case indicated as 1M, 2M … the part will be as pieces 1 meter, 2 meter… long where as actual length values are indi. cated in the REMARK.
(Example 1)
In case of the indication “Q’ty 2M REMARK L=1700” the part will be sold as a piece 2 meter long where as actually a Piece of 1700 mm length is required.
(Example 2)
In case of the indication “Q’ty 2M REMARK L=1400 x Q’ty 2” the part will be sold as a piece 3 meter long where as actual- ly 2 pieces of 1400 mm length are required.
In case indicated as 1M, 2M … the part will be as pieces 1 meter, 2 meter… long where as actual length values are indi. cated in the REMARK.
(Example 1)
In case of the indication “Q’ty 2M REMARK L=1700” the part will be sold as a piece 2 meter long where as actually a Piece of 1700 mm length is required.
(Example 2)
In case of the indication “Q’ty 2M REMARK L=1400 x Q’ty 2” the part will be sold as a piece 3 meter long where as actual- ly 2 pieces of 1400 mm length are required.
G.B 18/02/25
