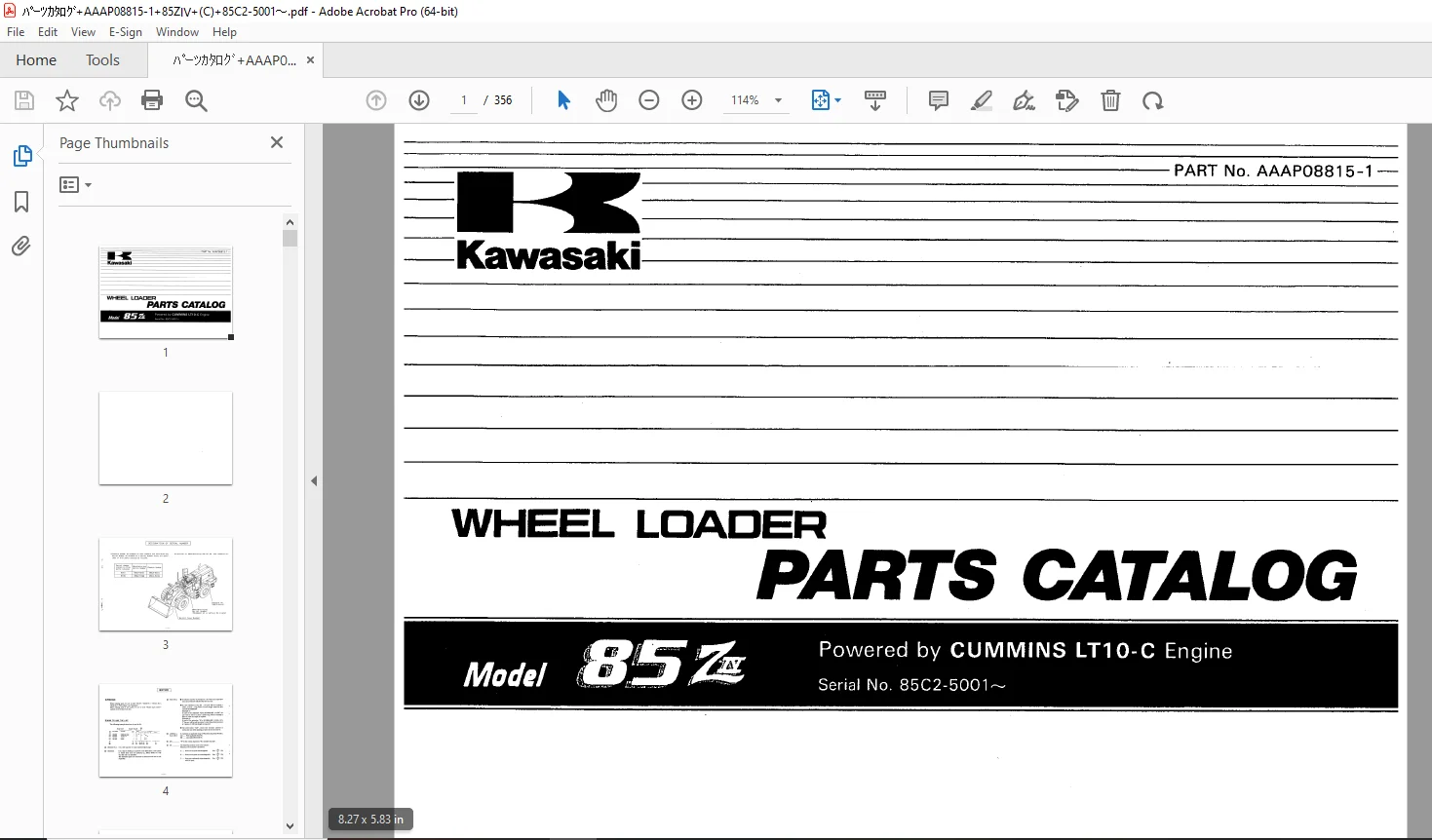

Kawasaki 85ZIV Wheel Loader CUMMINS LT10-C Engine Parts Manual – PDF

Language : English
Pages : 356
Downloadable : Yes
File Type : PDF

SECTION INDEX
1. CHASSIS AND ELECTRICAL SYSTEM
2. POWER SYSTEM
3. TORQUE CONVERTER AND TRANSMISSION SYSTEM
4. AXLE AND DIFFERENTIAL
5. BRAKE SYSTEM
6. CONTROL SYSTEM
7. LOADING HYDRAULIC SYSTEM
8. ACCESSORIES, BUCKET, ETC.
802-1
9. CAB ACCESSORIES (OPTION)
904-1
CHASSIS AND ELECTRICAL SYSTEM
YP5-101
Front chassis group
101-1
YP5-102

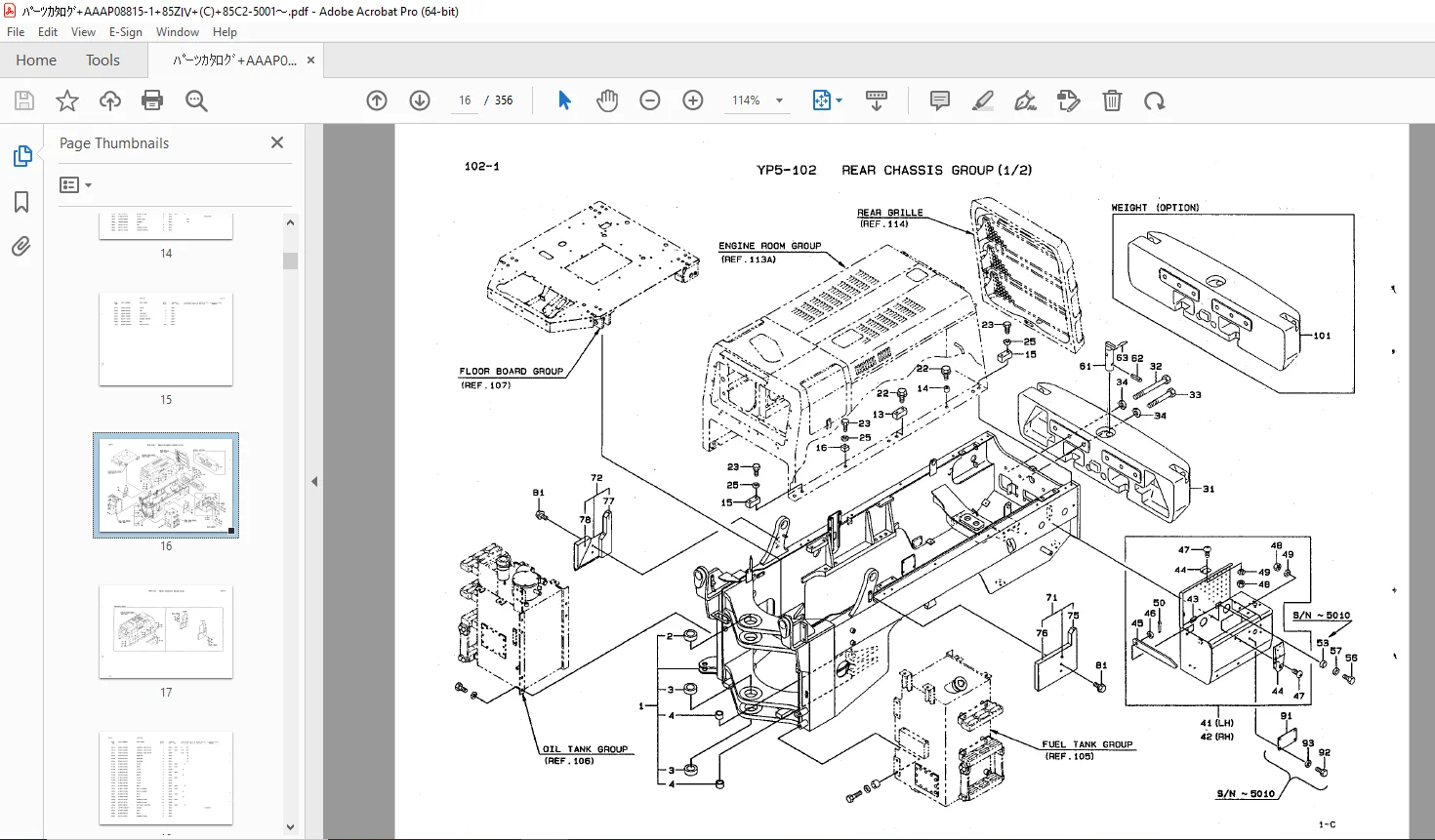

Rear chassis
group
102-1
YP5-103
Center pin group
103-1
YP5-105
Fuel tank group
105-1
YP5-106
Oil tank group
106-1
YP5-107

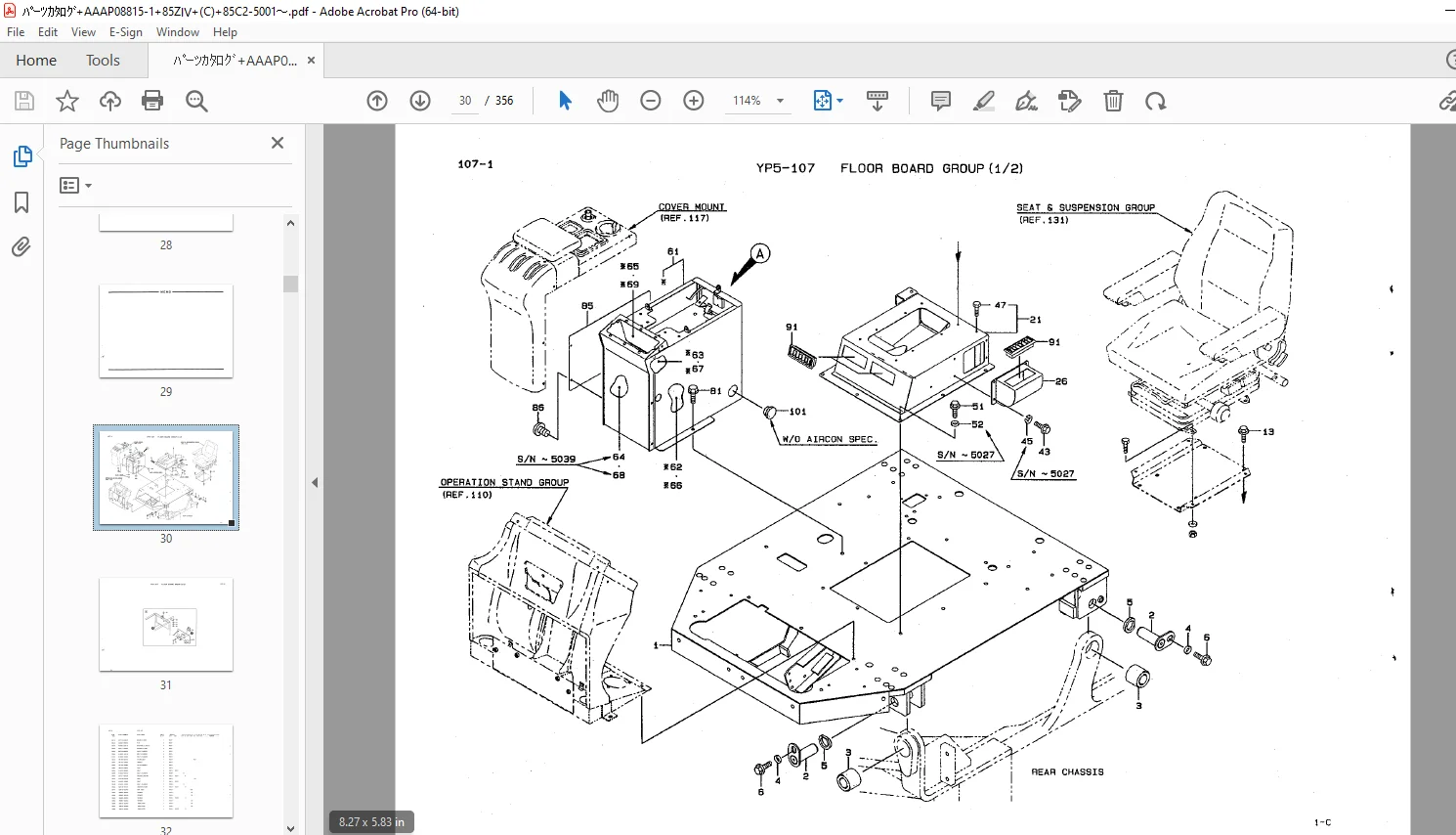

Floor board group.
107-1
YP5-110
Operation stand group.
110-1
YP5-112
Deck & step mount
112-1
YP5-113
Engine room
group (S/N 50015027).
113-1
YP5-113 A Engine room group (S/N 5028~)
113A-1
YP5-114
Rear grille & wind
shield
group
114-1
YP5-115
Cover mount (for rear chassis)

 115-1
YP5-117
Cover mount (for control box)
117-1
YP5-120
Gauge group
120-1
YP5-121
Electrical wiring-front chassis.
121-1
YP5-122
Electrical wiring-rear chassis
122-1
YP5-123
Electrical wiring-floor board
123-1
YP5-124
Electrical parts mount
124-1
YP5-125
Lamp group
125-1
YP5-127
Battery mount
127-1
YP5-131
Seat & suspension group
131-1

[] PREFACE:
When ordering parts, be sure to state “Model”, “Serial No.”, “Section No.”, “Parts No.”, “Parts Name” and “Quantity”.
When ordering parts of the bucket, be sure to state “Bucket type number” marked on the bucket body also.

(Section No.) R (Symbol)

HOW TO USE THIS MANUAL LIST:
It is a title number for each explosion-figure page.
It is a key for finding out parts No. from illustration. The symbol to which three zeros are prefixed, e.g., 000A, 000B, etc. tells that the unit is an assembly.
The individual parts not numbered in illustration will not be sold separately.

It indicates number of piece(s) for a set where as in case three zeros are prefixed it indicates that for one unit.
In case indicated as 1M, 2M.. the part will be as pieces 1 meter, 2 meter… long where as actual length values are indi- cated in the REMARK.
(Example 1)
In case of the indication “Q’ty 2M REMARK L=1700” the part will be sold as a piece 2 meter long, where as actually a Piece of 1700 mm length is required.
(Example 2)
In case of the indication “Q’ty 2M REMARK L-1400 x Q’ty 2” the part will be sold as a piece 3 meter long where as actual- ly 2 pieces of 1400 mm length are required.
