Kawasaki 70ZV WHEEL LOADER SHOP MANUAL 93208-00200- PDF DOWNLOAD
FILE DETAILS:
Kawasaki 70ZV WHEEL LOADER SHOP MANUAL 93208-00200- PDF DOWNLOAD
Language :English
Pages :83
Downloadable : Yes
File Type : PDF

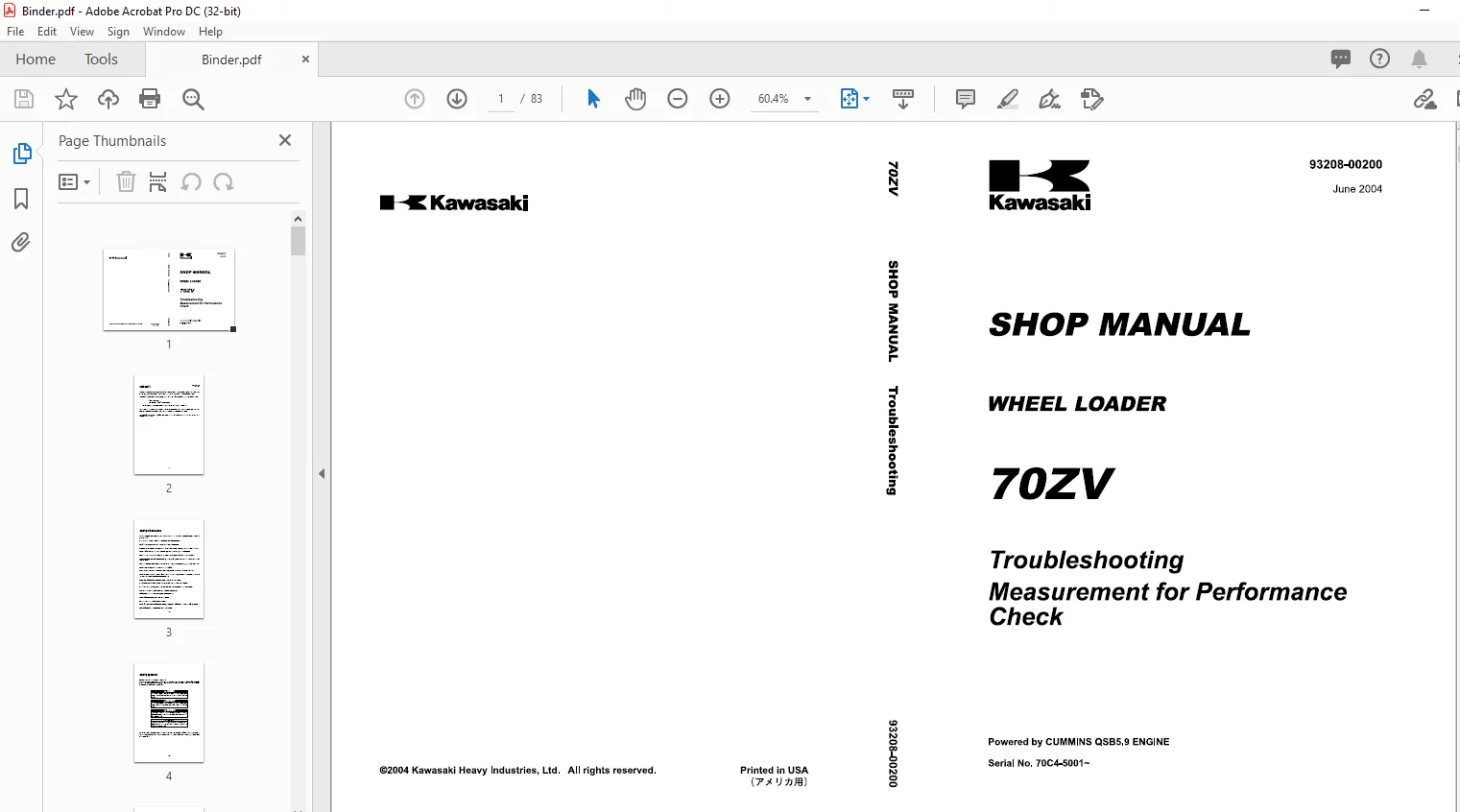

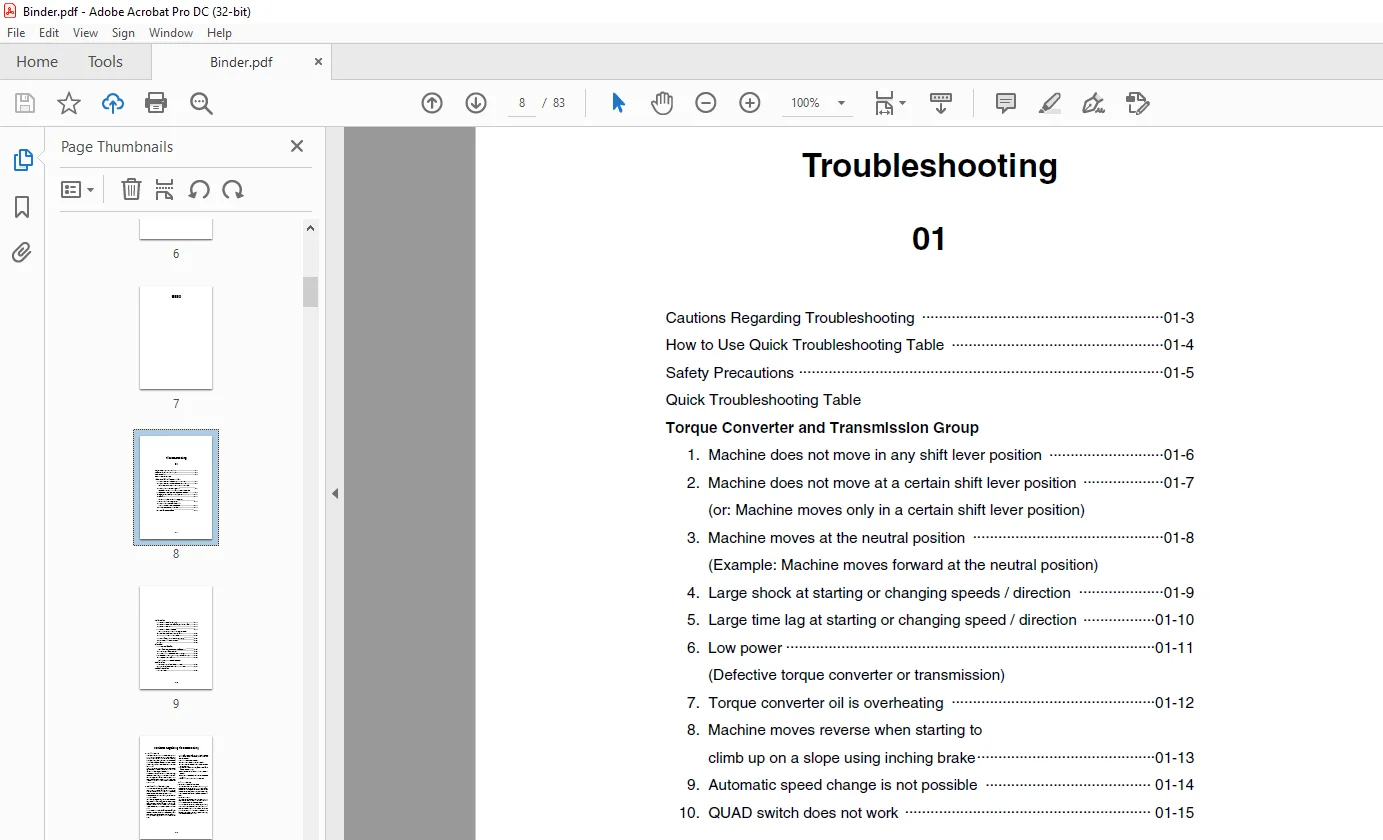

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Kawasaki 70ZV WHEEL LOADER SHOP MANUAL 93208-00200- PDF DOWNLOAD
Troubleshooting
Measurement for Performance
Check
Powered by CUMMINS QSB5.9 ENGINE
Serial No. 70C4-5001~
Foreword
- To ensure good machine performance, reduce failures or problems, and prolong the
service life of each component, it is necessary to operate the machine as is directed in the
Operator and Maintenance Manual. - To effectively diagnose and repair the machine, it is important to follow the guidelines laid out
in this Shop Manual.
Troubleshooting
Measurement for Performance Check
- For the engine, refer to the engine Shop Manual provided by the engine manufacturer.
- The purpose of this manual is to provide information on the product and the correct
maintenance and repair methods. Please read this manual to ensure correct troubleshooting and
good repair service. - This manual will be periodically reviewed and revised for more satisfactory content. If you have
any opinion or requests, please inform us.
Safety Precautions
The most important point in providing repair service is safety. To ensure safety, observe the general cautions
described below.
This manual is intended for properly trained and equipped service technicians.
Any work on the machine must be performed by the trained personnel only.
Carefully read this manual to thoroughly understand the operation method before you operate or repair the machine.
Be sure to wear appropriate clothes and protectors, such as safety boots, hard hat and goggles.
Place the machine on level and solid ground, and place chocks against the wheels to prevent movement.
Remove the cable from the battery before starting the service work, and attach a “DO NOT OPERATE!” tag to the
steering wheel.
Be sure to release the internal pressure before you remove a pipe, such as the hydraulic oil, air, or engine coolant pipe.
Be sure to apply the articulation stopper before starting work.
While supporting the bottom of the chassis using a jack, be sure to support the chassis using the blocks.
When the boom or bucket is raised or when a unit is lifted by a crane, be sure to place a stand or adequate
cribbing under the unit to prevent unexpected dropping.
Do not start to work in an enclosed area if adequate ventilation is not provided.
To remove a heavy unit (20kgf (40 lbs) or more), be sure to use a crane or other lifting tool.
Just after stopping operation, be careful not to directly touch a hot component. You may get burned.
Contact tire manufacturer’s local dealer for tire servicing and changing.
Always store the tools in good condition, and use them properly.
Keep the work area clean. Clean up spills immediately.
Avoid the use of flammable solvents and cleaners.
When working outdoors keep work areas, ladders, steps, decks and work platforms clear of snow, ice, and mud.
Use safe work platforms to reach higher areas of the machine
TABLE OF CONTENTS:
Kawasaki 70ZV WHEEL LOADER SHOP MANUAL 93208-00200- PDF DOWNLOAD
Troubleshooting
Measurement for Performance
Check
Powered by CUMMINS QSB5.9 ENGINE
Serial No. 70C4-5001~
Cautions Regarding Troubleshooting 01-3
How to Use Quick Troubleshooting Table 01-4
Safety Precautions 01-5
Quick Troubleshooting Table
Torque Converter and Transmission Group
1 Machine does not move in any shift lever position 01-6
2 Machine does not move at a certain shift lever position 01-7
(or: Machine moves only in a certain shift lever position)
3 Machine moves at the neutral position 01-8
(Example: Machine moves forward at the neutral position)
4 Large shock at starting or changing speeds / direction 01-9
5 Large time lag at starting or changing speed / direction 01-10
6 Low power 01-11
(Defective torque converter or transmission)
7 Torque converter oil is overheating 01-12
8 Machine moves reverse when starting to
climb up on a slope using inching brake 01-13
9 Automatic speed change is not possible 01-14
10 QUAD switch does not work 01-15
Cautions Regarding Troubleshooting 01-3
How to Use Quick Troubleshooting Table 01-4
Safety Precautions 01-5
Quick Troubleshooting Table
Torque Converter and Transmission Group
1 Machine does not move in any shift lever position 01-6
2 Machine does not move at a certain shift lever position 01-7
(or: Machine moves only in a certain shift lever position)
3 Machine moves at the neutral position 01-8
(Example: Machine moves forward at the neutral position)
4 Large shock at starting or changing speeds / direction 01-9
5 Large time lag at starting or changing speed / direction 01-10
6 Low power 01-11
(Defective torque converter or transmission)
7 Torque converter oil is overheating 01-12
8 Machine moves reverse when starting to
climb up on a slope using inching brake 01-13
9 Automatic speed change is not possible 01-14
10 QUAD switch does not work 01-15
