Kalmar LMV Forklift Truck DC 9-16 Technical Handbook Manual – PDF DOWNLOAD

Description

Kalmar LMV Forklift Truck DC 9-16 Technical Handbook Manual – PDF DOWNLOAD

FILE DETAILS:

Kalmar LMV Forklift Truck DC 9-16 Technical Handbook Manual – PDF DOWNLOAD

Language : English
Pages : 182
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Kalmar LMV Forklift Truck DC 9-16 Technical Handbook Manual – PDF DOWNLOAD

General:
Safety rules:

• Follow the local safety regulations.
• Before starting, check that nobody is in the way of the truck and its accessories.
• The truck should be driven only by specially trained operators who are authorised to do so by
the work supervisor.
• The truck must not be used if its brakes, steering or lifting equipment is faulty. Neither
must it be used if it has been repaired, modified or adju­ sted without the approval of the work
supervisor.
• A passenger may not be carried on the truck.
• Do not exceed the lifting capacity of the truck (see the Load diagram in the cab).
• It is not permissible to use the truck for lifting personnel, unless it is equipped with an
approved personnel cage.
• Do not drive the truck with a heavy load raised high above the ground, since the truck may
overturn.
• During transport with container attachment – drive carefully and always with the attachment
lowered, even if the attachment is empty.
• Always apply the parking brake before leaving the cab. Always remove the key if the truck is
left unattended.
• The parking brake may also be used as EMERGENCY BRAKE (see Brake system).
• Under no circumstances may compressed air be used to remove a hydraulic piston from its
cylinder.
• Always attend to damage and wear that may be of significance to the performance and useful
life of the truck or to the safety of the person­ nel.
• Follow the safety rules whenever carrying out service work on the air conditioner. The
refrigerant is injurious to the skin and eyes.
• The brake system is equipped with accumulators charged to a pressure of up to 21O bar. To
prevent accidents when working on the brake system, never disconnect any component without
previously relieving the accumulator pressure by means of the accumulator discharge valve.
• Never carry out any service work on the lifting mast when the engine is
running

TABLE OF CONTENTS:

Kalmar LMV Forklift Truck DC 9-16 Technical Handbook Manual – PDF DOWNLOAD

General
Chassis and cab
Electrical system
Engine
Transmission,
drive axle, brakes
Steering system
Hydraulic system
Lifting mast and fork
carriage
Periodic supervision

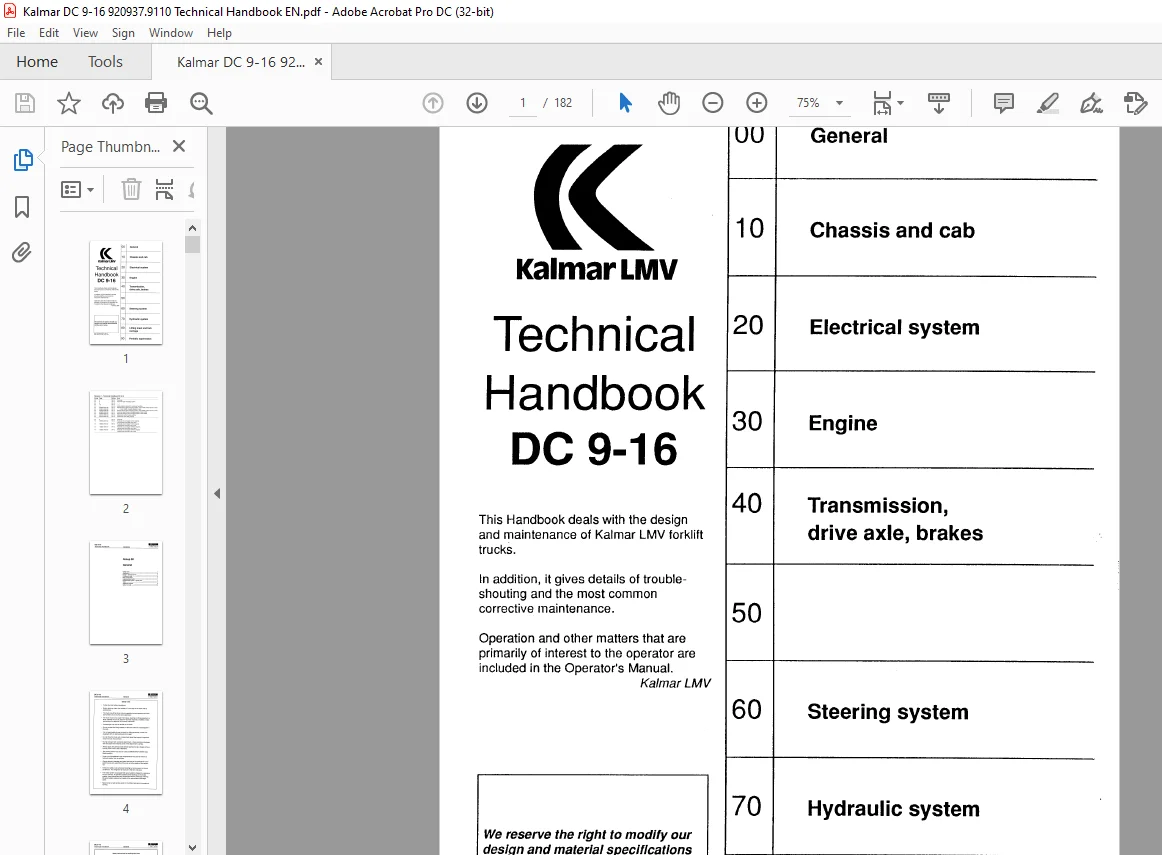

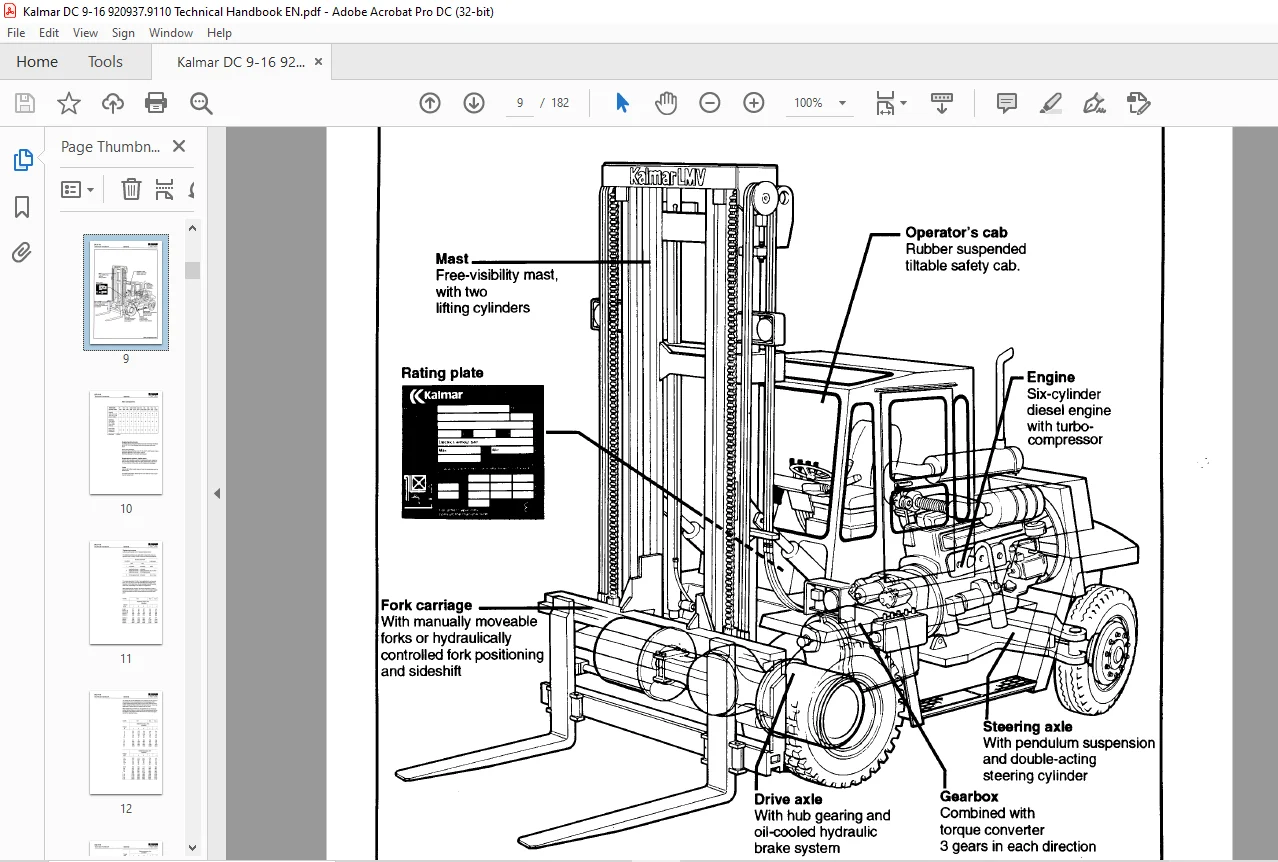

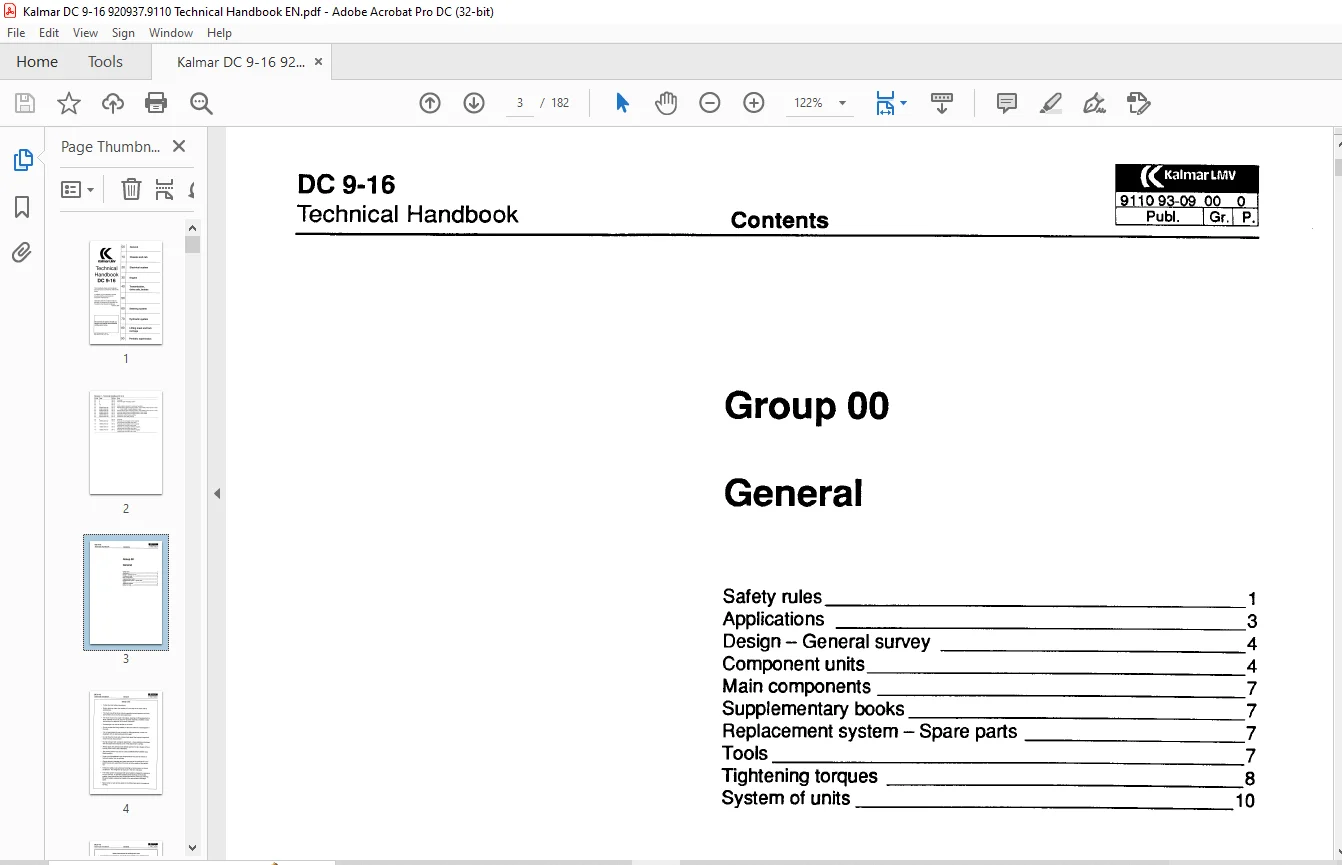

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

https://vimeo.com/872563506?share=copy

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
