Kalmar LMV Forklift DC 18-25N Technical Handbook Manual – PDF DOWNLOAD

Description

Kalmar LMV Forklift DC 18-25N Technical Handbook Manual – PDF DOWNLOAD

FILE DETAILS:

Kalmar LMV Forklift DC 18-25N Technical Handbook Manual – PDF DOWNLOAD

Language : English
Pages : 219
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Kalmar LMV Forklift DC 18-25N Technical Handbook Manual – PDF DOWNLOAD

General
Chassis and cab
Electrical system
Engine
Transmission, drive axle, brakes
Steering system
Hydraulic system:
Lifting mast and fork
carriage
Periodic supervision

DESCRIPTION:

Kalmar LMV Forklift DC 18-25N Technical Handbook Manual – PDF DOWNLOAD

Safety rules:
• Follow the local safety regulations.
• Before starting, check that nobody is in the way of the truck and its
accessories ..
• The truck should be driven only by specially trained operators who are
authorised to do so by the work supervisor.
• The truck must not be used if its brakes, steering or lifting equipment is
faulty. Neither must it be used if it has been repaired, modified ~r adjusted
without the approval of the work supervisor. · – ·
• A passenger may not be carried on the truck.
• Do not exceed.the lifting capacity of the truck (see the Load diagram in
the cab).
• It is not permissible to use the truck for lifting personnel, unless it is
equipped with an approved personnel cage.
• Do not drive the truck with a heavy load raised high above the ground,
since the truck may overturn.
• During transport with container attachment-drive carefully and always
with the attachment lowered, even if the attachment is empty.
• Always apply the parking brake before leaving the cab. Always remove
the key if the truck is left unattended. . ·
• The parking brake may also be used as·EMERGENCYBRAKE (see,· ·
Brake system).
• Under no circumstances may compressed air be used to remove a
hydraulic piston from its cylinder. –
• The brake system is equipped with accumulators charged to a pressure
of up to 210 bar. To prevent accidents when working on the brake
system, never disconnect any component without previously relieving
the accumulator pressure by means of the accumulator discharge
valve.
• Never carry out any service work on the lifting mast when the engine is
running.

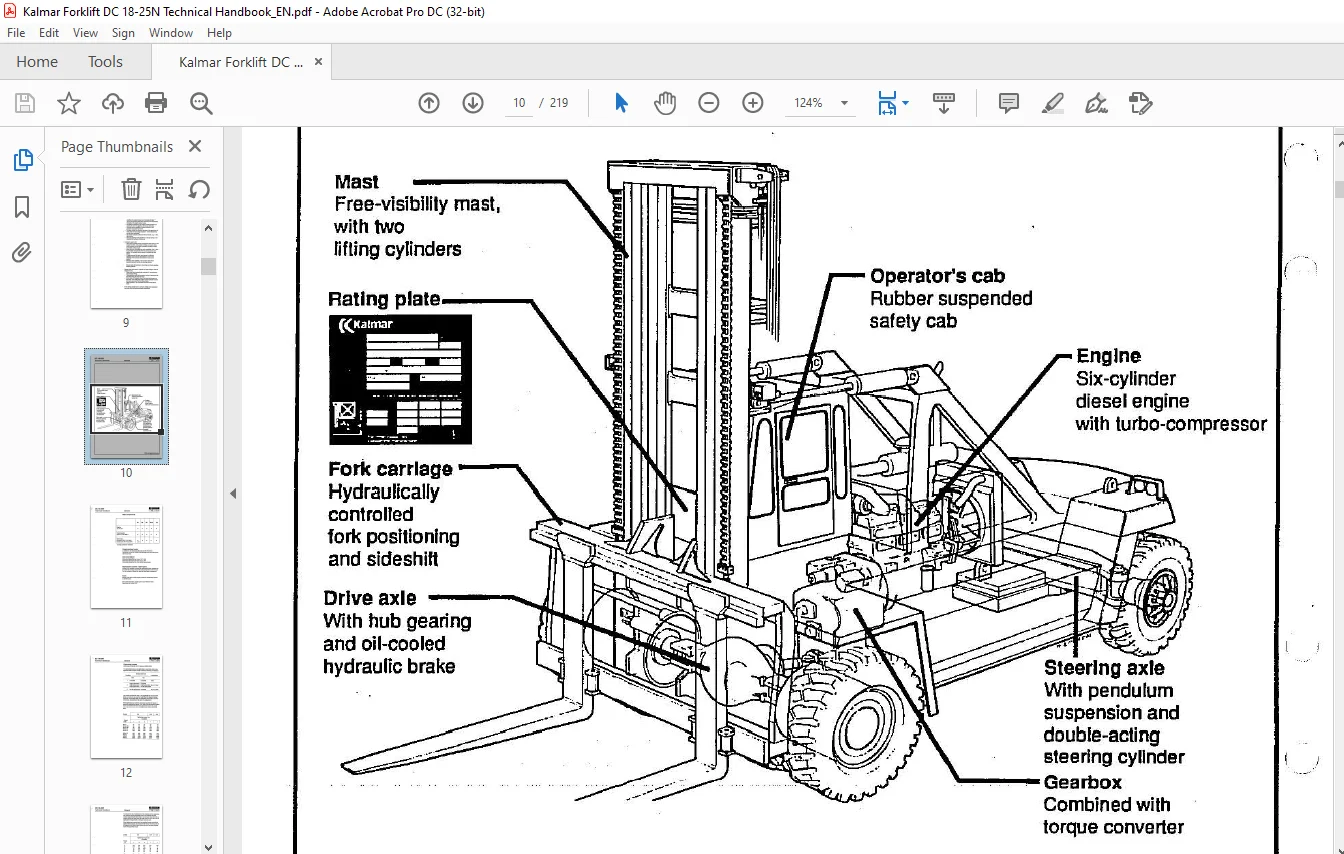

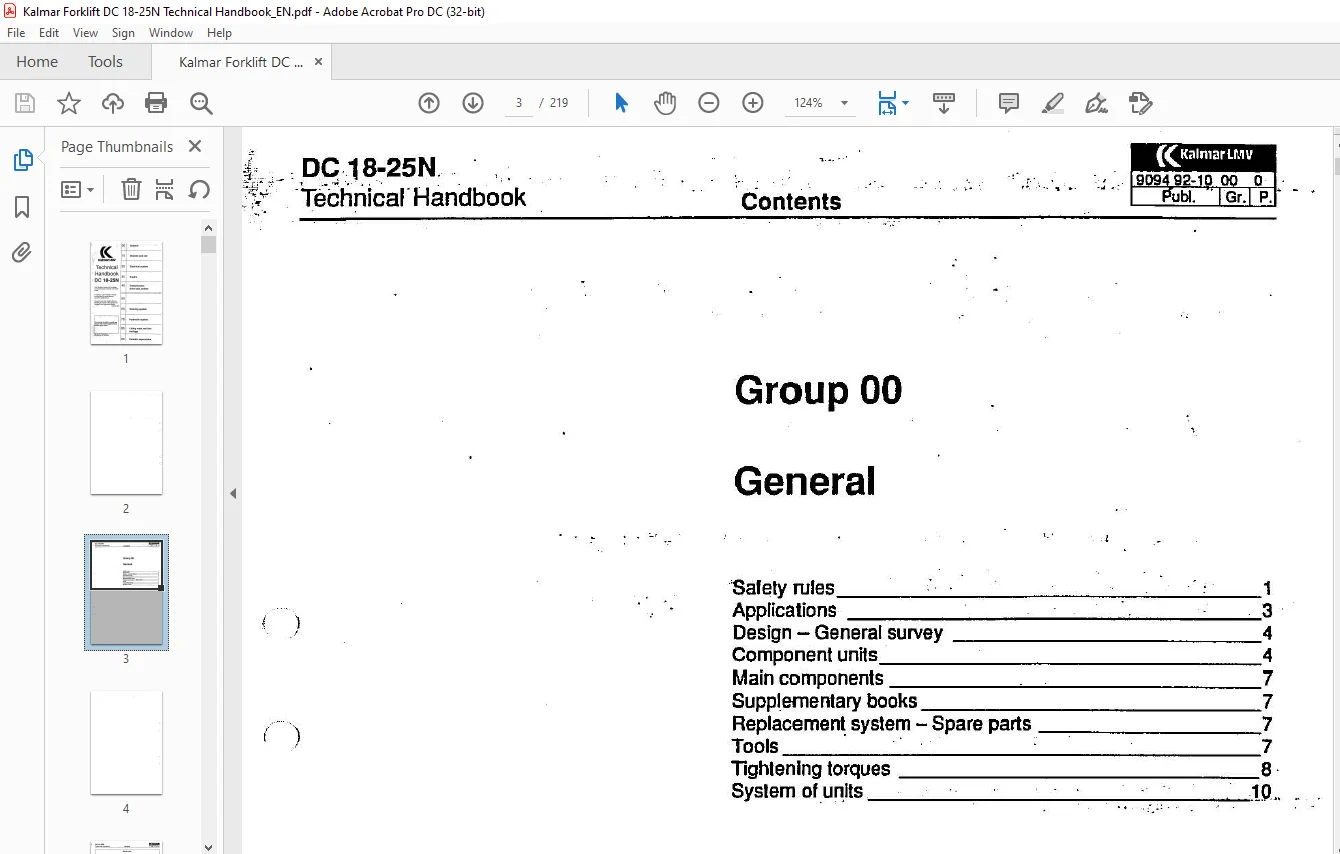

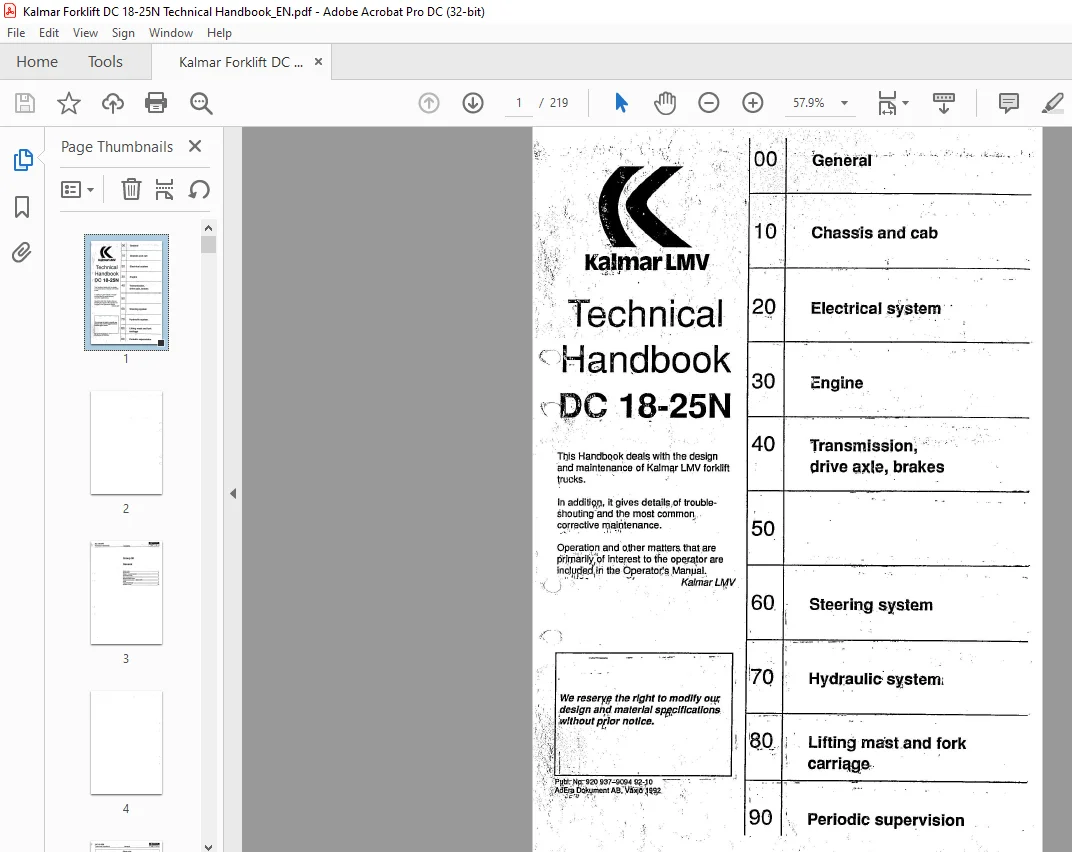

IMAGES PREVIEW OF THE MANUAL:

Questions? Email us: [email protected]

https://vimeo.com/872293491?share=copy

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.V
