Kalmar LMV DC 9-16 Technical Handbook Manual – PDF DOWNLOAD
$28.95
Kalmar LMV DC 9-16 Technical Handbook Manual – PDF DOWNLOAD
Description
Kalmar LMV DC 9-16 Technical Handbook Manual – PDF DOWNLOAD
FILE DETAILS:
Kalmar LMV DC 9-16 Technical Handbook Manual – PDF DOWNLOAD
Language : English
Pages : 201
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Kalmar LMV DC 9-16 Technical Handbook Manual – PDF DOWNLOAD
General:
Safety Instructions for working with tyres :
• Tyre changing can be dangerous and should only be carried out by specially trained personnel
using proper tools and procedures. Failure to comply with these procedures may result in faulty
positioning of the tyre and/or rim and cause the assembly to burst with explosive, force sufficient
to cause physical injury or death. Never fit or use damaged tyres or rims.
• Deflation and dismantling:
– Always check the tyre/rim assembly for proper component seating prior to removal from the
truck.
– Always deflate the tyre by removing the valve core prior to removing the complete
assembly from the truck or dismantling any of the component. Before loosening mounting bolts, run a
wire through the valve stem to ensure that it is not blocked. Ice or dirt can prevent all the air
from escaping.
– Never position body in front of the rim during deflation.
– Always follow assembly and dismantling procedures outlined in the manufacturer’s instruction
manual, or other recognizectindustryinstruction manuals. Use proper rubber lubricant.
– Never use a steel hammer to assembling or dismantling rim components – use a lead, brass or
plastic type mallets. The correct tools are available through rim/wheel distributors.
• Rim inspection:
– Always select the correct tyre size and construction matching the manufacturer’s rim or wheel
rating and size.
– Do not use over-size tyres, too large for the rims, e.g. 14.5 inch tyres with 14 inch rims or
16.5 inch tyres with 16 inch rims.
– Never use damaged, worn or corroded rims/wheels or fitting hardware. Always verify that the rim
is in a serviceable conditioning.
Always clean and repaint lightly rusted rims.
– Never use a rim/wheel component that can not be identified. Check rim parts against multi-piece
rim/wheel matching charts.
– Always double check to ensure that the rim assemblies have been correctly assembled and that
securing studs and nuts are tightened to the correct torque setting.
danger area. If the tyre has been run flat then the rim must be dismantled and all parts inspected
for damage.
load handling capacity. Always maintain tyres at the correct inlfation pressures. Check inflation
pressures daily.
of tread, embedded metal chips etc. Inspect for uneven or rapid tread wear, usually caused by
mechanical irregularities, such as brakes out of adjustment or excessive toe-in and toe out. If
discovered, correct the irregularity immediately.
TABLE OF CONTENTS:
Kalmar LMV DC 9-16 Technical Handbook Manual – PDF DOWNLOAD
General
Chassis and cab
Electrical system
Engine
Transmission,
drive axle, brakes
Steering system
Hydraulic system
Lifting mast and fork . carnage
Periodic supervision

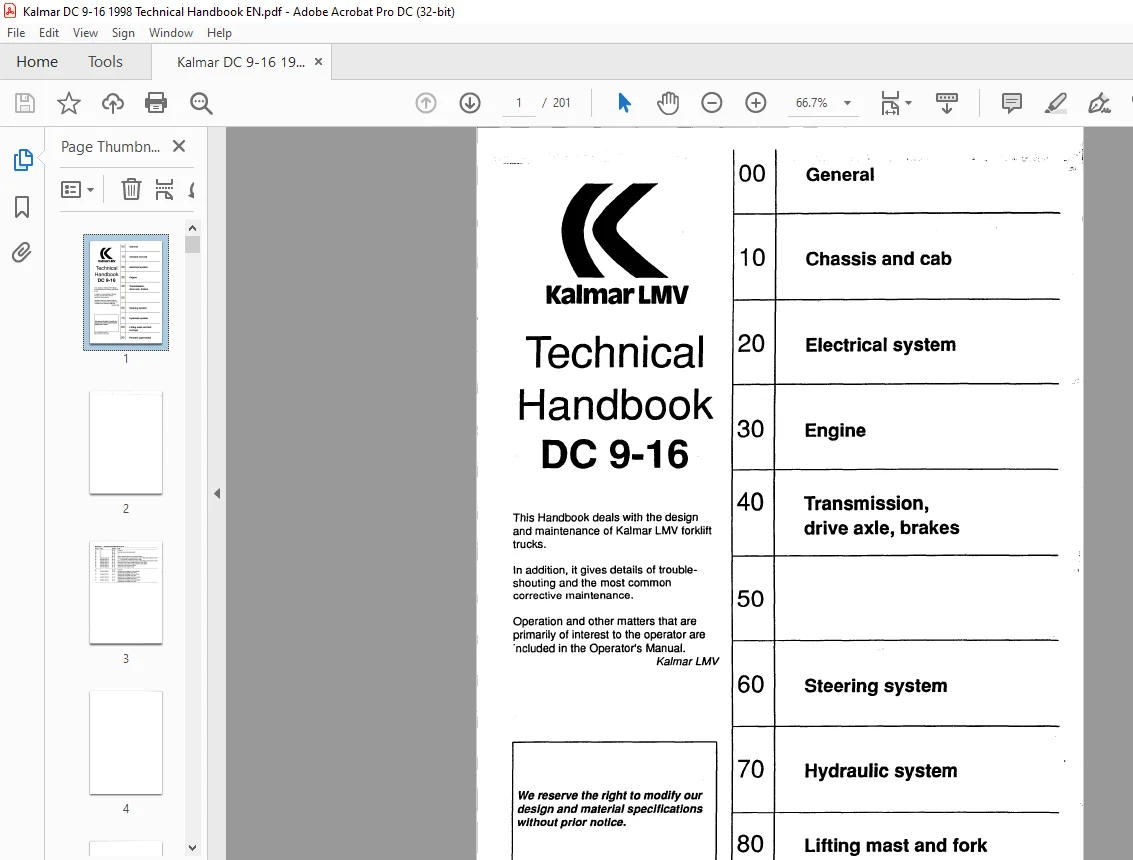

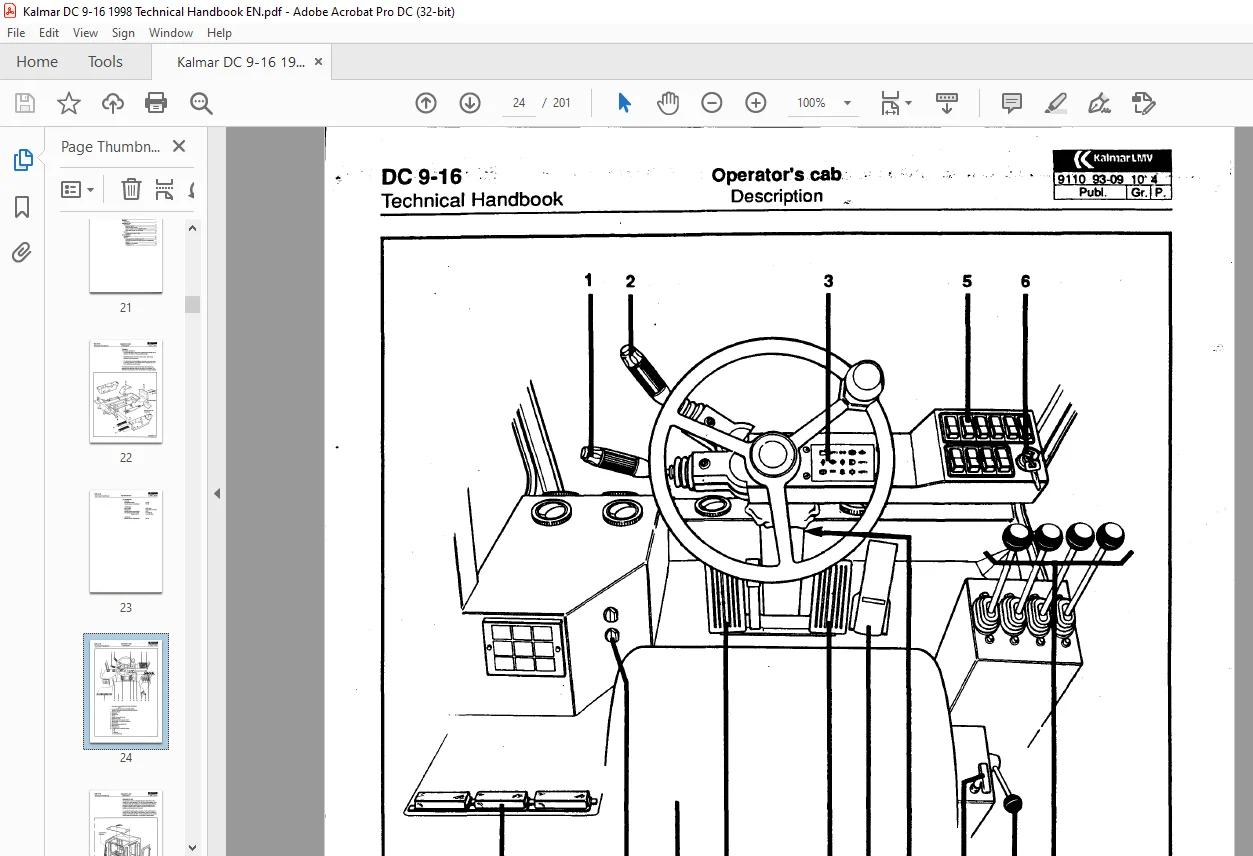

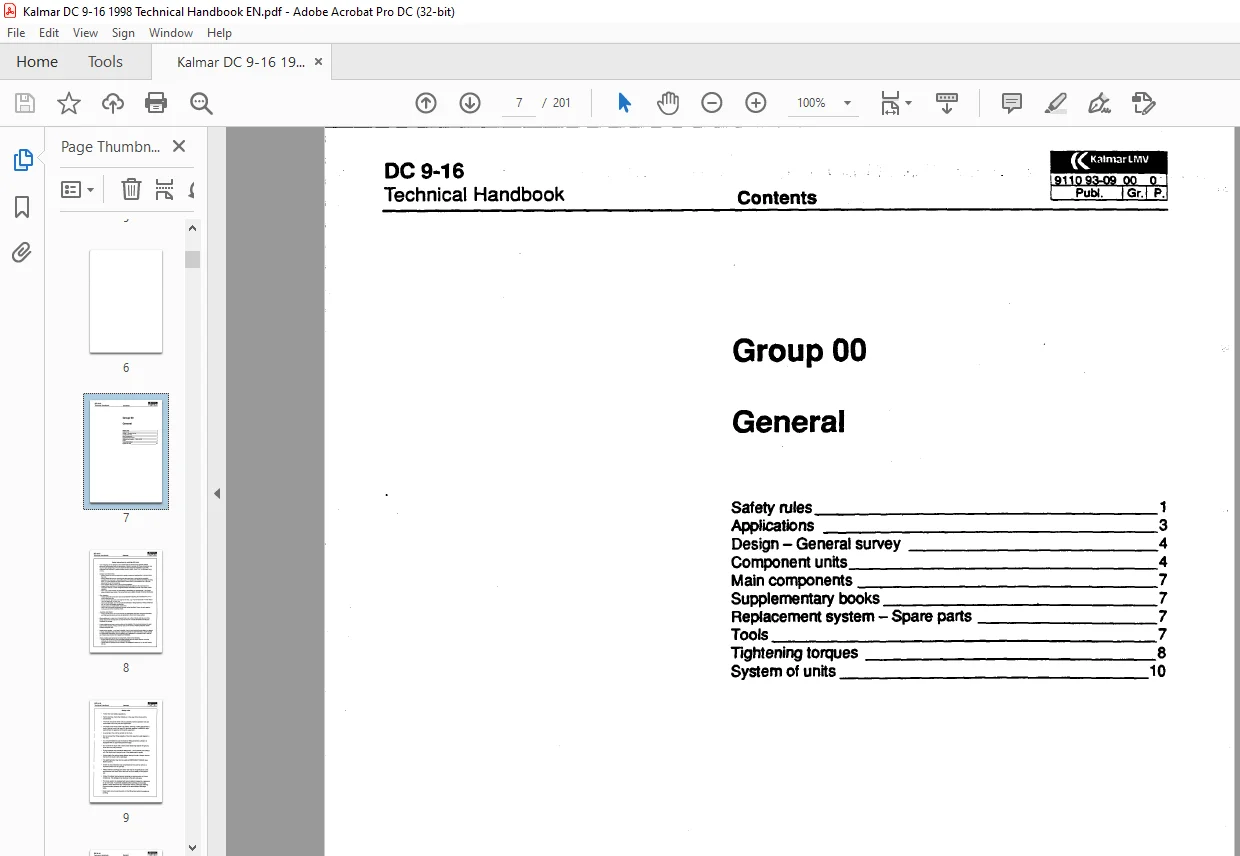

IMAGES PREVIEW OF THE MANUAL:
