Kalmar DCB 28-45 Technical Handbook Manual 920937.9114 – PDF DOWNLOAD
FILE DETAILS:
Kalmar DCB 28-45 Technical Handbook Manual 920937.9114 – PDF DOWNLOAD
Language : English
Pages : 220
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Kalmar DCB 28-45 Technical Handbook Manual 920937.9114 – PDF DOWNLOAD
General:
Safety rules:
• Follow the local safety regulations.
• Before starting, check that nobody is in the way of the truck and its
accessories.
• The truck should be driven only by specially trained operators who are
authorised to do so by the work supervisor.
• The truck must not be used if its brakes, steering or lifting equipment is
faulty. Neither must it be used if it has been repaired, modified or adjusted
without the approval of the work supervisor.
• Do not exceed the lifting capacity of the truck (see the Load diagram in
the cab).
• It is not permissible to use the truck for lifting personnel, unless it is
equipped with an approved personnel cage.
• Do not drive the truck with a heavy load raised high above the ground,
since the truck may overturn.
• Durlng. transport with container attachment – drive carefully and always
with the attachment lowered, even if the attachment is empty.
• Always apply the parking brake before leaving the cab. Always remove
the key if the truck is left unattended.
• The parking brake may also be used as EMERGENCY BRAKE (see
Brake system).
• Under no circumstances may compressed air be used to remove a
hydraulic piston from its cylinder.
• Always attend to damage and wear that may be of significance to the
performance and useful life of the truck or to the safety of the personnel.
• Follow the safety rules whenever carrying out service work on the air
conditioner. The refrigerant is injurious to the skin and eyes.
• The brake system is equipped with accumulators charged to a pressure
of up to 21 Obar. To prevent accidents when working on the brake
system, never disconnect any component without previously relieving
the accumulator pressure by means of the accumulator discharge
valve.
• Never carry out any service work on the lifting mast when the engine is
running.
TABLE OF CONTENTS:
Kalmar DCB 28-45 Technical Handbook Manual 920937.9114 – PDF DOWNLOAD
General
Chassis and cab
Electrical system
Engine
Transmission,
drive axle, brakes
Steering system
Hydraulic system
Lifting mast and fork
carriage
Periodic supervision

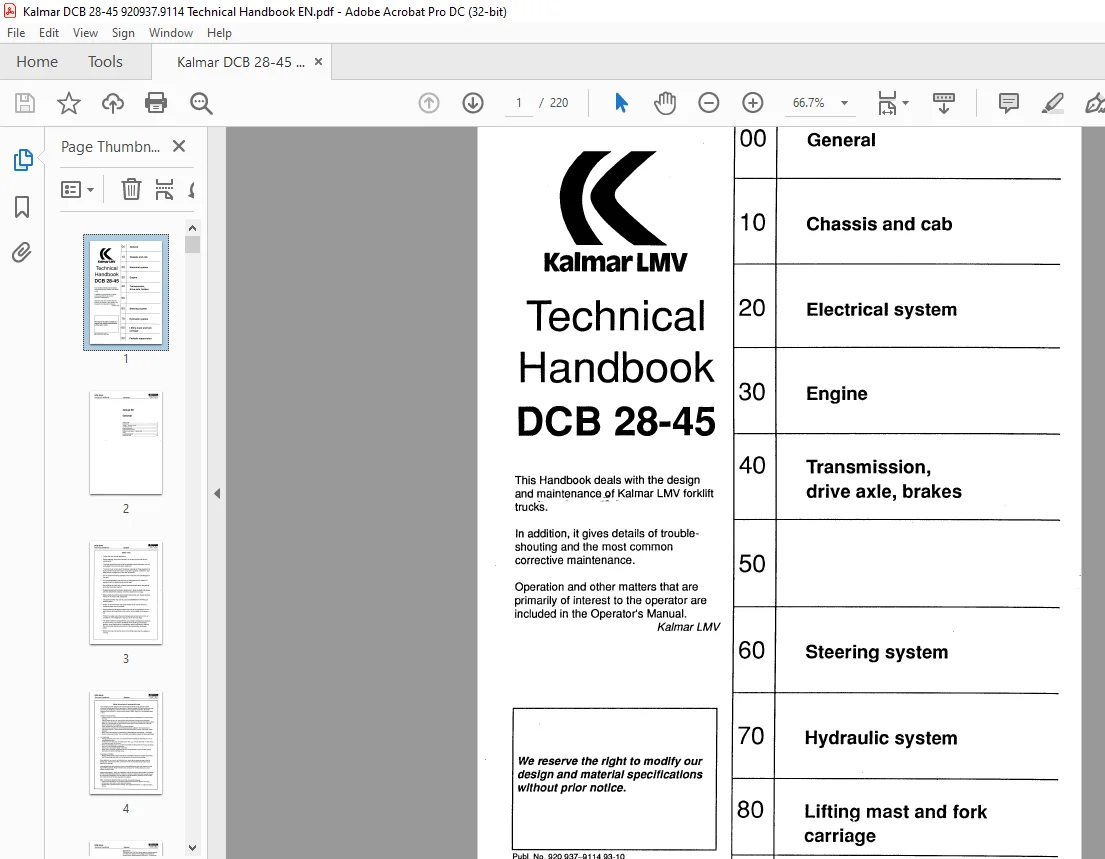

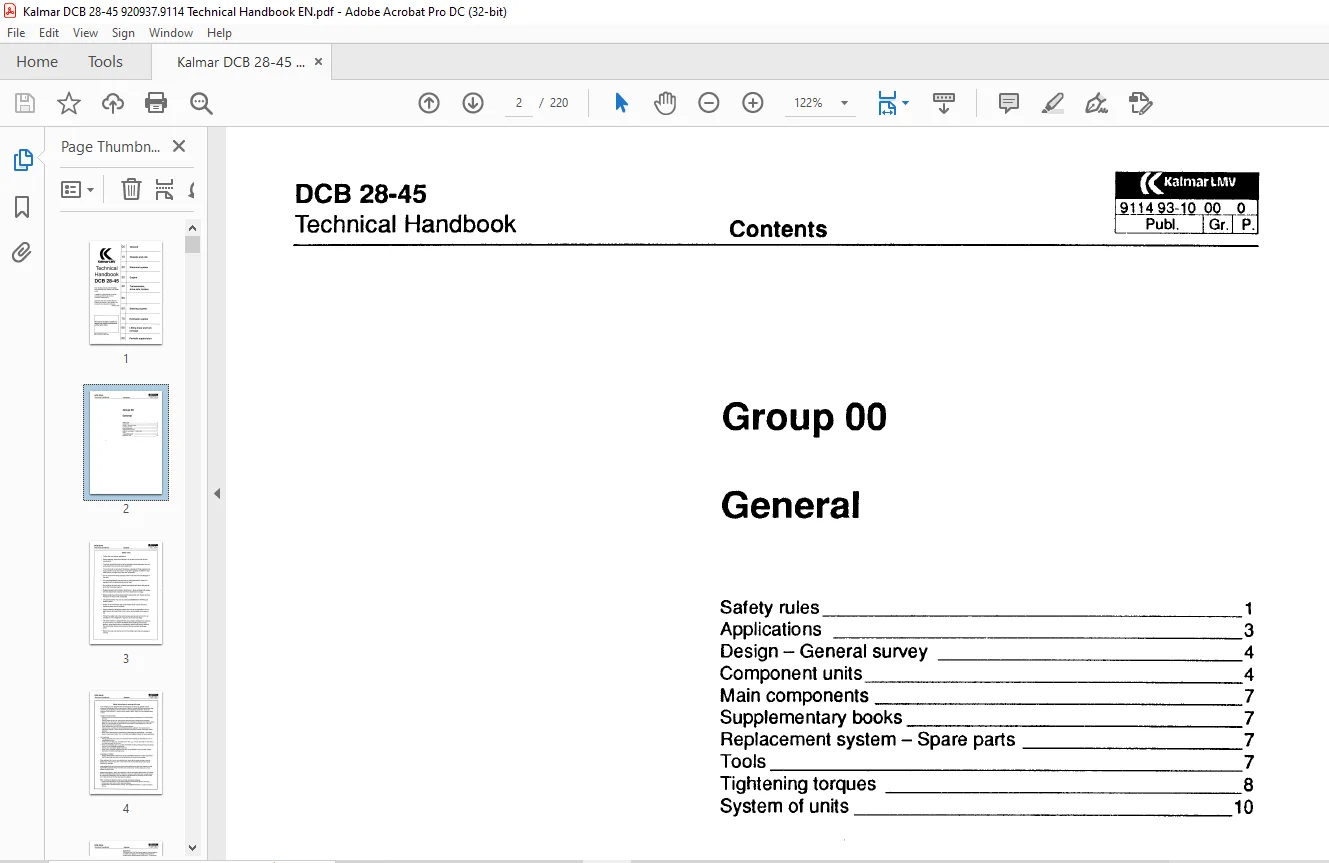

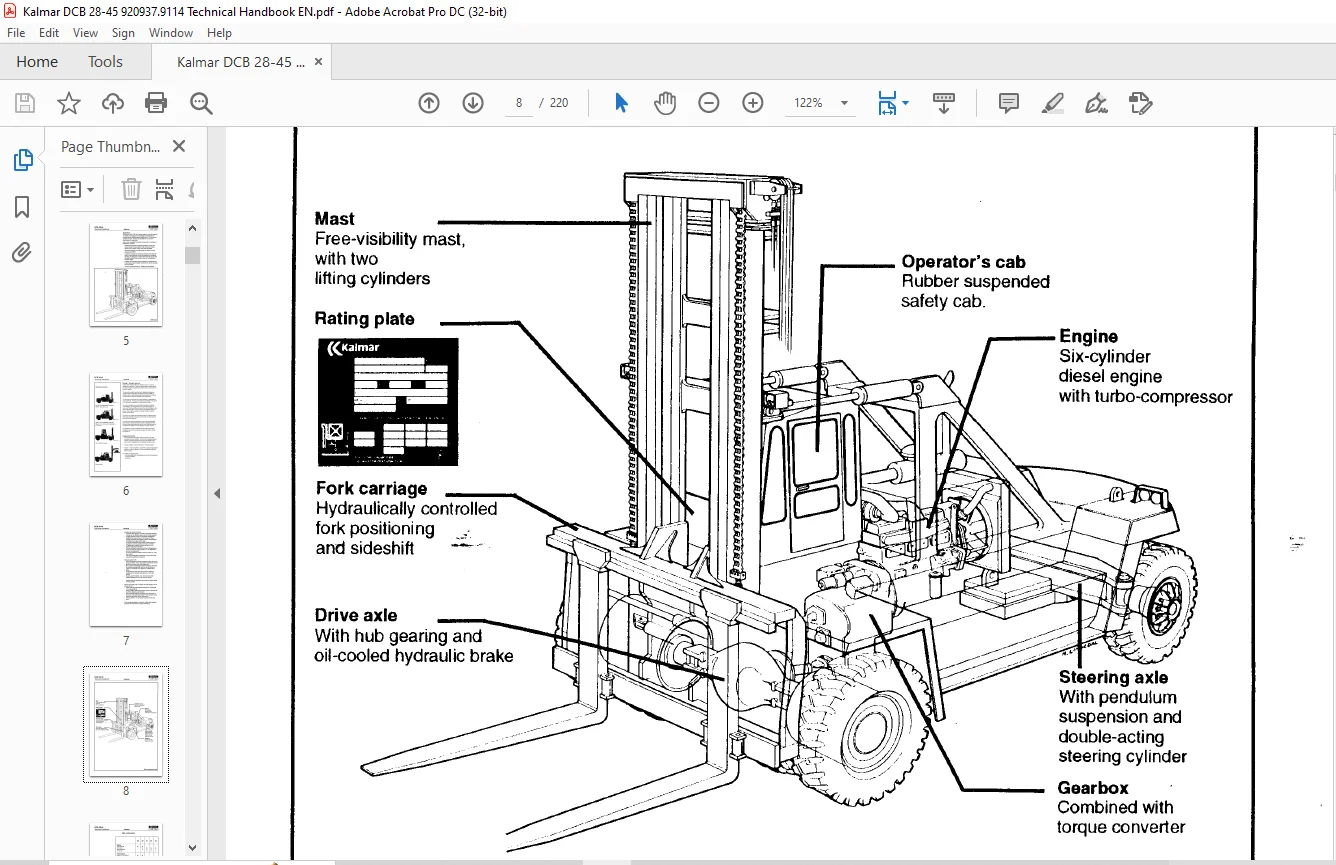

IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
