John Deere ZF MT-S 3085 Front Axle ctm366 EN Technical Manual PDF
FILE DETAILS:
John Deere ZF MT-S 3085 Front Axle ctm366 EN Technical Manual PDF
Language : English
Pages : 114
Downloadable : Yes
File Type : PDF
Size: 16.3 MB

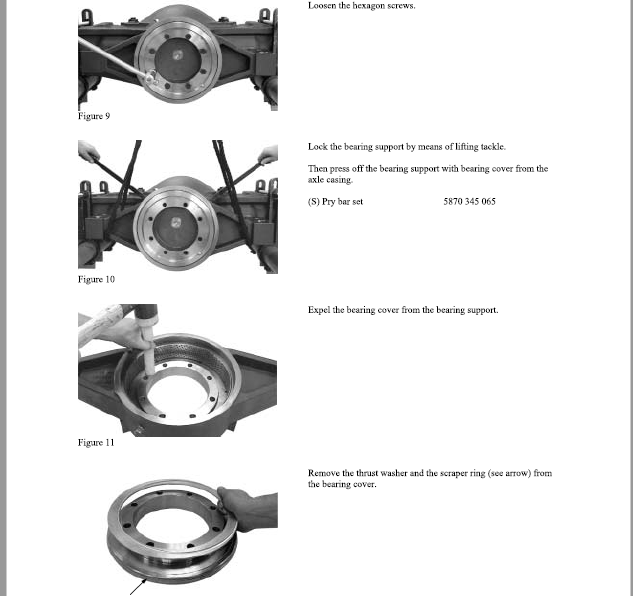

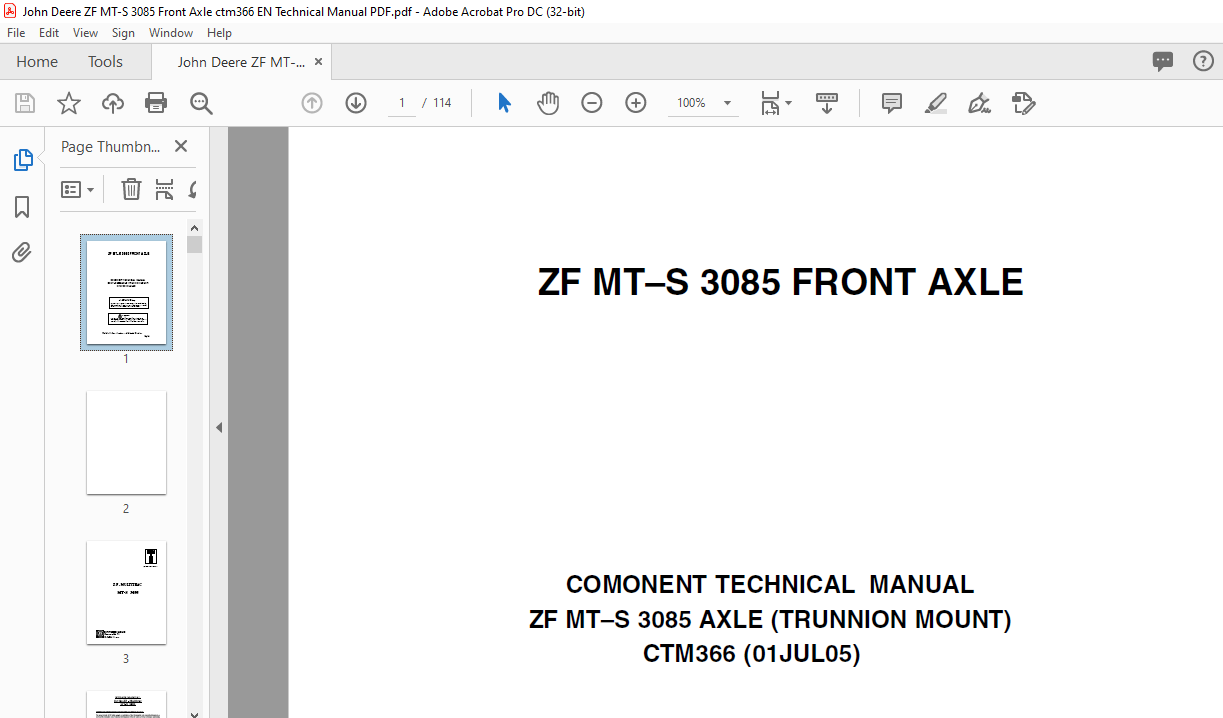

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
John Deere ZF MT-S 3085 Front Axle ctm366 EN Technical Manual PDF
Preface
General
Examples of Contact Pattern for the Gleason Gear-Tooth System
Lubrication and Maintenance Instructions
Wear Measurement – Multi-Disc Brake
Inscription on Model Identification Plate and Specifications for Spare Parts Orders
Conversion Table for Dimensional Units
Denomination of Standard Dimensions
Torque Limits for Screws
1. Disassembly of Output and Brake
2. Reassembly of Output and Brake
3. Disassembly of Bearing Supports, Axle Insert (Type: DK) and Oil Pipes
3.1 Disassembly of Bearing Supports
3.1.1 Disassembly of Input-sided Bearing Support
3.1.2 Disassembly of Rearside Bearing Support
3.2 Separate Outputs from the Axle Casing
3.2.1 Separate Output (LH) from the Axle Casing
3.2.2 Separate Output (RH) from the Axle Casing
3.3 Disassembly of 100% – Differential Lock
3.4 Disassembly of Axle Insert
3.4.1 Disassembly of Limited-Slip Differential (D-1600)
3.4.2 Disassembly of Locking Differential (DHK-2400/DVK)
3.4.3 Disassembly of Drive Pinion
3.5 Disassembly of Oil Pipes
4. Reassembly of Oil Pipes, Axle Insert (Type: DK) and Bearing Supports
4.1 Reassembly of Oil Pipes
4.2 Reassembly of Axle Insert
4.2.1 Determine Shim Thickness for a Perfect Tooth Contact Pattern
4.2.2 Install the Drive Pinion
4.2.3 Reassembly of Limited-Slip Differential (D-1600)
4.2.4 Reassembly of Locking Differential (DHK-2400/DVK)
4.2.5 Adjust the Backlash, Bearing Rolling Moment and Bracket Width
4.3 Reassembly of 100% – Differential Lock
4.4 Mount Outputs to the Axle Casing
4.4.1 Mount the Output (RH)
4.4.2 Mount the Output (LH)
4.5 Reassembly of Bearing Supports
4.5.1 Reassembly of Rearside Bearing Support
4.5.2 Reassembly of Input-sided Bearing Support
