John Deere Feller Buncher Harvester 608B 703G Parts Catalog PC9253 – PDF DOWNLOAD

Description

John Deere Feller Buncher Harvester 608B 703G Parts Catalog PC9253 – PDF DOWNLOAD

FILE DETAILS:

John Deere Feller Buncher Harvester 608B 703G Parts Catalog PC9253 – PDF DOWNLOAD

Language : English
Pages :601
Downloadable : Yes
File Type : PDF

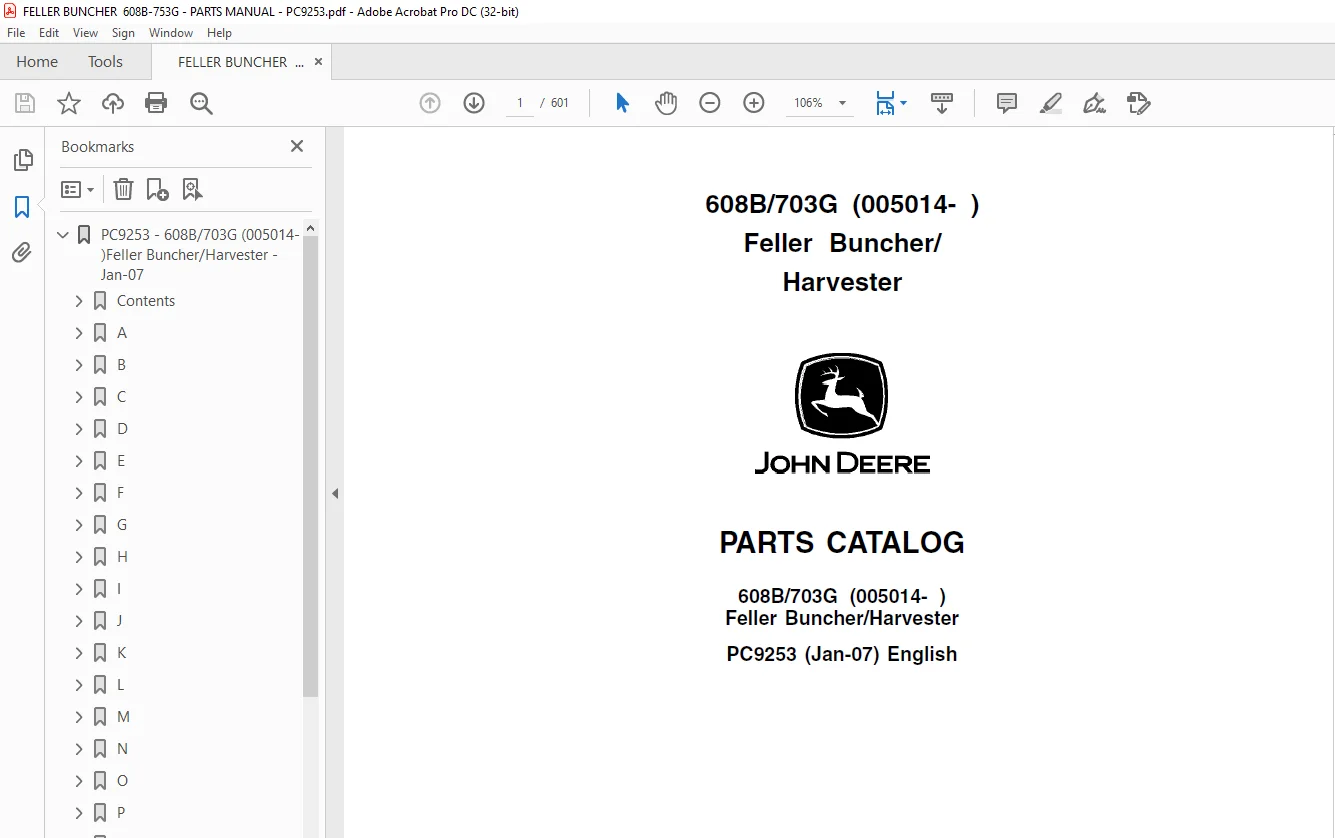

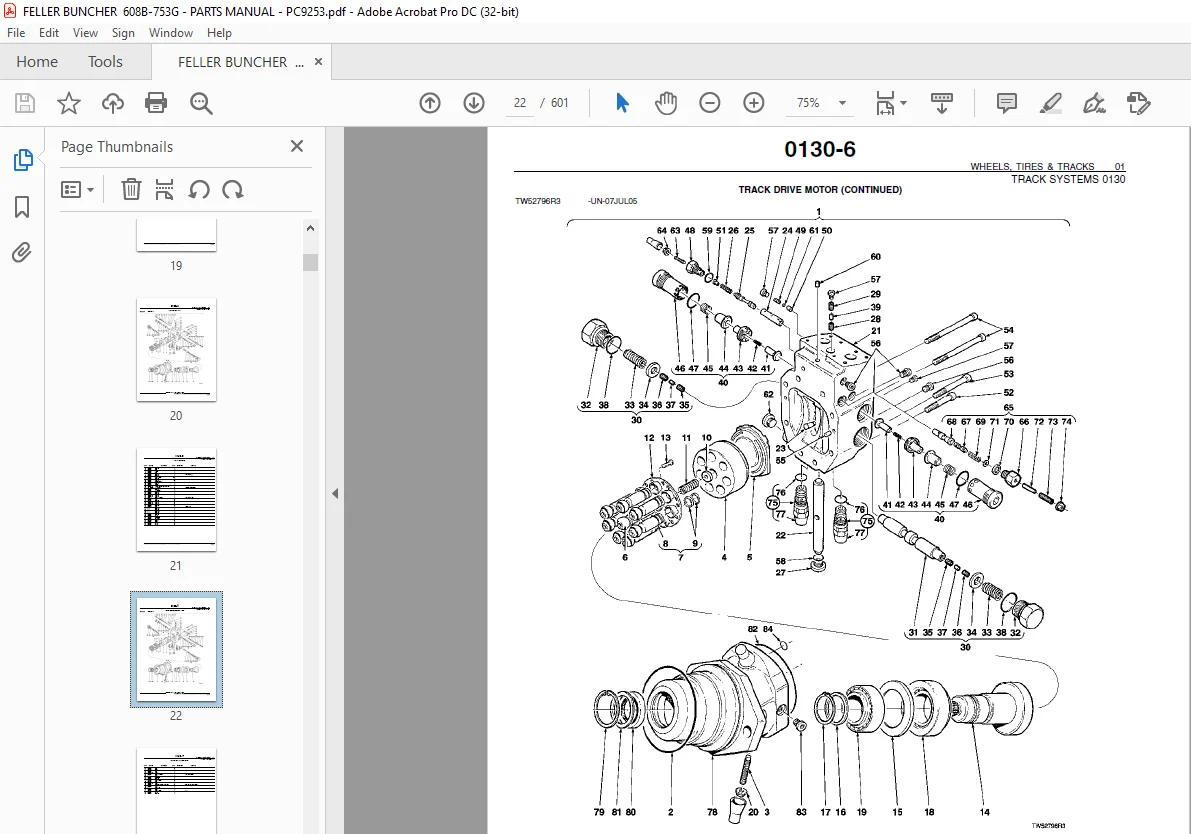

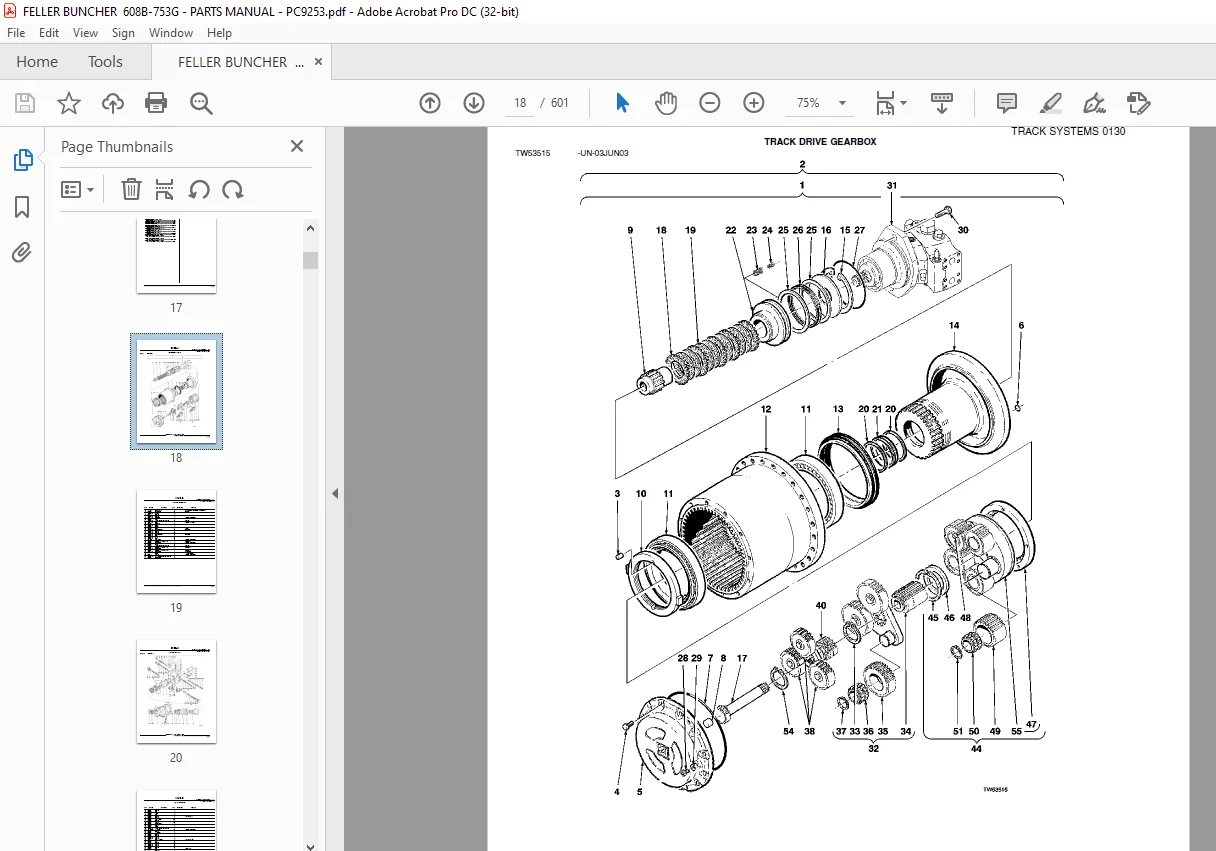

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

John Deere Feller Buncher Harvester 608B 703G Parts Catalog PC9253 – PDF DOWNLOAD

SN (005014- )

TO THE CUSTOMER

THE PART NUMBERS IN THIS PARTS CATALOG WERE CORRECT AT THE TIME YOUR CATALOG WAS PUBLISHED. IT IS OUR POLICY TO CONSTANTLY IMPROVE OUR MACHINES AND THEREFORE, PART NUMBERS MAY CHANGE. WHEN ORDERING PARTS, VERIFY PART NUMBERS THROUGH YOUR DEALERS.

TABLE OF CONTENTS:

John Deere Feller Buncher Harvester 608B 703G Parts Catalog PC9253 – PDF DOWNLOAD

PC9253 – 608B/703G (005014- )Feller Buncher/Harvester – Jan-07 1
Contents 1
0130 – WHEELS, TIRES & TRACKS 01 18
TRACK SYSTEMS 0130 18
2 – TRACK DRIVE GEARBOX 18
3 – TRACK DRIVE GEARBOX 19
4 – TRACK DRIVE MOTOR 20
5 – TRACK DRIVE MOTOR 21
0131 – WHEELS, TIRES & TRACKS 01 24
TRACK FRAMES 0131 24
2 – TRACK ASSEMBLY 24
3 – TRACK ASSEMBLY 25
0132 – WHEELS, TIRES & TRACKS 01 26
DRIVE SPROCKETS, CHAINS & SHOES 0132 26
2 – GEAR CASE AND SPROCKET INSTALLATION 26
3 – GEAR CASE AND SPROCKET INSTALLATION 27
0133 – WHEELS, TIRES & TRACKS 01 28
ROLLERS 0133 28
2 – ROLLERS 28
3 – ROLLERS 29
0134 – WHEELS, TIRES & TRACKS 01 30
IDLER 0134 30
2 – TRACK IDLER – BERCO 30
3 – TRACK IDLER – BERCO 31
0401 – ENGINE 04 32
CRANKSHAFT AND MAIN BEARING 32
2 – CRANKSHAFT 32
0402 – ENGINE 04 33
CRANKSHAFT AND VALVE ACTUATING MEANS 33
1 – CAMSHAFT AND CAMSHAFT GEAR 33
2 – TIMING GEAR COVER 34
3 – ENGINE SPEED SENSOR 35
4 – VALVE COVER 36
5 – VALVE COVER 37
6 – ROCKER ARM SHAFT 38
7 – ROCKER ARM SHAFT 39
0403 – ENGINE 04 41
CONNECTING RODS AND PISTONS 41
1 – PISTON, RINGS, LINER AND CONNECTING ROD 41
0404 – ENGINE 04 42
CYLINDER BLOCK 42
2 – ENGINE BLOCK 42
3 – ENGINE BLOCK 43
4 – ENGINE GASKET KITS 44
5 – ENGINE REBUILD GASKET KIT 45
6 – ENGINE OVERHAUL KIT 46
7 – ENGINE OVERHAUL KIT 47
8 – CYLINDER BLOCK 48
9 – SHORT BLOCK ASSEMBLY 49
0407 – ENGINE 04 50
ENGINE OILING SYSTEM 50
2 – ENGINE OIL PUMP 50
3 – ENGINE OIL PUMP 51
4 – ENGINE OIL PAN AND GASKET 52
5 – ENGINE OIL PAN AND GASKET 53
5A – ENGINE OIL SYSTEM 54
5B – ENGINE OIL SYSTEM 55
6 – ENGINE OIL DIPSTICK AND TUBE 56
0408 – ENGINE 04 57
VENTILATING SYSTEM 57
1 – VENTILATING SYSTEM 57
0409 – ENGINE 04 58
CYLINDER HEAD, VALVES AND EXHAUST VALVE BRAKE 58
2 – CYLINDER HEAD, VALVES AND EXHAUST VALVE 58
3 – CYLINDER HEAD, VALVES, EXHAUST VALVE 59
0410 – ENGINE 04 61
EXHAUST MANIFOLD 61
1 – EXHAUST MANIFOLD 61
0413 – ENGINE 04 62
FUEL INJECTION SYSTEM 62
2 – FUEL FILTER (ESN -244799) 62
3 – FUEL FILTER (ESN -244799) 63
4 – FUEL INJECTION PUMP AND LINES 64
5 – FUEL INJECTION PUMP AND LINES 65
6 – FUEL FILTERS AND LINES (ESN 244800- ) 66
7 – FUEL FILTERS AND LINES (ESN 244800- ) 67
0414 – ENGINE 04 69
INTAKE MANIFOLD 69
1 – INTAKE MANIFOLD 69
0416 – ENGINE 04 70
SUPERCHARGER 70
2 – TURBOCHARGER 70
3 – TURBOCHARGER 71
0417 – ENGINE 04 72
WATER PUMP 72
2 – WATER PUMP 72
3 – WATER PUMP AND INLET 73
0418 – ENGINE 04 74
THERMOSTATS, HOUSING & WATER PIPING 74
2 – WATER MANIFOLD AND THERMOSTAT 74
2 – OIL COOLER 76
3 – OIL COOLER 77
5 – ENGINE OIL PRESSURE SENSOR 79
0422 – ENGINE 04 80
STARTING MOTOR AND FASTENERS 80
2 – STARTING MOTOR 80
3 – STARTING MOTOR (24V) 81
0423 – ENGINE 04 82
ALTERNATOR AND GENERATOR MOUNTING 82
2 – ALTERNATOR BRACKET 82
3 – ALTERNATOR BRACKET 83
0429 – ENGINE 04 84
FAN DRIVE ( DAMPER, IDLER, PULLEYS, & BELT) 84
2 – AUXILIARY FRONT DRIVE 84
3 – AUXILIARY FRONT DRIVE 85
5 – CRANKSHAFT PULLEY AND DAMPER 87
6 – FAN DRIVE 88
7 – FAN DRIVE 89
0432 – ENGINE 04 90
FINISH ASSEMBLY, ENGINE 90
2 – ENGINE COOLANT HEATER 90
3 – ENGINE COOLANT HEATER 91
0433 – ENGINE 04 93
FLYWHEEL HOUSING & FASTENINGS 93
1 – FLYWHEEL 93
2 – FLYWHEEL HOUSING 94
3 – FLYWHEEL 95
4 – ENGINE FLYWHEEL, EXTERNAL 96
5 – ENGINE FLYWHEEL, EXTERNAL 97
0505 – ENGINE AUXILIARY SYSTEM 05 98
ENGINE AUXILIARY SYSTEM 0505 98
2 – AIR CONDITIONER COMPRESSOR 98
3 – AIR CONDITIONER COMPRESSOR 99
4 – ENGINE MOUNTING100
5 – LIFT STRAPS101
10 – FUEL/WATER SEPARATOR (WITH ENGINE HEATER)102
11 – FUEL/WATER SEPARATOR (WITH ENGINE HEATER)103
12 – ENGINE HEATER104
13 – ENGINE HEATER105
14 – ENGINE HEATER MOUNTING106
15 – ENGINE HEATER MOUNTING107
0511 – ENGINE AUXILIARY SYSTEM 05108
RADIATOR & FAN SHROUD 0511108
2 – COOLING SYSTEM108
3 – COOLING SYSTEM109
4 – RADIATOR, OIL COOLER, AIR COOLER110
5 – RADIATOR, OIL COOLER, AIR COOLER111
6 – SURGE TANK112
7 – SURGE TANK113
0512 – ENGINE AUXILIARY SYSTEM 05114
FAN 0512114
2 – COOLING FAN114
3 – COOLING FAN115
4 – FLEXAIRE FAN ( -005015)116
5 – FLEXAIRE FAN ( -005015)117
6 – FLEXAIRE FAN (005016- )118
7 – FLEXAIRE FAN (005016- )119
0520 – ENGINE AUXILIARY SYSTEM 05120
ENGINE INTAKE SYSTEM 0520120
2 – AIR INTAKE120
3 – AIR INTAKE121
0521 – ENGINE AUXILIARY SYSTEM 05122
AIR CLEANER & PIPPING 0521122
2 – AIR CLEANER122
3 – AIR CLEANER123
0530 – ENGINE AUXILIARY SYSTEM 05124
EXTERNAL EXHAUST SYSTEM124
2 – EXHAUST SYSTEM124
3 – EXHAUST SYSTEM125
0540 – ENGINE AUXILIARY SYSTEM 05126
ENGINE MOUNTING 0540126
2 – ENGINE MOUNTS126
3 – ENGINE MOUNTS127
0563 – ENGINE AUXILIARY SYSTEM 05128
FUEL LINES & FITTINGS 0563128
2 – FUEL SYSTEM128
3 – FUEL SYSTEM129
3A – FUEL SYSTEM130
3B – FUEL SYSTEM131
4 – FUEL PRE-FILTER132
5 – FUEL PRE-FILTER133
0564 – ENGINE AUXILIARY SYSTEM 05134
FUEL TANK 0564134
2 – FUEL TANK134
3 – FUEL TANK135
0570 – ENGINE AUXILIARY SYSTEM 05136
ENGINE ELECTRONICS 0570136
2 – ENGINE ELECTRONIC MOUNTING (SN -005031)136
3 – ENGINE ELECTRONICS MOUNTING (SN -005031)137
4 – ENGINE ELECTRONIC MOUNTING (SN 005032- )138
5 – ENGINE ELECTRONICS MOUNTING (SN 005032- )139
0578 – ENGINE AUXILIARY SYSTEM 05140
SENSORS 0578140
2 – INTAKE MANIFOLD TEMPERATURE SENSOR140
1322 – MISCELLANEOUS VEHICLE 13142
DECALS & TRADEMARKS 1322142
2 – DECALS – CAB, ENGLISH (608B)142
3 – DECALS – CAB, ENGLISH (608B)143
4 – DECALS – UPPER, ENGLISH (608B)144
5 – DECALS – UPPER, ENGLISH (608B)145
12 – DECALS – BOOM, ENGLISH (608B)146
13 – DECALS – BOOM, ENGLISH (608B)147
13A – DECALS – ENGLISH, TELEBOOM HARVESTER HEAD (762C/T10)148
13B – DECALS – ENGLISH, TELEBOOM HARVESTER HEAD (762C/T10)149
14 – DECALS – CAB, FRENCH (608B)150
15 – DECALS – CAB, FRENCH (608B)151
16 – DECALS – UPPER, FRENCH (608B)152
17 – DECALS – UPPER, FRENCH (608B)153
24 – DECALS – BOOM, FRENCH (608B)154
25 – DECALS – BOOM, FRENCH (608B)155
25A – DECALS – FRENCH, TELEBOOM HARVESTER HEAD (762C/T10)156
25B – DECALS – FRENCH, TELEBOOM HARVESTER HEAD (762C/T10)157
26 – DECALS – CAB, PORTUGUESE (608B)158
27 – DECALS – CAB, PORTUGUESE (608B)159
28 – DECALS – UPPER, PORTUGUESE (608B)160
29 – DECALS – UPPER, PORTUGUESE (608B)161
36 – DECALS – BOOM, PORTUGUESE (608B)162
37 – DECALS – BOOM, PORTUGUESE (608B)163
37A – DECALS – TELEBOOM HARVESTER HEAD (762C/T10), PORTUGUESE164
37B – DECALS – TELEBOOM HARVESTER HEAD (762C/T10), PORTUGUESE165
38 – DECALS – CAB, RUSSIAN (608B)166
39 – DECALS – CAB, RUSSIAN (608B)167
40 – DECALS – UPPER, RUSSIAN (608B)168
41 – DECALS – UPPER, RUSSIAN (608B)169
48 – DECALS – BOOM, RUSSIAN (608B)170
49 – DECALS – BOOM, RUSSIAN (608B)171
49A – DECALS – TELEBOOM HARVESTER HEAD (762C/T10), RUSSIAN172
49B – DECALS – TELEBOOM HARVESTER HEAD (762C/T10), RUSSIAN173
50 – DECALS – CAB, ENGLISH (703G)174
51 – DECALS – CAB, ENGLISH (703G)175
52 – DECALS – UPPER, ENGLISH (703G)176
53 – DECALS – UPPER, ENGLISH (703G)177
54 – DECALS – BOOM, ENGLISH (703G)178
55 – DECALS – BOOM, ENGLISH (703G)179
56 – DECALS – CAB, FRENCH (703G)180
57 – DECALS – CAB, FRENCH (703G)181
58 – DECALS – UPPER, FRENCH (703G)182
59 – DECALS – UPPER, FRENCH (703G)183
60 – DECALS – BOOM, FRENCH (703G)184
61 – DECALS – BOOM, FRENCH (703G)185
62 – DECALS – CAB, PORTUGUESE (703G)186
63 – DECALS – CAB, PORTUGUESE (703G)187
64 – DECALS – UPPER, PORTUGUESE (703G)188
65 – DECALS – UPPER, PORTUGUESE (703G)189
66 – DECALS – BOOM, PORTUGUESE (703G)190
67 – DECALS – BOOM, PORTUGUESE (703G)191
68 – DECALS – CAB, RUSSIAN (703G)192
69 – DECALS – CAB, RUSSIAN (703G)193
70 – DECALS – UPPER, RUSSIAN (703G)194
71 – DECALS – UPPER, RUSSIAN (703G)195
72 – DECALS – BOOM, RUSSIAN (703G)196
73 – DECALS – BOOM, RUSSIAN (703G)197
1370 – MISCELLANEOUS VEHICLE 13198
LUBRICATION SYSTEM 1370198
2 – LUBRICATION SYSTEM – LONG BOOM (FELLER BUNCHER)198
3 – LUBRICATION SYSTEM – LONG BOOM (FELLER BUNCHER)199
3A – LUBRICATION SYSTEM – SHORT BOOM (FELLER BUNCHER)200
3B – LUBRICATION SYSTEM – SHORT BOOM (FELLER BUNCHER)201
4 – LUBRICATION SYSTEM – BOOM W/CRANK (FELLER BUNCHER)202
5 – LUBRICATION SYSTEM – BOOM W/CRANK (FELLER BUNCHER)203
6 – LUBRICATION SYSTEM – BOOM (TELESCOPIC HARVESTER)204
7 – LUBRICATION SYSTEM – BOOM (TELESCOPIC HARVESTER)205
10 – SWING DRIVE LUBRICATION206
11 – SWING DRIVE LUBRICATION207
1671 – VEHICLE ELECTRICAL SYSTEM 16208
BATTERIES, SUPPORT AND CABLES 1671208
2 – BATTERY, CABLES AND MOUNTING208
3 – BATTERY, CABLES AND MOUNTING209
1672 – VEHICLE ELECTRICAL SYSTEM 16210
ALTERNATOR, REGULATOR & CHARGING SYSTEM WIRING 1672210
2 – ALTERNATOR210
3 – ALTERNATOR211
1673 – VEHICLE ELECTRICAL SYSTEM 16212
VEHICLE LIGHTING SYSTEM 1673212
2 – LIGHTS ( -005029)212
3 – LIGHTS ( -005029)213
3A – LIGHTS (005030-005031)214
3B – LIGHTS (005030-005031)215
3C – LIGHTS (005032- )216
3D – LIGHTS (005032- )217
1674 – VEHICLE ELECTRICAL SYSTEM 16218
WIRING HARNESS & SWITCHES 1674218
2 – ELECTRICAL SYSTEM – ENCLOSURE (SN -005031)218
3 – ELECTRICAL SYSTEM – ENCLOSURE (SN -005031)219
3A – ELECTRICAL SYSTEM – ENCLOSURE (SN 005032- )220
3B – ELECTRICAL SYSTEM – ENCLOSURE (608S, SN 007222- ) (753G, S221
4 – ELECTRICAL SYSTEM – UPPER CAB222
5 – ELECTRICAL SYSTEM – UPPER CAB223
6 – ELECTRICAL SYSTEM – LOWER CAB224
7 – ELECTRICAL SYSTEM – LOWER CAB225
7A – ELECTRICAL SYSTEM – SEAT PILOT SWITCH (S/N -005022)226
7B – ELECTRICAL SYSTEM – SEAT PILOT SWITCH (S/N -005022)227
7C – ELECTRICAL SYSTEM – SEAT PILOT SWITCH (S/N 005023- )228
7D – ELECTRICAL SYSTEM – SEAT PILOT SWITCH (S/N 005023- )229
12 – ELECTRICAL, FLEXAIRE FAN ( -005015)230
13 – ELECTRICAL, FLEXAIRE FAN ( -005015)231
13A – ELECTRICAL, FLEXAIRE FAN (005016-005026)232
13B – ELECTRICAL, FLEXAIRE FAN (005016-005026)233
13C – ELECTRICAL, FLEXAIRE FAN (SN 005027-005031)234
13D – ELECTRICAL, FLEXAIRE FAN (SN 005027-005031)235
13E – ELECTRICAL, FLEXAIRE FAN (SN 005032- )236
13F – ELECTRICAL, FLEXAIRE FAN (SN 005032- )237
14 – ELECTRICAL SYSTEM – ENGINE (SN -005031)238
15 – ELECTRICAL SYSTEM – ENGINE (SN -005031)239
16 – ELECTRICAL SYSTEM – ENGINE (SN 005032- )240
17 – ELECTRICAL SYSTEM – ENGINE (SN 005032- )241
18 – ELECTRICAL SYSTEM – TIMBERMATIC 10 (TELESCOPIC HARVESTER)242
19 – ELECTRICAL SYSTEM – TIMBERMATIC 10 (TELESCOPIC HARVESTER)243
19A – ELECTRICAL SYSTEM – TIMBERMATIC 10 (TELESCOPIC HARVESTER) 244
19B – ELECTRICAL SYSTEM – TIMBERMATIC 10 (TELESCOPIC HARVESTER) 245
20 – ELECTRICAL BOX – TIMBERMATIC 10 (TELESCOPIC HARVESTER) (SN 246
21 – ELECTRICAL BOX – TIMBERMATIC 10 (TELESCOPIC HARVESTER) (SN 247
21A – ELECTRICAL BOX – TIMBERMATIC 10 (TELESCOPIC HARVESTER)248
21B – ELECTRICAL BOX – TIMBERMATIC 10 (TELESCOPIC HARVESTER) (SN249
1676 – VEHICLE ELECTRICAL SYSTEM 16250
INSTRUMENTS & INDICATORS 1676250
2 – ELECTRICAL PANEL & GAUGE (S/N -XXXXXX)250
3 – ELECTRICAL PANEL & GAUGE (S/N -XXXXXX)251
3A – ELECTRICAL PANEL & GAUGE (S/N XXXXXX- )252
3B – ELECTRICAL PANEL & GAUGE (S/N XXXXXX- )253
4 – ELECTRICAL BOX (S/N -005017)254
5 – ELECTRICAL BOX (S/N -005017)255
5A – ELECTRICAL BOX (S/N 005018-005025)256
5B – ELECTRICAL BOX (S/N 005018-005025)257
5C – ELECTRICAL BOX (S/N 005026- XXXXXX)258
5D – ELECTRICAL BOX (S/N 005026- XXXXXX)259
1749 – FRAME CHASSIS OR SUPPORTING STRUCTURE 17260
CHASSIS WEIGHTS 1749260
2 – COUNTERWEIGHT260
3 – COUNTERWEIGHT261
1807 – OPERATOR’S STATION 18262
SPECIAL NOISE CONTROL ITEMS 1807262
2 – CAB INSULATION262
3 – CAB INSULATION263
1811 – OPERATOR’S STATION 18264
ROPS, FOPS, OPS OR BODY FRAME 1811264
2 – CAB COVERS & ACCESSORIES (608B)264
3 – CAB COVERS & ACCESSORIES (608B)265
4 – CAB COVERS & ACCESSORIES (703G)266
5 – CAB COVERS & ACCESSORIES – 703G267
1813 – OPERATOR’S STATION 18268
BODY SIDES, DOORS, SHIELDS AND WINDOWS 1813268
2 – CAB DOOR (-005036)268
3 – CAB DOOR (-005036)269
3A – CAB DOOR (005037-)270
3B – CAB DOOR (005037-)271
1814 – OPERATOR’S STATION 18272
WINDSHIELD & WIPERS 1814272
2 – CAB WINDOWS (608B)272
3 – CAB WINDOWS (608B)273
4 – CAB WINDOWS (703G)274
5 – CAB WINDOWS (703G)275
1816 – OPERATOR’S STATION 18276
INSTRUMENT & CONTROL MOUNTING STRUCTURE 1816276
2 – CAB INSTRUMENT MOUNTS276
3 – CAB INSTRUMENT MOUNTS277
1821 – OPERATOR’S STATION 18278
SEAT AND SEAT BELT 1821278
2 – SEAT AND SEAT BELT278
3 – SEAT AND SEAT BELT279
4 – SEAT280
5 – SEAT281
1822 – OPERATOR’S STATION 18282
STEPS & HANDHOLDS 1822282
2 – STEP HANDLE – ENCLOSURE282
3 – STEP HANDLE – ENCLOSURE283
1830 – OPERATOR’S STATION 18284
HEATING & AIR CONDITIONING 1830284
2 – AIR CONDITIONING HEATER LINES284
3 – AIR CONDITIONING HEATER LINES285
4 – AIR CONDITIONING ENGINE LINES ( -005023)286
5 – AIR CONDITIONING ENGINE LINES ( -005023)287
5A – AIR CONDITIONING ENGINE LINES (005024- )288
5B – AIR CONDITIONING ENGINE LINES (005024- )289
1832 – OPERATOR’S STATION 18290
AIR CONDITIONING SYSTEM COMPRESSOR & DRIVE 1832290
4 – AIR CONDITIONER/HEATER290
5 – AIR CONDITIONER/HEATER291
1910 – SHEET METAL AND STYLING 19292
HOOD OR ENGINE ENCLOSURE 1910292
2 – TURNTABLE (608B)292
3 – TURNTABLE (608B)293
4 – TURNTABLE (703G)294
5 – TURNTABLE (703G)295
1912 – SHEET METAL AND STYLING 19296
ENGINE SIDE SHIELDS (ENCLOSURE DOORS) 1912296
2 – ENCLOSURE SERVICE DOORS296
3 – ENCLOSURE SERVICE DOORS297
4 – ENCLOSURE COVERS (608B)298
5 – ENCLOSURE COVERS (608B)299
6 – ENCLOSURE COVERS (703G)300
7 – ENCLOSURE COVERS (703G)301
2001 – SAFETY, CONVENIENCE & MISCELLANEOUS 20302
RADIO 2001302
2 – RADIO302
3 – RADIO303
2003 – SAFETY, CONVENIENCE & MISCELLANEOUS 20304
FIRE EXTINGUISHER 2003304
2 – FIRE EXTINGUISHER304
3 – FIRE EXTINGUISHER305
2004 – SAFETY, CONVENIENCE & MISCELLANEOUS 20306
WARNING DEVICES INCLUDING HORN & REVERSE ALARM 2004306
2 – WARNING DEVICES306
3 – WARNING DEVICES307
2161 – VEHICLE MAIN HYDRAULIC SYSTEM 21308
HYDRAULIC PUMPS & DRIVES 2161308
2 – PUMP INSTALLATION – MAIN & PILOT GEAR308
3 – PUMP INSTALLATION – MAIN & PILOT GEAR309
4 – PUMP INSTALLATION – ATTACHMENT (FELLER BUNCHER)310
5 – PUMP INSTALLATION – ATTACHMENT (FELLER BUNCHER)311
6 – PUMP INSTALLATION – ATTACHMENT (TELESCOPIC HARVESTER)312
7 – PUMP INSTALLATION – ATTACHMENT (TELESCOPIC HARVESTER)313
10 – HYDRAULIC PUMP – MAIN314
11 – HYDRAULIC PUMP – MAIN315
14 – HYDRAULIC PUMP – MAIN, DRIVE UNIT318
15 – HYDRAULIC PUMP – MAIN, DRIVE UNIT319
16 – PUMP – PILOT GEAR320
17 – PUMP – PILOT GEAR321
18 – PUMP – HAND322
19 – PUMP – HAND323
20 – PUMP – ATTACHMENT, END (FELLER BUNCHER)324
21 – ATTACHMENT, END (FELLER BUNCHER)325
22 – PUMP – ATTACHMENT, END (TELESCOPIC HARVESTER)326
23 – PUMP – ATTACHMENT, END (TELESCOPIC HARVESTER)327
26 – PUMP – ATTACHMENT, MIDDLE (FELLER BUNCHER)328
27 – PUMP – ATTACHMENT, MIDDLE (FELLER BUNCHER)329
40 – ENCLOSURE PUMP330
41 – ENCLOSURE PUMP331
42 – ENCLOSURE MANUAL HAND PUMP (005032- )332
43 – ENCLOSURE PUMP333
2162 – VEHICLE MAIN HYDRAULIC SYSTEM 21334
HYDRAULIC SELECTIVE CONTROL & LOAD HOLDING VALVES 2162334
2 – VALVE INSTALLATION (FELLER BUNCHER) ( -005031)334
3 – VALVE INSTALLATION (FELLER BUNCHER) ( -005031)335
3A – VALVE INSTALLATION (FELLER BUNCHER) (005032- )336
3B – VALVE INSTALLATION (FELLER BUNCHER) (005032- )337
4 – VALVE INSTALLATION (TELESCOPIC HARVESTER) ( -005031)338
5 – VALVE INSTALLATION (TELESCOPIC HARVESTER) ( -005031)339
5A – VALVE INSTALLATION (TELESCOPIC HARVESTER) (005032- )340
5B – VALVE INSTALLATION (TELESCOPIC HARVESTER) (005032- )341
12 – PILOT CONTROL & SOLENOID VALVE ( -005031)342
13 – PILOT CONTROL & SOLENOID VALVE ( -005031)343
13A – PILOT CONTROL & SOLENOID VALVE (608S, 007222- ) (753G,344
13B – PILOT CONTROL & SOLENOID VALVE (005032- )345
14 – SOLENOID VALVE – SWING BRAKE ( -005031)346
15 – SOLENOID VALVE – SWING BRAKE ( -005031)347
16 – CONTROL VALVE – TRACK/SWING348
17 – CONTROL VALVE – TRACK/SWING349
22 – SOLENOID VALVE – DISC SAW350
23 – SOLENOID VALVE – DISC SAW351
24 – CONTROL VALVE – TRACK/HOIST (TELEBOOM HARVESTER)352
25 – CONTROL VALVE – TRACK/HOIST (TELEBOOM HARVESTER)353
28 – SOLENOID VALVE – WRIST/TREE CLAMP (FELLER BUNCHER)354
29 – SOLENOID VALVE – WRIST/TREE CLAMP (FELLER BUNCHER)355
30 – CONTROL VALVE – ATTACHMENT (FELLER BUNCHER)356
31 – CONTROL VALVE – ATTACHMENT (FELLER BUNCHER)357
32 – CONTROL VALVE ATTACHMENT (SN 005032- )358
33 – CONTROL VALVE ATTACHMENT (SN 005032- )359
34 – ATTACHMENT VALVE INLET SECTION (SN 005032- )360
35 – ATTACHMENT VALVE INLET SECTION (SN 005032- )361
36 – ATTACHMENT VALVE – PUMP/TELEBOOM SECTION (005032- )362
37 – ATTACHMENT VALVE – PUMP/TELEBOOM SECTION (005032- )363
38 – ATTACHMENT VALVE – ROTATE SECTION (005032- )364
39 – ATTACHMENT VALVE – ROTATE SECTION (005032- )365
40 – ATTACHMENT VALVE – OUTLET SECTION (005032- )366
41 – ATTACHMENT VALVE – OUTLET SECTION (005032- )367
44 – ROTARY MANIFOLD368
45 – ROTARY MANIFOLD369
50 – VALVE – FOOT PEDAL370
51 – VALVE – FOOT PEDAL371
52 – VALVE – JOYSTICK372
53 – VALVE – JOYSTICK373
54 – VALVE – JOYSTICK374
55 – VALVE – JOYSTICK375
56 – STEERING CONTROL LEVER (TELESCOPIC HARVESTER)376
57 – STEERING CONTROL LEVER (TELESCOPIC HARVESTER)377
2163 – VEHICLE MAIN HYDRAULIC SYSTEM 21378
HYDRAULIC LINES & HOSES 2163378
2 – HYDRAULIC SYSTEM – SUCTION LINES (FELLER BUNCHER)378
3 – HYDRAULIC SYSTEM – SUCTION LINES (FELLER BUNCHER)379
4 – HYDRAULIC SYSTEM – SUCTION LINES (TELESCOPIC HARVESTER)380
5 – HYDRAULIC SYSTEM – SUCTION LINES (TELESCOPIC HARVESTER)381
8 – HYDRAULIC SYSTEM – PRESSURE LINES (FELLER BUNCHER)382
9 – HYDRAULIC SYSTEM – PRESSURE LINES (FELLER BUNCHER)383
10 – HYDRAULIC SYSTEM – TANK FILL LINES384
11 – HYDRAULIC SYSTEM – TANK FILL LINES385
12 – HYDRAULIC SYSTEM – RETURN LINES (SN -005031)386
13 – HYDRAULIC SYSTEM – RETURN LINES (SN -005031)387
13A – HYDRAULIC SYSTEM – RETURN LINES (SN 005032- )388
13B – HYDRAULIC SYSTEM – RETURN LINES (SN 005032- )389
14 – HYDRAULIC SYSTEM – DRAIN LINES (FELLER BUNCHER) ( -005031390
15 – HYDRAULIC SYSTEM – DRAIN LINES (FELLER BUNCHER) ( -005031391
15A – HYDRAULIC SYSTEM – DRAIN LINES (FELLER BUNCHER) (005032- 392
15B – HYDRAULIC SYSTEM – DRAIN LINES (FELLER BUNCHER) (005032- 393
16 – HYDRAULIC SYSTEM – DRAIN LINES (TELESCOPIC HARVESTER) ( 394
17 – HYDRAULIC SYSTEM – DRAIN LINES (TELESCOPIC HARVESTER) ( 395
17A – HYDRAULIC SYSTEM – DRAIN LINES (TELESCOPIC HARVESTER) (005396
17B – HYDRAULIC SYSTEM – DRAIN LINES (TELESCOPIC HARVESTER) (005397
20 – HYDRAULIC SYSTEM – SWING LINES398
21 – HYDRAULIC SYSTEM – SWING LINES399
22 – HYDRAULIC SYSTEM – TRACK LINES (SWIVEL TO VALVE)400
23 – HYDRAULIC SYSTEM – TRACK LINES (SWIVEL TO VALVE)401
24 – HYDRAULIC SYSTEM – TRACK LINES402
25 – HYDRAULIC SYSTEM – TRACK LINES403
26 – HYDRAULIC SYSTEM – HOIST LINES404
27 – HYDRAULIC SYSTEM – HOIST LINES405
28 – HYDRAULIC SYSTEM – BOOM, STICK FUNCTION (FELLER BUNCHER)406
29 – HYDRAULIC SYSTEM – BOOM, STICK FUNCTION (FELLER BUNCHER)407
30 – HYDRAULIC SYSTEM – BOOM, STICK FUNCTION (TELESCOPIC HARVEST408
31 – HYDRAULIC SYSTEM – BOOM, STICK FUNCTION (TELESCOPIC HARVEST409
32 – HYDRAULIC SYSTEM – BOOM, TILT FUNCTION (FELLER BUNCHER)410
33 – HYDRAULIC SYSTEM – BOOM, TILT FUNCTION (FELLER BUNCHER)411
36 – HYDRAULIC SYSTEM – PUMP 2 FUNCTION (TELESCOPIC HARVESTER)412
37 – HYDRAULIC SYSTEM – PUMP 2 FUNCTION (TELESCOPIC HARVESTER)413
40 – HYDRAULIC SYSTEM – ENCLOSURE ( -005031)414
41 – HYDRAULIC SYSTEM – ENCLOSURE ( -005031)415
41A – HYDRAULIC SYSTEM – ENCLOSURE (005032- )416
41B – HYDRAULIC SYSTEM – ENCLOSURE (005032- )417
42 – HYDRAULIC SYSTEM – WORK LINES (SAW)418
43 – HYDRAULIC SYSTEM – WORK LINES (SAW)419
44 – HYDRAULIC SYSTEM – ATTACHMENT FUNCTION (FELLER BUNCHER)420
45 – HYDRAULIC SYSTEM – ATTACHMENT FUNCTION (FELLER BUNCHER)421
46 – HYDRAULIC SYSTEM – ATTACHMENT FUNCTION (TELESCOPIC HARVESTE422
47 – HYDRAULIC SYSTEM – ATTACHMENT FUNCTION (TELESCOPIC HARVESTE423
50 – HYDRAULIC SYSTEM – JOYSTICKS424
51 – HYDRAULIC SYSTEM – JOYSTICKS425
52 – HYDRAULIC SYSTEM – FOOT CONTROLS ( -005031)426
53 – HYDRAULIC SYSTEM – FOOT CONTROLS ( -005031)427
53A – HYDRAULIC SYSTEM – FOOT CONTROLS (005032- )428
53B – HYDRAULIC SYSTEM – FOOT CONTROLS (005032- )429
54 – HYDRAULIC SYSTEM – PILOT PUMP (FLEXAIRE FAN)( -005015)430
55 – HYDRAULIC SYSTEM – PILOT PUMP (FLEXAIRE FAN)( -005015)431
56 – HYDRAULIC SYSTEM – PILOT PUMP (FIXED PITCH FAN)(STANDARD) (432
57 – HYDRAULIC SYSTEM – PILOT PUMP (FIXED PITCH FAN)(STANDARD) (433
57A – HYDRAULIC SYSTEM – PILOT PUMP (FIXED PITCH FAN)(STANDARD)434
57B – HYDRAULIC SYSTEM – PILOT PUMP (FIXED PITCH FAN)(STANDARD)435
58 – HYDRAULIC SYSTEM – CLAMP WRIST CONTROL VALVE (FELLER BUNCHE436
59 – HYDRAULIC SYSTEM – CLAMP WRIST CONTROL VALVE (FELLER BUNCHE437
60 – HYDRAULIC SYSTEM – SWING BRAKE (FELLER BUNCHER) ( -005031)438
61 – HYDRAULIC SYSTEM – SWING BRAKE (FELLER BUNCHER) ( -005031)439
61A – HYDRAULIC SYSTEM – SWING BRAKE (FELLER BUNCHER) (005032- 440
61B – HYDRAULIC SYSTEM – SWING BRAKE (FELLER BUNCHER) (005032- 441
62 – HYDRAULIC SYSTEM – VALVE TO CAB PILOT LINES (FELLER BUNCHER442
63 – HYDRAULIC SYSTEM – VALVE TO CAB PILOT LINES (FELLER BUNCHER443
63A – HYDRAULIC SYSTEM – VALVE TO CAB PILOT LINES (FELLER BUNCHE444
63B – HYDRAULIC SYSTEM – VALVE TO CAB PILOT LINES (FELLER BUNCHE445
64 – HYDRAULIC SYSTEM – CLAMP WRIST CONTROL VALVE (TELESCOPIC446
65 – HYDRAULIC SYSTEM – CLAMP WRIST CONTROL VALVE (TELESCOPIC447
66 – HYDRAULIC SYSTEM – SWING BRAKE (TELESCOPIC HARVESTER) ( 448
67 – HYDRAULIC SYSTEM – SWING BRAKE (TELESCOPIC HARVESTER) ( 449
67A – HYDRAULIC SYSTEM – SWING BRAKE (TELESCOPIC HARVESTER) (005450
67B – HYDRAULIC SYSTEM – SWING BRAKE (TELESCOPIC HARVESTER) (005451
68 – HYDRAULIC SYSTEM – VALVE TO CAB PILOT LINES (TELESCOPIC452
69 – HYDRAULIC SYSTEM – VALVE TO CAB PILOT LINES (TELESCOPIC453
69A – HYDRAULIC SYSTEM – VALVE TO CAB PILOT LINES (TELESCOPIC454
69B – HYDRAULIC SYSTEM – VALVE TO CAB PILOT LINES (TELESCOPIC455
2164 – VEHICLE MAIN HYDRAULIC SYSTEM 21456
HYD RESERBOIR, FILTER & COOLER 2164456
2 – HYDRAULIC TANK456
3 – HYDRAULIC TANK457
4 – FILTER – HYDRAULIC, PILOT458
5 – FILTER – HYDRAULIC, PILOT459
2165 – VEHICLE MAIN HYDRAULIC SYSTEM 21460
HYDRAULIC CYLINDERS 2165460
2 – TILT CYLINDER, ENCLOSURE DOOR460
3 – TILT CYLINDER, ENCLOSURE DOOR461
2261 – VEHICLE PNEUMATIC SYSTEM 21462
PNEUMATICS PUMPS & DRIVES 2261462
6 – COMPRESSOR MOUNTING, FAN CONTROL (005016-005031)462
7 – COMPRESSOR MOUNTING, FAN CONTROL (005016-005031)463
7A – COMPRESSOR MOUNTING, FAN CONTROL (005032- )464
7B – COMPRESSOR MOUNTING, FAN CONTROL (005032- )465
8 – COMPRESSOR, FAN CONTROL (005016-005031)466
9 – COMPRESSOR, FAN CONTROL (005016-005031)467
10 – COMPRESSOR, FAN CONTROL (005032- )468
11 – COMPRESSOR, FAN CONTROL (005032- )469
3744 – ARCH, BOOM OR CRANES 37470
BOOMS 3744470
2 – BOOM ASSEMBLY – SHORT MAIN (608B)470
3 – BOOM ASSEMBLY – SHORT MAIN (608B)471
3A – BOOM ASSEMBLY – SHORT MAIN (703G)472
3B – BOOM ASSEMBLY – SHORT MAIN (703G)473
4 – BOOM ASSEMBLY – SHORT MAIN W/CRANK (FELLER BUNCHER) (608B)474
5 – BOOM ASSEMBLY – SHORT MAIN W/CRANK (FELLER BUNCHER) (608B)475
5A – BOOM ASSEMBLY – SHORT MAIN W/CRANK (FELLER BUNCHER) (703G)476
5B – BOOM ASSEMBLY – SHORT MAIN W/CRANK (FELLER BUNCHER) (703G)477
6 – BOOM ASSEMBLY – LONG MAIN (608B)478
7 – BOOM ASSEMBLY – LONG MAIN (608B)479
7A – BOOM ASSEMBLY – LONG MAIN (703G)480
7B – BOOM ASSEMBLY – LONG MAIN (703G)481
8 – STICK BOOM (FELLER BUNCHER) (608B)482
9 – STICK BOOM (FELLER BUNCHER) (608B)483
9A – STICK BOOM (FELLER BUNCHER) (703G)484
9B – STICK BOOM (FELLER BUNCHER) (703G)485
10 – STICK BOOM W/CRANK (FELLER BUNCHER) (608B)486
11 – STICK BOOM W/CRANK (FELLER BUNCHER) (608B)487
11A – STICK BOOM W/CRANK (FELLER BUNCHER) (703G)488
11B – STICK BOOM W/CRANK (FELLER BUNCHER) (703G)489
12 – STICK BOOM (TELESCOPIC HARVESTER) (608B)490
13 – STICK BOOM (TELESCOPIC HARVESTER) (608B)491
13A – STICK BOOM (TELESCOPIC HARVESTER) (703G)492
13B – STICK BOOM (TELESCOPIC HARVESTER) (703G)493
14 – CIRCUIT BOX (TELESCOPIC HARVESTER)494
15 – CIRCUIT BOX (TELESCOPIC HARVESTER)495
18 – BOOM DEBRIS GUARD496
19 – BOOM DEBRIS GUARD497
3763 – ARCH, BOOM OR CRANES 37498
LINES, HOSES OR FITTINGS 3763498
2 – HYDRAULIC SYSTEM, BOOM (FELLER BUNCHER)498
3 – HYDRAULIC SYSTEM, BOOM (FELLER BUNCHER)499
4 – HYDRAULIC SYSTEM, BOOM W/CRANK (FELLER BUNCHER)500
5 – HYDRAULIC SYSTEM, BOOM W/CRANK (FELLER BUNCHER)501
6 – HYDRAULIC SYSTEM, BOOM (TELESCOPIC HARVESTER)502
7 – HYDRAULIC SYSTEM, BOOM (TELESCOPIC HARVESTER)503
10 – HYDRAULIC SYSTEM, TILT CYLINDER (FELLER BUNCHER) ( -00501504
11 – HYDRAULIC SYSTEM, TILT CYLINDER (FELLER BUNCHER) ( -00501505
11A – HYDRAULIC SYSTEM, TILT CYLINDER (FELLER BUNCHER) (005015- 506
11B – HYDRAULIC SYSTEM, TILT CYLINDER (FELLER BUNCHER) (005015- 507
12 – HYDRAULIC SYSTEM, TILT CYLINDER, BOOM W/CRANK (FELLER BUNCH508
13 – HYDRAULIC SYSTEM, TILT CYLINDER, BOOM W/CRANK (FELLER BUNCH509
13A – HYDRAULIC SYSTEM, TILT CYLINDER, BOOM W/CRANK (FELLER BUNC510
13B – HYDRAULIC SYSTEM, TILT CYLINDER, BOOM W/CRANK (FELLER BUNC511
14 – HYDRAULIC SYSTEM, HOIST CYLINDER (FELLER BUNUCHER) ( -005512
15 – HYDRAULIC SYSTEM, HOIST CYLINDER (FELLER BUNUCHER) ( -005513
15A – HYDRAULIC SYSTEM, HOIST CYLINDER (FELLER BUNUCHER) (005015514
15B – HYDRAULIC SYSTEM, HOIST CYLINDER (FELLER BUNUCHER) (005015515
16 – HYDRAULIC SYSTEM, HOIST CYLINDER, BOOM W/CRANK (FELLER516
17 – HYDRAULIC SYSTEM, HOIST CYLINDER, BOOM W/CRANK (FELLER517
17A – HYDRAULIC SYSTEM, HOIST CYLINDER, BOOM W/CRANK (FELLER518
17B – HYDRAULIC SYSTEM, HOIST CYLINDER, BOOM W/CRANK (FELLER519
18 – HYDRAULIC SYSTEM, STICK CYLINDER (FELLER BUNCHER) ( -0050520
19 – HYDRAULIC SYSTEM, STICK CYLINDER (FELLER BUNCHER) ( -0050521
19A – HYDRAULIC SYSTEM, STICK CYLINDER (FELLER BUNCHER) (005015-522
19B – HYDRAULIC SYSTEM, STICK CYLINDER (FELLER BUNCHER) (005015-523
20 – HYDRAULIC SYSTEM, STICK CYLINDER, BOOM W/CRANK (FELLER524
21 – HYDRAULIC SYSTEM, STICK CYLINDER, BOOM W/CRANK (FELLER525
21A – HYDRAULIC SYSTEM, STICK CYLINDER, BOOM W/CRANK (FELLER526
21B – HYDRAULIC SYSTEM, STICK CYLINDER, BOOM W/CRANK (FELLER527
22 – HYDRAULIC SYSTEM, TILT CYLINDER (TELESCOPIC HARVESTER)528
23 – HYDRAULIC SYSTEM, TILT CYLINDER (TELESCOPIC HARVESTER)529
24 – HYDRAULIC SYSTEM, HOIST CYLINDER (TELESCOPIC HARVESTER) ( 530
25 – HYDRAULIC SYSTEM, HOIST CYLINDER (TELESCOPIC HARVESTER) ( 531
25A – HYDRAULIC SYSTEM, HOIST CYLINDER (TELESCOPIC HARVESTER)532
25B – HYDRAULIC SYSTEM, HOIST CYLINDER (TELESCOPIC HARVESTER)533
26 – HYDRAULIC SYSTEM, STICK CYLINDER (TELESCOPIC HARVESTER) ( 534
27 – HYDRAULIC SYSTEM, STICK CYLINDER (TELESCOPIC HARVESTER) ( 535
27A – HYDRAULIC SYSTEM, STICK CYLINDER (TELESCOPIC HARVESTER)536
27B – HYDRAULIC SYSTEM, STICK CYLINDER (TELESCOPIC HARVESTER)537
3765 – ARCH, BOOM OR CRANES 37538
HYDRAULIC CYLINDERS 3765538
2 – 6″ CYLINDER – HOIST ( -005015)538
3 – 6″ CYLINDER – HOIST ( -005015)539
3A – 6″ CYLINDER – HOIST (005016-005025)540
3B – 6″ CYLINDER – HOIST (005016-005025)541
3C – 6″ CYLINDER – HOIST (005026- )542
3D – 6″ CYLINDER – HOIST (005026- )543
4 – 5″ CYLINDER-TILT (F/B STANDARD STICK) ( -005015)544
5 – 5″ CYLINDER-TILT (F/B STANDARD STICK) ( -005015)545
5A – 5″ CYLINDER-TILT (F/B STANDARD STICK) (005016- )546
5B – 5″ CYLINDER-TILT (F/B STANDARD STICK) (005016- )547
6 – 35″ CYLINDER – TELESCOPIC BOOM548
7 – 35″ CYLINDER – TELESCOPIC BOOM549
10 – 5″ CYLINDER – TILT (CRANK-LINK STICK BOOM) ( -005015)550
11 – 5″ CYLINDER – TILT (CRANK-LINK STICK BOOM) ( -005015)551
11A – 5″ CYLINDER – TILT (CRANK-LINK STICK BOOM) (005016- )552
11B – 5″ CYLINDER – TILT (CRANK-LINK STICK BOOM) (005016- )553
4350 – SWING, ROTATION OR PIVOTING SYSTEM 43554
MECHANICAL DRIVE ELEMENTS 4350554
2 – SWING DRIVE GEARBOX554
3 – SWING DRIVE GEARBOX555
4353 – SWING, ROTATION OR PIVOTING SYSTEM 43556
SWING BEARING & MOUNTING 4353556
2 – SWING DRIVE SYSTEM556
3 – SWING DRIVE SYSTEM557
4362 – SWING, ROTATION OR PIVOTING SYSTEM 43558
VALVES 4362558
2 – CROSS-OVER RELIEF VALVE558
3 – CROSS-OVER RELIEF VALVE559
4367 – SWING, ROTATION OR PIVOTING SYSTEM 43560
MOTORS 4367560
2 – HYDRAULIC SWING DRIVE MOTOR560
3 – HYDRAULIC SWING DRIVE MOTOR561
4460 – CUTTING MECHANISMS 44562
HYDRAULIC SYSTEM 4460562
2 – HARVESTER HEAD HYDRAULICS562
3 – HARVESTER HEAD HYDRAULICS563
4 – LINK564
5 – LINK565
6 – ROTATOR – HARVESTER HEAD (762C)566
7 – ROTATOR – HARVESTER HEAD (762C)567
4463 – CUTTING MECHANISMS 44568
LINES, HOSES AND FITTINGS 4463568
A 9
ADAPTER, TURBOCHARGER DRAIN LINE 70
AIR CLEANER122
AIR CONDITIONING ASSEMBLY290
AIR CONDITIONING COMPRESSOR 98
AIR CONDITIONING SYSTEM, ENGINE LINES – ( -005023)286
AIR CONDITIONING SYSTEM, ENGINE LINES – (005024- )288
AIR CONDITIONING SYSTEM, HEATER LINES284
AIR COOLER110
AIR INTAKE120
AIR TEMPERATURE SENSOR 69
ALARM, TRAVEL306
ALTERNATOR210
ALTERNATOR ADJUSTING STRAP 82
ALTERNATOR BRACKETS 82
ALTERNATOR SUPPORT AND ADJ STRAP 82
ARM, ROCKER 38
ARMREST, SEAT278
ATTACHMENT VALVE – (FELLER BUNCHER)356
ATTACHMENT VALVE – (TELEBOOM HARVESTER) ( -005031)356
ATTACHMENT VALVE – (TELEBOOM HARVESTER) (005032- )358
ATTACHMENT VALVE, INLET SECTION – (TELEBOOM HARVESTER)360
ATTACHMENT VALVE, OUTLET SECTION – (TELEBOOM HARVESTER)366
ATTACHMENT VALVE, PUMP/TELEBOOM SECTION – (TELEBOOM HARVESTER) (362
ATTACHMENT VALVE, ROTATE SECTION – (TELEBOOM HARVESTER)364
AUXILIARY DRIVE GEAR 84
AUXILIARY DRIVE HOUSING 84
AUXILIARY DRIVE SUPPORT 84
AUXILIARY FRONT DRIVE 84
B 9
BATTERY, CABLES AND MOUNTING208
BEARING, SWING556
BEARINGS, CRANKSHAFT 32
BELT TENSIONER 82
BELT, ENGINE126
BLOCK, SHORT (WITH HEAD BOLTS) 48
BOOM DECALS, ENGLISH (608B)146
BOOM DECALS, ENGLISH (703G)178
BOOM DECALS, FRENCH (608B)154
BOOM DECALS, FRENCH (703G)184
BOOM DECALS, PORTUGUESE (608B)162
BOOM DECALS, PORTUGUESE (703G)190
BOOM DECALS, RUSSIAN170
BOOM DECALS, RUSSIAN – (703G)196
BOOM, DEBRIS GUARD496
BOOM, DECALS, TELEBOOM HARVESTER HEAD – (762C/T10), ENGLISH148
BOOM, DECALS, TELEBOOM HARVESTER HEAD – (762C/T10), FRENCH156
BOOM, DECALS, TELEBOOM HARVESTER HEAD – (762C/T10), PORTUGUESE164
BOOM, DECALS, TELEBOOM HARVESTER HEAD – (762C/T10), RUSSIAN172
BOOM, HYDRAULIC SYSTEM – (TELESCOPIC HARVESTER)502
BOOM, LUBRICATION SYSTEM – (FELLER BUNCHER)198
BOOM, LUBRICATION SYSTEM – (FELLER BUNCHER)200
BOOM, LUBRICATION SYSTEM – (TELESCOPIC HARVESTER)204
BOOM, LUBRICATION SYSTEM, W/CRANK – (FELLER BUNCHER)202
BOOM, MAIN LONG (TELESCOPIC HARVESTER) – ( -005030)478
BOOM, MAIN LONG (TELESCOPIC HARVESTER) – (703G)480
BOOM, MAIN SHORT (608B)470
BOOM, MAIN SHORT (703G)472
BOOM, MAIN SHORT, W/CRANK – (FELLER BUNCHER) (608B)474
BOOM, MAIN SHORT, W/CRANK – (FELLER BUNCHER) (703G)476
BOOM, STICK (FELLER BUNCHER) – (608B)482
BOOM, STICK (FELLER BUNCHER) – (703G)484
BOOM, STICK (TELESCOPIC HARVESTER) – (608B)490
BOOM, STICK (TELESCOPIC HARVESTER) – (703G)492
BOOM, STICK, W/CRANK (FELLER BUNCHER) – (608B)486
BOOM, STICK, W/CRANK (FELLER BUNCHER) – (703G)488
BRACKETS, ALTERNATOR 82
BRAKE DISK,PENDANT LINK564
BUSHING, CAMSHAFT 42
C 9
CAB ACCESSORIES (608B)264
CAB ACCESSORIES (703G)266
CAB COVERS (608B)264
CAB COVERS (703G)266
CAB DECALS, ENGLISH (608B)142
CAB DECALS, ENGLISH (703G)174
CAB DECALS, FRENCH (608B)150
CAB DECALS, FRENCH (703G)180
CAB DECALS, PORTUGUESE (608B)158
CAB DECALS, PORTUGUESE (703G)186
CAB DECALS, RUSSIAN (608B)166
CAB DECALS, RUSSIAN (703G)192
CAB DOOR – (-005036)268
CAB DOOR – (005037-)270
CAB INSTRUMENT MOUNTS276
CAB INSULATION262
CAB INTERIOR276
CAB MATS262
CAB WINDOWS (608B)272
CAB WINDOWS (703G)274
CAMSHAFT 33
CAMSHAFT BUSHING 42
CAMSHAFT GEAR 33
CAPS, MAIN BEARING 42
CARRIER,ROCKER ARM COVER 36
CHAIN, TRACK (BERCO) 24
CHECK VALVE, FUEL INJECTION PUMP 64
CIRCUIT BOX ( -005017)254
CIRCUIT BOX (005018-005025)256
CIRCUIT BOX (005026- )258
CIRCUIT BOX, BOOM – (TELESCOPIC HARVESTER)494
CIRCUIT BOX, TIMBERMATIC 10 (TH) – (SN -005033)246
CIRCUIT BOX, TIMBERMATIC 10 (TH) – (SN 005034- )248
CLAMP WRIST CONTROL HYDRAULIC SYSTEM – (FELLER BUNCHER)436
CLAMP WRIST CONTROL HYDRAULIC SYSTEM – (TELESCOPIC HARVESTER)446
CLAMP WRIST CONTROL, HYDRAULIC SYSTEM – (TELESCOPIC HARVESTER) (450
CLUTCH,STARTER 80
COMPRESSOR ASSY, FAN CONTROL – (005016-005031)466
COMPRESSOR ASSY, FAN CONTROL – (005032- )468
COMPRESSOR MOUNTING, FAN CONTROL – (005016-005031)462
COMPRESSOR MOUNTING, FAN CONTROL – (005032- )464
CONNECTING RODS 41
CONTROL LEVER, HYDRAULIC SYSTEM424
CONTROL VALVE, TRACK/HOIST – (FELLER BUNCHER)348
CONTROL VALVE, TRACK/HOIST – (TELESCOPIC HARVESTER)352
CONTROL VALVE, TRACK/SWING348
CONTROLLER, ENGINE – (SN -005031)136
CONTROLLER, ENGINE – (SN 005032- )138
COOLANT HEATER, ENGINE 90
COOLER, AIR110
COOLER, OIL 76
COOLER, OIL, AUXILIARY110
COOLING FAN, FIXED PITCH114
COOLING FAN, FLEXAIRE ( -005015)116
COOLING FAN, FLEXAIRE (005016- )118
COOLING SYSTEM108
COUNTERWEIGHT260
COVER TIMING GEAR 34
COVER, THERMOSTAT 74
COVER, WATER PUMP 72
COVER,ROCKER ARM 36
CRANKSHAFT 32
CRANKSHAFT BEARING 32
CRANKSHAFT GEAR 32
CRANKSHAFT POSITION SENSOR 35
CRANKSHAFT PULLEY AND DAMPER 87
CYLINDER BLOCK FITTINGS 42
CYLINDER BLOCK FITTINGS AND MAIN – CAPS 42
CYLINDER HEAD 58
CYLINDER HEAD GASKET KIT 44
CYLINDER LINERS 41
CYLINDER, ENCLOSURE TILT460
CYLINDER, HOIST, 6″ ( -005015)538
CYLINDER, HOIST, 6″ (005016-005025)540
CYLINDER, HOIST, 6″(005026- )542
CYLINDER, STICK, 5″ ( -005015)544
CYLINDER, STICK, 5″ (005016- )546
CYLINDER, TILT, 35″(TELESCOPIC BOOM)548
CYLINDER, TILT, 5″(CRANK-LINK STICK BOOM – ( -005015)550
CYLINDER, TILT, 5″(CRANK-LINK STICK BOOM – (005016- )552
CYLINDER, TILT, 5″(STANDARD STICK BOOM) – ( -005015)544
CYLINDER, TILT, 5″(STANDARD STICK BOOM) – (005016- )546
D 9
DAMPER, CRANKSHAFT 87
DEBRIS GUARD, BOOM496
DECALS, BOOM,170
DECALS, BOOM, ENGLISH (608B)146
DECALS, BOOM, ENGLISH (703G)178
DECALS, BOOM, FRENCH (608B)154
DECALS, BOOM, FRENCH (703G)184
DECALS, BOOM, PORTUGUESE (608B)162
DECALS, BOOM, PORTUGUESE (703G)190
DECALS, BOOM, RUSSIAN – (703G)196
DECALS, BOOM, TELEBOOM HARVESTER HEAD – (762C/T10), ENGLISH148
DECALS, BOOM, TELEBOOM HARVESTER HEAD – (762C/T10), FRENCH156
DECALS, BOOM, TELEBOOM HARVESTER HEAD – (762C/T10), PORTUGUESE164
DECALS, BOOM, TELEBOOM HARVESTER HEAD – (762C/T10), RUSSIAN172
DECALS, CAB, ENGLISH (608B)142
DECALS, CAB, ENGLISH (703G)174
DECALS, CAB, FRENCH (608B)150
DECALS, CAB, FRENCH (703G)180
DECALS, CAB, PORTUGUESE (608B)158
DECALS, CAB, PORTUGUESE (703G)186
DECALS, CAB, RUSSIAN (608B)166
DECALS, CAB, RUSSIAN (703G)192
DECALS, UPPER, ENGLISH (608B)144
DECALS, UPPER, ENGLISH (703G)176
DECALS, UPPER, FRENCH (608B)152
DECALS, UPPER, FRENCH (703G)182
DECALS, UPPER, PORTUGUESE (608B)160
DECALS, UPPER, PORTUGUESE (703G)188
DECALS, UPPER, RUSSIAN (608B)168
DECALS, UPPER, RUSSIAN (703G)194
DIPSTICK, ENGINE OIL 56
DIPSTICK, SWING DRIVE GEAR CASE556
DISC SAW, SOLENOID VALVE350
DISPLAY UNIT, TIMBERMATIC 10 (TH) – (SN -005033)242
DISPLAY UNIT, TIMBERMATIC 10 (TH) – (SN 005034- )244
DOOR, CAB – (-005036)268
DOOR, CAB – (005037-)270
DOOR, SERVICE, ENCLOSURE296
DOOR, SIDE, TURNTABLE (608B)292
DOOR, SIDE, TURNTABLE (703G)294
DRAIN LINE ADAPTER, TURBOCHARGER 70
E 9
ECU (ENGINE CONTROL UNIT) – (SN -005031)136
ECU (ENGINE CONTROL UNIT) – (SN 005032- )138
ELECTRICAL BOX ( -005017)254
ELECTRICAL BOX (005018-005025)256
ELECTRICAL BOX (005026- )258
ELECTRICAL BOX, TIMBERMATIC 10 (TH) – (SN -005033)246
ELECTRICAL BOX, TIMBERMATIC 10 (TH) – (SN 005034- )248
ELECTRICAL SYSTEM, CAB, LOWER224
ELECTRICAL SYSTEM, CAB, UPPER222
ELECTRICAL SYSTEM, ENCLOSURE – (SN -005031)218
ELECTRICAL SYSTEM, ENCLOSURE – (SN 005032- )220
ELECTRICAL SYSTEM, ENGINE ( -005031)238
ELECTRICAL SYSTEM, ENGINE (005032- )240
ELECTRICAL SYSTEM, FLEXAIRE FAN – ( -005015)230
ELECTRICAL SYSTEM, FLEXAIRE FAN – (SN 005032- )236
ELECTRICAL SYSTEM, FLEXAIRE FAN – (005016-005026)232
ELECTRICAL SYSTEM, FLEXAIRE FAN – (005027-005031)234
ELECTRICAL SYSTEM, SEAT PILOT SWITCH – ( -005022)226
ELECTRICAL SYSTEM, SEAT PILOT SWITCH – (005023-)228
ELECTRICAL SYSTEM, TIMBERMATIC 10 (TH) – (SN -005033)242
ELECTRICAL SYSTEM, TIMBERMATIC 10 (TH) – (SN 005034- )244
ELECTRICAL SYSTEM, TURNTABLE – (SN -005031)218
ELECTRICAL SYSTEM, TURNTABLE – (SN 005032- )220
ELECTRICAL, PANEL & GAUGE250
ELECTRICAL, PANEL & GAUGE252
ENCLOSURE PUMP, ELECTRICAL/HYDRAULIC330
ENCLOSURE PUMP, HAND ( -005031)414
ENCLOSURE PUMP, HAND (005032- )332
ENCLOSURE TILT CYLINDER460
ENCLOSURE, COVER (608B)298
ENCLOSURE, COVER (703G)300
ENCLOSURE, DOOR296
ENCLOSURE, HYDRAULIC SYSTEM ( -005031)414
ENCLOSURE, HYDRAULIC SYSTEM (005032- )416
ENCLOSURE, STEP HANDLE & LADDER282
ENGINE CONTROLLER – (SN -005031)136
ENGINE CONTROLLER – (SN 005032- )138
ENGINE COOLANT HEATER 90
ENGINE COOLING SYSTEM108
ENGINE ELECTRICAL SYSTEM ( -005031)238
ENGINE ELECTRICAL SYSTEM (005032- )240
ENGINE FAN BELT126
ENGINE FLYWHEEL, EXTERNAL 96
ENGINE HEATER COMPONENTS104
ENGINE HEATER MOUNTING106
ENGINE INTAKE SYSTEM120
ENGINE MOUNTING SYSTEM100
ENGINE MOUNTS100
ENGINE MOUNTS, AUXILIARY126
ENGINE OIL DIPSTICK AND TUBE 56
ENGINE OIL PUMP 50
ENGINE OIL PUMP INTAKE 52
ENGINE OIL SYSTEM 54
ENGINE OVERHAUL KIT 46
ENGINE REBUILD GASKET KIT 44
ENGINE VENTILATOR OUTLET HOSE 57
ENGINE WIRING HARNESS ( -005031)238
ENGINE WIRING HARNESS (005032- )240
EXHAUST MANIFOLD GASKET 61
EXHAUST MANIFOLD RING 61
EXHAUST SYSTEM124
EXHAUST, MANIFOLD 61
EXTINGUISHER, FIRE304
F 9
FAN PULLEY ADJUSTABLE 88
FAN, COOLING, FIXED PITCH114
FAN, COOLING, FLEXAIRE ( -005015)116
FAN, COOLING, FLEXAIRE (005016- )118
FILTER, AIR CLEANER122
FILTER, FUEL (ESN -244799) 62
FILTER, FUEL (ESN 244800-) – (W/RE522687 & RE522688) 66
FILTER, FUEL PRE-FILTER – (608B 005024- )132
FILTER, HYDRAULIC PILOT, COMPONENTS458
FILTER, HYDRAULIC RESERVOIR456
FILTER, HYDRAULIC TANK456
FIRE EXTINGUISHER304
FITTINGS, CYLINDER BLOCK 42
FIXED PITCH FAN, PIOLT PUMP (STANDARD) – HYDRAULIC SYSTEM ( 432
FIXED PITCH FAN, PIOLT PUMP (STANDARD) – HYDRAULIC SYSTEM434
FLEXAIRE FAN, PILOT PUMP – HYDRAULIC SYSTEM ( -005015)430
FLYWHEEL 93
FLYWHEEL 95
FLYWHEEL HOUSING 94
FLYWHEEL, ENGINE, EXTERNAL 96
FOOT CONTROLS, HYDRAULIC SYSTEM – ( -005031)426
FOOT CONTROLS, HYDRAULIC SYSTEM – (005032- )428
FOOT PEDAL370
FUEL FILTER (ESN -244799) 62
FUEL FILTER (ESN 244800-) – (W/RE522687 & RE522688) 66
FUEL INJECTION LINES 64
FUEL INJECTION NOZZLE 64
FUEL INJECTION PUMP 64
FUEL INJECTION PUMP OVERFLOW VALVE 64
FUEL INJECTION RAIL 64
FUEL LEAK-OFF LINES 64
FUEL MOISTURE SENSOR (ESN -244799) 62
FUEL MOISTURE SENSOR (ESN 244800-) – (W/RE522687 & RE522688) 66
FUEL PRE-FILTER – (608B 005024- )132
FUEL SYSTEM – (608B/703, -005023)128
FUEL SYSTEM – (608B/703G 005024- )130
FUEL TANK134
FUEL TEMPERATURE SENSOR (ESN -244799) 62
FUEL TEMPERATURE SENSOR (ESN 244800-) – (W/RE522687 & RE522688) 66
FUEL/WATER SEPARATOR(WITH ENGINE HEATER)102
G 9
GASKET KIT, CYLINDER HEAD 44
GASKET KIT, ENGINE REBUILD 44
GASKET KIT, SHORT BLOCK 44
GASKET, EXHAUST MANIFOLD 61
GASKET, OIL COOLER 76
GASKET, OIL COOLER COVER 76
GASKET, OIL PAN 52
GASKET, OIL PUMP 50
GASKET, TIMING GEAR COVER 34
GASKET, TURBOCHARGER OIL LINE 70
GASKET, WATER MANIFOLD 74
GASKET, WATER PUMP COVER 72
GASKET,INTAKE MANIFOLD 69
GASKET,OIL PUMP INTAKE 52
GASKET,ROCKER ARM COVER 36
GASKET,ROCKER ARM COVER CARRIER 36
GEAR CASE AND SPROCKET INSTALLATION 26
GEAR CASE, SWING DRIVE INSTALLATION556
GEAR, AUXILIARY DRIVE 84
GEAR, FUEL INJECTION PUMP 64
GEAR, OIL PUMP DRIVE 50
GEAR,CAMSHAFT 33
GEAR,CRANKSHAFT 32
GEARBOX, SWING DRIVE554
GEARBOX, TRACK DRIVE 18
GUAGE, ELECTRICAL250
GUAGE, ELECTRICAL252
GUARD, FAN114
H 9
HAND PRIMER, FUEL INJECTION PUMP 64
HAND PUMP INSTALLATION384
HAND PUMP, ENCLOSURE ( -005031)414
HAND PUMP, ENCLOSURE (005032- )332
HAND PUMP, HYDRAULIC TANK FILL322
HANDLE, STEERING CONTROL – (FELLER BUNCHER)372
HANDLE, STEERING CONTROL, W/TIMBER 10 – (TELESCOPIC HARVESTER)376
HANDLE, STEP, ENCLOSURE282
HARVESTER HEAD HYDRAULICS562
HARVESTER HEAD, ROTATOR (762C)566
HEAD, CYLINDER, AND VALVES 58
HEATER ASSEMBLY290
HEATER COMPONENTS, ENGINE104
HEATER, ENGINE106
HEATER, ENGINE COOLANT 90
HEATER, HYDRAULIC RESERVOIR456
HEATER, HYDRAULIC TANK456
HOIST CYLINDER, 6″ ( -005015)538
HOIST CYLINDER, 6″ (005016-005025)540
HOIST CYLINDER, 6″(005026- )542
HOSE, ENGINE VENTILATOR OUTLET 57
HOSE,ROCKER ARM COVER VENTILATION 36
HOUSING, AUXILIARY DRIVE 84
HOUSING, FLYWHEEL 94
HOUSING, THERMOSTAT 74
HYDRAULIC MOTOR, TRACK 20
HYDRAULIC MOTOR, TRACK (CONTINUED)) 22
HYDRAULIC RESERVOIR456
HYDRAULIC ROTARY MANIFOLD368
HYDRAULIC SWING DRIVE MOTOR560
HYDRAULIC SYSTEM, ATTACHMENT FUNCTION – (FELLER BUNCHER)420
HYDRAULIC SYSTEM, ATTACHMENT FUNCTION – (TELESCOPIC HARVESTER)422
HYDRAULIC SYSTEM, BOOM – (TELESCOPIC HARVESTER)502
HYDRAULIC SYSTEM, BOOM (F/B W/CRANK)500
HYDRAULIC SYSTEM, BOOM (F/B W/CRANK) – HOIST CYLINDER ( 516
HYDRAULIC SYSTEM, BOOM (F/B W/CRANK) – HOIST CYLINDER (005015- 518
HYDRAULIC SYSTEM, BOOM (F/B W/CRANK) – STICK CYLINDER ( 524
HYDRAULIC SYSTEM, BOOM (F/B W/CRANK) – STICK CYLINDER (005015- 526
HYDRAULIC SYSTEM, BOOM (F/B W/CRANK) – TILT CYLINDER ( 508
HYDRAULIC SYSTEM, BOOM (F/B W/CRANK) – TILT CYLINDER (005015- 510
HYDRAULIC SYSTEM, BOOM (F/B)498
HYDRAULIC SYSTEM, BOOM (F/B) – HOIST CYLINDER ( -005014)512
HYDRAULIC SYSTEM, BOOM (F/B) – HOIST CYLINDER (005015- )514
HYDRAULIC SYSTEM, BOOM (F/B) – STICK CYLINDER ( -005014)520
HYDRAULIC SYSTEM, BOOM (F/B) – STICK CYLINDER (005015- )522
HYDRAULIC SYSTEM, BOOM (F/B) – TILT CYLINDER ( -005014)504
HYDRAULIC SYSTEM, BOOM (F/B) – TILT CYLINDER (005015- )506
HYDRAULIC SYSTEM, BOOM (TELE HAR) – HOIST CYLINDER ( -005014)530
HYDRAULIC SYSTEM, BOOM (TELE HAR) – HOIST CYLINDER (005015- )532
HYDRAULIC SYSTEM, BOOM (TELE HAR) – STICK CYLINDER ( -005014)534
HYDRAULIC SYSTEM, BOOM (TELE HAR) – STICK CYLINDER (005015- )536
HYDRAULIC SYSTEM, BOOM (TELE HAR) – TILT CYLINDER528
HYDRAULIC SYSTEM, BOOM, STICK FUNCTION – (FELLER BUNCHER)406
HYDRAULIC SYSTEM, BOOM, STICK FUNCTION – (TELESCOPIC HARVESTER)408
HYDRAULIC SYSTEM, BOOM, TILT FUNCTION – (FELLER BUNCHER)410
HYDRAULIC SYSTEM, CLAMP WRIST CONTROL – (FELLER BUNCHER)436
HYDRAULIC SYSTEM, CLAMP WRIST CONTROL – (TELESCOPIC HARVESTER) (446
HYDRAULIC SYSTEM, CLAMP WRIST CONTROL – (TELESCOPIC HARVESTER) (450
HYDRAULIC SYSTEM, DRAIN LINES – (FELLER BUNCHER) ( -005031)390
HYDRAULIC SYSTEM, DRAIN LINES – (FELLER BUNCHER) (005032- )392
HYDRAULIC SYSTEM, DRAIN LINES – (TSH) ( -005031)394
HYDRAULIC SYSTEM, DRAIN LINES – (TSH) (005032- )396
HYDRAULIC SYSTEM, ENCLOSURE ( -005031)414
HYDRAULIC SYSTEM, ENCLOSURE (005032- )416
HYDRAULIC SYSTEM, FOOT CONTROLS – ( -005031)426
HYDRAULIC SYSTEM, FOOT CONTROLS – (005032- )428
HYDRAULIC SYSTEM, HOIST LINES404
HYDRAULIC SYSTEM, JOYSTICKS424
HYDRAULIC SYSTEM, PILOT PUMP – (FLEXAIRE FAN) ( -005015)430
HYDRAULIC SYSTEM, PILOT PUMP (STANDARD) – FIXED PITCH FAN ( 432
HYDRAULIC SYSTEM, PILOT PUMP (STANDARD) – FIXED PITCH FAN434
HYDRAULIC SYSTEM, PRESSURE LINES – (FELLER BUNCHER)382
HYDRAULIC SYSTEM, PRESSURE LINES – (TELESCOPIC HARVESTER)382
HYDRAULIC SYSTEM, RETURN LINES – ( -005031)386
HYDRAULIC SYSTEM, RETURN LINES – (005032- )388
HYDRAULIC SYSTEM, SUCTION LINES – (FELLER BUNCHER)378
HYDRAULIC SYSTEM, SUCTION LINES – (TELESCOPIC HARVESTER)380
HYDRAULIC SYSTEM, SWING BRAKE – (FELLER BUNCHER) ( -005031)438
HYDRAULIC SYSTEM, SWING BRAKE – (FELLER BUNCHER) (005032- )440
HYDRAULIC SYSTEM, SWING BRAKE – (TELESCOPIC HARVESTER) ( 448
HYDRAULIC SYSTEM, SWING BRAKE – (TELESCOPIC HARVESTER)450
HYDRAULIC SYSTEM, SWING LINES398
HYDRAULIC SYSTEM, TANK FILL LINES384
HYDRAULIC SYSTEM, TRACK LINES402
HYDRAULIC SYSTEM, TRACK LINES – (SWIVEL TO VALVE)400
HYDRAULIC SYSTEM, VALVE TO CAB – (FELLER BUNCHER) ( -005031)442
HYDRAULIC SYSTEM, VALVE TO CAB – (FELLER BUNCHER) (005032- )444
HYDRAULIC SYSTEM, VALVE TO CAB – (TELESCOPIC HARVESTER) ( 452
HYDRAULIC SYSTEM, VALVE TO CAB – (TELESCOPIC HARVESTER)454
HYDRAULIC SYSTEM, WORK LINES, SAW418
HYDRAULIC SYSTEM, 2 FUNCTION PUMP – (TELESCOPIC HARVESTER)412
HYDRAULIC TANK456
HYDRAULIC TANK FILL, HAND PUMP322
HYDRAULICS, HARVESTER HEAD562
I 9
IDLER, TRACK, BERCO 30
INLET SECTION, ATTACHMENT VALVE – (TELEBOOM HARVESTER)360
INSTRUMENT MOUNTS, CAB276
INSULATION, CAB262
INTAKE MANIFOLD 69
INTAKE MANIFOLD GASKET 69
INTAKE MANIFOLD TEMPERATURE SENSOR140
INTAKE,ENGINE OIL PUMP 52
J 9
JETS, PISTON COOLING 42
JOYSTICK COMPONENTS – (FELLER BUNCHER)372
JOYSTICK COMPONENTS, W/TIMBERMATIC 10 – (TELESCOPIC HARVESTER)376
JOYSTICKS, HYDRAULIC SYSTEM424
K 9
KIT, ENGINE OVERHAUL 46
KIT, ENGINE/CYLINDER HEAD GASKET 44
KIT, PISTON/LINER 41
KIT,STARTER MOTOR 80
KIT,STARTER SOLENOID COVER 80
KIT,WATER PUMP OIL SEAL 72
L 9
LADDER, ENCLOSURE282
LIFT STRAPS, ENGINE101
LIGHTS ( -005029)212
LIGHTS (005030-005031)214
LIGHTS (005032- )216
LINE, INJECTION PUMP LUBE 64
LINER O-RINGS 41
LINER SHIM 41
LINERS, CYLINDER 41
LINES, FUEL INJECTION 64
LINES, FUEL LEAK-OFF 64
LINK,PENDANT564
LOWER FRAME, GEAR CASE INSTALLATION 26
LUBRICATION SYSTEM, BOOM – (FELLER BUNCHER)198
LUBRICATION SYSTEM, BOOM – (FELLER BUNCHER)200
LUBRICATION SYSTEM, BOOM – (TELESCOPIC HARVESTER)204
LUBRICATION SYSTEM, BOOM W/CRANK – (FELLER BUNCHER)202
LUBRICATION, SWING DRIVE206
M 9
MAGNETIC PICK-UP SENSOR 35
MAIN BEARING CAPS 42
MAIN, BOOM, LONG (TELESCOPIC HARVESTER) – ( -005030)478
MAIN, BOOM, LONG (TELESCOPIC HARVESTER) – (703G)480
MAIN, BOOM, SHORT (608B)470
MAIN, BOOM, SHORT (703G)472
MAIN, BOOM, SHORT, W/CRANK – (FELLER BUNCHER) (608B)474
MAIN, BOOM, SHORT, W/CRANK – (FELLER BUNCHER) (703G)476
MANIFOLD, EXHAUST 61
MANIFOLD, HYDRAULIC ROTARY368
MANIFOLD, INTAKE 69
MANIFOLD, PILOT, VALVE – ( -005031)342
MANIFOLD, PILOT, VALVE – (005032- )344
MANIFOLD, PILOT, VALVE, SPEED SENSE – ( -005031)342
MANIFOLD, PILOT, VALVE, SPEED SENSE – (005032- )344
MANIFOLD, WATER 74
MATS, CAB262
MOTOR, HYDRAULIC SWING DRIVE560
MOTOR, HYDRAULIC, TRACK 20
MOTOR, HYDRAULIC, TRACK (CONTINUED) 22
MOUNTS, ENGINE100
MUFFLER124
N 9
NOZZLE, FUEL INJECTION 64
O 9
O-RINGS, LINER 41
OIL COOLER 76
OIL COOLER ADAPTER GASKET 76
OIL COOLER COVER GASKET 76
OIL COOLER, AUXILIARY110
OIL DIPSTICK AND TUBE 56
OIL LINES, TURBOCHARGER 70
OIL PAN 52
OIL PAN GASKET 52
OIL PRESSURE REGULATING VALVE 76
OIL PRESSURE SENSOR 79
OIL PUMP DRIVE GEAR 50
OIL PUMP GASKET 50
OIL PUMP INTAKE GASKET 52
OIL PUMP, ENGINE 50
OUTLET SECTION, ATTACHMENT VALVE – (TELEBOOM HARVESTER)366
OVERHAUL KIT, ENGINE 46
P 9
PANEL, ELECTRICAL250
PANEL, ELECTRICAL252
PEDAL, FOOT VALVE370
PENDANT LINK564
PENDANT LINK BRAKE DISK564
PILOT MANIFOLD VALVE – ( -005031)342
PILOT MANIFOLD VALVE – (005032- )344
PILOT MANIFOLD VALVE, SPEED SENSE – ( -005031)342
PILOT MANIFOLD VALVE, SPEED SENSE – (005032- )344
PILOT PUMP, (FLEXAIRE FAN) – HYDRAULIC SYSTEM ( -005015)430
PILOT PUMP, FIXED PITCH FAN (STANDARD) – HYDRAULIC SYSTEM ( 432
PILOT PUMP, FIXED PITCH FAN (STANDARD) – HYDRAULIC SYSTEM434
PISTON COOLING JETS 42
PISTON RINGS 41
PISTON/LINER KIT 41
PISTON, ENGINE 41
PLANETARY, TRACK DRIVE 18
PRE-CLEANER120
PRINTER, TIMBERMATIC 10 (TH) – (SN -005033)242
PRINTER, TIMBERMATIC 10 (TH) – (SN 005034- )244
PULLEY, CRANKSHAFT 87
PUMP/TELEBOOM SECTION, ATTACHMENT VALVE – (TELEBOOM HARVESTER) (362
PUMP, ATTACHMENT, END – (FELLER BUNCHER)324
PUMP, ATTACHMENT, END – (TELESCOPIC HARVESTER)326
PUMP, ATTACHMENT, INSTALLATION – (FELLER BUNCHER)310
PUMP, ATTACHMENT, INSTALLATION – (TELESCOPIC HARVESTER)312
PUMP, ATTACHMENT, MIDDLE – (FELLER BUNCHER)328
PUMP, ENCLOSURE HAND ( -005031)414
PUMP, ENCLOSURE, ELECTRICAL/HYDRAULIC330
PUMP, ENCLOSURE, HAND (005032- )332
PUMP, FUEL INJECTION 64
PUMP, HAND, HYDRAULIC TANK FILL322
PUMP, HAND, INSTALLATION384
PUMP, MAIN314
PUMP, MAIN (CONTINUED)316
PUMP, MAIN, DRIVE UNIT318
PUMP, MAIN, INSTALLATION308
PUMP, OIL ENGINE 50
PUMP, PILOT GEAR320
PUMP, PILOT GEAR, INSTALLATION308
PUMP, WATER 72
PUMP, 2 FUNCTION, HYDRAULIC SYSTEM – (TELESCOPIC HARVESTER)412
R 9
RADIATOR110
RADIATOR RESERVOIR112
RADIO302
RAIL, FUEL INJECTION 64
REAR OIL SEAL 94
RELAY, TIMBERMATIC 10 (TH) – (SN -005033)246
RELAY, TIMBERMATIC 10 (TH0 – (SN 005034- )248
RESERVOIR, FUEL134
RESERVOIR, HYDRAULIC456
RESERVOIR, RADIATOR112
RING, EXHAUST MANIFOLD 61
RINGS, PISTON 41
ROCKER ARM 38
ROCKER ARM COVER 36
ROCKER ARM COVER CARRIER 36
ROCKER ARM COVER CARRIER GASKET 36
ROCKER ARM COVER GASKET 36
ROCKER ARM COVER VENTILATION HOSE 36
RODS, CONNECTING 41
ROLLERS 28
ROTARY MANIFOLD368
ROTARY MANIFOLD INSTALLATION556
ROTATE SECTION, ATTACHMENT VALVE – (TELEBOOM HARVESTER)364
ROTATOR, HARVESTER HEAD (762C)566
S 9
SEAL, REAR CRANKSHAFT OIL 94
SEAT ASSEMBLY278
SEAT BELT278
SEAT MOUNTING280
SEAT PILOT SWITCH ( -005022)226
SEAT PILOT SWITCH (005023- )228
SENSOR, AIR TEMPERATURE 69
SENSOR, COOLANT TEMPERATURE 74
SENSOR, CRANKSHAFT POSITION 35
SENSOR, CRANKSHAFT SPEED 35
SENSOR, ENGINE SPEED 35
SENSOR, FUEL MOISTURE (ESN -244799) 62
SENSOR, FUEL MOISTURE (ESN 244800-) – (W/RE522687 & RE522688) 66
SENSOR, FUEL TEMPERATURE (ESN -244799) 62
SENSOR, FUEL TEMPERATURE (ESN 244800-) – (W/RE522687 & RE522688) 66
SENSOR, INTAKE MANIFOLD TEMPERATURE140
SENSOR, MAGNETIC PICKUP ENGINE SPEED 35
SENSOR, OIL PRESSURE 79
SHIM, LINER 41
SHOES, TRACK (BERCO) 24
SHORT BLOCK (WITH HEAD BOLTS) 48
SHORT BLOCK GASKET KIT 44
SHROUD108
SOLENOID SWITCH,STARTER 80
SOLENOID VALVE – ( -005031)342
SOLENOID VALVE – (TBH)(005032- )344
SOLENOID VALVE, DISC SAW350
SOLENOID VALVE, SWING BRAKE – ( -005031)346
SOLENOID VALVE, SWING BRAKE – (005032- )344
SOLENOID VALVE, WRIST/TREE CLAMP – (FELLER BUNCHER)354
SOLENOID VALVE, WRIST/TREE CLAMP – (TBH) (005032- )344
SOLENOID VALVE, WRIST/TREE CLAMP – (TBH) (608S, -007221)(753G, -354
SPEED SENSE PILOT MANIFOLD VALVE – ( -005031)342
SPEED SENSE PILOT MANIFOLD VALVE – (005032- )344
SPROCKET INSTALLATION 26
STAND, TRANSPORT100
STARTER CLUTCH 80
STARTER MOTOR KIT 80
STARTER SOLENOID COVER KIT 80
STARTER SOLENOID SWITCH 80
STEERING CONTROL HANDLE – (FELLER BUNCHER)372
STEERING CONTROL HANDLE, W/TIMBER 10 – (TELESCOPIC HARVESTER)376
STEERING CONTROL VALVE374
STEERING CONTROLS, TIMBERMATIC 10 (TH) – (SN -005033)242
STEERING CONTROLS, TIMBERMATIC 10 (TH) – (SN 005034- )244
STEP HANDLE, ENCLOSURE282
STICK BOOM, (FELLER BUNCHER) – (608B)482
STICK BOOM, (FELLER BUNCHER) – (703G)484
STICK BOOM, (TELESCOPIC HARVESTER) – (608B)490
STICK BOOM, (TELESCOPIC HARVESTER) – (703G)492
STICK BOOM, W/CRANK (FELLER BUNCHER) – (608B)486
STICK BOOM, W/CRANK (FELLER BUNCHER) – (703G)488
STICK CYLINDER, 5″ ( -005015)544
STICK CYLINDER, 5″ (005016- )546
STRAP, ALTERNATOR ADJUSTING 82
STRAPS, ENGINE LIFT101
SUPPORT, AIR CONDITIONER(HIGH MOUNT) 98
SUPPORT, AUXILIARY DRIVE 84
SURGE TANK112
SWING BEARING556
SWING BRAKE, HYDRAULIC SYSTEM – (FELLER BUNCHER) ( -005031)438
SWING BRAKE, HYDRAULIC SYSTEM – (FELLER BUNCHER) (005032- )440
SWING BRAKE, HYDRAULIC SYSTEM – (TELESCOPIC HARVESTER) ( 448
SWING BRAKE, HYDRAULIC SYSTEM – (TELESCOPIC HARVESTER)450
SWING BRAKE, SOLENOID VALVE – ( -005031)346
SWING BRAKE, SOLENOID VALVE – (005032- )344
SWING DRIVE GEARBOX554
SWING DRIVE GEARBOX, RELIEF VALVE558
SWING DRIVE LUBRICATION206
SWING DRIVE SYSTEM556
SWITCH, PILOT PRESSURE224
SWITCH, UPPER CONSOLE222
T 9
TANK, FUEL134
TANK, HYDRAULIC456
TANK, SURGE112
TELEBOOM HARVESTER HEAD (762C/T10) – DECALS, ENGLISH148
TELEBOOM HARVESTER HEAD (762C/T10) – DECALS, FRENCH156
TELEBOOM HARVESTER HEAD (762C/T10) – DECALS, PORTUGUESE164
TELEBOOM HARVESTER HEAD (762C/T10) – DECALS, RUSSIAN172
TEMPERATURE SENSOR, INTAKE MANIFOLD140
TENSIONER, BELT 82
THERMOSTAT 74
TILT CYLINDER, 35″(TELESCOPIC BOOM)548
TILT CYLINDER, 5″(CRANK-LINK STICK BOOM) – ( -005015)550
TILT CYLINDER, 5″(CRANK-LINK STICK BOOM) – (005016- )552
TILT CYLINDER, 5″(STANDARD STICK BOOM) – ( -005015)544
TILT CYLINDER, 5″(STANDARD STICK BOOM) – (005016- )546
TIMBERMATIC 10 COMPONENTS (TH) – (SN -005033)242
TIMBERMATIC 10 COMPONENTS (TH) – (SN 005034- )244
TIMBERMATIC 10 ELECTRICAL BOX (TH) – (SN -005033)242
TIMBERMATIC 10 ELECTRICAL BOX (TH) – (SN 005034- )244
TIMBERMATIC 10 PRINTER (TH) – (SN -005033)242
TIMBERMATIC 10 PRINTER (TH) – (SN 005034- )244
TIMBERMATIC 10, DISPLAY UNIT (TH) – (SN -005033)242
TIMBERMATIC 10, DISPLAY UNIT (TH) – (SN 005034- )244
TIMBERMATIC 10, STEERING CONTROLS (TH) – (SN -005033)242
TIMBERMATIC 10, STEERING CONTROLS (TH) – (SN 005034- )244
TIMING GEAR COVER 34
TIMING GEAR COVER GASKET 34
TRACK ADJUSTER/VALVE 30
TRACK ASSEMBLY 24
TRACK ASSEMBLY, COMPONENTS 24
TRACK CHAIN (BERCO) 24
TRACK DRIVE GEARBOX 18
TRACK IDLER, BERCO 30
TRACK MOTOR, HYDRAULIC 20
TRACK MOTOR, HYDRAULIC (CONTINUED) 22
TRANSPORT STAND100
TRAVEL ALARM306
TUBE, DIPSTICK, SWING DRIVE GEAR CASE556
TUBE, ENGINE OIL DIPSTICK 56
TUBE, THERMOSTAT HOUSING 74
TURBOCHARGER 70
TURBOCHARGER AND OIL LINES 70
TURBOCHARGER DRAIN LINE ADAPTER 70
TURBOCHARGER GASKET 70
TURBOCHARGER OIL LINE GASKET 70
TURBOCHARGER OIL LINES 70
TURNTABLE (608B)292
TURNTABLE (703G)294
TURNTABLE, PLATES (608B)298
TURNTABLE, PLATES (703G)300
U 9
UNDERCARRIAGE, GEAR CASE INSTALLATION 26
UNDERCARRIAGE, ROLLERS 28
UPPER DECALS, ENGLISH (703G)176
UPPER DECALS, ENGLISH (608B)144
UPPER DECALS, FRENCH (608B)152
UPPER DECALS, FRENCH (703G)182
UPPER DECALS, PORTUGUESE (608B)160
UPPER DECALS, PORTUGUESE (703G)188
UPPER DECALS, RUSSIAN (608B)168
UPPER DECALS, RUSSIAN (703G)194
V 9
VALVE INSTALLATION – (FELLER BUNCHER)( -005031)334
VALVE INSTALLATION – (FELLER BUNCHER)(005032- )336
VALVE INSTALLATION – (TELESCOPIC HARVESTER)( -005031)338
VALVE INSTALLATION – (TELESCOPIC HARVESTER)( -005031)340
VALVE TO CAB, HYDRAULIC SYSTEM – (FELLER BUNCHER) ( -005031)442
VALVE TO CAB, HYDRAULIC SYSTEM – (FELLER BUNCHER) (005032- )444
VALVE TO CAB, HYDRAULIC SYSTEM – (TELESCOPIC HARVESTER) ( 452
VALVE TO CAB, HYDRAULIC SYSTEM – (TELESCOPIC HARVESTER)454
VALVE, ATTACHMENT – (FELLER BUNCHER)356
VALVE, ATTACHMENT – (TELEBOOM HARVESTER) ( -005031)356
VALVE, ATTACHMENT – (TELEBOOM HARVESTER) (005032- )358
VALVE, CONTROL, TRACK/HOIST – (FELLER BUNCHER)348
VALVE, CONTROL, TRACK/HOIST – (TELESCOPIC HARVESTER)352
VALVE, CONTROL, TRACK/SWING348
VALVE, CROSS-OVER RELIEF ASSEMBLY – (SWING DRIVE GEAR BOX)558
VALVE, CROSS-OVER RELIEF INSTALLATION556
VALVE, FOOT PEDAL370
VALVE, FUEL INJECTION PUMP CHECK 64
VALVE, FUEL INJECTION PUMP OVERFLOW 64
VALVE, JOYSTICK374
VALVE, OIL PRESSURE REGULATING 76
VALVE, PILOT MANIFOLD – ( -005031)342
VALVE, PILOT MANIFOLD – (005032- )344
VALVE, PILOT MANIFOLD, SPEED SENSE – ( -005031)342
VALVE, PILOT MANIFOLD, SPEED SENSE – (005032- )344
VALVE, SOLENOID, DISC SAW350
VALVE, SOLENOID, SWING BRAKE – ( -005031)346
VALVE, SOLENOID, SWING BRAKE – (005032- )344
VALVE, SOLENOID, WRIST/TREE CLAMP – (FELLER BUNCHER)354
VALVE, SOLENOID, WRIST/TREE CLAMP – (TBH) (005032- )344
VALVE, SOLENOID, WRIST/TREE CLAMP – (TBH) (608S,354
VALVE, STEERING CONTROL374
VENT HOSE 57
W 9
WARNING DEVICE306
WATER MANIFOLD, FRONT 74
WATER PUMP 72
WATER PUMP COVER 72
WATER PUMP OIL SEAL KIT 72
WINDOWS, CAB (608B)272
WINDOWS, CAB (703G)274
WIRING HARNESS, ELECTRICAL BOX – ( -005017)254
WIRING HARNESS, ELECTRICAL BOX – (005018-005025)256
WIRING HARNESS, ELECTRICAL BOX – (005026- )258
WIRING HARNESS, ENCLOSURE – (SN -005031)218
WIRING HARNESS, ENCLOSURE – (SN 005032- )220
WIRING HARNESS, ENGINE ( -005031)238
WIRING HARNESS, ENGINE (005032- )240
WIRING HARNESS, FLEXAIRE FAN – ( -005015)230
WIRING HARNESS, FLEXAIRE FAN – (SN 005032- )236
WIRING HARNESS, FLEXAIRE FAN – (005016-005026)232
WIRING HARNESS, FLEXAIRE FAN – (005027-005031)234
WIRING HARNESS, JOYSTICK224
WIRING HARNESS, LOWER CAB224
WIRING HARNESS, MONITOR250
WIRING HARNESS, MONITOR252
WIRING HARNESS, TIMBERMATIC 10 (TH) – (SN -005033)242
WIRING HARNESS, TIMBERMATIC 10 (TH) – (SN 005034- )244
WIRING HARNESS, TURNTABLE – (SN -005031)218
WIRING HARNESS, TURNTABLE – (SN 005032- )220
WIRING HARNESS, UPPER CONSOLE222
WRIST/TREE CLAMP, SOLENOID VALVE – (FELLER BUNCHER)354
WRIST/TREE CLAMP, SOLENOID VALVE – (TBH) (005032- )344
WRIST/TREE CLAMP, SOLENOID VALVE – (TBH) (608S, -007221)(753G, -354

S.M 7/1/25
