John Deere 644K Loader Parts Manual PC10060 – PDF DOWNLOAD

Description

John Deere 644K Loader Parts Manual PC10060 – PDF DOWNLOAD

FILE DETAILS:

John Deere 644K Loader Parts Manual PC10060 – PDF DOWNLOAD

Language : English
Pages : 952
Downloadable : Yes
File Type : PDF

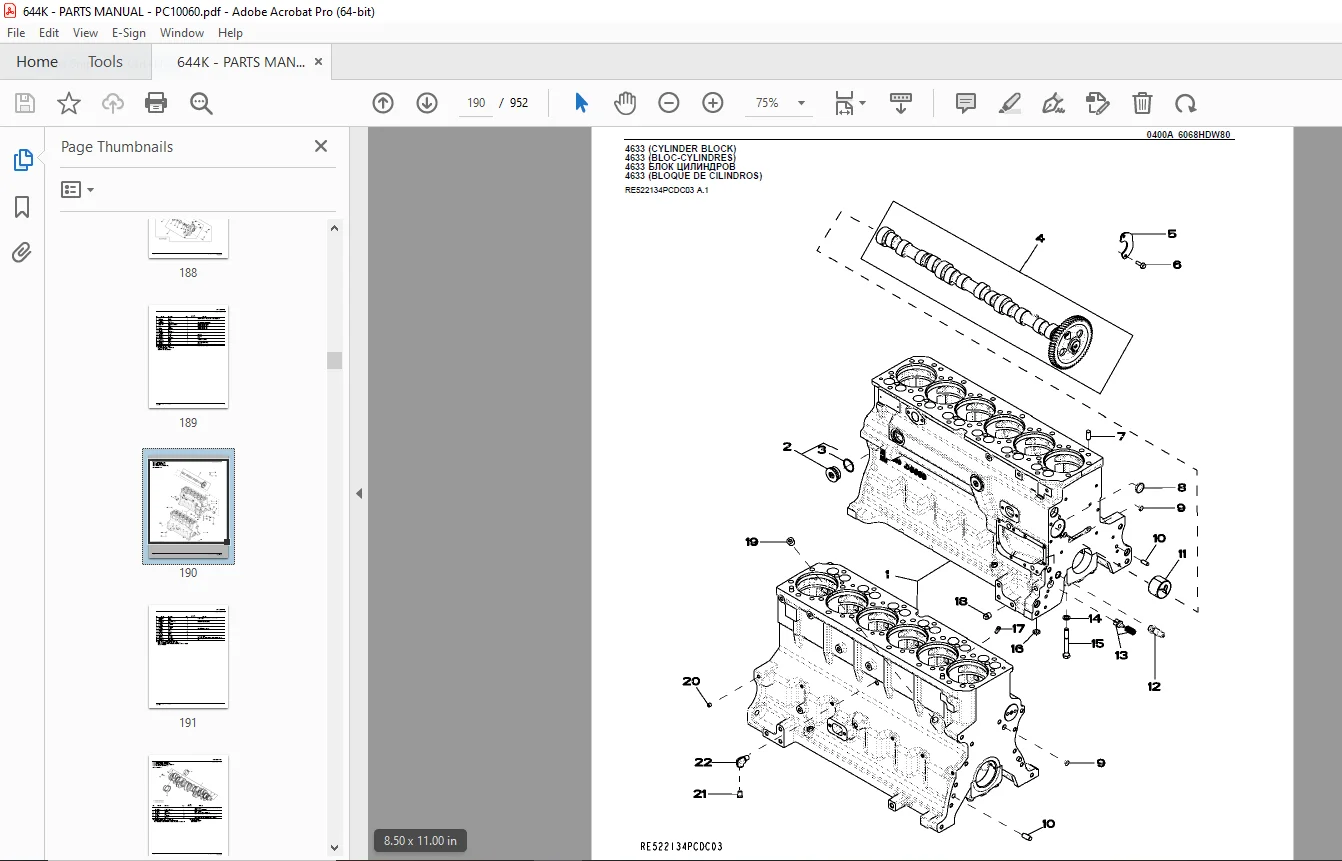

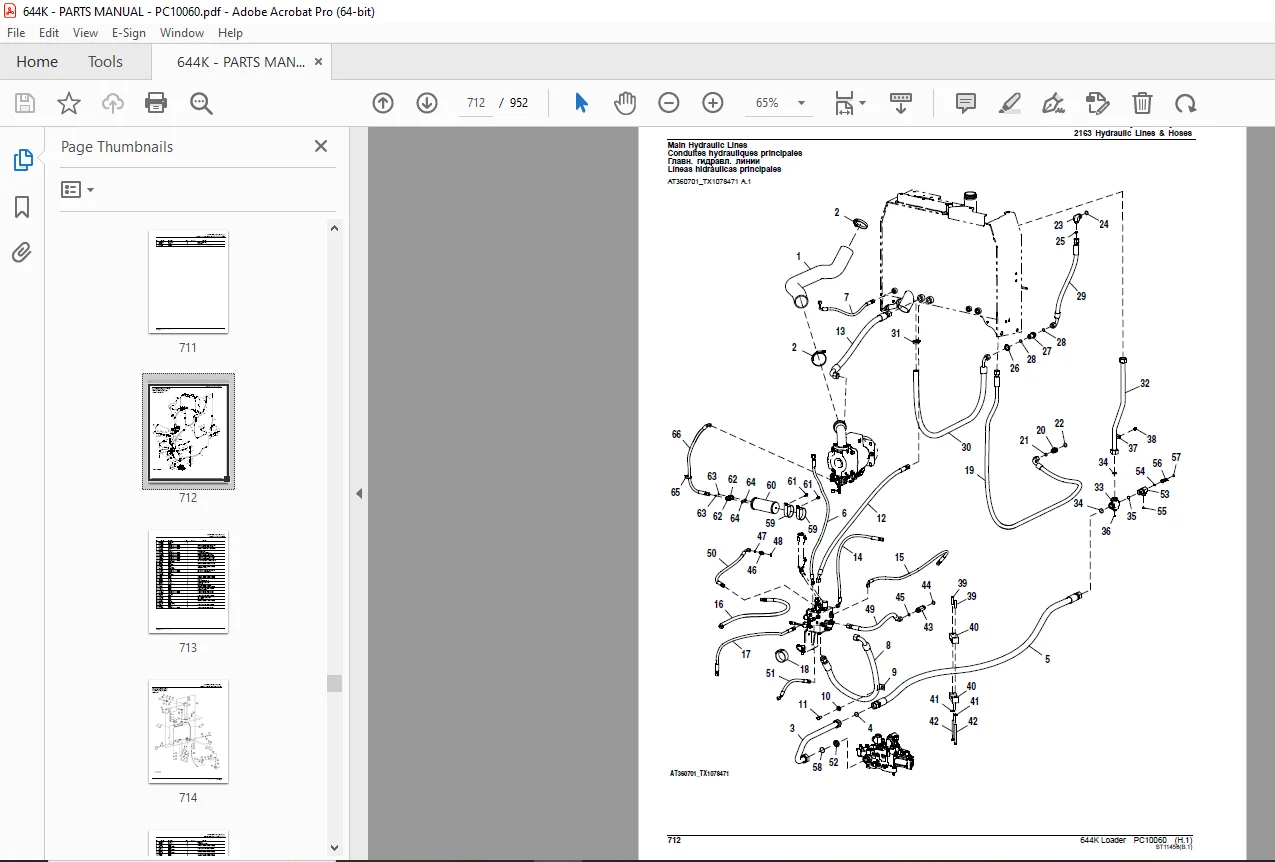

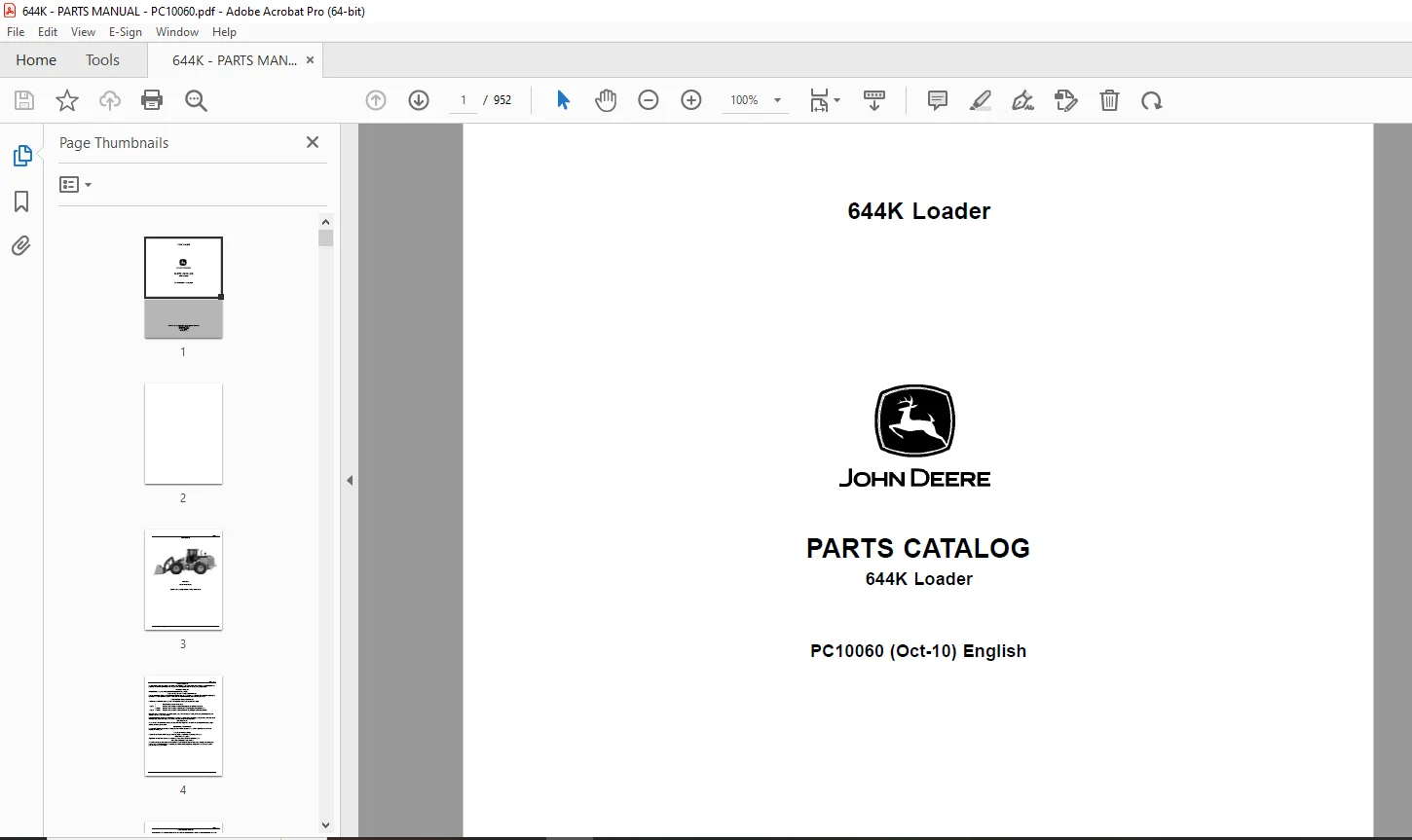

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

John Deere 644K Loader Parts Manual PC10060 – PDF DOWNLOAD

644K Loader 1
Contents 1
Introduction 3
SECTIONS 1
01 Wheels & Tires & Tracks 32
0110 Powered Wheels, Tires & Fastenings 32
1 – 3 Pc Rim (235 X 25 Tire) 32
3 – 5 Pc Rim (750/65R25 Low Profile Tire) 34
5 – Heavy Duty 5 Pc Rim (235 X 25 Tire) 36
7 – 1 Pc Logger Rim (28L X 26 Tire) 38
02 Axles, Differentials & Suspension Systems 40
0201 Drive Axle Hsg & Support (Inc Final Drives) 40
1 – Front Axle 40
3 – Rear Axle with Standard Differential 42
5 – Rear Axle with Hydraulic Differential 44
0242 Axle Mounting Parts 46
1 – Axle Stop (9 Degree) 46
3 – Axle Mounting 48
0263 Lines, Hoses & Fittings 50
1 – Front Differential Lock Line 50
3 – Rear Differential Lock Lines 52
5 – Differential Lock Switch 54
7 – Auto Differential Lock 56
02A Axle 58
0200A Axle yz19330, yz19331 58
1 – RE35712 SPIRAL BEVEL ASSEMBLY 5143; RH,TMIV,1400 SERIES 58
3 – YZ120718 SPIRAL BEVEL ASSEMBLY 5143; LH,TMIV,1400 SERIES 60
5 – YZ120751 INPUT YOKE WITH SLINGER (1610)TMIV,1400 SERIES 62
7 – YZ120721 AXLE HOUSING AND SHAFT W/O MTG HOLES TMIV,1400 SERI 64
9 – YZ121796 REAR AXLE HOUSING AND SHAFT; TMIV,1400 SERIES 66
11 – YZ121797 FRONT AXLE HOUSING AND SHAFT; TMIV,1400 SERIES 68
13 – YZ121321 STANDARD INPUT HOUSING, OSCILLATING; TMIV,1400 SER 70
15 – YZ121049 Std Input Housing Non-Osc(1400) rear/heavy/extreme 72
17 – YZ120722 INPUT COVER, OSCILLATING; DUCTILE 74
19 – YZ121301 OSCILLATION, DUAL CENTER PIVOT; 1400 SERIES 76
21 – YZ120724 DUAL BRAKES 4800:1; TMIV,1400 SERIES 78
23 – YZ121256 DIFFERENTIAL LOCK; TMIV,1400 SERIES 80
25 – YZ120948 STANDARD DIFFERENTIAL CASE; TMIV,1400 SERIES 82
27 – YZ120983 STANDARD DIFFERENTIAL CASE 1400 SERIES 84
29 – YZ121182 STANDARD DIFFERENTIAL;CODE I3 – ORDER CODE 1903 86
31 – YZ120753 FINAL DRIVE 48:1; TMIV,1400 SERIES 88
03 Transmission 90
0325 Input Drive Shafts & U-joints 90
1 – Drive Shafts (without Lock-up Torque Converter) 90
3 – Drive Shafts (with Lock-up Torque Converter) 92
0342 Transmission Mounting Parts 94
1 – Transmission (without Lock-up Torque Converter) 94
3 – Transmission (with Lock-up Torque Converter) 96
0350 Gears, Shafts & Power Shift Clutches 98
1 – Transmission Oil Filter 98
3 – Torque Converter100
5 – Lock-up Torque Converter102
7 – Transmission Input Shaft (without Lock-up Torque Converter)104
9 – Transmission Input Shaft (with Lock-up Torque Converter)106
11 – Transmission Housing (without Lock-up Torque Converter)108
13 – Transmission Housing (with Lock-up Torque Converter)110
15 – Transmission Speed Sensor112
17 – Transmission Pump114
19 – Transmission Cover and Gasket116
21 – Transmission Internal Oil Lines118
23 – Transmission Control Valve Manifold120
25 – Brake Valve To Transmission Control Valve (without Lock-up 122
27 – Brake Valve To Transmission Control Valve (with Lock-up Tor124
29 – Transmission Output Shaft126
31 – Torque Converter Relief Valve and Transmission Minimum Pres128
33 – Power Takeoff (without Lock-up Torque Converter)130
35 – Power Takeoff (with Lock-up Torque Converter)132
37 – Low Range Forward Clutch Assembly134
39 – Reverse Clutch Assembly136
41 – First Gear Clutch Assembly138
43 – Second Gear Clutch Assembly140
45 – Third Gear Clutch Assembly142
47 – High Range Forward Clutch Assembly144
0351 Gears, Shafts, Bearings & Seals146
1 – Drive Damper and Cover146
0363 Trans Oil Lines148
1 – Transmission Oil Lines148
04A 6068HDW80151
151 – Sectional Pictorial Index151
152 – Sectional Pictorial Index152
153 – Sectional Pictorial Index153
0400A 6068HDW80154
1 – 1144 (ROCKER ARM COVER)154
3 – 1241 (OIL FILL)156
4 – 1320 (CRANKSHAFT PULLEY)157
5 – 1405 (FLYWHEEL HOUSING)158
6 – 1503 (FLYWHEEL)159
7 – 169Z (FUEL INJECTION PUMP)160
9 – 17BL (AIR INLET)162
11 – 1981 (OIL PAN)164
13 – 2001 (WATER PUMP PULLEY)166
14 – 2154 (THERMOSTAT COVER)167
15 – 2255 (THERMOSTAT)168
16 – 2698 (ENGINE COOLANT HEATER)169
17 – 2873 (EXHAUST MANIFOLD)170
19 – 2917 (VENTILATING SYSTEM)172
21 – 3041 (STARTING MOTOR)174
23 – 35DZ (FUEL FILTER)176
25 – 3614 (FRONT PLATE AND IDLE GEARS) (UPPER AND LOWER)178
27 – 3713 (FUEL TRANSFER PUMP)180
29 – 3917 (THERMOSTAT HOUSING / BY PASS TUBE TO WATER PUMP)182
31 – 4035 Engine Oil Dipstick184
33 – 4330 (STARTING AID)186
35 – 4440 (TIMING GEAR COVER)188
37 – 4633 (CYLINDER BLOCK)190
39 – 4712 (CRANKSHAFT / BEARINGS)192
41 – 4834 (CONNECTING RODS AND PISTONS)194
43 – 4905 (ROCKER ARM / SHAFT / TAPPET / PUSH ROD)196
45 – 5024 (OIL PUMP)198
47 – 5120 (CYLINDER HEAD)200
49 – 5204 (AUXILIARY DRIVE)202
50 – 5497 (TURBO AIR INLET)203
51 – 5728 (WATER PUMP INLET)204
52 – 5945 (OIL COOLER)205
53 – 6275 (ALTERNATOR BRACKETS)206
54 – 6284 (ALTERNATOR BRACKETS)207
55 – 6389 (FUEL LINES)208
57 – 65TD (TURBOCHARGER)210
59 – 6698 (TEMPERATURE SWITCH)212
61 – 6721 (SENSORS)214
63 – 8169 (PRIMARY FUEL FILTER)216
65 – 8491 (ENGINE WIRING HARNESS )218
66 – 8718 (BELT TENSIONER)219
67 – 8842 (OIL FILTER)220
69 – 8910 (EXHAUST GAS RECIRCULATION (EGR))222
71 – 9801 (LIFT STRAPS)224
73 – 9901 -(COMPLETE BLOCK ASSEMBLY)226
75 – 9901 (REPLACEMENT ENGINE)228
04B Engine231
231 – Sectional Pictorial Index231
232 – Sectional Pictorial Index232
233 – Sectional Pictorial Index233
234 – Sectional Pictorial Index234
0400B Engine 6068HDW83236
1 – 1144 ROCKER ARM COVER236
3 – 1241 Oil Filler Neck238
4 – 1320 CRANKSHAFT PULLEY239
5 – 1405 FLYWHEEL HOUSING240
6 – 1503 FLYWHEEL241
7 – 16S4 FUEL INJECTION PUMP242
9 – 1797 INTAKE MANIFOLD244
11 – 1946 OIL PAN246
13 – 2001 WATER PUMP PULLEY248
14 – 2154 THERMOSTAT COVER249
15 – 2255 THERMOSTAT250
16 – 2698 ENGINE COOLANT HEATER251
17 – 28AY EXHAUST MANIFOLD252
19 – 2917 VENTILATING SYSTEM254
21 – 3041 STARTING MOTOR256
23 – 35EM FUEL FILTER258
25 – 3626 FRONT PLATE260
27 – 3799 COVER, WITHOUT FUEL PUMP262
29 – 3933 THERMOSTAT HOUSING BY PASS TUBE TO WATER PUMP264
31 – 4035 Engine Oil Dipstick266
33 – 4330 STARTING AID268
35 – 4451 TIMING GEAR COVER270
37 – 4657 CYLINDER BLOCK272
39 – 4712 CRANKSHAFT AND BEARINGS274
41 – 4834 CONNECTING RODS AND PISTONS276
43 – 4905 ROCKER ARM, SHAFT, PUSH ROD278
45 – 5024 OIL PUMP280
47 – 5128 CYLINDER HEAD282
49 – 5204 AUXILIARY DRIVE284
50 – 5497 TURBO AIR INLET285
51 – 5728 WATER PUMP INLET286
52 – 5951 OIL COOLER287
53 – 6275 ALTERNATOR BRACKETS288
54 – 6698 TEMPERATURE SWITCH, WITHOUT289
55 – 6744 SENSORS290
57 – 8484 ENGINE WIRING HARNESS292
58 – 8718 BELT TENSIONER293
59 – 8842 OIL FILTER294
60 – 9801 LIFT STRAPS295
61 – 9901 CONNECTING ROD, BEARINGS296
62 – 9901 CONNECTING ROD BEARING KIT297
63 – 9901 BEARING KIT298
64 – 9901 MAIN BEARING KIT299
65 – 9901 MAIN BEARING300
66 – 9901 THRUST BEARING301
67 – 9901 CYLINDER LINER PACKING302
68 – 9901 REAR OIL SEAL303
69 – 9901 WATER PUMP REPAIR KIT304
71 – 9901 PISTON LINER KIT306
73 – 9901 ENGINE GASKET SET, OVERHAUL308
75 – 9901 ENGINE GASKET KIT310
77 – 9901 EGR VALVE GASKET KIT312
78 – 9901 CONTROL VALVE313
79 – 9901 STARTER RELAY314
80 – 9901 AIR COMPRESSOR KIT MIDLAND315
81 – 9901 PISTON RING KIT316
82 – 9901 STARTER RELAY317
83 – 9901 INJECTION NOZZLE318
85 – 9901 ENGINE OVERHAUL KIT320
87 – 9901 REPLACEMENT ENGINE322
05 Engine Auxiliary System324
0505 Cold Weather Starting Aids324
1 – Engine Block Coolant Heater (110 Volt)324
3 – Engine Block Coolant Heater (220 Volt)326
5 – Fuel-Fired Coolant Heater328
0511 Radiator & Fan Shroud330
1 – Cooling Package330
3 – Cooling System (Engine 6068HDW80)332
5 – Cooling System (Engine 6068HDW83)334
7 – Axle Cooling System (626438 – )336
9 – Axle Cooling System Kit ( – 626437)338
11 – Axle Cooling System Kit (626438 – )340
13 – Axle Cooling System w/ Secondary Steering (626438 – )342
0512 Fan344
1 – Door with Fan and Fan Guard344
3 – Standard Fan Drive Pump and Motor346
5 – Standard Fan Drive Hoses348
7 – Reversing Fan Drive Pump and Motor350
9 – Reversing Fan Drive Hoses352
11 – Reversing Fan Drive Kit354
13 – Reversing Fan Drive Valve356
0515 Engine Speed Controls358
1 – Engine Speed Control Pedal358
0520 Intake System360
1 – Air Intake System (Engine 6068HDW80)360
3 – Air Intake System (Engine 6068HDW83)362
5 – Air Pre-Cleaner364
0530 External Exhaust Systems366
1 – Muffler and Black Exhaust Pipe (Engine 6068HDW80)366
3 – Muffler and Chrome Exhaust Pipe (Engine 6068HDW80)368
5 – Muffler and Black Exhaust Pipe (Engine 6068HDW83)370
7 – Muffler and Chrome Exhaust Pipe (Engine 6068HDW83)372
0540 Engine Mounting374
1 – Engine Mounts (Engine 6068HDW80)374
3 – Engine Mounts (Engine 6068HDW83)376
0560 External Fuel Supply Systems378
1 – Fuel Tank378
3 – Fuel System380
5 – Severe Duty Fuel System382
7 – Fast Fill Fuel System Kit384
9 – Severe Duty Fuel Filter Kit386
09 Steering System388
0930 Emergency Steering388
1 – Secondary Steering388
3 – Secondary Steering Kit390
5 – Secondary Steering (Joystick)392
7 – Secondary Steering Valve394
0962 Steering Valve & Control396
1 – Steering Wheel396
3 – Steering Column Components398
5 – Steering Valve400
7 – Joystick Steering402
9 – Joystick Steering Kit404
11 – Joystick Steering Valve406
0963 Steering Lines, Hoses & Fittings408
1 – Steering Cylinder Hydraulic Hoses408
0965 Steering Cylinders410
1 – Steering Cylinders and Fittings (632198 – )410
3 – Steering Cylinders and Fittings (NeverGrease™)412
5 – Steering Cylinder414
0974 Wiring Harness & Switches416
1 – Joystick Steering Wiring Harness416
3 – Left-hand Joystick Handle418
10 Service Brakes420
1062 Service Brake Valve420
1 – Brake Valve and Pedals420
1063 Service Brake Links, Hoses & Fittings422
1 – Brake Lines422
1064 Reservoir & Accumulator424
1 – Brake Accumulator ( – 631400)424
3 – Brake Accumulator (631401 – )426
11 Parking Brakes428
1115 Controls Linkage428
1 – Park Brake Mounting428
3 – Park Brake430
13 Miscellaneous Vehicle432
1322 Decals & Trademarks432
1 – Decals and Labels432
3 – Cab Decals and Labels434
5 – Canopy Decals and Labels436
7 – French Decals and Labels438
9 – Spanish Decals and Labels440
11 – Russian Decals and Labels442
13 – Electrical Cold Start Decal444
1330 Shipping & Packaging446
1 – Lift Hooks446
1369 Greases, Oils, Fuels & Coolants448
1 – Quick Service448
3 – Engine Oil Sampling Valve450
1370 Lubrication Systems452
1 – Axle Seal Grease Lines452
15 Equipment Attaching454
1520 Hitches & Hitch Pins454
1 – Rear Hitch454
3 – Rear Hitch and Counterweight456
5 – Forestry Application Package458
16 Vehicle Electrical Systems460
1671 Batteries, Support & Cables460
1 – Batteries and Battery Cables460
3 – Battery Box462
1672 Alternator, Regulator & Charging System Wiring464
1 – 80 Amp Alternator (without A/C)464
3 – 80 Amp Alternator (with A/C)466
5 – 100 Amp Alternator (without A/C)468
7 – 100 Amp Alternator (with A/C)470
1673 Vehicle Lighting System472
1 – Turn Signal and Marker Lights (Z-Bar)472
3 – Heavy Duty LED Turn Signal and Marker Lights (Z-Bar)474
5 – Turn Signal and Marker Lights (Powerllel™)476
7 – Heavy Duty LED Turn Signal and Marker Lights (Powerllel™)478
9 – Door-Activated Domelight Switch480
11 – Heavy Duty Rear Lights482
13 – Cab Work Lights484
15 – Beacon Light ( – 629340)486
17 – Beacon Light (629341 – )488
19 – Beacon Bracket490
21 – Beacon Bracket Kit492
23 – Engine Compartment Light494
25 – License Plate Bracket (RH)496
27 – License Plate Bracket (LH)498
1674 Wiring Harness & Switches500
1 – Main Wiring Harness (Z-Bar)500
3 – Main Wiring Harness (Powerllel™)502
5 – Loader Frame Wiring Harness (Z-Bar)504
7 – Loader Frame Wiring Harness (Powerllel™)506
9 – Engine Frame Wiring Harness508
11 – Engine Wiring Harness510
13 – Transmission Wiring Harness512
15 – Rear Frame Wiring Harness514
17 – Cab Wiring Harness516
19 – Cab Roof Wiring Harness518
21 – Load Center Wiring Harness520
23 – Dash Module with Steering Column FNR522
25 – Dash Module with Joystick FNR524
27 – Steering Column Wiring Harness526
29 – HVAC Module Wiring Harness528
31 – 10 Amp Converter (24 V to 12 V)530
33 – Transmission Controller (Lock-up Torque Converter)532
35 – Tire Pressure Monitoring System534
37 – Wiper Motor Jumper Harness536
39 – Water Separator w/ Electric Fuel Pump Wiring Harness538
41 – Connector Caps (6068HDW83)540
43 – Harsh Environment Electrical Corrosion Protection Package 542
45 – Harsh Environment Electrical Corrosion Protection Package 544
47 – Harsh Environment 100 Amp Sealed Alternator Package546
1676 Instruments & Indicators548
1 – Cab Monitor548
17 Frame Chassis Or Supporting Structure550
1741 Engine Or Main Frame550
1 – Engine Frame550
1743 Hinges, Yokes & Gudgeons552
1 – Engine Frame Steering Cushions552
1746 Frame Bottom Guards554
1 – Fuel Tank Guard554
3 – Bottom Guards556
1749 Chassis Weights558
1 – Main Counterweight558
18 Operator’s Station560
1807 Special Noise Control Items560
1 – Cab Noise Reduction Foam560
1810 Operator Enclosure562
1 – Roof562
3 – Cab Headliner564
5 – Canopy Headliner566
7 – Cab Mounts568
1811 ROPS, FOPS, OPS, Or Body Frame570
1 – Cab570
3 – Cab Trim572
5 – Cab Glass574
7 – Cab Door576
9 – Cab Window Bumper Kit578
11 – Canopy580
13 – Canopy Trim582
1812 Platform584
1 – Cab Floor Mat584
3 – Canopy Floor Mat586
1813 Body Sides, Doors, Shields And Glazing588
1 – Cab Shields588
1814 Windshield & Wipers590
1 – Front and Rear Windshield Wiper590
3 – Window Washer Reservoir592
1816 Instrument & Control Mounting Structure594
1 – Cab Interior Paneling and Covers594
3 – Canopy Interior Paneling and Covers596
5 – Right Armrest598
7 – Right Armrest (Joystick Pilot Controller)600
9 – Right Armrest (Four Lever Pilot Controller)602
11 – Left Armrest for Joystick Steering604
1821 Seat And Seat Belts606
1 – Standard Fabric Seat606
3 – Standard Vinyl Seat608
5 – Standard Seat Service Kits610
7 – Seat Suspension for Standard Seat612
9 – Premium Seat614
11 – Premium Seat for Joystick Steering616
13 – Premium Seat Service Kits618
15 – Seat Suspension for Premium Seat620
1822 Steps & Handholds622
1 – Rear Hanging Step622
3 – Access Platform and Steps624
1831 Heater, Hoses & Controls626
1 – Front Console626
3 – Underfloor Ducts628
5 – HVAC Ducts630
7 – Heater Hoses632
1832 Air Cond System Compressor & Drive634
1 – A/C Compressor Lines634
3 – A/C Compressor636
1833 Condenser, Evaporator & Lines638
1 – A/C Delete Cover638
3 – A/C Condenser Lines640
5 – HVAC Module Lines and Control Cable (Heater Only)642
7 – HVAC Module Lines and Control Cable644
9 – HVAC Module646
1835 Pressurizer648
1 – HVAC Pre-Cleaner648
19 Sheet Metal & Styling650
1911 Hood & Hood Supports650
1 – Hood650
1912 Engine Sideshields652
1 – Engine Side Shields652
1913 Miscellaneous Shields654
1 – Frame Locking Bar654
3 – Transmission Shields656
5 – Level 1 Sound Package658
1927 Fenders660
1 – Front Fenders660
3 – Full Coverage Front Fenders662
5 – Full Coverage Rear Fenders664
7 – Rear Platforms666
20 Safety, Convenience & Miscellaneous668
2001 Radio668
1 – AM/FM/WB Radio668
3 – AM/FM/WB Radio Kit670
5 – AM/FM/WB Radio with CD Player672
7 – AM/FM/WB Radio with CD Player Kit674
2002 Mirror676
1 – Rear View Mirror676
3 – Exterior Mirror678
5 – Heated Exterior Mirror680
2003 Fire Extinguisher682
1 – Fire Extinguisher682
2004 Warning Devices Including Horn & Reverse Alarm684
1 – Horn684
3 – Back-Up Alarm686
5 – Rear Object Detection System688
7 – Embedded Payload Scale690
2007 Sun Visor692
1 – Sun Visor692
2008 Reflectors & SMV Sign694
1 – Slow Moving Vehicle Sign694
2013 Anti-Theft696
1 – Coat Hook696
21 Vehicle Main Hydraulic System698
2161 Hydraulic Pumps & Drives698
1 – Main Hydraulic Pump ( – 623632)698
3 – Main Hydraulic Pump (623633 – )700
5 – Spin Control702
2162 Hydraulic Selective Control & Load Holding Valves704
1 – Main Hydraulic Pump Manifold704
3 – Pressure Regulator Valve (PRV)706
5 – Hydraulic Power Management708
7 – Pump Manifold Guard710
2163 Hydraulic Lines & Hoses712
1 – Main Hydraulic Lines712
2164 Hydraulic Reservoir, Filter & Cooler714
1 – Hydraulic Oil Reservoir714
3 – High Altitude Reservoir Pressurization Kit716
26 Global Vehicle Communication718
2601 Communication Controller718
1 – JDLink™ Ultimate718
31 Loader720
3101 Cutting Edge720
1 – Auxiliary Cutting Edge720
3 – Bucket Teeth722
3102 Bucket (Including Teeth)724
1 – Pin-On Bucket (425 yd³)724
3 – Pin-On Bucket (425 yd³) (NeverGrease™)726
5 – Hi-Vis Coupler Bucket (40 yd³)728
7 – Spillguard730
3103 Forks732
1 – Hi-Vis Coupler Forks732
3104 Attachment Coupler734
1 – Hi-Vis Coupler (Z-Bar)734
3 – Hi-Vis Coupler (Z-Bar) (NeverGrease™)736
5 – Hi-Vis Coupler Kit (Z-Bar)738
7 – Hi-Vis Coupler (Powerllel™)740
9 – Hi-Vis Coupler Bucket Blanks742
3141 Main Frame744
1 – Loader Frame (Z-Bar)744
3 – Loader Frame (Z-Bar) (NeverGrease™)746
5 – Loader Frame (Powerllel™)748
3143 Moveable Frame750
1 – Loader Boom (Z-Bar)750
3 – Loader Boom (Z-Bar) (NeverGrease™)752
5 – Loader Boom (High Lift Z-Bar)754
7 – Loader Boom (High Lift Z-Bar) (NeverGrease™)756
9 – Loader Boom (Powerllel™)758
11 – Boom Lock760
3145 Bucket Loader Linkage762
1 – Loader Boom Linkage (Z-Bar)762
3 – Loader Boom Linkage (Z-Bar) (NeverGrease™)764
5 – Loader Boom Linkage (High Lift Z-Bar)766
7 – Loader Boom Linkage (High Lift Z-Bar) (NeverGrease™)768
9 – Loader Boom Linkage (Powerllel™)770
3162 Control & Load Holding Valves772
1 – Two Spool Loader Control Valve772
3 – Three Spool Loader Control Valve (Z-Bar)774
5 – Three Spool Loader Control Valve (Powerllel™ )776
7 – Four Spool Loader Control Valve (Z-Bar)778
9 – Four Spool Loader Control Valve (Powerllel™)780
11 – Inlet Valve Section with Relief Valve782
13 – Boom Valve Section784
15 – Bucket Valve Section786
17 – Auxiliary Valve Section788
19 – Outlet Valve Section790
21 – Two Lever Pilot Controller792
23 – Three Lever Pilot Controller794
25 – Four Lever Pilot Controller796
27 – Joystick Pilot Controller (without FNR)798
29 – Joystick Pilot Controller (without FNR) and Auxiliary Leve800
31 – Joystick Pilot Controller (with FNR)802
33 – Joystick Pilot Controller (with FNR) and Auxiliary Lever804
35 – Electric Fifth Function806
37 – Two Lever To Three Lever Pilot Controller Conversion Kit (808
39 – Two Lever To Three Lever Pilot Controller Conversion Kit (810
41 – Three Lever To Four Lever Pilot Controller Conversion Kit 812
43 – Three Lever To Four Lever Pilot Controller Conversion Kit 814
45 – Two Lever Controller to Joystick Conversion Kit816
47 – Three Lever Controller to Joystick with Auxiliary Lever Co818
49 – Four Lever Controller To Dual Joystick Conversion Kit820
51 – Joystick To Two Lever Controller Conversion Kit822
53 – Joystick To Joystick with Auxiliary Lever Conversion Kit (824
55 – Joystick To Joystick with Auxiliary Lever Conversion Kit (826
57 – Joystick with Auxiliary Lever to Three Lever Controller Co828
59 – Joystick Handle (with FNR) Conversion Kit830
61 – Two Lever Pilot Controller832
63 – Auxiliary Single Lever Controller834
65 – Auxiliary Dual Lever Controller836
67 – Joystick Pilot Controller Components838
69 – Right-hand Joystick Handle with FNR Switch840
71 – Auxiliary Joystick Controller842
73 – Ride Control (Z-Bar)844
75 – Ride Control (Powerllel™)846
77 – Ride Control Kit848
79 – Ride Control Valve850
81 – Pin Disconnect Valve Hydraulic Lines (Z-Bar)852
83 – Pin Disconnect Valve Hydraulic Lines (Powerllel™)854
85 – Pin Disconnect Valve856
87 – Pin Disconnect Hydraulic Lines (Z-Bar) (630804 – )858
89 – Pin Disconnect Kit (Z-Bar) ( – 630803)860
91 – Pin Disconnect Kit (Z-Bar) (630804 – )862
93 – Pin Disconnect Hydraulic Lines (Powerllel™)864
3163 Lines, Hoses & Fittings866
1 – Boom and Bucket Cylinder Hydraulics (Z-Bar) (2-Spool Contro866
3 – Boom and Bucket Cylinder Hydraulics (Z-Bar) (3-Spool Contro868
5 – Boom and Bucket Cylinder Hydraulics (Z-Bar) (4-Spool Contro870
7 – Boom and Bucket Cylinder Hydraulics (Powerllel™) (2-Spool C872
9 – Boom and Bucket Cylinder Hydraulics (Powerllel™) (3-Spool C874
11 – Boom and Bucket Cylinder Hydraulics (Powerllel™) (4-Spool 876
13 – Two Function Pilot Lines878
15 – Three Function Pilot Lines880
17 – Four Function Pilot Lines882
19 – Third Function Boom To Coupler Hydraulic Lines (Z-Bar)884
21 – Third Function Boom To Coupler Hydraulic Lines (High Lift 886
23 – Third Function Coupler Hydraulics (Powerllel™)888
25 – Cable Reinforced Hi-Vis Coupler Hydraulic Lines (Z-Bar)890
27 – Cable Reinforced Hi-Vis Coupler Hydraulic Lines (High Lift892
29 – Cable Reinforced Hi-Vis Coupler Hydraulics (Powerllel™)894
3165 Hydraulic Cylinders896
1 – Boom and Bucket Cylinder Pins and Bushings (Z-Bar)896
3 – Boom and Bucket Cylinder Pins and Bushings (Z-Bar) (NeverGr898
5 – Boom Cylinder (Z-Bar) ( – 625967)900
7 – Boom Cylinder (Z-Bar) (625968 – )902
9 – Bucket Cylinder (Z-Bar) ( – 627885)904
11 – Bucket Cylinder (Z-Bar) (627886 – )906
13 – Boom and Bucket Cylinder Pins and Bushings (Powerllel™)908
15 – Boom Cylinder (Powerllel™) ( – 625967)910
17 – Boom Cylinder (Powerllel™) (625968 – )912
19 – Bucket Cylinder (Powerllel™)914
3166 Automatic Control Function916
1 – Return-to-Dig (Z-Bar) ( – 627885)916
3 – Return-to-Dig (Z-Bar) (627886 – )918
5 – Return-to-Dig (Powerllel™)920
7 – Boom-Height Kick-Out / Return-to-Carry (Z-Bar)922
9 – Boom-Height Kick-Out / Return-to-Carry (Powerllel™)924
Alphabetical Index 13
A 0
A/C Binary Switch Connector, HVAC Module Harness528
A/C Clutch Connector, Engine Harness510
A/C Clutch Diode, Engine Harness510
A/C Lines, Compressor634
A/C Lines, Condenser and Receiver-Dryer640
A/C Receiver-Dryer640
Accumulator Solenoid Connector, Engine Frame Harness508
Accumulator, Brake ( -631400)424
Accumulator, Brake (631401- )426
Accumulator, Pressure Regulator Valve (PRV)704
Accumulator, Ride Control (Powerllel™)846
Accumulator, Ride Control (Z-Bar)844
Accumulator, Ride Control Kit848
Actuator, Boom-Height Kick-Out (Powerllel™)924
Actuator, Boom-Height Kick-Out (Z-Bar)922
Actuator, Return-to-Carry (Powerllel™)924
Actuator, Return-to-Carry (Z-Bar)922
Actuator, Return-to-Dig (Powerllel™)920
Actuator, Return-to-Dig (Z-Bar) (SN -627885)916
Actuator, Return-to-Dig (Z-Bar) (SN 627886- )918
ADJUSTING STRAP, ALTERNATOR (6275) (HDW80)206
ADJUSTING STRAP, ALTERNATOR (6275) (HDW83)288
Air Cleaner (Engine 6068HDW80)360
Air Cleaner (Engine 6068HDW83)362
AIR COMPRESSOR, MIDLAND AUX DRIVE (9901)315
Air Cooler Hose (Engine 6068HDW80)332
Air Cooler Hose (Engine 6068HDW83)334
Air Cooler, Charge330
Air Duct, HVAC Pre-Cleaner648
Air Duct630
Air Filter (Engine 6068HDW80)360
Air Filter (Engine 6068HDW83)362
Air Filter Cover, Cab Recirculation Filter594
Air Filter Restriction Indicator (Engine 6068HDW80)360
Air Filter Restriction Indicator (Engine 6068HDW83)362
Air Filter Restriction Indicator Connector, Engine Harness510
Air Filter, Cab630
AIR INLET, TURBO (HDW80)203
AIR INTAKE (6068HDW80)162
AIR PRESSURE SENSOR (6744)290
Air Spring Kit, Seat Suspension – Premium Seat620
Air Spring Kit, Seat Suspension – Standard Seat612
AIR TEMPERATURE SENSOR (1797)244
AIR TEMPERATURE SENSOR (6721) (HDW80)214
AIR TEMPERATURE SENSOR (6744)290
Air Vents, Front Console626
Alarm System, Cab520
Alarm, Back-Up686
ALTERNATOR ADJUSTING STRAP (6275) (HDW80)206
ALTERNATOR ADJUSTING STRAP (6275) (HDW83)288
ALTERNATOR BRACKETS (6284) (HDW80)207
ALTERNATOR BRACKETS (HDW80)206
Alternator Excitation Connector, Engine Harness510
ALTERNATOR MOUNTING BRACKETS (6275) (HDW80)206
ALTERNATOR MOUNTING BRACKETS (6275) (HDW83)288
Alternator, 100 A (w/ A/C)470
Alternator, 100 A (w/o A/C)468
Alternator, 100 A – Harsh Environment546
Alternator, 80 A (w/ A/C)466
Alternator, 80 A (w/o A/C)464
Ambient Air Temperature Sensor Connector, Engine Harness510
Antenna, AM/FM/WB Radio Kit670
Antenna, AM/FM/WB Radio w/ CD Player Kit674
Antenna, AM/FM/WB Radio w/ CD Player672
Antenna, AM/FM/WB Radio668
Antenna, JDLink™ Ultimate718
Antenna, Tire Pressure Monitoring System534
Anti-Stall Valve708
Arm, Wiper590
Armrest, Joystick Steering Kit404
Armrest, Joystick Steering604
Armrest, Left – For Joystick Steering604
Armrest, Left – Premium Seat for Joystick Steering616
Armrest, Left – Premium Seat614
Armrest, Left – Standard Fabric Seat606
Armrest, Left – Standard Vinyl Seat608
Armrest, RH (4-Lever Controller)602
Armrest, RH (Joystick)600
Armrest, RH598
Articulation Joint, Loader Frame (Powerllel™)748
Articulation Joint, Loader Frame (Z-Bar) (NeverGrease™)746
Articulation Joint, Loader Frame (Z-Bar)744
ASSEMBLY, SPIRAL BEVEL 58
ASSEMBLY, SPIRAL BEVEL 60
Attachment Coupler Kit, Hi-Vis (Z-Bar)738
Attachment Coupler, Hi-Vis (Powerllel™)740
Attachment Coupler, Hi-Vis (Z-Bar) (NeverGrease™)736
Attachment Coupler, Hi-Vis (Z-Bar)734
AUXILIARY DRIVE COVER (5204) (HDW80)202
AUXILIARY DRIVE COVER (5204)284
Auxiliary Hydraulics, Coupler (Powerllel™)888
Auxiliary Hydraulics, Hi-Vis Coupler Cable Reinforced894
Axle Disconnect Connector, Transmission Harness512
Axle Drive Shafts (w/ Lock-up Torque Converter) 92
Axle Drive Shafts (w/o Lock-up Torque Converter) 90
AXLE HOUSING AND SHAFT W/O MTG HOLES 64
AXLE HOUSING AND SHAFT 66
AXLE HOUSING AND SHAFT 68
Axle Oil Circulation Pump (Axle Cooling System Kit) (SN338
Axle Oil Circulation Pump (Axle Cooling System Kit) (SN340
Axle Oil Circulation Pump (Axle Cooling System w/ Secondary342
Axle Oil Circulation Pump (SN 626438- )336
Axle Oil Cooler (Axle Cooling System Kit) (SN -626437)338
Axle Oil Cooler (Axle Cooling System Kit) (SN 626438- )340
Axle Oil Cooler (Axle Cooling System w/ Secondary Steering)342
Axle Oil Cooler (SN 626438- )336
Axle Supports 48
Axle, Front 40
Axle, Rear (Hydraulic Differential) 44
Axle, Rear (Standard Differential) 42
B 0
Back-up Light, License Plate Bracket (LH)498
Backrest, Premium Seat for Joystick Steering616
Backrest, Premium Seat614
Backrest, Standard Seat – Fabric606
Backrest, Standard Seat – Vinyl608
Bar, Frame Lock654
Base, Seat – Premium Seat for Joystick Steering616
Base, Seat – Premium Seat614
Base, Seat – Standard Fabric Seat606
Base, Seat – Standard Vinyl Seat608
Battery Cables460
Battery Disconnect Switch460
Battery Test Connector, Engine Frame Harness508
BEARING CONNECTING ROD (9901) (UNDERSIZED)297
BEARING KIT (CONNECTING ROD) (9901) (STANDARD)296
BEARING KIT, MAIN (9901)300
BEARING KIT, MAIN299
BEARING THRUST (9901)301
Bearing, Driveline430
Bearing, Transmission Input Shaft (w/ Lock-up Torque Converter)106
Bearing, Transmission Input Shaft (w/o Lock-up Torque Converter)104
BEARINGS / CONNECTING ROD (4834) (HDW80)194
BEARINGS / CONNECTING ROD (4834)276
BEARINGS / CRANKSHAFT (4712) (HDW80)192
BEARINGS, CRANKSHAFT (4712)274
Bellcrank, Loader Boom Linkage (High Lift Z-Bar) (NeverGrease™)768
Bellcrank, Loader Boom Linkage (High Lift Z-Bar)766
Bellcrank, Loader Boom Linkage (Powerllel™)770
Bellcrank, Loader Boom Linkage (Z-Bar) (NeverGrease™)764
Bellcrank, Loader Boom Linkage (Z-Bar)762
Belt, 100 A Alternator (w/ A/C)470
Belt, 100 A Alternator (w/o A/C)468
Belt, 80 A Alternator (w/ A/C)466
Belt, 80 A Alternator (w/o A/C)464
Belt, Harsh Environment Alternator546
Belt, Seat – Premium Seat for Joystick Steering616
Belt, Seat – Premium Seat614
Belt, Seat – Standard Fabric Seat606
Belt, Seat – Standard Vinyl Seat608
Blade, Wiper590
Blanks, Hi-Vis Coupler Bucket742
Block Heater, Engine (110 V)324
Block Heater, Engine (220 V)326
BLOCK, CAMSHAFT(4633) (HDW80)190
BLOCK, COMPLETE ASSEMBLY226
Blower Motor Connector, HVAC Module Harness528
Blower Motor, HVAC Module646
Boom Cylinder Lines (Powerllel™) (2-Spool Control Valve)872
Boom Cylinder Lines (Powerllel™) (3-Spool Control Valve)874
Boom Cylinder Lines (Powerllel™) (4-Spool Control Valve)876
Boom Cylinder Lines (Z-Bar) (2-Spool Control Valve)866
Boom Cylinder Lines (Z-Bar) (3-Spool Control Valve)868
Boom Cylinder Lines (Z-Bar) (4-Spool Control Valve)870
Boom Lines, Pin Disconnect (Z-Bar) (630804- )858
Boom Lines, Pin Disconnect Kit (Z-Bar) ( -630803)860
Boom Lines, Pin Disconnect Kit (Z-Bar) (630804- )862
Boom Linkage (High Lift Z-Bar) (NeverGrease™)768
Boom Linkage (High Lift Z-Bar)766
Boom Linkage (Powerllel™)770
Boom Linkage (Z-Bar) (NeverGrease™)764
Boom Linkage (Z-Bar)762
Boom to Coupler Hydraulic Lines, Third Function (High Lift886
Boom to Coupler Hydraulic Lines, Third Function (Z-Bar)884
Boom, Loader (High Lift Z-Bar) (NeverGrease™)756
Boom, Loader (High Lift Z-Bar)754
Boom, Loader (Powerllel™)758
Boom, Loader (Z-Bar) (NeverGrease™)752
Boom, Loader (Z-Bar)750
Boot Kit, Seat Suspension – Premium Seat620
Boot Kit, Seat Suspension – Standard Seat612
Boot, 2-Lever Pilot Controller832
Boot, Auxiliary Dual Lever Controller836
Boot, Auxiliary Joystick Controller842
Boot, Auxiliary Single Lever Controller834
Boot, Joystick Pilot Controller838
Bottom Guards, Forestry Application Package458
Box, Battery462
Bracket Kit, Beacon Light492
Bracket, (Axle Cooling System w/ Secondary Steering) (SN342
Bracket, Beacon Light490
Bracket, License Plate (LH)498
Bracket, License Plate (RH)496
BRACKET, TURBO AIR INLET (5497) (HDW80)203
BRACKET, TURBO AIR INLET (5497)285
BRACKETS, ALTERNATOR (6284) (HDW80)207
BRACKETS, ALTERNATOR ADJUSTING (6275) (HDW80)206
BRACKETS, ALTERNATOR ADJUSTING (6275) (HDW83)288
BRACKETS, WIRING HARNESS (8484)292
Brake Disk, Park Brake430
Brake Light Connector, Rear Frame Harness514
Brake Lights482
Brake Pedal420
Brake Valve Hydraulic Lines422
Brake Valve To Transmission Control Valve (with Lock-up Torque C124
Brake Valve To Transmission Control Valve (without Lock-up122
Brake, Park430
BRAKES, DUAL 78
Breather, Fast Fuel System384
Breather, Front Axle 40
Breather, Fuel Tank (Severe Duty Fuel System)382
Breather, Fuel Tank380
Breather, Rear Axle (Hydraulic Differential) 44
Breather, Rear Axle (Standard Differential) 42
Bucket and Boom Cylinder Pins and Bushings (Powerllel™)908
Bucket and Boom Cylinder Pins and Bushings (Z-Bar)898
Bucket and Boom Cylinder Pins and Bushings (Z-Bar)896
Bucket Blanks, Hi-Vis Coupler742
Bucket Cutting Edge, Auxiliary720
Bucket Cylinder Lines (Powerllel™) (2-Spool Control Valve)872
Bucket Cylinder Lines (Powerllel™) (3-Spool Control Valve)874
Bucket Cylinder Lines (Powerllel™) (4-Spool Control Valve)876
Bucket Cylinder Lines (Z-Bar) (2-Spool Control Valve)866
Bucket Cylinder Lines (Z-Bar) (3-Spool Control Valve)868
Bucket Cylinder Lines (Z-Bar) (4-Spool Control Valve)870
Bucket Linkage (High Lift Z-Bar) (NeverGrease™)768
Bucket Linkage (High Lift Z-Bar)766
Bucket Linkage (Powerllel™)770
Bucket Linkage (Z-Bar) (NeverGrease™)764
Bucket Linkage (Z-Bar)762
Bucket Spillguard730
Bucket, Hi-Vis Coupler (40 yd³)728
Bucket, Pin-On (425 yd³) (NeverGrease™)726
Bucket, Pin-On (425 yd³)724
Bulb, Front Lights (Powerllel™)476
Bulb, Front Lights (Z-Bar)472
Bulb, LED Front Lights (Powerllel™)478
Bulb, LED Front Lights (Z-Bar)474
Bumper Kit, Cab Window578
Bumper Kit, Seat Suspension – Premium Seat620
Bumper Kit, Seat Suspension – Standard Seat612
Bumper, Steering552
Bushing, Loader Boom (High Lift Z-Bar) (NeverGrease™)756
Bushing, Loader Boom (High Lift Z-Bar)754
Bushing, Loader Boom (Powerllel™)758
Bushing, Loader Boom (Z-Bar) (NeverGrease™)752
Bushing, Loader Boom (Z-Bar)750
Bushing, Loader Boom Linkage (High Lift Z-Bar) (NeverGrease™)768
Bushing, Loader Boom Linkage (High Lift Z-Bar)766
Bushing, Loader Boom Linkage (Powerllel™)770
Bushing, Loader Boom Linkage (Z-Bar) (NeverGrease™)764
Bushing, Loader Boom Linkage (Z-Bar)762
Bushing, Steering Cylinder (632198- )410
Bushing, Steering Cylinder (NeverGrease™)412
Button Cap, Left-hand Joystick Handle418
Button Cap, Right-hand Joystick Handle with FNR Switch840
BY PASS TUBE / THERMOSTAT HOUSING (3917) (HDW80)182
C 0
Cab Air Filters630
Cab Alarm System520
Cab Decals and Labels, French438
Cab Decals and Labels, Russian442
Cab Decals and Labels, Spanish440
Cab Domelight Switch480
Cab Floor Cover Plate572
Cab Front Console626
Cab Harness Connector, Wiper Motor Jumper Harness536
Cab Rear View Mirror676
Cab Roof Harness Connector, AM/FM/WB Radio Kit Speaker Harness670
Cab Roof Harness Connector, AM/FM/WB Radio Speaker Harness668
Cab Roof Harness Connector, AM/FM/WB Radio w/ CD Player Kit674
Cab Roof Harness Connector, AM/FM/WB Radio w/ CD Player672
Cab Roof562
Cab Wiring Harness Mounting, Load Center520
Cab Work Lights Connector, Cab Roof Harness518
Cable, HVAC Module Control (Heater Only)642
Cable, HVAC Module Control644
Cables, Battery460
Cam Speed Sensor Connector, Engine Harness510
Camera, Rear Object Detection System688
Canopy Floor Cover Plate582
Canopy Front Console626
Cap, Connector540
Cap, Fuel Tank378
Cap, High Altitude Reservoir Pressurization Kit716
Cap, Hydraulic Reservoir714
Cap, Surge Tank (Engine 6068HDW80)332
Cap, Surge Tank (Engine 6068HDW83)334
Cap, Transmission Oil Fill Tube148
Cap, Window Washer Reservoir592
CASE, DIFFERENTIAL (YZ121182) 86
CASE, STD DIFF 82
CASE, STD DIFF 84
CD Player Radio672
Charge Air Cooler330
Cleaner, Air (Engine 6068HDW80)360
Cleaner, Air (Engine 6068HDW83)362
Cloth Seat, Standard606
Clutch and Pulley Kit, A/C Compressor636
Clutch Assembly, First Gear138
Clutch Assembly, High Range Forward144
Clutch Assembly, Low Range Forward134
Clutch Assembly, Second Gear140
Clutch Assembly, Third Gear142
CODE 1144 ROCKER ARM COVER (HDW80)154
CODE 1144 ROCKER ARM COVER236
CODE 1241 OIL FILL (HDW80)156
Code 1241 Oil Filler Neck238
CODE 1320 CRANKSHAFT PULLEY (HDW80)157
CODE 1320 CRANKSHAFT PULLEY239
CODE 1405 FLYWHEEL HOUSING (HDW80)158
CODE 1405 FLYWHEEL HOUSING240
CODE 1503 FLYWHEEL (HDW80)159
CODE 1503 FLYWHEEL241
CODE 169Z FUEL INJECTION PUMP (HDW80)160
CODE 16S4 FUEL INJECTION PUMP242
CODE 1797 INTAKE MANIFOLD244
CODE 17BL AIR INTAKE (6068HDW80)162
CODE 1946 OIL PAN246
CODE 1981 OIL PAN (HDW80)164
CODE 2001 WATER PUMP AND PULLEY248
CODE 2001 WATERPUMP PULLEY (HDW80)166
CODE 2154 THERMOSTAT COVER (HDW80)167
CODE 2154 THERMOSTAT COVER249
CODE 2255 THERMOSTAT (HDW80)168
CODE 2255 THERMOSTAT250
CODE 2698 COOLANT HEATER (ENGINE)251
CODE 2698 COOLANT HEATER (HDW80)169
CODE 2873 EXHAUST MANIFOLD(HDW80)170
CODE 28AY EXHAUST MANIFOLD252
CODE 2917 VENTILATING SYSTEM254
CODE 2917 VENTILATING SYSTEM172
CODE 3041 STARTING MOTOR (HDW80)174
CODE 3041 STARTING MOTOR256
CODE 35DZ FUEL FILTER, FINAL (HDW80)176
CODE 35EM FUEL FILTER258
CODE 35EM FUEL FILTER258
CODE 3626 FRONT PLATE260
CODE 3713 FUEL TRANSFER PUMP (HDW80)180
CODE 3799 COVER, WITHOUT FUEL PUMP262
CODE 3917 THERMOSTAT HOUSING, TUBE (HDW80)182
CODE 3933 THERMOSTAT HOUSING264
CODE 4330 STARTING AID (HDW80)186
CODE 4330 STARTING AID268
CODE 4633 CYLINDER BLOCK (HDW80)190
CODE 4657 TIMING GEAR COVER272
CODE 4834 CONNECTING ROD, PISTON (HDW80)194
CODE 4834 CONNECTING RODS AND PISTONS276
CODE 4905 ROCKER ARM, SHAFT, PUSH ROD278
CODE 4905 ROCKER ARMS (HDW80)196
CODE 5024 OIL PUMP (HDW80)198
CODE 5024 OIL PUMP280
CODE 5120 CYLINDER HEAD (HDW80)200
CODE 5128 CYLINDER HEAD282
CODE 5204 AUXILIARY DRIVE COVER (HDW80)202
CODE 5204 AUXILIARY DRIVE COVER284
CODE 5497 TURBO AIR INLET (HDW80)203
CODE 5497 TURBO AIR INLET285
CODE 5728 WATER PUMP INLET (HDW80)204
CODE 5728 WATER PUMP INLET286
CODE 5945 OIL COOLER, ENGINE (5945) (HDW80)205
CODE 5951 OIL COOLER287
CODE 6275 ALTERNATOR BRACKETS (HDW80)206
CODE 6284 ALTERNATOR BRACKETS (HDW80)207
CODE 6375 ALTERNATOR MOUNTING BRACKETS (HDW83)288
CODE 6389 FUEL FILTER LINES (HDW80)208
CODE 65TD TURBOCHARGER AND OIL LINES (HDW80)210
CODE 6698 TEMPERATURE SWITCH, WITHOUT289
CODE 6698 TEMPERATURE SWITCH212
CODE 6721 SENSORS214
CODE 6744 ENGINE SENSORS290
CODE 8169 PRIMARY FUEL FILTER216
CODE 8484 WIRING HARNESS BRACKETS292
CODE 8491 ENGINE WIRING HARNESS(HDW80)218
CODE 8718 FAN DRIVE TENSIONER (HDW80)219
CODE 8718 FAN DRIVE TENSIONER293
CODE 8842 OIL FILTER, FILTER HEAD (HDW80)220
CODE 8842 OIL FILTER, FILTER HEAD294
CODE 8910 EGR (HDW80)222
CODE 9801 LIFT STRAPS (HDW80)224
CODE 9801 LIFT STRAPS295
CODE 9901 AIR COMPRESSOR315
CODE 9901 BEARING KIT (CONNECTING ROD) (STANDARD)296
CODE 9901 BEARING KIT, MAIN298
CODE 9901 BEARING KIT, MAIN300
CODE 9901 CONNECTING ROD BEARING (UNDERSIZED)297
CODE 9901 CONTROL VALVE313
CODE 9901 EGR VALVE GASKET KIT312
CODE 9901 ENGINE GASKET KIT310
CODE 9901 ENGINE GASKET SET,308
CODE 9901 ENGINE OVERHAUL KIT320
CODE 9901 MAIN BEARING KIT299
CODE 9901 MAIN THRUST BEARING301
CODE 9901 PISTON LINER KIT (9901)306
CODE 9901 PISTON RING KIT316
CODE 9901 REAR OIL SEAL303
CODE 9901 REPLACEMENT ENGINE322
CODE 9901 REPLACEMENT ENGINE228
CODE 9901 STARTER RELAY314
CODE 9901 STARTER RELAY317
CODE 9901 WATER PUMP REPAIR KIT304
CODE 9902 CYLINDER LINER PACKING(9901)302
CODE 9902 INJECTION NOZZLE318
Cold Start Decal444
COLD WEATHER STARTING AID (4330) (HDW80)186
COLD WEATHER STARTING AID (4330)268
Column, Steering (Components)398
Column, Steering Wheel396
COMMON RAIL SYSTEM, HIGH PRESSURE (169Z) (HDW80)160
COMPLETE BLOCK ASSEMBLY226
Compressor Kit, Seat Suspension – Premium Seat620
Compressor Kit, Seat Suspension – Standard Seat612
Compressor Lines, A/C634
Compressor, A/C636
Condenser, A/C640
CONNECTING ROD / BEARINGS (4834) (HDW80)194
CONNECTING ROD BEARING (9901) (UNDERSIZED)297
CONNECTING ROD BEARING KIT (9901) (STANDARD)296
CONNECTING ROD, PISTON (HDW80)194
CONNECTING RODS AND PISTONS (4834)276
Connector Cap540
Connectors, AM/FM/WB Radio Kit Speaker Harness670
Connectors, AM/FM/WB Radio Speaker Harness668
Connectors, AM/FM/WB Radio w/ CD Player Kit Speaker Harness674
Connectors, AM/FM/WB Radio w/ CD Player Speaker Harness672
Connectors, Cab Roof Harness518
Connectors, Engine Frame Harness508
Connectors, Engine Harness510
Connectors, HVAC Module Harness528
Connectors, Joystick Steering Harness416
Connectors, Loader Frame Harness (Powerllel™)506
Connectors, Loader Frame Harness (Z-Bar)504
Connectors, Rear Frame Harness514
Connectors, Steering Column Harness526
Connectors, Transmission Harness512
Connectors, Water Separator w/ Electric Fuel Pump Harness538
Connectors, Wiper Motor Jumper Harness536
Console Cover, Cab594
Console Cover, Canopy596
Console, Front626
Console, HVAC Control626
CONTROL VALVE (9901)313
Control Valve Fittings, Embedded Payload Scale690
Control Valve Lines to Boom and Bucket Cylinders (Powerllel™)872
Control Valve Lines to Boom and Bucket Cylinders (Powerllel™)874
Control Valve Lines to Boom and Bucket Cylinders (Powerllel™)876
Control Valve Lines to Boom and Bucket Cylinders (Z-Bar)866
Control Valve Lines to Boom and Bucket Cylinders (Z-Bar)868
Control Valve Lines to Boom and Bucket Cylinders (Z-Bar)870
Control Valve Manifold, Transmission120
Control Valve Section, Auxiliary788
Control Valve Section, Boom784
Control Valve Section, Bucket786
Control Valve Section, Inlet782
Control Valve Section, Outlet790
Control Valve, Loader (2-Spool)772
Control Valve, Loader (3-Spool) (Powerllel™)776
Control Valve, Loader (3-Spool) (Z-Bar)774
Control Valve, Loader (4-Spool) (Powerllel™)780
Control Valve, Loader (4-Spool) (Z-Bar)778
Control Valve, Suction (169Z)160
Control Valve, Transmission (w/ Lock-up Torque Converter)124
Control Valve, Transmission (w/o Lock-up Torque Converter)122
Control, Fuel-Fired Coolant Heater328
Control, HVAC Module (Heater Only)642
Control, HVAC Module644
Controller Conversion Kit, Pilot – 2-Lever to 3-Lever810
Controller Conversion Kit, Pilot – 2-Lever to 3-Lever (Z-Bar)808
Controller Conversion Kit, Pilot – 2-Lever to Joystick816
Controller Conversion Kit, Pilot – 3-Lever to 4-Lever814
Controller Conversion Kit, Pilot – 3-Lever to 4-Lever (Z-Bar)812
Controller Conversion Kit, Pilot – 3-Lever to Joystick w/818
Controller Conversion Kit, Pilot – 4-Lever to Dual Joysticks820
Controller Conversion Kit, Pilot – Joystick (w/o FNR) to830
Controller Conversion Kit, Pilot – Joystick to 2-Lever822
Controller Conversion Kit, Pilot – Joystick to Joystick w/826
Controller Conversion Kit, Pilot – Joystick to Joystick w/824
Controller Conversion Kit, Pilot – Joystick w/ Auxiliary Lever t828
Controller, Auxiliary Dual Lever836
Controller, Auxiliary Joystick842
Controller, Auxiliary Single Lever834
Controller, Engine520
Controller, FLC2520
Controller, JDLink™ Ultimate718
Controller, Pilot – 2-Lever792
Controller, Pilot – 2-Lever832
Controller, Pilot – 3-Lever794
Controller, Pilot – 4-Lever796
Controller, Pilot – Joystick (w/ FNR) and Auxiliary Lever804
Controller, Pilot – Joystick (w/ FNR)802
Controller, Pilot – Joystick (w/o FNR) and Auxiliary Lever800
Controller, Pilot – Joystick (w/o FNR)798
Controller, Pilot – Joystick838
Controller, Transmission with Lock-up Torque Converter532
Controller, Transmission520
Conversion Kit, Pilot Controller – 2-Lever to 3-Lever810
Conversion Kit, Pilot Controller – 2-Lever to 3-Lever (Z-Bar)808
Conversion Kit, Pilot Controller – 2-Lever to Joystick816
Conversion Kit, Pilot Controller – 3-Lever to 4-Lever814
Conversion Kit, Pilot Controller – 3-Lever to 4-Lever (Z-Bar)812
Conversion Kit, Pilot Controller – 3-Lever to Joystick w/818
Conversion Kit, Pilot Controller – 4-Lever to Dual Joysticks820
Conversion Kit, Pilot Controller – Joystick (w/o FNR) to830
Conversion Kit, Pilot Controller – Joystick to 2-Lever822
Conversion Kit, Pilot Controller – Joystick to Joystick w/826
Conversion Kit, Pilot Controller – Joystick to Joystick w/824
Conversion Kit, Pilot Controller – Joystick w/ Auxiliary Lever t828
Converter (10 A), AM/FM/WB Radio Kit670
Converter (10 A), AM/FM/WB Radio w/ CD Player Kit674
Converter, 10 A (24 V to 12 V)530
Converter, Torque (Lock-up)102
Converter, Torque100
COOLANT HEATER (2698) (ENGINE)251
COOLANT HEATER (2698) (HDW80)169
Coolant Heater, Engine Block (110 V)324
Coolant Heater, Engine Block (220 V)326
Coolant Heater, Fuel-Fired328
Coolant Temperature Sensor Connector, Engine Harness510
Cooler, Charge Air330
COOLER, ENGINE OIL (5945) (HDW80)205
COOLER, ENGINE OIL (5951)287
Cooler, Hydraulic Oil330
Cooler, Transmission Oil330
Cooling Package Frame330
Cooling System Kit, Axle (SN -626437)338
Cooling System Kit, Axle (SN 626438- )340
Cooling System w/ Secondary Steering, Axle (SN 626438- )342
Cooling System, Axle (SN 626438- )336
Counterweight, Forestry Application Package458
Counterweight, Hitch456
Counterweight, Main558
Coupler Bucket Blanks, Hi-Vis742
Coupler Bucket, Hi-Vis (40 yd³)728
Coupler Forks, Hi-Vis732
Coupler Hydraulic Lines, Cable Reinforced (High Lift Z-Bar)892
Coupler Hydraulic Lines, Cable Reinforced (Z-Bar)890
Coupler Hydraulic Lines, Third Function (High Lift Z-Bar)886
Coupler Hydraulic Lines, Third Function (Z-Bar)884
Coupler Hydraulics, Hi-Vis Cable Reinforced (Powerllel™)894
Coupler Hydraulics, Third Function (Powerllel™)888
Coupler Kit, Hi-Vis (Z-Bar)738
Coupler, Hi-Vis (Powerllel™)740
Coupler, Hi-Vis (Z-Bar) (NeverGrease™)736
Coupler, Hi-Vis (Z-Bar)734
Cover Plate, Cab Floor572
Cover Plate, Canopy Floor582
Cover, A/C Delete638
COVER, AUXILIARY DRIVE (5204) (HDW80)202
COVER, AUXILIARY DRIVE (5204)284
Cover, Battery462
Cover, Button – Left-hand Joystick Handle418
Cover, Button – Right-hand Joystick Handle with FNR Switch840
Cover, Cab A-Post572
Cover, Canopy A-Post582
Cover, Drive Damper146
Cover, Front Console626
Cover, Gearbox Housing (w/ Lock-up Torque Converter)110
Cover, Gearbox Housing (w/o Lock-up Torque Converter)108
Cover, HVAC Control Console626
COVER, INPUT (YZ120722) 74
Cover, Left Armrest for Joystick Steering604
Cover, Radar556
COVER, ROCKER ARM (1144) (HDW80)154
COVER, ROCKER ARM (1144)236
COVER, ROCKER ARM VENT HOSE(2917)254
Cover, Steering Column Base396
Cover, Steering Column w/ Joystick FNR524
COVER, THERMOSTAT (2154) (HDW80)167
COVER, THERMOSTAT (2154)249
COVER, TIMING GEAR (4440) (HDW80)188
COVER, TIMING GEAR (4451)270
Cover, Torque Converter (Lock-up)102
Cover, Torque Converter100
Cover, Transmission116
COVER, WITHOUT FUEL PUMP (3799)262
COVER,TIMING GEAR (4657)272
Covers, Cab Interior594
Covers, Canopy Interior596
Crank Speed Sensor Connector, Engine Harness510
CRANKSHAFT / BEARINGS (4712) (HDW80)192
CRANKSHAFT POSITION SENSOR (6721) (HDW80)214
CRANKSHAFT PULLEY (1320) (HDW80)157
CRANKSHAFT PULLEY (1320)239
CRANKSHAFT, BEARINGS (4712)274
Cup Holder, Canopy596
Cushion, Left Armrest for Joystick Steering604
Cushion, Steering552
Cushions, Premium Seat for Joystick Steering616
Cushions, Premium Seat614
Cushions, Standard Seat – Fabric606
Cushions, Standard Seat – Vinyl608
Cutting Edge, Auxiliary720
Cutting Edge, Bucket Teeth722
Cutting Edge, Hi-Vis Coupler (40 yd³)728
Cutting Edge, Pin-On Bucket (425 yd³) (NeverGrease™)726
Cutting Edge, Pin-On Bucket (425 yd³)724
Cycle Counter Switch520
CYLINDER BLOCK WITH CAMSHAFT (4633) (HDW80)190
CYLINDER BLOCK WITH LINERS (4633) (HDW80)190
Cylinder Fittings, Steering (632198- )410
Cylinder Fittings, Steering (NeverGrease™)412
CYLINDER HEAD (5120) (HDW80)200
CYLINDER HEAD (5128)282
CYLINDER LINER (4834) (HDW80)194
CYLINDER LINER (4834)276
CYLINDER LINER PACKING (9901)302
CYLINDER LINER PACKING (9901)306
Cylinder Lines, Boom (Powerllel™) (2-Spool Control Valve)872
Cylinder Lines, Boom (Powerllel™) (3-Spool Control Valve)874
Cylinder Lines, Boom (Powerllel™) (4-Spool Control Valve)876
Cylinder Lines, Boom (Z-Bar) (2-Spool Control Valve)866
Cylinder Lines, Boom (Z-Bar) (3-Spool Control Valve)868
Cylinder Lines, Boom (Z-Bar) (4-Spool Control Valve)870
Cylinder Lines, Bucket (Powerllel™) (2-Spool Control Valve)872
Cylinder Lines, Bucket (Powerllel™) (3-Spool Control Valve)874
Cylinder Lines, Bucket (Powerllel™) (4-Spool Control Valve)876
Cylinder Lines, Bucket (Z-Bar) (2-Spool Control Valve)866
Cylinder Lines, Bucket (Z-Bar) (3-Spool Control Valve)868
Cylinder Lines, Bucket (Z-Bar) (4-Spool Control Valve)870
Cylinder Lock, Boom760
Cylinder, Boom (Powerllel™)910
Cylinder, Boom (Powerllel™)912
Cylinder, Boom (Z-Bar)900
Cylinder, Boom (Z-Bar)902
Cylinder, Bucket (Powerllel™)914
Cylinder, Bucket (Z-Bar) (SN -627885)904
Cylinder, Bucket (Z-Bar) (SN 627886- )906
Cylinder, Hi-Vis Coupler (Powerllel™)740
Cylinder, Hi-Vis Coupler (Z-Bar) (NeverGrease™)736
Cylinder, Hi-Vis Coupler (Z-Bar)734
Cylinder, Hi-Vis Coupler Kit (Z-Bar)738
Cylinder, Steering Column398
Cylinder, Steering414
D 0
Damper, Drive146
Decal, 2-Lever Fingertip Controls792
Decal, 3-Lever Fingertip Controls794
Decal, 4-Lever Fingertip Controls796
Decal, Axle/Gearbox Oil (Axle Cooling System Kit) (SN -626437)338
Decal, Axle/Gearbox Oil (Axle Cooling System Kit) (SN340
Decal, Axle/Gearbox Oil (Axle Cooling System w/ Secondary342
Decal, Axle/Gearbox Oil (SN 626438- )336
Decal, Boom Lock760
Decal, Electrical Cold Start444
Decal, Engine Oil450
Decal, High Lift Loader Boom (NeverGrease™)756
Decal, High Lift Loader Boom754
Decal, Joystick (w/ FNR) and Auxiliary Lever Controls804
Decal, Joystick (w/ FNR) Controls802
Decal, Joystick (w/o FNR) and Auxiliary Lever Controls800
Decal, Joystick (w/o FNR) Controls798
Decal, Left Armrest Console – Premium Seat for Joystick Steering616
Decal, Load Capacity – Hi-Vis Coupler Forks732
Decal, Quick Service448
Decal, Secondary Steering Kit390
Decal, Tire Pressure Monitoring System534
Decals and Labels, Cab434
Decals and Labels, Canopy436
Decals and Labels, French438
Decals And Labels, Russian442
Decals and Labels, Spanish440
Detent Kit, Auxiliary Dual Lever Controller836
Detent Kit, Auxiliary Single Lever Controller834
Diagnostic Receptacle, Main Hydraulic Pump ( -623632)698
Diagnostic Receptacle, Main Hydraulic Pump (623633- )700
Diesel-Fired Coolant Heater328
Differential Lock Line, Front 50
Differential Lock Line, Rear 52
Differential Lock Solenoid Connector, Engine Frame Harness508
Differential Lock, Auto 56
DIFFERENTIAL LOCK 80
Differential Support, Axle 48
Diode, A/C Clutch510
Diode, VEC (Vehicle Electrical Center)520
Dipstick, Engine Oil (Axle Cooling System Kit) (SN -626437)338
Dipstick, Engine Oil (Axle Cooling System Kit) (SN 626438- )340
Dipstick, Engine Oil (Axle Cooling System w/ Secondary342
Dipstick, Engine Oil (Axle Cooling System) (SN 626438- )336
Dipstick, Oil266
Dipstick, Oil184
Disk, Low Range Forward Clutch Assembly134
Disk, Park Brake430
Disk, Reverse Clutch Assembly136
Display Monitor, Cab548
Display, Fuel-Fired Coolant Heater328
Domelight Connector, Cab Roof Harness518
Domelight Switch480
Domelight, Cab564
Door, Battery Box462
Door, Cab576
Door, Engine652
Door, Main Counterweight558
Drain Hose, Engine Oil (Engine 6068HDW80)374
Drain Hose, Engine Oil (Engine 6068HDW83)376
Drain Plug, Hydraulic Reservoir714
Drain Plug, Transmission (w/ Lock-up Torque Converter)110
Drain Plug, Transmission (w/o Lock-up Torque Converter)108
Drawbar and Rear Counterweight456
Drawbar454
Drip Rail, Canopy580
Drive Light (Powerllel™)476
Drive Light (Z-Bar)472
Drive Light Connector, Loader Frame Harness (Powerllel™)506
Drive Light Connector, Loader Frame Harness (Z-Bar)504
Drive Light, LED (Powerllel™)478
Drive Light, LED (Z-Bar)474
Drive Shaft, Torque Converter (Lock-up)102
Drive Shaft, Torque Converter100
Drive Shafts, Transmission (w/ Lock-up Torque Converter) 92
Drive Shafts, Transmission (w/o Lock-up Torque Converter) 90
DRIVE, FINAL 88
Driveline Bearing430
Driveshaft, First Gear Clutch Assembly138
Driveshaft, High Range Forward Clutch Assembly144
Driveshaft, Second Gear Clutch Assembly140
Driveshaft, Third Gear Clutch Assembly142
Drum, First Gear Clutch Assembly138
Drum, High Range Forward Clutch Assembly144
Drum, Low Range Forward Clutch Assembly134
Drum, Reverse Clutch Assembly136
Drum, Second Gear Clutch Assembly140
Drum, Third Gear Clutch Assembly142
DUAL BRAKES 4800:1 78
DUAL CENTER PIVOT 76
Dual Lever Controller, Auxiliary836
Dual Lever Pilot Controller832
Dual VEC520
Duct, Air630
Duct, HVAC Pre-Cleaner648
Duct, HVAC630
Ducts, Underfloor628
E 0
Easy Payload Weighing Kit690
EGR (8910) (HDW80)222
EGR VALVE GASKET KIT (9901)312
Electrical Corrosion Protection Package, Harsh Environment544
Electrical Corrosion Protection Package, Harsh Environment542
ELECTRONIC TACH DRIVE (HDW80)214
ELECTRONIC TACH DRIVE289
Emblem, Slow Moving Vehicle (SMV)694
Engine Air Plenum652
Engine Compartment Sound Absorption658
Engine Controller520
Engine Coolant Sampling Fitting448
Engine Fan Drive Pump and Motor, Reversing Fan Drive Kit354
Engine Fan Drive Pump and Motor, Reversing350
Engine Fan Drive Pump and Motor, Standard346
Engine Fan344
Engine Frame Guard556
Engine Frame Harness Connector, Rear Frame Harness514
Engine Frame Wiring Harness Mounting (Powerllel™)502
Engine Frame Wiring Harness Mounting (Z-Bar)500
ENGINE GASKET KIT 9901310
ENGINE GASKET SET,308
Engine Harness Connector, Water Separator w/ Electric Fuel538
ENGINE OIL COOLER (HDW80)205
Engine Oil Dipstick266
Engine Oil Dipstick184
Engine Oil Drain Hose (Engine 6068HDW80)374
Engine Oil Drain Hose (Engine 6068HDW83)376
Engine Oil Sampling Fitting448
ENGINE OVERHAUL KIT (9901)320
ENGINE REPLACEMENT228
ENGINE SENSORS290
Engine Service Door652
ENGINE SPEED, SENSOR (6721) (HDW80)214
ENGINE SPEED, SENSOR (6744)290
Engine Wiring Harness Mounting (Powerllel™)502
Engine Wiring Harness Mounting (Z-Bar)500
ENGINE WIRING HARNESS(HDW80)218
ENGINE, REPLACEMENT322
ENGINE, SERVICE322
ENGINE, SERVICE228
Evaporator Core, HVAC Module646
EXHAUST GAS RECIRCULATION (8910) (HDW80)222
EXHAUST MANIFOLD (2873) (HDW80)170
EXHAUST MANIFOLD (28AY)252
Exhaust Pipe, Black (Engine 6068HDW80)366
Exhaust Pipe, Black (Engine 6068HDW83)370
Exhaust Pipe, Chrome (Engine 6068HDW80)368
Exhaust Pipe, Chrome (Engine 6068HDW83)372
Exhaust Pipe, Fuel-Fired Coolant Heater328
EXHAUST VALVE (5120) (HDW80)200
EXHAUST VALVE (5128)282
Expansion Valve, HVAC Module646
Extinguisher, Fire682
F 0
Fabric Seat, Standard606
Fan Door344
Fan Drive Hoses, Reversing Fan Drive Kit354
Fan Drive Hoses, Reversing352
Fan Drive Hoses, Standard348
Fan Drive Kit, Reversing354
Fan Drive Motor, Reversing Fan Drive Kit354
Fan Drive Motor, Reversing350
Fan Drive Motor, Standard346
FAN DRIVE PULLEY (8718) (HDW80)219
FAN DRIVE PULLEY (8718)293
Fan Drive Pump (Axle Cooling System Kit) (SN -626437)338
Fan Drive Pump (Axle Cooling System Kit) (SN 626438- )340
Fan Drive Pump (Axle Cooling System w/ Secondary Steering)342
Fan Drive Pump (Axle Cooling System) (SN 626438- )336
Fan Drive Pump, Reversing Fan Drive Kit354
Fan Drive Pump, Reversing350
Fan Drive Pump, Standard346
Fan Drive Valve, Reversing356
Fan Guard344
Fan Hub344
Fan Shroud344
Fan Solenoid Connector, Rear Frame Harness514
Fan, Engine344
Fast Fill Fuel System Kit384
Fenders, Front Full Coverage662
Fenders, Front660
Fenders, Rear Full Coverage664
Fifth Function, Electric806
Fill Tube, Transmission Oil148
FILL, OIL (1241) (HDW80)156
Filler Cap238
FILTER HEAD / OIL FILTER (8842) (HDW80)220
FILTER HEAD / OIL FILTER (8842)294
Filter Head, Transmission Oil 98
Filter Restriction Indicator Switch, Transmission Oil120
Filter, (Axle Cooling System w/ Secondary Steering) (SN342
Filter, Air Cleaner (Engine 6068HDW80)360
Filter, Air Cleaner (Engine 6068HDW83)362
Filter, Axle Cooling System (SN 626438- )336
Filter, Axle Cooling System Kit (SN -626437)338
Filter, Axle Cooling System Kit (SN 626438- )340
Filter, Cab Air630
FILTER, FINAL FUEL (35EM)258
Filter, Fuel – In-Line (Severe Duty Fuel System)382
Filter, Fuel – In-Line380
Filter, Fuel – Severe Duty382
FILTER, FUEL FINAL (35DZ) (HDW80)176
FILTER, FUEL LINES (HDW80)208
Filter, Fuel; In-Line (Severe Duty Fuel Filter Kit)386
Filter, Fuel; Severe Duty (Severe Duty Fuel Filter Kit)386
Filter, High Altitude Reservoir Pressurization Kit716
Filter, Hydraulic Reservoir714
FILTER, OIL / FILTER HEAD (8842)294
FILTER, TRANSMISSION OIL 98
FILTER-OIL / FILTER HEAD (8842) (HDW80)220
FINAL FUEL FILTER (35EM)258
FINAL DRIVE 48:1 88
First Gear Clutch Assembly138
Fittings, 2-Spool Control Valve772
Fittings, 3-Spool Control Valve (Powerllel™)776
Fittings, 3-Spool Control Valve (Z-Bar)774
Fittings, 4-Spool Control Valve (Powerllel™)780
Fittings, 4-Spool Control Valve (Z-Bar)778
Fittings, Boom and Bucket Cylinder (Powerllel™)908
Fittings, Boom and Bucket Cylinder (Z-Bar) (NeverGrease™)898
Fittings, Boom and Bucket Cylinder (Z-Bar)896
Fittings, Fluid Sampling448
Fittings, Transmission (w/ Lock-up Torque Converter) 96
Fittings, Transmission (w/o Lock-up Torque Converter) 94
FLC2 Controller520
Floor Cover Plate, Cab572
Floor Cover Plate, Canopy582
Floor Mat, Cab584
Floor Mat, Canopy586
Fluid Sampling Port, Engine Oil450
Fluid Sampling Ports448
FLYWHEEL (1503)241
FLYWHEEL (HDW80)159
FLYWHEEL HOUSING (1405) (HDW80)158
FLYWHEEL HOUSING (1405)240
FNR Switch Connector, Steering Column Harness526
FNR Switch, Left-hand Joystick Handle418
FNR Switch, Right-hand Joystick Handle840
FNR Switch, Steering Column522
Foam, Cab Noise Reduction560
Fold-down Beacon Bracket Kit492
Fold-down Beacon Bracket490
Forks, Hi-Vis Coupler732
Four Lever Controller Armrest, RH602
Frame, Cooling Package330
Frame, Engine550
Frame, Fork – Hi-Vis Coupler732
Frame, Hi-Vis Coupler (Powerllel™)740
Frame, Hi-Vis Coupler (Z-Bar) (NeverGrease™)736
Frame, Hi-Vis Coupler (Z-Bar)734
Frame, Hi-Vis Coupler Kit (Z-Bar)738
Frame, Loader (Powerllel™)748
Frame, Loader (Z-Bar) (NeverGrease™)746
Frame, Loader (Z-Bar)744
Freeze Control Switch Connector, HVAC Module Harness528
Fresh Air Filter, Cab630
Front Fenders, Full Coverage662
Front Lights (Powerllel™)476
Front Lights (Z-Bar)472
Front Lights, LED (Powerllel™)478
Front Lights, LED (Z-Bar)474
FRONT PLATE (3614) (HDW80)178
FRONT PLATE (3626)260
Front Windshield Wiper590
FUEL FILTER GASKET KIT (35DZ) (HDW80)176
FUEL FILTER LINES (6389) (HDW80)208
FUEL FILTER, FINAL (35DZ) (HDW80)176
FUEL FILTER, FINAL (35EM)258
Fuel Filter, In-Line (Severe Duty Fuel Filter Kit)386
Fuel Filter, In-Line (Severe Duty Fuel System)382
Fuel Filter, In-Line380
FUEL FILTER, PRIMARY (8169) (HDW80)216
Fuel Filter, Severe Duty (Severe Duty Fuel Filter Kit)386
Fuel Filter, Severe Duty382
FUEL INJECTION PUMP (16S4)242
FUEL INJECTION PUMP, COMMON RAIL (169Z) (HDW80)160
Fuel Injector Connector, Engine Harness510
Fuel Line, Fuel-Fired Coolant Heater328
Fuel Lines (Severe Duty Fuel Filter Kit)386
Fuel Lines (Severe Duty Fuel System)382
FUEL LINES, HIGH PRESSURE (169Z) (HDW80)160
Fuel Lines380
Fuel Pump Control Valve Connector, Engine Harness510
Fuel Pump, Fuel-Fired Coolant Heater328
Fuel Rail Pressure Sensor Connector, Engine Harness510
Fuel Sender (Severe Duty Fuel System)382
Fuel Sender Connector, Engine Frame Harness508
Fuel Sender380
Fuel Strainer378
Fuel System, Fast Fill384
Fuel Tank Guard, Forestry Application Package458
Fuel Tank Lines (Severe Duty Fuel System)382
Fuel Tank Lines380
Fuel Temperature Sensor Connector, Engine Harness510
FUEL TRANSFER PUMP (3713) (HDW80)180
Fuse Panel520
Fuse, VEC (Vehicle Electrical Center)520
G 0
Gas Cylinder, Steering Column398
GASKET KIT, EGR VALVE (9901)312
GASKET SET, ENGINE308
GASKET, ROCKER ARM COVER (1144) (HDW80)154
GASKET, ROCKER ARM COVER (1144)236
GASKET, THERMOSTAT HOUSING (3933)264
GASKET, TIMING GEAR COVER (4440) (HDW80)188
Gasket, Transmission Cover116
Gauge, Hydraulic Reservoir714
Gear Selector, Steering Column522
Gear Shift System120
GEAR, OIL PUMP (5024) (HDW80)198
GEAR, OIL PUMP (5024)280
Gear, Transmission Input (w/ Lock-up Torque Converter)106
Gear, Transmission Input (w/o Lock-up Torque Converter)104
GEAR, UPPER IDLER (3614) (HDW80)178
Gearbox Housing (w/ Lock-up Torque Converter)110
Gearbox Housing (w/o Lock-up Torque Converter)108
Glass, Cab Door576
Glass, Cab574
GlobalTRACS™ Box, JDLink™ Ultimate718
Grease Lines, Axle452
Grease Lines, Steering Cylinders (632198- )410
Grip, Left-hand Joystick418
Grip, Right-hand Joystick with FNR Switch840
Ground Speed Radar Sensor 56
Ground, Engine Frame Harness508
Ground, Load Center Harness520
GTT Box, JDLink™ Ultimate718
Guard, Engine Frame556
Guard, Fan344
Guard, Fuel Tank554
Guard, Loader Frame556
Guard, Pressure Regulator Valve (PRV)710
Guard, Pump Manifold710
Guard, Transmission556
Guards, Bottom556
Guards, Transmission656
H 0
Handle, Cab Door576
Handle, Joystick Pilot Controller838
Handle, Left Armrest for Joystick Steering604
Handle, Left-hand Joystick418
Handle, Main Counterweight558
Handle, Right-hand Joystick with FNR Switch840
HARNESS, WIRING (8491) (HDW80)218
Harness, Wiring – AM/FM/WB Radio Kit Speaker670
Harness, Wiring – AM/FM/WB Radio Speaker668
Harness, Wiring – AM/FM/WB Radio w/ CD Player Kit Speaker674
Harness, Wiring – AM/FM/WB Radio w/ CD Player Speaker672
Harness, Wiring – Auto Differential Lock 56
Harness, Wiring – Beacon Light Jumper ( -629340)486
Harness, Wiring – Beacon Light Jumper (629341- )488
Harness, Wiring – Electric Fifth Function806
Harness, Wiring – Fuel-Fired Coolant Heater328
Harness, Wiring – Harsh Environment Kit (Powerllel™)544
Harness, Wiring – Harsh Environment Kit (Z-Bar)542
Harness, Wiring – JDLink™ Ultimate718
Harness, Wiring – Joystick Steering Kit404
Harness, Wiring – Joystick Steering416
Harness, Wiring – Left Armrest for Joystick Steering604
Harness, Wiring – License Plate Light (LH)498
Harness, Wiring – License Plate Light (RH)496
Harness, Wiring – Rear Object Detection System688
Harness, Wiring – Return-to-Dig (Z-Bar) (SN -627885)916
Harness, Wiring – Return-to-Dig (Z-Bar) (SN 627886- )918
Harness, Wiring – Ride Control Kit848
Harness, Wiring – Right-hand Joystick Handle with FNR Switch840
Harness, Wiring – Secondary Steering (Joystick)392
Harness, Wiring – Secondary Steering Kit390
Harness, Wiring – Secondary Steering388
Harness, Wiring – Steering Column (Joystick FNR)524
Harness, Wiring – Steering Column (Steering Column FNR)522
Harness, Wiring – Tire Pressure Monitoring System534
Harness, Wiring – Transmission Control Valve (w/ Lock-up124
Harness, Wiring – Transmission Control Valve (w/o Lock-up122
Harness, Wiring – Water Separator w/ Electric Fuel Pump382
Head Light (Powerllel™)476
Head Light (Z-Bar)472
Head Light, LED (Powerllel™)478
Head Light, LED (Z-Bar)474
HEAD, CYLINDER (5120) (HDW80)200
HEAD, FILTER / OIL FILTER (8842)294
HEAD-FILTER / OIL FILTER (8842) (HDW80)220
Headliner, AM/FM/WB Radio w/ CD Player672
Headliner, AM/FM/WB Radio668
Headliner, Cab564
Headliner, Canopy566
Headrest, Premium Seat for Joystick Steering616
Headrest, Premium Seat614
Headrest, Standard Seat – Fabric606
Headrest, Standard Seat – Vinyl608
Heated Exterior Mirror Connector, Cab Roof Harness518
Heated Seat Switch, Premium Seat for Joystick Steering616
Heated Seat Switch, Premium Seat614
Heater Control (Heater Only)642
Heater Control644
Heater Core, HVAC Module646
HEATER, COOLANT (2698) (ENGINE)251
HEATER, COOLANT (2698) (HDW80)169
Heater, Engine Block (110 V)324
Heater, Engine Block (220 V)326
Heater, Engine Coolant – Fuel-Fired328
Heavy Duty 5 Pc Rim (235 X 25 Tire) 36
Hi-Vis Coupler Hydraulic Lines, Cable Reinforced (High Lift892
Hi-Vis Coupler Hydraulic Lines, Cable Reinforced (Z-Bar)890
Hi-Vis Coupler Hydraulic Lines, Third Function (High Lift Z-Bar)886
Hi-Vis Coupler Hydraulic Lines, Third Function (Z-Bar)884
Hi-Vis Coupler Hydraulics, Cable Reinforced (Powerllel™)894
High Beam Switch (Joystick FNR)524
High Beam Switch (Steering Column FNR)522
High Beam Switch Connector, Steering Column Harness526
HIGH PRESSURE, COMMON RAIL SYSTEM (169Z) (HDW80)160
High Range Forward Clutch Assembly144
Hinge, Rear Fender664
Hitch and Rear Counterweight456
Hitch454
Holder, Operator’s Manual (Cab)594
Holder, Operator’s Manual (Canopy)596
Hood Sound Absorption658
Hook Plates, Hi-Vis Coupler Bucket742
Hook, Coat696
Hook, Lift446
Horn Connector, Loader Frame Harness (Powerllel™)506
Horn Connector, Loader Frame Harness (Z-Bar)504
Horn Contact Kit398
Horn Switch Connector, Steering Column Harness526
Horn Switch396
Hose, Air Cooler (Engine 6068HDW80)332
Hose, Air Cooler (Engine 6068HDW83)334
Hose, Brake Accumulator ( -631400)424
Hose, Brake Accumulator (631401- )426
Hose, Brake Valve to Axles422
Hose, Brake Valve420
Hose, Fast Fuel System384
Hose, Front Differential Lock 50
Hose, Fuel-Fired Coolant Heater328
Hose, Heater632
Hose, Park Brake Breather428
Hose, Radiator (Engine 6068HDW80)332
Hose, Radiator (Engine 6068HDW83)334
Hose, Rear Differential Lock 52
Hose, Secondary Steering (Joystick)392
Hose, Secondary Steering Kit390
Hose, Secondary Steering388
Hose, Steering Cylinder408
Hose, Window Washer Reservoir592
Hoses, (Axle Cooling System w/ Secondary Steering) (SN342
Hoses, 2-Function878
Hoses, 2-Lever Pilot Controller792
Hoses, 3-Function880
Hoses, 3-Lever Pilot Controller794
Hoses, 4-Function882
Hoses, 4-Lever Pilot Controller796
Hoses, A/C Compressor634
Hoses, A/C Condenser and Receiver-Dryer640
Hoses, Axle Cooling System (Axle Cooling System Kit) (SN338
Hoses, Axle Cooling System (Axle Cooling System Kit) (SN340
Hoses, Axle Cooling System (SN 626438- )336
Hoses, Boom Cylinder (Powerllel™) (2-Spool Control Valve)872
Hoses, Boom Cylinder (Powerllel™) (3-Spool Control Valve)874
Hoses, Boom Cylinder (Powerllel™) (4-Spool Control Valve)876
Hoses, Boom Cylinder (Z-Bar) (2-Spool Control Valve)866
Hoses, Boom Cylinder (Z-Bar) (3-Spool Control Valve)868
Hoses, Boom Cylinder (Z-Bar) (4-Spool Control Valve)870
Hoses, Bucket Cylinder (Powerllel™) (2-Spool Control Valve)872
Hoses, Bucket Cylinder (Powerllel™) (3-Spool Control Valve)874
Hoses, Bucket Cylinder (Powerllel™) (4-Spool Control Valve)876
Hoses, Bucket Cylinder (Z-Bar) (2-Spool Control Valve)866
Hoses, Bucket Cylinder (Z-Bar) (3-Spool Control Valve)868
Hoses, Bucket Cylinder (Z-Bar) (4-Spool Control Valve)870
Hoses, Coupler Third Function (Powerllel™)888
Hoses, Electric Fifth Function806
Hoses, Fuel (Severe Duty Fuel Filter Kit)386
Hoses, Fuel (Severe Duty Fuel System)382
Hoses, Fuel380
Hoses, Hi-Vis Coupler Cable Reinforced (High Lift Z-Bar)892
Hoses, Hi-Vis Coupler Cable Reinforced (Powerllel™)894
Hoses, Hi-Vis Coupler Cable Reinforced (Z-Bar)890
Hoses, HVAC Module (Heater Only)642
Hoses, HVAC Module644
Hoses, Joystick (w/ FNR) Pilot Controller and Auxiliary Lever804
Hoses, Joystick (w/ FNR) Pilot Controller802
Hoses, Joystick (w/o FNR) Pilot Controller and Auxiliary Lever800
Hoses, Joystick (w/o FNR) Pilot Controller798
Hoses, Joystick Steering Kit404
Hoses, Joystick Steering402
Hoses, Lubrication – Steering Cylinders (632198- )410
Hoses, Main Hydraulic712
Hoses, Pin Disconnect (Powerllel™)864
Hoses, Pin Disconnect (Z-Bar) (630804- )858
Hoses, Pin Disconnect Kit (Z-Bar) ( -630803)860
Hoses, Pin Disconnect Kit (Z-Bar) (630804- )862
Hoses, Pin Disconnect Valve (Powerllel™)854
Hoses, Pin Disconnect Valve (Powerllel™)852
Hoses, Reversing Fan Drive Kit354
Hoses, Reversing Fan Drive352
Hoses, Ride Control (Powerllel™)846
Hoses, Ride Control (Z-Bar)844
Hoses, Ride Control Kit848
Hoses, Standard Fan Drive348
Hoses, Third Function Boom to Coupler (High Lift Z-Bar)886
Hoses, Third Function Boom to Coupler (Z-Bar)884
Hoses, Transmission148
HOUSING, FLYWHEEL (1405) (HDW80)158
HOUSING, FLYWHEEL (1405)240
Housing, HVAC Module646
Housing, Input 72
Housing, Non Osc 72
HOUSING, OIL PUMP (5024) (HDW80)198
HOUSING, OIL PUMP (5024)280
Housing, Seat Suspension – Premium Seat620
Housing, Seat Suspension – Standard Seat612
HOUSING, STD INPUT 70
Housing, Std 72
HOUSING, THERMOSTAT (3917) (HDW80)182
HOUSING, THERMOSTAT (3933)264
Housing, Torque Converter (Lock-up)102
Housing, Torque Converter100
Housing, Transmission (w/ Lock-up Torque Converter)110
Housing, Transmission (w/o Lock-up Torque Converter)108
Hub, Engine Fan344
HVAC Control Console626
HVAC Louvers626
Hydraulic Fan Drive Pump (Axle Cooling System Kit) (SN338
Hydraulic Fan Drive Pump (Axle Cooling System Kit) (SN340
Hydraulic Fan Drive Pump (Axle Cooling System w/ Secondary342
Hydraulic Fan Drive Pump (Axle Cooling System) (SN 626438- )336
Hydraulic Hoses, (Axle Cooling System w/ Secondary Steering)342
Hydraulic Hoses, Axle Cooling System (Axle Cooling System Kit) (338
Hydraulic Hoses, Axle Cooling System (Axle Cooling System Kit) (340
Hydraulic Hoses, Axle Cooling System (SN 626438- )336
Hydraulic Hoses, Electric Fifth Function806
Hydraulic Lines, 2-Function878
Hydraulic Lines, 2-Lever Pilot Controller792
Hydraulic Lines, 3-Function880
Hydraulic Lines, 3-Lever Pilot Controller794
Hydraulic Lines, 4-Function882
Hydraulic Lines, 4-Lever Pilot Controller796
Hydraulic Lines, Brake Valve to Axles422
Hydraulic Lines, Coupler Third Function (Powerllel™)888
Hydraulic Lines, Hi-Vis Coupler Cable Reinforced (High Lift892
Hydraulic Lines, Hi-Vis Coupler Cable Reinforced (Powerllel™)894
Hydraulic Lines, Hi-Vis Coupler Cable Reinforced (Z-Bar)890
Hydraulic Lines, Joystick (w/ FNR) Pilot Controller and804
Hydraulic Lines, Joystick (w/ FNR) Pilot Controller802
Hydraulic Lines, Joystick (w/o FNR) Pilot Controller and800
Hydraulic Lines, Joystick (w/o FNR) Pilot Controller798
Hydraulic Lines, Main712
Hydraulic Lines, Pin Disconnect (Powerllel™)864
Hydraulic Lines, Pin Disconnect (Z-Bar) (630804- )858
Hydraulic Lines, Pin Disconnect Kit (Z-Bar) ( -630803)860
Hydraulic Lines, Pin Disconnect Kit (Z-Bar) (630804- )862
Hydraulic Lines, Pin Disconnect Valve (Powerllel™)854
Hydraulic Lines, Pin Disconnect Valve (Powerllel™)852
Hydraulic Lines, Ride Control (Powerllel™)846
Hydraulic Lines, Ride Control (Z-Bar)844
Hydraulic Lines, Ride Control Kit848
Hydraulic Lines, Third Function Boom to Coupler (High Lift886
Hydraulic Lines, Third Function Boom to Coupler (Z-Bar)884
Hydraulic Oil Cooler330
Hydraulic Oil Sampling Fitting448
Hydraulic Pressure Switch Connector, Engine Frame Harness508
Hydraulic Pressure Transducer Connector, Engine Frame Harness508
Hydraulic Pump Manifold Guard710
Hydraulic Pump Manifold704
Hydraulic Pump, Main ( -623632)698
Hydraulic Pump, Main (623633- )700
Hydraulic Reservoir, High Altitude Pressurization Kit716
Hydraulic Temperature Sensor Connector, Engine Frame Harness508
I 0
Idler Pulley, 100 A Alternator (w/ A/C)470
Idler Pulley, 100 A Alternator (w/o A/C)468
Idler Pulley, 80 A Alternator (w/ A/C)466
Idler Pulley, 80 A Alternator (w/o A/C)464
Ignition Key434
In-Line Fuel Filter (Severe Duty Fuel Filter Kit)386
In-Line Fuel Filter (Severe Duty Fuel System)382
In-Line Fuel Filter380
INJECTION NOZZLE & WIRING HARNESS (169Z) (HDW80)160
Inlet Valve, Fast Fuel System384
INLET, WATER PUMP (5728) (HDW80)204
INLET, WATER PUMP (5728)286
INPUT COVER, OSCILLATING (YZ120722) 74
Input Gear, Transmission (w/ Lock-up Torque Converter)106
Input Gear, Transmission (w/o Lock-up Torque Converter)104
Input Housing 72
Input Shaft, Torque Converter (Lock-up)102
Input Shaft, Torque Converter100
Input Shaft, Transmission (w/ Lock-up Torque Converter)106
Input Shaft, Transmission (w/o Lock-up Torque Converter)104
Input Speed Sensor Connector, Transmission Harness512
INPUT YOKE WITH SLINGER 62
INTAKE MANIFOLD AND GASKET (1797)244
Intake System, Air (Engine 6068HDW80)360
Intake System, Air (Engine 6068HDW83)362
INTAKE VALVE (5128)282
INTAKE VAVLE (5120) (HDW80)200
INTAKE, AIR (6068HDW80)162
INTAKE, OIL PUMP (1946)246
INTAKE, OIL PUMP (1981) (HDW80)164
Interior Covers, Cab594
Interior Covers, Canopy596
Isolators, Cab Noise Reduction560
J 0
Joystick Armrest, RH600
Joystick Controller, Auxiliary842
Joystick Steering Joystick Handle418
Joystick Steering Left Armrest604
Jumper Harness, Wiper Motor536
K 0
Key, Ignition434
Kickdown Switch, 2-Lever Pilot Controller832
KIT ENGINE GASKET 9901310
KIT, EGR VALVE GASKET (9901)312
Kit, 10 A Converter (24 V to 12 V)530
Kit, Air Pre-Cleaner364
Kit, AM/FM/WB Radio w/ CD Player674
Kit, AM/FM/WB Radio670
Kit, Auxiliary Cutting Edge720
Kit, Auxiliary Dual Lever Controller Detent836
Kit, Auxiliary Single Lever Controller Detent834
Kit, Axle Cooling System (SN -626437)338
Kit, Axle Cooling System (SN 626438- )340
Kit, Beacon Bracket492
KIT, BEARING (9901)298
Kit, Bucket Spillguard730
Kit, Bucket Teeth722
Kit, Cab Window Bumper578
Kit, Cable Reinforced Hi-Vis Coupler Hydraulics (Powerllel™)894
KIT, CONNECTING ROD BEARING (9901) (STANDARD)296
Kit, Conversion – Pilot Controller, 2-Lever to 3-Lever810
Kit, Conversion – Pilot Controller, 2-Lever to 3-Lever (Z-Bar)808
Kit, Conversion – Pilot Controller, 2-Lever to Joystick816
Kit, Conversion – Pilot Controller, 3-Lever to 4-Lever814
Kit, Conversion – Pilot Controller, 3-Lever to 4-Lever (Z-Bar)812
Kit, Conversion – Pilot Controller, 3-Lever to Joystick w/818
Kit, Conversion – Pilot Controller, 4-Lever to Dual Joysticks820
Kit, Conversion – Pilot Controller, Joystick (w/o FNR) to830
Kit, Conversion – Pilot Controller, Joystick to 2-Lever822
Kit, Conversion – Pilot Controller, Joystick to Joystick w/826
Kit, Conversion – Pilot Controller, Joystick to Joystick w/824
Kit, Conversion – Pilot Controller, Joystick w/ Auxiliary828
Kit, Electric Fifth Function806
Kit, Embedded Payload Scale690
KIT, ENGINE OVERHAUL (9901)320
Kit, Fast Fuel System384
Kit, Fuel-Fired Coolant Heater328
Kit, Full Coverage Front Fenders662
Kit, Full Coverage Rear Fenders664
Kit, Harsh Environment Alternator546
Kit, Harsh Environment Electrical Corrosion Protection544
Kit, Harsh Environment Electrical Corrosion Protection (Z-Bar)542
Kit, Hi-Vis Coupler Bucket Blanks742
Kit, Hi-Vis Coupler Forks732
Kit, High Altitude Reservoir Pressurization716
Kit, JDLink™ Ultimate718
Kit, Joystick Steering404
Kit, License Plate Light (RH)496
KIT, MAIN BEARING (9901)299
KIT, MAIN BEARING (9901)300
KIT, O-RING (9901)302
Kit, Pin Disconnect (Powerllel™)864
Kit, Pin Disconnect (Z-Bar) ( -630803)860
Kit, Pin Disconnect (Z-Bar) (630804- )862
KIT, PISTON RING (9901)316
Kit, Premium Seat618
Kit, Pump Manifold Guard710
Kit, Rear Object Detection System688
Kit, Reversing Fan Drive354
Kit, Ride Control848
Kit, Seal – Auxiliary Joystick Controller842
Kit, Seal – Auxiliary Valve Section788
Kit, Seal – Axle Oil Circulation Pump (Axle Cooling System338
Kit, Seal – Axle Oil Circulation Pump (Axle Cooling System340
Kit, Seal – Axle Oil Circulation Pump (Axle Cooling System w/342
Kit, Seal – Axle Oil Circulation Pump (SN 626438- )336
Kit, Seal – Boom Cylinder (Powerllel™)910
Kit, Seal – Boom Cylinder (Powerllel™)912
Kit, Seal – Boom Cylinder (Z-Bar)900
Kit, Seal – Boom Cylinder (Z-Bar)902
Kit, Seal – Boom Valve Section784
Kit, Seal – Brake Valve420
Kit, Seal – Bucket Cylinder (Powerllel™)914
Kit, Seal – Bucket Cylinder (Z-Bar) (SN -627885)904
Kit, Seal – Bucket Cylinder (Z-Bar) (SN 627886- )906
Kit, Seal – Bucket Valve Section786
Kit, Seal – Fan Drive Pump (Axle Cooling System Kit) (SN338
Kit, Seal – Fan Drive Pump (Axle Cooling System Kit) (SN340
Kit, Seal – Fan Drive Pump (Axle Cooling System w/ Secondary342
Kit, Seal – Fan Drive Pump (Axle Cooling System) (SN 626438- )336
Kit, Seal – Fan Drive Pump (Reversing Fan Drive Kit)354
Kit, Seal – Fan Drive Pump (Reversing)350
Kit, Seal – Fan Drive Pump (Standard)346
Kit, Seal – Hydraulic Reservoir Oil Filter714
Kit, Seal – Inlet Valve Section782
Kit, Seal – Main Hydraulic Pump ( -623632)698
Kit, Seal – Main Hydraulic Pump (623633- )700
Kit, Seal – Outlet Valve Section790
Kit, Seal – Pin Disconnect Valve (Powerllel™)864
Kit, Seal – Steering Cylinder414
Kit, Seal – Steering Valve400
Kit, Seat Suspension – Premium Seat620
Kit, Seat Suspension – Standard Seat612
Kit, Secondary Steering390
KIT, SERVICE INJECTOR (9901)318
Kit, Severe Duty Fuel Filter386
Kit, Slow Moving Vehicle Sign694
Kit, Standard Seat610
Kit, Third Function Coupler Hydraulics (Powerllel™)888
Kit, Tire Pressure Monitoring System534
Knob Kit, Premium Seat618
Knob Kit, Standard Seat610
Knob, Cab LH Console594
Knob, Heater Control (Heater Only)642
Knob, Heater Control644
Knob, Left Armrest for Joystick Steering604
Knob, Steering Wheel396
L 0
Label, 2-Lever Fingertip Controls792
Label, 3-Lever Fingertip Controls794
Label, 4-Lever Fingertip Controls796
Label, Axle/Gearbox Oil (Axle Cooling System Kit) (SN -626437)338
Label, Axle/Gearbox Oil (Axle Cooling System Kit) (SN340
Label, Axle/Gearbox Oil (Axle Cooling System w/ Secondary342
Label, Axle/Gearbox Oil (SN 626438- )336
Label, Boom Lock760
Label, Electrical Cold Start444
Label, Engine Oil450
Label, High Lift Loader Boom (NeverGrease™)756
Label, High Lift Loader Boom754
Label, Joystick (w/ FNR) and Auxiliary Lever Controls804
Label, Joystick (w/ FNR) Controls802
Label, Joystick (w/o FNR) and Auxiliary Lever Controls800
Label, Joystick (w/o FNR) Controls798
Label, Left Armrest Console – Premium Seat for Joystick Steering616
Label, Load Capacity – Hi-Vis Coupler Forks732
Label, Quick Service448
Label, Secondary Steering Kit390
LABEL, STARTER (3041) (HDW80)174
Label, Tire Pressure Monitoring System534
Labels, Cab434
Labels, Canopy436
Labels, French438
Labels, Russian442
Labels, Spanish440
Labels432
Latch, Battery Box462
Latch, Cab Door576
Latch, Engine Door652
Latch, Fan Guard344
Latch, Hood650
Latch, Rear Fender664
Latch, RH Cab Window574
LED Front Lights (Powerllel™)478
LED Front Lights (Z-Bar)474
Left Armrest, Premium Seat for Joystick Steering616
Left Armrest, Premium Seat614
Left Armrest, Standard Fabric Seat606
Left Armrest, Standard Vinyl Seat608
Lever Kit, Seat Suspension – Premium Seat620
Lever Kit, Seat Suspension – Standard Seat612
Lever, 2-Lever Pilot Controller832
Lever, Auxiliary Dual Lever Controller836
Lever, Auxiliary Joystick Controller842
Lever, Auxiliary Single Lever Controller834
Lever, Left Armrest for Joystick Steering604
License Plate Light (LH)498
License Plate Light (RH)496
License Plate Light Connector, Rear Frame Harness514
LIFT STRAPS (9801) (HDW80)224
LIFT STRAPS (9801)295
Light, Beacon ( -629340)486
Light, Beacon (629341- )488
Light, Engine Compartment494
Light, License Plate (LH)498
Light, License Plate (RH)496
Light, Strobe ( -629340)486
Light, Strobe (629341- )488
Lights, Cab Work484
Lights, Front (Powerllel™)476
Lights, Front (Z-Bar)472
Lights, Front LED (Powerllel™)478
Lights, Front LED (Z-Bar)474
Lights, Harsh Environment Kit (Powerllel™)544
Lights, Harsh Environment Kit (Z-Bar)542
Lights, Heavy Duty LED Turn Signal and Marker (Powerllel™)478
Lights, Heavy Duty LED Turn Signal and Marker (Z-Bar)474
Lights, Rear482
Lights, Turn Signal and Marker (Powerllel™)476
Lights, Turn Signal and Marker (Z-Bar)472
Lights, Work484
Line, Brake Accumulator ( -631400)424
Line, Brake Accumulator (631401- )426
Line, Brake Valve to Axles422
Line, Brake Valve420
Line, Fast Fuel System384
Line, Front Differential Lock 50
Line, Fuel-Fired Coolant Heater328
Line, Park Brake Breather428
Line, Rear Differential Lock 52
Line, Secondary Steering (Joystick)392
Line, Secondary Steering Kit390
Line, Secondary Steering388
Line, Steering Cylinder408
LINER KIT, PISTON (9901)306
LINER, CYLINDER (4834) (HDW80)194
LINER, CYLINDER (4834)276
LINERS, BLOCK (4633) (HDW80)190
Lines, (Axle Cooling System w/ Secondary Steering) (SN342
Lines, 2-Function878
Lines, 2-Lever Pilot Controller792
Lines, 3-Function880
Lines, 3-Lever Pilot Controller794
Lines, 4-Function882
Lines, 4-Lever Pilot Controller796
Lines, A/C Compressor634
Lines, A/C Condenser and Receiver-Dryer640
Lines, Axle Cooling System (Axle Cooling System Kit) (SN338
Lines, Axle Cooling System (Axle Cooling System Kit) (SN340
Lines, Axle Cooling System (SN 626438- )336
Lines, Boom Cylinder (Powerllel™) (2-Spool Control Valve)872
Lines, Boom Cylinder (Powerllel™) (3-Spool Control Valve)874
Lines, Boom Cylinder (Powerllel™) (4-Spool Control Valve)876
Lines, Boom Cylinder (Z-Bar) (2-Spool Control Valve)866
Lines, Boom Cylinder (Z-Bar) (3-Spool Control Valve)868
Lines, Boom Cylinder (Z-Bar) (4-Spool Control Valve)870
Lines, Bucket Cylinder (Powerllel™) (2-Spool Control Valve)872
Lines, Bucket Cylinder (Powerllel™) (3-Spool Control Valve)874
Lines, Bucket Cylinder (Powerllel™) (4-Spool Control Valve)876
Lines, Bucket Cylinder (Z-Bar) (2-Spool Control Valve)866
Lines, Bucket Cylinder (Z-Bar) (3-Spool Control Valve)868
Lines, Bucket Cylinder (Z-Bar) (4-Spool Control Valve)870
Lines, Coupler Third Function (Powerllel™)888
Lines, Electric Fifth Function806
Lines, Fuel (Severe Duty Fuel Filter Kit)386
Lines, Fuel (Severe Duty Fuel System)382
LINES, FUEL FILTER (6389) (HDW80)208
Lines, Fuel380
Lines, Hi-Vis Coupler Cable Reinforced (High Lift Z-Bar)892
Lines, Hi-Vis Coupler Cable Reinforced (Powerllel™)894
Lines, Hi-Vis Coupler Cable Reinforced (Z-Bar)890
Lines, HVAC Module (Heater Only)642
Lines, HVAC Module644
Lines, Joystick (w/ FNR) Pilot Controller and Auxiliary Lever804
Lines, Joystick (w/ FNR) Pilot Controller802
Lines, Joystick (w/o FNR) Pilot Controller and Auxiliary Lever800
Lines, Joystick (w/o FNR) Pilot Controller798
Lines, Joystick Steering Kit404
Lines, Joystick Steering402
Lines, Lubrication – Steering Cylinders (632198- )410
Lines, Main Hydraulic712
Lines, Pin Disconnect (Powerllel™)864
Lines, Pin Disconnect (Z-Bar) (630804- )858
Lines, Pin Disconnect Kit (Z-Bar) ( -630803)860
Lines, Pin Disconnect Kit (Z-Bar) (630804- )862
Lines, Pin Disconnect Valve (Powerllel™)854
Lines, Pin Disconnect Valve (Powerllel™)852
Lines, Reversing Fan Drive Kit354
Lines, Reversing Fan Drive352
Lines, Ride Control (Powerllel™)846
Lines, Ride Control (Z-Bar)844
Lines, Ride Control Kit848
Lines, Standard Fan Drive348
Lines, Third Function Boom to Coupler (High Lift Z-Bar)886
Lines, Third Function Boom to Coupler (Z-Bar)884
Lines, Transmission Oil (Internal)118
Lines, Transmission148
LINES, TURBOCHARGER OIL (65TD) (HDW80)210
LINES-FUEL, HIGH PRESSURE (169Z) (HDW80)160
Linkage Kit, Seat Suspension – Premium Seat620
Linkage Kit, Seat Suspension – Standard Seat612
Linkage, Brake Pedal420
Linkage, Loader Boom (High Lift Z-Bar) (NeverGrease™)768
Linkage, Loader Boom (High Lift Z-Bar)766
Linkage, Loader Boom (Powerllel™)770
Linkage, Loader Boom (Z-Bar) (NeverGrease™)764
Linkage, Loader Boom (Z-Bar)762
Load Center Harness Connector, Cab Roof Harness518
Load Center Harness Connector, Engine Frame Harness508
Load Center Harness Connector, Engine Harness510
Load Center Harness Connector, HVAC Module Harness528
Load Center Harness Connector, Steering Column Harness526
Load Center Harness Connector, Transmission Harness512
Loader Boom-Height Kick-Out (Powerllel™)924
Loader Boom-Height Kick-Out (Z-Bar)922
Loader Bucket, Hi-Vis Coupler (40 yd³)728
Loader Bucket, Pin-On (425 yd³) (NeverGrease™)726
Loader Bucket, Pin-On (425 yd³)724
Loader Control Valve (2-Spool)772
Loader Control Valve (3-Spool) (Powerllel™)776
Loader Control Valve (3-Spool) (Z-Bar)774
Loader Control Valve (4-Spool) (Powerllel™)780
Loader Control Valve (4-Spool) (Z-Bar)778
Loader Frame Guard556
Loader Frame Wiring Harness Mounting (Powerllel™)502
Loader Frame Wiring Harness Mounting (Z-Bar)500
Loader Return-to-Carry (Powerllel™)924
Loader Return-to-Carry (Z-Bar)922
Lock Bar, Frame654
Lock Line, Front Differential 50
Lock Line, Rear Differential 52
LOCK, DIFFERENTIAL 80
Lock, Fork – Hi-Vis Coupler732
Lock, Loader Boom760
Lock-up Torque Converter Connector, Transmission Harness512
Lock-up Torque Converter102
Locking Pin, Rear Hitch and Counterweight456
Locking Pin, Rear Hitch454
Logger Rim, 1 pc (28L X 26 Tire) 38
Louvers, HVAC626
Low Pressure Fuel Pump Connector, Engine Harness510
Low Pressure Fuel Pump Connector, Water Separator w/ Electric538
Low Range Forward Clutch Assembly134
Lubrication Lines, Axle452
Lubrication Lines, Steering Cylinder (632198- )410
Lumbar Kit, Premium Seat618
Lumbar Kit, Standard Seat610
Lumbar Knob Kit, Standard Seat610
M 0
MAGNETIC PICK-UP SENSOR (6721) (HDW80)214
MAGNETIC PICK-UP SENSOR (6744)290
MAIN BEARING KIT299
MAIN BEARING THRUST (9901)301
MAIN THRUST BEARING298
MANIFOLD AIR PRESSURE SENSOR (6721) (HDW80)214
Manifold Air Temperature (MAT) Sensor Connector, Engine Harness510
Manifold Guard, Main Hydraulic Pump710
Manifold Hydraulic Lines, Pump712
MANIFOLD, EXHAUST (2873) (HDW80)170
MANIFOLD, EXHAUST (28AY)252
MANIFOLD, INTAKE (1797)244
Manifold, Main Hydraulic Pump704
Manifold, Transmission Control Valve120
Manual Holder, Operator’s Manual (Cab)594
Manual Holder, Operator’s Manual (Canopy)596
Marker Light (Powerllel™)476
Marker Light (Z-Bar)472
Marker Light Connector, Loader Frame Harness (Powerllel™)506
Marker Light Connector, Loader Frame Harness (Z-Bar)504
Marker Light, LED (Powerllel™)478
Marker Light, LED (Z-Bar)474
Mat, Cab Floor584
Mat, Canopy Floor586
MIDLAND AUX DRIVE AIR COMPRESSOR (9901)315
MIG Controller, JDLink™ Ultimate718
Mirror, Exterior678
Mirror, Heated Exterior680
Mirror, Rear View676
Module, HVAC (Heater Only)642
Module, HVAC644
Module, Sealed Switch520
Monitor, Cab548
Monitoring System, Tire Pressure534
Motor, Reversing Fan Drive Kit354
Motor, Reversing Fan Drive350
Motor, Secondary Steering Pump (Joystick)392
Motor, Secondary Steering Pump (Secondary Steering Kit)390
Motor, Secondary Steering Pump388
Motor, Standard Fan Drive346
MOTOR, STARTING (3041) (HDW80)174
MOTOR, STARTING (3041)256
Motor, Windshield Wiper590
Mount, Park Brake428
MOUNTING BRACKETS, ALTERNATOR (6275) (HDW80)206
MOUNTING BRACKETS, ALTERNATOR (6275) (HDW83)288
Mounting, Axle 48
Mounting, Transmission (w/ Lock-up Torque Converter) 96
Mounting, Transmission (w/o Lock-up Torque Converter) 94
Mounts, Cab568
Mounts, Engine (Engine 6068HDW80)374
Mounts, Engine (Engine 6068HDW83)376
N 0
Neck, Oil Filler238
Noise Reduction Foam, Cab560
NOZZLE INJECTION & WIRING HARNESS (169Z) (HDW80)160
O 0
O-RING KIT (9901)306
Oil Circulation Pump (Axle Cooling System w/ Secondary342
Oil Circulation Pump, Axle (Axle Cooling System Kit) (SN338
Oil Circulation Pump, Axle (Axle Cooling System Kit) (SN340
Oil Circulation Pump, Axle (SN 626438- )336
Oil Cooler, Axle (Axle Cooling System Kit) (SN -626437)338
Oil Cooler, Axle (Axle Cooling System Kit) (SN 626438- )340
Oil Cooler, Axle (Axle Cooling System w/ Secondary Steering)342
Oil Cooler, Axle (SN 626438- )336
OIL COOLER, ENGINE (5945) (HDW80)205
Oil Cooler, Hydraulic330
Oil Cooler, Transmission330
Oil Dipstick, Engine (Axle Cooling System Kit) (SN -626437)338
Oil Dipstick, Engine (Axle Cooling System Kit) (SN 626438- )340
Oil Dipstick, Engine (Axle Cooling System w/ Secondary342
Oil Dipstick, Engine (Axle Cooling System) (SN 626438- )336
Oil Dipstick266
Oil Dipstick184
OIL FILL (1241) (HDW80)156
Oil Fill Tube, Transmission148
Oil Filler Neck238
OIL FILTER / FILTER HEAD (8842) (HDW80)220
OIL FILTER / FILTER HEAD (8842)294
Oil Filter Restriction Indicator Connector, Transmission Harness512
Oil Filter Restriction Indicator Switch, Transmission120
Oil Filter, (Axle Cooling System w/ Secondary Steering) (SN342
Oil Filter, Axle Cooling System (SN 626438- )336
Oil Filter, Axle Cooling System Kit (SN -626437)338
Oil Filter, Axle Cooling System Kit (SN 626438- )340
Oil Filter, Hydraulic Reservoir714
Oil Filter, Transmission 98
Oil Lines, Transmission (Internal)118
OIL LINES, TURBOCHARGER (65TD) (HDW80)210
OIL PAN (1946)246
OIL PAN (1981) (HDW80)164
Oil Pressure Sensor Connector, Engine Harness510
OIL PUMP (5024) (HDW80)198
OIL PUMP (5024)280
OIL PUMP INTAKE (1946)246
OIL PUMP INTAKE (1981) (HDW80)164
Oil Pump, Transmission114
Oil Reservoir, Hydraulic714
OIL SEAL, REAR (9901)303
Operator’s Manual Holder, Cab594
Operator’s Manual Holder, Canopy596
OPTION 3614 FRONT PLATE & IDLER GEAR (HDW80)178
OSCILLATING INPUT COVER (YZ120722) 74
OSCILLATION, DUAL CENTER PIVOT 76
Outlet, 12 V530
Output Speed Sensor Connector, Transmission Harness512
Outside Mirror, Heated680
Outside Mirror678
OVERHAUL KIT, ENGINE (9901)320
P 0
Pallet Forks, Hi-Vis Coupler732
PAN, OIL (1946)246
PAN, OIL (1981) (HDW80)164
Panel, Cab570
Panel, Canopy580
Panels, Engine Side652
Park Brake Solenoid Connector, Engine Frame Harness508
Park Brake Switch Connector, Engine Frame Harness508
Payload Scale, Embedded690
Payload Weight Connector, Loader Frame Harness (Powerllel™)506
Payload Weight Connector, Loader Frame Harness (Z-Bar)504
Pedal, Brake420
Pedal, Engine Speed Control358
Pedal, Steering Column398
Pedestal, Premium Seat for Joystick Steering616
Pedestal, Premium Seat614
Pedestal, Standard Fabric Seat606
Pedestal, Standard Vinyl Seat608
Pilot Controller Conversion Kit, 2-Lever to 3-Lever (Powerllel™)810
Pilot Controller Conversion Kit, 2-Lever to 3-Lever (Z-Bar)808
Pilot Controller Conversion Kit, 2-Lever to Joystick816
Pilot Controller Conversion Kit, 3-Lever to 4-Lever (Powerllel™)814
Pilot Controller Conversion Kit, 3-Lever to 4-Lever (Z-Bar)812
Pilot Controller Conversion Kit, 3-Lever to Joystick w/818
Pilot Controller Conversion Kit, 4-Lever to Dual Joysticks820
Pilot Controller Conversion Kit, Joystick (w/o FNR) to830
Pilot Controller Conversion Kit, Joystick to 2-Lever822
Pilot Controller Conversion Kit, Joystick to Joystick w/826
Pilot Controller Conversion Kit, Joystick to Joystick w/824
Pilot Controller Conversion Kit, Joystick w/ Auxiliary Lever828
Pilot Controller, 2-Lever792
Pilot Controller, 2-Lever832
Pilot Controller, 3-Lever794
Pilot Controller, 4-Lever796
Pilot Controller, Auxiliary Dual Lever836
Pilot Controller, Auxiliary Joystick842
Pilot Controller, Auxiliary Single Lever834
Pilot Controller, Joystick (w/ FNR) and Auxiliary Lever804
Pilot Controller, Joystick (w/ FNR)802
Pilot Controller, Joystick (w/o FNR) and Auxiliary Lever800
Pilot Controller, Joystick (w/o FNR)798
Pilot Controller, Joystick838
Pilot Enable Solenoid Connector, Engine Frame Harness508
Pilot Lines, 2-Function878
Pilot Lines, 2-Lever Controller792
Pilot Lines, 3-Function880
Pilot Lines, 3-Lever Controller794
Pilot Lines, 4-Function882
Pilot Lines, 4-Lever Controller796
Pilot Lines, Joystick Controller (w/ FNR) and Auxiliary Lever804
Pilot Lines, Joystick Controller (w/ FNR)802
Pilot Lines, Joystick Controller (w/o FNR) and Auxiliary Lever800
Pilot Lines, Joystick Controller (w/o FNR)798
Pin Disconnect Connector, Loader Frame Harness (Powerllel™)506
Pin Disconnect Connector, Loader Frame Harness (Z-Bar)504
Pin, Loader Boom (High Lift Z-Bar) (NeverGrease™)756
Pin, Loader Boom (High Lift Z-Bar)754
Pin, Loader Boom (Powerllel™)758
Pin, Loader Boom (Z-Bar) (NeverGrease™)752
Pin, Loader Boom (Z-Bar)750
Pin, Loader Boom Linkage (High Lift Z-Bar) (NeverGrease™)768
Pin, Loader Boom Linkage (High Lift Z-Bar)766
Pin, Loader Boom Linkage (Powerllel™)770
Pin, Loader Boom Linkage (Z-Bar) (NeverGrease™)764
Pin, Loader Boom Linkage (Z-Bar)762
Pin, Rear Hitch and Counterweight456
Pin, Rear Hitch454
Pins, Boom Cylinder (Powerllel™)908
Pins, Boom Cylinder (Z-Bar) (NeverGrease™)898
Pins, Boom Cylinder (Z-Bar)896
Pins, Bucket (425 yd³) (NeverGrease™)726
Pins, Bucket (425 yd³)724
Pins, Hi-Vis Coupler (Powerllel™)740
Pins, Hi-Vis Coupler (Z-Bar) (NeverGrease™)736
Pins, Hi-Vis Coupler (Z-Bar)734
Pins, Hi-Vis Coupler Kit (Z-Bar)738
Pins, Loader Frame (Powerllel™)748
Pins, Loader Frame (Z-Bar) (NeverGrease™)746
Pins, Loader Frame (Z-Bar)744
Pipe, Exhaust – Black (Engine 6068HDW80)366
Pipe, Exhaust – Black (Engine 6068HDW83)370
Pipe, Exhaust – Chrome (Engine 6068HDW80)368
Pipe, Exhaust – Chrome (Engine 6068HDW83)372
PISTON (4834) (HDW80)194
PISTON (4834)276
PISTON LINER KIT (9901)306
PISTON RING KIT (9901)316
Pivot Pin, Loader Frame (Powerllel™)748
Pivot Pin, Loader Frame (Z-Bar) (NeverGrease™)746
Pivot Pin, Loader Frame (Z-Bar)744
Pivot Plates, Hi-Vis Coupler Bucket742
PLATE, FRONT (3626)260
PLATE, FRONT (3614) (HDW80)178
Plates, Skid556
Platform, Access624
Platform, Rear666
Plenum, Engine Air652
Plug, Transmission Drain (w/ Lock-up Torque Converter)110
Plug, Transmission Drain (w/o Lock-up Torque Converter)108
Power Converter, 10 A (24 V to 12 V)530
Power Management Valve708
Power Takeoff (with Lock-up Torque Converter)132
Power Takeoff (without Lock-up Torque Converter)130
Powerllel™ Loader Boom758
Pre-Cleaner, Air364
Pre-Cleaner, HVAC648
Pressure Monitoring System, Tire534
Pressure Regulator Valve (PRV) Fittings704
Pressure Regulator Valve (PRV) Guard710
Pressure Regulator Valve (PRV) Hydraulic Lines712
PRIMARY FUEL FILTER (8169) (HDW80)216
PRIMARY FUEL FILTER (8169) (HDW80)216
PRV Fittings704
PRV Guard710
PRV Hydraulic Lines712
PRV706
Pulley and Clutch Kit, A/C Compressor636
PULLEY, CRANKSHAFT (1320) (HDW80)157
PULLEY, CRANKSHAFT (1320)239
PULLEY, FAN DRIVE (8718) (HDW80)219
PULLEY, FAN DRIVE (8718)293
Pulley, Harsh Environment Alternator546
Pulley, Idler – 100 A Alternator (w/ A/C)470
Pulley, Idler – 100 A Alternator (w/o A/C)468
Pulley, Idler – 80 A Alternator (w/ A/C)466
Pulley, Idler – 80 A Alternator (w/o A/C)464
PULLEY, TENSIONER (8718) (HDW80)219
PULLEY, TENSIONER (8718)293
PULLEY, WATER PUMP (2001)248
PULLEY, WATERPUMP (2001) (HDW80)166
Pump Hydraulic Lines, Main712
Pump Manifold Hydraulic Lines712
Pump Manifold, Main Hydraulic704
Pump, Axle Oil Circulation (Axle Cooling System Kit) (SN338
Pump, Axle Oil Circulation (Axle Cooling System Kit) (SN340
Pump, Axle Oil Circulation (Axle Cooling System w/ Secondary342
Pump, Axle Oil Circulation (SN 626438- )336
Pump, Fan Drive (Axle Cooling System Kit) (SN -626437)338
Pump, Fan Drive (Axle Cooling System Kit) (SN 626438- )340
Pump, Fan Drive (Axle Cooling System w/ Secondary Steering)342
Pump, Fan Drive (Axle Cooling System) (SN 626438- )336
Pump, Fuel – Fuel-Fired Coolant Heater328
PUMP, FUEL INJECTION (16S4)242
PUMP, INLET WATER (5728) (HDW80)204
PUMP, INTAKE OIL (1946)246
PUMP, INTAKE OIL (1981) (HDW80)164
Pump, Main Hydraulic ( -623632)698
Pump, Main Hydraulic (623633- )700
PUMP, OIL (5024) (HDW80)198
PUMP, OIL (5024)280
Pump, Reversing Fan Drive Kit354
Pump, Reversing Fan Drive350
Pump, Secondary Steering (Joystick)392
Pump, Secondary Steering Kit390
Pump, Secondary Steering388
Pump, Standard Fan Drive346
PUMP, TRANSFER FUEL (3713) (HDW80)180
Pump, Transmission Oil114
PUMP, WATER (4440) (HDW80)188
Pump, Window Washer592
PUSH ROD (4905) (HDW80)196
PUSH ROD/ROCKER ARM/SHAFT/TAPPET (4905)278
R 0
Radar Cover556
Radar Sensor, Ground Speed 56
Radar, Rear Object Detection System688
Radiator Hose (Engine 6068HDW80)332
Radiator Hose (Engine 6068HDW83)334
Radiator330
Radio Connector, AM/FM/WB Radio Kit Speaker Harness670
Radio Connector, AM/FM/WB Radio Speaker Harness668
Radio Connector, AM/FM/WB Radio w/ CD Player Kit Speaker Harness674
Radio Connector, AM/FM/WB Radio w/ CD Player Speaker Harness672
Radio Harness Connector, Cab Roof Harness518
Radio Kit, AM/FM/WB w/ CD Player674
Radio Kit, AM/FM/WB670
Radio, AM/FM/WB w/ CD Player672
RADIO, AM/FM/WB668
RE35712 SPIRAL BEVEL ASSEMBLY 5143; RH,TMIV,1400 SERIES 58
Rear Fenders, Full Coverage664
Rear Frame Harness Connector, Engine Frame Harness508
Rear Frame Wiring Harness Mounting (Powerllel™)502
Rear Frame Wiring Harness Mounting (Z-Bar)500
Rear Lights482
REAR OIL SEAL (9901)303
Rear View Mirror, Exterior (Heated)680
Rear View Mirror, Exterior678
Rear Window, Cab574
Rear Windshield Wiper590
Receiver, Tire Pressure Monitoring System534
Receiver-Dryer, A/C640
Recirculation Air Filter, Cab630
Recliner Kit, Premium Seat618
Recliner Kit, Standard Seat610
Recliner Knob Kit, Premium Seat618
Recliner Knob Kit, Standard Seat610
Regulator, Fuel-Fired Coolant Heater328
Relay Excitation Connector, Engine Harness510
RELAY STARTER (9901)317
RELAY STARTER(9901)314
Relay, Load Center Harness520
Relief Valve, Auxiliary Valve Section788
Relief Valve, Boom Valve Section784
Relief Valve, Bucket Valve Section786
Relief Valve, Inlet Valve Section782
Relief Valve, Outlet Valve Section790
Relief Valve, Park Brake Breather428
Relief Valve, Park Brake430
Relief Valve, Torque Converter128
Reman Camshaft272
Reman Camshaft190
Reman Crankshaft274
Reman Crankshaft192
Reman Cylinder Head282
Reman Cylinder Head200
Reman Engine228
Reman Fuel Injection Nozzle160
Reman Fuel Injection Pump242
Reman Fuel Injection Pump160
Reman Injection Nozzle242
Reman Injection Nozzle318
Reman Oil Pump280
Reman Oil Pump198
Reman Turbocharger210
Reman Water Pump270
Reman Water Pump188
REPAIR KIT, WATER PUMP304
REPLACEMENT ENGINE322
REPLACEMENT ENGINE228
Reservoir Kit, Fast Fuel System384
Reservoir Pressurization Kit, Hydraulic716
Reservoir, Fuel378
Reservoir, Hydraulic Oil714
Reservoir, Window Washer592
Resistor Connector, HVAC Module Harness528
Resistor Connector, Water Separator w/ Electric Fuel Pump538
Resistor, HVAC Module646
Restriction Indicator Switch, Hydraulic Reservoir Oil Filter714
Restriction Indicator Switch, Transmission Oil Filter120
Restriction Indicator, Air Filter (Engine 6068HDW80)360
Restriction Indicator, Air Filter (Engine 6068HDW83)362
Return-to-Carry Sensor Connector, Loader Frame Harness506
Return-to-Carry Sensor Connector, Loader Frame Harness (Z-Bar)504
Return-to-Dig Connector, Loader Frame Harness (Powerllel™)506
Return-to-Dig Connector, Loader Frame Harness (Z-Bar)504
Reverse Alarm Connector, Rear Frame Harness514
Reverse Clutch Assembly136
Reverse Clutch Assembly136
Reverse Light, License Plate Bracket (LH)498
Reverse Warning Alarm686
Reversing Fan Solenoid Connector, Rear Frame Harness514
Ride Control Connector, Loader Frame Harness (Powerllel™)506
Ride Control Connector, Loader Frame Harness (Z-Bar)504
Ride Zone Indicator Kit, Seat Suspension – Premium Seat620
Ride Zone Indicator Kit, Seat Suspension – Standard Seat612
Rim, 1 pc (28L X 26 Tire) 38
Rim, 3 pc (235 X 25 Tire) 32
Rim, 5 pc (750/65R25 Low Profile Tire) 34
Rim, 5 pc Heavy Duty (235 X 25 Tire) 36
RING KIT, PISTON (4834) (HDW80)194
RING KIT, PISTON (4834)276
ROCKER ARM COVER (1144) (HDW80)154
ROCKER ARM COVER (1144)236
ROCKER ARM COVER VENT HOSE(2917)(HDW80)172
ROCKER ARM VENT HOSE COVER (2917)(HDW80)172
ROCKER ARM VENT HOSE COVER (2917)254
ROCKER ARM/SHAFT/TAPPET/PUSH ROD (4905)278
ROCKER ARMS (4905) (HDW80)196
ROD, PUSH (4905) (HDW80)196
Roof Wiring Harness Mounting, Cab516
ROPS, Cab570
ROPS, Canopy580
Rotating Beacon Light ( -629340)486
Rotating Beacon Light (629341- )488
Rotating Beacon Light Bracket Kit492
Rotating Beacon Light Bracket490
S 0
Safety Belt, Premium Seat for Joystick Steering616
Safety Belt, Premium Seat614
Safety Belt, Standard Fabric Seat606
Safety Belt, Standard Vinyl Seat608
Sampling Port, Axle Oil (Axle Cooling System Kit) (SN -626437)338
Sampling Port, Axle Oil (Axle Cooling System Kit) (SN340
Sampling Port, Axle Oil (Axle Cooling System w/ Secondary342
Sampling Port, Axle Oil (Axle Cooling System) (SN 626438- )336
Sampling Port, Engine Oil450
Scissor Arm Kit, Seat Suspension – Premium Seat620
Scissor Arm Kit, Seat Suspension – Standard Seat612
Screen, HVAC Pre-Cleaner648
Seal Kit, A/C Compressor636
Seal Kit, Auxiliary Joystick Controller842
Seal Kit, Auxiliary Valve Section788
Seal Kit, Axle Oil Circulation Pump (Axle Cooling System Kit)338
Seal Kit, Axle Oil Circulation Pump (Axle Cooling System Kit)340
Seal Kit, Axle Oil Circulation Pump (Axle Cooling System w/342
Seal Kit, Axle Oil Circulation Pump (SN 626438- )336
Seal Kit, Boom Cylinder (Powerllel™)910
Seal Kit, Boom Cylinder (Powerllel™)912
Seal Kit, Boom Cylinder (Z-Bar)900
Seal Kit, Boom Cylinder (Z-Bar)902
Seal Kit, Boom Valve Section784
Seal Kit, Brake Valve420
Seal Kit, Bucket Cylinder (Powerllel™)914
Seal Kit, Bucket Cylinder (Z-Bar) (SN -627885)904
Seal Kit, Bucket Cylinder (Z-Bar) (SN 627886- )906
Seal Kit, Bucket Valve Section786
Seal Kit, Fan Drive Pump (Axle Cooling System Kit) (SN338
Seal Kit, Fan Drive Pump (Axle Cooling System Kit) (SN340
Seal Kit, Fan Drive Pump (Axle Cooling System w/ Secondary342
Seal Kit, Fan Drive Pump (Axle Cooling System) (SN 626438- )336
Seal Kit, Fan Drive Pump (Reversing Fan Drive Kit)354
Seal Kit, Fan Drive Pump (Reversing)350
Seal Kit, Fan Drive Pump (Standard)346
Seal Kit, Hydraulic Reservoir Oil Filter714
Seal Kit, Inlet Valve Section782
Seal Kit, Main Hydraulic Pump ( -623632)698
Seal Kit, Main Hydraulic Pump (623633- )700
Seal Kit, Outlet Valve Section790
Seal Kit, Pin Disconnect Valve (Powerllel™)864
Seal Kit, Steering Cylinder414
Seal Kit, Steering Valve400
SEAL, REAR OIL (9901)303
Sealed Alternator, 100 A – Harsh Environment546
Sealed Switch Module (SSM)520
Seat Adjustment Kit, Seat Suspension – Premium Seat620
Seat Adjustment Kit, Seat Suspension – Standard Seat612
Seat Base Plate, Cab572
Seat Base Plate, Canopy582
Seat Base, Premium Seat for Joystick Steering616
Seat Base, Premium Seat614
Seat Base, Standard Fabric Seat606
Seat Base, Standard Vinyl Seat608
Seat Belt, Premium Seat for Joystick Steering616
Seat Belt, Premium Seat614
Seat Belt, Standard Fabric Seat606
Seat Belt, Standard Vinyl Seat608
Seat, Premium for Joystick Steering616
Seat, Premium614
Seat, Standard – Fabric606
Seat, Standard – Vinyl608
Second Gear Clutch Assembly140
Secondary Steering Connector, Engine Harness510
Section, Control Valve Auxiliary788
Section, Control Valve Boom784
Section, Control Valve Bucket786
Section, Control Valve Inlet782
Section, Control Valve Outlet790
Sender, Fuel (Severe Duty Fuel System)382
Sender, Fuel380
Sensor, Air Filter Restriction Indicator (Engine 6068HDW80)360
Sensor, Air Filter Restriction Indicator (Engine 6068HDW83)362
SENSOR, AIR PRESSURE (6744)290
SENSOR, AIR TEMPERATURE (6721) (HDW80)214
SENSOR, AIR TEMPERATURE (6744)290
Sensor, Air Temperature – Engine Wiring Harness Mounting502
Sensor, Air Temperature – Engine Wiring Harness Mounting (Z-Bar)500
Sensor, Boom-Height Kick-Out (Powerllel™)924
Sensor, Boom-Height Kick-Out (Z-Bar)922
SENSOR, CRANKSHAFT POSITION (6721) (HDW80)214
SENSOR, ENGINE SPEED (6721) (HDW80)214
SENSOR, ENGINE SPEED (6744)290
Sensor, Ground Speed Radar 56
Sensor, Hydraulic Reservoir Oil Temperature714
SENSOR, MAGNETIC PICK-UP (6721) (HDW80)214
SENSOR, MAGNETIC PICK-UP (6744)290
SENSOR, MANIFOLD AIR PRESSURE (6721) (HDW80)214
Sensor, Rear Object Detection System688
Sensor, Return-to-Carry (Powerllel™)924
Sensor, Return-to-Carry (Z-Bar)922
Sensor, Return-to-Dig (Powerllel™)920
Sensor, Return-to-Dig (Z-Bar) (SN -627885)916
Sensor, Return-to-Dig (Z-Bar) (SN 627886- )918
Sensor, Spin Control702
Sensor, Tire Pressure Monitoring System534
Sensor, Transmission Speed112
Sensor, Transmission Temperature (w/ Lock-up Torque Converter)124
Sensor, Transmission Temperature (w/o Lock-up Torque Converter)122
SENSOR, WATER IN FUEL (8169) (HDW80)216
Sensor, Water In Fuel (Severe Duty Fuel Filter Kit)386
SENSOR, WATER TEMPERATURE (6698)289
SENSORS214
SEPARATOR, WATER (8169) (HDW80)216
Serpentine Belt, 100 A Alternator (w/ A/C)470
Serpentine Belt, 100 A Alternator (w/o A/C)468
Serpentine Belt, 80 A Alternator (w/ A/C)466
Serpentine Belt, 80 A Alternator (w/o A/C)464
Serpentine Belt, Harsh Environment Alternator546
Service Door, Engine652
SERVICE ENGINE (9901)322
SERVICE ENGINE (9901)228
SERVICE INJECTOR KIT (9901)318
SERVICE KIT (9901)304
Service Kits, Premium Seat618
Service Kits, Seat Suspension – Premium Seat620
Service Kits, Seat Suspension – Standard Seat612
Service Kits, Standard Seat610
Severe Duty Fuel Filter (Severe Duty Fuel Filter Kit)386
Severe Duty Fuel Filter382
Shaft Kit, Seat Suspension – Premium Seat620
Shaft Kit, Seat Suspension – Standard Seat612
SHAFT, AXLE HOUSING 66
SHAFT, AXLE HOUSING 64
SHAFT, AXLE HOUSING 68
Shaft, Drive (w/ Lock-up Torque Converter) 92
Shaft, Drive (w/o Lock-up Torque Converter) 90
Shaft, Power Takeoff (w/ Lock-up Torque Converter)132
Shaft, Power Takeoff (w/o Lock-up Torque Converter)130
Shaft, Torque Converter (Lock-up)102
Shaft, Torque Converter100
Shaft, Transmission Input (w/ Lock-up Torque Converter)106
Shaft, Transmission Input (w/o Lock-up Torque Converter)104
Shaft, Transmission Output126
SHAFT/TAPPET/PUSH ROD/ROCKER ARM (4905)278
Shields, Cab588
Shields, Transmission656
Shifter Switch Connector, Steering Column Harness526
Shifter, Steering Column FNR522
Shock Absorber Kit, Seat Suspension – Premium Seat620
Shock Absorber Kit, Seat Suspension – Standard Seat612
Shroud, Fan344
Side Counterweight558
Side Shields, Engine652
Sight Gauge, Hydraulic Reservoir714
Sight Gauge, Transmission Oil148
Sign, Slow Moving Vehicle (SMV)694
Single Lever Controller, Auxiliary834
Skid Plates, Hi-Vis Coupler (40 yd³)728
Skid Plates, Pin-On Bucket (425 yd³) (NeverGrease™)726
Skid Plates, Pin-On Bucket (425 yd³)724
Skid Plates556
Slide Control Kit, Premium Seat618
Slide Control Kit, Standard Seat610
Slide Puck Kit, Premium Seat618
Slide Puck Kit, Standard Seat610
Slide Spring Kit, Premium Seat618
Slide Spring Kit, Standard Seat610
SMV Sign694
Socket Outlet, 12 V530
Solenoid, 2-Lever Pilot Controller832
Solenoid, Auxiliary Dual Lever Controller836
Solenoid, Auxiliary Single Lever Controller834
Solenoid, Joystick Pilot Controller838
Solenoid, Pin Disconnect Valve (Powerllel™)864
Solenoid, Pin Disconnect Valve856
Solenoid, Pressure Regulator Valve (PRV)706
Solenoid, Reversing Fan Drive Valve356
Solenoid, Ride Control Valve850
Solenoid, Secondary Steering Pump (Joystick)392
Solenoid, Secondary Steering Pump (Secondary Steering Kit)390
Solenoid, Secondary Steering Pump388
Solenoid, Transmission Control Valve (w/ Lock-up Torque124
Solenoid, Transmission Control Valve (w/o Lock-up Torque122
Sound Absorption Package, Level 1658
Speaker Connector, AM/FM/WB Radio Kit Speaker Harness670
Speaker Connector, AM/FM/WB Radio Speaker Harness668
Speaker Connector, AM/FM/WB Radio w/ CD Player Kit Speaker674
Speaker Connector, AM/FM/WB Radio w/ CD Player Speaker Harness672
Speaker, AM/FM/WB Radio Kit670
Speaker, AM/FM/WB Radio w/ CD Player Kit674
Speaker, AM/FM/WB Radio w/ CD Player672
Speaker, AM/FM/WB Radio668
Speed Sensor Connector, Transmission Harness512
SPIRAL BEVEL ASSEMBLY 5143 58
SPIRAL BEVEL ASSEMBLY 5143 60
Spring Kit, Premium Seat618
Spring Kit, Standard Seat610
SSM (Sealed Switch Module)520
STANDARD DIFFERENTIAL (YZ121182) 86
STANDARD DIFFERENTIAL CASE 82
STANDARD DIFFERENTIAL CASE 84
STANDARD INPUT HOUSING, OSCILLATING 70
Standard Input Housing 72
STARTER (HDW80)174
STARTER MOTOR (3041) (HDW80)174
STARTER MOTOR (3041)256
STARTER RELAY (9901)314
STARTER RELAY (9901)317
Starter Relay, Load Center Harness520
STARTING AID (HDW80)186
STARTING AID268
STARTING MOTOR (HDW80)174
Stator Kit, A/C Compressor636
Steering Column Wiring Harness (Joystick FNR)524
Steering Column Wiring Harness (Steering Column FNR)522
Steering Column396
Steering Cushions552
Steering Hydraulics, Joystick402
Steering Kit, Joystick404
Steering Kit, Secondary390
Steering Pressure Switch Connector, Engine Frame Harness508
Steering Valve, Joystick406
Steering Valve, Secondary394
Steering, Secondary (Joystick)392
Steering, Secondary388
Step, Engine Compartment622
Step, Rear622
Steps, Access Platform624
Stop Block, Axle (9 Degree) 46
Strainer, Fuel378
Strainer, Hydraulic Reservoir714
Strap, Fuel Tank554
STRAPS, LIFT (9801) (HDW80)224
STRAPS, LIFT (9801)295
Striker, Cab Door570
Striker, Cab Window570
Striker, RH Cab Window574
Strobe Light ( -629340)486
Strobe Light (629341- )488
Strobe Light Bracket Kit492
Strobe Light Bracket490
Stud Assembly, 2-Spool Control Valve772
Stud Assembly, 3-Spool Control Valve (Powerllel™)776
Stud Assembly, 3-Spool Control Valve (Z-Bar)774
Stud Assembly, 4-Spool Control Valve (Powerllel™)780
Stud Assembly, 4-Spool Control Valve (Z-Bar)778
Suction Control Valve (169Z)160
SUCTION CONTROL VALVE (16S4)242
Suction Lines, Hydraulic Pump712
SUPPORT, ALTERNATOR (6275) (HDW80)206
Support, Axle 48
Support, Transmission (w/ Lock-up Torque Converter) 96
Support, Transmission (w/o Lock-up Torque Converter) 94
Surge Tank (Engine 6068HDW80)332
Surge Tank (Engine 6068HDW83)334
Switch Panel, Sealed520
Switch, Battery Disconnect460
Switch, Cycle Counter520
Switch, Differential Lock 54
Switch, Domelight480
Switch, Electric Fifth Function806
Switch, Engine Compartment Light494
Switch, Heated Seat – Premium Seat for Joystick Steering616
Switch, Heated Seat – Premium Seat614
Switch, Heater Control (Heater Only)642
Switch, Heater Control644
Switch, High Beam (Joystick FNR)524
Switch, High Beam (Steering Column FNR)522
Switch, Horn396
Switch, Hydraulic Reservoir Oil Filter Restriction Indicator714
Switch, Joystick Steering Kit404
Switch, Joystick Steering416
Switch, Kickdown – 2-Lever Pilot Controller832
Switch, Left-hand Joystick Handle418
Switch, Right-hand Joystick Handle with FNR Switch840
Switch, Steering Column FNR522
SWITCH, TEMPERATURE (HDW80) (6698)212
Switch, Thermostat – HVAC Module646
Switch, Transmission Oil Filter Restriction Indicator120
Switch, Turn Signal (Joystick FNR)524
Switch, Turn Signal (Steering Column FNR)522
SYSTEM, VENTILATING (2917)(HDW80)172
SYSTEM, VENTILATING (2917)254
T 0
Tail Lights482
Tank, Coolant Recovery (Engine 6068HDW80)332
Tank, Coolant Recovery (Engine 6068HDW83)334
Tank, Fuel378
Tank, Hydraulic Oil714
Tank, Window Washer592
TAPPET, ROCKER ARM (4905) (HDW80)196
TAPPET/PUSH ROD/ROCKER ARM/SHAFT (4905)278
Teeth, Bucket722
Temperature Control (Heater Only)642
Temperature Control644
Temperature Sensor, Air – Engine Wiring Harness Mounting502
Temperature Sensor, Air – Engine Wiring Harness Mounting (Z-Bar)500
Temperature Sensor, Hydraulic Reservoir714
Temperature Sensor, Transmission (w/ Lock-up Torque Converter)124
Temperature Sensor, Transmission (w/o Lock-up Torque Converter)122
TEMPERATURE SWITCH (HDW80) (6698)212
TEMPERATURE SWITCH, WATER289
TENSIONER, BELT (8718) (HDW80)219
TENSIONER, BELT (8718)293
Test Port, Axle Oil (Axle Cooling System Kit) (SN -626437)338
Test Port, Axle Oil (Axle Cooling System Kit) (SN 626438- )340
Test Port, Axle Oil (Axle Cooling System w/ Secondary342
Test Port, Axle Oil (Axle Cooling System) (SN 626438- )336
Test Ports, Fluid448
Tether Kit, Seat Suspension – Premium Seat620
Tether Kit, Seat Suspension – Standard Seat612
Thermal Bypass Valve148
THERMOCOUPLE (6721) (HDW80)214
THERMOCOUPLE (6744)290
THERMOSTAT (2255) (HDW80)168
THERMOSTAT COVER (2154) (HDW80)167
THERMOSTAT COVER (2154)249
THERMOSTAT HOUSING (3917) (HDW80)182
THERMOSTAT HOUSING (3933)264
Thermostat Switch, HVAC Module646
THERMOSTAT250
Third Gear Clutch Assembly142
THRUST BEARING MAIN (9901)301
Timer, Fuel-Fired Coolant Heater328
TIMING GEAR COVER (4440) (HDW80)188
TIMING GEAR COVER (4451)270
TIMING GEAR COVER (4657)272
Tine, Fork – Hi-Vis Coupler732
Torque Converter Connector, Transmission Harness512
Torque Converter Relief Valve and Transmission Minimum128
Torque Converter100
Torsional Drive Damper146
Transducer, Embedded Payload Scale690
Transducer, Spin Control702
TRANSFER FUEL, PUMP (3713) (HDW80)180
Transmission (w/ Lock-up Torque Converter) 96
Transmission (w/o Lock-up Torque Converter) 94
Transmission Control Valve (w/ Lock-up Torque Converter)124
Transmission Control Valve (w/o Lock-up Torque Converter)122
Transmission Control Valve Manifold120
Transmission Controller520
Transmission Cover and Gasket116
Transmission Drive Shafts (w/ Lock-up Torque Converter) 92
Transmission Drive Shafts (w/o Lock-up Torque Converter) 90
Transmission Gear Selector (FNR), Steering Column522
Transmission Guard556
Transmission Harness Connector, Engine Harness510
Transmission Housing (with Lock-up Torque Converter)110
Transmission Housing (without Lock-up Torque Converter)108
Transmission Input Gear (w/ Lock-up Torque Converter)106
Transmission Input Gear (w/o Lock-up Torque Converter)104
Transmission Input Shaft (with Lock-up Torque Converter)106
Transmission Input Shaft (without Lock-up Torque Converter)104
Transmission Internal Oil Lines118
Transmission Minimum Pressure Valve128
Transmission Oil Cooler330
Transmission Oil Fill Tube148
Transmission Oil Filter Restriction Indicator Switch120
Transmission Oil Filter 98
Transmission Oil Sampling Fitting448
Transmission Oil Sight Gauge148
Transmission Output Shaft126
Transmission Pump114
Transmission Speed Sensor112
Transmission Wiring Harness Mounting (Powerllel™)502
Transmission Wiring Harness Mounting (Z-Bar)500
Transmitter, Tire Pressure Monitoring System534
Travel Alarm686
Trim, Cab572
Trim, Canopy582
TUBE, BY PASS / THERMOSTAT HOUSING(3917) (HDW80)182
TUBE, OIL PUMP INTAKE (5024) (HDW80)198
TUBE, OIL PUMP INTAKE (5024)280
TUBE, THERMOSTAT HOUSING (3933)264
TUBE, WATER PUMP BYPASS (2154) (HDW80)167
TURBO AIR INLET (HDW80)203
TURBO AIR INLET BRACKET (5497) (HDW80)203
TURBO AIR INLET BRACKET (5497)285
TURBOCHARGER AND OIL LINES (HDW80)210
TURBOCHARGER OIL LINES (65TD) (HDW80)210
Turn Signal Light (Powerllel™)476
Turn Signal Light (Z-Bar)472
Turn Signal Light Connector, Loader Frame Harness (Powerllel™)506
Turn Signal Light Connector, Loader Frame Harness (Z-Bar)504
Turn Signal Light, LED (Powerllel™)478
Turn Signal Light, LED (Z-Bar)474
Turn Signal Lights, Rear482
Turn Signal Switch (Joystick FNR)524
Turn Signal Switch (Steering Column FNR)522
Turn Signal Switch Connector, Steering Column Harness526
U 0
Universal Joint (w/ Lock-up Torque Converter) 92
Universal Joint (w/o Lock-up Torque Converter) 90
Universal Joint Yoke, Park Brake428
V 0
VALVE , CONTROLLING (9901)313
Valve Manifold, Transmission Control120
Valve Section, Auxiliary788
Valve Section, Boom784
Valve Section, Bucket786
Valve Section, Electric Fifth Function806
Valve Section, Inlet782
Valve Section, Outlet790
Valve Stem, 1 pc Rim (28L X 26 Tire) 38
Valve Stem, 3 pc Rim (235 X 25 Tire) 32
Valve Stem, 5 pc Heavy Duty Rim (235 X 25 Tire) 36
Valve Stem, 5 pc Rim (750/65R25 Low Profile Tire) 34
Valve, Anti-Stall708
Valve, Brake420
VALVE, EXHAUST (5128)282
Valve, Fast Fuel System384
Valve, HVAC Module646
Valve, Hydraulic Power Management708
VALVE, INTAKE (5128)282
Valve, Joystick Steering406
Valve, Loader Control (2-Spool)772
Valve, Loader Control (3-Spool) (Powerllel™)776
Valve, Loader Control (3-Spool) (Z-Bar)774
Valve, Loader Control (4-Spool) (Powerllel™)780
Valve, Loader Control (4-Spool) (Z-Bar)778
Valve, Pin Disconnect (Powellel™)864
Valve, Pin Disconnect – Hydraulic Lines (Powerllel™)854
Valve, Pin Disconnect – Hydraulic Lines (Powerllel™)852
Valve, Pin Disconnect Kit (Z-Bar) ( -630803)860
Valve, Pin Disconnect Kit (Z-Bar) (630804- )862
Valve, Pin Disconnect856
Valve, Pressure Regulator704
Valve, Pressure Regulator706
Valve, Reversing Fan Drive356
Valve, Ride Control (Powerllel™)846
Valve, Ride Control (Z-Bar)844
Valve, Ride Control Kit848
Valve, Ride Control850
Valve, Secondary Steering (Components)394
Valve, Secondary Steering (Joystick)392
Valve, Secondary Steering Kit390
Valve, Secondary Steering388
Valve, Steering400
VALVE, SUCTION CONTROL (169Z) (HDW80)160
VALVE, SUCTION CONTROL (16S4)242
Valve, Thermal Bypass148
Valve, Torque Converter Relief128
Valve, Transmission Minimum Pressure128
VEC (Vehicle Electrical Center)520
Vehicle Electrical Center (VEC)520
VENT HOSE, ROCKER ARM COVER(2917)(HDW80)172
VENT HOSE, ROCKER ARM COVER(2917)254
Vent, Fuel Tank378
VENTILATING SYSTEM (2917)(HDW80)172
VENTILATING SYSTEM (2917)254
Vents, Front Console626
Vinyl Seat, Standard608
Visor, Sun692
W 0
WATER IN FUEL SENSOR (8169) (HDW80)216
Water in Fuel Sensor Connector, Engine Harness510
WATER PUMP (4440) (HDW80)188
WATER PUMP AND PULLEY (2001)248
WATER PUMP BYPASS TUBE (2154) (HDW80)167
WATER PUMP INLET (5728) (HDW80)204
WATER PUMP INLET (5728)286
WATER PUMP REPAIR KIT304
WATER SEPARATOR (8169) (HDW80)216
WATER TEMPERATURE SENSOR (6698)289
Water Valve, HVAC Module646
WATERPUMP PULLEY (2001) (HDW80)166
Weighing Kit, Payload690
Wheel Rim Assembly, 1 pc (28L X 26 Tire) 38
Wheel Rim Assembly, 3 pc (235 X 25 Tire) 32
Wheel Rim Assembly, 5 pc (750/65R25 Low Profile Tire) 34
Wheel Rim Assembly, 5 pc Heavy Duty (235 X 25 Tire) 36
Wheel, Steering396
WIF SENSOR (8169) (HDW80)216
Window Bumper Kit, Cab578
Window, Cab Door576
Window, Cab Rear574
Windows, Cab574
Windshield Washer Pump Connector, Engine Frame Harness508
Windshield Wiper590
Windshield, Cab574
Wiper Arm590
Wiper Blade590
Wiper Jumper Harness Connector, Cab Roof Harness518
Wiper Motor Connector, Wiper Motor Jumper Harness536
WIRING HARNESS & INJECTION NOZZLE (169Z) (HDW80)160
WIRING HARNESS (8491) (HDW80)218
WIRING HARNESS BRACKETS (8484)292
Wiring Harness Mounting, Cab Roof516
Wiring Harness Mounting, Engine (Powerllel™)502
Wiring Harness Mounting, Engine (Z-Bar)500
Wiring Harness Mounting, Engine Frame (Powerllel™)502
Wiring Harness Mounting, Engine Frame (Z-Bar)500
Wiring Harness Mounting, Load Center520
Wiring Harness Mounting, Loader Frame (Powerllel™)502
Wiring Harness Mounting, Loader Frame (Z-Bar)500
Wiring Harness Mounting, Rear Frame (Powerllel™)502
Wiring Harness Mounting, Rear Frame (Z-Bar)500
Wiring Harness Mounting, Transmission (Powerllel™)502
Wiring Harness Mounting, Transmission (Z-Bar)500
Wiring Harness, AM/FM/WB Radio Kit Speaker670
Wiring Harness, AM/FM/WB Radio Speaker668
Wiring Harness, AM/FM/WB Radio w/ CD Player Kit Speaker674
Wiring Harness, AM/FM/WB Radio w/ CD Player Speaker672
Wiring Harness, Auto Differential Lock 56
Wiring Harness, Beacon Light Jumper ( -629340)486
Wiring Harness, Beacon Light Jumper (629341- )488
Wiring Harness, Cab Roof518
Wiring Harness, Electric Fifth Function806
Wiring Harness, Engine Frame508
Wiring Harness, Engine510
Wiring Harness, Fuel-Fired Coolant Heater328
Wiring Harness, Harsh Environment Kit (Powerllel™)544
Wiring Harness, Harsh Environment Kit (Z-Bar)542
Wiring Harness, HVAC Module528
Wiring Harness, JDLink™ Ultimate718
Wiring Harness, Joystick Steering Kit404
Wiring Harness, Joystick Steering416
Wiring Harness, Left Armrest for Joystick Steering604
Wiring Harness, License Plate Light (LH)498
Wiring Harness, License Plate Light (RH)496
Wiring Harness, Loader Frame (Powerllel™)506
Wiring Harness, Loader Frame (Z-Bar)504
Wiring Harness, Main (Powerllel™)502
Wiring Harness, Main (Z-Bar)500
Wiring Harness, Rear Frame514
Wiring Harness, Rear Object Detection System688
Wiring Harness, Return-to-Dig (Z-Bar) (SN -627885)916
Wiring Harness, Return-to-Dig (Z-Bar) (SN 627886- )918
Wiring Harness, Ride Control Kit848
Wiring Harness, Right-hand Joystick Handle with FNR Switch840
Wiring Harness, Secondary Steering (Joystick)392
Wiring Harness, Secondary Steering Kit390
Wiring Harness, Secondary Steering388
Wiring Harness, Steering Column (Components)526
Wiring Harness, Steering Column (Joystick FNR)524
Wiring Harness, Steering Column (Steering Column FNR)522
Wiring Harness, Tire Pressure Monitoring System534
Wiring Harness, Transmission Control Valve (w/ Lock-up Torque124
Wiring Harness, Transmission Control Valve (w/o Lock-up Torque C122
Wiring Harness, Transmission512
Wiring Harness, Water Separator w/ Electric Fuel Pump538
Wiring Harness, Water Separator w/ Electric Fuel Pump382
Wiring Harness, Wiper Motor Jumper536
WITHOUT FUEL PUMP, COVER (3799)262
Work Lights, Cab484
Y 0
YOKE, INPUT 62
Yoke, Park Brake428
Yoke, Torque Converter (Lock-up)102
Yoke, Torque Converter100
Yoke, Transmission Output126
YZ120718 SPIRAL BEVEL ASSEMBLY 5143; LH,TMIV,1400 SERIES 60
YZ120721 AXLE HOUSING AND SHAFT W/O MTG HOLES TMIV,1400 64
YZ120722 INPUT COVER, OSCILLATING; DUCTILE 74
YZ120724 DUAL BRAKES 4800:1; TMIV,1400 SERIES 78
YZ120751 INPUT YOKE WITH SLINGER (1610)TMIV,1400 SERIES 62
YZ120753 FINAL DRIVE 48:1; TMIV,1400 SERIES 88
YZ120948 STANDARD DIFFERENTIAL CASE; TMIV,1400 SERIES 82
YZ120983 STANDARD DIFFERENTIAL CASE 1400 SERIES 84
YZ121049 Std Input Housing Non-Osc(1400) rear/heavy/extreme 72
YZ121182 STANDARD DIFFERENTIAL;CODE I3 – ORDER CODE 1903 86
YZ121256 DIFFERENTIAL LOCK; TMIV,1400 SERIES 80
YZ121301 OSCILLATION, DUAL CENTER PIVOT; 1400 SERIES 76
YZ121321 STANDARD INPUT HOUSING, OSCILLATING; TMIV,1400 SERIES 70
YZ121796 REAR AXLE HOUSING AND SHAFT; TMIV,1400 SERIES 66
YZ121797 FRONT AXLE HOUSING AND SHAFT; TMIV,1400 SERIES 68
Z 0
Z-Bar Loader Boom (High Lift) (NeverGrease™)756
Z-Bar Loader Boom (High Lift)754
Z-Bar Loader Boom (NeverGrease™)752
Z-Bar Loader Boom750
# 0
1 Pc Logger Rim (28L X 26 Tire) 38
100 Amp Sealed Alternator, Harsh Environment546
1144 (ROCKER ARM COVER)154
1144 ROCKER ARM COVER236
1241 (OIL FILL)156
1241 Oil Filler Neck238
1320 (CRANKSHAFT PULLEY)157
1320 CRANKSHAFT PULLEY239
1405 (FLYWHEEL HOUSING)158
1405 FLYWHEEL HOUSING240
1503 (FLYWHEEL)159
1503 FLYWHEEL241
169Z (FUEL INJECTION PUMP)160
16S4 FUEL INJECTION PUMP242
1797 INTAKE MANIFOLD244
17BL (AIR INLET)162
1946 OIL PAN246
1981 (OIL PAN)164
2001 (WATER PUMP PULLEY)166
2001 WATER PUMP PULLEY248
2154 (THERMOSTAT COVER)167
2154 THERMOSTAT COVER249
2255 (THERMOSTAT)168
2255 THERMOSTAT250
2698 (ENGINE COOLANT HEATER)169
2698 ENGINE COOLANT HEATER251
2873 (EXHAUST MANIFOLD)170
28AY EXHAUST MANIFOLD252
2917 (VENTILATING SYSTEM)172
2917 VENTILATING SYSTEM254
3 Pc Rim (235 X 25 Tire) 32
3041 (STARTING MOTOR)174
3041 STARTING MOTOR256
35DZ (FUEL FILTER)176
35EM FUEL FILTER258
3614 (FRONT PLATE AND IDLE GEARS) (UPPER AND LOWER)178
3626 FRONT PLATE260
3713 (FUEL TRANSFER PUMP)180
3799 COVER, WITHOUT FUEL PUMP262
3917 (THERMOSTAT HOUSING / BY PASS TUBE TO WATER PUMP)182
3933 THERMOSTAT HOUSING BY PASS TUBE TO WATER PUMP264
4035 Engine Oil Dipstick266
4035 Engine Oil Dipstick184
4330 (STARTING AID)186
4330 STARTING AID268
4440 (TIMING GEAR COVER)188
4451 TIMING GEAR COVER270
4633 (CYLINDER BLOCK)190
4657 CYLINDER BLOCK272
4712 (CRANKSHAFT / BEARINGS)192
4712 CRANKSHAFT AND BEARINGS274
4834 (CONNECTING RODS AND PISTONS)194
4834 CONNECTING RODS AND PISTONS276
4905 (ROCKER ARM / SHAFT / TAPPET / PUSH ROD)196
4905 ROCKER ARM, SHAFT, PUSH ROD278
5 Pc Rim (750/65R25 Low Profile Tire) 34
5024 (OIL PUMP)198
5024 OIL PUMP280
5120 (CYLINDER HEAD)200
5128 CYLINDER HEAD282
5204 (AUXILIARY DRIVE)202
5204 AUXILIARY DRIVE284
5497 (TURBO AIR INLET)203
5497 TURBO AIR INLET285
5728 (WATER PUMP INLET)204
5728 WATER PUMP INLET286
5945 (OIL COOLER)205
5951 OIL COOLER287
6275 (ALTERNATOR BRACKETS)206
6275 ALTERNATOR BRACKETS288
6284 (ALTERNATOR BRACKETS)207
6389 (FUEL LINES)208
65TD (TURBOCHARGER)210
6698 (TEMPERATURE SWITCH)212
6698 TEMPERATURE SWITCH, WITHOUT289
6721 (SENSORS)214
6744 SENSORS290
8169 (PRIMARY FUEL FILTER)216
8484 ENGINE WIRING HARNESS292
8491 (ENGINE WIRING HARNESS )218
8718 (BELT TENSIONER)219
8718 BELT TENSIONER293
8842 (OIL FILTER)220
8842 OIL FILTER294
8910 (EXHAUST GAS RECIRCULATION (EGR))222
9801 (LIFT STRAPS)224
9801 LIFT STRAPS295
9901 (REPLACEMENT ENGINE)228
9901 -(COMPLETE BLOCK ASSEMBLY)226
9901 AIR COMPRESSOR KIT MIDLAND315
9901 BEARING KIT298
9901 CONNECTING ROD BEARING KIT297
9901 CONNECTING ROD, BEARINGS296
9901 CONTROL VALVE313
9901 CYLINDER LINER PACKING302
9901 EGR VALVE GASKET KIT312
9901 ENGINE GASKET KIT310
9901 ENGINE GASKET SET, OVERHAUL308
9901 ENGINE OVERHAUL KIT320
9901 INJECTION NOZZLE318
9901 MAIN BEARING KIT299
9901 MAIN BEARING300
9901 PISTON LINER KIT306
9901 PISTON RING KIT316
9901 REAR OIL SEAL303
9901 REPLACEMENT ENGINE322
9901 STARTER RELAY314
9901 STARTER RELAY317
9901 THRUST BEARING301
9901 WATER PUMP REPAIR KIT304

G.B 06/01/25
