John Deere 344J Loader Parts Manual PC9372 – PDF DOWNLOAD

Description

John Deere 344J Loader Parts Manual PC9372 – PDF DOWNLOAD

FILE DETAILS:

John Deere 344J Loader Parts Manual PC9372 – PDF DOWNLOAD

Language : English
Pages : 466
Downloadable : Yes
File Type : PDF

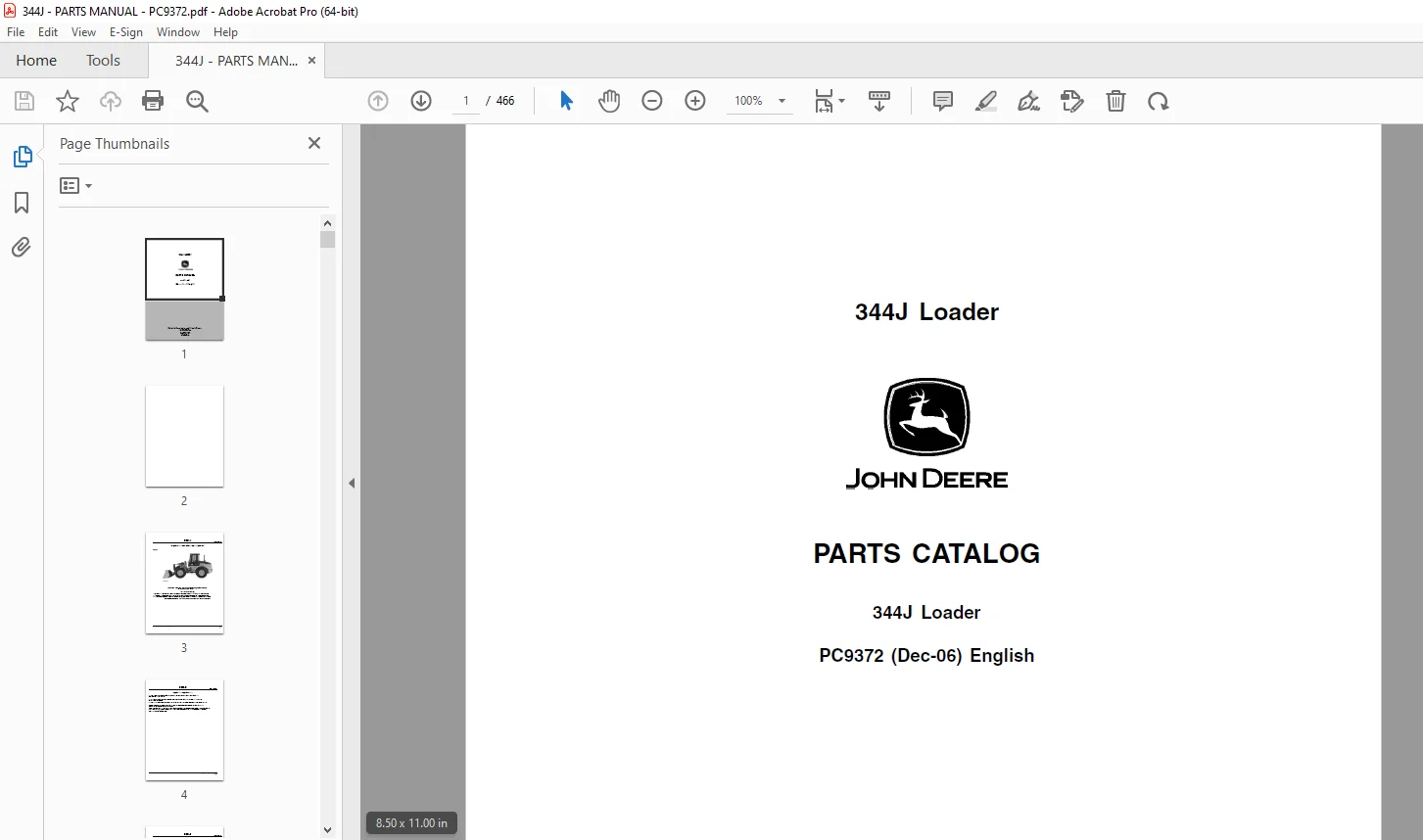

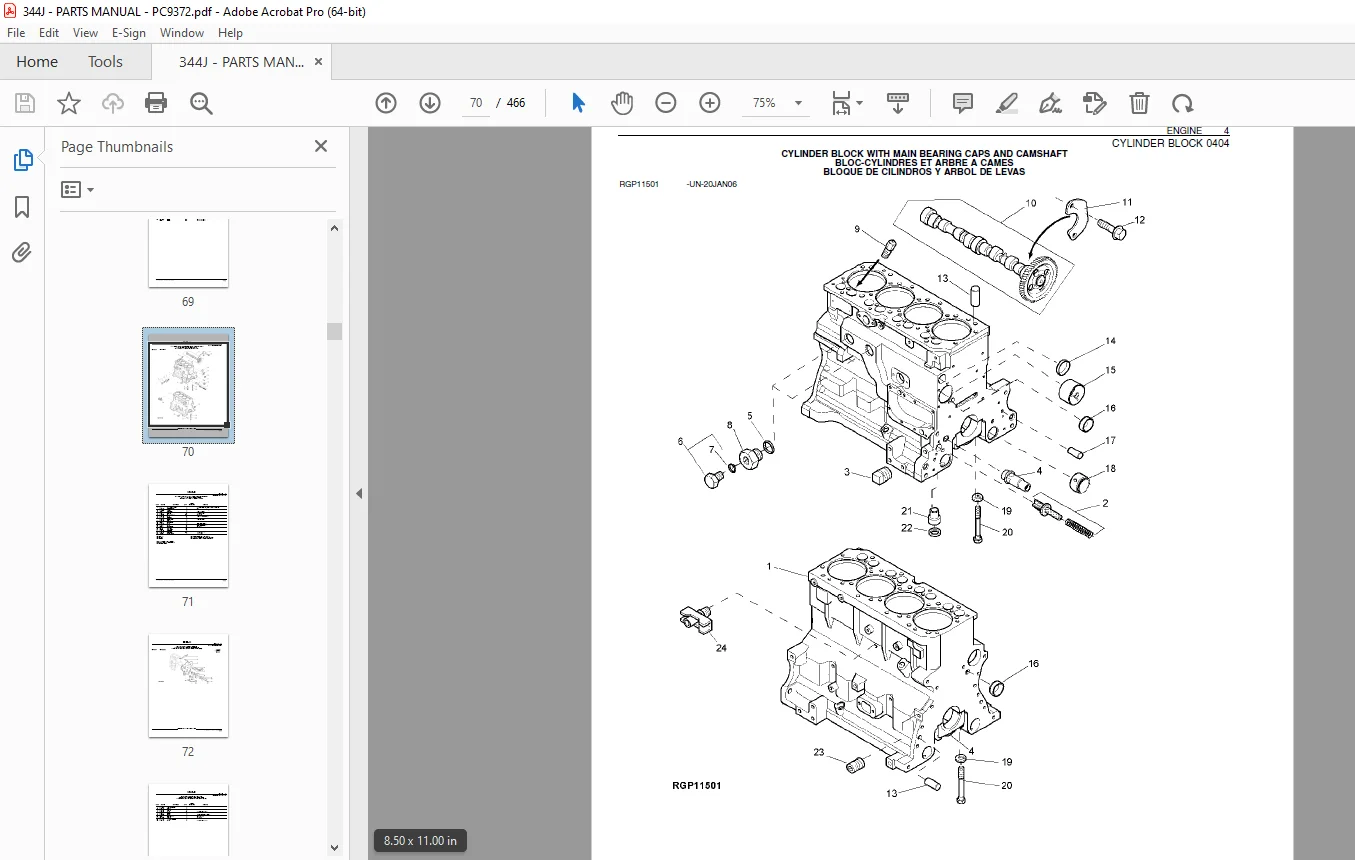

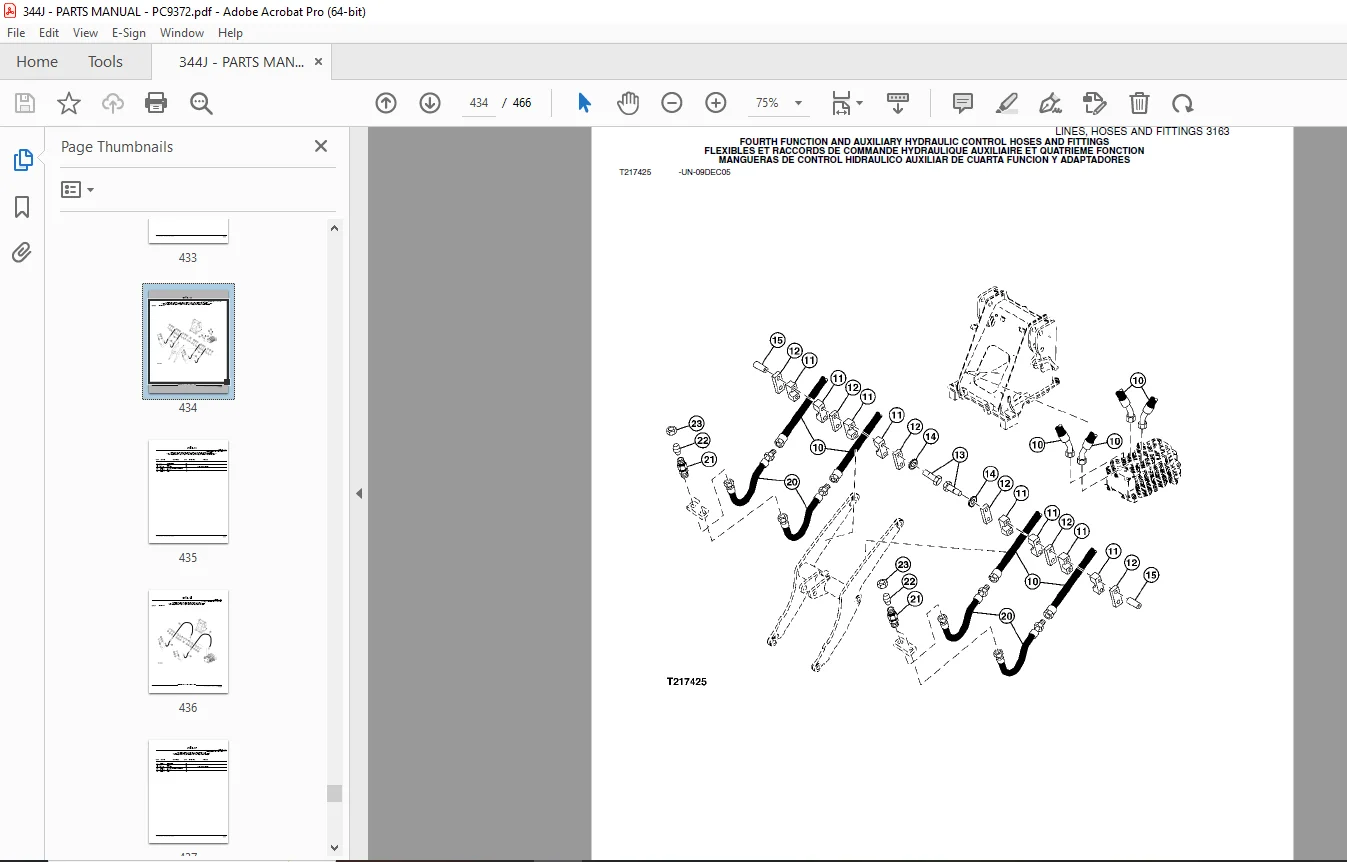

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

John Deere 344J Loader Parts Manual PC9372 – PDF DOWNLOAD

PC9372 – 344J Loader – Dec-06 1
Contents 1
0110 – WHEELS & TIRES & TRACKS 1 24
POWERED WHEELS, TIRES AND FASTENINGS 0110 24
2 – WHEELS 24
3 – WHEELS 25
0225 – AXLES, DIFFERENTIALS & SUSPENSION SYSTEMS 2 26
INPUT DRIVE SHAFTS AND U-JOINTS 0225 26
2 – FRONT AND REAR DRIVESHAFT 26
3 – FRONT AND REAR DRIVESHAFT 27
0242 – AXLES, DIFFERENTIALS & SUSPENSION SYSTEMS 2 28
AXLE MOUNTING PARTS 0242 28
2 – FRONT AXLE AND MOUNTING HARDWARE 28
3 – FRONT AXLE AND MOUNTING HARDWARE 29
4 – REAR AXLE AND MOUNTING HARDWARE 30
5 – REAR AXLE AND MOUNTING HARDWARE 31
0250 – AXLES, DIFFERENTIALS & SUSPENSION SYSTEMS 2 32
AXLE SHAFT, BEARINGS, REDUCTION GEARS 0250 32
2 – FRONT AXLE DIFFERENTIAL HOUSING, BEVEL GEAR AND DISK 32
3 – FRONT AXLE DIFFERENTIAL HOUSING, BEVEL GEAR AND DISK 33
4 – FRONT PLANETARY GEAR DRIVE 34
5 – FRONT PLANETARY GEAR DRIVE 35
6 – FRONT AXLE HOUSING ASSY 36
7 – FRONT AXLE HOUSING ASSY 37
8 – REAR AXLE REDUCTION GEAR BOX 38
9 – REAR AXLE REDUCTION GEAR BOX 39
10 – REAR AXLE DIFFERENTIAL ASSY, RING AND PINION 40
11 – REAR AXLE DIFFERENTIAL ASSY, RING AND PINION 41
12 – REAR AXLE DRIVE HOUSING, HUB AND RING GEAR 42
13 – REAR AXLE DRIVE HOUSING, HUB AND RING GEAR 43
14 – POWER TAKE-OFF GEARS 44
15 – POWER TAKE-OFF GEARS 45
0263 – AXLES, DIFFERENTIALS & SUSPENSION SYSTEMS 2 46
LINES, HOSES AND FITTINGS 0263 46
2 – DIFFERENTIAL LOCK 46
3 – DIFFERENTIAL LOCK 47
4 – REAR AXLE HYDRAULIC LINES 48
5 – REAR AXLE HYDRAULIC LINES 49
0361 – TRANSMISSION 3 50
TRAN OIL PUMP & DRIVE 0361 50
2 – HYDROSTATIC MOTOR AND FITTINGS 50
3 – HYDROSTATIC MOTOR AND FITTINGS 51
4 – HYDROSTATIC MOTOR REGULATOR VALVES AND SEALS 52
5 – HYDROSTATIC MOTOR REGULATOR VALVES AND SEALS 53
6 – HYDROSTATIC MOTOR FLUSHING VALVE 54
7 – HYDROSTATIC MOTOR FLUSHING VALVE 55
0362 – TRANSMISSION 3 56
TRANSMISSION CONTROL VALVE 0362 56
2 – HYDROSTATIC MOTOR REGULATOR CONTROL VALVE 56
3 – HYDROSTATIC MOTOR REGULATOR CONTROL VALVE 57
0363 – TRANSMISSION 3 58
TRANSMISSION OIL LINES 0363 58
2 – HYDRAULIC OIL LINES 58
3 – HYDRAULIC OIL LINES 59
4 – HYDRAULIC OIL LINES 60
5 – HYDRAULIC OIL LINES 61
6 – HYDROSTATIC MOTOR LINES AND FITTINGS 62
7 – HYDROSTATIC MOTOR LINES AND FITTINGS 63
0401 – ENGINE 4 64
CRANKSHAFT AND MAIN BEARINGS 0401 64
2 – CRANKSHAFT AND MAIN BEARINGS 64
3 – CRANKSHAFT AND MAIN BEARINGS 65
0402 – ENGINE 4 66
CAMSHAFT AND VALVE ACTUATING MEANS 0402 66
2 – ROCKER ARMS, SHAFT AND PUSH RODS 66
3 – ROCKER ARMS, SHAFT AND PUSH RODS 67
0403 – ENGINE 4 68
CONNECTING RODS AND PISTONS 0403 68
2 – CONNECTING ROD, PISTON AND CYLINDER LINER 68
3 – CONNECTING ROD, PISTON AND CYLINDER LINER 69
0404 – ENGINE 4 70
CYLINDER BLOCK 0404 70
2 – CYLINDER BLOCK WITH MAIN BEARING CAPS AND CAMSHAFT 70
3 – CYLINDER BLOCK WITH MAIN BEARING CAPS AND CAMSHAFT 71
4 – FRONT PLATE AND UPPER IDLER GEAR 72
5 – FRONT PLATE AND UPPER IDLER GEAR 73
6 – AUXILIARY DRIVE GEAR 74
7 – AUXILIARY DRIVE GEAR 75
0407 – ENGINE 4 76
OILING SYSTEM 0407 76
2 – OIL PAN 76
3 – OIL PAN 77
4 – COVER WITHOUT OIL FILLER NECK AND OIL DIPSTICK (LEFT HAND SI 78
5 – COVER WITHOUT OIL FILLER NECK AND OIL DIPSTICK (LEFT HAND SI 79
6 – COVER WITHOUT OIL FILLER NECK AND OIL DIPSTICK (RIGHT HAND S 80
7 – COVER WITHOUT OIL FILLER NECK AND OIL DIPSTICK (RIGHT HAND S 81
8 – OIL PUMP 82
9 – OIL PUMP 83
10 – OIL FILTER AND ADAPTER 84
11 – OIL FILTER AND ADAPTER 85
0408 – ENGINE 4 86
VENTILATING SYSTEM 0408 86
2 – CRANKCASE BREATHER HOSE 86
3 – CRANKCASE BREATHER HOSE 87
0409 – ENGINE 4 88
CYLINDER HEAD AND VALVES 0409 88
2 – ROCKER ARM COVER 88
3 – ROCKER ARM COVER 89
4 – CYLINDER HEAD AND VALVES 90
5 – CYLINDER HEAD AND VALVES 91
0410 – ENGINE 4 92
EXHAUST MANIFOLD 0410 92
2 – EXHAUST MANIFOLD 92
3 – EXHAUST MANIFOLD 93
0413 – ENGINE 4 94
FUEL INJECTION SYSTEM 0413 94
2 – FUEL INJECTION NOZZLES 94
3 – FUEL INJECTION NOZZLES 95
4 – FUEL INJECTION PUMP AND FUEL LINES 96
5 – FUEL INJECTION PUMP AND FUEL LINES 97
6 – FUEL INJECTION PUMP LINKAGE 98
7 – FUEL INJECTION PUMP LINKAGE 99
8 – FUEL INJECTION PUMP WIRING HARNESS AND SWITCH (COLD START100
9 – FUEL INJECTION PUMP WIRING HARNESS AND SWITCH (COLD START101
10 – COLD START ADVANCE KIT102
11 – COLD START ADVANCE KIT103
0414 – ENGINE 4104
INTAKE MANIFOLD 0414104
2 – AIR INLET104
3 – AIR INLET105
0415 – ENGINE 4106
ENGINE BALANCER 0415106
2 – BALANCER SHAFTS106
3 – BALANCER SHAFTS107
0416 – ENGINE 4108
TURBOCHARGER 0416108
2 – TURBOCHARGER AND OIL LINES108
3 – TURBOCHARGER AND OIL LINES109
0417 – ENGINE 4110
WATER PUMP 0417110
2 – TIMING GEAR COVER, WATER PUMP AND LOWER IDLER GEAR110
3 – TIMING GEAR COVER, WATER PUMP AND LOWER IDLER GEAR111
4 – WATER PUMP INLET112
5 – WATER PUMP INLET113
6 – WATER PUMP PULLEY114
7 – WATER PUMP PULLEY115
0418 – ENGINE 4116
THERMOSTATS, HOUSING AND WATER PIPING 0418116
2 – THERMOSTAT AND COVER116
3 – THERMOSTAT AND COVER117
0419 – ENGINE 4118
OIL COOLER 0419118
2 – OIL COOLER118
3 – OIL COOLER119
4 – OIL COOLER ADAPTER120
5 – OIL COOLER ADAPTER121
0420 – ENGINE 4122
FUEL FILTER 0420122
2 – FUEL FILTER AND FUEL LINE122
3 – FUEL FILTER AND FUEL LINE123
4 – FUEL FILTER COMPONENTS124
5 – FUEL FILTER COMPONENTS125
6 – FUEL FILTER PRE-HEATER126
7 – FUEL FILTER PRE-HEATER127
8 – FUEL PRE-FILTER128
9 – FUEL PRE-FILTER129
0421 – ENGINE 4130
FUEL TRANSFER PUMP 0421130
2 – FUEL TRANSFER PUMP AND FUEL LINE130
3 – FUEL TRANSFER PUMP AND FUEL LINE131
0422 – ENGINE 4132
STARTER MOTOR 0422132
2 – STARTER MOTOR132
3 – STARTER MOTOR133
0423 – ENGINE 4134
ALTERNATOR AND GENERATOR MOUNTING 0423134
2 – LOWER ALTERNATOR BRACKET134
3 – LOWER ALTERNATOR BRACKET135
4 – UPPER ALTERNATOR BRACKET136
5 – UPPER ALTERNATOR BRACKET137
0429 – ENGINE 4138
FAN DRIVE 0429138
2 – CRANKSHAFT PULLEY138
3 – CRANKSHAFT PULLEY139
4 – BELT TENSIONER140
5 – BELT TENSIONER141
0433 – ENGINE 4142
FLYWHEEL, HOUSING AND FASTENINGS 0433142
2 – FLYWHEEL142
3 – FLYWHEEL143
4 – FLYWHEEL HOUSING144
5 – FLYWHEEL HOUSING145
0450 – ENGINE 4146
SERVICE CYLINDER BLOCK ASSEMBLIES 0450146
2 – SHORT BLOCK ASSEMBLY146
3 – SHORT BLOCK ASSEMBLY147
0452 – ENGINE 4148
GASKET REPLACEMENT KITS 0452148
2 – CYLINDER HEAD REMOVAL GASKET SET148
3 – CYLINDER HEAD REMOVAL GASKET SET149
4 – ENGINE OVERHAUL GASKET SET150
5 – ENGINE OVERHAUL GASKET SET151
0505 – ENGINE AUXILIARY SYSTEM 5152
COLD WEATHER STARTING AIDS 0505152
2 – ENGINE COOLANT HEATER KIT152
3 – ENGINE COOLANT HEATER KIT153
0510 – ENGINE AUXILIARY SYSTEM 5154
ENGINE COOLING SYSTEM 0510154
2 – OIL COOLER/RADIATOR SHROUD AND HARDWARE154
3 – OIL COOLER/RADIATOR SHROUD AND HARDWARE155
4 – OIL COOLER/RADIATOR SHROUD ASSEMBLY156
5 – OIL COOLER/RADIATOR SHROUD ASSEMBLY157
6 – EXPANSION TANK FITTINGS AND HOSES158
7 – EXPANSION TANK FITTINGS AND HOSES159
8 – ENGINE COOLING FAN PUMP AND MOTOR160
9 – ENGINE COOLING FAN PUMP AND MOTOR161
0511 – ENGINE AUXILIARY SYSTEM 5162
RADIATOR AND FAN SHROUD 0511162
2 – FAN BELT GUARD162
3 – FAN BELT GUARD163
0515 – ENGINE AUXILIARY SYSTEM 5164
ENGINE SPEED CONTROLS 0515164
2 – ENGINE SPEED CONTROL CABLE AND PEDAL164
3 – ENGINE SPEED CONTROL CABLE AND PEDAL165
4 – ENGINE SPEED CONTROL FOOT PEDAL166
5 – ENGINE SPEED CONTROL FOOT PEDAL167
0521 – ENGINE AUXILIARY SYSTEM 5168
AIR CLEANER AND PIPING 0521168
2 – AIR CLEANER, AIR CLEANER HOSES AND AIR FILTER ELEMENTS168
3 – AIR CLEANER, AIR CLEANER HOSES AND AIR FILTER ELEMENTS169
4 – AIR CLEANER, FILTER ELEMENTS AND CAP170
5 – AIR CLEANER, FILTER ELEMENTS AND CAP171
0531 – ENGINE AUXILIARY SYSTEM 5172
MUFFLER & EXHAUST PIPE 0531172
2 – EXHAUST SYSTEM PIPES AND MUFFLER172
3 – EXHAUST SYSTEM PIPES AND MUFFLER173
0540 – ENGINE AUXILIARY SYSTEM 5174
ENGINE MOUNTING 0540174
2 – ENGINE MOUNTS174
3 – ENGINE MOUNTS175
0560 – ENGINE AUXILIARY SYSTEM 5176
EXTERNAL FUEL SUPPLY SYSTEMS 0560176
2 – FUEL TANK, FUEL SENDER AND FUEL LINES176
3 – FUEL TANK, FUEL SENDER AND FUEL LINES177
4 – FUEL TANK PRESSURE RELIEF VALVE178
5 – FUEL TANK PRESSURE RELIEF VALVE179
0578 – ENGINE AUXILIARY SYSTEM 5180
SENSORS 0578180
2 – COOLANT TEMPERATURE SENSOR180
3 – COOLANT TEMPERATURE SENSOR181
4 – OIL PRESSURE SWITCH182
5 – OIL PRESSURE SWITCH183
0920 – STEERING SYSTEM 9184
POWER STEERING 0920184
2 – STEERING COLUMN AND STEERING WHEEL184
3 – STEERING COLUMN AND STEERING WHEEL185
0930 – STEERING SYSTEM 9186
EMERGENCY STEERING 0930186
2 – SECONDARY STEERING METERING MOTOR KIT186
3 – SECONDARY STEERING METERING MOTOR KIT187
0962 – STEERING SYSTEM 9188
STEERING VALVE AND CONTROL 0962188
2 – STEERING VALVE188
3 – STEERING VALVE189
0963 – STEERING SYSTEM 9190
STEERING LINES, HOSES AND FITTINGS 0963190
2 – STEERING CYLINDER HYDRAULIC HOSES190
3 – STEERING CYLINDER HYDRAULIC HOSES191
0965 – STEERING SYSTEM 9192
STEERING CYLINDERS 0965192
2 – STEERING CYLINDER WITH PINS192
3 – STEERING CYLINDER WITH PINS193
4 – STEERING ROD LINKS194
5 – STEERING ROD LINKS195
6 – STEERING CYLINDER196
7 – STEERING CYLINDER197
0967 – STEERING SYSTEM 9198
STEERING MOTOR 0967198
2 – SECONDARY STEERING MOTOR198
3 – SECONDARY STEERING MOTOR199
1062 – SERVICE BRAKES 10200
SERVICE BRAKE VALVE 1062200
2 – BRAKE PEDAL AND LINKAGE200
3 – BRAKE PEDAL AND LINKAGE201
4 – BRAKE CYLINDER202
5 – BRAKE CYLINDER203
6 – MASTER BRAKE CYLINDER204
7 – MASTER BRAKE CYLINDER205
1063 – SERVICE BRAKES 10206
SERVICE BRAKE LINKS, HOSES AND FITTINGS 1063206
2 – BRAKE VALVES, ACCUMULATOR, RESERVOIR AND HOSES206
3 – BRAKE VALVES, ACCUMULATOR, RESERVOIR AND HOSES207
1100 – PARKING BRAKES 11208
PARKING BRAKES 1100208
2 – PARK BRAKE MANIFOLD, ACCUMULATOR, HOSES AND FITTINGS208
3 – PARK BRAKE MANIFOLD, ACCUMULATOR, HOSES AND FITTINGS209
1111 – PARKING BRAKES 11210
PARKING BRAKE ACTIVE ELEMENTS 1111210
2 – BRAKE210
3 – BRAKE211
1320 – MISCELLANEOUS VEHICLE 13212
VEHICLE FINISH AND TRIM 1320212
2 – SLOW MOVING VEHICLE STRAP AND EMBLEM212
3 – SLOW MOVING VEHICLE STRAP AND EMBLEM213
1322 – MISCELLANEOUS VEHICLE 13214
DECALS AND TRADEMARKS 1322214
2 – WARNING LABELS214
3 – WARNING LABELS215
4 – LABELS216
5 – LABELS217
6 – WARNING LABELS (FRENCH)218
7 – WARNING LABELS (FRENCH)219
8 – LABELS (FRENCH)220
9 – LABELS (FRENCH)221
10 – WARNING LABELS (SPANISH)222
11 – WARNING LABELS (SPANISH)223
12 – LABELS (SPANISH)224
13 – LABELS (SPANISH)225
1369 – MISCELLANEOUS VEHICLE 13226
GREASES, OILS, FUELS AND COOLANTS 1369226
2 – CAMSHAFT BUSHING GREASE226
3 – CAMSHAFT BUSHING GREASE227
1671 – VEHICLE ELECTRICAL SYSTEM 16228
BATTERIES, SUPPORT AND CABLES 1671228
2 – BATTERY AND HARDWARE228
3 – BATTERY AND HARDWARE229
4 – BATTERY, CABLES AND HARDWARE (OPTIONAL) ( -15757)230
5 – BATTERY, CABLES AND HARDWARE (OPTIONAL) ( -15757)231
6 – BATTERY, CABLES AND HARDWARE (OPTIONAL) (15758- )232
7 – BATTERY, CABLES AND HARDWARE (OPTIONAL) (15758- )233
1672 – VEHICLE ELECTRICAL SYSTEM 16234
ALTERNATOR, REGULATOR & CHARGING SYSTEM WIRING 1672234
2 – ALTERNATOR234
3 – ALTERNATOR235
1673 – VEHICLE ELECTRICAL SYSTEM 16236
VEHICLE LIGHTING SYSTEM 1673236
2 – HEADLIGHTS236
3 – HEADLIGHTS237
4 – FRONT WORKLIGHTS AND INTERIOR LIGHT238
5 – FRONT WORKLIGHTS AND INTERIOR LIGHT239
6 – REAR WORKLIGHTS240
7 – REAR WORKLIGHTS241
8 – TAILLIGHTS AND WIRING HARNESS242
9 – TAILLIGHTS AND WIRING HARNESS243
1674 – VEHICLE ELECTRICAL SYSTEM 16244
WIRING HARNESS AND SWITCHES 1674244
2 – WIRE HARNESS, FUSES, FUSE CARRIER AND BATTERY CLAMPING244
3 – WIRE HARNESS, FUSES, FUSE CARRIER AND BATTERY CLAMPING245
1675 – VEHICLE ELECTRICAL SYSTEM 16246
SYSTEM CONTROLS246
2 – TEST CABLE246
3 – TEST CABLE247
1676 – VEHICLE ELECTRICAL SYSTEM 16248
INSTRUMENTS AND INDICATORS 1676248
2 – RELAY MODULE, WIRING AND RELAY PANEL248
3 – RELAY MODULE, WIRING AND RELAY PANEL249
4 – INSTRUMENT PANEL SIDE CONSOLE250
5 – INSTRUMENT PANEL SIDE CONSOLE251
6 – LABEL252
7 – LABEL253
8 – FUSES, RELAYS AND CIRCUIT BOARD254
9 – FUSES, RELAYS AND CIRCUIT BOARD255
1741 – FRAME, CHASSIS OR SUPPORTING STRUCTURE 17256
ENGINE OR MAIN FRAME 1741256
2 – MAIN FRAME, COVERS AND FENDERS256
3 – MAIN FRAME, COVERS AND FENDERS257
1743 – FRAME, CHASSIS OR SUPPORTING STRUCTURE 17258
HINGES, YOKES AND GUDGEONS 1743258
2 – FRAME ARTICULATION LOCKING BAR258
3 – FRAME ARTICULATION LOCKING BAR259
4 – FRAME ARTICULATION JOINT PINS AND BUSHINGS260
5 – FRAME ARTICULATION JOINT PINS AND BUSHINGS261
6 – LOADER FRAME HARDWARE262
7 – LOADER FRAME HARDWARE263
8 – FRAME HARDWARE264
9 – FRAME HARDWARE265
1749 – FRAME, CHASSIS OR SUPPORTING STRUCTURE 17266
CHASSIS WEIGHTS 1749266
2 – REAR COUNTERWEIGHT266
3 – REAR COUNTERWEIGHT267
4 – LIFT HOOKS268
5 – LIFT HOOKS269
1810 – OPERATOR’S STATION 18270
OPERATOR ENCLOSURE 1810270
2 – CAB MOUNTING270
3 – CAB MOUNTING271
4 – CAB AND COMPONENTS272
5 – CAB AND COMPONENTS273
6 – CAB DOOR MOUNTING PINS AND BRACKETS274
7 – CAB DOOR MOUNTING PINS AND BRACKETS275
8 – CAB TRIM PANELS AND HEADLINER276
9 – CAB TRIM PANELS AND HEADLINER277
10 – CAB FRONT WINDSHIELD GUARD278
11 – CAB FRONT WINDSHIELD GUARD279
1811 – OPERATOR’S STATION 18280
ROPS, FOPS, OPS, OR BODY FRAME 1811280
2 – ARMREST AND FLOORMAT280
3 – ARMREST AND FLOORMAT281
1812 – OPERATOR’S STATION 18282
PLATFORM 1812282
2 – CAB PLATFORM282
3 – CAB PLATFORM283
4 – CAB CONSOLE AND INSULATING MAT284
5 – CAB CONSOLE AND INSULATING MAT285
1813 – OPERATOR’S STATION 18286
BODY SIDES, DOORS, SHIELDS AND GLAZING286
2 – LEFT HAND CAB DOOR AND WINDOWS286
3 – LEFT HAND CAB DOOR AND WINDOWS287
4 – RIGHT HAND CAB DOOR AND WINDOWS288
5 – RIGHT HAND CAB DOOR AND WINDOWS289
6 – CAB FRONT AND REAR WINDOWPANES290
7 – CAB FRONT AND REAR WINDOWPANES291
1814 – OPERATOR’S STATION 18292
WINDSHIELD AND WIPERS 1814292
2 – WINDSHIELD WIPER BLADES, TANK AND WIPER MOTOR292
3 – WINDSHIELD WIPER BLADES, TANK AND WIPER MOTOR293
1821 – OPERATOR’S STATION 18294
SEAT AND SEAT BELTS 1821294
2 – OPERATOR SEAT AND SEAT BELT294
3 – OPERATOR SEAT AND SEAT BELT295
4 – OPERATOR SEAT TRACK296
5 – OPERATOR SEAT TRACK297
6 – OPERATOR SEAT TRACK298
7 – OPERATOR SEAT TRACK299
8 – OPERATOR SEAT SUSPENSION300
9 – OPERATOR SEAT SUSPENSION301
1822 – OPERATOR’S STATION 18302
STEPS AND HANDHOLDS 1822302
2 – STEPS302
3 – STEPS303
1830 – OPERATOR’S STATION 18304
HEATING AND AIR CONDITIONING 1830304
2 – AIR HOSE, NOZZLE AND FILTER304
3 – AIR HOSE, NOZZLE AND FILTER305
4 – OPTIONAL AIR CONDITIONING UNIT AND HEATER306
5 – OPTIONAL AIR CONDITIONING UNIT AND HEATER307
1831 – OPERATOR’S STATION 18308
HEATER HOSES & CONTROLS 1831308
2 – HEATER308
3 – HEATER309
4 – HEATER FLAP AND BRACKET310
5 – HEATER FLAP AND BRACKET311
1832 – OPERATOR’S STATION 18312
AIR CONDITIONING SYSTEM COMPRESSOR AND DRIVE 1832312
2 – AIR CONDITIONING COMPRESSOR AND MOUNTING BRACKETS WITH PULLE312
3 – AIR CONDITIONING COMPRESSOR AND MOUNTING BRACKETS WITH PULLE313
4 – AIR CONDITIONING FILTER DRIER AND PUMP314
5 – AIR CONDITIONING FILTER DRIER AND PUMP315
6 – AIR CONDITIONING HOSES AND VENTS316
7 – AIR CONDITIONING HOSES AND VENTS317
8 – A/C CONTROLS318
9 – A/C CONTROLS319
1911 – SHEET METAL AND STYLING 19320
HOOD AND HOOD SUPPORTS 1911320
2 – HOOD SUPPORTS AND HARDWARE320
3 – HOOD SUPPORTS AND HARDWARE321
4 – HOOD, TRIM AND GRILLE322
5 – HOOD, TRIM AND GRILLE323
6 – HOOD FRAME324
7 – HOOD FRAME325
1913 – SHEET METAL AND STYLING 19326
MISCELLANEOUS SHIELDS 1913326
2 – HEAT SHIELD326
3 – HEAT SHIELD327
1927 – SHEET METAL AND STYLING 19328
FENDERS 1927328
2 – FRONT FENDERS328
3 – FRONT FENDERS329
4 – FUEL TANK MOUNTING330
5 – FUEL TANK MOUNTING331
2001 – SAFETY, CONVENIENCE AND MISCELLANEOUS 20332
RADIO 2001332
2 – RADIO, SPEAKERS AND ANTENNA332
3 – RADIO, SPEAKERS AND ANTENNA333
2004 – SAFETY, CONVENIENCE AND MISCELLANEOUS 20334
WARNING DEVICES INCLUDING HORN & REVERSE ALARM 2004334
2 – BACKUP ALARM334
3 – BACKUP ALARM335
4 – BEACON LIGHT336
5 – BEACON LIGHT337
2010 – SAFETY, CONVENIENCE AND MISCELLANEOUS 20338
TRASH SCREEN338
2 – TRASH SCREEN338
3 – TRASH SCREEN339
2161 – MAIN HYDRAULIC SYSTEM 21340
HYDRAULIC PUMPS AND DRIVES 2161340
2 – HYDROSTATIC TANDEM PUMP WITH FITTINGS340
3 – HYDROSTATIC TANDEM PUMP WITH FITTINGS341
4 – HYDROSTATIC PUMP SPLINED COUPLING AND FLANGE342
5 – HYDROSTATIC PUMP SPLINED COUPLING AND FLANGE343
6 – HYDROSTATIC PUMP ASSEMBLY344
7 – HYDROSTATIC PUMP ASSEMBLY345
8 – PRESSURE REGULATING VALVE346
9 – PRESSURE REGULATING VALVE347
10 – VALVE REGULATOR348
11 – VALVE REGULATOR349
12 – INTERNAL GEAR PUMP350
13 – INTERNAL GEAR PUMP351
14 – FORWARD/REVERSE SOLENOID VALVE352
15 – FORWARD/REVERSE SOLENOID VALVE353
2163 – MAIN HYDRAULIC SYSTEM 21354
HYDRAULIC LINES AND HOSES 2163354
2 – PILOT ACCUMULATOR, HYDRAULIC HOSES AND FITTINGS354
3 – PILOT ACCUMULATOR, HYDRAULIC HOSES AND FITTINGS355
2164 – MAIN HYDRAULIC SYSTEM 21356
HYDRAULIC RESERVOIR, FILTER AND COOLER 2164356
2 – HYDRAULIC OIL RESERVOIR356
3 – HYDRAULIC OIL RESERVOIR357
4 – HYDRAULIC FILTER358
5 – HYDRAULIC FILTER359
3102 – LOADER 31360
BUCKET 3102360
2 – BUCKET WITH BOLT-ON CUTTING EDGE (15/30 CUBIC METER)360
3 – BUCKET WITH BOLT-ON CUTTING EDGE (15/30 CUBIC METER)361
4 – BUCKET WITH BOLT-ON CUTTING EDGE (13/30 CUBIC METER)362
5 – BUCKET WITH BOLT-ON CUTTING EDGE (13/30 CUBIC METER)363
6 – (QUICK COUPLER) BUCKET WITH BOLT-ON CUTTING EDGE (15/30364
7 – (QUICK COUPLER) BUCKET WITH BOLT-ON CUTTING EDGE (15/30365
8 – LOADER BUCKET (175 CUBIC YARDS)(133 CUBIC METERS)366
9 – LOADER BUCKET (175 CUBIC YARDS)(133 CUBIC METERS)367
10 – LOADER BUCKET (20 CUBIC YARDS)(153 CUBIC METERS)368
11 – LOADER BUCKET (20 CUBIC YARDS)(153 CUBIC METERS)369
3103 – LOADER 31370
FORKS 3103370
2 – PALLET FORKS 48IN370
3 – PALLET FORKS 48IN371
4 – PALLET FORKS372
5 – PALLET FORKS373
3104 – LOADER 31374
ATTACHMENT COUPLER 3104374
2 – ATTACHMENT COUPLER374
3 – ATTACHMENT COUPLER375
4 – ATTACHMENT COUPLER FITTINGS376
5 – ATTACHMENT COUPLER FITTINGS377
3115 – LOADER 31378
CONTROLS LINKAGE 3115378
2 – THIRD FUNCTION DETENT KIT378
3 – THIRD FUNCTION DETENT KIT379
4 – CYLINDER LOCK380
5 – CYLINDER LOCK381
6 – LOADER BOOM AND LINKS382
7 – LOADER BOOM AND LINKS383
8 – LOADER BOOM ASSEMBLY WITH BUSHINGS384
9 – LOADER BOOM ASSEMBLY WITH BUSHINGS385
10 – LOADER BOOM LINK ASSEMBLY WITH BUSHINGS386
11 – LOADER BOOM LINK ASSEMBLY WITH BUSHINGS387
3140 – LOADER 31388
LOADER FRAMES 3140388
2 – LOADER FRAME AND COVER388
3 – LOADER FRAME AND COVER389
3160 – LOADER 31390
LOADER HYDRAULICS 3160390
2 – PILOT CONTROL VALVE MOUNTING390
3 – PILOT CONTROL VALVE MOUNTING391
4 – PILOT CONTROL VALVE COILS AND PLUNGER ASSEMBLY392
5 – PILOT CONTROL VALVE COILS AND PLUNGER ASSEMBLY393
6 – PILOT CONTROL VALVE SPOOLS394
7 – PILOT CONTROL VALVE SPOOLS395
8 – JOYSTICK PILOT CONTROLLER396
9 – JOYSTICK PILOT CONTROLLER397
3162 – LOADER 31398
CONTROL AND LOAD HOLDING VALVES 3162398
2 – RIDE CONTROL KIT398
3 – RIDE CONTROL KIT399
3A – RIDE CONTROL VALVE400
3B – RIDE CONTROL VALVE401
4 – AUXILIARY PILOT CONTROL VALVE402
5 – AUXILIARY PILOT CONTROL VALVE403
6 – MAIN CONTROL VALVE HYDRAULIC FITTINGS404
7 – MAIN CONTROL VALVE HYDRAULIC FITTINGS405
8 – HYDRAULIC CONTROL VALVE, TWO FUNCTION406
9 – HYDRAULIC CONTROL VALVE, TWO FUNCTION407
10 – HYDRAULIC CONTROL VALVE, THREE FUNCTION408
11 – HYDRAULIC CONTROL VALVE, THREE FUNCTION409
11A – HYDRAULIC CONTROL VALVE, FOUR FUNCTION410
11B – HYDRAULIC CONTROL VALVE, FOUR FUNCTION411
12 – INLET RETURN REGULATOR412
13 – INLET RETURN REGULATOR413
14 – BOOM REGULATOR414
15 – BOOM REGULATOR415
16 – BUCKET REGULATOR416
17 – BUCKET REGULATOR417
18 – THIRD FUNCTION REGULATOR418
19 – THIRD FUNCTION REGULATOR419
20 – END COVER WITH FLUSHING VALVE420
21 – END COVER WITH FLUSHING VALVE421
3163 – LOADER 31422
LINES, HOSES AND FITTINGS 3163422
2 – LOADER BOOM HYDRAULIC LINES FOR LIFT CYLINDER422
3 – LOADER BOOM HYDRAULIC LINES FOR LIFT CYLINDER423
4 – LOADER BOOM HYDRAULIC LINES AND PINS FOR TILT CYLINDER424
5 – LOADER BOOM HYDRAULIC LINES AND PINS FOR TILT CYLINDER425
6 – AUXILIARY HYDRAULIC CONTROLS426
7 – AUXILIARY HYDRAULIC CONTROLS427
8 – BUCKET QUICK DISCONNECT SOLENOID VALVE, HOSES AND FITTINGS428
9 – BUCKET QUICK DISCONNECT SOLENOID VALVE, HOSES AND FITTINGS429
10 – PILOT CONTROL VALVE AND AUXILIARY AND FOURTH FUNCTION HOSES430
11 – PILOT CONTROL VALVE AND AUXILIARY AND FOURTH FUNCTION HOSES431
12 – PILOT CONTROL VALVE AND AUXILIARY HOSES AND FITTINGS432
13 – PILOT CONTROL VALVE AND AUXILIARY HOSES AND FITTINGS433
14 – FOURTH FUNCTION AND AUXILIARY HYDRAULIC CONTROL HOSES AND434
15 – FOURTH FUNCTION AND AUXILIARY HYDRAULIC CONTROL HOSES AND435
16 – AUXILIARY HYDRAULIC CONTROL HOSES AND FITTINGS436
17 – AUXILIARY HYDRAULIC CONTROL HOSES AND FITTINGS437
18 – THIRD FUNCTION HYDRAULIC QUICK DISCONNECTS438
19 – THIRD FUNCTION HYDRAULIC QUICK DISCONNECTS439
3165 – LOADER 31440
HYDRAULIC CYLINDERS 3165440
2 – BOOM LIFT CYLINDER440
3 – BOOM LIFT CYLINDER441
4 – BOOM LIFT CYLINDER PISTON442
5 – BOOM LIFT CYLINDER PISTON443
6 – BOOM LIFT CYLINDER ROD GUIDE444
7 – BOOM LIFT CYLINDER ROD GUIDE445
8 – BUCKET TILT CYLINDER446
9 – BUCKET TILT CYLINDER447
10 – BUCKET TILT CYLINDER PISTON448
11 – BUCKET TILT CYLINDER PISTON449
12 – BUCKET TILT ROD GUIDE450
13 – BUCKET TILT ROD GUIDE451
3166 – LOADER 31452
AUTOMATIC CONTROL FUNCTION 3166452
2 – RETURN-TO-DIG452
3 – RETURN-TO-DIG453
A 11
A/C COMPRESSOR DRIVE BELT312
A/C CONDENSOR306
A/C CONTROLS318
A/C DRIER RECEIVER314
A/C FILTER DRIER314
A/C FREEZE CONTROL SWITCH306
A/C REFRIGERANT HOSES306
A/C REFRIGERANT HOSES314
A/C SWITCH306
A/C SWITCH, ROCKER314
A/C THERMOCOUPLER306
A/C VAPOR CONDENSOR306
ABSORBER, OPERATOR SEAT SHOCK300
ACCESSORY DRIVE GEAR, ENGINE 74
ACCUMULATOR, PARK BRAKE208
ACCUMULATOR, PILOT354
ACCUMULATOR, PNEUMATIC, RIDE CONTROL KIT398
ACCUMULATOR, RESERVOIR, HOSES AND – BRAKE VALVES206
ADAPTER, ENGINE OIL COOLER120
ADAPTER, LOADER BOOM AND LINKS382
AIR CLEANER168
AIR CLEANER170
AIR CLEANER HOSES168
AIR CONDITIONER COMPRESSOR DRIVE BELT312
AIR CONDITIONER COMPRESSOR PULLEY312
AIR CONDITIONER CONDENSOR306
AIR CONDITIONER DRIER RECEIVER314
AIR CONDITIONER FILTER DRIER314
AIR CONDITIONER FREEZE CONTROL SWITCH306
AIR CONDITIONER REFRIGERANT HOSES306
AIR CONDITIONER REFRIGERANT HOSES314
AIR CONDITIONER SWITCH306
AIR CONDITIONER SWITCH, ROCKER314
AIR CONDITIONER THERMOCOUPLER306
AIR CONDITIONER VAPOR CONDENSOR306
AIR CONDITIONING COMPRESSOR AND MOUNTING – BRACKETS WITH312
AIR CONDITIONING FILTER DRIER AND PUMP314
AIR CONDITIONING HOSES AND VENTS316
AIR CONTROLLER (HEATER)308
AIR DUCT304
AIR FILTER ELEMENT170
AIR HOSE304
AIR INLET, ENGINE104
AIR INTAKE STACK, AIR CLEANER168
ALARM, AUDIBLE WARNING – (FUSE AND RELAY PANEL)248
ALARM, BACKUP334
ALTERNATOR234
ALTERNATOR BRACKET, LOWER134
ALTERNATOR BRACKET, UPPER136
ANTENNA, RADIO332
ARM, ENGINE ROCKER 66
ARM, WINDSHIELD WIPER292
ARMREST280
ARTICULATION CYLINDER192
ASHTRAY280
ATTACHMENT COUPLER FITTINGS376
ATTACHMENT COUPLER FITTINGS AND CONNECTI – ONS374
AUDIBLE WARNING ALARM – (FUSE AND RELAY PANEL)248
AUXILIARY CONTROL LEVER DETENT KIT378
AUXILIARY DRIVE GEAR, ENGINE 74
AUXILIARY HYDRAULIC CONTROL – VALVE BLOCK406
AUXILIARY HYDRAULIC CONTROL HOSES – AND FITTINGS436
AUXILIARY HYDRAULIC CONTROLS426
AUXILIARY PILOT CONTROL VALVE402
AUXILIARY, THIRD FUNCTION, MAIN CONTROL – VALVE408
AXLE HOUSING, REAR, REDUCTION GEARBOX 38
AXLE MOUNTING, FRONT 28
AXLE, REAR 30
B 11
BACKUP ALARM334
BACKUP RING, BOOM LIFT ROD GUIDE – CYLINDER444
BACKUP RING, BUCKET TILT ROD GUIDE450
BALANCER SHAFT106
BAR, TENSION, FRAME HARDWARE264
BATTERY AND HARDWARE228
BATTERY AND HARDWARE (OPTIONAL)230
BATTERY AND HARDWARE (OPTIONAL)232
BATTERY CABLES228
BATTERY CLAMPS244
BEACON LIGHT336
BEARING CAP, ENGINE MAIN AND THRUST 70
BEARING FORK, ARTICULATION – JOINT PINS AND BUSHINGS260
BEARING, ENGINE CONNECTING ROD 68
BEARING, ENGINE MAIN 64
BEARING, ENGINE THRUST 64
BEARING, FRONT PLANETARY GEAR DRIVE 34
BEARING, REAR AXLE DIFFERENTIAL ASSY, – RING AND PINION 40
BEARINGS, POWER TAKE-OFF 44
BELLCRANK, LOADER BOOM AND LINKS382
BELT TENSIONER, ENGINE140
BELT, DRIVE, COMPRESSOR, A/C312
BELT, OPERATOR SEAT294
BEVEL GEAR DRIVE, REAR AXLE – DIFFERENTIAL ASSY, RING AND PINION 40
BEVEL GEAR, FRONT AXLE DIFFERENTIAL – HOUSING 32
BLADES, WINDSHIELD WIPER292
BLEED VALVE, FRONT AXLE HOUSING ASSY 36
BLEED VALVE, FRONT PLANETARY GEAR DRIVE 34
BLEED VALVE, POWER TAKE-OFF 44
BLOCK ASSEMBLY, ENGINE SHORT146
BLOCK CLAMP (RETURN TO DIG)452
BLOCK CLAMP, PALLET FORKS372
BLOCK CLAMP, PALLET FORKS 48IN370
BLOCK, ENGINE CYLINDER 70
BLOCK, LOADER CONTROL VALVE – AUXILIARY AND FOURTH FUNCTION410
BLOCK, LOADER CONTROL VALVE, – AUXILIARY406
BLOCK, MAIN CONTROL VALVE WITH – AUXILIARY AND THIRD FUNCTION408
BLOCK, PILLOW, BOOM LIFT CYLINDER440
BOARD, FUSE PANEL AND RELAY254
BOLTS, WHEEL 42
BOOM AND BUSHINGS (LOADER)384
BOOM AND LINKS, LOADER382
BOOM HYDRAULIC LINES FOR LIFT – CYLINDER, LOADER422
BOOM HYDRAULIC LINES FOR TILT CYLINDER, – LOADER424
BOOM KICKOUT SWITCH250
BOOM LIFT CYLINDER440
BOOM LIFT CYLINDER PISTON442
BOOM LIFT CYLINDER ROD GUIDE444
BOOM LINK AND BUSHINGS (LOADER)386
BOOM REGULATOR414
BOOT, AIR HOSE, NOZZLE AND FILTER304
BOOT, AUXILIARY PILOT CONTROL VALVE402
BOOT, BRAKE PEDAL202
BOOT, ENGINE SPEED CONTROL PEDAL166
BOOT, PILOT CONTROL390
BOOT, STEERING COLUMN184
BOX, STEERING CONTROL, LOADER CONTROL390
BRACKET (FUSE AND RELAY PANEL)248
BRACKET (HEATER)310
BRACKET (RETURN-TO-DIG)452
BRACKET, AIR CLEANER168
BRACKET, BACKUP ALARM334
BRACKET, CAB CONSOLE MOUNTING282
BRACKET, CAB TRIM PANELS AND HEADLINER276
BRACKET, FRONT FENDERS328
BRACKET, FUEL FILTER122
BRACKET, HEADLIGHTS236
BRACKET, HYDRAULIC OIL RESERVOIR356
BRACKET, LOWER ALTERNATOR134
BRACKET, REAR AXLE AND MOUNTING – HARDWARE 30
BRACKET, REAR WORKLIGHTS240
BRACKET, RIDE CONTROL KIT398
BRACKET, SLOW MOVING VEHICLE212
BRACKET, TANK, WIPER FLUID292
BRACKET, UPPER ALTERNATOR136
BRACKETS (CAB AND COMPONENTS)272
BRACKETS, A/C COMPRESSOR312
BRACKETS, SIDE VIEW MIRRORS – (CAB AND COMPONENTS)272
BRACKETS, STEERING ROD LINKS194
BRAKE ASSEMBLY, FRONT AXLE 32
BRAKE CYLINDER, MASTER202
BRAKE CYLINDER, MASTER204
BRAKE DISC210
BRAKE DRUM, FRONT AXLE DIFFERENTIAL – HOUSING, BEVEL GEAR AND 32
BRAKE PEDAL200
BRAKE PEDAL202
BRAKE PEDAL LINKAGE200
BRAKE PISTON210
BRAKE VALVES, ACCUMULATOR, RESERVOIR AND – HOSES206
BREATHER, ENGINE 86
BUCKET CYLINDER AND HOSES424
BUCKET CYLINDER AND LINES424
BUCKET QUICK DISCONNECT SOLENOID VALVE428
BUCKET REGULATOR416
BUCKET RETURN AND SWITCH – (RETURN-TO-DIG)452
BUCKET TILT CYLINDER446
BUCKET TILT CYLINDER PISTON448
BUCKET TILT ROD GUIDE450
BUCKET WITH BOLT-ON CUTTING EDGE – (13/30 CUBIC METER)362
BUCKET WITH BOLT-ON CUTTING EDGE – (15/30 CUBIC METER)360
BUCKET, LOADER – (175 CUBIC YARDS)(133 CUBIC METERS)366
BUCKET, LOADER – (20 CUBIC YARDS)(153 CUBIC METERS)368
BUCKETS, BOLT-ON CUTTING EDGE – (13/30 CUBIC METER)362
BUCKETS, BOLT-ON CUTTING EDGE – (15/30 CUBIC METER)360
BULB, FRONT WORKLIGHTS AND INTERIOR – LIGHT238
BULB, HEADLIGHT236
BULB, REAR WORKLIGHTS240
BULB, TAILLIGHTS242
BUMPER, CAB DOOR274
BUMPER, CYLINDER LOCK380
BUMPERS, CAB DOOR274
BUSHING, BALANCER SHAFT106
BUSHING, CAMSHAFT 70
BUSHING, ENGINE LOWER IDLER GEAR110
BUSHING, HOOD FRAME324
BUSHING, PIPE, FUEL TANK178
BUSHINGS, FRAME ARTICULATION, JOINT260
BUSHINGS, LOADER BOOM384
BUSHINGS, LOADER BOOM LINK386
BUSHINGS, LOADER BOOM/LINKS382
BUTTON, PUSH (OPERATOR SEAT SUSPENSION)300
BYPASS VALVE, ENGINE OIL FILTER 84
C 11
CAB AND COMPONENTS272
CAB CONSOLE AND INSULATING MAT284
CAB DOOR BUMPER274
CAB DOOR MOUNTING PINS274
CAB DOOR, LEFT HAND286
CAB DOOR, RIGHT HAND288
CAB FRONT WINDSHIELD GUARD278
CAB HEADLINER276
CAB MOUNTING270
CAB PANELS – (CAB CONSOLE AND INSULATING MAT)284
CAB PLATFORM282
CAB TRIM PANELS276
CAB WINDOWPANES/GLASS290
CABLE, ENGINE SPEED CONTROL164
CABLE, GROUND, SECONDARY STEERING – MOTOR KIT186
CABLE, TEST246
CABLES, BATTERY228
CABLES, BATTERY (OPTIONAL)230
CABLES, BATTERY (OPTIONAL)232
CAMSHAFT 70
CAMSHAFT BUSHING GREASE226
CAP (BUCKET REGULATOR)416
CAP (INLET RETURN REGULATOR)412
CAP (THIRD FUNCTION REGULATOR)418
CAP, BEARING (FRAME ARTICULATION JOINT – PINS AND BUSHINGS)260
CAP, CAB AND COMPONENTS272
CAP, ENGINE MAIN AND THRUST BEARING 70
CAP, ENGINE OIL FILLER 88
CAP, FILLER, HYDRAULIC OIL RESERVOIR356
CAP, FUEL TANK176
CAP, HEAT SHIELD326
CAP, RAIN (AIR CLEANER)168
CAP, STEERING CYLINDER192
CAP, WINDSHIELD WIPER292
CAPACITOR, ALTERNATOR234
CATALYTIC MUFFLER172
CAUTION LABELS214
CHAIN, CYLINDER LOCK380
CHAIN, LINK (FRAME ARTICULATION LOCKING – BAR)258
CHAIN, STEEL, FRAME ARTICULATION258
CHECK VALVE (BOOM REGULATOR)414
CHECK VALVE (BUCKET REGULATOR)416
CHECK VALVE (THIRD FUNCTION REGULATOR)418
CHECK VALVE, PILOT ACCUMULATOR354
CIRCUIT BOARD, FUSE PANEL254
CLAMP (RETURN-TO-DIG)452
CLAMP PLATE, HYDRAULIC OIL LINES 58
CLAMP, AIR CLEANER168
CLAMP, BLOCK, PALLET FORKS372
CLAMP, BLOCK, PALLET FORKS 48IN370
CLAMP, EXHAUST SYSTEM AND MUFFLER172
CLAMP, FUEL INJECTION PUMP LINE 96
CLAMP, FUSE AND RELAY PANEL248
CLAMP, HOSE, WIPERFLUID TANK292
CLAMPS, AUXILIARY HYDRAULIC CONTROL – HOSES AND FITTINGS436
CLAMPS, BATTERY244
CLAMPS, FOURTH FUNCTION AND AUXILIARY – HYDRAULIC CONTROL434
CLAMPS, FRAME HARDWARE264
CLAMPS, HYDRAULIC OIL LINES 58
CLAMPS, HYDRAULIC OIL LINES 60
CLAMPS, LIFT CYLINDER LOADER BOOM – HYDRAULIC LINES422
CLAMPS, LOADER FRAME HARDWARE262
CLEANER, AIR168
CLEANER, AIR170
CLUTCH DISK (HYDROSTATIC PUMP)342
CLUTCH DISK, FRONT AXLE DIFFERENTIAL – HOUSING, BEVEL GEAR AND D 32
CLUTCH, STARTER MOTOR132
COAT HOOK (CAB AND COMPONENTS)272
COIL, FUEL INJECTION COLD START ADVANCE102
COIL, PILOT CONTROL VALVE392
COLD START ADVANCE KIT, FUEL INJECTION102
COLD START ADVANCE WIRING HARNESS/SWITCH – (FUEL INJECTION PUMP)100
COLUMN, STEERING184
COMPRESSION SPRING, FORWARD/REVERSE – SOLENOID VALVE352
COMPRESSION SPRING, PALLET FORKS372
COMPRESSION SPRING, PALLET FORKS 48IN370
COMPRESSOR BRACKETS, A/C312
COMPRESSOR DRIVE BELT, A/C312
COMPRESSOR, A/C312
CONDENSER, A/C306
CONDENSER, VAPOR, A/C COMPRESSOR312
CONNECTING ROD, ENGINE 68
CONNECTIONS, ATTACHMENT COUPLER374
CONNECTIONS, ATTACHMENT COUPLER376
CONSOLE SWITCHES, SIDE250
CONSOLE, CAB PLATFORM282
CONSOLE, INSTRUMENT PANEL SIDE250
CONTROL (BOOM REGULATOR)414
CONTROL (INLET RETURN REGULATOR)412
CONTROL LEVER DETENT KIT, AUXILIARY378
CONTROL LEVER, LOADER390
CONTROL PEDAL, ENGINE SPEED166
CONTROL PRESSURE REGULATING VALVE, – HYDROSTATIC PUMP344
CONTROL UNIT, ELECTRONIC – (FUSE AND RELAY PANEL)248
CONTROL UNIT, STEERING, LOADER CONTROL390
CONTROL VALVE420
CONTROL VALVE (BUCKET REGULATOR)416
CONTROL VALVE (THIRD FUNCTION REGULATOR)418
CONTROL VALVE BLOCK – AUXILIARY AND FOURTH FUNCTION410
CONTROL VALVE BLOCK, MAIN, WITH – AUXILIARY AND THIRD FUNCTION408
CONTROL VALVE COILS AND PLUNGER, PILOT392
CONTROL VALVE HOSES AND FITTINGS, PILOT354
CONTROL VALVE SPOOLS, PILOT394
CONTROL VALVE, AUXILIARY PILOT402
CONTROL VALVE, DIRECTIONAL344
CONTROL VALVE, HYDROSTATIC 52
CONTROL VALVE, HYDROSTATIC MOTOR – REGULATOR 56
CONTROL VALVE, MAIN404
CONTROL, ENGINE SPEED164
CONTROLLER, AIR (HEATER)308
COOLANT DRAIN VALVE, ENGINE 70
COOLANT HEATER KIT, ENGINE152
COOLANT TEMPERATURE SENSOR (OIL COOLER)154
COOLANT TEMPERATURE SENSOR, – HYDRAULIC OIL RESERVOIR356
COOLER, ENGINE OIL118
COOLING FAN PUMP AND MOTOR160
COOLING KIT, ENGINE – (OIL COOLER/RADIATOR)154
CORD, POWER, ENGINE COOLANT HEATER KIT152
CORE (HEATER)308
COUNTERWEIGHT, REAR266
COUPLER, THIRD FUNCTION QUICK – DISCONNECTS438
COUPLING, FRONT AXLE DIFFERENTIAL – HOUSING, BEVEL GEAR AND DISK 32
COUPLING, SPLINED (HYDROSTATIC PUMP)342
COUPLINGS, HYDROSTATIC MOTOR 62
COVER (HOOD, TRIM AND GRILL)322
COVER W/FLUSHING VALVE, END420
COVER, A/C COMPRESSOR312
COVER, CAB TRIM PANELS AND HEADLINER276
COVER, ENGINE COOLANT THERMOSTAT116
COVER, ENGINE OIL FILLER INLET – (LH SIDE) 78
COVER, ENGINE OIL FILLER INLET – (RH SIDE) 80
COVER, ENGINE VALVE 88
COVER, FRONT AXLE HOUSING ASSY 36
COVER, FUSE CARRIER AND BATTERY CLAMPING244
COVER, HYDRAULIC FILTER358
COVER, INSTRUMENT PANEL SIDE CONSOLE250
COVER, LEFT HAND CAB DOOR286
COVER, LOADER FRAME388
COVER, POWER TAKE-OFF 44
COVER, RADIATOR/OIL COOLER SHROUD156
COVER, REAR AXLE HOUSING, – REDUCTION GEARBOX 38
COVER, ROCKER ARM 88
COVER, SEAT CUSHION296
COVER, SEAT CUSHION298
COVER, STEERING COLUMN184
COVER, TIMING GEAR110
COVERS, MAIN FRAME AND FENDERS256
CRANKSHAFT 64
CURTAIN, SHADE (CAB AND COMPONENTS)272
CUSHION, SEAT – ( -010550)296
CUSHION, SEAT – (010551- )298
CUTTING EDGE, BOLT-ON – (13/30 CUBIC METER)362
CUTTING EDGE, BOLT-ON – (15/30 CUBIC METER)360
CUTTING EDGE, BOLT-ON – (15/30 CUBIC METER)364
CYLINDER BLOCK, ENGINE 70
CYLINDER HEAD REMOVAL GASKET SET148
CYLINDER HEAD, ENGINE 90
CYLINDER HOSE, BUCKET424
CYLINDER LINER, ENGINE 68
CYLINDER LOCK380
CYLINDER, ARTICULATION192
CYLINDER, BOOM LIFT440
CYLINDER, BUCKET TILT446
CYLINDER, HOOD SUPPORT320
CYLINDER, LIFT, LOADER BOOM422
CYLINDER, MASTER BRAKE202
CYLINDER, MASTER BRAKE204
CYLINDER, STEERING196
CYLINDER, STEERING AND PINS192
CYLINDER, TILT STEERING184
CYLINDER, TILT, LOADER BOOM424
D 11
DAMPENER, VIBRATION, STEERING COLUMN184
DAMPER ELEMENT, ARTICULATION – JOINT PINS AND BUSHINGS260
DANGER LABELS214
DECAL, BYPASS START132
DETENT KIT, THIRD FUNCTION CONTROL LEVER378
DIFFERENTIAL LOCK 46
DIFFERENTIAL LOCK, FRONT AXLE MOUNTING 28
DIFFERENTIAL, FRONT AXLE 32
DIFFERENTIAL, REAR AXLE DIFFERENTIAL – ASSY, RING AND PINION 40
DIPSTICK, ENGINE OIL – (RH SIDE) 80
DIRECTIONAL CONTROL VALVE344
DISK, BRAKE210
DISK, CLUTCH (HYDROSTATIC PUMP)342
DISPLAY, DIGITAL, INSTRUMENT PANEL SIDE250
DOOR, CAB274
DOOR, LEFT HAND CAB286
DOOR, RIGHT HAND CAB288
DRAIN HOSE, BULK – (CAB CONSOLE AND INSULATING MAT)284
DRAIN PLUG (BRAKE)210
DRAIN PLUG, FRONT AXLE HOUSING ASSY 36
DRAIN PLUG, FRONT PLANETARY GEAR DRIVE 34
DRAIN PLUG, POWER TAKE OFF GEARS 44
DRAIN VALVE, ENGINE COOLANT 70
DRAIN VALVE, ENGINE OIL PAN 76
DRAIN VALVE, FUEL FILTER124
DRAIN VALVE, HYDRAULIC OIL RESERVOIR356
DRIVE BELT, COMPRESSOR, A/C312
DRIVE GEAR, ENGINE ACCESSORY 74
DRIVE GEAR, ENGINE AUXILIARY 74
DRIVE SHAFT, REAR 26
DRIVE SHAFT,FRONT 26
DUCT, AIR304
E 11
EDGE, CUTTING, BOLT-ON – (13/30 CUBIC METER)362
EDGE, CUTTING, BOLT-ON – (15/30 CUBIC METER)360
EDGE, CUTTING, BOLT-ON – (15/30 CUBIC METER)364
ELECTRICAL CONNECTOR, HYDROSTATIC MOTOR 50
ELECTRICAL CONNECTORS, RADIO/SPEAKER332
ELECTRONIC CONTROL UNIT – (FUSE AND RELAY PANEL)248
ELEMENT, AIR CLEANER170
ELEMENT, ENGINE OIL FILTER 84
ELEMENT, FUEL FILTER124
ELEMENT, HYDRAULIC FILTER358
EMBLEM, SLOW MOVING VEHICLE212
ENGINE174
ENGINE COOLANT HEATER KIT152
ENGINE COOLING FAN PUMP AND MOTOR160
ENGINE COOLING KIT – (OIL COOLER/RADIATOR)154
ENGINE MOUNTS174
ENGINE OVERHAUL GASKET SET150
ENGINE SHORT BLOCK ASSEMBLY146
ENGINE SPEED CONTROL CABLE164
ENGINE SPEED CONTROL FOOT PEDAL166
ENGINE SPEED CONTROL PEDAL164
EXHAUST MANIFOLD 92
EXHAUST MUFFLER172
EXHAUST VALVE 90
EXPANSION TANK FITTINGS AND HOSES158
EXPANSION TANK, BRAKE SYSTEM206
F 11
FAN BELT GUARD162
FAN DRIVE MOTOR340
FAN PUMP AND MOTOR, COOLING160
FAN, ALTERNATOR234
FAN, SUCTION (HEATER)308
FENDERS, MAIN FRAME256
FENDERS,FRONT328
FIELD INSTALLATION KIT, RIDE CONTROL KIT398
FILLER CAP, ENGINE OIL 88
FILLER CAP, HYDRAULIC OIL RESERVOIR356
FILTER (INLET RETURN REGULATOR)412
FILTER DRIER, A/C314
FILTER ELEMENT, HYDRAULIC358
FILTER MOUNTING, HYDRAULIC RESERVOIR356
FILTER, AIR CLEANER170
FILTER, AIR DUCT (AIR CONDITIONER)304
FILTER, ENGINE OIL 84
FILTER, FUEL122
FILTER, FUEL (COMPONENTS)124
FILTER, FUEL PRE-128
FILTER, HYDRAULIC RESERVOIR358
FILTER, TRASH GUARD338
FITTING (RETURN-TO-DIG)452
FITTING PLUG, FRONT AXLE HOUSING ASSY 36
FITTING PLUG, FRONT PLANETARY GEAR DRIVE 34
FITTING PLUG, REDUCTION GEARBOX 38
FITTING, BRAKE PEDAL AND LINKAGE200
FITTING, DRAIN – (CAB CONSOLE AND INSULATING MAT)284
FITTING, ENGINE VENTILATING SYSTEM 86
FITTING, GREASE (REAR AXLE) 48
FITTING, HYDRAULIC HOSE FLANGE 58
FITTING, LOADER BOOM AND BUSHINGS384
FITTING, LUBRICATION (FRAME ARTICULATION – JOINT PINS AND260
FITTING, LUBRICATION, BOOM LIFT CYLINDER440
FITTING, LUBRICATION, BUCKET TILT – CYLINDER446
FITTING, LUBRICATION, STEERING CYLINDER192
FITTINGS (BUCKET DISC SOLENOID VALVE)428
FITTINGS AND HOSES, EXPANSION TANK158
FITTINGS AND HOSES, HYDROSTATIC MOTOR 62
FITTINGS AND HOSES, RADIATOR COOLING158
FITTINGS, ATTACHMENT COUPLER374
FITTINGS, AUXILIARY HYDRAULIC CONTROL – HOSES AND FITTINGS436
FITTINGS, DIFFERENTIAL LOCK 46
FITTINGS, FOURTH FUNCTION AND AUXILIARY – HYDRAULIC CONTROL434
FITTINGS, HYDRAULIC HOSES AND – PILOT ACCUMULATOR354
FITTINGS, HYDRAULIC OIL RESERVOIR356
FITTINGS, HYDROSTATIC MOTOR 50
FITTINGS, LOADER BOOM LINK386
FITTINGS, MAIN LOADER CONTROL VALVE404
FITTINGS, PARK BRAKE MANIFOLD AND – ACCUMULATOR HOSES208
FITTINGS, STEERING CYLINDER HYDRAULIC – HOSES190
FITTINGS, STEERING VALVE188
FLANGE (HYDROSTATIC PUMP)342
FLANGE FITTING, HYDRAULIC HOSE 58
FLAP (HEATER)310
FLASHER LEVER/SWITCH184
FLOODLAMP (HEADLIGHTS)236
FLOORMAT280
FLUSHING VALVE, END COVER420
FLUSHING VALVE, HYDROSTATIC MOTOR 54
FLYWHEEL142
FLYWHEEL HOUSING144
FNR LEVER/SWITCH184
FOLLOWER, ENGINE CAMSHAFT 66
FOOT PEDAL,ENGINE SPEED CONTROL166
FORK, OPERATOR SEAT SUSPENSION300
FORKS 48IN, PALLET370
FORKS, PALLET372
FORWARD/REVERSE SOLENOID VALVE352
FOURTH FUNCTION AND AUXILIARY HYDRAULIC – CONTROL HOSES AND434
FOURTH FUNCTION HYDRAULIC KIT, PILOT – CONTROL VALVE430
FRAME (HOOD, TRIM AND GRILL)322
FRAME ARTICULATION JOINT PINS AND – BUSHINGS260
FRAME ARTICULATION LOCKING BAR258
FRAME HARDWARE264
FRAME HARDWARE, LOADER262
FRAME, HOOD320
FRAME, HOOD324
FRAME, LOADER388
FRAME, LOADER CONTROL390
FREEZE CONTROL SWITCH, A/C306
FRENCH LABELS220
FRENCH WARNING LABELS218
FRONT AXLE AND MOUNTING HARDWARE 28
FRONT AXLE DIFFERENTIAL HOUSING, BEVEL – GEAR AND DISK 32
FRONT AXLE HOUSING ASSY 36
FRONT AXLE WHEEL MOUNTING NUTS 28
FRONT DRIVE SHAFT 26
FRONT FENDER SUPPORTS328
FRONT FENDERS328
FRONT OIL SEAL, ENGINE110
FRONT PLANETARY GEAR DRIVE 34
FRONT WINDSHIELD GUARD278
FRONT WORKLIGHTS AND INTERIOR LIGHT238
FUEL FILTER AND LINE122
FUEL FILTER COMPONENTS124
FUEL FILTER PRE-HEATER126
FUEL INJECTION NOZZLE 94
FUEL INJECTION PUMP 96
FUEL INJECTION PUMP COLD START ADVANCE102
FUEL INJECTION PUMP LINKAGE 98
FUEL INJECTION PUMP WIRING HARNESS AND – SWITCH (COLD START100
FUEL LINE, INJECTION PUMP 96
FUEL LINES, FUEL TANK176
FUEL PRE-FILTER128
FUEL TANK176
FUEL TANK MOUNTING330
FUEL TANK PRESSURE RELIEF VALVE178
FUEL TANK SENDER176
FUEL TRANSFER PUMP130
FUSE AND RELAY CIRCUIT BOARD254
FUSE AND RELAY PANEL248
FUSES244
FUSES, RELAYS AND CIRCUIT BOARD254
G 11
GASKET SET, CYLINDER HEAD REMOVAL148
GASKET SET, ENGINE OVERHAUL150
GASKET, ENGINE CYLINDER HEAD 90
GASKET, FORWARD/REVERSE SOLENOID VALVE352
GAUGE, OIL RESERVOIR SIGHT356
GEAR PUMP, HYDRAULIC VALVE346
GEAR PUMP, INTERNAL HYDRAULIC350
GEAR PUMP, TANDEM AND FITTINGS340
GEAR, BEVEL, FRONT AXLE 32
GEAR, CAMSHAFT 70
GEAR, CRANKSHAFT 64
GEAR, ENGINE ACCESSORY DRIVE 74
GEAR, ENGINE AUXILIARY DRIVE 74
GEAR, ENGINE LOWER IDLER110
GEAR, ENGINE OIL PUMP 82
GEAR, ENGINE UPPER IDLER 72
GEAR, FLYWHEEL RING142
GEAR, FUEL INJECTION PUMP DRIVE 96
GEAR, POWER TAKE-OFF 44
GEAR, RING, REAR AXLE 42
GEARBOX, REDUCTION, REAR AXLE 38
GIRDER, FRAME ARTICULATION, JOINT260
GLASS, CAB290
GREASE FITTING, REAR AXLE 48
GREASE, CAMSHAFT BUSHING226
GRILL, CAB AIR304
GRILLE, FRONT WINDSHIELD278
GRILLE, HOOD322
GRILLE, RADIATOR320
GROMMET, LEFT HAND CAB DOOR286
GROUND CABLE, SECONDARY STEERING – MOTOR KIT186
GROUND SPEED SENSOR, FRONT AXLE – DIFFERENTIAL HOUSING 32
GUARD, FAN BELT162
GUARD, FRONT WINDSHIELD278
GUIDE (A/C CONTROLS)318
GUIDE, OPERATOR SEAT SUSPENSION300
H 11
HALF CLAMP, HYDRAULIC OIL LINES 58
HALF CLAMP, HYDRAULIC OIL LINES 60
HALF CLAMP, LIFT CYLINDER LOADER BOOM – HYDRAULIC LINES422
HALF CLAMPS, FRAME HARDWARE264
HALF CLAMPS, LOADER FRAME HARDWARE262
HANDLE, OPERATOR SEAT TRACK296
HANDLE, OPERATOR SEAT TRACK298
HANDLE, PILOT CONTROL390
HANDLE, PILOT CONTROLLER396
HANDLE, RIGHT HAND CAB DOOR288
HARDWARE, FRAME264
HARDWARE, LOADER FRAME262
HARNESS, ALTERNATOR WIRING234
HARNESS, FUEL INJECTION PUMP WIRING – (COLD START ADVANCE)100
HARNESS, MAIN WIRING244
HARNESS, SECONDARY STEERING MOTOR KIT186
HARNESS, TAILLIGHT WIRING242
HARNESS, WIRING – (FUSE AND RELAY PANEL)248
HARNESS, WIRING, FRONT WORKLIGHTS AND – INTERIOR LIGHT238
HARNESS, WIRING, RIDE CONTROL KIT398
HEAD, ENGINE CYLINDER 90
HEAD, ENGINE OIL FILTER 84
HEAD, FUEL FILTER124
HEADLIGHTS236
HEADLINER, CAB276
HEAT SHIELD326
HEATER308
HEATER FLAP AND BRACKET310
HEATER MODULE310
HEATER, COOLANT, ENGINE152
HEATER, FUEL FILTER126
HITCH, REAR COUNTERWEIGHT266
HOLDER (A/C CONTROLS)318
HOLDER (RETURN-TO-DIG)452
HOLDER, FUSE244
HOOD BUFFERS322
HOOD FRAME320
HOOD FRAME324
HOOD GRILLE322
HOOD LATCH322
HOOD SUPPORT320
HOOD SUPPORT CYLINDER320
HOOD TRIM322
HOOD, TRIM AND GRILLE322
HOOKS, LIFT268
HOSE (HEATER)308
HOSE CLAMP, WIPERFLUID TANK292
HOSE, AIR304
HOSE, BUCKET CYLINDER424
HOSE, DIFFERENTIAL LOCK 46
HOSE, DRAIN, BULK – (CAB CONSOLE AND INSULATING MAT)284
HOSE, ENGINE AIR INLET104
HOSE, ENGINE VENTILATING SYSTEM 86
HOSE, HYDRAULIC, RIDE CONTROL KIT398
HOSE, HYDRAULIC, SECONDARY STEERING – MOTOR KIT186
HOSE, PILOT CONTROL VALVE, AUXILIARY432
HOSE, PILOT CONTROL VALVE, AUXILIARY AND – FOURTH FUNCTION430
HOSE, TURBOCHARGER OIL108
HOSE, WIPER FLUID TANK292
HOSES (BRAKE VALVES)206
HOSES (BUCKET DISCONNECT SOLENOID VALVE)428
HOSES (HYDRAULIC OIL LINES) 58
HOSES (HYDRAULIC OIL LINES) 60
HOSES AND FITTINGS, HYDROSTATIC MOTOR 62
HOSES HYDRAULIC, STEERING CYLINDER190
HOSES, ACCUMULATOR, RESERVOIR AND – BRAKE VALVES206
HOSES, AIR CLEANER168
HOSES, AUXILIARY HYDRAULIC CONTROL – HOSES AND FITTINGS436
HOSES, FOURTH FUNCTION AND AUXILIARY – HYDRAULIC CONTROL434
HOSES, HYDRAULIC (REAR AXLE) 48
HOSES, LIFT CYLINDER LOADER BOOM – HYDRAULIC LINES422
HOSES, PARK BRAKE MANIFOLD, ACCUMULATOR, – AND FITTINGS208
HOSES, PILOT CONTROL VALVE354
HOSES, REAR AXLE HYDRAULICS 48
HOUSING, ENGINE OIL COOLER118
HOUSING, FLYWHEEL144
HOUSING, FRONT AXLE 36
HOUSING, FRONT PLANETARY GEAR DRIVE 34
HOUSING, HYDROSTATIC MOTOR FLUSHING – VALVE 54
HOUSING, INTERMEDIATE (OIL COOLER/WATER – PUMP)120
HOUSING, POWER TAKE-OFF 44
HOUSING, REAR AXLE DIFFERENTIAL – ASSY, RING AND PINION 40
HOUSING, REAR AXLE DRIVE 42
HOUSING, REAR AXLE, REDUCTION GEARBOX 38
HUB, FRONT PLANETARY GEAR DRIVE 34
HUB, REAR AXLE DRIVE 42
HYDRAULIC CONTROL VALVE BLOCK – AUXILIARY AND FOURTH FUNCTION410
HYDRAULIC CYLINDER, BOOM LIFT440
HYDRAULIC CYLINDER, BOOM LIFT ROD GUIDE444
HYDRAULIC CYLINDER, BUCKET TILT446
HYDRAULIC CYLINDER, BUCKET TILT – ROD GUIDE450
HYDRAULIC FILTER ELEMENT358
HYDRAULIC FITTINGS, MAIN CONTROL VALVE404
HYDRAULIC GEAR PUMP, INTERNAL350
HYDRAULIC GEAR PUMP, VALVE346
HYDRAULIC HOSE, RIDE CONTROL KIT398
HYDRAULIC HOSE, SECONDARY STEERING – MOTOR KIT186
HYDRAULIC HOSES 58
HYDRAULIC HOSES 60
HYDRAULIC HOSES AND FITTINGS, – HYDROSTATIC MOTOR 62
HYDRAULIC HOSES AND FITTINGS, PILOT – CONTROL VALVE AND354
HYDRAULIC HOSES, REAR AXLE 48
HYDRAULIC HOSES, STEERING CYLINDER190
HYDRAULIC LINES AND FITTINGS424
HYDRAULIC LINES FOR LIFT CYLINDER, – LOADER BOOM422
HYDRAULIC LINES FOR TILT CYLINDER, – LOADER BOOM424
HYDRAULIC LINES, REAR AXLE 48
HYDRAULIC MOTOR, SECONDARY STEERING – MOTOR198
HYDRAULIC OIL LINES 58
HYDRAULIC OIL LINES 60
HYDRAULIC OIL RESERVOIR356
HYDRAULIC PUMP, MOTOR AND FITTINGS, – ENGINE COOLING FAN160
HYDRAULIC PUMP, TANDEM AND FITTINGS340
HYDRAULIC QUICK DISCONNECTS, THIRD – FUNCTION438
HYDRAULIC RESERVOIR FILTER358
HYDRAULIC SOLENOID VALVE, DIFFERENTIAL – LOCK 46
HYDROSTATIC MOTOR 50
HYDROSTATIC MOTOR FITTINGS 50
HYDROSTATIC MOTOR FLUSHING VALVE 54
HYDROSTATIC MOTOR LINES AND FITTINGS 62
HYDROSTATIC MOTOR REGULATOR CONTROL – VALVE 56
HYDROSTATIC MOTOR REGULATOR CONTROL – VALVE SOLENOID 56
HYDROSTATIC MOTOR REGULATOR VALVE 52
HYDROSTATIC PUMP344
HYDROSTATIC PUMP SPLINED COUPLING AND – FLANGE342
HYDROSTATIC TANDEM PUMP WITH FITTINGS340
HYDROSTATIC VALVE ADJUSTMENT348
HYDROSTATIC VALVE REGULATOR348
I 11
IDLER GEAR, ENGINE LOWER110
IDLER GEAR, ENGINE UPPER 72
INDICATOR, AIR CLEANER RESTRICTION168
INJECTION NOZZLE, FUEL 94
INJECTION PUMP LINKAGE, FUEL 98
INJECTION PUMP WIRING HARNESS AND SWITCH – (COLD START ADVANCE)100
INJECTION PUMP, FUEL 96
INLET COVER, MAIN CONTROL VALVE BLOCK – AUXILIARY AND FOURTH410
INLET COVER, MAIN CONTROL VALVE BLOCK – WITH AUXILIARY AND408
INLET COVER, MAIN CONTROL VALVE BLOCK – WITH AUXILIARY FUNCTION406
INLET RETURN REGULATOR412
INLET, ENGINE AIR104
INLET, WATER PUMP112
INSERT, INTAKE/EXHAUST VALVE SEAT 90
INSERT, WATER PUMP110
INSTRUMENT PANEL – (CAB CONSOLE AND INSULATING MAT)284
INSTRUMENT PANELSIDE CONSOLE250
INSTRUMENT WIRING – (FUSE AND RELAY PANEL)248
INSULATOR, HYDRAULIC OIL RESERVOIR356
INTAKE VALVE 90
INTAKE, ENGINE OIL PUMP 82
INTERMEDIATE HOUSING (OIL COOLER/WATER – PUMP)120
ISOLATOR (FUEL TANK)176
ISOLATOR (FUSE AND RELAY PANEL)248
ISOLATOR (FUSES, RELAYS AND CIRCUIT – BOARD)254
ISOLATOR, CAB MOUNTING270
ISOLATOR, ENGINE MOUNTS174
ISOLATOR, MAIN FRAME, COVERS AND FENDERS256
J 11
JET, ENGINE PISTON COOLING 70
JOYSTICK PILOT CONTROLLER396
JOYSTICK, PILOT CONTROLLER396
K 11
KEY, INSTRUMENT PANEL SIDE CONSOLE250
KEY, LEFT HAND CAB DOOR286
KEY, RIGHT HAND CAB DOOR288
KIT, BOOM LIFT CYLINDER PISTON442
KIT, BRAKE CYLINDER202
KIT, BUCKET TILT CYLINDER PISTON448
KIT, BUCKET TILT CYLINDER PISTON SEAL448
KIT, COOLANT HEATER, ENGINE152
KIT, COOLING, ENGINE – (OIL COOLER/RADIATOR)154
KIT, ENGINE CYLINDER LINER O-RING 68
KIT, ENGINE PISTON AND CYLINDER LINER 68
KIT, ENGINE PISTON RING 68
KIT, FIELD INSTALLATION, – RIDE CONTROL KIT398
KIT, FOURTH FUNCTION HYDRAULIC, PILOT – CONTROL VALVE430
KIT, FUEL FILTER DRAIN VALVE124
KIT, FUEL FILTER HEAD124
KIT, FUEL FILTER SEAL124
KIT, FUEL FILTER SEDIMENT BOWL124
KIT, FUEL INJECTION COLD START ADVANCE102
KIT, HYDRAULIC CYLINDER, BOOM LIFT – ROD GUIDE CYLINDER444
KIT, HYDRAULIC CYLINDER, BUCKET TILT – ROD GUIDE450
KIT, SEAL420
KIT, SEAL (BOOM REGULATOR)414
KIT, SEAL (BUCKET REGULATOR)416
KIT, SEAL (INLET RETURN REGULATOR)412
KIT, SEAL (PRESSURE REGULATING VALVE)346
KIT, SEAL (THIRD FUNCTION REGULATOR)418
KIT, SEAL, SECONDARY STEERING MOTOR198
KIT, SECONDARY STEERING METERING MOTOR186
KIT, STARTER MOTOR132
KIT, STARTER SOLENOID COVER132
KIT, THIRD FUNCTION HYDRAULIC, PILOT – CONTROL VALVE432
KIT, TIMING GEAR COVER SERVICE110
KIT, WATER PUMP REPAIR110
KNOB (A/C CONTROLS)318
KNOB (HEATER)308
KNOB, ARMREST280
L 11
LABEL252
LABEL (RETURN-TO-DIG)452
LABEL, BYPASS START132
LABEL, CAB FRONT WINDOWPANE290
LABEL, INSTRUMENT PANEL SIDE CONSOLE250
LABEL, RIDE CONTROL KIT398
LABEL, SWITCH, A/C314
LABELS216
LABELS (FRENCH)220
LABELS (SPANISH)224
LABELS, WARNING214
LABELS, WARNING (FRENCH)218
LABELS, WARNING (SPANISH)222
LATCH, HOOD322
LATCH, LEFT HAND CAB DOOR286
LATCH, RIGHT HAND CAB DOOR288
LEFT HAND CAB DOOR286
LEFT HAND CAB DOOR KEY286
LEFT HAND CAB DOOR LATCH286
LEFT HAND CAB DOOR WINDOW286
LEVELER, AUTOMATIC LOAD – (RETURN-TO-DIG)452
LEVER, AUXILIARY CONTROL DETENT KIT378
LEVER, AUXILIARY PILOT CONTROL VALVE402
LEVER, FLASHER AND FNR184
LEVER, FUEL INJECTION PUMP THROTTLE 98
LEVER, LEFT HAND CAB DOOR286
LEVER, OPERATOR SEAT TRACK296
LEVER, OPERATOR SEAT TRACK298
LEVER, PILOT CONTROL VALVE390
LEVER, RIGHT HAND CAB DOOR288
LEVER,TURN SIGNAL184
LIFT CYLINDER LOADER BOOM HYDRAULIC – LINES422
LIFT CYLINDER, BOOM440
LIFT CYLINDER, LOADER BOOM422
LIFT HOOKS268
LIGHT, BEACON336
LINE (HEATER)308
LINE, FUEL FILTER122
LINE, FUEL INJECTION PUMP 96
LINE, FUEL TRANSFER PUMP130
LINE, TURBOCHARGER OIL108
LINER, ENGINE CYLINDER 68
LINES (LOADER BOOM HYDRAULIC) FOR – LIFT CYLINDER422
LINES AND FITTINGS, LOADER HYDRAULICS424
LINES FOR TILT CYLINDER, LOADER BOOM – HYDRAULIC424
LINES, FUEL TANK FUEL176
LINES, HYDRAULIC (REAR AXLE) 48
LINES, HYDRAULIC OIL 58
LINES, HYDRAULIC OIL 60
LINK AND BUSHINGS, BOOM LOADER386
LINK CHAIN, CYLINDER LOCK380
LINK CHAIN, FRAME ARTICULATION LOCKING – BAR258
LINK, HOOD FRAME324
LINKAGE, BRAKE PEDAL200
LINKAGE, FUEL INJECTION PUMP 98
LINKS, LOADER FRAME AND PINS/BUSHINGS382
LINKS, STEERING ROD194
LOADER BOOM AND LINKS382
LOADER BOOM AND LINKS/PINS/BUSHINGS382
LOADER BOOM ASSEMBLY WITH BUSHINGS384
LOADER BOOM HYDRAULIC LINES – FOR LIFT CYLINDER422
LOADER BOOM HYDRAULIC LINES AND PINS FOR – TILT CYLINDER424
LOADER BOOM HYDRAULIC LINES FOR TILT – CYLINDER424
LOADER BOOM LINK ASSEMBLY WITH BUSHINGS386
LOADER CONTROL LEVER390
LOADER CONTROL VALVE BLOCK – AUXILIARY AND FOURTH FUNCTION410
LOADER CONTROL VALVE BLOCK – WITH AUXILIARY FUNCTION406
LOADER FRAME AND COVER PLATE388
LOADER FRAME BOOM LIFT CYLINDER440
LOADER FRAME BUCKET TILT CYLINDER446
LOADER FRAME HARDWARE262
LOADER, BUCKET – (175 CUBIC YARDS)(133 CUBIC METERS)366
LOADER, BUCKET – (20 CUBIC YARDS)(153 CUBIC METERS)368
LOCK BAR,FRAME ARTICULATION258
LOCK, CYLINDER380
LOCK, DIFFERENTIAL 46
LOCK, DIFFERENTIAL, FRONT AXLE MOUNTING 28
LOCKOUT SOLENOID VALVE, PILOT390
LUBRICATION FITTING, BOOM LIFT CYLINDER440
LUBRICATION FITTING, BUCKET TILT – CYLINDER446
LUBRICATION FITTING, FRAME ARTICULATION – JOINT PINS AND260
LUBRICATION FITTING, STEERING CYLINDER192
M 11
MAIN CONTROL VALVE AND HYDRAULIC – FITTINGS404
MAIN CONTROL VALVE BLOCK – WITH AUXILIARY FUNCTION406
MAIN CONTROL VALVE BLOCK WITH AUXILIARY – AND FOURTH FUNCTION410
MAIN CONTROL VALVE BLOCK WITH AUXILIARY – AND THIRD FUNCTION408
MAIN CONTROL VALVE BLOCK WITH AUXILIARY – FUNCTION406
MAIN FRAME, COVERS AND FENDERS256
MAIN HYDRAULIC PUMP340
MAIN WIRING HARNESS244
MANIFOLD, DIFFERENTIAL LOCK 46
MANIFOLD, EXHAUST 92
MANIFOLD, PARK BRAKE208
MASTER BRAKE CYLINDER204
MAT LABEL216
MAT, FLOOR390
MEDALLION (ENGINE) 88
MIRROR, REAR VIEW (CAB AND COMPONENTS)272
MODULE, HEATER310
MOTOR, ENGINE COOLING FAN160
MOTOR, FAN DRIVE340
MOTOR, HYDRAULIC, SECONDARY STEERING198
MOTOR, HYDROSTATIC 50
MOTOR, HYDROSTATIC FLUSHING VALVE 54
MOTOR, HYDROSTATIC REGULATOR VALVE 52
MOTOR, STARTER132
MOTOR, WINDSHIELD WIPER292
MOUNTING HARDWARE, BATTERY228
MOUNTING HARDWARE, BATTERY (OPTIONAL)230
MOUNTING HARDWARE, BATTERY (OPTIONAL)232
MOUNTING PLATE, RADIO/SPEAKER332
MOUNTING, CAB270
MOUNTING, FRONT AXLE 28
MOUNTS, ENGINE174
MUD GUARD, FRONT FENDERS328
MUFFLER SUPPORT, EXHAUST172
MUFFLER, CATALYTIC172
MUFFLER, EXHAUST172
N 11
NON-RETURN VALVE, DIFFERENTIAL LOCK 46
NOZZLE, AIR304
NOZZLE, FUEL INJECTION 94
NUTS, FRONT AXLE WHEEL MOUNTING 28
O 11
O-RING (PRESSURE REGULATING VALVE)346
O-RING, BOOM LIFT CYLINDER PISTON442
O-RING, BUCKET TILT CYLINDER PISTON448
O-RINGS, BRAKE210
OIL COOLER ADAPTER, ENGINE120
OIL COOLER/RADIATOR SHROUD AND HARDWARE154
OIL COOLER/RADIATOR SHROUD ASSEMBLY156
OIL COOLER, ENGINE118
OIL FILTER, ENGINE 84
OIL LINE, PILOT ACCUMULATOR354
OIL LINE, TURBOCHARGER108
OIL LINES, HYDRAULIC 58
OIL LINES, HYDRAULIC 60
OIL PAN, ENGINE 76
OIL PRESSURE REGULATING VALVE, ENGINE 70
OIL PRESSURE SWITCH, ENGINE182
OIL PUMP, ENGINE 82
OIL TANK, HYDRAULIC356
OPERATOR SEAT – (010551- )294
OPERATOR SEAT BELT294
OPERATOR SEAT SUSPENSION300
OPERATOR SEAT TRACK296
OPERATOR SEAT TRACK298
OPTIONAL AIR CONDITIONING UNIT AND – HEATER306
ORIFICE, ENGINE PISTON COOLING 70
ORIFICE, OIL LINES (HYDRAULIC) 60
OUTLET COVER, MAIN CONTROL VALVE BLOCK – AUXILIARY AND FOURTH410
OUTLET COVER, MAIN CONTROL VALVE BLOCK – WITH AUXILIARY AND408
OUTLET COVER, MAIN CONTROL VALVE BLOCK – WITH AUXILIARY FUNCTION406
OVERRIDE VALVE, PRESSURE, – HYDROSTATIC PUMP344
P 11
PAD, HEAT SHIELD326
PAD, RUBBER (BATTERY)228
PAD, RUBBER, BATTERY (OPTIONAL)230
PAD, RUBBER, BATTERY (OPTIONAL)232
PALLET FORKS372
PALLET FORKS 48IN370
PAN, ENGINE OIL 76
PANEL (CAB AND COMPONENTS)272
PANEL, FUSE254
PANEL, INSTRUMENT – (CAB CONSOLE AND INSULATING MAT)284
PANELS, CAB – (CAB CONSOLE AND INSULATING MAT)284
PANELS, CAB TRIM276
PARK BRAKE MANIFOLD, ACCUMULATOR, HOSES – AND FITTINGS208
PEDAL, BRAKE200
PEDAL, BRAKE202
PEDAL, ENGINE SPEED CONTROL164
PEDAL, ENGINE SPEED CONTROL166
PILLOW BLOCK, BOOM LIFT CYLINDER440
PILOT ACCUMULATOR, HYDRAULIC HOSES – AND FITTINGS354
PILOT CONTROL VALVE AND AUXILIARY AND – FOURTH FUNCTION HOSES430
PILOT CONTROL VALVE AND AUXILIARY HOSES – AND FITTINGS432
PILOT CONTROL VALVE COILS AND PLUNGER – ASSEMBLY392
PILOT CONTROL VALVE MOUNTING390
PILOT CONTROL VALVE SPOOLS394
PILOT CONTROLLER, JOYSTICK396
PILOT LOCKOUT SOLENOID VALVE390
PILOT SHUTOFF SWITCH250
PIN, ENGINE PISTON 68
PIN, FRAME ARTICULATION LOCKING BAR258
PIN, HYDROSTATIC MOTOR FLUSHING VALVE 54
PIN, REAR AXLE AND MOUNTING – HARDWARE 30
PIN, REAR COUNTERWEIGHT266
PIN, RETAINING, CYLINDER LOCK380
PIN, SPRING,PALLET FORKS370
PIN, SPRING,PALLET FORKS372
PINS CAB DOOR MOUNTING274
PINS, FRAME ARTICULATION, JOINT260
PINS, LOADER BUCKET CYLINDER424
PINS, LOADER FRAME/LINKS382
PINS, STEERING CYLINDER192
PIPE BUSHING, FUEL TANK178
PIPE, MUFFLER EXHAUST172
PISTON (INLET RETURN REGULATOR)412
PISTON COOLING JET, ENGINE 70
PISTON ROD BEARING, STEERING CYLINDER196
PISTON, BOOM LIFT CYLINDER440
PISTON, BOOM LIFT CYLINDER442
PISTON, BRAKE210
PISTON, BUCKET TILT CYLINDER446
PISTON, BUCKET TILT CYLINDER448
PISTON, ENGINE 68
PIVOT BEARING, FRAME ARTICULATION JOINT – PINS AND BUSHINGS260
PLANET PINION CARRIER – FRONT PLANETARY GEAR DRIVE 34
PLATE, AUXILIARY HYDRAULIC CONTROL – HOSES AND FITTINGS436
PLATE, BATTERY228
PLATE, BATTERY (OPTIONAL)230
PLATE, BATTERY (OPTIONAL)232
PLATE, CAB PLATFORM282
PLATE, CAMSHAFT 70
PLATE, CLAMP, HYDRAULIC OIL LINES 58
PLATE, ENGINE FRONT 72
PLATE, FOURTH FUNCTION AND AUXILIARY – HYDRAULIC CONTROL434
PLATE, FRAME HARDWARE264
PLATE, FRONT FENDERS328
PLATE, HYDRAULIC FILTER358
PLATE, LOADER FRAME HARDWARE262
PLATE, OPERATOR SEAT SUSPENSION300
PLATE, OPERATOR SEAT TRACK296
PLATE, OPERATOR SEAT TRACK298
PLATE, SEALING REAR WORKLIGHTS240
PLATE, STEP, STEERING ROD LINKS194
PLATE, STEPS302
PLATE, VIBRATION DAMPENING, – STEERING COLUMN184
PLATFORM, CAB282
PLUG (CAB CONSOLE AND INSULATING MAT)284
PLUG SOCKET, BACKUP ALARM334
PLUG, DRAIN (BRAKE)210
PLUG, DRAIN (POWER TAKE OFF GEARS) 44
PLUG, DRAIN, FRONT AXLE HOUSING ASSY 36
PLUG, DRAIN, FRONT PLANETARY GEAR – DRIVE 34
PLUG, ENGINE DIPSTICK TUBE – (LH SIDE) 78
PLUG, FITTING – (AIR HOSE, NOZZLE AND FILTER)304
PLUG, FITTING, FRONT PLANETARY GEAR – DRIVE 34
PLUG, FITTING, REDUCTION GEARBOX 38
PLUG, MAIN FRAME256
PLUG, REAR COUNTERWEIGHT266
PLUG, REAR WORKLIGHTS240
PLUNGER ASSEMBLY, PILOT CONTROL VALVE392
PNEUMATIC ACCUMULATOR, RIDE CONTROL KIT398
POWER CORD, ENGINE COOLANT HEATER KIT152
POWER TAKE-OFF 44
PRESSURE FLANGE, FRAME ARTICULATION – JOINT PINS AND BUSHINGS260
PRESSURE OVERRIDE VALVE, – HYDROSTATIC PUMP344
PRESSURE REGULATING VALVE, CONTROL – HYDROSTATIC PUMP344
PRESSURE RELIEF VALVE – (INLET RETURN REGULATOR)412
PRESSURE RELIEF VALVE – (THIRD FUNCTION REGULATOR)418
PRESSURE RELIEF VALVE (BOOM REGULATOR)414
PRESSURE RELIEF VALVE (BUCKET REGULATOR)416
PRESSURE RELIEF VALVE, FUEL TANK178
PRESSURE RELIEF VALVE, SECONDARY – STEERING MOTOR198
PRESSURE SWITCH, PARK BRAKE MANIFOLD, – ACCUMULATOR, HOSES AND F208
PRESSURE SWITCH, SECONDARY STEERING – MOTOR KIT186
PULLEY, A/C COMPRESSOR312
PULLEY, A/C COMPRESSOR DRIVE BELT312
PULLEY, ALTERNATOR234
PULLEY, CRANKSHAFT138
PULLEY, WATER PUMP114
PUMP, A/C314
PUMP, ENGINE COOLING FAN160
PUMP, ENGINE OIL 82
PUMP, FUEL INJECTION 96
PUMP, FUEL TRANSFER130
PUMP, HYDRAULIC TANDEM AND FITTINGS340
PUMP, HYDROSTATIC344
PUMP, HYDROSTATIC TANDEM340
PUMP, INTERNAL HYDRAULIC GEAR350
PUMP, SECONDARY STEERING MOTOR198
PUMP, SECONDARY STEERING MOTOR KIT186
PUMP, STEERING METERING, – SECONDARY STEERING MOTOR KIT186
PUMP, TANDEM AND FITTINGS340
PUMP, WATER110
PUMP, WINDSHIELD WIPER292
PUSH BUTTON, OPERATOR SEAT SUSPENSION300
PUSH ROD, ENGINE 66
PUSH ROD, FUEL TRANSFER PUMP130
Q 11
QUICK COUPLER, BUCKET WITH BOLT-ON – CUTTING EDGE (15/30364
QUICK COUPLER, BUCKETS, BOLT-ON – CUTTING EDGE (15/30 CUBIC364
QUICK DISCONNECTS, THIRD FUNCTION438
R 11
RADIATOR GRILLE320
RADIATOR/OIL COOLER SHROUD AND HARDWARE154
RADIATOR/OIL COOLER SHROUD COVER156
RAIN CAP, AIR CLEANER168
REAR AXLE AND MOUNTING HARDWARE 30
REAR AXLE DRIVE HOUSING 42
REAR AXLE DRIVE HUB 42
REAR AXLE DRIVE RING GEAR 42
REAR AXLE HOUSING, REDUCTION GEARBOX 38
REAR AXLE HYDRAULIC HOSES 48
REAR AXLE HYDRAULIC LINES 48
REAR AXLE REDUCTION GEARBOX 38
REAR AXLE, DIFFERENTIAL ASSY, RING AND – PINION 40
REAR COUNTERWEIGHT266
REAR DRIVE SHAFT 26
REAR OIL SEAL, ENGINE144
REAR STEPS302
REAR VIEW MIRROR (CAB AND COMPONENTS)272
REAR WINDOW WIPER SWITCH250
REAR WORKLIGHTS240
RECEIVER DRIER, A/C314
REFLECTORS216
REFRIGERANT HOSES, A/C306
REFRIGERANT HOSES, A/C314
REGULATING VALVE, CONTROL PRESSURE, – HYDROSTATIC PUMP344
REGULATING VALVE, PRESSURE FOR PUMP346
REGULATOR, ALTERNATOR VOLTAGE234
REGULATOR, HYDROSTATIC MOTOR 52
REGULATOR, HYDROSTATIC VALVE348
RELAY (FUSE AND RELAY PANEL)248
RELAY MODULE (FUSE AND RELAY PANEL)248
RELAY, A/C314
RELAYS, FUSE PANEL AND CIRCUIT BOARD254
REPAIR KIT, MASTER BRAKE CYLINDER204
RESERVOIR, HOSES, ACCUMULATOR AND – BRAKE VALVES206
RESERVOIR, HYDRAULIC356
RESERVOIR, HYDRAULIC FILTER358
RESTRICTION INDICATOR, AIR CLEANER168
RETAINER, INTAKE/EXHAUST VALVE 90
RETAINING PIN, CYLINDER LOCK380
RETAINING SPRING, FRAME ARTICULATION258
RETURN TO DIG SWITCH250
RETURN-TO-DIG WITH SWITCH452
RETURN/SUCTION FILTER358
RETURN/SUCTION FILTER MOUNTING356
RIDE CONTROL KIT398
RIDE CONTROL VALVE400
RIGHT HAND CAB DOOR288
RIM (WHEELS) 24
RING GEAR, FLYWHEEL142
RING GEAR, REAR AXLE DRIVE 42
RING, BOOM LIFT CYLINDER442
RING, BUCKET TILT CYLINDER448
RING, ENGINE PISTON 68
ROCKER ARM COVER 88
ROCKER ARMS SHAFT 66
ROCKER/TOGGLE SWITCH, RIDE CONTROL KIT398
ROD (RETURN-TO-DIG)452
ROD GUIDE, BOOM LIFT CYLINDER444
ROD GUIDE, BUCKET TILT450
ROD GUIDE, STEERING CYLINDER196
ROD, BATTERY228
ROD, BATTERY (OPTIONAL)230
ROD, BATTERY (OPTIONAL)232
ROD, ENGINE CONNECTING 68
ROD, ENGINE PUSH 66
ROD, FUEL TRANSFER PUMP PUSH130
ROD, LOADER BOOM HYDRAULIC LINES FOR – TILT CYLINDER424
ROD, THREADED, A/C MOUNTING BRACKETS312
RODS, STEERING LINKS194
ROLLER BEARINGS, TAPERED, REAR AXLE – DIFFERENTIAL ASSY, RING 40
ROLLER, OPERATOR SEAT SUSPENSION300
ROTARY SWITCH (A/C CONTROLS)318
ROTATOR, INTAKE/EXHAUST VALVE 90
RUBBER BUFFER, FUSE PANEL AND RELAY – BOARD254
RUBBER PAD, BATTERY228
RUBBER PAD, BATTERY (OPTIONAL)230
RUBBER PAD, BATTERY (OPTIONAL)232
RUBBER STOP, CYLINDER LOCK380
S 11
SAFTEY SIGN214
SCRAPER RING, BOOM LIFT ROD GUIDE – CYLINDER444
SCRAPER RING, BUCKET TILT ROD GUIDE450
SCREW AND NUT SET, MAIN CONTROL VALVE – AUXILIARY AND FOURTH410
SCREW AND NUT SET, MAIN CONTROL VALVE – WITH AUXILIARY AND408
SCREW AND NUT SET, MAIN CONTROL VALVE – WITH AUXILIARY FUNCTION406
SEAL KIT420
SEAL KIT (BOOM REGULATOR)414
SEAL KIT (BUCKET REGULATOR)416
SEAL KIT (INLET RETURN REGULATOR)412
SEAL KIT (PRESSURE REGULATING VALVE)346
SEAL KIT (THIRD FUNCTION REGULATOR)418
SEAL KIT, BUCKET TILT CYLINDER PISTON448
SEAL KIT, HYDRAULIC FILTER358
SEAL KIT, MASTER BRAKE CYLINDER204
SEAL KIT, SECONDARY STEERING MOTOR198
SEAL, BOOM LIFT CYLINDER PISTON442
SEAL, BRAKE210
SEAL, ENGINE FRONT OIL110
SEAL, ENGINE REAR OIL144
SEAL, FRONT PLANETARY GEAR DRIVE 34
SEAL, INTAKE/EXHAUST VALVE STEM 90
SEAL, PARK BRAKE MANIFOLD208
SEALANT (HOOD AND GRILL)322
SEALING PLATE, REAR WORKLIGHTS240
SEALING TRIM, MAIN FRAME, COVERS AND – FENDERS256
SEALS, BOOM LIFT ROD GUIDE CYLINDER444
SEALS, BUCKET TILT ROD GUIDE450
SEALS, HYDROSTATIC MOTOR AND FITTINGS 50
SEALS, SOLENOID SWITCH, – HYDROSTATIC PUMP344
SEALS, STEERING CYLINDER196
SEAT BELT, OPERATOR SEAT294
SEAT CUSHION – ( -010550)296
SEAT CUSHION – (010551- )298
SEAT SHOCK ABSORBER, OPERATOR300
SEAT SUSPENSION, OPERATOR300
SEAT, OPERATOR – (010551- )294
SECONDARY STEERING METERING MOTOR KIT186
SECONDARY STEERING MOTOR198
SEDIMENT BOWL, FUEL FILTER124
SELF-ALIGNING BEARING, ARTICULATION – JOINT PINS AND BUSHINGS260
SENDER, ENGINE COOLANT TEMPERATURE180
SENDER, ENGINE OIL PRESSURE182
SENDER, FUEL TANK176
SENSOR, COOLANT TEMPERATURE (OIL COOLER)154
SENSOR, ENGINE COOLANT TEMPERATURE180
SENSOR, ENGINE OIL PRESSURE182
SENSOR, FUEL INJECTION PUMP – (COLD START ADVANCE)100
SENSOR, TEMPERATURE, COOLANT, – HYDRAULIC OIL RESERVOIR356
SHAFT, BALANCER106
SHAFT, ENGINE IDLER GEAR 72
SHAFT, ENGINE ROCKER ARM 66
SHAFT, FRONT AXLE DIFFERENTIAL – HOUSING, BEVEL GEAR AND DISK 32
SHAFT, FRONT DRIVE 26
SHAFT, FRONT PLANETARY GEAR DRIVE 34
SHAFT, PILOT CONTROL VALVE U-JOINT392
SHAFT, POWER TAKE-OFF 44
SHAFT, REAR DRIVE 26
SHIELD, A/C COMPRESSOR312
SHIM, ENGINE CYLINDER LINER 68
SHIMS, BRAKE210
SHIMS, REAR AXLE DIFFERENTIAL ASSY, RING – AND PINION 40
SHOCK ABSORBER, OPERATOR SEAT300
SHORT BLOCK ASSEMBLY, ENGINE146
SHROUD, RADIATOR/OIL COOLER154
SHROUD, RADIATOR/OIL COOLER ASSEMBLY156
SHUTTER, HYDROSTATIC MOTOR FLUSHING – VALVE 54
SIGHT GAUGE, OIL RESERVOIR356
SIGN, BYPASS START132
SIGN, SAFTEY214
SLEEVE, OPERATOR SEAT TRACK296
SLEEVE, OPERATOR SEAT TRACK298
SLOW MOVING VEHICLE EMBLEM212
SOCKET, PLUG (BACKUP ALARM)334
SOLENOID SWITCH, – HYDROSTATIC PUMP344
SOLENOID VALVE, BUCKET QUICK DISCONNECT428
SOLENOID VALVE, FORWARD/REVERSE352
SOLENOID VALVE, PILOT LOCKOUT390
SOLENOID, HYDROSTATIC MOTOR REGULATOR – VALVE 56
SOLENOID, STARTER MOTOR132
SPACER, FAN BELT GUARD162
SPACERS, AUXILIARY HYDRAULIC CONTROL – HOSES AND FITTINGS436
SPACERS, FOURTH FUNCTION AND AUXILIARY – HYDRAULIC CONTROL434
SPANISH, LABELS224
SPANISH, WARNING LABELS222
SPEAKER, RADIO332
SPLINED COUPLING (HYDROSTATIC PUMP)342
SPOOL, AUXILIARY PILOT CONTROL VALVE402
SPOOL, PILOT CONTROL VALVE394
SPRING PIN, PALLET FORKS370
SPRING PIN, PALLET FORKS372
SPRING, COMPRESSION (BRAKE)210
SPRING, COMPRESSION (FORWARD/REVERSE – SOLENOID VALVE)352
SPRING, EXTENSION, BRAKE PEDAL202
SPRING, INTAKE/EXHAUST VALVE 90
SPRING, OPERATOR SEAT300
SPRING, RETRANING, FRAME ARTICULATION258
STACK, AIR INTAKE, AIR CLEANER168
STARTER MOTOR132
STEERING COLUMN COVER184
STEERING CONTROL UNIT, LOADER CONTROL390
STEERING CYLINDER196
STEERING CYLINDER AND PINS192
STEERING CYLINDER HYDRAULIC HOSES190
STEERING METERING PUMP, – SECONDARY STEERING MOTOR KIT186
STEERING MOTOR, HYDRAULIC198
STEERING ROD LINKS194
STEERING VALVE188
STEERING WHEEL184
STEERING, SECONDARY MOTOR KIT186
STEM, VALVE (WHEELS) 24
STEP PLATE, STEERING ROD LINKS194
STEPS, REAR302
STOP, RUBBER, CYLINDER LOCK380
STOP, STEERING ROD LINKS194
STRAINER, ENGINE OIL PUMP INTAKE 82
STRAP (HOOD, TRIM AND GRILL)322
STRAP (MAIN FRAME, COVERS AND FENDERS)256
STRAP, HYDRAULIC OIL RESERVOIR356
STRIKERS, CAB DOOR274
SUCTION FAN (HEATER)308
SUPPORT, ENGINE MOUNTS174
SUPPORT, LOADER BOOM AND LINKS382
SUPPORT, MUFFLER172
SUPPORT, SECONDARY STEERING – MOTOR KIT186
SUPPORTS,FRONT FENDER328
SUSPENSION, OPERATOR SEAT300
SWASH PLATE, HYDROSTATIC MOTOR 50
SWITCH (HEATER)308
SWITCH, A/C306
SWITCH, A/C314
SWITCH, AUTO LOAD LEVELER – (RETURN-TO-DIG)452
SWITCH, BOOM KICK OUT250
SWITCH, ENGINE COOLANT TEMPERATURE180
SWITCH, ENGINE OIL PRESSURE182
SWITCH, FUEL INJECTION PUMP – (COLD START ADVANCE)100
SWITCH, HYDROSTATIC MOTOR REGULATOR – CONTROL VALVE 56
SWITCH, PRESSURE, PARK BRAKE MANIFOLD, – ACCUMULATOR, HOSES208
SWITCH, PRESSURE, SECONDARY STEERING – MOTOR KIT186
SWITCH, REAR WORKLIGHTS240
SWITCH, RETURN TO DIG250
SWITCH, ROCKER, INSTRUMENT PANEL SIDE250
SWITCH, ROTARY (A/C CONTROLS)318
SWITCH, TOGGLE/ROCKER, RIDE CONTROL KIT398
SWITCH,PILOT SHUTOFF250
SWITCHES, FLASHER AND FNR LEVER184
T 11
TAILLIGHTS242
TANDEM GEAR PUMP AND FITTINGS340
TANK MOUNTING, FUEL330
TANK, EXPANSION (BRAKE)206
TANK, EXPANSION, FITTINGS AND HOSES158
TANK, FUEL176
TANK, HYDRAULIC OIL356
TANK, WINDSHIELD WIPER292
TAPERED ROLLER BEARINGS, REAR AXLE – DIFFERENTIAL ASSY, RING 40
TAPPET, ENGINE PUSH ROD 66
TEMPERATURE SENSOR, COOLANT, – HYDRAULIC OIL RESERVOIR356
TEMPERATURE SENSOR, ENGINE COOLANT180
TENSION BAR, FRAME HARDWARE264
TENSIONER, ENGINE BELT140
TEST, CABLE246
THERMOCOUPLER, A/C306
THERMOSTAT, ENGINE COOLANT116
THIRD FUNCTION HYDRAULIC KIT, PILOT – CONTROL VALVE432
THIRD FUNCTION HYDRAULIC QUICK DISCONNEC – DISCONNECTS438
THIRD FUNCTION REGULATOR418
THRUST BEARING, ENGINE 64
TIE ROD194
TIEBAND, HEADLIGHT236
TIGHTENER, ENGINE BELT140
TILT CYLINDER, BUCKET446
TILT CYLINDER, LOADER BOOM424
TIMING GEAR COVER110
TINE, PALLET FORKS372
TINE, PALLET FORKS 48IN370
TOGGLE/ROCKER SWITCH, RIDE CONTROL KIT398
TRANSDUCER (BOOM REGULATOR)414
TRANSDUCER (BUCKET REGULATOR)416
TRANSDUCER (THIRD FUNCTION REGULATOR)418
TRANSFER PUMP, FUEL130
TRANSMISSION HYDROSTATIC MOTOR REGULATOR 52
TRASH GUARD, FILTER338
TRASH SCREEN338
TRIM PANELS, CAB276
TRIM, SEALING – (MAIN FRAME, COVERS AND FENDERS)256
TRIM, SEALING (HOOD AND GRILL)322
TRIM, SEALING, LEFT HAND CAB DOOR286
TRIM, SEALING, RIGHT HAND CAB DOOR288
TUBE, ENGINE COOLANT BYPASS116
TUBE, ENGINE OIL DIPSTICK – (RH SIDE) 80
TUBE, ENGINE OIL PUMP OUTLET 82
TUBE, FUEL INJECTOR FEED 96
TUBE, WIPER FLUID TANK292
TURBOCHARGER AND OIL LINES108
TURN SIGNAL LEVER184
U 11
U-JOINT SHAFT, PILOT CONTROL VALVE392
V 11
V-BELT, AIR CONDITIONER COMPRESSOR DRIVE312
VALVE (HEATER)308
VALVE COILS AND PLUNGER ASSEMBLY, PILOT – CONTROL392
VALVE COVER, ENGINE 88
VALVE HANDLE AND MOUNTING, PILOT CONTROL390
VALVE SPOOLS, PILOT CONTROL394
VALVE STEM (WHEELS) 24
VALVE, ADJUSTMENT (HYDROSTATIC)348
VALVE, AUXILIARY AND FOURTH FUNCTION – PILOT CONTROL VALVE430
VALVE, AUXILIARY PILOT CONTROL402
VALVE, BLEED, FRONT AXLE HOUSING ASSY 36
VALVE, BLEED, FRONT PLANETARY GEAR DRIVE 34
VALVE, BRAKE CYLINDER202
VALVE, BUCKET QUICK DISCONNECT SOLENOID428
VALVE, CHECK (BOOM REGULATOR)414
VALVE, CHECK (BUCKET REGULATOR)416
VALVE, CHECK (THIRD FUNCTION REGULATOR)418
VALVE, CONTROL420
VALVE, CONTROL – (THIRD FUNCTION REGULATOR)418
VALVE, CONTROL (BUCKET REGULATOR)416
VALVE, CONTROL (HYDROSTATIC) 52
VALVE, CONTROL PRESSURE REGULATING, – HYDROSTATIC PUMP344
VALVE, DIRECTIONAL CONTROL344
VALVE, DRAIN, HYDRAULIC OIL RESERVOIR356
VALVE, ENGINE COOLANT DRAIN 70
VALVE, ENGINE OIL FILTER BYPASS 84
VALVE, ENGINE OIL PAN DRAIN 76
VALVE, ENGINE OIL PRESSURE REGULATING 70
VALVE, FORWARD/REVERSE SOLENOID352
VALVE, FUEL INJECTION COLD START ADVANCE102
VALVE, HYDRAULIC PUMP346
VALVE, HYDRAULIC SOLENOID, DIFFERENTIAL – LOCK 46
VALVE, HYDROSTATIC MOTOR 52
VALVE, HYDROSTATIC MOTOR REGULATOR – CONTROL 56
VALVE, MASTER BRAKE CYLINDER204
VALVE, NON-RETURN, DIFFERENTIAL LOCK 46
VALVE, PARK BRAKE208
VALVE, PILOT CONTROL, AUXILIARY432
VALVE, POWER TAKE-OFF BLEED 44
VALVE, PRESSURE OVERRIDE – HYDROSTATIC PUMP344
VALVE, PRESSURE RELIEF – (BUCKET REGULATOR)416
VALVE, PRESSURE RELIEF – (INLET RETURN REGULATOR)412
VALVE, PRESSURE RELIEF – (THIRD FUNCTION REGULATOR)418
VALVE, PRESSURE RELIEF (BOOM REGULATOR)414
VALVE, PRESSURE RELIEF, FUEL TANK178
VALVE, RIDE CONTROL400
VALVE, RIDE CONTROL KIT398
VALVE, STEERING188
VALVES, ACCUMULATOR, RESERVOIR AND HOSES – (BRAKE)206
VALVES, INTAKE AND EXHAUST 90
VAPOR CONDENSER, A/C COMPRESSOR312
VAPOR CONDENSOR, A/C306
VENT (BOOM REGULATOR)414
VENT, CAB AIR304
VENTILATING SYSTEM, ENGINE 86
VIBRATION DAMPENER, STEERING COLUMN184
VOLTAGE REGULATOR, ALTERNATOR234
W 11
WARNING LABELS214
WARNING LABELS (FRENCH)218
WARNING LABELS (SPANISH)222
WATER PUMP110
WATER PUMP INLET112
WATER PUMP PULLEY114
WEATHERSTRIP, RADIATOR154
WEIGHT, BALANCER SHAFT106
WHEEL BOLTS 42
WHEEL, STEERING184
WHEELS 24
WINDOW, LEFT HAND CAB DOOR286
WINDOW, RIGHT HAND CAB DOOR288
WINDOWPANE, FRONT GUARD278
WINDOWPANE, LEFT HAND CAB DOOR286
WINDOWPANE, RIGHT HAND CAB DOOR288
WINDOWPANES, CAB290
WINDSHIELD WIPER BLADES, TANK AND MOTOR292
WINDSHIELD, FRONT GUARD278
WIPER SWITCH, REAR WINDOW250
WIRE HARNESS, FUSES, FUSE CARRIER AND – BATTERY CLAMPING244
WIRING HARNESS – (FUSE AND RELAY PANEL)248
WIRING HARNESS (A/C CONTROLS)318
WIRING HARNESS, ALTERNATOR234
WIRING HARNESS, FRONT WORKLIGHTS AND – INTERIOR LIGHT238
WIRING HARNESS, FUEL INJECTION PUMP – (COLD START ADVANCE)100
WIRING HARNESS, MAIN244
WIRING HARNESS, RIDE CONTROL KIT398
WIRING HARNESS, TAILLIGHTS242
WIRING, INSTRUMENT – (FUSE AND RELAY PANEL)248

G.B 06/01/25
