John Deere 335C Trailer Mounted Log Loader Parts Manual PC9419 – PDF DOWNLOAD

Description

John Deere 335C Trailer Mounted Log Loader Parts Manual PC9419 – PDF DOWNLOAD

FILE DETAILS:

John Deere 335C Trailer Mounted Log Loader Parts Manual PC9419 – PDF DOWNLOAD

Language : English
Pages :259
Downloadable : Yes
File Type : PDF

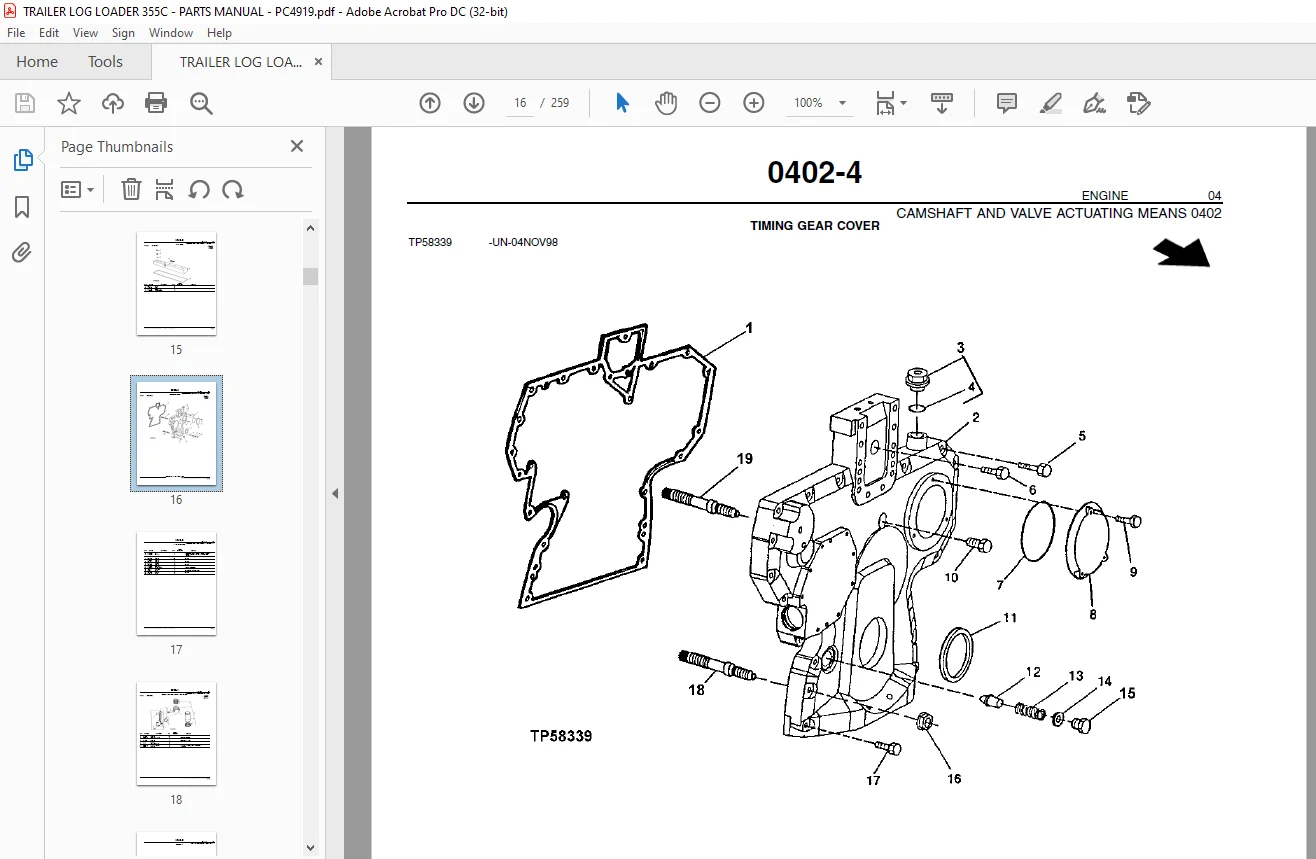

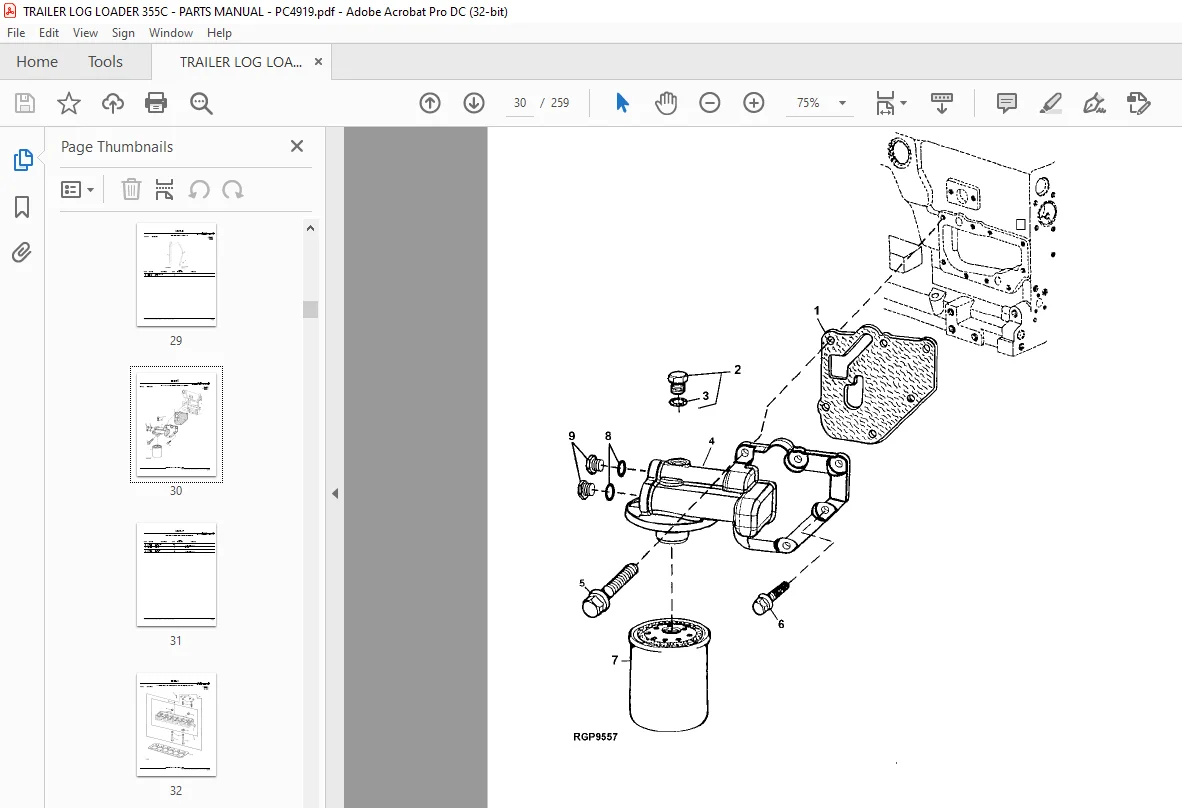

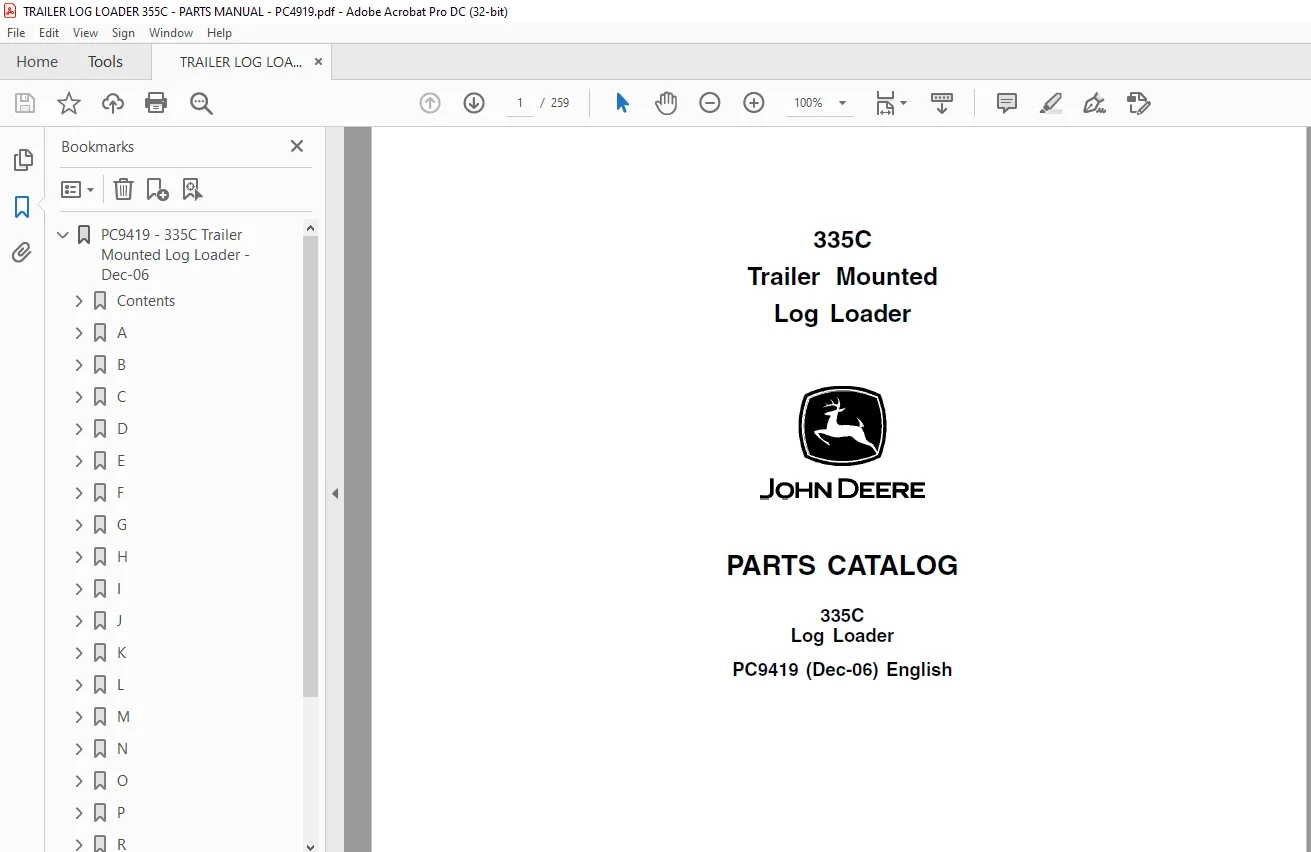

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

John Deere 335C Trailer Mounted Log Loader Parts Manual PC9419 – PDF DOWNLOAD

TO THE CUSTOMER

THE PART NUMBERS IN THIS PARTS CATALOG WERE CORRECT AT THE TIME YOUR CATALOG WAS PUBLISHED. IT IS OUR POLICY TO CONSTANTLY IMPROVE OUR MACHINES AND THEREFORE, PART NUMBERS MAY CHANGE. WHEN ORDERING PARTS, VERIFY PART NUMBERS THROUGH YOUR DEALER.

TABLE OF CONTENTS:

John Deere 335C Trailer Mounted Log Loader Parts Manual PC9419 – PDF DOWNLOAD

PC9419 – 335C Trailer Mounted Log Loader – Dec-06 1
Contents 1
0402 – ENGINE 04 13
CAMSHAFT AND VALVE ACTUATING MEANS 0402 13
1 – CAMSHAFT AND CAMSHAFT GEAR 13
2 – ROCKER ARM SHAFT 14
3 – VALVE COVER 15
4 – TIMING GEAR COVER 16
5 – TIMING GEAR COVER 17
0403 – ENGINE 04 18
CONNECTING RODS AND PISTONS 0403 18
2 – PISTON, RINGS, LINERS AND CONNECTING RODS 18
0404 – ENGINE 04 20
CYLINDER BLOCK 0404 20
2 – ENGINE BLOCK 20
3 – ENGINE BLOCK 21
4 – SHORT BLOCK ASSEMBLY 22
5 – SHORT BLOCK ASSEMBLY 23
6 – ENGINE FRONT PLATE AND FUEL INJECTION PUMP ADAPTER 24
0407 – ENGINE 04 26
ENGINE OILING SYSTEM 0407 26
2 – ENGINE OIL PAN AND GASKET 26
3 – ENGINE OIL PAN AND GASKET 27
4 – ENGINE OIL PUMP AND PICKUP TUBE 28
5 – ENGINE OIL DIPSTICK AND TUBE 29
6 – ENGINE OIL FILTER ELEMENT AND OIL FILTER HEAD 30
7 – ENGINE OIL FILTER ELEMENT AND OIL FILTER HEAD 31
0409 – ENGINE 04 32
CYLINDER HEAD 0409 32
2 – CYLINDER HEAD,HEAD GASKET,VALVES AND TEMPERATURE SWITCH 32
3 – CYLINDER HEAD,HEAD GASKET,VALVES AND TEMPERATURE SWITCH 33
0410 – ENGINE 04 34
EXHAUST MANIFOLD 0410 34
2 – EXHAUST ELBOW 34
3 – EXHAUST MANIFOLD AND GASKET 35
0413 – ENGINE 04 37
FUEL INJECTION SYSTEM 0413 37
1 – FUEL INJECTION NOZZLE 37
2 – FUEL INJECTION LINES AND CLAMPS 38
3 – FUEL INJECTION LINES AND CLAMPS 39
4 – FUEL INJECTION PUMP,PUMP SUPPORT,LUBE LINE AND ANEROID LINE 40
5 – FUEL INJECTION PUMP,PUMP SUPPORT,LUBE LINE AND ANEROID LINE 41
6 – FUEL INJECTION PUMP SERVICE KITS AND FUEL TRANSFER PUMP 42
7 – FUEL INJECTION PUMP SERVICE KITS AND FUEL TRANSFER PUMP 43
8 – FUEL INJECTION PUMP SOLENOID SHUT-OFF AND BRACKET 44
10 – FUEL FILTER AND FILTER LINES 46
11 – FUEL FILTER AND FILTER LINES 47
0414 – ENGINE 04 48
INTAKE MANIFOLD 0414 48
2 – AIR INTAKE SYSTEM 48
0416 – ENGINE 04 49
TURBOCHARGER 0416 49
1 – TURBOCHARGER 49
2 – TURBOCHARGER OIL LINES AND FITTINGS 50
3 – TURBOCHARGER OIL LINES AND FITTINGS 51
0417 – ENGINE 04 52
WATER PUMP 0417 52
2 – WATER PUMP INLET AND PULLEY 52
3 – WATER PUMP ASSEMBLY 53
0418 – ENGINE 04 54
THERMOSTATS, HOUSINGS AND WATER PIPING 0418 54
2 – THERMOSTAT HOUSING,THERMOSTAT AND COVER 54
3 – THERMOSTAT HOUSING,THERMOSTAT AND COVER 55
0419 – ENGINE 04 56
OIL COOLER 0419 56
2 – ENGINE OIL COOLER AND ADAPTER 56
3 – ENGINE OIL COOLER AND ADAPTER 57
0420 – ENGINE 04 58
FUEL FILTER 0420 58
2 – FINAL FUEL FILTER AND LINES 58
3 – FINAL FUEL FILTER AND LINES 59
0421 – ENGINE 04 60
FUEL TRANSFER PUMP 0421 60
2 – FUEL TRANSFER PUMP COVER 60
0422 – ENGINE 04 61
STARTING MOTOR AND FASTENINGS 0422 61
2 – STARTING MOTOR AND SOLENOID KIT 62
3 – STARTING MOTOR AND SOLENOID KIT 63
0423 – ENGINE 04 64
ALTERNATOR AND GENERATOR MOUNTING 0423 64
2 – ALTERNATOR MOUNTING BRACKETS AND ADJUSTING STRAP 64
3 – ALTERNATOR MOUNTING BRACKETS AND ADJUSTING STRAP 65
0426 – ENGINE 04 66
SHROUDS, COOLING (POWER UNIT) 0426 66
0429 – ENGINE 04 67
FAN DRIVE 0429 67
1 – CRANKSHAFT PULLEY AND DAMPER 67
2 – FAN DRIVE PULLEYS,FAN BELT,TENSIONER AND SUPPORT 68
3 – FAN DRIVE PULLEYS,FAN BELT,TENSIONER AND SUPPORT 69
4 – AUXILIARY FRONT PULLEY 70
0433 – ENGINE 04 71
FLYWHEEL, HOUSING AND FASTENINGS 0433 71
1 – ENGINE FLYWHEEL 71
2 – ENGINE FLYWHEEL HOUSING 72
4 – AUXLILIARY DRIVE GEAR ADAPTER 74
5 – AUXILIARY DRIVE GEAR ADAPTER 75
0452 – ENGINE 04 77
GASKET REPLACEMENT KITS 0452 77
1 – CYLINDER HEAD REMOVAL AND IN VEHICLE OVERHAUL GASKET SETS 77
2 – ENGINE MAJOR OVERHAUL GASKET SET AND ENGINE OVERHAUL KIT 78
3 – ENGINE MAJOR OVERHAUL GASKET SET AND ENGINE OVERHAUL KIT 79
0511 – ENGINE AUXILIARY SYSTEM 05 80
RADIATOR AND FAN SHROUD 0511 80
2 – COOLING SYSTEM 80
3 – COOLING SYSTEM 81
0515 – ENGINE AUXILIARY SYSTEM 05 82
ENGINE SPEED CONTROLS 0515 82
2 – THROTTLE CONTROL GROUP 82
3 – THROTTLE CONTROL GROUP 83
0521 – ENGINE AUXILIARY SYSTEM 05 84
AIR CLEANER & PIPING 0521 84
2 – AIR INTAKE SYSTEM 84
3 – AIR INTAKE SYSTEM 85
4 – AIR CLEANER 86
5 – AIR CLEANER 87
0531 – ENGINE AUXILIARY SYSTEM 05 88
MUFFLER & EXHAUST 0531 88
2 – EXHAUST GROUP 88
3 – EXHAUST GROUP 89
0540 – ENGINE AUXILIARY SYSTEM 05 90
ENGINE MOUNTING 0540 90
2 – ENGINE MOUNTS 90
3 – ENGINE MOUNTS 91
4 – ENGINE DRIVE/DRAIN 92
5 – ENGINE DRIVE/DRAIN 93
0560 – ENGINE AUXILIARY SYSTEM 05 94
EXTERNAL FUEL SUPPLY SYSTEMS 0560 94
2 – FUEL SYSTEM 94
3 – FUEL SYSTEM 95
1312 – MISCELLANEOUS VEHICLE 13 96
EQUIPMENT ASSEMBLY 1312 96
2 – TRAILER MOUNTING KIT 96
3 – TRAILER MOUNTING KIT 97
1322 – MISCELLANEOUS VEHICLE 13 98
DECALS & TRADEMARKS 1322 98
2 – DECALS – EXTERIOR (TJ GREEN MACHINE) 98
3 – DECALS – EXTERIOR (TJ GREEN MACHINE) 99
4 – DECALS – CAB (TJ GREEN MACHINE)100
5 – DECALS – CAB (TJ GREEN MACHINE)101
6 – DECALS – EXTERIOR (YELLOW MACHINE)102
7 – DECALS – EXTERIOR (YELLOW MACHINE)103
8 – DECALS – CAB (YELLOW MACHINE)104
9 – DECALS – CAB (YELLOW MACHINE)105
10 – DECALS – EXTERIOR (JD GREEN MACHINE)106
11 – DECALS – EXTERIOR (JD GREEN MACHINE)107
12 – DECALS- CAB (JD GREEN MACHINE)108
13 – DECALS – CAB (JD GREEN MACHINE)109
14 – DECALS – EXTERIOR (JD GREEN MACHINE)110
15 – DECALS – EXTERIOR (JD GREEN MACHINE)111
16 – DECALS – CAB (JD GREEN MACHINE)112
17 – DECALS – CAB (JD GREEN MACHINE)113
1671 – VEHICLE ELECTRICAL SYSTEMS 16114
BATTERIES, SUPPORT & CABLES 1671114
2 – BATTERIES AND CABLES114
3 – BATTERIES AND CABLES115
1672 – VEHICLE ELECTRICAL SYSTEMS 16116
ALTERNATOR, REGULATOR AND CHARGING SYSTEM WIRING 1672116
2 – ALTERNATOR116
3 – ALTERNATOR117
1673 – VEHICLE ELECTRICAL SYSTEMS 16118
VEHICLE LIGHTING SYSTEM 1673118
2 – WORK LIGHTS118
3 – WORK LIGHTS119
1674 – VEHICLE ELECTRICAL SYSTEMS 16120
WIRING HARNESSES AND SWITCHES 1674120
2 – ELECTRICAL SYSTEM – LOWER FRAME120
3 – ELECTRICAL SYSTEM – LOWER FRAME121
4 – ELECTRICAL SYSTEM – ENGINE122
5 – ELECTRICAL SYSTEM – ENGINE123
6 – ELECTRICAL SYSTEM – CAB ( -011297)124
7 – ELECTRICAL SYSTEM – CAB ( -011297)125
8 – ELECTRICAL SYSTEM – CAB (011298- )126
9 – ELECTRICAL SYSTEM – CAB (011298- )127
10 – DEFROSTER FAN128
1675 – VEHICLE ELECTRICAL SYSTEMS 16130
SYSTEM CONTROLS 1675130
2 – CONSOLE130
3 – CONSOLE131
1740 – FRAME, CHASSIS OR SUPPORTING STRUCTURE 17132
FRAME INSTALLATION 1740132
2 – LOWER FRAME132
3 – LOWER FRAME133
6 – UPPER ASSEMBLY134
7 – UPPER ASSEMBLY135
1810 – OPERATOR’S STATION 18136
OPERATOR ENCLOSURE 1810136
2 – CAB – WINDOWS136
3 – CAB – WINDOWS137
4 – CAB MOUNTING138
5 – CAB MOUNTING139
6 – CAB – WIPERS140
7 – CAB – WIPERS141
8 – CAB – INTERIOR142
9 – CAB – INTERIOR143
10 – DOOR ASSEMBLY144
11 – DOOR ASSEMBLY145
1821 – OPERATOR’S STATION 18146
SEAT AND SEAT BELTS 1821146
2 – SEAT INSTALLATION146
3 – SEAT INSTALLATION147
4 – SEAT ASSEMBLY148
5 – SEAT ASSEMBLY149
1830 – OPERATOR’S STATION 18150
HEATING & AIR CONDITIONING 1830150
2 – AIR CONDITIONING SYSTEM150
3 – AIR CONDITIONING SYSTEM151
4 – AIR CONDITIONER/HEATER152
5 – AIR CONDITIONER/HEATER153
1910 – SHEET METAL & STYLING 19154
HOOD OR ENGINE ENCLOSURE 1910154
2 – ENGINE ENCLOSURE ( -011261)154
3 – ENGINE ENCLOSURE ( -011261)155
4 – ENGINE ENCLOSURE (011262- )156
5 – ENGINE ENCLOSURE (011262- )157
2001 – SAFETY, CONVENIENCE AND MISCELLANEOUS 20158
RADIO 2001158
2 – AUDIO GROUP158
3 – AUDIO GROUP159
4 – CB RADIO160
5 – CB RADIO161
2161 – MAIN HYDRAULC SYSTEM 21162
HYDRAULIC PUMPS AND DRIVES 2161162
2 – MAIN PUMP / PILOT PUMP162
3 – MAIN PUMP / PILOT PUMP163
4 – HYDRAULIC PUMP – HAND164
5 – HYDRAULIC PUMP – HAND165
2162 – MAIN HYDRAULC SYSTEM 21166
HYDRAULIC SELECTIVE CONTROL VALVES 2162166
2 – MAIN VALVE166
3 – MAIN VALVE167
4 – JIB VALVE168
5 – JIB VALVE169
6 – SWING VALVE170
7 – SWING VALVE171
10 – INLET VALVE SECTION (MAIN/JIB)172
11 – INLET VALVE SECTION (MAIN/JIB)173
12 – INLET VALVE SECTION (SWING VALVE)174
13 – INLET VALVE SECTION (SWING VALVE)175
14 – MAIN BOOM & JIB BOOM VALVE SECTION176
15 – MAIN BOOM & JIB BOOM VALVE SECTION177
16 – GRAPPLE CLAMP VALVE SECTION178
17 – GRAPPLE CLAMP VALVE SECTION179
18 – SWING VALVE SECTION180
19 – SWING VALVE SECTION181
20 – GRAPPLE ROTATE VALVE SECTION182
21 – GRAPPLE ROTATE VALVE SECTION183
22 – KNIVES VALVE SECTION184
23 – KNIVES VALVE SECTION185
24 – STABILIZER AND SAW VALVE SECTION186
25 – STABILIZER AND SAW VALVE SECTION187
30 – JOYSTICK188
31 – JOYSTICK189
32 – VALVE – FOOT PEDAL190
33 – VALVE – FOOT PEDAL191
34 – STABILIZER VALVE192
35 – STABILIZER VALVE193
36 – PILOT SHUT OFF VALVE194
37 – PILOT SHUT OFF VALVE195
38 – COOLER BY-PASS VALVE/THERMOSTATIC CONTROL VALVE196
39 – COOLER BY-PASS VALVE/THERMOSTATIC CONTROL VALVE197
40 – SAW DIVERTER VALVE198
41 – SAW DIVERTER VALVE199
42 – DELIMBER VALVE200
43 – DELIMBER VALVE201
2163 – MAIN HYDRAULC SYSTEM 21202
HYDRAULIC LINES AND HOSES 2163202
2 – HYDRAULIC SYSTEM – DRAIN, SUCTION, PRESSURE LINES (TANK)202
3 – HYDRAULIC SYSTEM – DRAIN, SUCTION, PRESSURE LINES (TANK)203
4 – HYDRAULIC SYSTEM – RETURN LINES204
5 – HYDRAULIC SYSTEM – RETURN LINES205
6 – HYDRAULIC SYSTEM – SWING LINES206
7 – HYDRAULIC SYSTEM – RETURN LINES207
8 – HYDRAULIC SYSTEM – SWIVEL LINES208
9 – HYDRAULIC SYSTEM – SWIVEL LINES209
10 – HYDRAULIC SYSTEM – ATTACHMENTS210
11 – HYDRAULIC SYSTEM – ATTACHMENTS211
12 – HYDRAULIC SYSTEM – PILOT, MANIFOLD LINES212
13 – HYDRAULIC SYSTEM – PILOT, MANIFOLD LINES213
14 – HYDRAULIC SYSTEM – JOYSTICK214
15 – HYDRAULIC SYSTEM – JOYSTICK215
16 – HYDRAULIC SYSTEM – SUPPLY LINES (VALVES)216
17 – HYDRAULIC SYSTEM – SUPPLY LINES (VALVES)217
18 – HYDRAULIC SYSTEM – DRAIN LINES (VALVES)218
19 – HYDRAULIC SYSTEM – DRAIN LINES (VALVES)219
2164 – MAIN HYDRAULC SYSTEM 21220
HYDRAULIC RESERVOIR FILTER AND COOLER 2164220
2 – HYDRAULIC TANK220
3 – HYDRAULIC TANK221
2165 – MAIN HYDRAULC SYSTEM 21222
HYDRAULIC LINEAR & ROTARY CYLINDER 2165222
4 – STABILIZER CYLINDER222
5 – STABILIZER CYLINDER223
3744 – ARCH OR BOOMS OR CRANES 37224
BOOMS 3744224
2 – MAIN AND JIB BOOM224
3 – MAIN AND JIB BOOM225
3763 – ARCH OR BOOMS OR CRANES 37226
LINES, HOSES & FITTINGS 3763226
2 – HYDRAULIC SYSTEM – BOOM226
3 – HYDRAULIC SYSTEM – BOOM227
3765 – ARCH OR BOOMS OR CRANES 37228
HYDRAULIC CYLINDERS 3765228
2 – MAIN CYLINDER228
3 – MAIN CYLINDER229
4 – JIB CYLINDER230
5 – JIB CYLINDER231
3800 – GRAPPLE 38232
GRAPPLE 3800232
2 – GRAPPLE232
3 – GRAPPLE233
4343 – SWING, ROTATION OR PIVOTING SYSTEM 43234
SWING FRAME 4343234
2 – TORQUE ARM AND SWIVEL MOUNTING234
3 – TORQUE ARM AND SWIVEL MOUNTING235
4 – SWING DRIVE – GEAR CASE ( -011319)236
5 – SWING DRIVE – GEAR CASE ( -011319)237
5A – SWING DRIVE – GEAR CASE (011320- )238
5B – SWING DRIVE – GEAR CASE (011320- )239
6 – SWING SYSTEM – GREASE LINES240
7 – SWING SYSTEM – GREASE LINES241
4350 – SWING, ROTATION OR PIVOTING SYSTEM 43242
MECHANICAL DRIVE ELEMENTS 4350242
2 – SWING DRIVE GEARBOX242
3 – SWING DRIVE GEARBOX243
4362 – SWING, ROTATION OR PIVOTING SYSTEM 43244
VALVES 4362244
4 – 10-PORT SWIVEL244
5 – 10-PORT SWIVEL245
4367 – SWING, ROTATION OR PIVOTING SYSTEM 43246
MOTORS 4367246
2 – SWING MOTOR246
3 – SWING MOTOR247
A 9
ACCESS COVER, INJECTION PUMP GEAR 16
ACTUATOR 82
ADAPTER KIT, AUXILIARY DRIVE 74
ADAPTER, AUXILIARY DRIVE 74
ADAPTER, ENGINE OIL COOLER 56
ADAPTER, ENGINE OIL FILL PIPE 15
ADAPTER, EXHAUST 34
ADAPTER, FUEL INJECTION PUMP 24
ADJUSTING STRAP, ALTERNATOR 64
AIR CLEANER 86
AIR CONDITIONER COMPRESSOR150
AIR CONDITIONER CONDENSER150
AIR CONDITIONER EVAPORATOR152
AIR CONDITIONER HEATER152
AIR CONDITIONER RECEIVER/DRYER150
AIR CONDITIONER SYSTEM150
AIR INTAKE HOSE 48
AIR INTAKE SYSTEM 84
AIR INTAKE TUBE 48
ALARM, TRAVEL WARNING130
ALTERNATOR116
ALTERNATOR ADJUSTING STRAP 64
ALTERNATOR MOUNTING BRACKETS 64
ANEROID LINE, FUEL INJECTION PUMP 40
ANTENNA158
ANTENNA, CB RADIO160
ARM, ROCKER 14
ATTACHMENTS, HYDRAULIC SYSTEM210
AUDIO GROUP158
AUXILIARY DRIVE ADAPTER 74
AUXILIARY DRIVE ADAPTER BEARING 74
AUXILIARY DRIVE ADAPTER COVER 74
AUXILIARY DRIVE ADAPTER GASKET 74
AUXILIARY DRIVE ADAPTER GEAR 74
AUXILIARY DRIVE ADAPTER HOUSING 74
AUXILIARY DRIVE ADAPTER KIT 74
AUXILIARY PULLEY 70
B 9
BATTERIES114
BEARING, AUXILIARY DRIVE ADAPTER 74
BEARING, CONNECTING ROD 18
BELT, FAN DRIVE 68
BLOCK, CYLINDER 20
BLOCK, ENGINE SHORT 22
BLOWER FAN142
BOOM, HYDRAULIC SYSTEM226
BOOM, JIB224
BOOM, MAIN224
BRACKET, FUEL INJPUMP SOLENOID SHUT-OFF 44
C 9
CAB CABLE HARNESS ( -011297)124
CAB CABLE HARNESS (011298- )126
CAB MOUNTING138
CAB, DOOR144
CAB, ELECTRICAL SYSTEM ( -011297)124
CAB, ELECTRICAL SYSTEM (011298- )126
CAB, INTERIOR142
CAB, WINDOWS136
CAB, WIPERS140
CABLE, BATTERIES114
CAMSHAFT 13
CAMSHAFT GEAR 13
CAP, MAIN BEARING 20
CB RADIO160
CLEANER, AIR 86
COMPRESSOR, AIR CONDITIONER150
CONDENSER150
CONNECTING ROD 18
CONSOLE130
COOLER BY-PASS VALVE196
COOLER, ENGINE OIL 56
COOLING HOSES 80
COVER, ACCESS, INJECTION PUMP GEAR 16
COVER, AUXILIARY DRIVE ADAPTER 74
COVER, FUEL TRANSFER PUMP 60
COVER, ROCKER ARM 15
COVER, THERMOSTAT 54
COVER, TIMING GEAR 16
CRANKSHAFT DAMPER 67
CRANKSHAFT PULLEY 67
CRANKSHAFT REAR OIL SEAL 72
CYLINDER BLOCK 20
CYLINDER HEAD 32
CYLINDER HEAD GASKET 32
CYLINDER HEAD REMOVAL GASKET SET 77
CYLINDER LINER KIT 18
CYLINDER, HAND PUMP164
CYLINDER, JIB230
CYLINDER, MAIN228
CYLINDER, STABILIZER222
D 9
DAMPER, CRANKSHAFT 67
DECALS, CAB, ENGLISH (JD GREEN MACHINE)108
DECALS, CAB, ENGLISH (TJ GREEN MACHINE)100
DECALS, CAB, ENGLISH (YELLOW MACHINE)104
DECALS, CAB, SPANISH (JD GREEN MACHINE)112
DECALS, EXTERIOR, ENGLISH – (JD GREEN MACHINE)106
DECALS, EXTERIOR, ENGLISH – (TJ GREEN MACHINE) 98
DECALS, EXTERIOR, SPANISH – (JD GREEN MACHINE)110
DECALS, EXTERIOR, SPANISH – (YELLOW MACHINE)102
DEFROSTER FAN128
DELIMBER VALVE200
DELIMBER VALVE MOUNTING210
DIPSTICK, ENGINE OIL 29
DISCONNECT SWITCH114
DIVERTER VALVE MOUNTING208
DOOR, CAB144
DRIVE BELT TENSIONER 68
DRYER, AIR CONDITIONER150
E 9
ELBOW, EXHAUST 34
ELECTRICAL SYSTEM, CAB ( -011297)124
ELECTRICAL SYSTEM, CAB (011298- )126
ELECTRICAL SYSTEM, ENGINE122
ELECTRICAL SYSTEM, LOWER FRAME120
ELEMENT, ENGINE OIL FILTER 30
ENCLOSURE, ENGINE ( -011261)154
ENCLOSURE, ENGINE (011262- )156
ENGINE COOLANT TEMPERATURE SWITCH 32
ENGINE DRAIN 92
ENGINE DRIVE 92
ENGINE ENCLOSURE ( -011261)154
ENGINE ENCLOSURE (011262- )156
ENGINE FLYWHEEL 71
ENGINE FLYWHEEL HOUSING 72
ENGINE FRONT PLATE 24
ENGINE INTAKE VALVE 32
ENGINE MAJOR OVERHAUL GASKET SET 78
ENGINE MOUNTS 90
ENGINE OIL BY-PASS VALVE 20
ENGINE OIL COOLER 56
ENGINE OIL COOLER ADAPTER 56
ENGINE OIL DIPSTICK 29
ENGINE OIL DIPSTICK TUBE 29
ENGINE OIL FILL PIPE ADAPTER 15
ENGINE OIL FILTER 30
ENGINE OIL PAN 26
ENGINE OIL PRESSURE REGULATING VALVE 16
ENGINE OIL PRESSURE SWITCH 20
ENGINE OIL PUMP 28
ENGINE OIL PUMP GEAR 28
ENGINE OIL PUMP INTAKE 28
ENGINE OVERHAUL KIT 78
ENGINE PISTON 18
ENGINE SHORT BLOCK 22
ENGINE, ELECTRICAL SYSTEM122
EVAPORATOR, AIR CONDITIONER152
EXHAUST ADAPTER 34
EXHAUST ELBOW 34
EXHAUST MANIFOLD 35
EXHAUST MANIFOLD AND GASKET 35
EXHAUST SYSTEM 88
EXHAUXT VALVE 32
F 9
FAN DRIVE 68
FAN, BLOWER142
FAN, DEFROSTER128
FILTER, FUEL 46
FILTER, FUEL, FINAL 58
FIRE EXTINGUISHER138
FLYWHEEL RING GEAR 71
FLYWHEEL, ENGINE 71
FLYWHEEL, ENGINE HOUSING 72
FOOT PEDAL190
FOOT PEDAL MOUNTING216
FOOT PEDAL VALVE190
FRAME, LOWER132
FRAME, LOWER, ELECTRICAL SYSTEM120
FRAME, UPPER134
FRONT PLATE, ENGINE 24
FUEL FILTER 46
FUEL FILTER LINES 46
FUEL FILTER LINES, FINAL 58
FUEL FILTER, FINAL 58
FUEL INJPUMP SHUT-OFF SOLENOID BRACKET 44
FUEL INJPUMP SOLENOID SHUT-OFF 44
FUEL INJECT, PUMP PUMP ANEROID LINE 40
FUEL INJECTION LINES 38
FUEL INJECTION NOZZLE 37
FUEL INJECTION PUMP 40
FUEL INJECTION PUMP ADAPTER 24
FUEL INJECTION PUMP DRIVE GEAR 40
FUEL INJECTION PUMP LUBE LINE 40
FUEL INJECTION PUMP SERVICE KIT 42
FUEL SYSTEM 94
FUEL TRANSFER PUMP 42
FUEL TRANSFER PUMP OPENNING COVER 60
FUEL TRANSFER PUMP PRIMER 42
G 9
GASKET SET, CYLINDER HEAD REMOVAL 77
GASKET SET, ENGINE MAJOR OVERHAUL 78
GASKET SET, IN-VEHICLE OVERHAUL 77
GASKET, AUXILIARY DRIVE ADAPTER 74
GASKET, CYLINDER HEAD 32
GASKET, EXHAUST MANIFOLD 35
GASKET, OIL PAN 26
GASKET, ROCKER ARM COVER 15
GASKET, TIMING GEAR COVER 16
GASKET, TURBOCHARGER 49
GEAR CASE, SWING DRIVE – ( -011319)236
GEAR CASE, SWING DRIVE – (011320- )238
GEAR, AUXILIARY DRIVE ADAPTER 74
GEAR, CAMSHAFT 13
GEAR, ENGINE OIL PUMP 28
GEAR, FUEL INJECTION PUMP DRIVE 40
GEARBOX, SWING DRIVE242
GRAPPLE232
GRAPPLE CLAMP VALVE SECTION178
GRAPPLE ROTATE VALVE SECTION182
GREASE LINES, SWING SYSTEM240
H 9
HAND PUMP164
HAND PUMP MOUNTING204
HANDLE, HAND PUMP164
HARNESS, CABLE, CAB ( 011297)124
HARNESS, CABLE, CAB (011298- )126
HEAD, CYLINDER 32
HEATER, AIR CONDITIONER152
HEEL BAR224
HOSE, AIR INTAKE 48
HOUSING, AUXILIARY DRIVE ADAPTER 74
HOUSING, ENGINE FLYWHEEL 72
HOUSING, FAN DRIVE 68
HOUSING, THERMOSTAT 54
HYD ACTUATED CONTROL VALVE190
HYDRAULIC PUMP, HAND164
HYDRAULIC PUMP, MAIN162
HYDRAULIC PUMP, PILOT162
HYDRAULIC SYSTEM, ATTACHMENTS210
HYDRAULIC SYSTEM, BOOM226
HYDRAULIC SYSTEM, DRAIN LINES (TANK)202
HYDRAULIC SYSTEM, DRAIN LINES (VALVES)218
HYDRAULIC SYSTEM, JOYSTICK214
HYDRAULIC SYSTEM, PILOT, MANIFOLD LINES212
HYDRAULIC SYSTEM, PRESSURE LINES (TANK)202
HYDRAULIC SYSTEM, RETURN LINES204
HYDRAULIC SYSTEM, SUCTION (TANK)202
HYDRAULIC SYSTEM, SUPPLY LINES (VALVES)216
HYDRAULIC SYSTEM, SWING LINES206
HYDRAULIC SYSTEM, SWIVEL LINES208
HYDRAULIC TANK220
I 9
IGNITION SWITCH138
IMPELLER, WATER PUMP 53
IN-VEHICLE OVERHAUL GASKET SET 77
INLET VALVE SECTION (JIB VALVE)172
INLET VALVE SECTION (MAIN VALVE)172
INLET VALVE SECTION (SWING VALVE)174
INLET, WATER PUMP 52
INTAKE TUBE, AIR 48
INTAKE, ENGINE OIL PUMP 28
J 9
JIB BOOM224
JIB BOOM VALVE SECTION176
JIB CYLINDER230
JIB VALVE168
JIB VALVE MOUNTING218
JOYSTICK188
JOYSTICK MOUNTING214
K 9
KIT, AUXILIARY DRIVE ADAPTER 74
KIT, CYLINDER LINER O-RING 18
KIT, ENGINE OVERHAUL 78
KIT, PISTON 18
KIT, STARTING MOTOR SOLENOID 62
KIT, WATER PUMP REPAIR 53
KNIVES VALVE SECTION184
L 9
LABELS, CAB, ENGLISH (JD GREEN MACHINE)108
LABELS, CAB, ENGLISH (TJ GREEN MACHINE)100
LABELS, CAB, ENGLISH (YELLOW MACHINE)104
LABELS, CAB, SPANISH (JD GREEN MACHINE)112
LABELS, EXTERIOR, ENGLISH – (JD GREEN MACHINE)106
LABELS, EXTERIOR, ENGLISH – (TJ GREEN MACHINE) 98
LABELS, EXTERIOR, SPANISH – (JD GREEN MACHINE)110
LABELS, EXTERIOR, SPANISH – (YELLOW MACHINE)102
LIGHTS118
LINER, CYLINDER 18
LINES, FUEL FILTER 46
LINES, FUEL FILTER, FINAL 58
LINES, FUEL INJECTION 38
LINES, TURBOCHARGER OIL 50
LOWER FRAME132
LOWER FRAME, ELECTRICAL SYSTEM120
LUBE LINE, FUEL INJECTION PUMP 40
M 9
MAIN BEARING CAP 20
MAIN BOOM224
MAIN BOOM VALVE SECTIN176
MAIN CYLINDER228
MAIN PUMP162
MAIN PUMP MOUNTING202
MAIN VALVE166
MAIN VALVE MOUNTING218
MANIFOLD BLOCK VALVE MOUNTING212
MANIFOLD, EXHAUST 35
MOTOR, STARTING 62
MOTOR, SWING DRIVE246
MOTOR, WIPERS140
MOUNTING KIT, TRAILER 96
MUFFLER 88
N 9
NOZZLE, FUEL INJECTION 37
O 9
OIL COOLER, ENGINE 56
OIL FILTER, ENGINE 30
OIL PAN GASKET 26
OIL PAN, ENGINE 26
OVERFLOW TANK 80
P 9
PAN, ENGINE OIL 26
PEDAL, FOOT190
PILOT PUMP162
PILOT PUMP MOUNTING202
PILOT SHUT-OFF VALVE194
PISTON LINER KIT 18
PISTON RINGS 18
PISTON, ENGINE 18
PRIMER, FUEL TRANSFER PUMP 42
PULLEY, AUXILIARY 70
PULLEY, CRANKSHAFT 67
PULLEY, FAN DRIVE 68
PULLEY, WATER PUMP 52
PUMP, ENGINE OIL 28
PUMP, FUEL INJECTION 40
PUMP, HYDRAULIC, HAND164
PUMP, MAIN162
PUMP, PILOT162
PUMP, WATER 53
R 9
RADIATOR 80
RADIO158
RADIO, CB160
REAR OIL SEAL, CRANKSHAFT 72
RECEIVER, AIR CONDITIONER150
RING GEAR, FLYWHEEL 71
RING, PISTON 18
ROCKER ARM 14
ROCKER ARM COVER 15
ROCKER ARM COVER GASKET 15
ROD, CONNECTING 18
ROTARY MANIFOLD244
S 9
SAW DIVERTER VALVE198
SAW VALVE SECTION186
SEAT ASSEMBLY148
SEAT INSTALLATION146
SECTION, GRAPPLE CLAMP VALVE178
SECTION, GRAPPLE ROTATE VALVE182
SECTION, JIB VALVE176
SECTION, MAIN VALVE176
SECTION, SWING VALVE180
SERVICE KIT, FUEL INJECTION PUMP 42
SHORT BLOCK, ENGINE 22
SNUBBER VALVE, MOTORPAL 40
SOLENOID KIT, STARTING MOTOR 62
SOLENOID, FUEL INJPUMP SHUT-OFF 44
SPEAKER158
STABILIZER CYLINDER222
STABILIZER VALVE192
STABILIZER VALVE MOUNTING208
STABILIZER VALVE SECTION186
STARTING MOTOR 62
STARTING MOTOR SOLENOID KIT 62
STARTING MOTOR SWITCH 62
SWING DRIVE GEARBOX242
SWING DRIVE MOTOR246
SWING DRIVE, GEAR CASE – ( -011319)236
SWING DRIVE, GEAR CASE – (011320- )238
SWING SYSTEM GREASE LINES240
SWING VALVE170
SWING VALVE MOUNTING206
SWING VALVE SECTIOIN180
SWITCH, DISCONNECT114
SWITCH, ENGINE OIL PRESSURE 20
SWITCH, ENGINE TEMPERATURE COOLANT 32
SWITCH, IGNITION138
SWITCH, STARTING MOTOR 62
SWIVEL244
SWIVEL MOUNTING234
T 9
TANK, HYDRAULIC220
TANK, OVERFLOW 80
TEMPERATURE SWITCH, ENGINE COOLANT 32
TENSIONER, DRIVE BELT 68
THERMOSTAT 54
THERMOSTAT COVER 54
THERMOSTAT HOUSING 54
THERMOSTATIC CONTROL VALVE196
THROTTLE CONTROL 82
TIMING GEAR COVER 16
TIMING GEAR COVER GASKET 16
TORQUE ARM234
TRAILER MOUNTING KIT 96
TRANSFER PUMP, FUEL 42
TRAVEL WARNING ALARM130
TUBE, ENGINE OIL DIPSTICK 29
TURBOCHARGER 49
TURBOCHARGER GASKET 49
TURBOCHARGER OIL LINES 50
TWO WAY CB RADIO160
U 9
UPPER FRAME134
V 9
VALVE SECTION, GRAPPLE CLAMP178
VALVE SECTION, GRAPPLE ROTATE182
VALVE SECTION, INLET (JIB VALVE)172
VALVE SECTION, INLET (MAIN VALVE)172
VALVE SECTION, INLET (SWING VALVE)174
VALVE SECTION, JIB BOOM176
VALVE SECTION, KNIVES184
VALVE SECTION, MAIN BOOM176
VALVE SECTION, SAW186
VALVE SECTION, STABILIZER186
VALVE SECTION, SWING180
VALVE, COOLER BY-PASS196
VALVE, DELIMBER200
VALVE, ENGINE INTAKE 32
VALVE, ENGINE OIL BY-PASS 20
VALVE, ENGINE OIL PRESSURE REGULATING 16
VALVE, EXHAUST 32
VALVE, FOOT PEDAL190
VALVE, JIB168
VALVE, MAIN166
VALVE, PILOT SHUT-OFF194
VALVE, SAW DIVERTER198
VALVE, SNUBBER, MOTORPAL 40
VALVE, STABILIZER192
VALVE, SWING170
VALVE, THERMOSTATIC CONTROL196
VAPOR CONDENSER150
W 9
WARNING ALARM, TRAVEL130
WATER PUMP 53
WATER PUMP IMPELLER 53
WATER PUMP INLET 52
WATER PUMP PULLEY 52
WATER PUMP REPAIR KIT 53
WINDOWS, CAB136
WIPERS, CAB140
WIPERS, MOTOR140
WORK LIGHTS118

S.M 8/1/25
