JCB Engines Isuzu Tier 4 Engine – 4HK Workshop Manual
FILE DETAILS:
JCB Engines Isuzu Tier 4 Engine – 4HK Workshop Manual
Size: 59.4 MB
Fomat: PDF
Language: English
Brand: JCB
Type of machine: Engines Isuzu Tier 4 Engine Service Manual – 4HK
Type of document: Workshop Manual
Model: 9806-4350
Page of number: 926
TABLE OF CONTENTS:
JCB Engines Isuzu Tier 4 Engine – 4HK Workshop Manual
0 Introduction
14A Service Information Guide
15B Maintenance Information
15C Functional Inspection
15D Sympton
15E DTC Information
1A Engine Control
1B Mechanical
1C Fuel System
1D Cooling
1E Lubrication
1F Induction
1G Exhaust
1H Aux. Emission Control Devices
1J Electrical
ETM – Using the Wiring Diagram
– Engine
– Location Diagram
– Connector list
DESCRIPTION:
JCB Engines Isuzu Tier 4 Engine – 4HK Workshop Manual
Safety Information:
1. Repair work Safety Information
1. Use an engine stand when danounting the engine from the equipment. Be sure not to place the engine directly on the grormd or allow theoil pan to come into contact with the ground.
2. When performing a procedure with two or more people, make sure to ensure mch other’s safety.
3. W hen rq’tairin g the electrical system make sure to disconnect the cable from the negative (-) battery terminal before working. ch’l fire away when removing the battery cmer.
4. Do not leave the engine naming for an extended period oftime orpa‘fonn painting in a poorly ventilated working environment.
5. Make sure to use only the special tools if the procedure requires them for the work. Performing the procedure using other tools may cause damage to parts or personal injury.
6. inspect the tools, instruments, and special tools regularly, and prepare them before working. Do not use tools such as awrmch that has lost its edges, a hammer with fiayed edges, or achipped chisel.
7. When performing work using advice such as a grinder, crane orwelder, make sure to pay sufficient attention to the handling precautions. Wear work clothes and safety equipments in the other operators is well.
8. Be sure to check that thereis no firel leaks when performing maintenance on fire! system.

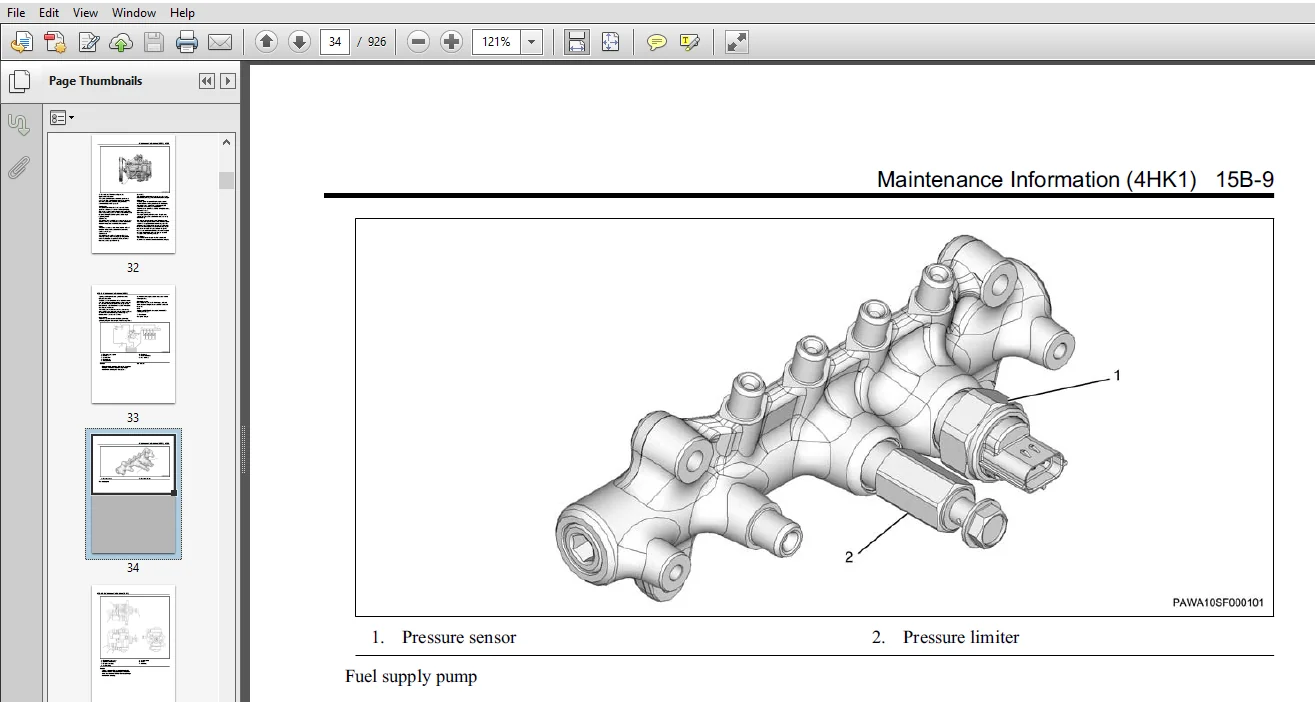

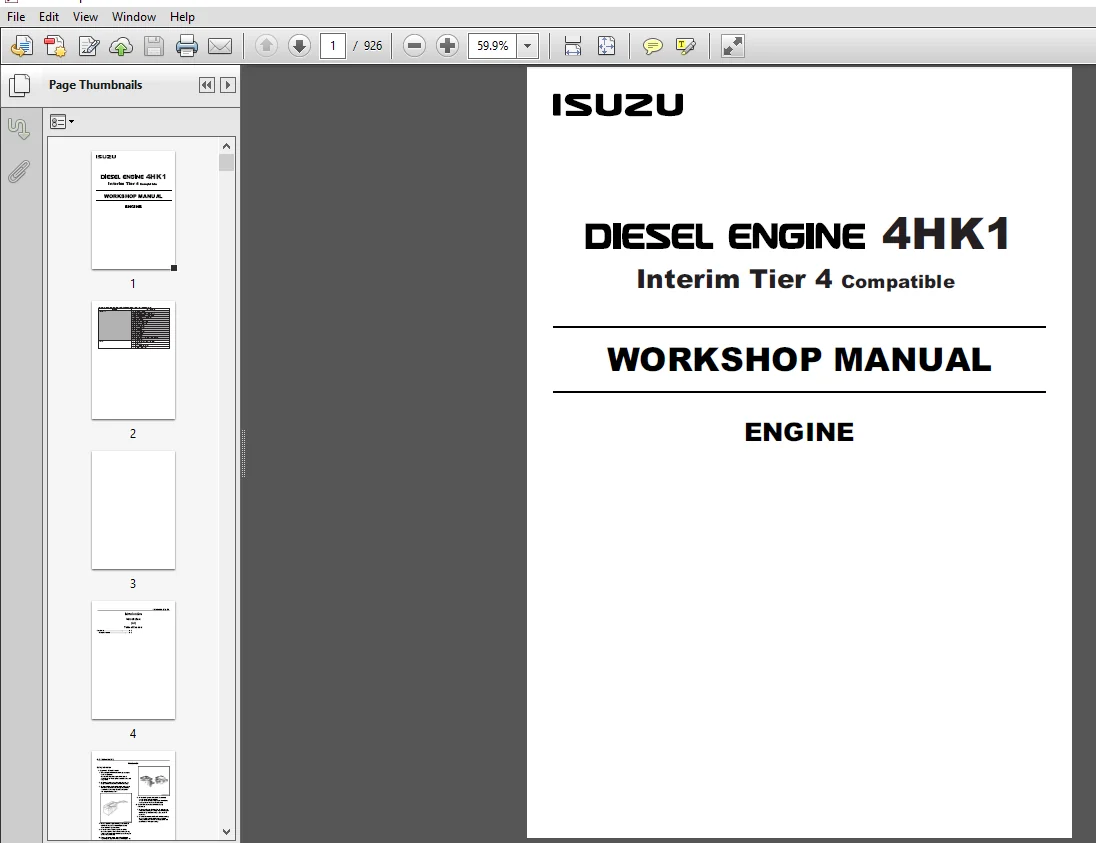

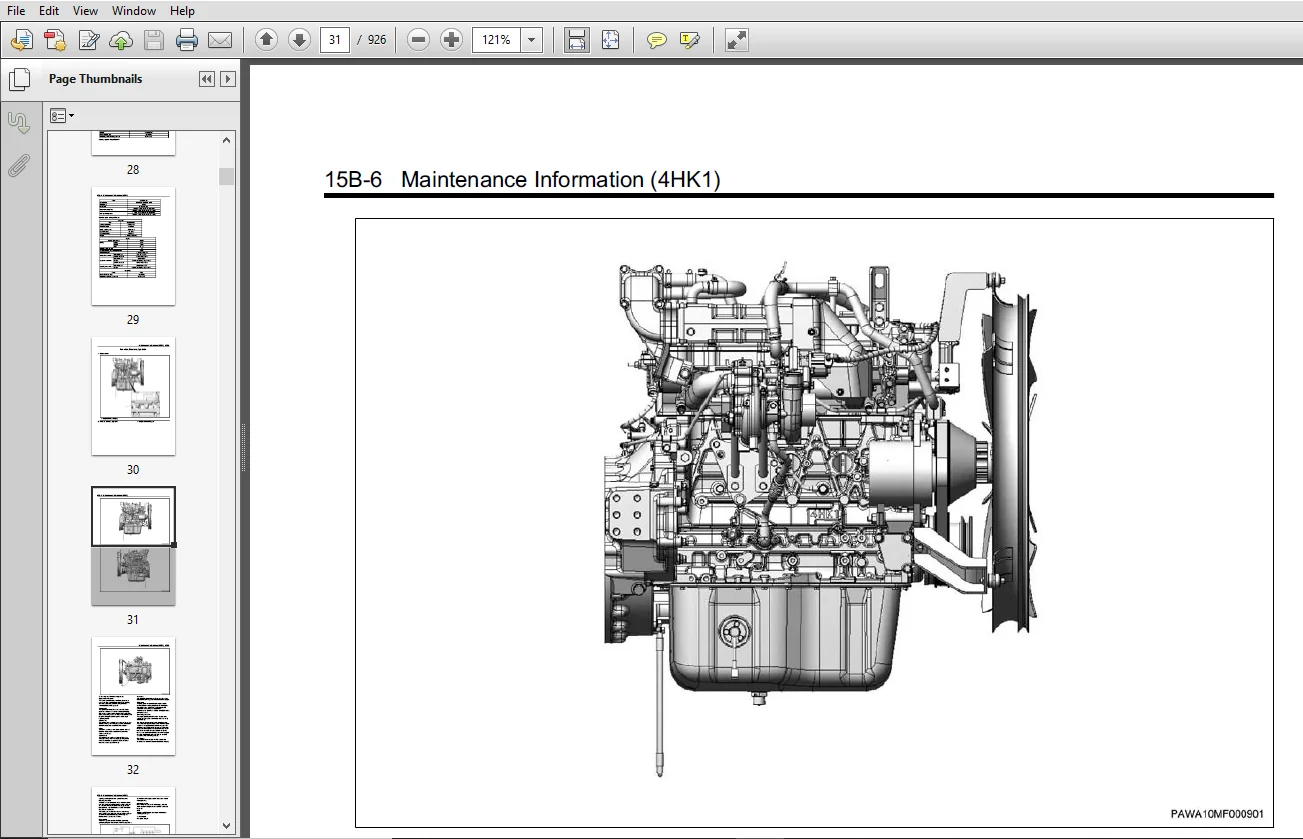

IMAGES PREVIEW OF THE MANUAL:
