JCB Drivetrain SD 55 Power Track Rod High Pivot Mount Service Manual
FILE DETAILS:
JCB Drivetrain SD 55 Power Track Rod High Pivot Mount Service Manual
Size: 2.1 MB
Fomat: PDF
Language: English
Brand: JCB
Type of machine: Drivetrain SD 55 Power Track Rod High Pivot Mount
Type of document: Service Manual
Model: 9803-9286
Page of number: 66
VIDEO PREVIEW OF THE MANUAL:

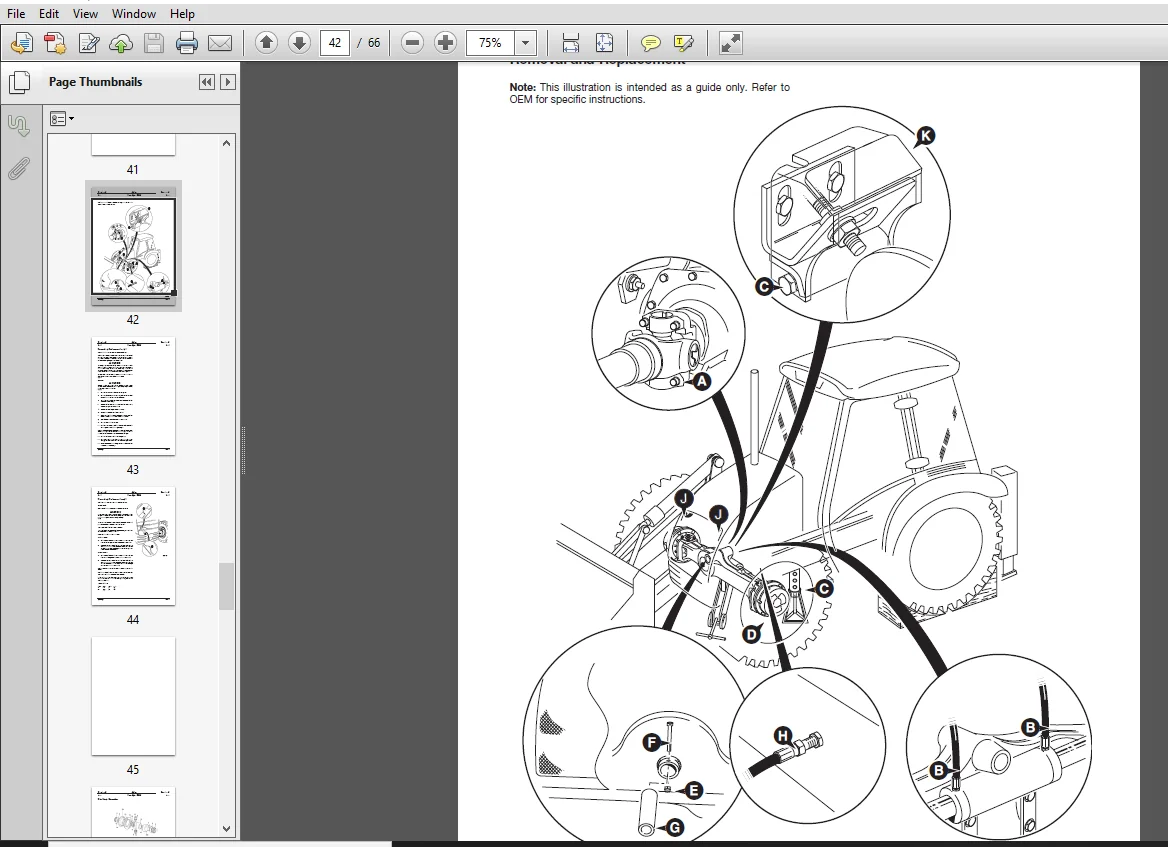

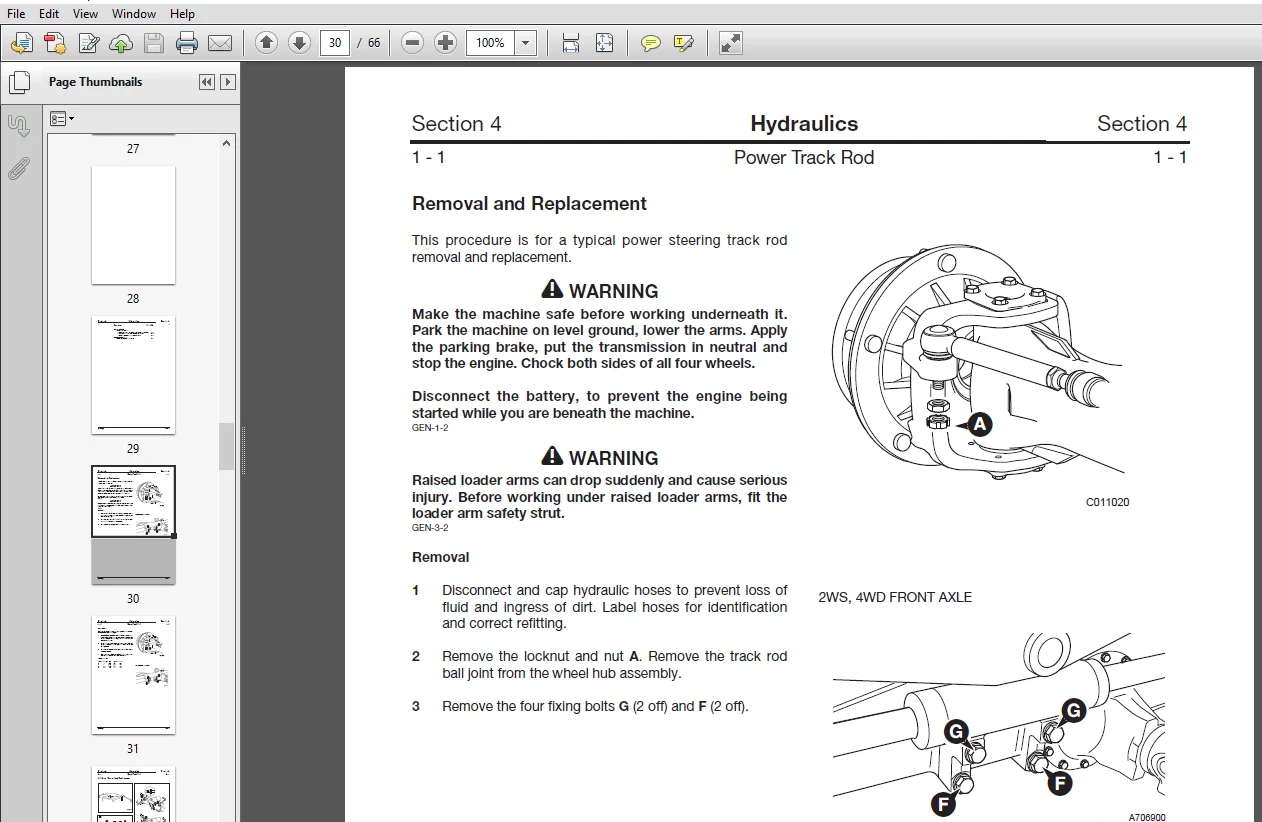

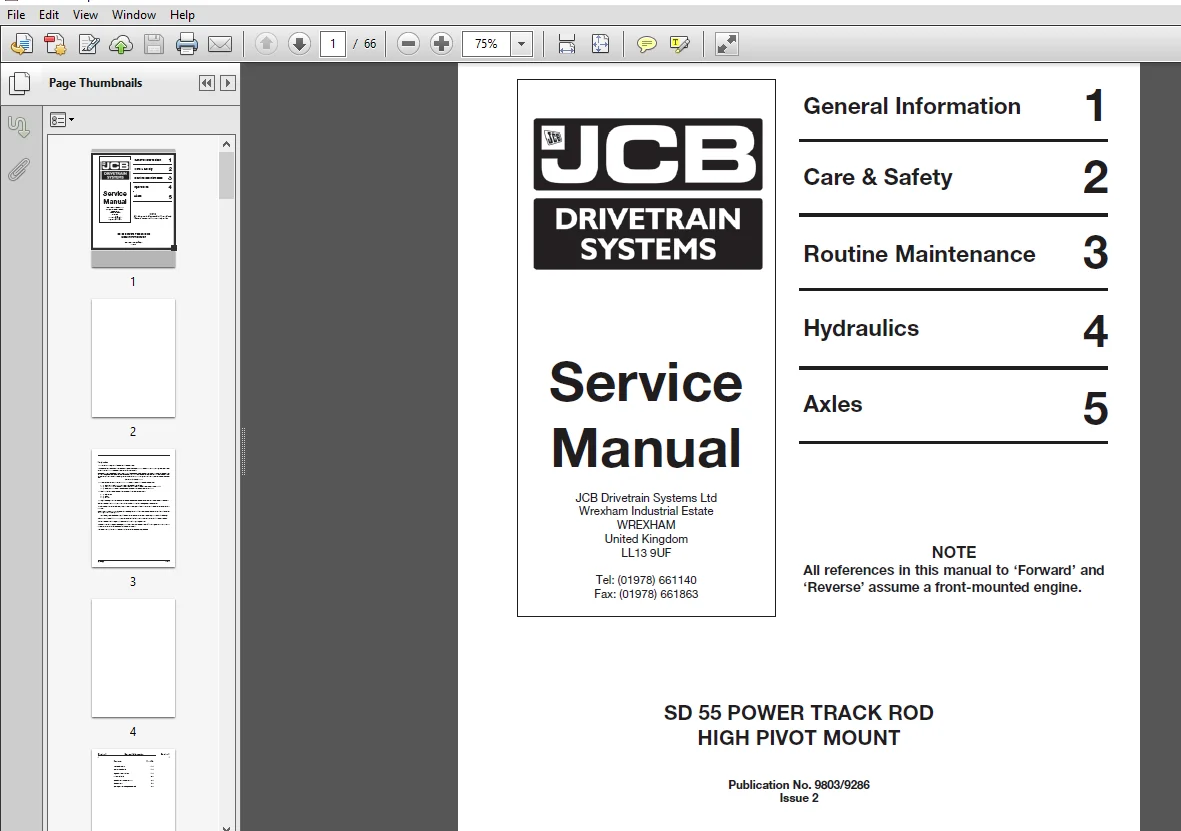

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
JCB Drivetrain SD 55 Power Track Rod High Pivot Mount Service Manual
- This publication is designed for the benefit of Service Engineers. These personnel should have a sound knowledge of workshop practice, safety procedures, and general techniques associated with the maintenance and repair of hydraulic equipment.
- Renewal of oil seals, gaskets, etc., and any component showing obvious signs of wear or damage is expected as a matter of course. It is expected that components will be cleaned and lubricated where appropriate, and that any opened hose or pipe connections will be blanked to prevent excessive loss of hydraulic fluid and ingress of dirt. Finally, please remember above all else SAFETY MUST COME FIRST!
The manual is compiled in sections, the first three are numbered and contain information as follows:
1 = General Information – includes torque settings and service tools.
2 = Care & Safety – includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 = Routine Maintenance – includes service schedules and recommended lubricants etc.
The remaining sections deal with Dismantling, Overhaul etc. of specific components:
4 = Hydraulics
5 = Axles
6 = Brakes
The page numbering in each section is not continuous. This allows for the insertion of new items in later issues of the manual. Section contents, technical data, operation descriptions etc. are inserted at the beginning of each section. All sections are listed on the front cover; tabbed divider cards align directly with individual sections on the front cover for rapid reference.
TABLE OF CONTENTS:
JCB Drivetrain SD 55 Power Track Rod High Pivot Mount Service Manual
General Information
Care & Safety
Routine Maintenance
Hydraulics
Axles
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
