Isuzu 2003 Rodeo & Rodeo Sport Electrical Troubleshooting Wiring Diagram Manual – PDF DOWNLOAD
FILE DETAILS:
Isuzu 2003 Rodeo & Rodeo Sport Electrical Troubleshooting Wiring Diagram Manual – PDF DOWNLOAD
Language : English
Pages : 499
Downloadable : Yes
File Type : PDF

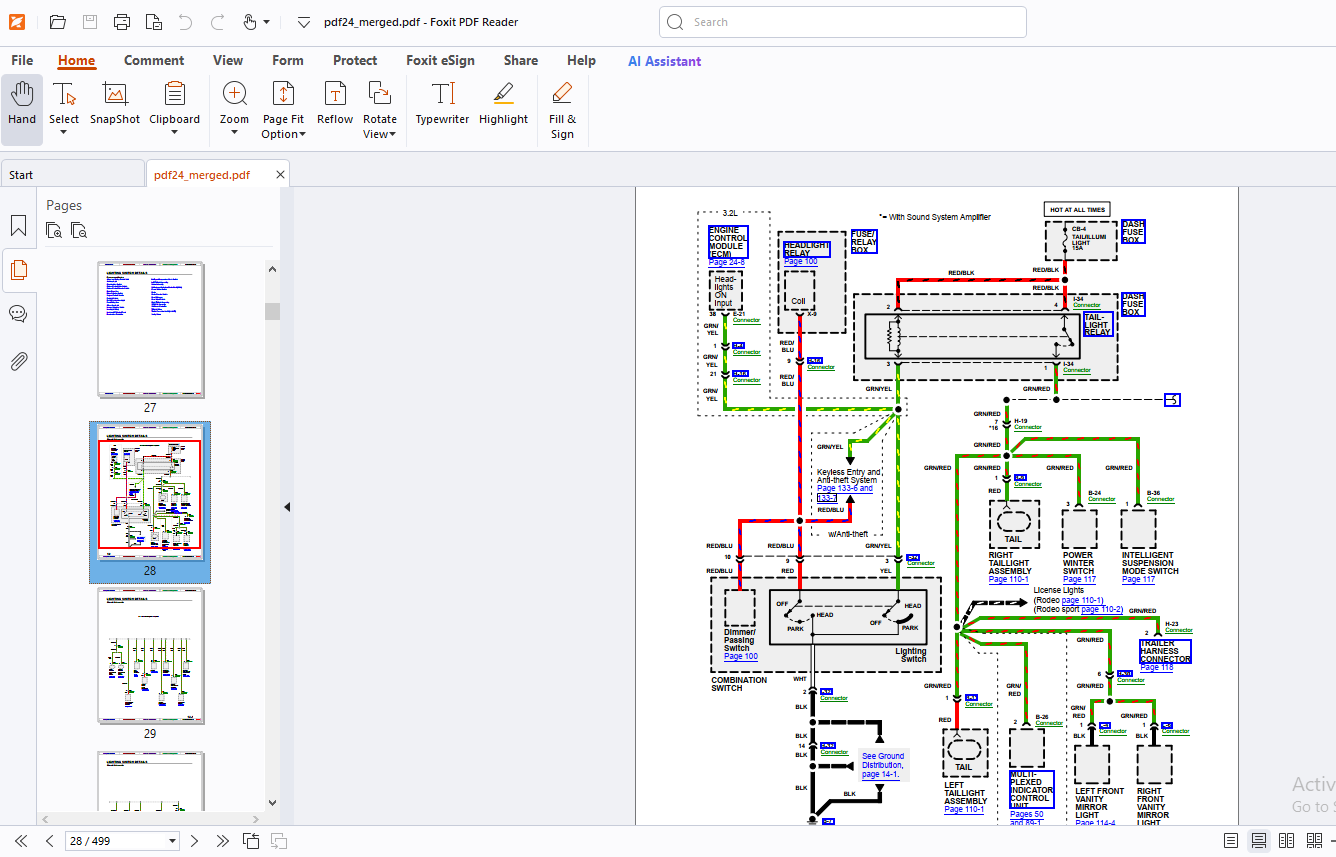

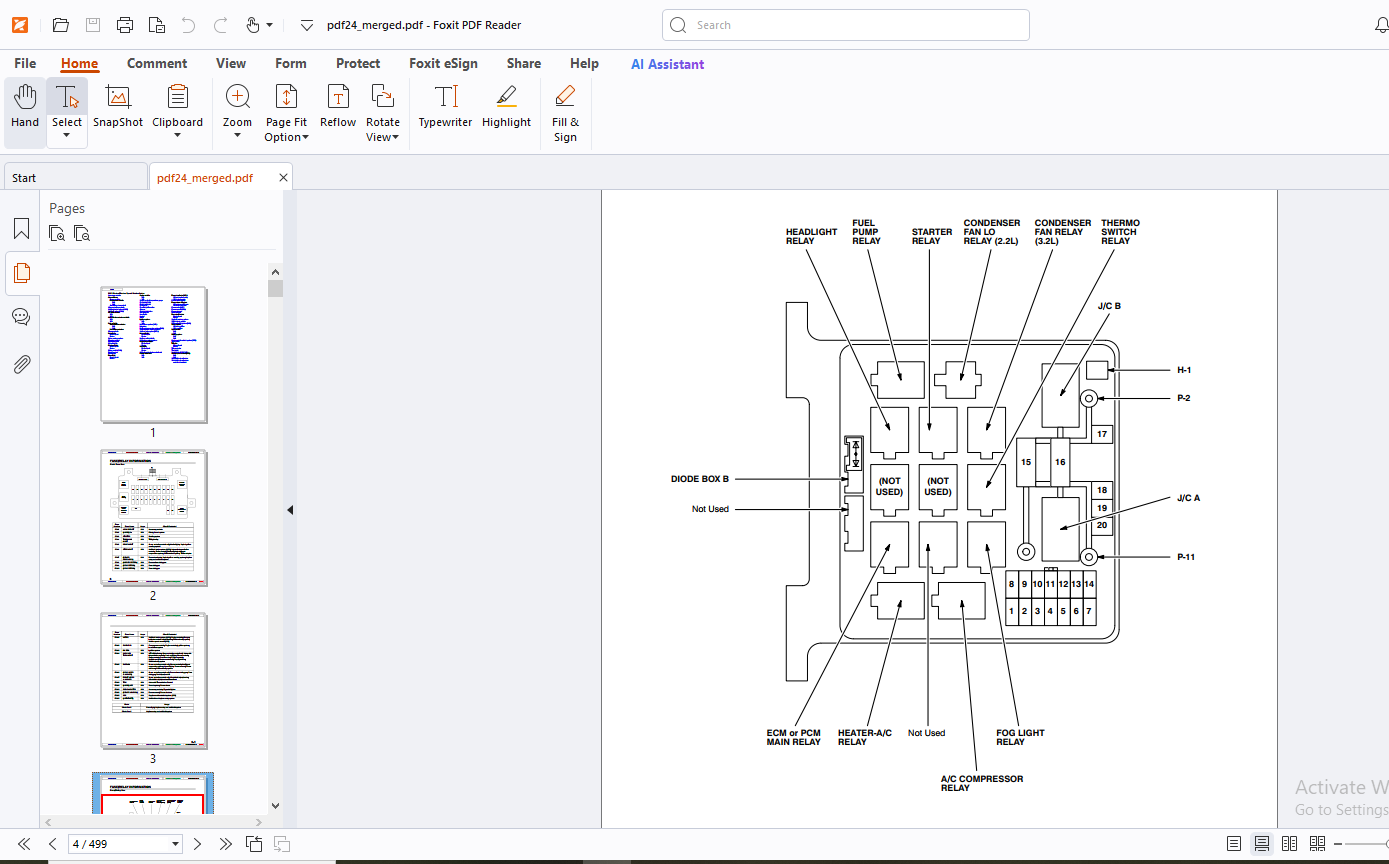

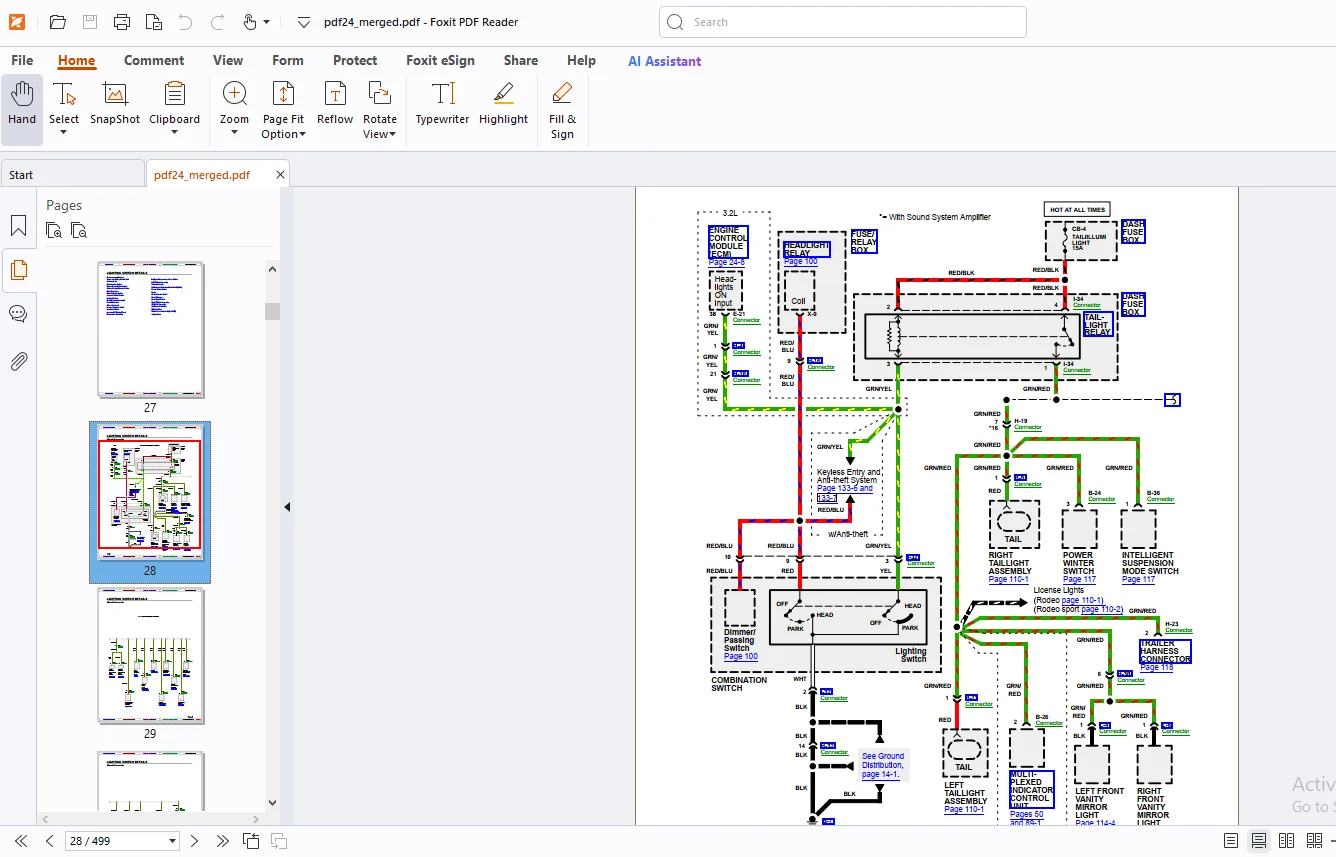

IMAGES PREVIEW OF THE MANUAL:

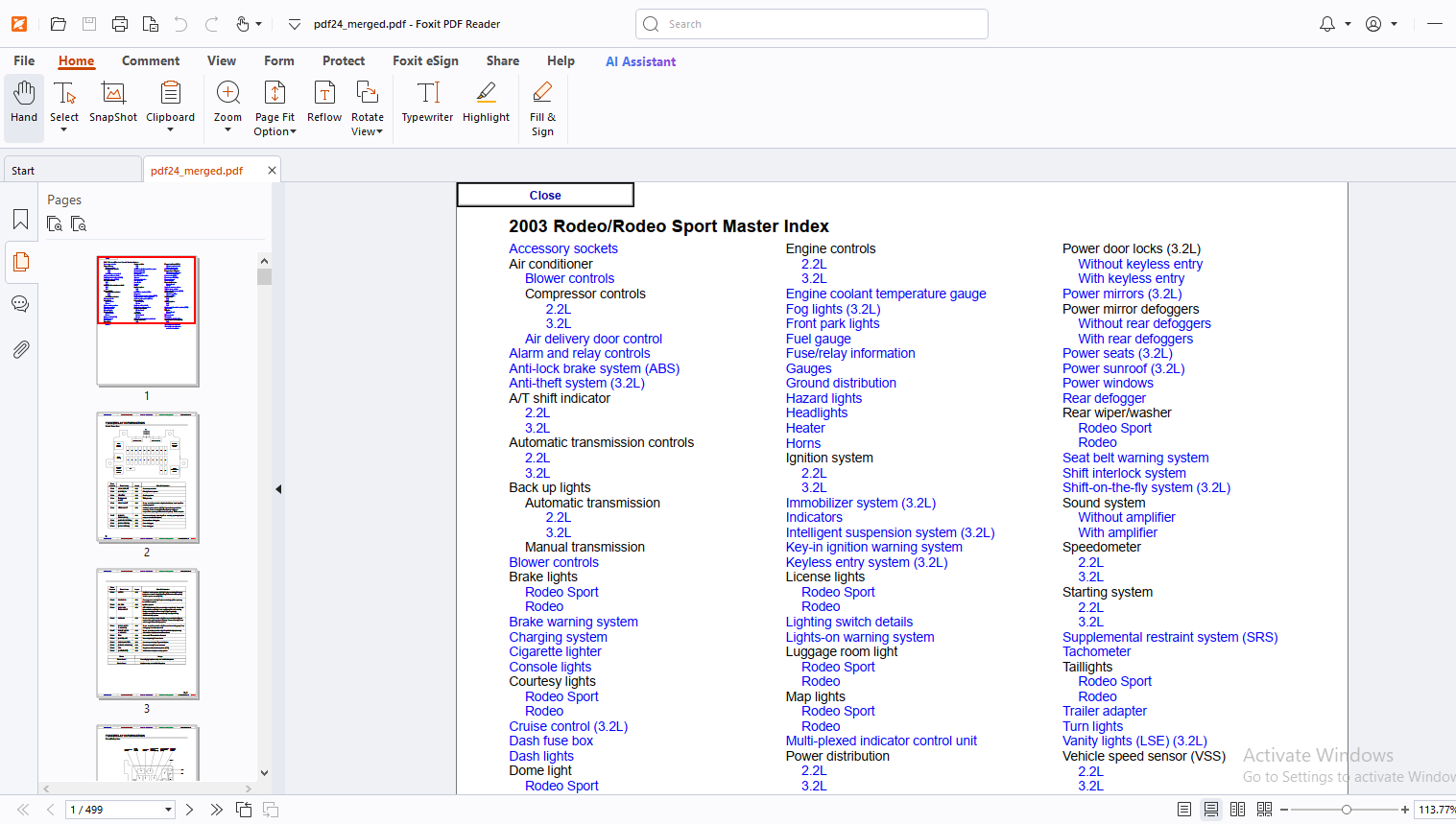

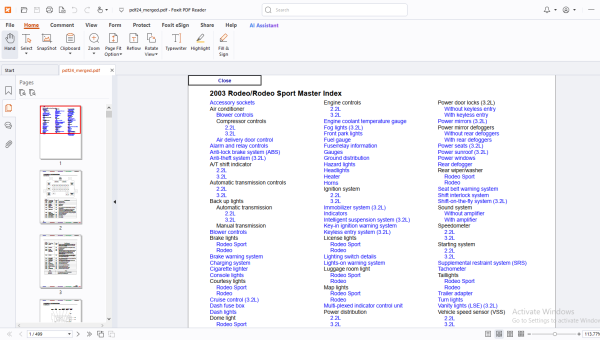

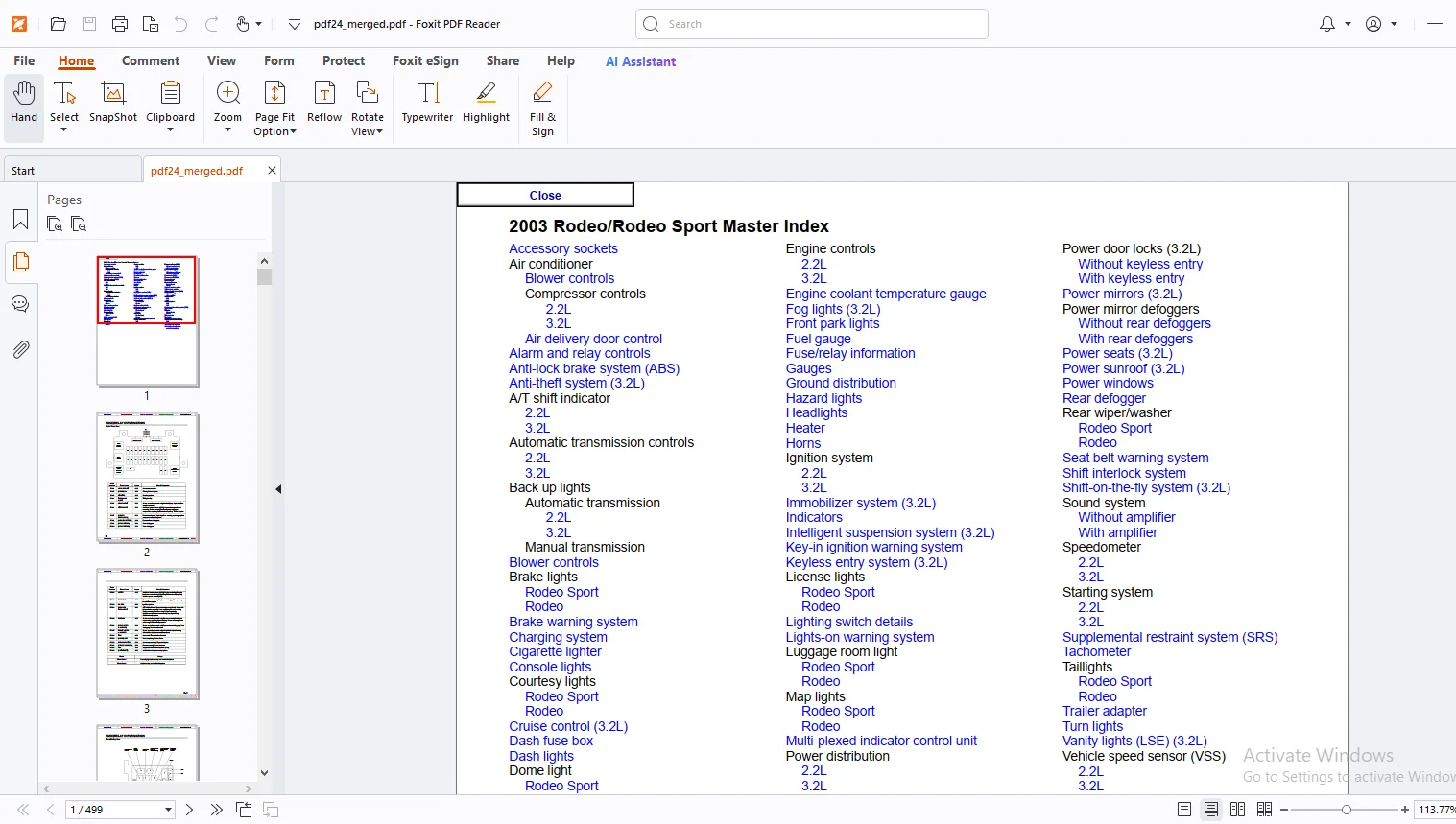

TABLE OF CONTENTS:
Isuzu 2003 Rodeo & Rodeo Sport Electrical Troubleshooting Wiring Diagram Manual – PDF DOWNLOAD
2003 Rodeo/Rodeo Sport Master Index
Accessory sockets
Air conditioner
Blower controls
Compressor controls
Air delivery door control
Alarm and relay controls
Anti-lock brake system (ABS)
Anti-theft system (3.2L)
A/T shift indicator
Automatic transmission controls
Back up lights
Automatic transmission
Manual transmission
Blower controls
Brake lights
Rodeo Sport
Rodeo
Brake warning system
Charging system
Cigarette lighter
Console lights
Courtesy lights
Rodeo Sport
Rodeo
Cruise control (3.2L)
Dash fuse box
Dash lights
Dome light
Rodeo Sport
Rodeo
Engine controls
Engine coolant temperature gauge
Fog lights (3.2L)
Front park lights
Fuel gauge
Fuse/relay information
Gauges
Ground distribution
Hazard lights
Headlights
Heater
Horns
Ignition system
Immobilizer system (3.2L)
Indicators
Intelligent suspension system (3.2L)
Key-in ignition warning system
Keyless entry system (3.2L)
License lights
Rodeo Sport
Rodeo
Lighting switch details
Lights-on warning system
Luggage room light
Rodeo Sport
Rodeo
Map lights
Rodeo Sport
Rodeo
Multi-plexed indicator control unit
Power distribution
Power door locks (3.2L)
Without keyless entry
With keyless entry
Power mirrors (3.2L)
Power mirror defoggers
Without rear defoggers
With rear defoggers
Power seats (3.2L)
Power sunroof (3.2L)
Power windows
Rear defogger
Rear wiper/washer
Rodeo Sport
Rodeo
Seat belt warning system
Shift interlock system
Shift-on-the-fly system (3.2L)
Sound system
Without amplifier
With amplifier
Speedometer
Starting system
Supplemental restraint system (SRS)
Tachometer
Taillights
Rodeo Sport
Rodeo
Trailer adapter
Turn lights
Vanity lights (LSE) (3.2L)
Vehicle speed sensor (VSS)
Windshield wiper/washer
Windshield wiper/washer:
variable intermittent
G.B 08/03/25
