Iseki SG15H Lawn & Garden Tractor Parts Manual 1608-098-100-00 PDF

Description

Iseki SG15H Lawn & Garden Tractor Parts Manual 1608-098-100-00 – PDF DOWNLOAD

FILE DETAILS:

Iseki SG15H Lawn & Garden Tractor Parts Manual 1608-098-100-00 – PDF DOWNLOAD

Language : English
Pages : 173
Downloadable : Yes
File Type : PDF

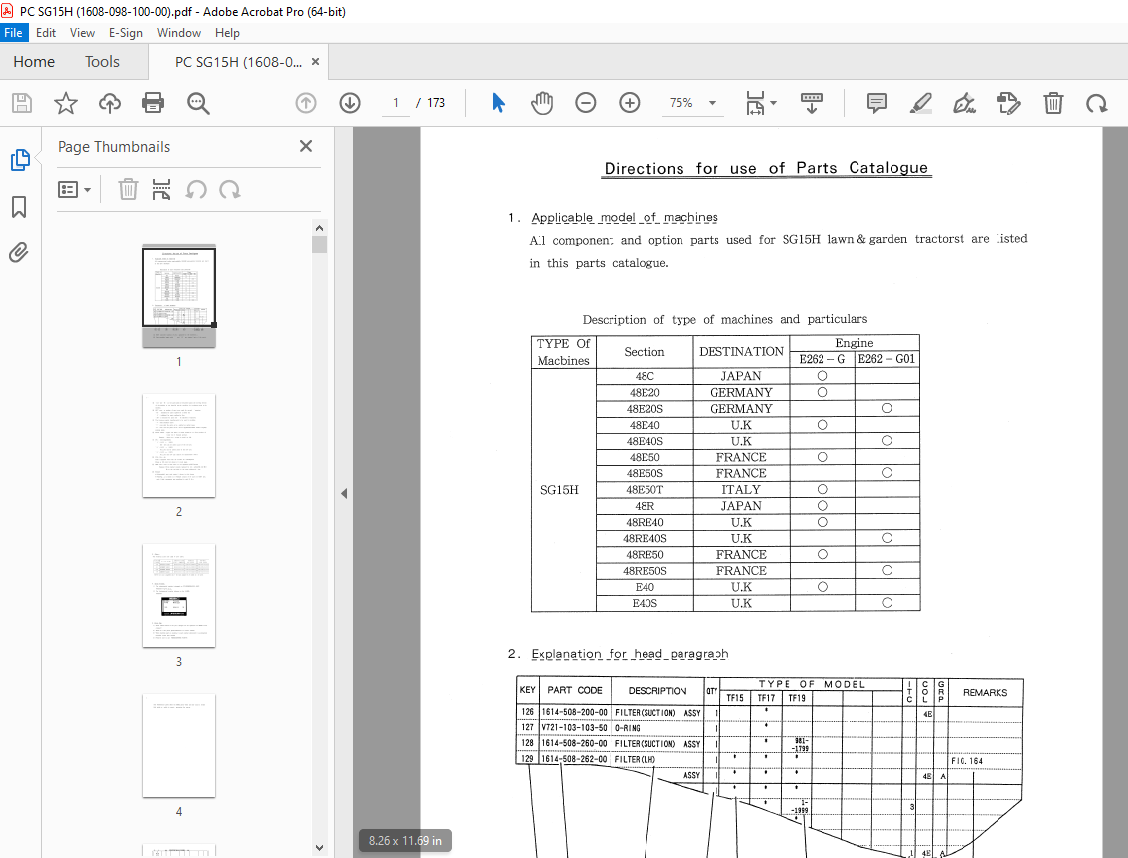

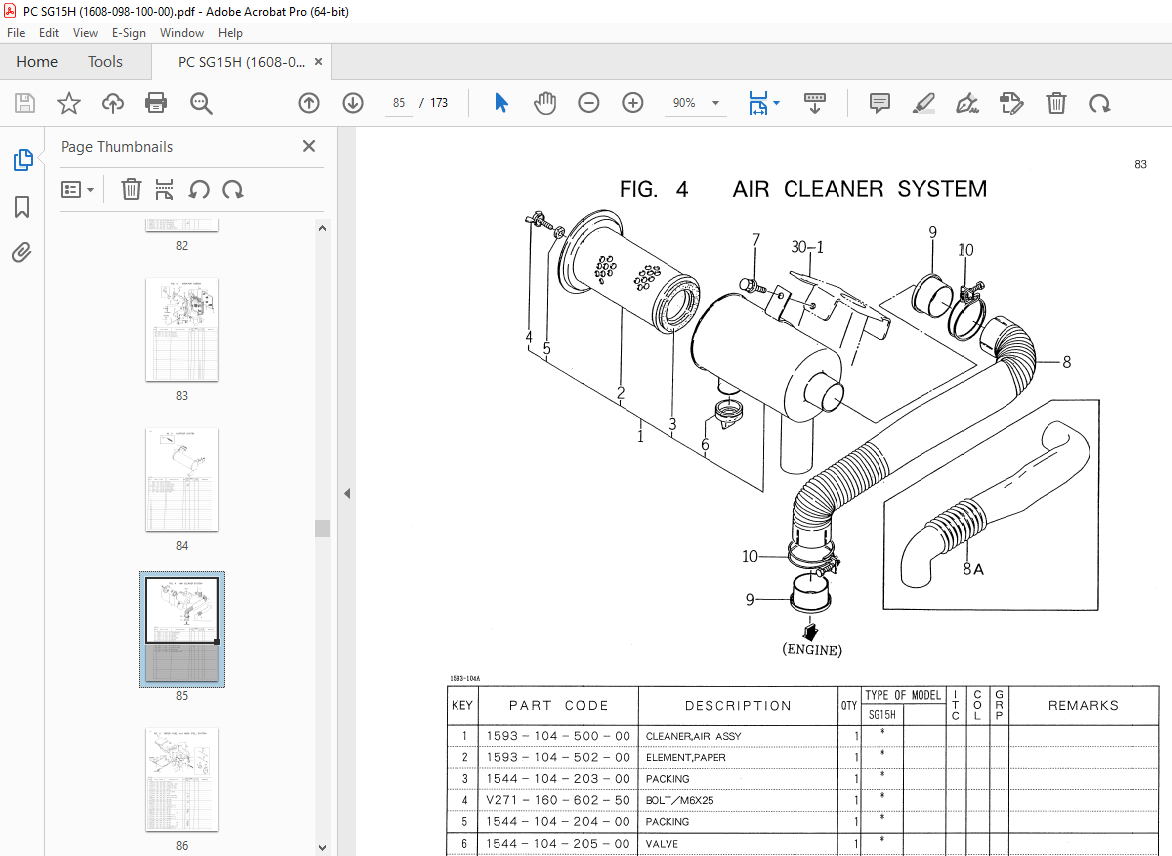

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki SG15H Lawn & Garden Tractor Parts Manual 1608-098-100-00 – PDF DOWNLOAD

SG15
ENG I NE (E262-G)
CYLINDER HEAD Fig 1
CYLINDER HEAD COVER Fig 2
INLET MANIFOLD Fig 3
EXHAUST MANIFOLD Fig 4
CYLINDER BLOCK Fig 5
BEARING/UNDER SIZE (OPTION) Fig 6
OIL PAN Fig 7
REAR PLATE Fig 8
TIMING GEAR CASE Fig 9
［ ER
CAM SHAFT
PISTON
PISTON/OVER SIZE (OPTION)
ANPKUMSPHAFT
CHASSIS
BRACKET (ENGINE) SYSTEM Fig 1
RAD IA TOR SYSTEM Fig 2
MUFFLER SYSTEM Fig 3
AIR CLEANER SYSTEM Fig 4
FILTER (FUEL) and HOSE (FUEL) SYSTEM • ‘ Fig 5
BATTERY SYSTEM (E TYPE) Fig 6
BATTERY SYSTEM (EXCEPT E TYPE) Fig 7
ACCELERATOR SYSTEM Fig 8
JOINT (UNIVERSAL) and FAN (HST) SYSTEM Fig 9
TRANSMISSION SYSTEM Fig 10
GEAR (INPUT) SYSTEM Flg 1l
HST SYSTEM (1) Fig 12 ; ~
`[] [ [][ ; []
HST (UNLOAD) SYSTEM Fig 17
CASE (DIFF) and SHAFT (W1IEEL) SYSTEM Fig 18
BRAKE SYSTEM Fig 19
ARM (BRAKE) SYSTEM Fig 20
TIRE (REAR) SYSTEM Fig 21
LEVER (P T 0 ) and BRACKET (P T 0 /F) SYSTEM Fig 22
SHAFT (JOINT/P T 0 ) and METAL (REAR/P T 0 ) SYSTEM
(C TYPE – STANDARD • EXCEPT C,R TYPE – OPTION) Fig 23
LEVER (P T 0 ) SYSTEM
(C TYPE-STANDARD EXCEPT C,R TYPE – OPTION) Fig 24
CASE (P T 0 ) and SHAFT (INPUT/P T 0 ) SYSTEM
(C TYPE – STANDARD EXCEPT C,R TYPE – OPTION) Fig 25
HITCH (REAR) SET (OPTION) Fig 26
CHASSIS SYSTEM Fig 27
10
AXLE (FRONT) SYSTEM Fig 28
ARM (KNUCKLE) and ARM (PITMAN) SYSTEM Fig 29
POST (STEERING) and WHEEL (STEERING) SYSTEM Fig 30
CASE (STEERING) and SHAFT (STEERING) SYSTEM Fig 31
TIRE (FRONT) SYSTEM Fig 32
LINK and LIFT SYSTEM • • Fig 33
ARM (LIFT,CONTROL) and COVER (P T O ) SYSTEM Fig 34
HOOD (A) and COVER (FRONT) SYSTEM Fig 35
COVER (LOWER) nad HOOD (B) SYSTEM Fig 36
FENDER SYSTEM Fig 37
SEAT SYSTEM ” Fig 38
FUEL TANK and STEP SYSTEM ; Fig 39
PANEL (INSTRUMENT) SYSTEM Fig 40
ELECTRICAL SYSTEM (EXCEPT S TYPE) Fig 41
ELECTRICAL SYSTEM (S TYPE) Fig 42
LAMP (HEAD) SET and MATER (HOUR) SET
(EXCEPT E TYPE) (OPTION) 孿 ．． Fig 43
ORNAMENT (EXCEPT S TYPE) Fig 44
ORNAMENT (S TYPE) Fig 45
MARK and KIT (OPTION) Fig 46
LABEL Fig 47
BUMPER WEIGHT (OPTION) and TOOL Fig 48
WIRING DIAGRAM/SG15
WIRING DIAGRAM/SG15 -S

DESCRIPTION:

Iseki SG15H Lawn & Garden Tractor Parts Manual 1608-098-100-00 – PDF DOWNLOAD

Parts Order:
1) Parts numbers listed in the parts catalogue are all registered in “ISEKI on – line
computer”.
2) When you order parts, please make sure of correct numbers.
3) When substitute parts is available, the part number ordered will be automatically
turned to a new part number.
4) Please be sure to use “ISEKI GENUINE PARTS”.
5)Any other similar parts other than ISEKI parts when used may cause a trouble
that makes us unable to repair or guarantee the warrant.
