Iseki PC TK527 TK532 TK538 Tractor Parts Manual 1674-097-100-10 PDF

Description

Iseki PC TK527 TK532 TK538 Tractor Parts Manual 1674-097-100-10 – PDF DOWNLOAD

FILE DETAILS:

Iseki PC TK527 TK532 TK538 Tractor Parts Manual 1674-097-100-10 – PDF DOWNLOAD

Language : English
Pages : 509
Downloadable : Yes
File Type : PDF

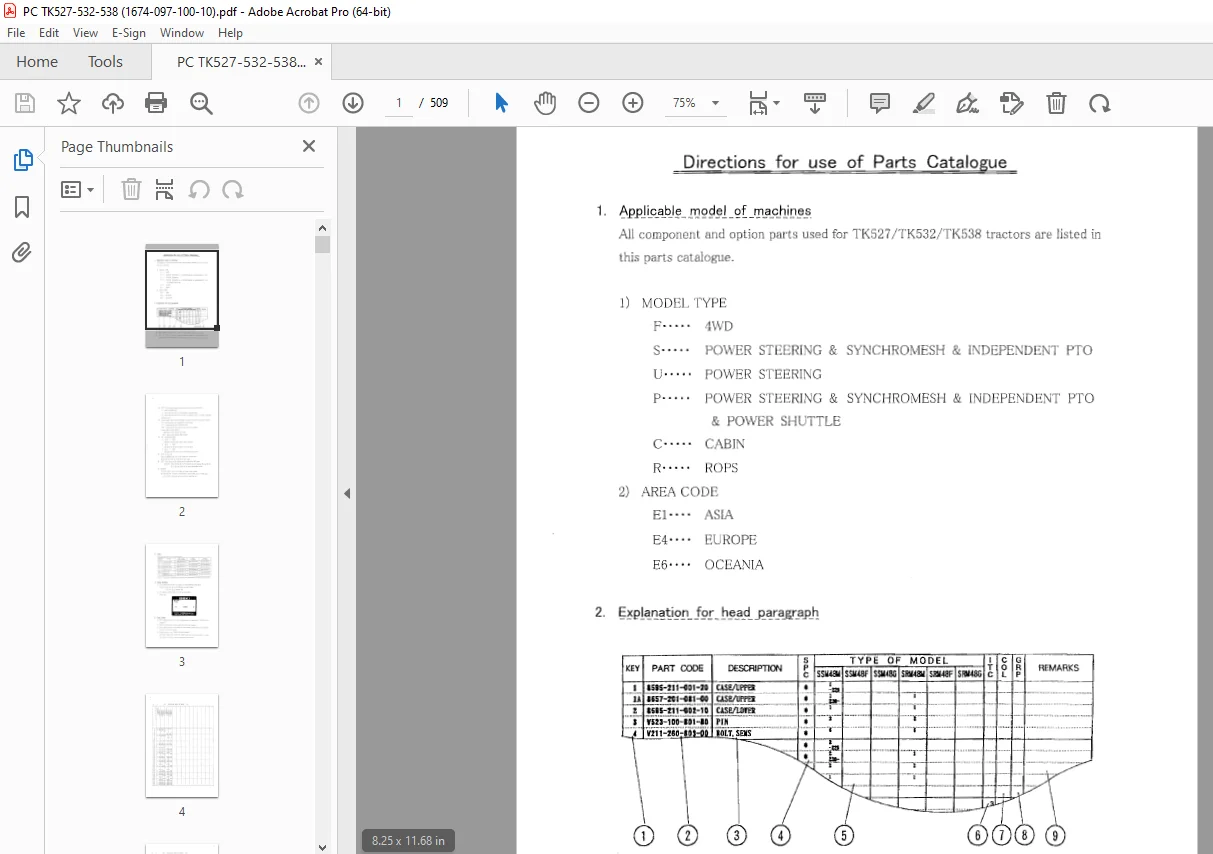

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki PC TK527 TK532 TK538 Tractor Parts Manual 1674-097-100-10 – PDF DOWNLOAD

TK527
ENGINE (E3CF-B06)
CYLINDER HEAD
CYLINDER HEAD COVER-
INLET MANIFOLD
EXHAUST MANIFOLD
CYLINDER BLOCK
BEARING UNDER SIZE (OPTION)
OIL PAN
REAR PLATE—-
TIMING GEAR CASE
HANGER
VALVE
CAM SHAFT
PISTON
PISTON/OVER SIZE (OPTION)
CRANK SHAFT (No1~72696) –
CRANK SHAFT (No72697~)
OIL PUMP
WATER PUMP
COOLING FAN (Noal~72696)-
COOLING FAN (No72697~)
INJECTION NOZZLE-
INJECTION PUMP
FUEL PIPE
ELECTRIC (1) (No 1~72696)
ELECTRIC (1) (No 72697~)
ELECTRIC (2) (No 53649~)
ELECTRIC (2) (No 1~53648)-
REPAIR PARTS (1) (OPTION)
REPAIR PARTS (2) (OPTION)
COMPONENT PARTS FOR 6215-300-027-00 ON
COMPONENT PARTS FOR 6215-300-031-00 ON
COMPONENT PARTS FOR 6215-600-104-10 ON
COMPONENT PARTS FOR 6281-100-007-00~20 ON
COMPONENT PARTS FOR 6281-200-008-10 ON
COMPONENT PARTS FOR 6281-200-020-00 ON
TK 532
ENGINE (E3CD-B10)
CYLINDER HEAD
CYLINDER HEAD COVER-
INLET MANIFOLD
EXHAUST MANIFOLD
CYLINDER BLOCK
BEARING/UNDER SIZE (OPTION)
OIL PAN
REAR PLATE
TIMING GEAR CASE
HANGER
VALVE
CAM SHAFT
PISTON
PISTON OVER SIZE (OPTION)
CRANK SHAFT (No1-71929) –
CRANK SHAFT (No 71930~)
OIL PUMP
WATER PUMP
COOLING FAN (No1~71929)-
COOLING FAN (No71930~)
INJECTION NOZZLE-
INJECTION PUMP
FUEL PIPE —-
ELECTRIC (1) (No1~71929)-
ELECTRIC (1) (No 71930~)
ELECTRIC (2) (N53649~)
ELECTRIC (2) (Nal~53648)-
REPAIR PARTS (1) (OPTION)
REPAIR PARTS (2) (OPTION)
COMPONENT PARTS FOR 6215-300-02700 ON
COMPONENT PARTS FOR 6215-300-031-00 ON
COMPONENT PARTS FOR 6215-600-104-10 ON
COMPONENT PARTS FOR 6281-100-007-00-20 ON
COMPONENT PARTS FOR 6281-200-008-10 ON
COMPONENT PARTS FOR 6281-200-020-00 ON
CHASSIS
FUEL HOSE SYSTEM
AIR CLEANER SYSTEM (TK527, 532-E4 TYPE) AIR CLEANER SYSTEM (TK532-E1, E6 TYPE) AIR CLEANER SYSTEM (TK538-E6 TYPE)
AIR CLEANER SYSTEM (TK538-E4 TYPE)
RADIATOR SYSTEM
MUFFLER SYSTEM (TK527, 532 – EXCEPT C TYPE) MUFFLER SYSTEM (TK538-EXCEPT C TYPE) MUFFLER (UPPER) SYSTEM (TK532-C TYPE) MUFFLER (UPPER) SYSTEM (TK538-C TYPE)
FUEL TANK SYSTEM (EXCEPT C TYPE)
FUEL TANK SYSTEM (C TYPE) —
BATTERY BASE SYSTEM—
ACCELERATOR SYSTEM
MAIN CLUTCH SYSTEM (TK532-U TYPE)
MAIN CLUTCH SYSTEM (TK527, 532-S, P TYPE)
CLUTCH SYSTEM (TK538)
CLUTCH SHAFT SYSTEM—-
CLUTCH PEDAL SYSTEM

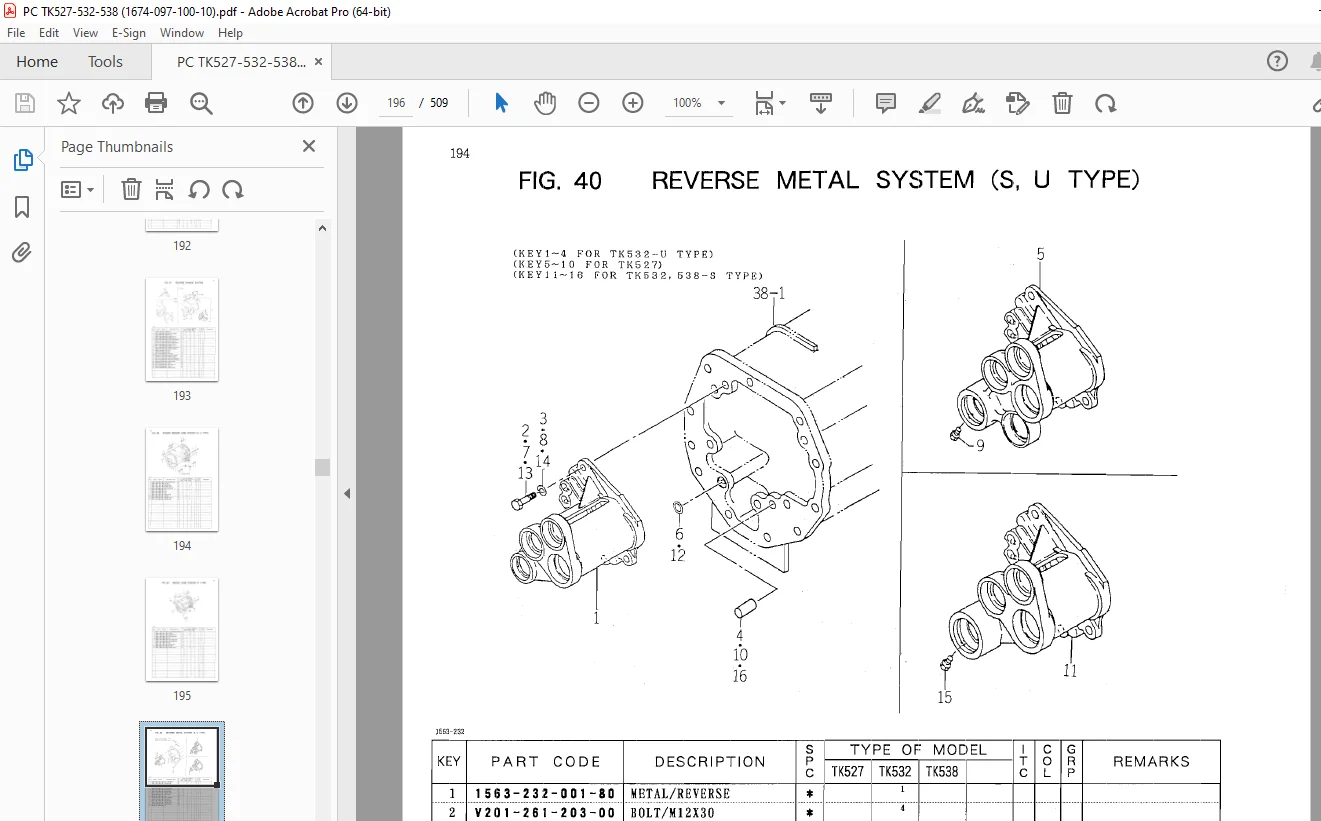

FRONT MISSION CASE SYSTEM (TK527/TK532, 538-P TYPE) ——
FRONT MISSION CASE SYSTEM (TK532, 538-S, U TYPE) INPUT GEAR SYSTEM (U TYPE)
INPUT GEAR SYSTEM (S, P TYPE)
CHANGE GEAR SYSTEM (S, P TYPE)
CHANGE GEAR SYSTEM (U TYPE)
COUNTER GEAR SYSTEM
BACK IDLE GEAR SYSTEM
REVERSE CHANGE GEAR SYSTEM (U TYPE)
REVERSE CHANGE GEAR SYSTEM (P TYPE)
REVERSE CHANGE GEAR SYSTEM (S TYPE)
REVERSE COUNTER SYSTEM
PTO DRIVE SHAFT SYSTEM (U TYPE) PTO DRIVE SHAFT SYSTEM (P TYPE)- PTO DRIVE SHAFT SYSTEM (S TYPE)
MAIN CHANGE SHIFTER SYSTEM —–
MAIN CHANGE SYSTEM
REVERSE CHANGE SYSTEM
SPACER MISSION CASE SYSTEM (S, U TYPE)
MIDDLE CASE SYSTEM (P TYPE) –
REVERSE METAL SYSTEM (S, U TYPE)
SPACER CASE SYSTEM (P TYPE)
REAR MISSION CASE SYSTEM
COVER HOLDER, COVER (BOTTOM) SYSTEM-
SUB CHANGE GEAR SYSTEM
SUB COUNTER SYSTEM
SUB CHANGE SYSTEM
4WD DRIVE GEAR SYSTEM
4WD CHANGE SYSTEM
PTO COUNTER SYSTEM
PTO CHANGE GEAR SYSTEM
PTO CHANGE SYSTEM
SUB CHANGE SYSTEM
LEVER (SUB), LEVER (REVERSE/S, U TYPE) SYSTEM
LEVER (REVERSE) SYSTEM (P TYPE)
CABLE (REVERSE) SYSTEM (S, U TYPE)-
LEVER (PTO) SYSTEM (A)
LEVER (PTO) SYSTEM (B)
LEVER (4WD), ROD (4WD) SYSTEM
MAIN CHANGE SYSTEM (S, P TYPE EXCEPT SC-1~
/TK532-SC TYPE-No83~/TK538-SC TYPE- No 126~)
MAIN CHANGE (U TYPE), LEVER (MAIN) SYSTEM
MAIN CHANGE SYSTEM
(TK532-SC TYPE-No1~82/TK538-SC TYPE-No1-125)
DRIVE PINION SYSTEM

DIFFERENTIAL GEAR SYSTEM-
REAR AXLE HOUSING SYSTEM-
WHEEL PINION SYSTEM-
WHEEL SHAFT SYSTEM
BRAKE SYSTEM (A)
ROD (BRAKE) SYSTEM (E1, E6 TYPE)
ROD (BRAKE) SYSTEM (SE4 TYPE)
ROD (BRAKE SYSTEM (PE4 TYPE)
BRAKE SYSTEM (B) (TK527-SE4 TYPE-No1-7
/TK532-SE4 TYPE-Nal-38/TK538-SE4 TYPE-No1-59)
BRAKE SYSTEM (B) (TK527-SE4 TYPE-Na 8~
/TK532-SE4 TYPE-39~/TK538-SE4 TYPE-N60~)
BRAKE SYSTEM (B) (PE4 TYPE) —–
BRAKE PEDAL SYSTEM
PARKING BRAKE SYSTEM (E4 TYPE)
PARKING BRAKE SYSTEM (E1, E6 TYPE)-
DIFF-LOCK SYSTEM
REAR WHEEL SYSTEM (TK527) (OPTION)
REAR WHEEL SYSTEM (TK532, 538) (OPTION)
REAR WHEEL (TURF) SYSTEM (S, P TYPE) (OPTION)
STEERING WHEEL SYSTEM
STEERING SHAFT SYSTEM
TILT HANDLE SYSTEM
POWER STEERING SYSTEM
AXLE BRACKET SYSTEM
DRIVE SHAFT SYSTEM-
BEVEL CASE SYSTEM
AXLE HOUSING SYSTEM
FRONT GEAR CASE SYSTEM
TIE ROD SYSTEM-
FRONT WHEEL SYSTEM (TK532, 538) (OPTION)
FRONT WHEEL SYSTEM (TK527) (OPTION)
FRONT WHEEL (TURF) SYSTEM (TK527) (OPTION)-
FRONT WHEEL (TURF) SYSTEM (TK532, 538-S, P TYPE) (OPTION)
CYLINDER CASE SYSTEM (S, P TYPE) CYLINDER CASE SYSTEM (U TYPE)·
LIFT ARM SYSTEM
CYLINDER SYSTEM
SLOW RETURN SHAFT SYSTEM
LINK (POSITION) SYSTEM-
BRACKET (POSITION) SYSTEM
LEVER (POSITION), ROD (POSITION) SYSTEM
PIPING SYSTEM (A) (S, U TYPE)-
PIPING SYSTEM (B) (S TYPE)
PIPING SYSTEM (B) (U TYPE)
PIPING (MAIN) SYSTEM (P TYPE) (1/2) (2/2)
PIPING (SUB) SYSTEM (P TYPE)
STACK SYSTEM (A) (EXCEPT © TYPE) –
STACK SYSTEM (B) (TK532-U TYPE -Na93~)
STACK SYSTEM (B) (S TYPE) ······
DRAW BAR, COVER (SHIELD), REAR HITCH SYSTEM
3P LINK SYSTEM
LOWER LINK, LIFT ROD (E4 TYPE) SYSTEM-
LIFT ROD SYSTEM (E1, E6 TYPE) —
VALVE (REMOTE/2R) SYSTEM (C TYPE)
HOOD SYSTEM (EXCEPT C TYPE)–
HOOD SYSTEM (C TYPE)
GRILLE SYSTEM
FRAME (HOOD/TK527, 532), DASHBOARD SYSTEM
FRAME (HOOD) SYSTEM (TK538)
FAN COVER SYSTEM (TK527, 532) ·
FAN COVER SYSTEM (TK538)————-
FENDER (E4 TYPE EXCEPT C),
STAY (FENDER/EXCEPT C, R TYPE) SYSTEM
FENDER SYSTEM (C TYPE)
FENDER SYSTEM (E1, E6 TYPE) –
LEVER GUIDE, LEVER STOPPER SYSTEM
SEAT SYSTEM (U TYPE)
SEAT SYSTEM (S, P TYPE)
BACK MIRROR SYSTEM (E1, E6 TYPE)—
BACK MIRROR SYSTEM (E4 TYPE EXCEPT C) FRONT MOUNT SYSTEM (R TYPE)
FRONT MOUNT SYSTEM (EXCEPT C, R TYPE) FRONT MOUNT SYSTEM (C TYPE)
REAR MOUNT SYSTEM (EXCEPT C, R TYPE)
REAR MOUNT SYSTEM (R TYPE)
REAR MOUNT SYSTEM (C TYPE)
FLOOR SYSTEM (TK527, 532-S, U TYPE EXCEPT C)·
FLOOR SYSTEM (C TYPE)
FLOOR SYSTEM (TK538-S TYPE EXCEPT C)
FLOOR SYSTEM (TK532-P TYPE EXCEPT C)
FLOOR SYSTEM (TK538-P TYPE EXCEPT C)
BATTERY (DELKOR) SYSTEM
HEAD LAMP SYSTEM
LAMP SYSTEM (E1, E6 TYPE)
LAMP SYSTEM (E4 TYPE EXCEPT C)
LAMP SYSTEM (C TYPE)
PANEL SYSTEM
SWITCH/SENSOR SYSTEM (SE4 TYPE)
SWITCH/SENSOR SYSTEM (SES, UEI TYPE)
SWITCH/SENSOR SYSTEM (PE4 TYPE)
SWITCH/SENSOR SYSTEM (PES TYPE)
HARNESS SYSTEM (E4 TYPE EXCEPT C)
HARNESS SYSTEM (E6 TYPE) **
HARNESS SYSTEM (EI TYPE)-
HARNESS SYSTEM (PC TYPE)
HARNESS SYSTEM (SC TYPE)
HARNESS (CAB) SYSTEM (C TYPE)
SWITCH (PTO) SYSTEM (S, P TYPE)-
MIRROR SYSTEM (C TYPE)
FRAME (FRONT) SYSTEM (C TYPE)
FRAME (REAR) SYSTEM (C TYPE)
SEAT SYSTEM (S, P TYPE)
BACK MIRROR SYSTEM (E1, E6 TYPE)—
BACK MIRROR SYSTEM (E4 TYPE EXCEPT C) FRONT MOUNT SYSTEM (R TYPE)
FRONT MOUNT SYSTEM (EXCEPT C, R TYPE) FRONT MOUNT SYSTEM (C TYPE)
REAR MOUNT SYSTEM (EXCEPT C, R TYPE)
REAR MOUNT SYSTEM (R TYPE)
REAR MOUNT SYSTEM (C TYPE)
FLOOR SYSTEM (TK527, 532-S, U TYPE EXCEPT C)·
FLOOR SYSTEM (C TYPE)
FLOOR SYSTEM (TK538-S TYPE EXCEPT C)
FLOOR SYSTEM (TK532-P TYPE EXCEPT C)
FLOOR SYSTEM (TK538-P TYPE EXCEPT C)
BATTERY (DELKOR) SYSTEM
HEAD LAMP SYSTEM
LAMP SYSTEM (E1, E6 TYPE)
LAMP SYSTEM (E4 TYPE EXCEPT C)
LAMP SYSTEM (C TYPE)
PANEL SYSTEM
SWITCH/SENSOR SYSTEM (SE4 TYPE)
SWITCH/SENSOR SYSTEM (SES, UEI TYPE)
SWITCH/SENSOR SYSTEM (PE4 TYPE)
SWITCH/SENSOR SYSTEM (PES TYPE)
HARNESS SYSTEM (E4 TYPE EXCEPT C)
HARNESS SYSTEM (E6 TYPE) **
HARNESS SYSTEM (EI TYPE)-
HARNESS SYSTEM (PC TYPE)
HARNESS SYSTEM (SC TYPE)
HARNESS (CAB) SYSTEM (C TYPE)
SWITCH (PTO) SYSTEM (S, P TYPE)-
MIRROR SYSTEM (C TYPE)
FRAME (FRONT) SYSTEM (C TYPE)
FRAME (REAR) SYSTEM (C TYPE)
FRAME (ACCESSORY) SYSTEM (C TYPE)
CANOPY SYSTEM (C TYPE)
CAB GLASS SYSTEM (C TYPE)
DOOR SYSTEM (C TYPE)
DOOR GLASS SYSTEM (C TYPE)
DOOR SEAL, DOOR LOCK SYSTEM (C TYPE)
REAR GLASS SYSTEM (C TYPE) —
SEAL, INTERIOR SYSTEM (C TYPE)
COCKPIT SYSTEM (C TYPE)
HEATER SYSTEM (C TYPE) (1/2) (2/2)
ORNAMENT
LABEL (CONTROL)
LABEL (ENGLISH)
LABEL (FRENCH)
LABEL (GERMAN)
LABEL (PORTUGUESE) –
TOOL
OPTIONAL PARTS
AIR CLEANER ASSY (E4 TYPE) (OPTION)
AIR CLEANER SYSTEM (U TYPE) (OPTION)
MUFFLER (TAIL/UPPER) SYSTEM (EXCEPT C TYPE) (OPTION) •
FRONT PTO SET (E4, E6 TYPE) (OPTION)
FRONT 3P LINK SET (E4, E6 TYPE) (OPTION) –
PTO (MIDDLE) SET (OPTION)–
FRONT HITCH SET (OPTION)—-
FRONT HITCH SET (E4, E6 TYPE) (OPTION)
SPACER (AXLE) SYSTEM (E4, E6 TYPE) (OPTION)
HUB RING SYSTEM (OPTION)
BREATHER SYSTEM (U TYPE) (OPTION)
DRAFT SET (OPTION)
FILTER SYSTEM (U TYPE) (OPTION)
VALVE (REMOTE/1) SET (OPTION)
TRAILER HITCH SET (OPTION)–
CREVICE (DRAW BAR) SYSTEM (OPTION)
HIGH HITCH SET (E4 TYPE) (OPTION)
VALVE (REMOTE/1R) SET (TK532, 538) (OPTION) –
VALVE (REMOTE/2R) SET (TK532, 538- EXCEPT C TYPE) (OPTION)
VALVE (REMOTE/2) SET (OPTION)
SUB STEP (R) SYSTEM (OPTION) –
REAR MOUNT SYSTEM (U TYPE) (OPTION) ·
SOCKET (7P) SYSTEM (E4 TYPE) (OPTION)
SWITCH (SAFETY/REPAIR) SET (E4, E6 TYPE) (OPTION)
ROPS SET (TK527) (OPTION) (1/2) (2/2)
2 ROPS SYSTEM (R TYPE) (OPTION)-

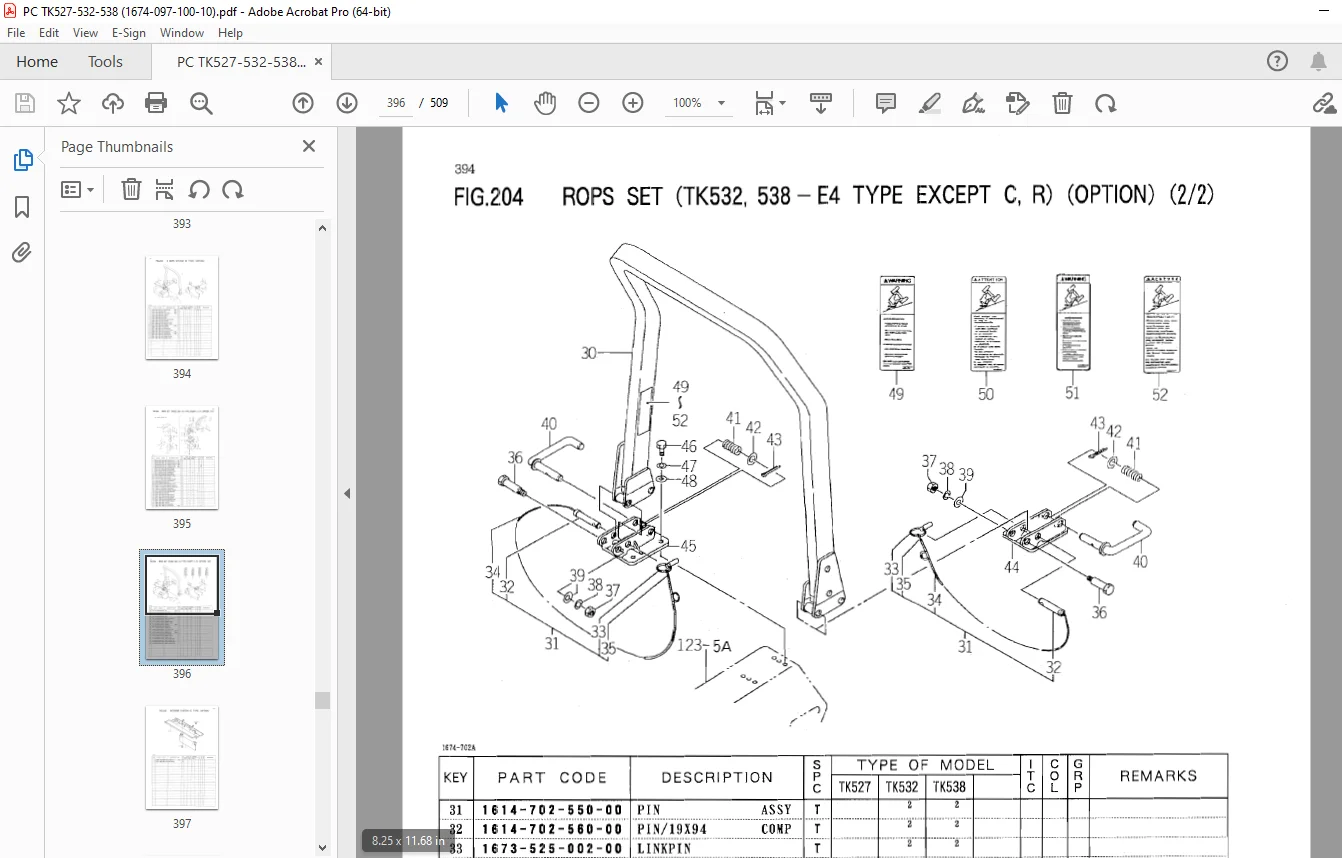

ROPS SET (TK532, 538-E4 TYPE EXCEPT C, R) (OPTION) (1/2) (2/2) – INTERIOR SYSTEM (C TYPE) (OPTION)
COMPONENT PARTS
COMPONENT PARTS FOR K185-008-000-00 ON Fig 182 COMPONENT PARTS FOR K211-005-000-10 ON Fig 191, 197 COMPONENT PARTS FOR K211-008-000-10 ON Fig 98- COMPONENT PARTS FOR K256-001-000-00 ON Fig 107 COMPONENT PARTS FOR K275-001-000-00 ON Fig 107 COMPONENT PARTS FOR 1560-407-260-50 ON Fig 84 COMPONENT PARTS FOR 1560-527-210-10 ON Fig 114- COMPONENT PARTS FOR 1561-221-500-10 ON Fig 33, 34 COMPONENT PARTS FOR 1581-621-530-00 ON Fig 156- COMPONENT PARTS FOR 1594-146-310-00 ON Fig 181
COMPONENT PARTS FOR 1594-518-200-00 ON Fig 110-
COMPONENT PARTS FOR 1640-530-600-00 ON Fig 115, 195, 196
COMPONENT PARTS FOR 1662-120-200-00 ON Fig 16
COMPONENT PARTS FOR 1674-658-200-00, 10 ON Fig 147
COMPONENT PARTS FOR 1674-668-220-00 ON Fig 147-
COMPONENT PARTS FOR 1674-658-300-00, 10 ON Fig 147 COMPONENT PARTS FOR 1674-658-310-00 ON Fig 147
WIRING DIAGRAM (FOR SE4)
WIRING DIAGRAM (FOR SE6)
WIRING DIAGRAM (FOR UE1)
WIRING DIAGRAM (FOR PE4)
WIRING DIAGRAM (FOR PES)
