Hyundai HL660VL HL665VL Wheel Loader Operator’s Manual 2023 PDF

Description

Hyundai HL660VL HL665VL Wheel Loader Operator’s Manual 2023 – PDF DOWNLOAD

FILE DETAILS:

Hyundai HL660VL HL665VL Wheel Loader Operator’s Manual 2023 – PDF DOWNLOAD

IMAGES PREVIEW OF THE MANUAL:

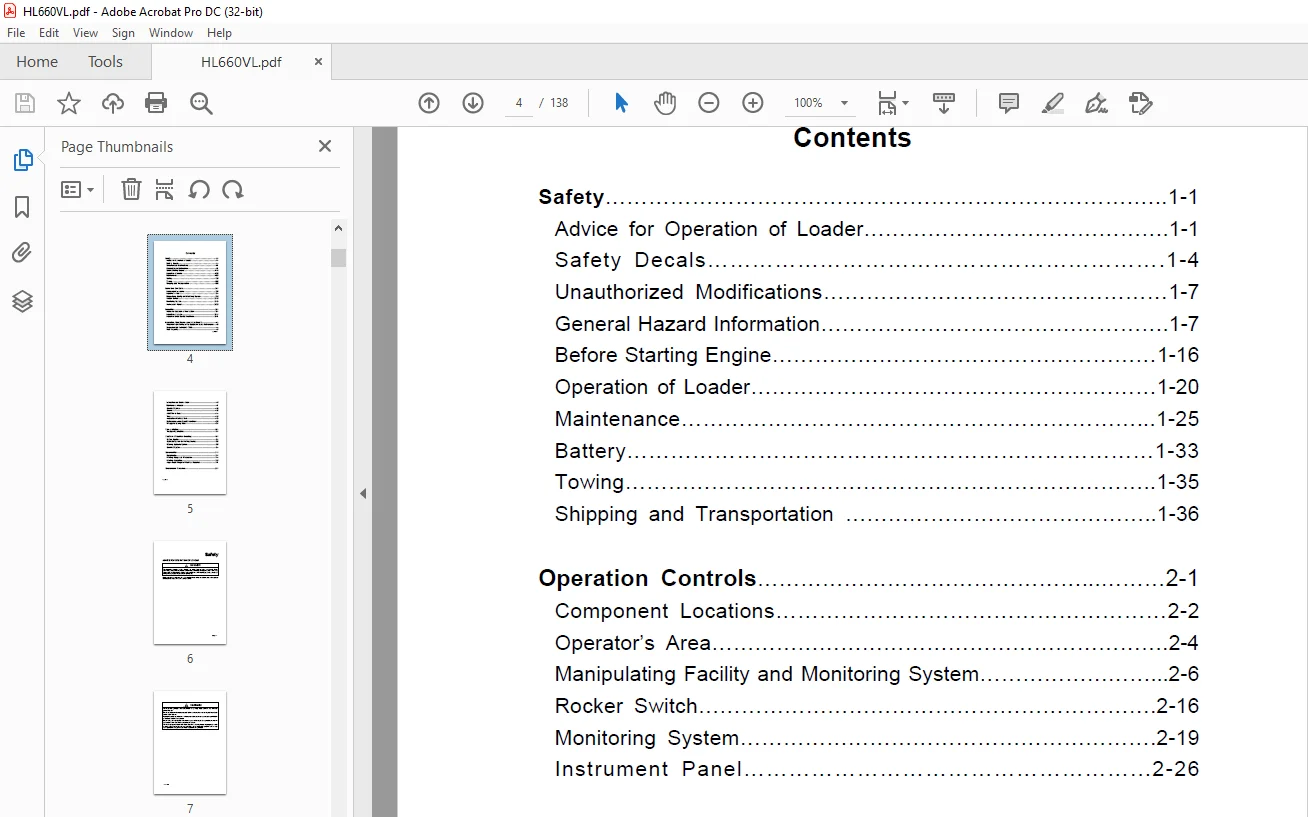

TABLE OF CONTENTS:

Hyundai HL660VL HL665VL Wheel Loader Operator’s Manual 2023 – PDF DOWNLOAD

Safety 1-1
Advice for Operation of Loader 1-1
Safety Decals 1-4
Unauthorized Modifications 1-7
General Hazard Information 1-7
Before Starting Engine 1-16
Operation of Loader 1-20
Maintenance 1-25
Battery 1-33
Towing 1-35
Shipping and Transportation 1-36
Operation Controls 2-1

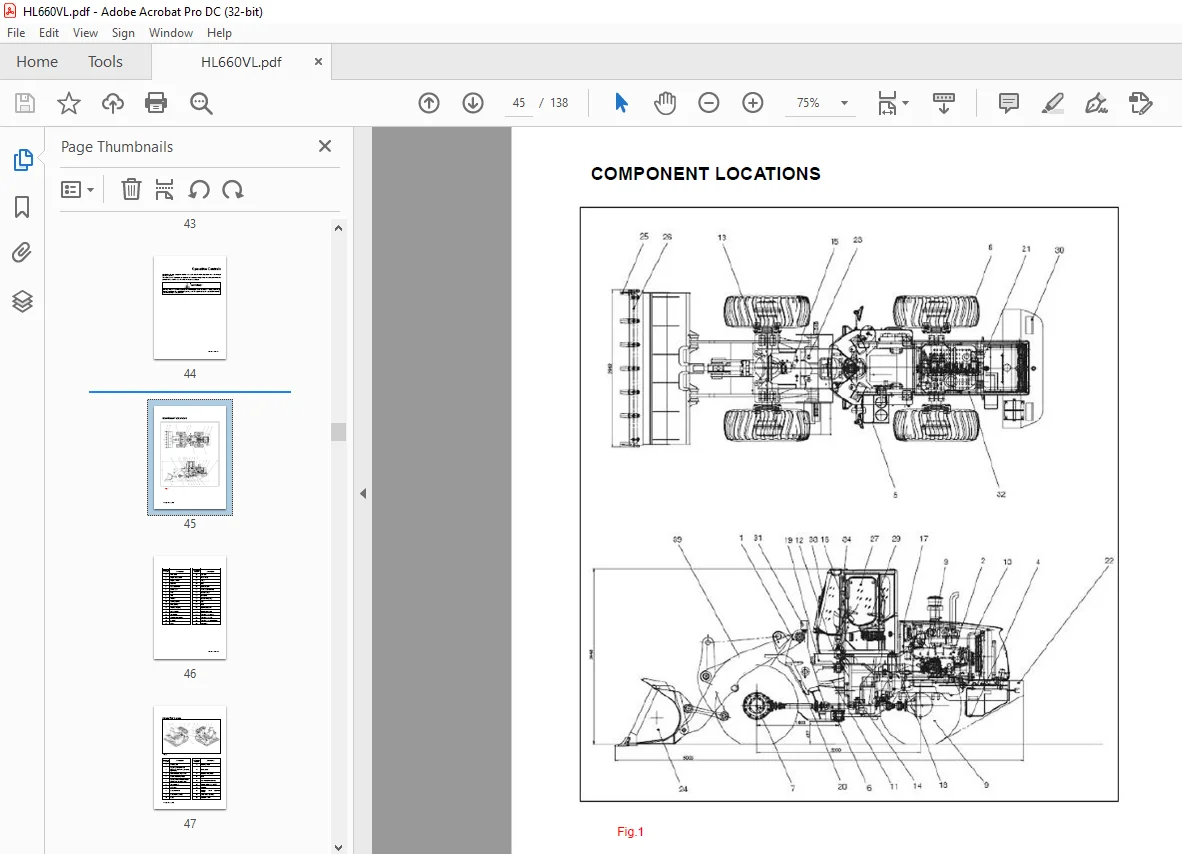

Component Locations 2-2
Operator’s Area 2-4
Manipulating Facility and Monitoring System 2-6
Rocker Switch 2-16
Monitoring System 2-19
Instrument Panel 2-26
Operation 3-1
Advice for Operation of New Loader 3-1
Operation of Loader 3-11
Operation Under Special Conditions 3-17
Inspection, Maintenance and Adjustment 4-1
Preparation and Setting of the Equipment Before Maintenance 4-3
Recommended Lubricants Table 4-4
Fluid Capacity 4-5
Contents 1
Lubrication and Service Chart 4-6
Maintenance Intervals 4-7
Electrical System 4-10
Bucket 4-12
Add Shim to Bucket 4-14
Tires 4-15
Inspection of Bolt and Nut 4-19
Maintenance under Special Conditions 4-20
Storage for a Long Term 4-21
Transportation 5-1
Transporting Machine 5-1
Faults and Troubles Shooting 6-1
Brakes System 6-1
Hydraulic System for Working Device 6-2
Steering Hydraulic System 6-3
Electrical System 6-4
Specification 7-1
Specification 7-1
Working Range and Dimensions 7-4
Working Capacities 7-5
Approximate Weight of Workload Materials 7-7
Environment Protection 8-1

DESCRIPTION:

Hyundai HL660VL HL665VL Wheel Loader Operator’s Manual 2023 – PDF DOWNLOAD

BEFORE STARTING ENGINE
Matters needing attention on site

• Before starting, completely check the working area for the abnormal conditions which may cause
  dangers.
• Check the terrain and ground surface on site, and identify the best and the safest operation
  method.
• Before operation, please make the ground hard and smooth as possible as you can. Please
  sprinkle some water on the ground before operation if there is a lot of dust or sand on site.
  If it is needed to work on the street, please arrange one person to ensure the safe operation for the
  vehicles on the site or erect a fence and stick the labels on site such as “NO ADMISSION” as well
  as use other methods to prevent the pedestrians from getting near or entering the site. If some
  body wants to approach the machine in operation, he (she) may be stricken or hooked so that he
  (she) may be caused serious injury or death.
• There may water piping, gas piping, telephone cables or HV cables buried underground. Please
  contact with Utility Department and identify the positions where you are to avoid cutting any piping
  or lines.
• Before conducting the operation or passing the river in water, please check the riverbed, the depth
  as well as flow of water. You must not work in the water with a depth greater than the allowed
  ones.
• There is the potential danger for any objects around the moving arm where the accident easily
  occurs because there is little time for the driver to act. When you are working in the vicinity of
  bridge, telephone lines, site scaffoldings or other obstacles, the observer or signaler are needed
  for the assistance.
• When the minimum standard or operation restrictions for barrier protection on site is less strict, the
  insurance responsibilities scope and the operation license or certificates can be issued by the
  institutions authorized by the Government; it may be needed to follow the restrictions on laws and
  regulations, policies, standards or equipment required by local authorities; Moreover, you may
  have to implement the regulations related to the special operations. Please contact with local
  authorities and related departments if you want to know whether your machine and the site
  environment comply with the laws and regulations.
