Hyundai Forklift 20/25/30/33DT-7 Service Manual 2023 – PDF DOWNLOAD
The Hyundai Forklift 20/25/30/33DT-7 Service Manual 2023 in PDF format offers comprehensive guidance for maintenance, repair, and troubleshooting of Hyundai’s forklift models. It includes detailed instructions, diagrams, and specifications for efficient servicing.
FILE DETAILS:
Hyundai Forklift 20/25/30/33DT-7 Service Manual 2023 – PDF DOWNLOAD
Language : English
Pages : 240
Downloadable : Yes
File Type : PDF

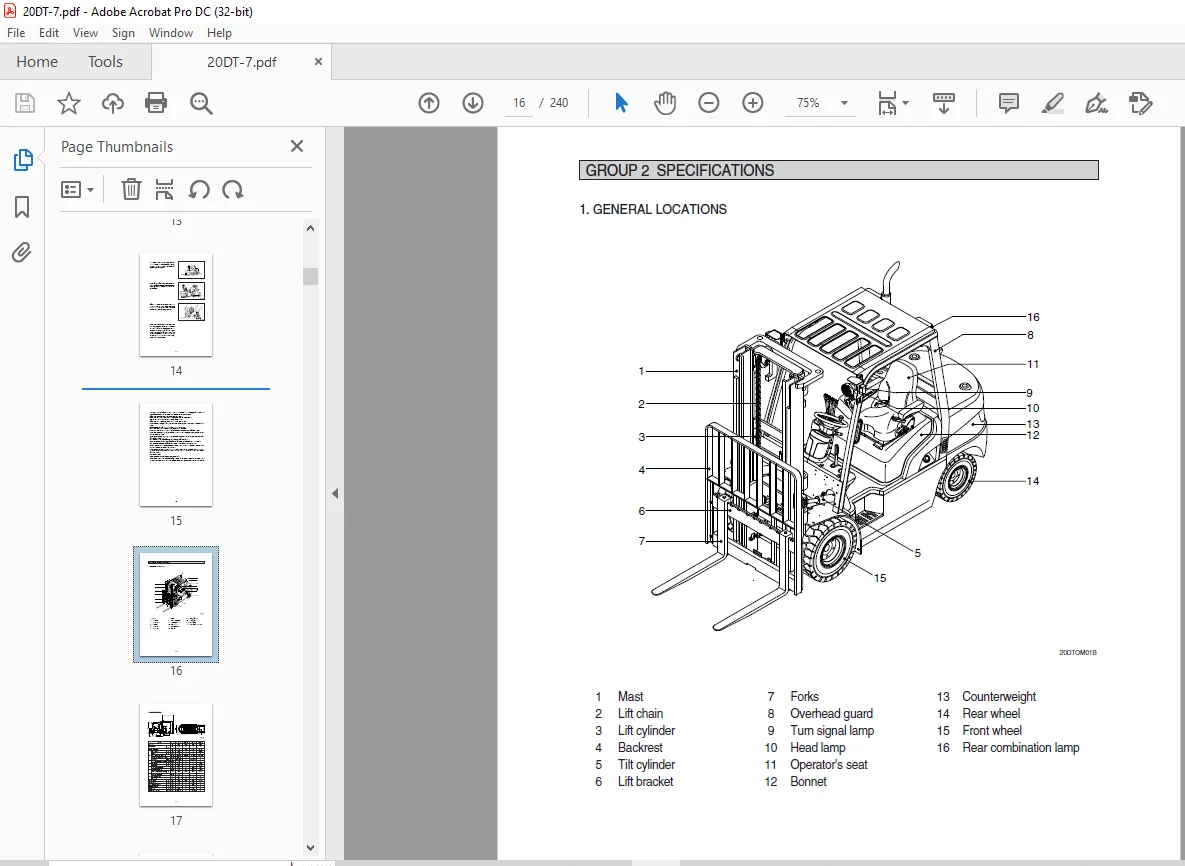

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Hyundai Forklift 20/25/30/33DT-7 Service Manual 2023 – PDF DOWNLOAD This service manual has been prepared as an aid to improve the quality of repairs by providing the serviceman with an accurate understanding of the product and by demonstrating the correct procedures for performing repairs and making judgments. Ensure that you comprehend the contents of this manual and utilize it to its fullest extent at every opportunity. This service manual primarily contains the necessary technical information for operations performed in a service workshop. For ease of understanding, the manual is divided into the following sections: **SECTION 1: GENERAL**This section provides general information about the machine and explains safety precautions for maintenance. **SECTION 2: REMOVAL & INSTALLATION OF UNIT**
This section elucidates the procedures and techniques for the removal and installation of each component. **SECTION 3: POWER TRAIN SYSTEM**

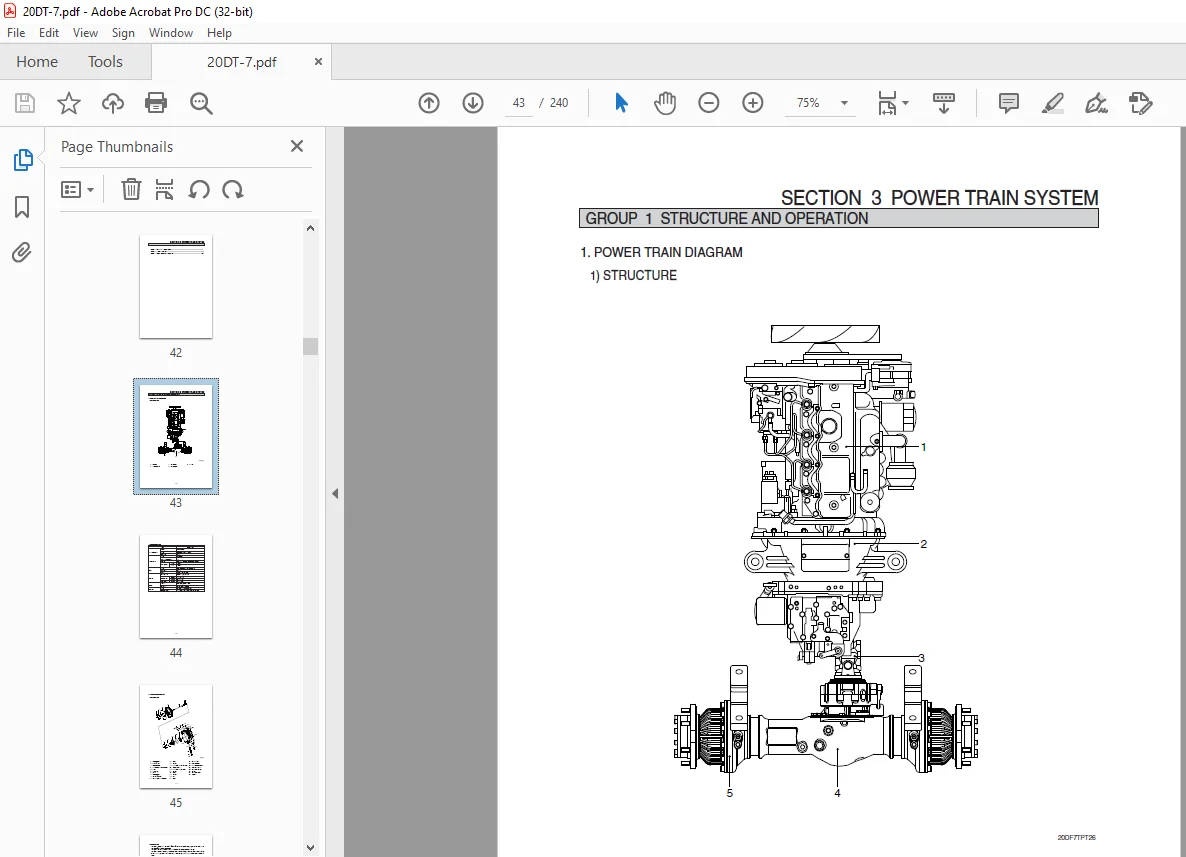

This section explains the structure of the transmission, control valve, and drive axle. **SECTION 4: BRAKE SYSTEM**
This section explains the brake piping, each component, and its operation. **SECTION 5: STEERING SYSTEM**
This section elaborates on the structure of the steering unit, priority valve, trail axle, steering circuit, and operation. **SECTION 6: HYDRAULIC SYSTEM**
This section delves into the structure of the gear pump, main control valve, work equipment circuit, each component, and its operation. **SECTION 7: ELECTRICAL SYSTEM**
This section explains the electrical circuit and each component. It not only provides an understanding of the electrical system but also serves as reference material for troubleshooting. **SECTION 8: MAST**
This section explains the structure of the mast, carriage, backrest, and forks.
TABLE OF CONTENTS:
Hyundai Forklift 20/25/30/33DT-7 Service Manual 2023 – PDF DOWNLOAD

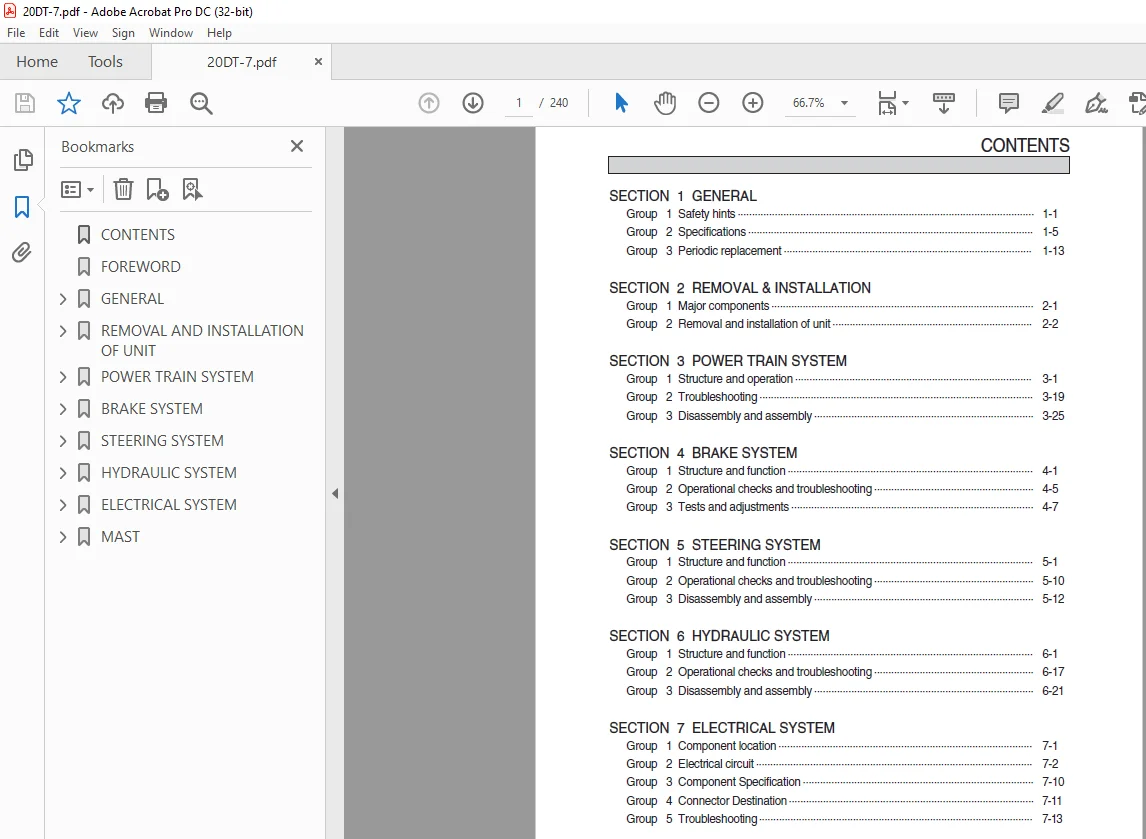

CONTENTS......................................... 1 FOREWORD......................................... 3 GENERAL.......................................... 11 1. SAFETY HINTS.............................. 12 2. SPECIFICATIONS............................ 16 3. PERIODIC REPLACEMENT...................... 24 REMOVAL AND INSTALLATION OF UNIT................. 25 1. MAJOR COMPONENTS.......................... 26 2. REMOVAL AND INSTALLATION OF UNIT.......... 27 POWER TRAIN SYSTEM............................... 42 1. STRUCTURE AND OPERATION................... 43 2. TROUBLESHOOTING........................... 61 3. DISASSEMBLY AND ASSEMBLY.................. 67 BRAKE SYSTEM.....................................126 1. STRUCTURE AND FUNCTION....................127 2. OPERATIONAL CHECKS AND TROUBLESHOOTING....131 3. TESTS AND ADJUSTMENTS.....................133 STEERING SYSTEM..................................135 1. STRUCTURE AND FUNCTION....................136 2. OPERATIONAL CHECKS AND TROUBLESHOOTING....145 3. DISASSEMBLY AND ASSEMBLY..................147 HYDRAULIC SYSTEM.................................172 1. STRUCTURE AND FUNCTION....................173 2. OPERATIONAL CHECKS AND TROUBLESHOOTING....189 3. DISASSEMBLY AND ASSEMBLY..................193 ELECTRICAL SYSTEM................................205 1. COMPONENT LOCATION........................206 2. ELECTRICAL CIRCUIT........................207 3. COMPONENT SPECIFICATION...................215 4. CONNECTOR DESTINATION.....................216 5. TROUBLESHOOTING...........................218 MAST.............................................219 1. STRUCTURE.................................220 2. OPERATIONAL CHECKS AND TROUBLESHOOTING....224 3. ADJUSTMENT................................227 4. REMOVAL AND INSTALLATION..................230
