Hyundai 25LC/30LC-7M 25GC/30GC-7M LPG Forklift Operator’s Manual 2023 – PDF DOWNLOAD
The Hyundai 25LC/30LC-7M 25GC/30GC-7M LPG Forklift Operator’s Manual 2023 in PDF format offers comprehensive guidance on operating Hyundai LPG forklifts, covering safety protocols, maintenance procedures, and troubleshooting tips for efficient handling and performance.
FILE DETAILS:
Hyundai 25LC/30LC-7M 25GC/30GC-7M LPG Forklift Operator’s Manual 2023 – PDF DOWNLOAD
Language : English
Pages : 165
Downloadable : Yes
File Type : PDF
IMAGES PREVIEW OF THE MANUAL:

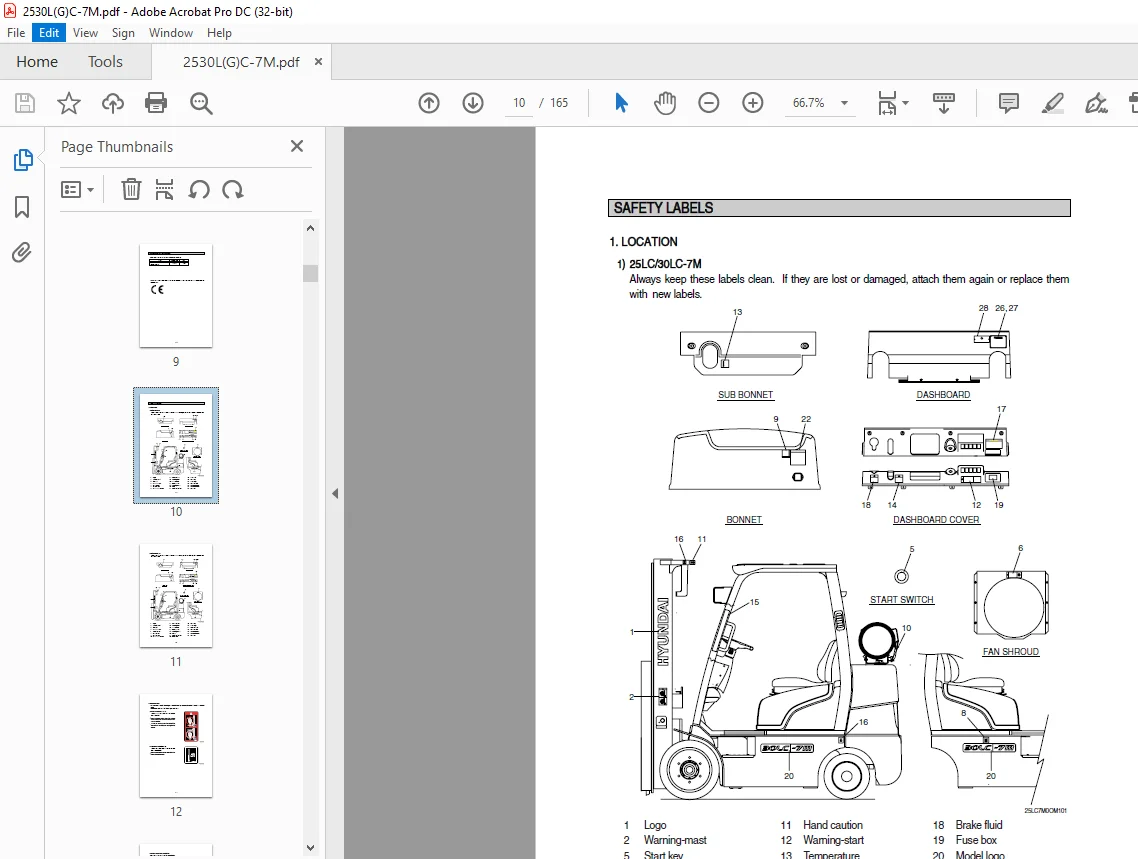

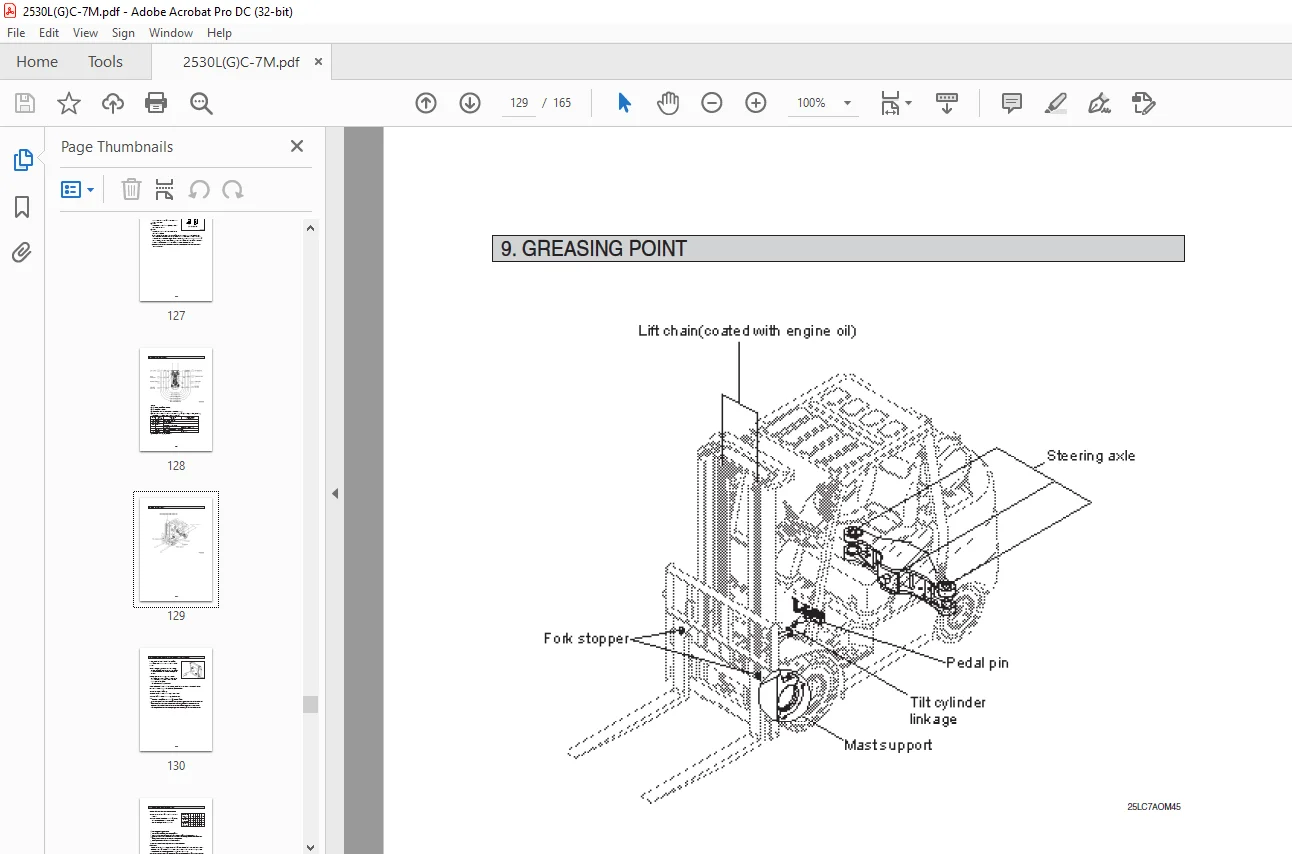

DESCRIPTION:
Hyundai 25LC/30LC-7M 25GC/30GC-7M LPG Forklift Operator’s Manual 2023 – PDF DOWNLOAD *HYUNDAI* welcomes you to the growing group of professionals who own, operate, and maintain *HYUNDAI* lift trucks. We take pride in the long tradition of quality products and superior value the *HYUNDAI* name represents. This manual familiarizes you with safety, operating, and maintenance information about your new lift truck. It has been specially prepared to help you use and maintain your *HYUNDAI* lift truck in a safe and correct manner. Your *HYUNDAI* lift truck has been designed and built to be as safe and efficient as today’s technology can make it. As manufactured, for some models, it meets all the applicable mandatory requirements of ANSI B56.1-1988 Safety Standard for Powered Industrial Trucks. Some trucks are also furnished with equipment to help you operate safely; for example, a load backrest, parking brake, and horn are standard equipment. Safe, productive operation of a lift truck requires both skill and knowledge on the part of the operator. The operator must know, understand, and practice the safety rules and safe driving and load handling techniques described in this manual. To develop the skill required, the operator must become familiar with the construction and features of the lift truck and how they function. The operator must understand its capabilities and limitations and ensure that it is kept in a safe condition. **Routine Servicing and Maintenance** Regular maintenance and care of your lift truck are not only important for economy and utilization reasons; it is essential for your safety. A faulty lift truck is a potential source of danger to the operator and to other personnel working near it. As with all quality equipment, keep your lift truck in good operating condition by following the recommended schedule of maintenance. **Operator Daily Inspection – Safety and Operating Checks** A lift truck should always be examined by the operator before driving to ensure it is safe to operate. The importance of this procedure is emphasized in this manual with a brief illustrated review and later with more detailed instructions. *HYUNDAI* dealers can supply copies of a helpful Driver’s Daily Checklist. It is an OSHA requirement.TABLE OF CONTENTS:
Hyundai 25LC/30LC-7M 25GC/30GC-7M LPG Forklift Operator’s Manual 2023 – PDF DOWNLOAD

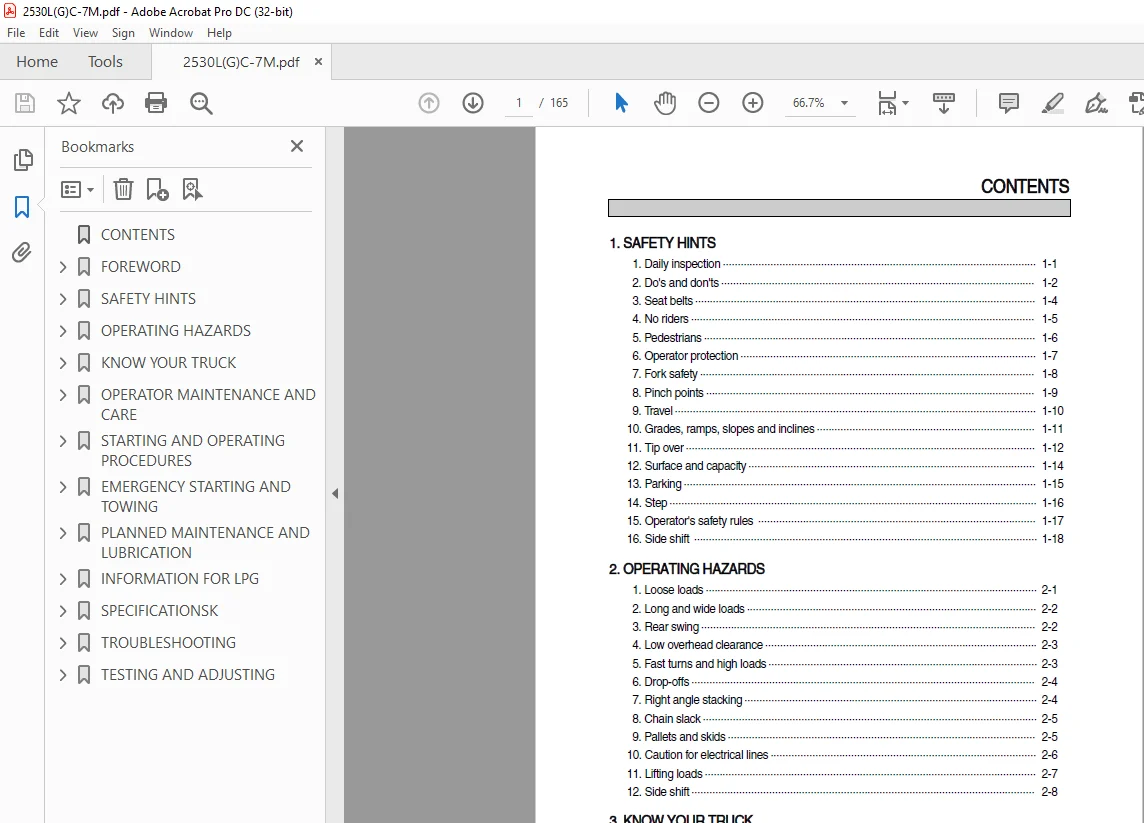

CONTENTS............................................... 1 FOREWORD............................................... 0 EC Declaration of conformity - update 05/01/’10.... 4 A MESSAGE TO HYUNDAI LIFT TRUCK OPERATORS.......... 5 INTRODUCTION....................................... 6 HOW TO USE THIS MANUAL............................. 7 EC REGULATION APPROVED............................. 9 SAFETY LABELS...................................... 10 GUIDE.............................................. 18 SAFETY HINTS........................................... 19 1. DAILY INSPECTION................................ 19 2. DO'S AND DON'TS................................. 20 3. SEAT BELTS...................................... 22 4. NO RIDERS....................................... 23 5. PEDESTRIANS..................................... 24 6. OPERATOR PROTECTION............................. 25 7. FORK SAFETY..................................... 26 8. PINCH POINTS.................................... 27 9. TRAVEL.......................................... 28 10. GRADES, RAMPS, SLOPES AND INCLINES............. 29 11. TIP OVER....................................... 30 12. SURFACE AND CAPACITY........................... 32 13. PARKING........................................ 33 14. STEP........................................... 34 15. OPERATOR'S SAFETY RULES........................ 35 16. SIDE SHIFT..................................... 36 OPERATING HAZARDS...................................... 37 1. LOOSE LOADS..................................... 37 2. LONG AND WIDE LOADS............................. 38 3. REAR SWING...................................... 38 4. LOW OVERHEAD CLEARANCE.......................... 39 5. FAST TURNS AND HIGH LOADS....................... 39 6. DROP-OFFS....................................... 40 7. RIGHT ANGLE STACKING............................ 40 8. CHAIN SLACK..................................... 41 9. PALLETS AND SKIDS............................... 41 10. CAUTION FOR ELECTRICAL LINES................... 42 11. LIFTING LOADS.................................. 43 12. SIDE SHIFT..................................... 44 KNOW YOUR TRUCK........................................ 45 1. GENERAL LOCATIONS............................... 45 2. DATA/SAFETY PLATES AND DECALS................... 46 3. INSTRUMENTS AND CONTROLS........................ 48 4. INDICATOR SYMBOLS............................... 50 5. OPERATING LEVER AND SWITCH...................... 54 6. FUEL SYSTEM..................................... 59 OPERATOR MAINTENANCE AND CARE.......................... 61 1. DAILY SAFETY INSPECTION......................... 61 2. REFUELING LPG TANKS............................. 63 STARTING AND OPERATING PROCEDURES...................... 65 1. BEFORE OPERATING THE TRUCK...................... 65 2. CHECK BEFORE STARTING........................... 66 3. CHECK BEFORE STARTING ENGINE.................... 67 4. SEAT ADJUSTMENT................................. 71 5. STARTING FROM A SAFE CONDITION.................. 72 6. GENERAL STARTING AND OPERATING TIPS............. 73 7. STARTING THE ENGINE............................. 74 8. CHECK AFTER STARTING ENGINE..................... 75 9. LEVERS AND PEDALS............................... 77 10. OPERATING SAFELY............................... 79 11. LOAD HANDLING.................................. 81 12. SHUT DOWN PROCEDURE............................ 87 EMERGENCY STARTING AND TOWING.......................... 88 1. HOW TO TOW A DISABLED TRUCK..................... 88 2. HOW TO USE BATTERY JUMPER CABLES................ 90 PLANNED MAINTENANCE AND LUBRICATION.................... 92 1. INTRODUCTION.................................... 92 2. SAFE MAINTENANCE PRACTICES...................... 93 3. INSTRUCTIONS BEFORE MAINTENANCE................. 96 4. PLANNED MAINTENANCE INTERVALS...................102 5. MAINTENANCE CHART...............................106 6. HOW TO PERFORM PLANNED MAINTENANCE..............108 7. REPLACEMENT.....................................111 8. LUBRICATION CHART...............................128 9. GREASING POINT..................................129 10. HANDLING MACHINE IN EXTREMELY HOT PLACES.......130 11. COLD WEATHER OPERATION.........................131 12. STORAGE........................................132 13. TRANSPORT......................................133 14. LOADING AND UNLOADING BY CRANE.................134 15. RECOMMENDATION TABLE FOR LUBRICANTS............135 16. FUEL AND LUBRICANTS............................136 INFORMATION FOR LPG....................................137 1. FOREWORD........................................137 2. STARTING ENGINE.................................137 3. LPG DEVICE COMPONENTS...........................138 4. LPG TANK AND RELATED PARTS......................139 5. CHANGING THE LPG TANK...........................140 6. RECOMMENDED SAFETY MAINTENANCE PROCEDURES.......142 7. INSTALLATION....................................143 SPECIFICATIONSK........................................145 1. SPECIFICATION TABLE.............................145 2. SPECIFICATION FOR MAJOR COMPONENTS..............146 3. TIGHTENING TORQUE...............................148 TROUBLESHOOTING........................................149 1. ENGINE SYSTEM...................................149 2. ELECTRICAL SYSTEM...............................150 3. TORQUE FLOW SYSTEM..............................151 4. STEERING SYSTEM.................................155 5. BRAKE SYSTEM....................................156 6. HYDRAULIC SYSTEM................................157 TESTING AND ADJUSTING..................................158 1. ENGINE SYSTEM...................................158 2. DRIVE SYSTEM....................................161 3. TRAVEL SYSTEM...................................163 4. STEERING SYSTEM.................................164 5. ADJUSTMENT OF PARKING BRAKE LEVER...............165
