Hitachi Hydraulic Excavator UH081 Parts List Manual(EP164-4-4) – PDF DOWNLOAD

Description

Hitachi Hydraulic Excavator UH081 Parts List Manual(EP164-4-4) – PDF DOWNLOAD

FILE DETAILS:

Hitachi Hydraulic Excavator UH081 Parts List Manual(EP164-4-4) – PDF DOWNLOAD

Language : English
Pages :196
Downloadable : Yes
File Type : PDF
Size:10.4 mb

DESCRIPTION

Hitachi Hydraulic Excavator UH081 Parts List Manual(EP164-4-4) – PDF DOWNLOAD

Instructions for Ordering Parts and the Parts Number

In this parts list, drawings of assembly are shown on odd pages, and “Item” “Parts No.” “Name of parts” and “Q’ty” on even. The relation of positions on the machine body should be understood as follow; Where the driver’s seat is positioned is the left side, the right being on the opposite side, and where the boom is equipped is the front, in the Rear being installed the prime mover the driving sprocket, which is drawn under the side of engine room in the catalogue is also termed the Rear driving sprocket which ever position may take in actual operation.

1. HOW TO ORDER PARTS

When ordering machine parts you are requested to mention clearly the name, the number, and the quantity of parts in demand together with the Type- Form of machine for which the parts are in need the machine number,

For example
UH081 H,4-11001 3008679 Filter Element 2
Lordering
quantity
Name of parts
Number of parts
Number of Body parts
Being carved on the
name-plate in cab

• It is requested to use part which are supplied from the reliable source, and it is most advisable to use Hitachi genuine part, As for the engine parts, refer to the Parts List of HINO ELlO0 Diesel Engine,
• Figures shown in remarks column indicate serial number of the machines this parts list is applied for, This Parts List is for the mfg. No, 164-11001 and over after

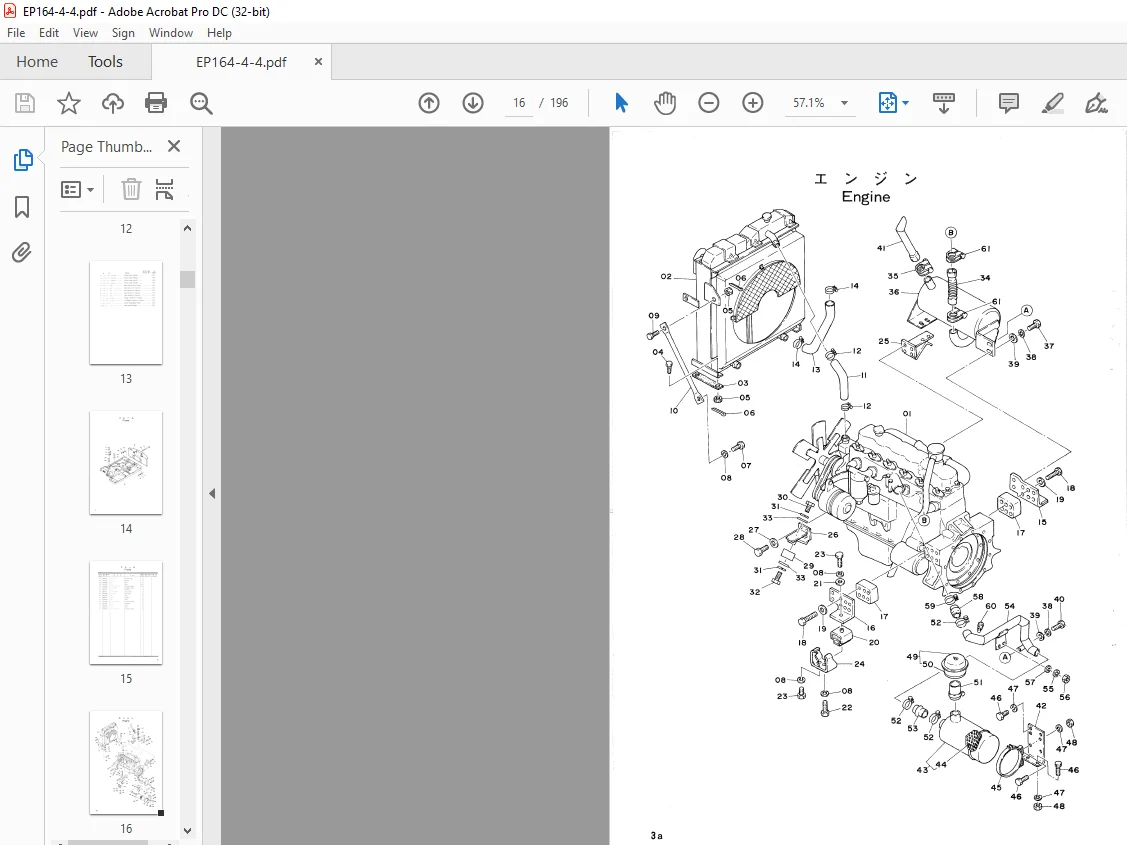

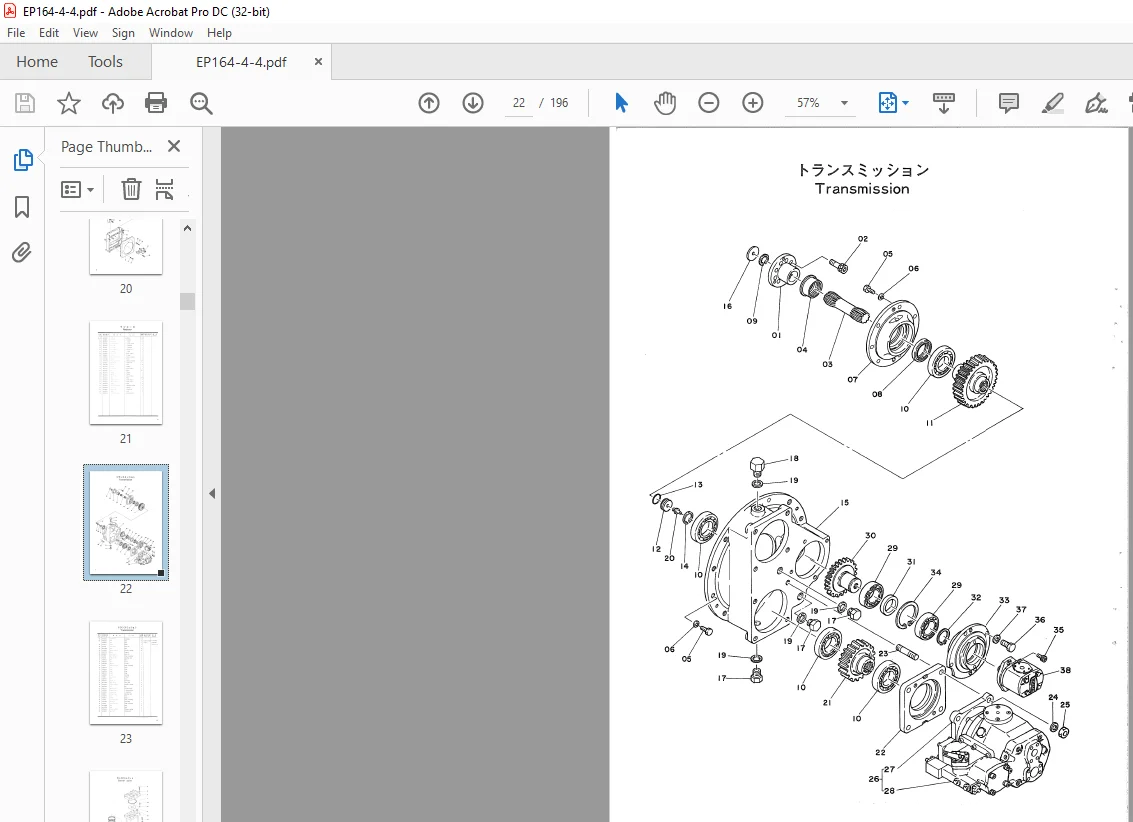

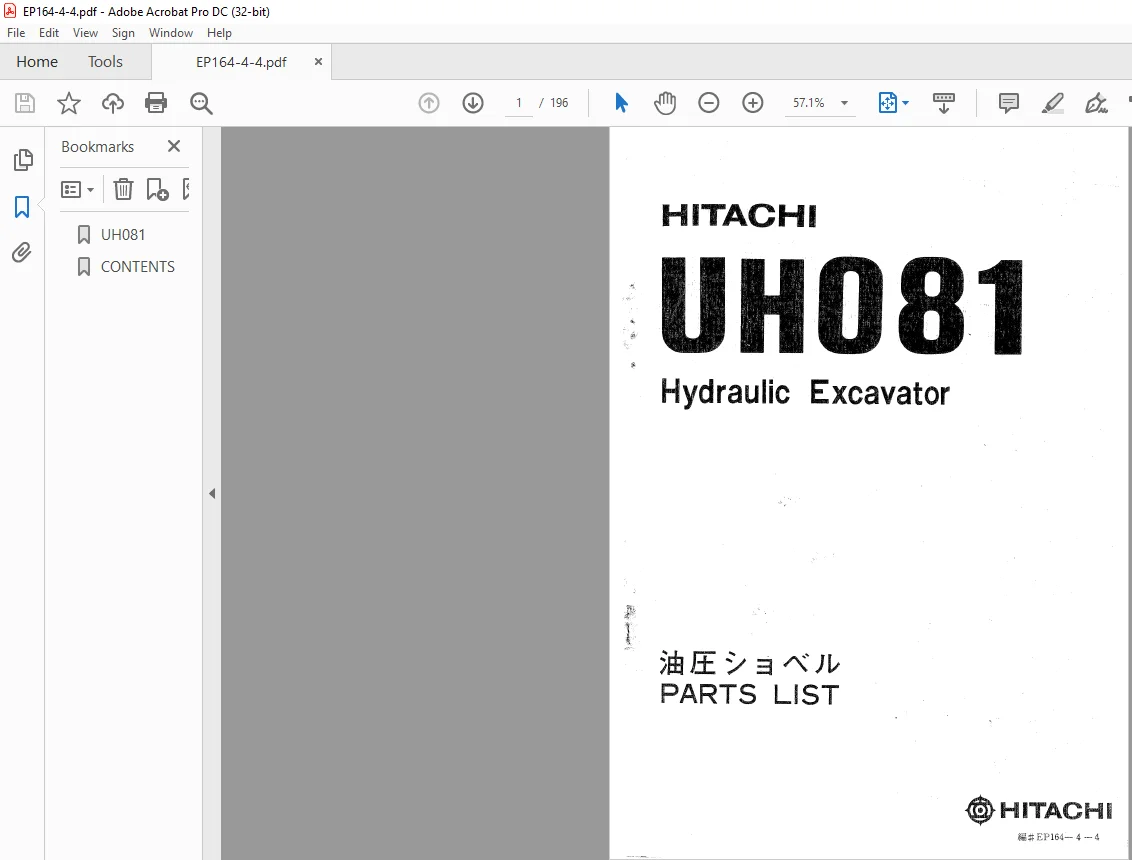

IMAGES PREVIEW OF THE MANUAL:
