Hitachi Ex100-3 Excavator Parts Catalogue Manual
FILE DETAILS:
Hitachi Ex100-3 Excavator Parts Catalogue Manual
LANGUAGE:ENGLISH
PAGES:453
DOWNLOADABLE:YES
FILE TYPE:PDF
VIDEO PREVIEW OF THE MANUAL:

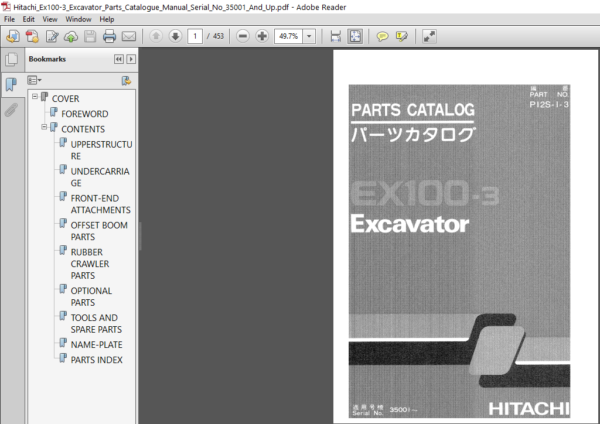

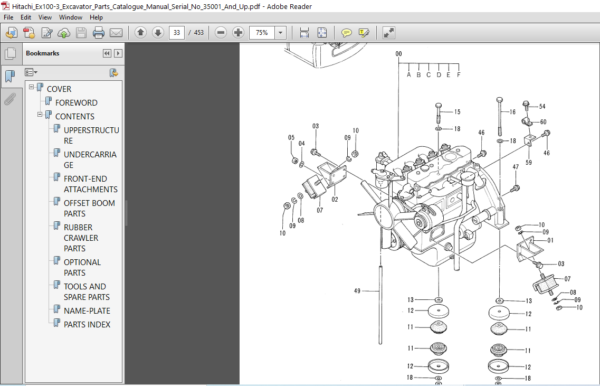

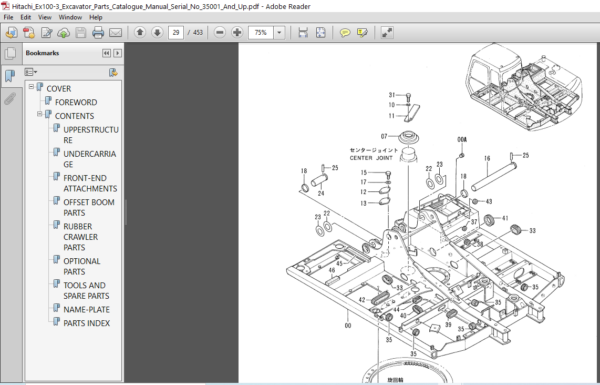

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Hitachi Ex100-3 Excavator Parts Catalogue Manual
- This parts catalog shows the components of EX100-3 Hydraulic Excavator. ‘ The numerical parts he. index is provided at the end of this parts catalog. In the parts index. a part No. with ‘8’ mark shows a newly added part on the parts catalog. This parts catalog includes parts information for both standard and regional specification models.
- Please refer to the identification note given in < > after the Group Name. or Part Name to distigush between standard and regional parts information as shown below: Group Nana (or Part Name) plus <STD> : for Standard Specification Model Group Name (or Part Name) plus (USA) : for Northern american Specification nodels. delivered to the United States and Canada Group Name (or Part Name) plus no note : Applicable to all models Example: RADIO <USA>—-This part is for machines delivered to the United State and Canada.
- This parts catalog contains the most recent information available at the time of printing, and the contents of the list are based on information in effect at that time and are subject to change without notice The references in the parts catalog of ‘LEFT’, ‘RIGHT’. ‘FRONT’ and ‘REAR’ are identified as follows The driver’s seat is positioned ‘LEFT’ side. and the opposite side is ‘RIGHT’.
- The front-end attachments is at the ‘FRONT’. The counterweight is attached at the ‘REAR’. For the undercarriage. the travel motor is at the ‘REAR’. and the opposite is ‘FRONTW For the engine parts. please refer to the parts catalog of ISUZU diesel engine 4801 issued separately.
TABLE OF CONTENTS:
Hitachi Ex100-3 Excavator Parts Catalogue Manual
COVER ............................ 1 FOREWORD ..................... 6 CONTENTS ..................... 10 UPPERSTRUCTURE ........... 28 UNDERCARRIAGE ............238 FRONT-END ATTACHMENTS.....264 OFFSET BOOM PARTS ........278 RUBBER CRAWLER PARTS .....298 OPTIONAL PARTS ...........310 TOOLS AND SPARE PARTS ....414 NAME-PLATE ...............420 PARTS INDEX...............434
