Hitachi CX650-C Crawler Crane Workshop + Operational Principle + Troubleshooting + Circuit & Harness Manual
FILE DETAILS:
Hitachi CX650-C Crawler Crane Workshop + Operational Principle + Troubleshooting + Circuit & Harness Manual
This Listing includes all of the manuals mentioned below:
- Hitachi CX650-C Crawler Crane Workshop Manual
- Hitachi CX650-C Crawler Crane Operational Principle Manual
- Hitachi CX650-C Crawler Crane Troubleshooting Manual
- Hitachi CX650-C Crawler Crane Circuit & Harness Manual
VIDEO PREVIEW:

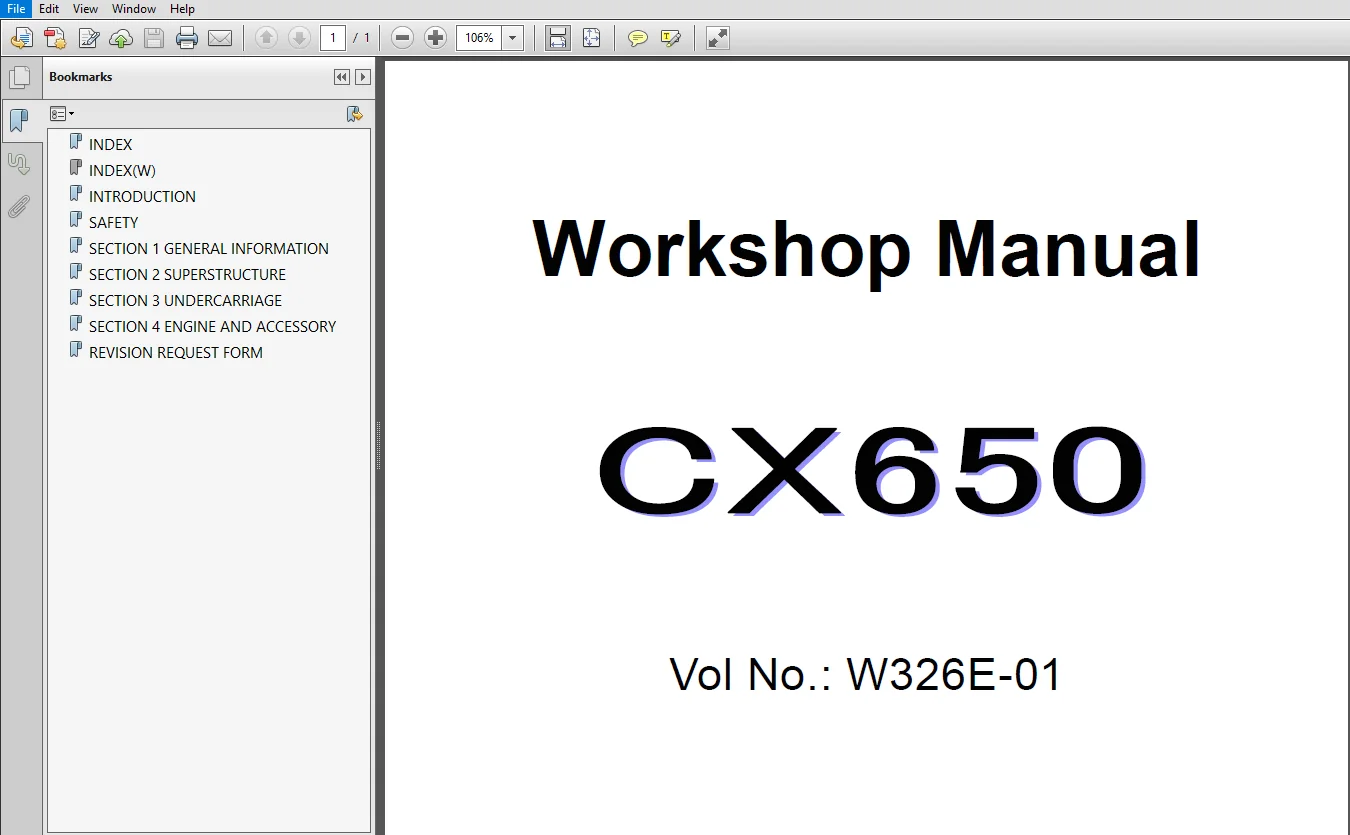

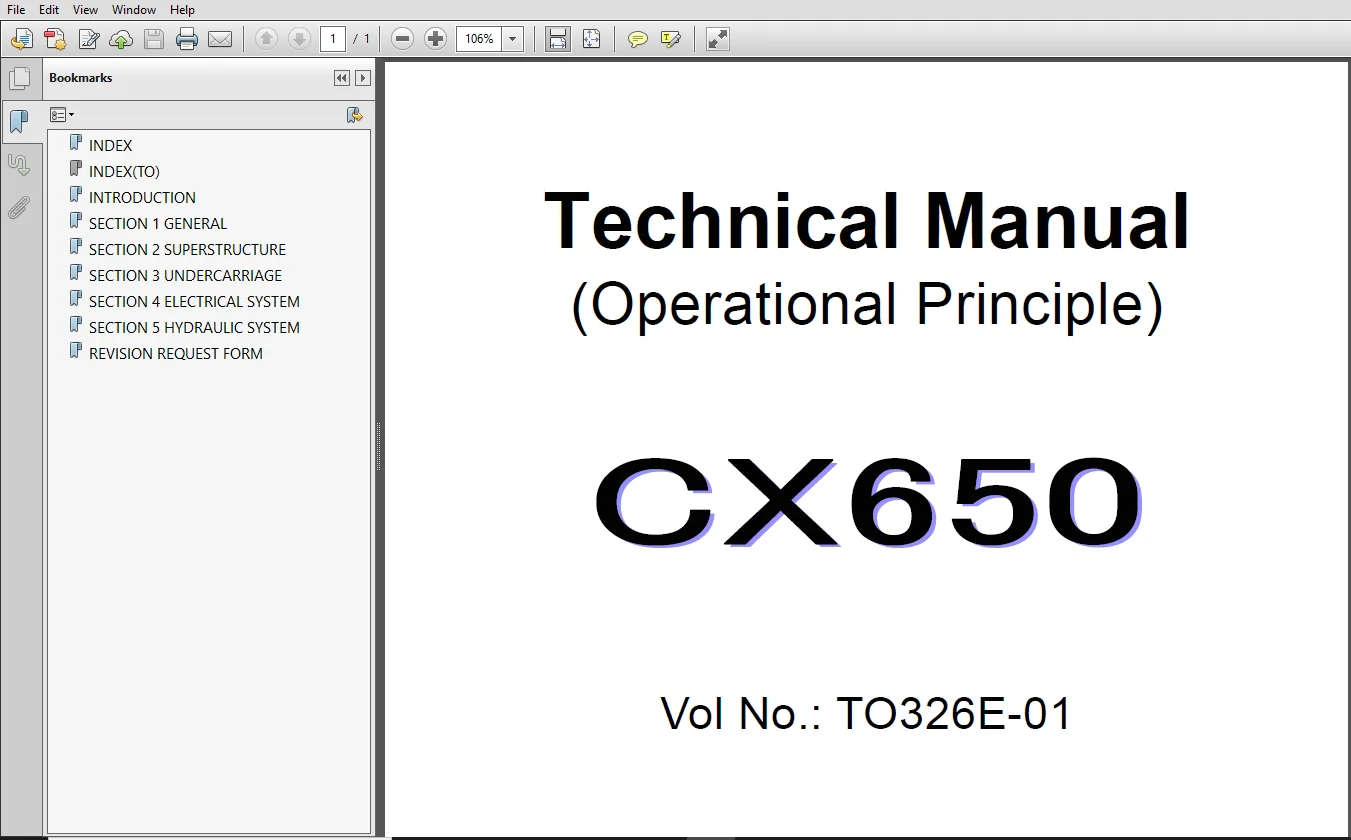

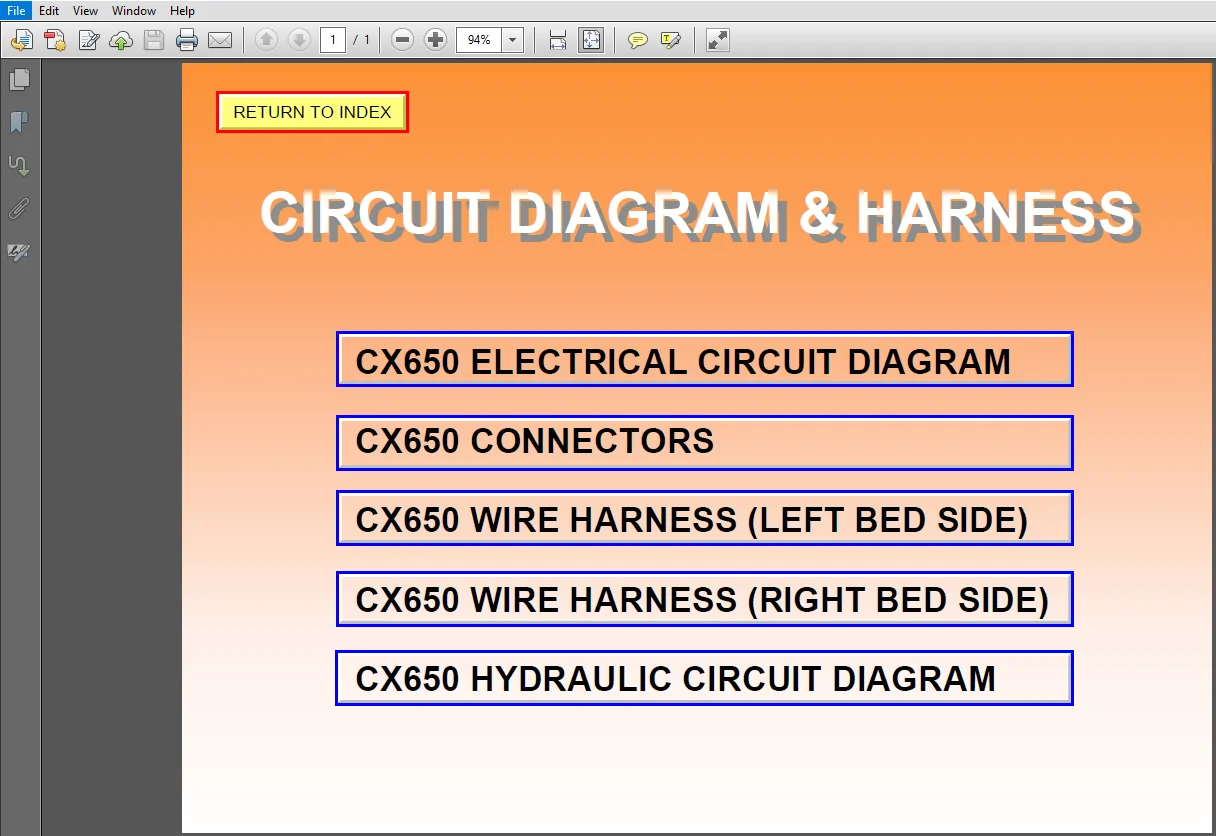

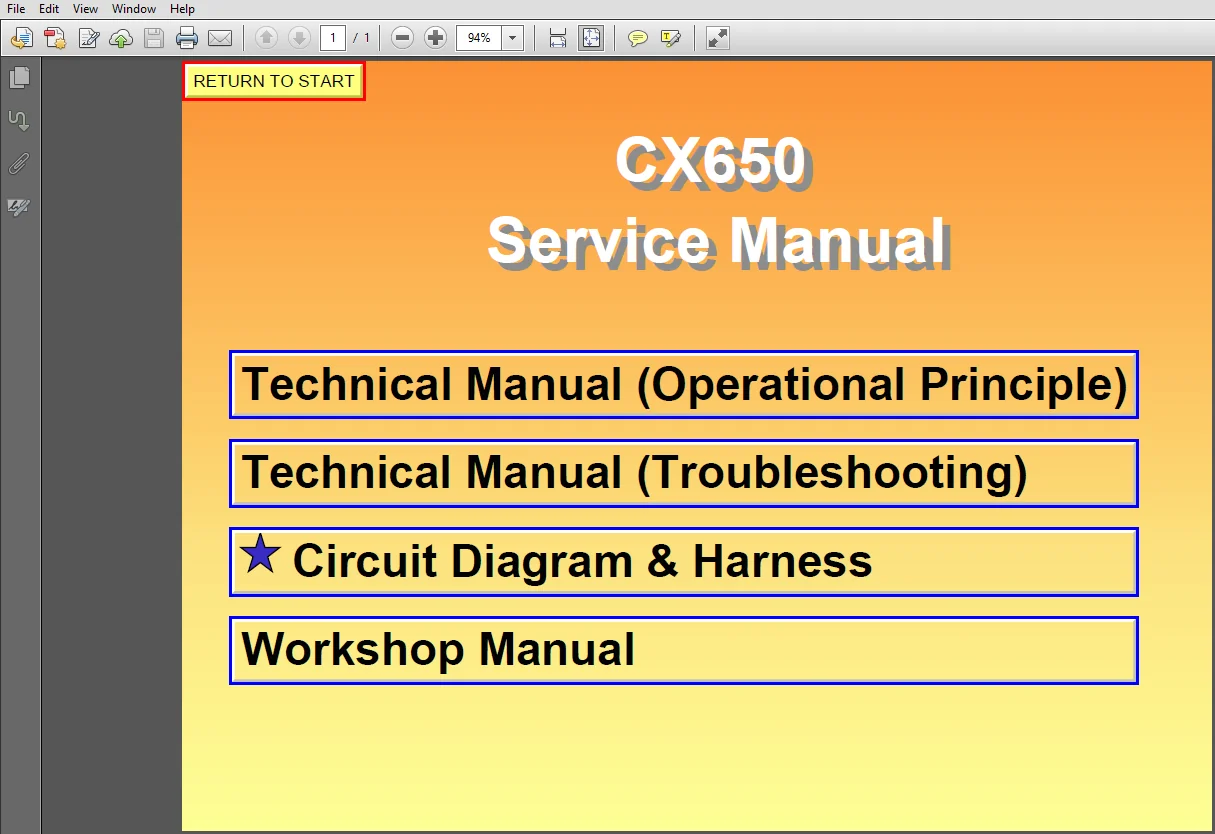

SCREENSHOTS OF THE MANUAL:
DESCRIPTION:
Hitachi CX650-C Crawler Crane Workshop + Operational Principle + Troubleshooting + Circuit & Harness Manual
- This manual is written for an experienced technician to provide technical information needed to maintain and repair this machine. The machine specification and description according to destination may be explained on this manual.
- Be sure to thoroughly read this manual for correct product information and service procedures. This manual consists the Technical Manual, the Workshop Manual and the Engine Manual. „H Information included in the Technical Manual: Technical information needed for redelivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures.
- Information included in the Workshop Manual: Technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal / installation and assemble / disassemble procedures. Information included in the Engine Manual: Technical information needed for redelivery and delivery and maintenance and repair of the machine, operation and activation of all devices and systems, troubleshooting and assemble / disassemble procedures.
- Follow Safety Instructions
- Carefully read and follow all safety signs on the machine and all safety messages in the operator’s manual.
- Safety signs should be installed, maintained and replaced when necessary.
- If a safety sign or operator’s manual is damaged or missing, order a replacement from your authorized dealer in the same way you order other replacement parts (be sure to state machine model and serial number when ordering).
- Learn how to operate the machine and its controls correctly and safely.
- Allow only trained, qualified, authorized personnel to operate the machine.
- Keep your machine in proper working condition.
- Unauthorized modifications of the machine may impair its function and/or safety and affect machine life.
- Do not modify any machine parts without authorization. Failure to do so may deteriorate the part safety, function, and/or service life. In addition, personal accident, machine trouble, and/or damage to material caused by unauthorized modifications will void Hitachi Warranty Policy.
- Never attempt to modify or disassemble the inlet/exhaust parts and the aftertreatment device. Avoid giving shocks on the aftertreatment device by striking elements with other objects or dropping the elements. Failure to do so may affect the exhaust gas purifying device, possibly damaging it or lowering its performance.
- Do not use attachments and/or optional parts or equipment not authorized by Hitachi. Carefully read and follow all instructions for use and safety in the operator’s manual for the attachment. Failure to do so may deteriorate the safety, function, and/or service life of the machine. In addition, personal accident, machine trouble, and/or damage to material caused by using unauthorized attachments and/or optional parts or equipment will void Hitachi Warranty Policy.
TABLE OF CONTENTS:
Hitachi CX650-C Crawler Crane Workshop Manual
INDEX………………………..0
INDEX(W)……………………..1
INTRODUCTION………………….0
SAFETY……………………….0
SECTION 1 GENERAL INFORMATION…..0
SECTION 2 SUPERSTRUCTURE……….0
SECTION 3 UNDERCARRIAGE………..0
SECTION 4 ENGINE AND ACCESSORY….0
REVISION REQUEST FORM………….0
Hitachi CX650-C Crawler Crane Operational Principle Manual
INDEX……………………..0
INDEX(TO)………………….1
INTRODUCTION……………….0
SECTION 1 GENERAL…………..0
SECTION 2 SUPERSTRUCTURE…….0
SECTION 3 UNDERCARRIAGE……..0
SECTION 4 ELECTRICAL SYSTEM….0
SECTION 5 HYDRAULIC SYSTEM…..0
REVISION REQUEST FORM……….0
Hitachi CX650-C Crawler Crane Troubleshooting Manual
INDEX……………………………….0
INDEX(TT)……………………………0
INTRODUCTION…………………………0
SAFETY………………………………0
SECTION 6 OPERATIONAL PERFORMANCE TEST….0
SECTION 7 TROUBLESHOOTING……………..0
REVISION REQUEST FORM…………………0
