MODEL 4900 Large Rectangular Baler
and Optional Bale Accumulator
WEIGHT (approx)
Baler, empty 18 600 LB (8440 kg)
Tongue, empty 2900 LB (1315 kg)
Bale chute 250 LB (115 kg)
Baler and accumulator, empty 21850 LB (9911 kg)
LENGTH
Without bale chute 2845 IN (7230 mm)
With bale chute 3505 IN (8900 mm)
With accumulator 409 IN (10 390 mm)
WIDTH (overall)
Shipping, less tires 103 IN (2615 mm)
With 28L x 26 tires 1255 IN (3190 mm)
With accumulator 156 IN (3960 mm)
HEIGHT
Top of knotter shielding 124 IN (3150 mm)
Top of hand railing 145 IN (3680 mm)
BALE CHAMBER
Width 465 IN (1180 mm)
Height 50 IN (1270 mm)
BALE LENGTH
Adjustable up to 108 IN (2743 mm)
TIRE SIZE
Baler 28L x 26, 12 ply
Pickup Gauge Wheel 400 x 16 (2) pneumatic
w/inner tube
Accumulator 95L x 14, 6 ply (4) w/inner tube
TIRE PRESSURE
Baler
28L x 26, 12 ply 22 psi/ 152 kPa
231 X 26, 10 ply 26 psi / 158 kPa
Pickup Gauge Wheels 40 psi / 276 kPa
Accumulator 32 psi (193 kPa)
WHEEL NUTS / BOLTS
Baler
size 3/4-16 UNF-2B nuts with
hardened washers (10)
bolt circle diameter 1319 IN (335 mm)
torque 425 to 450 LB·FT
(575 to 610 N·m)
Accumulator
size 9/16-18 UNF-2A bolt
torque 120 LB·FT (165 N·m)
MAIN DRIVE
Standard PTO speed 1000 rpm (r/rim)
PTO optional ASAE type 2, 1-3/8 IN, 21 teeth
PTO optional ASAE type 3, 1-3/4 IN, 20 teeth
Drive line category ASAE 6
Drive protection overrunning and slip
clutches, and shearbolt
Flywheel brake direct acting
Flywheel bearings taper roller (2)
Flywheel diameter 340 IN (864 mm)
Flywheel weight 460 LBS (209 kg)
Gearbox
type enclosed triple reduction
gears spiral bevel (1st set)
spur (2nd & 3rd set)
Bearings taper roller, and spherical
Lubrication oil bath
Temperature switch setting 160° to 175° F
(71° to 80° C)
PICKUP ASSEMBLY
Pickup outside width 975 IN (2475 mm)
Width tine to tine 779 IN (1978 mm)
Width inside 836 IN (2125 mm)
Overall width incl tires 1105 IN (281 O mm)
Number of bars 5
Number of tines 120
Tine spacing 3375 IN (86 mm)
Tine bar bearings sealed ball
Drive RC50 roller chain
Protection slip and overrunning clutches
Height control gauge wheels (2) and
adjustable control arm
Pickup lift (standard) hydraulic cylinder
BALE CHAMBER FEEDING SYSTEM
Packers fork type with 6 hard surfaced tines
crank heavy duty
drive RC80 roller chain
protection splined slip clutch
Charge chamber volume 125 FT3 (354 m3}
Windrow size compensation automatic charge
sensor engages stuffer clutch
Stuffer fork type with 6 tines
drive RC100 roller chain
drive protection shearbolt
PLUNGER
Speed 254 strokes/min
Length of stroke 307 IN (780 mm)
Mounting 4 tapered roller bearings
(sealed); 2 ball bearing rollers (sealed)
Issued 9/96
1002-6
CONTROL AND MONITORING SYSTEM
Type microprocessor controlled electronics
Baler controls
• Plunger load to control bale density, alarm volume,
displays, reset field bale counts and bale weight
average, manual hydraulic pressure control
Accumulator controls
• Bale shift arm automatic and manual Balers with
late production electronics also have a lockout
setting
Baler functions monitored
• Plunger load, bale chamber tension pressure,
bale counts – field (two on balers with late
production electronics) and total, flakes/bale,
driving meter, stuffer cycles, knotter and needle
performance, feeder performance, stuffer shear
bolt, gearbox over heating, automatic electronic
system performance checks Balers with late
production electronics also have a low voltage
check
Accumulator functions monitored
• Bales loaded, direction of next bale, operator alert
– manual mode, bale to be unloaded, and bale shift
bar malfunctions
Baler functions monitored
Bale weight (optional)
• Automatically weighs each new bale on the left
accumulator side cart; informs operator of each
new bale weight; auto tare, bale weight average,
and bale count for bale weight average Balers
with late production electronics also have test
and calibration functions
Non-Volatile Memory Storage
• Load and alarm settings, display and control
modes, bale counts, bale weight and count
Display dual LCD with back lighting
Control switches hermetically sealed
membrane with back lighting
On•Off functions both automatic and manual
Electrical protections under and over voltage,
output overload (short circuit, etc),
breaker switch, static discharge, etc
Baler and accumulator switches hermetically
sealed reed
Console size
width 14 IN (360 mm)
depth
without harness 525 IN (133 mm)
with harness approx 9 IN (230 mm)
height 65 IN (165 mm)
Electrical requirement 12 volt DC
Issued 9/96
TYING MECHANISM
Knotters double knot type
Spacing 675 IN (172 mm
Type tie twine only
Twine storage capacity 24 balls
Type twine high quality split film
polypropylene or sisal, 300 LB
(1330 N) minimum knot strength
BALE CHAMBER TENSION SYSTEM
Type electronic controlled hydraulics
Valve solenoid poppet type
System supply tractor hydraulics
type (standard) closed center
optional conversion open center
LIGHTS
Working three standard
Safety flashing and turn signal, tail light
Power and Control tractor 12 volt by using
ASAE 7-pin connector
TRACTOR REQUIREMENTS
Minimum weight of ballasted tractor
baler only 19 000 LB (8600 kg)
baler/ accumulator 22 500 LB (10 200 kg)
Horsepower
minimum 120 HP (90 kw PTO)
recommended 135 HP (100 kw PTO)+
PTO standard speed 1000 rpm (r/min)
PTO type
ASAE type 2 1-3/8 IN, 21 teeth
ASAE type 3 1-3/4 IN, 20 teeth
Hydraulics dual remote, pickup lift,
bale chamber tension control
TYPE OF HYDRAULIC SYSTEM
Standard closed center
Optional valve conversion open center
Minimum pressure requirement 2200 psi
(15170 kPa)
ELECTRICAL SYSTEM
Voltage 12 volt DC
Lights ASAE 7-pin connector outlet
CENTRALIZED LUBRICATION SYSTEM (Optional,
Baler)
Main Baler
• Three positive displacement grease divider
valves – lubricates 19 points, grease gun holder
included
Knotters
• Four positive displacement manual oil pumps –
lubricates 48 points
ACCUMULATOR
Weight (approx) 3250 LBS (1475 kg)
Length 123 IN (3125 mm)
Width 156 IN (3960 mm)
Height 46 IN (1170 mm)
Bale size 465 IN (1180 mm) wide x
50 IN (1270 mm) high x
81 to 102 IN (2057 to 2590) mm long
Bale capacity three bales
Axle type dual wheel caster (2)
with stabilizing brake
Bale shift control electronic built into
baler control console (see above)
Bale unload control electrical standard,
operator controlled
Monitoring electronic built into baler
control console (see above)
Hydraulics solenoid valve mounted on baler
valve – uses same tractor hydraulic circuit
Centralized lubrication system standard, one
12-point positive displacement
grease divider valve plus
one direct lubrication line
Bale weight kit (optional) automatically
weighs bales transferred to
left-hand side cart (see above)
1002-7
Issued

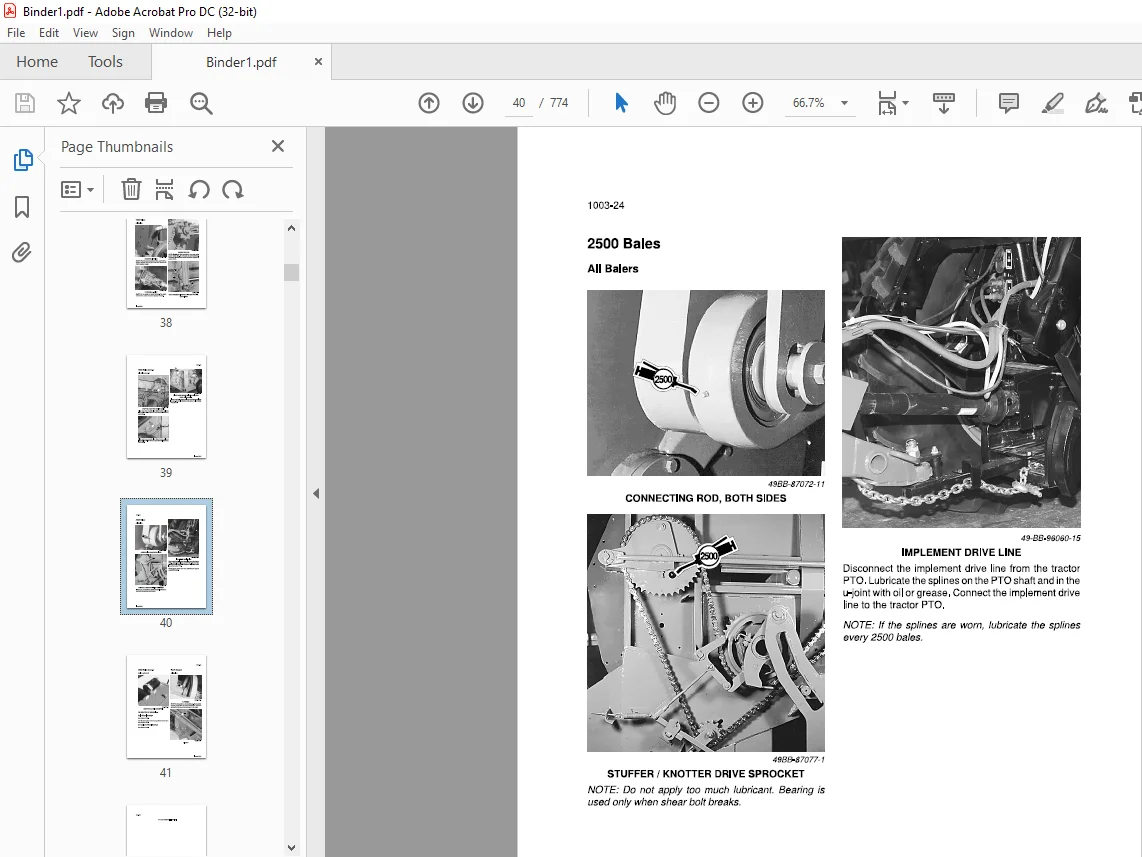

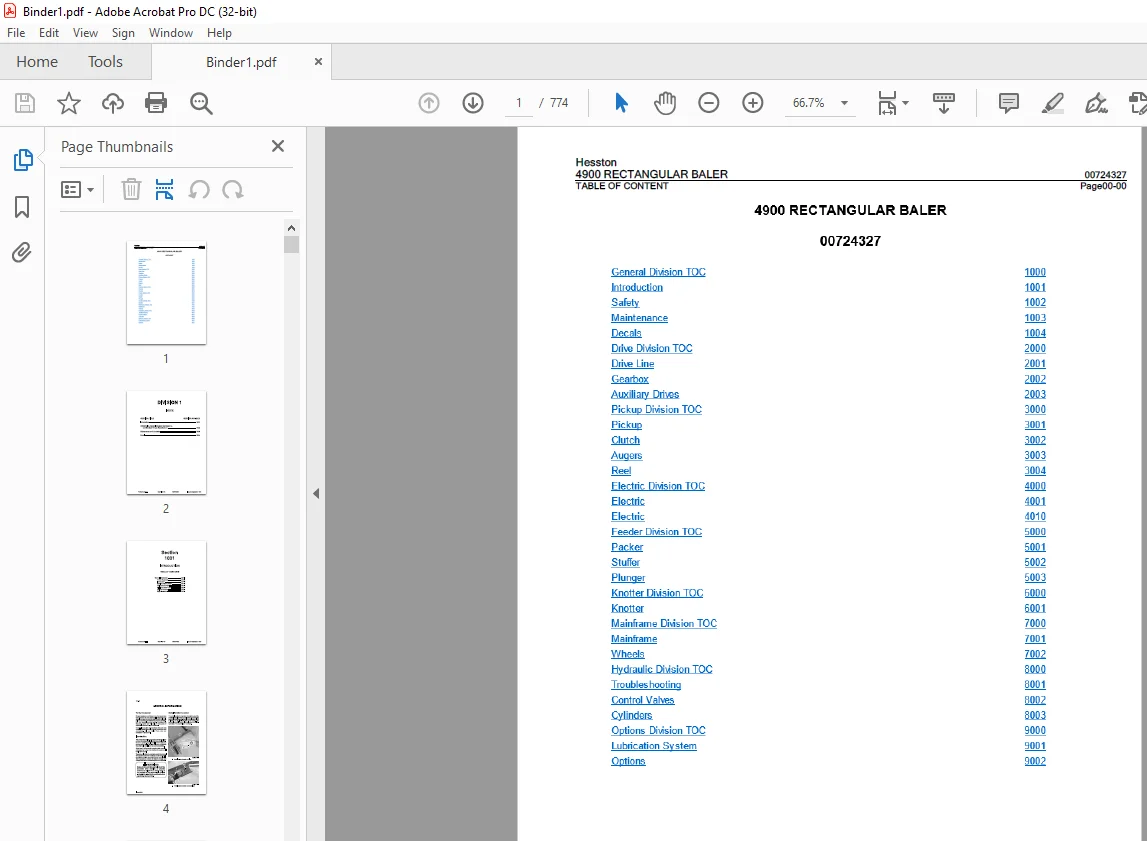

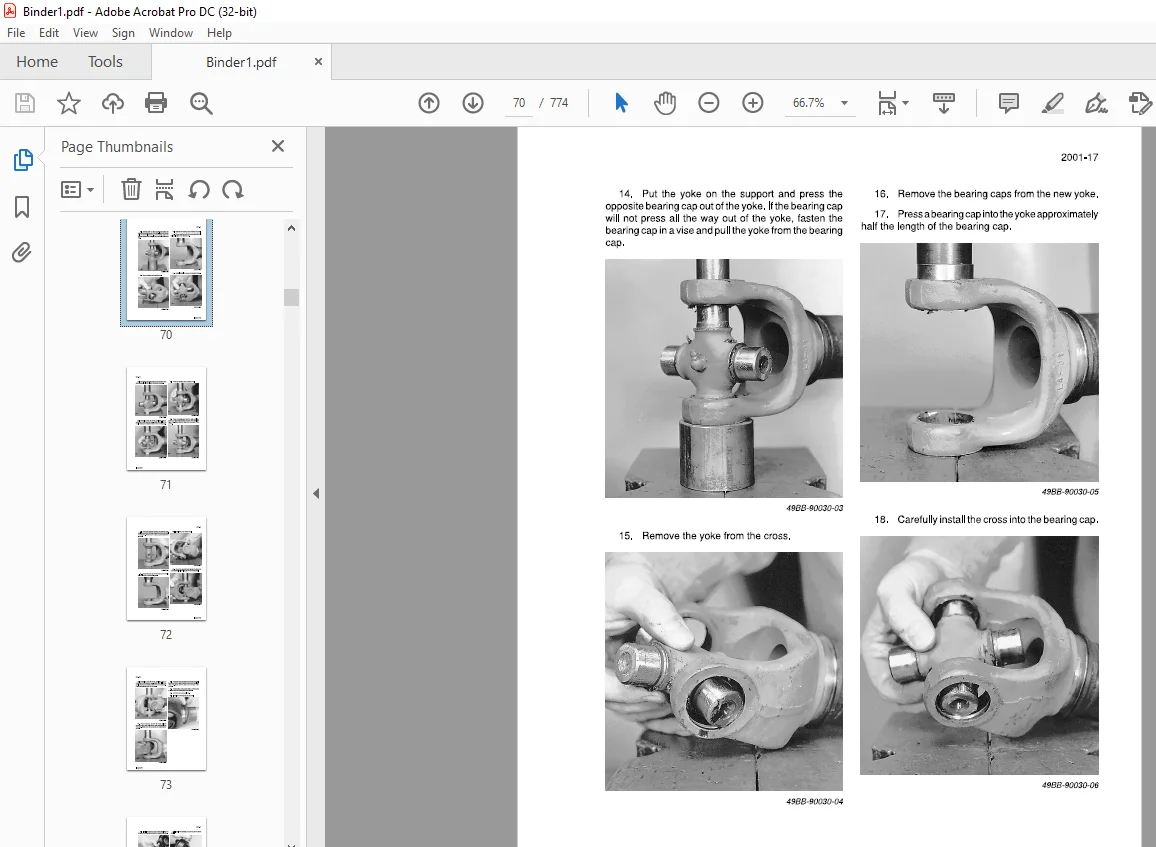

IMAGES PREVIEW OF THE MANUAL:
