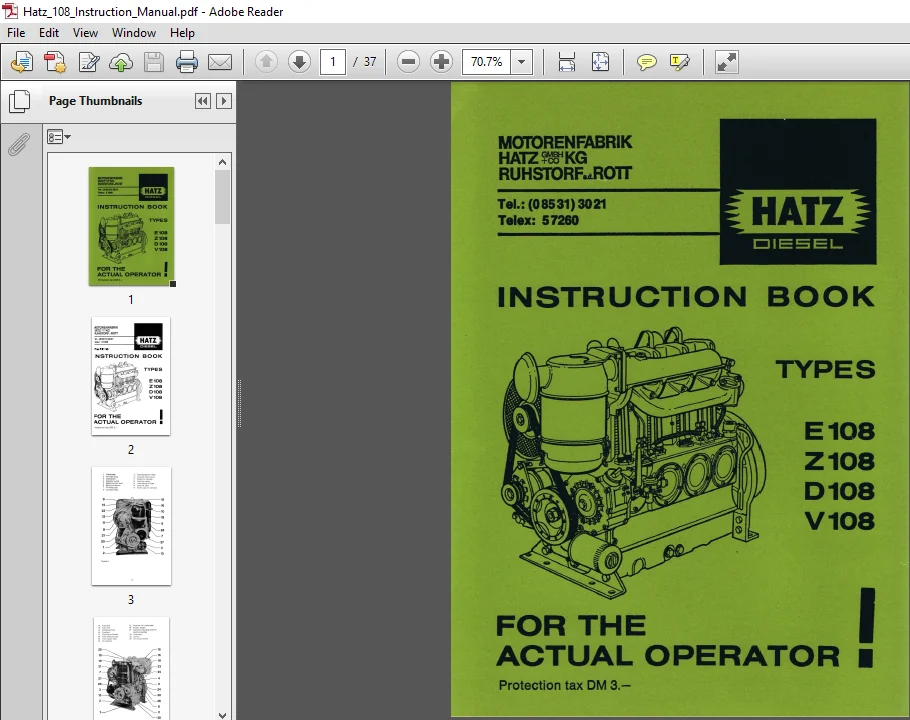

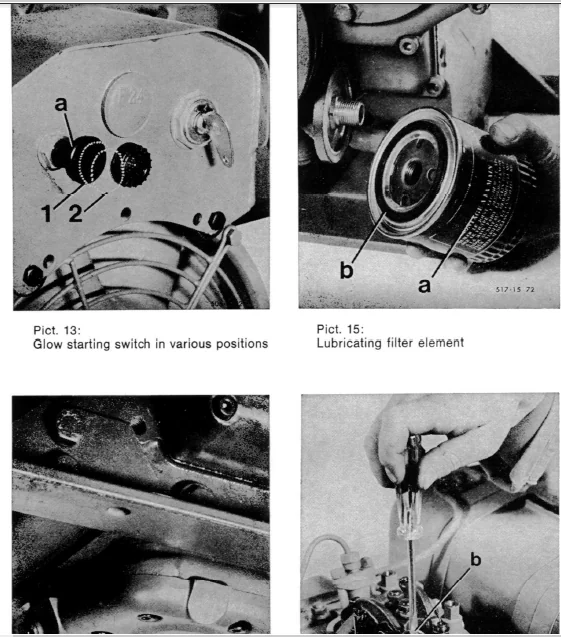

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Hatz 108 Instruction Manual
Method of operation
The engine works on the fourstroke principle with direct injection.
Design
The crankcase of grey cast-iron contains the crankshaft, camshaft. and injection pump. The bearings of crankshaft and camshaft are lavishly-dimensioned slide bearings. The power can be taken off at the flywheel as well from crankshaft at governor side. For types E and Z 108 handstarting is always effected at the camshaft with a reduction of 2 :1. Engines E and Z 108 can be equipped with electric starter. Engines D and V 108 are only started with electrical starting equipment. The amply-proportioned cooling ribs on cylinder and cylin- der head ensure troublefree cooling and a long life. In the cylinder head of special aluminium alloy. with shrunk- in valve seat rings, the injection valve, the rocker and valves are placed.
Cooling
A generously designed blower draws the cooling air past the ribs of cylinder and cylinder head. Failure of the cool- ing system is practically impossible because of the double V-belt drive. insufficient cooling is possible only if the cooling ribs on the cylinder head. cylinder or the fans of the blower itself are choked with dust; or if owing to improper installation of engine. cooling air cannot be drawn in freely. or hot air cannot be blown out sufficiently.
TABLE OF CONTENTS:
Hatz 108 Instruction Manual
1. Technical Data
2. Method of operation and design
2. 1. Method of operation
2. 2. Design
3. Running material
3. 1. Fuel
3. 2. Lubricants
4. Preparations for the first start
4. 1. Lubricating oil
4. 2. Oilbath-airiiiter
4. 3. Fuel
5. Starting of engine
5. 1. Starting by hand
5. 2. Automatic decompression device
5. 3. Starting with electric starter
5. 4. Starting at low temperatures
6. Stopping of engine
7. Regular maintenance
Maintenance after 8 – 15 operating hours
Maintenance after 250 operating hours
Maintenance after 500 operating hours
Maintenance at engines which run periodically only.
8. Carrying out maintenance work
8. 1. Oil change resp. replacement of oilfilter element
8. 2. Cleaning of oiibath-airtilter
8. 3. Adjustment of tappet clearance
8. 4. Adjustment of decompression device
8. 5. Exchange of fuel filter element
8. 5. Cleaning oi sieve insert oi iuei feed pump
8. 7. Cleaning of cooling ribs and blower
8. 8. Checking of V-belt-tension
8. 9. Checking of automatic venting device
9. Engine trouble and remedies
9. 1. Engine does not start
9. 2. Smoke from exhaust
9. 3. Engine lacks power (speed drops) no smoke
9. 4. Engine over-heating
9. 5. Engine stops suddenly
10. Remedies tor break-downs
10. 1. Change 01′ injection nozzle
11. Special rules for electric equipment
12. Preservation of HATZ-Engines
Maintenance guide between page 12 and 13
