Hagie Hi-Tractor 204 Operator’s Manual 493186 – PDF DOWNLOAD
FILE DETAILS:
Hagie Hi-Tractor 204 Operator’s Manual 493186 – PDF DOWNLOAD
Language : English
Pages : 372
Downloadable : Yes
File Type : PDF
Size: 62.9 MB
DESCRIPTION:
Hagie Hi-Tractor 204 Operator’s Manual 493186 – PDF DOWNLOAD
SAFETY PRECAUTIONS:
- Most accidents occur as the result of failure to follow simple and fundamental safety rules. For this reason, most accidents can be prevented by recognizing the real cause and doing something about it before the accident occurs.
- Many conditions cannot be completely safeguarded against without interfering with efficient operation and/or reasonable accessibility.
- Therefore, you must study this Operator’s Manual and learn how to use the sprayer controls for safe operation. Likewise, do not let anyone operate without instruction.
Tread Width:
- Select the widest tread setting that fits between the crop rows.
- Never manually adjust the tread width on the detasseler until the wheels have been properly blocked. Only loosen the leg clamp bolts enough for the leg to slide on the frame.
Outriggers:
- Ensure the outriggers are locked down either when folded in or folded out.
General Operation Safety:
- Do not adjust the factory engine RPM settings.
- Start the engine from the operator’s seat only. Do not bypass the safety-start switch.
- Handle starting fluid with care. Keep it away from open flame and store it with the cap on in a cool place.
- Never run the detasseler engine in a closed building. Proper exhaust ventilation is required.
- If equipped with light-sensing depth units, do not look directly into the light beam. It emits a very low-intensity microwave signal which may cause possible eye damage.
- Keep all shields in place.
- Stay clear of all moving parts and keep others away when operating.
- Avoid wearing loose-fitting clothing that may be blown or drawn into moving parts.
- Never allow walking personnel in the same field as a detasseler.
- Keep a fire extinguisher close at all times.

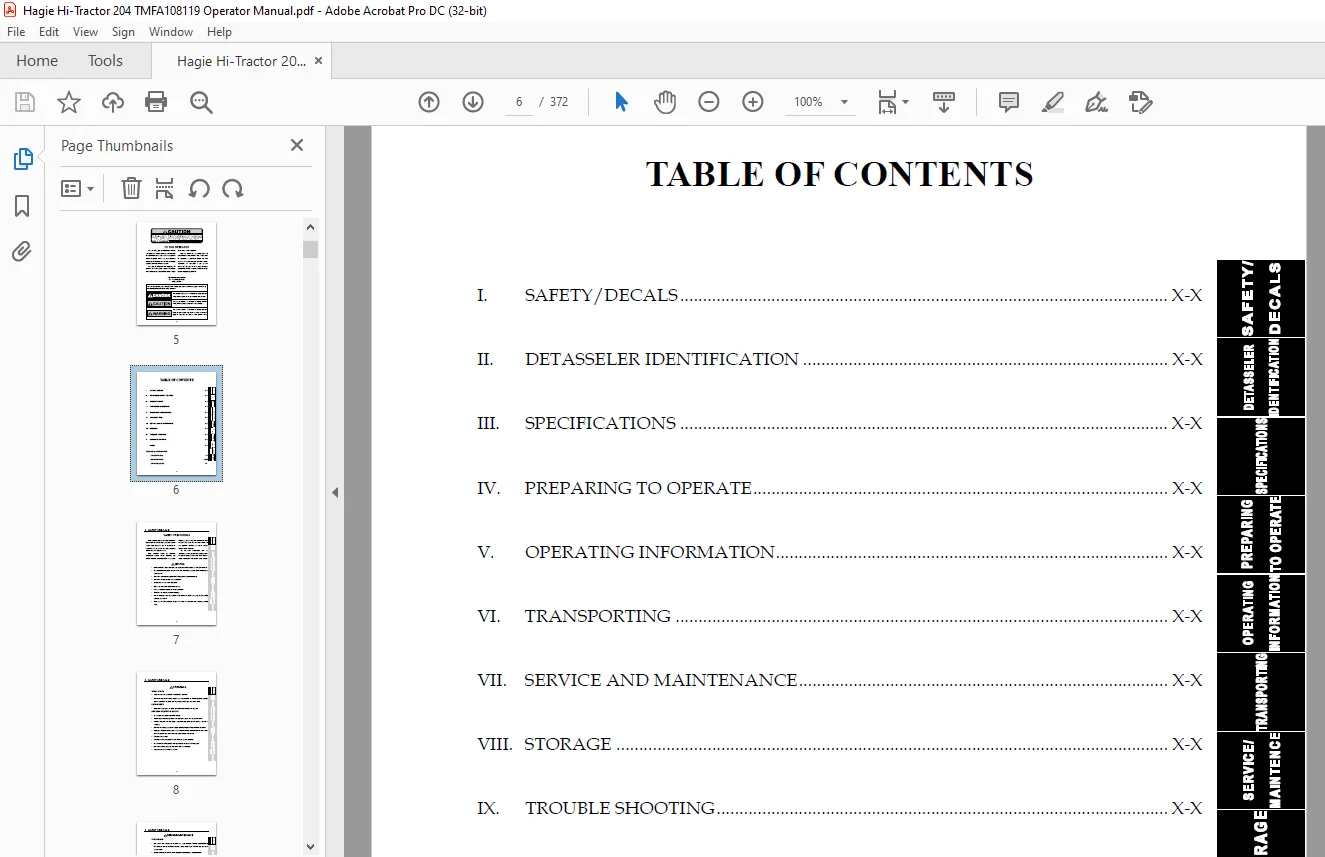

TABLE OF CONTENTS:
Hagie Hi-Tractor 204 Operator’s Manual 493186 – PDF DOWNLOAD
I SAFETY/DECALS X-X
II DETASSELER IDENTIFICATION X-X
III SPECIFICATIONS X-X
IV PREPARING TO OPERATE X-X
V OPERATING INFORMATION X-X
VI TRANSPORTING X-X
VII SERVICE AND MAINTENANCE X-X
VIII STORAGE X-X
IX TROUBLE SHOOTING X-X
X LIMITED WARRANTY X-X
INDEX X-X
TECHNICAL INFORMATION
240-ELECTRICAL 1-3
250-DRIVETRAIN 1-219
270-HYDRAULICS 1-9
VIDEO PREVIEW OF THE MANUAL:

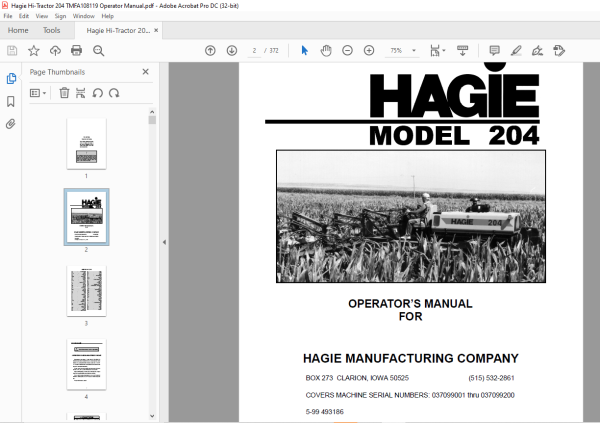

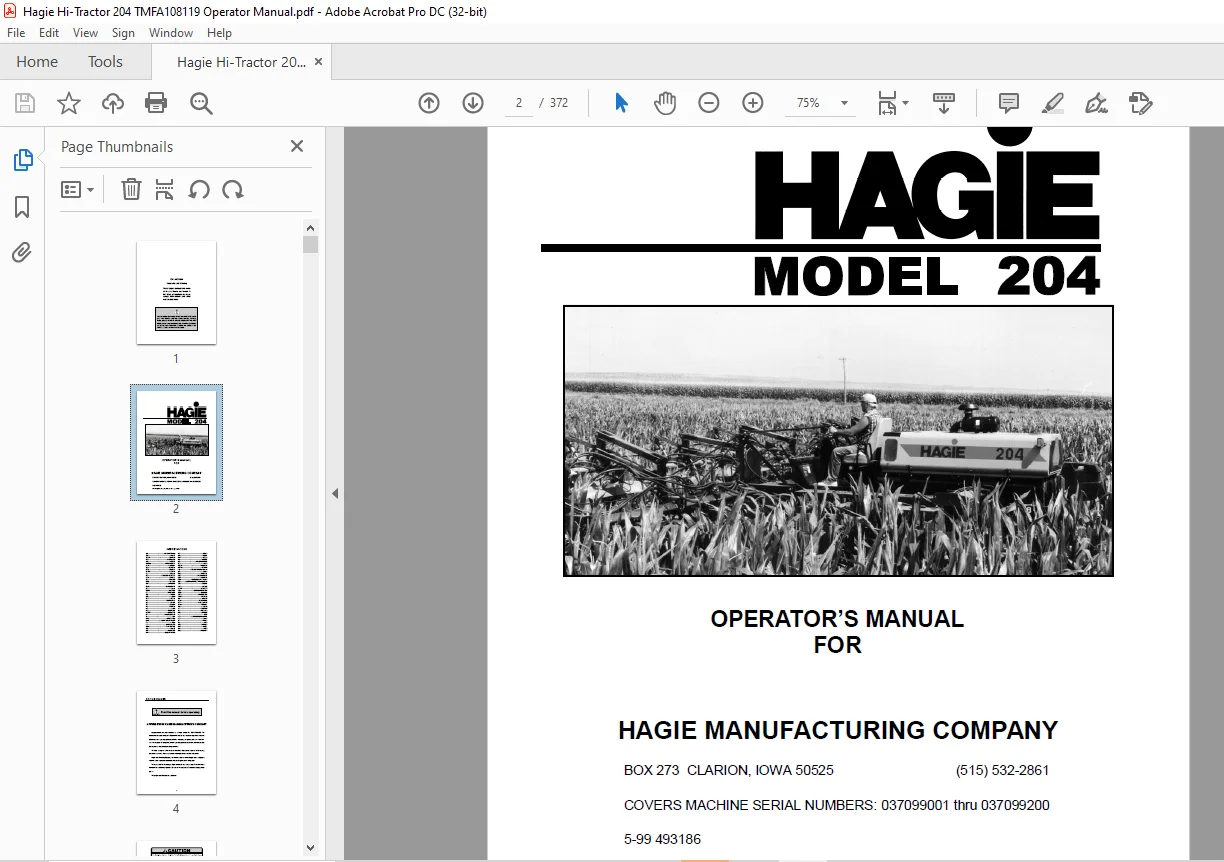

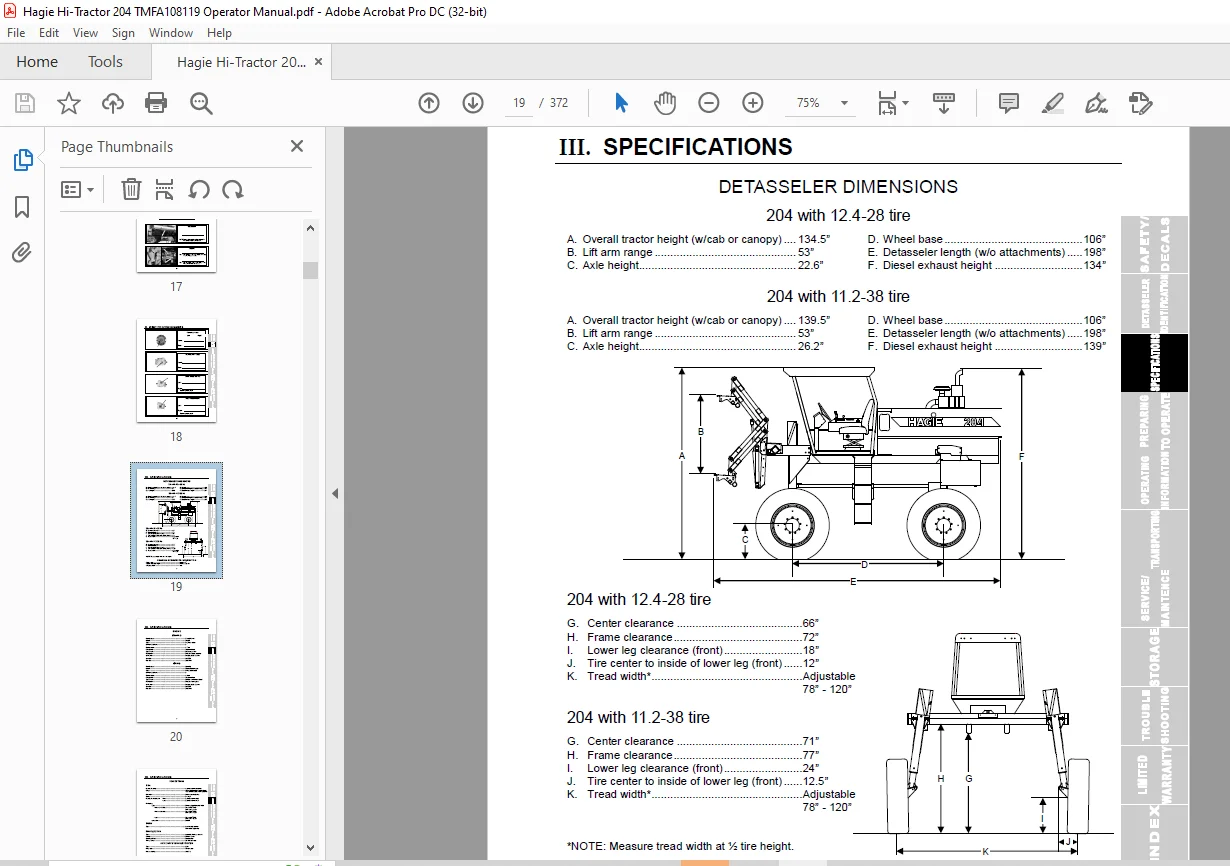

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
