FIATALLIS FR7 FR9 FR10 FR12 FR15 AXLES WHEEL LOADER SERVICE MANUAL
FILE DETAILS:
FIATALLIS FR7 FR9 FR10 FR12 FR15 AXLES WHEEL LOADER SERVICE MANUAL
Size: 95.5 MB
Format: PDF
Language: English
Brand: Fiat
Type of machine: Wheel Loader
Type of document: Service Manual
Model: Fiat Allis FR9 FR10 FR7 FR12 FR15 Wheel Loader
Number of Pages: 657 pages
Set Form No.: 73155597
DESCRIPTION:
FIATALLIS FR7 FR9 FR10 FR12 FR15 AXLES WHEEL LOADER SERVICE MANUAL
GENERAL INFORMATION:
- Study the Operation and Maintenance Instruction Ma- nual before starting, operating, maintaining, fueling, or servicing machine Read and heed all machine-mounted safety signs be- fore starting, operating, maintaining, fueling or servi- cing machine. Machine-mounted safety s*gns have been color coded yellow with black borders and lettering for warning and red with white borders and lettering for danger points
- Do not allow unauthorized personnel to service or maintain this machine. Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling or servicing this ma- chine. Always wear safety glasses with side shields.
- Do not wear rings, wnst watches, lewetry. or loose or hanging apparel, such as tics, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on mo- ving parts. Wear proper safety equipment as authori- zed for the job. Examples, hard hats, safety shoes, heavy gloves, car protectors, safety glasses or goggles, reflector vest, or respirators Consult your employer for specific safety equipment requirements. Do not use controls or hoses as handholds when clim- bing on or off machine Hoses and controls arc mova- ble and do not provide a solid support.
- Controls may also be inadvertently moved causing accidental machi- ne or equipment movement Do not jump on or off machine Keep two hands and one foot, or two feet and one hand, in contact with steps and grab-rails and handles at all times. Machine should not be serviced with anyone in the operator’s seat unless they are qualified to operate the machine and are assisting in the servicing
- Keep operator’s compartment, stepping points, grab- rails and handles clean of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine. Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat. Keep operator’s compartment clear of loose objects
- If movement of an attachment by means of the machi- ne’s hydraulic system is required for service or main- tenance. do not raise or lower attachments from any position other than when seated in the operator’s seat. Before starting machine or moving attachment or tool, make sure to set brakes, sound horn and call for an all clear. Raise attachment slowly Always block with external support any linkage, parts, or machine according to local or national requirements
- Never allow anyone to walk under or be near unblo- cked raised equipment Avoid working or walking un- der raised blocked equipment unless you arc assured of your safety. Never piace head. body, limbs, fingers, feet or hands into an exposed portion between uncontrolled or un- guarded scissor points of machma without first provi- ding secure blocking.
- Never lubricate, service or adjust a machine with the engine running, except as called for in the Operation and Maintenance Instruction Manuals. Do not wear loose clothing or jewelry near moving parts. When servicing or maintenance requires access to areas that cannot be reached from the ground, use a ladder or step platform that meet? local or national re- quirements to reach the service point
- If such ladders or platform are not available, use the machine hand- holds and steps as provided. Perform all service or maintenance carefully. Shop or field service platform and ladders used to maintain or service machinery should be constructed and maintened according to local or national reqm- rements. Never check or fill fuel tanks, storjge batteries or use starter fluid near lighted smoking materials or open fla- me due to the presence of fiammtble fluid.
- Brakes are inoperative when manually released for servicing. Provision must be made to maintain control of the machine by blocking or other means Always place the fuel nozzle against the side of the filler opening before starting and during fuel ftow.
- To reduce the change of a static electricity spark, keep contact until after fuel flow is shjt off. Use only designated towing or pulling attachment points. Use care in making attachment. Be sure pins and locks as provided are secure before pulling. Stay clear of drawbars, cables or chains under load To move a disabled machine, usee trailer or low boy truck if available
- If towing is necessary, provide warning signals as required by local rules and regulations and follow operation and maintenance instruction ma- nual recommendations Load and unload on a level area that gives full support to the trailer wheels Use ramps of adequate strength, low angle and proper height. Keep trailer bed clean of clay, oil and all ma- terials that become slippery. Tie machine down secu- rely to truck or trailer bed and blocc tracks (or wheels) as required by the earner.
VIDEO PREVIEW OF THE MANUAL:

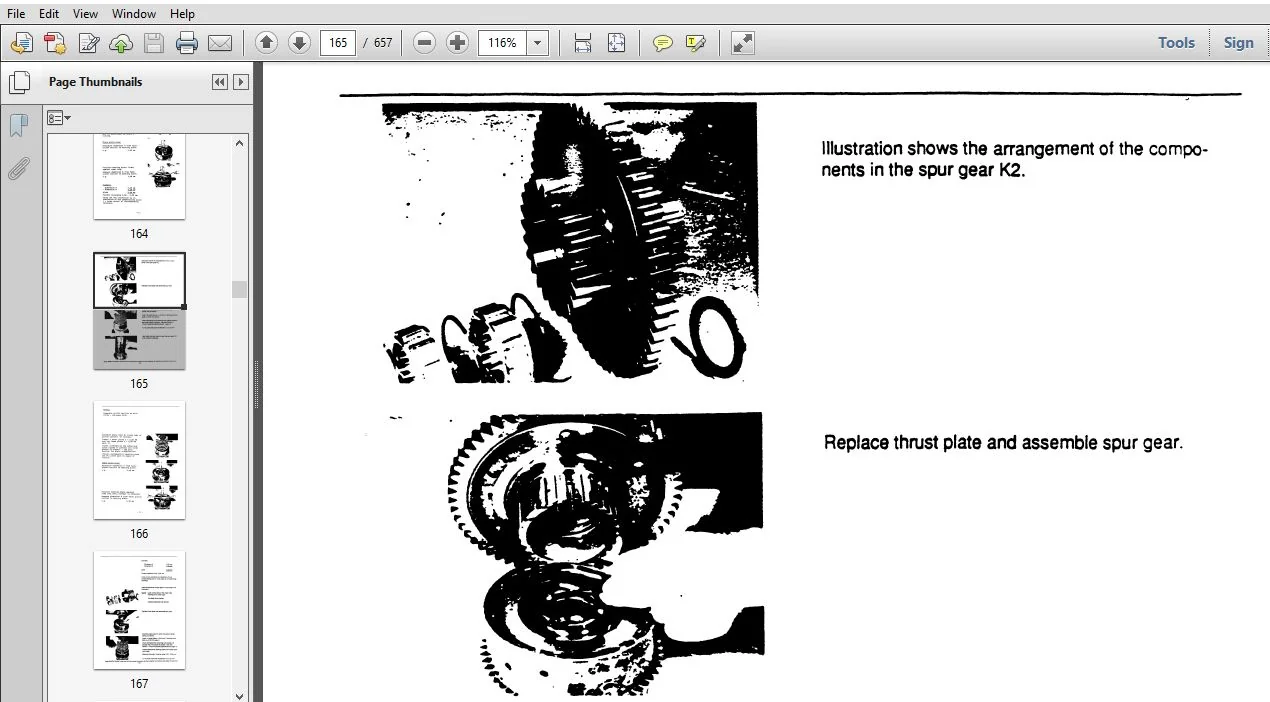

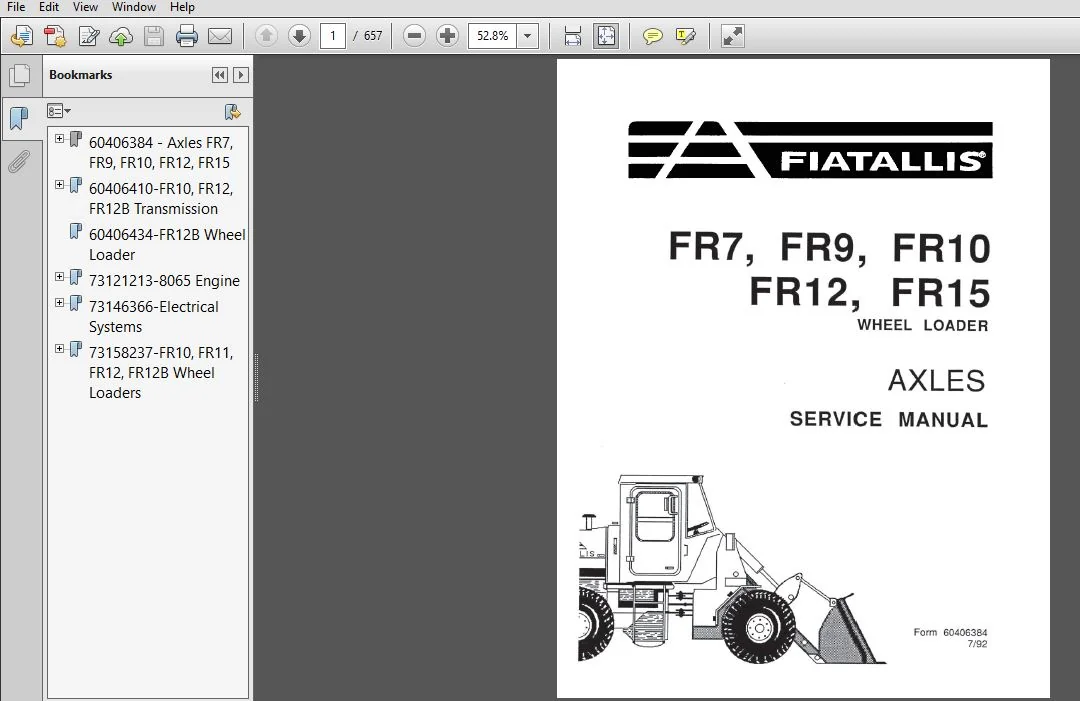

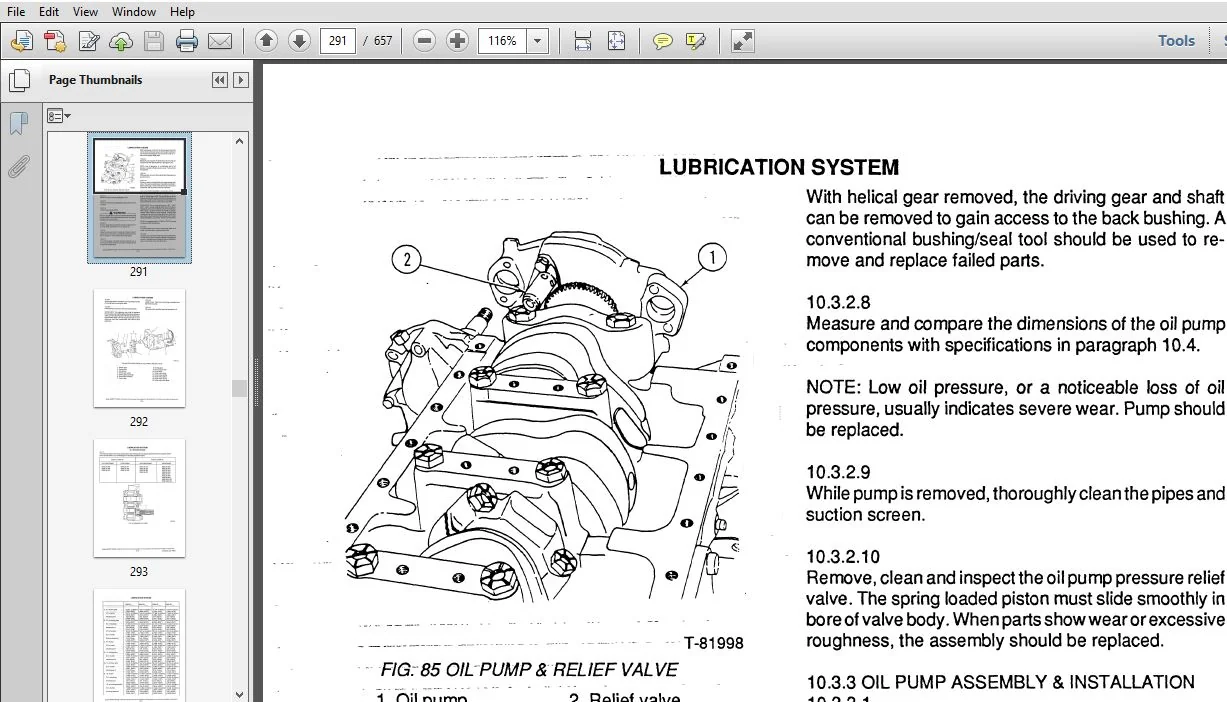

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
FIATALLIS FR7 FR9 FR10 FR12 FR15 AXLES WHEEL LOADER SERVICE MANUAL
60406384 – Axles FR7, FR9, FR10, FR12, FR15 1
Table of Contents 4
Safety Rules 5
8 – Disassembly, Servicing and Reassembly – FR7 and FR9 8
9 – Specifications and Data 25
10 – Torque Specifications 28
11 – Service Tools 29
12 – Disassembly, Servicing and Assembly 31
13 – Specification and Data 49
14 – Torque Specifications 51
15 – Service Tools 52
16 – Super Max-Trac Differential 53
60406410-FR10, FR12, FR12B Transmission 61
Table of Contents 62
Safety Rules 64
Transmission System Operation 68
Torque Converter/ Transmission Specifications 72
Diagnostic Checks and Troubleshooting 80
Special Tools 84
Disassembly and Reassembly 88
Supplement No 2 Form 604 06 410 FR10, FR11, FR12, FR12B Wheel Loaders Transmission Service Manual 158
Supplement No 3 Form 604 06 410 FR10, FR11, FR12, FR12B Wheel Loaders Transmission Service Manual 170
60406434-FR12B Wheel Loader 175
73121213-8065 Engine 183
Table of Contents 194
Description and Operation 196
Troubleshooting 198
Testing 208
Engine Removal and Disassembly 220
Cylinder Blook and Sleeves 226
Pistons, Piston Rings, Connecting Rods and Pins 234
Crankshaft, Flywheel, Ring Gear 246
Cylinder Head, Valves, Valve Guides & Springs 256
Camshaft, Bushings, Tappets, Push Rods & Rocker Arms 270
Lubrication System 288
Cooling System 296
Fuel System 306
Tools 320
73146366-Electrical Systems 321
Safety Rules 322
Table of Contents 329
General Description 330
Troubleshooting 331
Changing Circuit 334
Starting Circuit 342
Ignition Circuit 344
Accessory Ciruits 348
Batteries 350
Electrical System Schematics 355
73158237-FR10, FR11, FR12, FR12B Wheel Loaders 513
Table of Contents 515
General 524
Engine Related Components 544
Power Train 558
Axles and Wheels 564
Brake System 572
Hydraulic System 600
Electrical System 648
Tools 656
