Fiatallis FR35 Wheel Loader Workshop Manual PDF

Description

Fiatallis FR35 Wheel Loader (Transmission)Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FR35 Wheel Loader(Transmission) Service Manual – PDF DOWNLOAD

FN 73148892

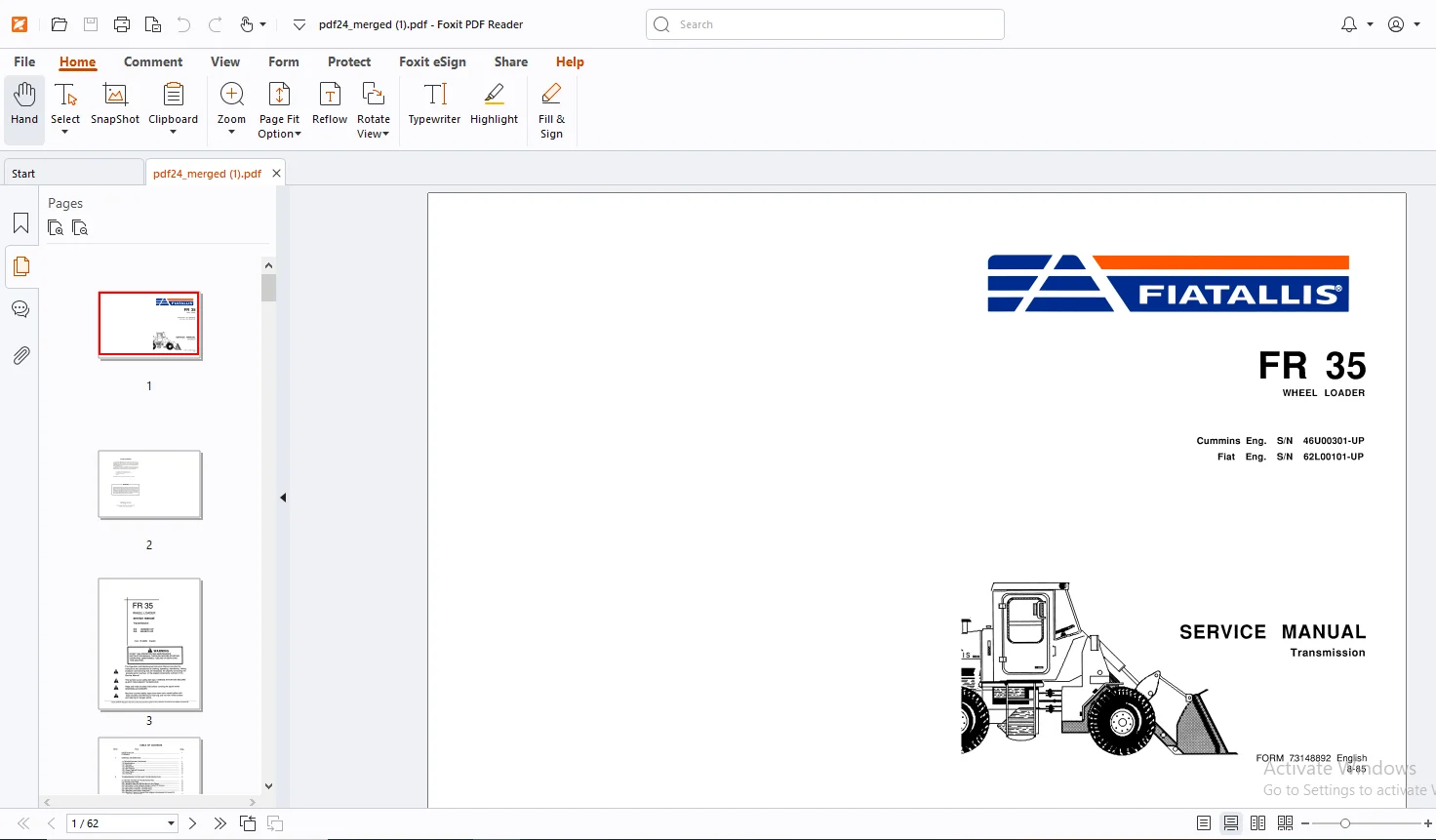

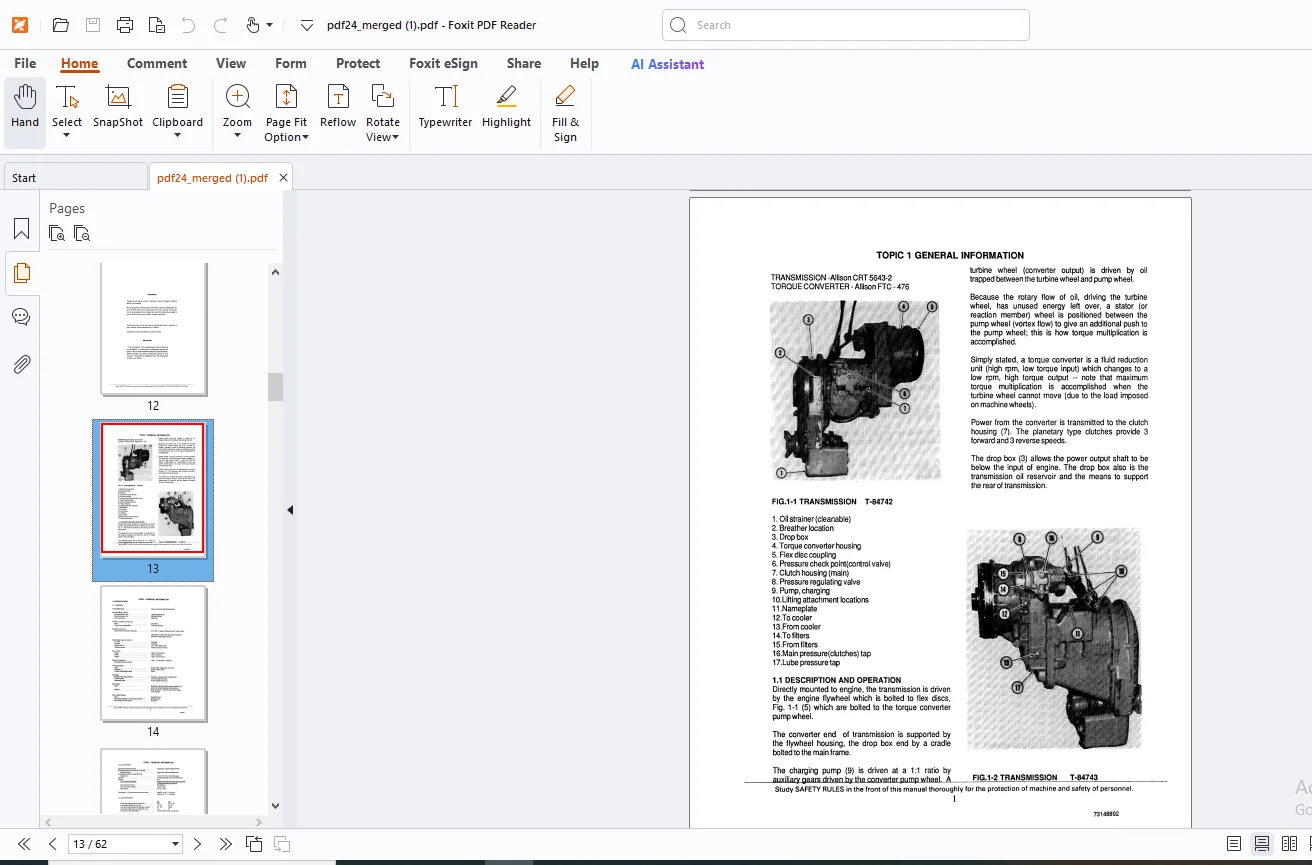

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FR35 Wheel Loader(Transmission) Service Manual – PDF DOWNLOAD

FN 73148892

• Cummins Eng. S/N 46U00301-UP
• Fiat Eng. S/N 62L00101-UP

1. GENERAL INFORMATION
   1.1 Description and Operation
   1.2 Specifications
   1.2.1 General
   1.2.2 Oil System
   1.2.3 Oil Pressure
   1.2.4 Power Take-off Provisions
   1.2.5 Gear Ratios
   1.2.6 Controls
2. TRANSMISSION TESTING AND TROUBLESHOOTING
   2.1 Before Testing or Troubleshooting
   2.2 Troubleshooting
   2.2.1 Machine Starts But Will Not Move in Any Range
   2.2.2 No Power in One Particular Range, Forward or Reverse
   2.2.3 No Power in Forward, Reverse Good
   2.2.4 No Power in Reverse, Forward Good
   2.2.5 Machine Lacks Power Under Load
   2.2.6 Machine Travels in Neutral When Engine is Accelerated in Forward or Reverse, But Not Both
   2.2.7 Machine Travels in Neutral When Engine is Accelerated in Forward and Reverse
   2.2.8 Transmission Overheating, Power Good
   2.3 Main Pressure Testing (Clutches)
   2.3.1 Primary Pressure Testing (Using the Instrument Panel Transmission Pressure Gauge)
   2.3.2 Final Pressure Testing (Reference Foldout Schematics at Back of Manual)
   2.4 Torque Converter, and Implement Pump, Stall Testing
   2.5 Transmission Pump Flow Testing
3. TRANSMISSION REMOVAL
4. TRANSMISSION INSTALLATION
   4.1 Oil Cooler Cleaning
   4.2 Transmission Installation
   4.3 Assemble and Adjust Transmission Linkage
   4.3.1 Transmission Linkage Arrangements
   4.3.2 Transmission Linkage Adjustments

DESCRIPTION:

Fiatallis FR35 Wheel Loader(Transmission) Service Manual – PDF DOWNLOAD

FN 73148892

• Cummins Eng. S/N 46U00301-UP
• Fiat Eng. S/N 62L00101-UP

GENERAL:

SAFETY RULES:

• Study the Operation and Maintenance instruction Manual be fore starting, operating, maintaining, fueling, or servicing machine.
• Read and head all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at al times to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate service or maintain this machine.
• Always check work area for dangerous features. The follow- ing are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these
  An operator must know the machine’s capabilities. When working on slopes or near drop of’s be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material.
• For your personal protection. Do not attempt to climb on or off machine while machine is in motion.
• Never leave the machine unattended with the engine running.
• Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance Instruction Manual Always set the parking brake when leaving the machine for any reason.
