Fiatallis FR20 Wheel Loader Service Manual – PDF

Description

Fiatallis FR20 Wheel Loader(Hydraulic System & Power Steering) Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FR20 Wheel Loader (Hydraulic System & Power Steering)Service Manual – PDF DOWNLOAD

FN 73075440

Language : English
Pages : 135
Downloadable : Yes
File Type : PDF

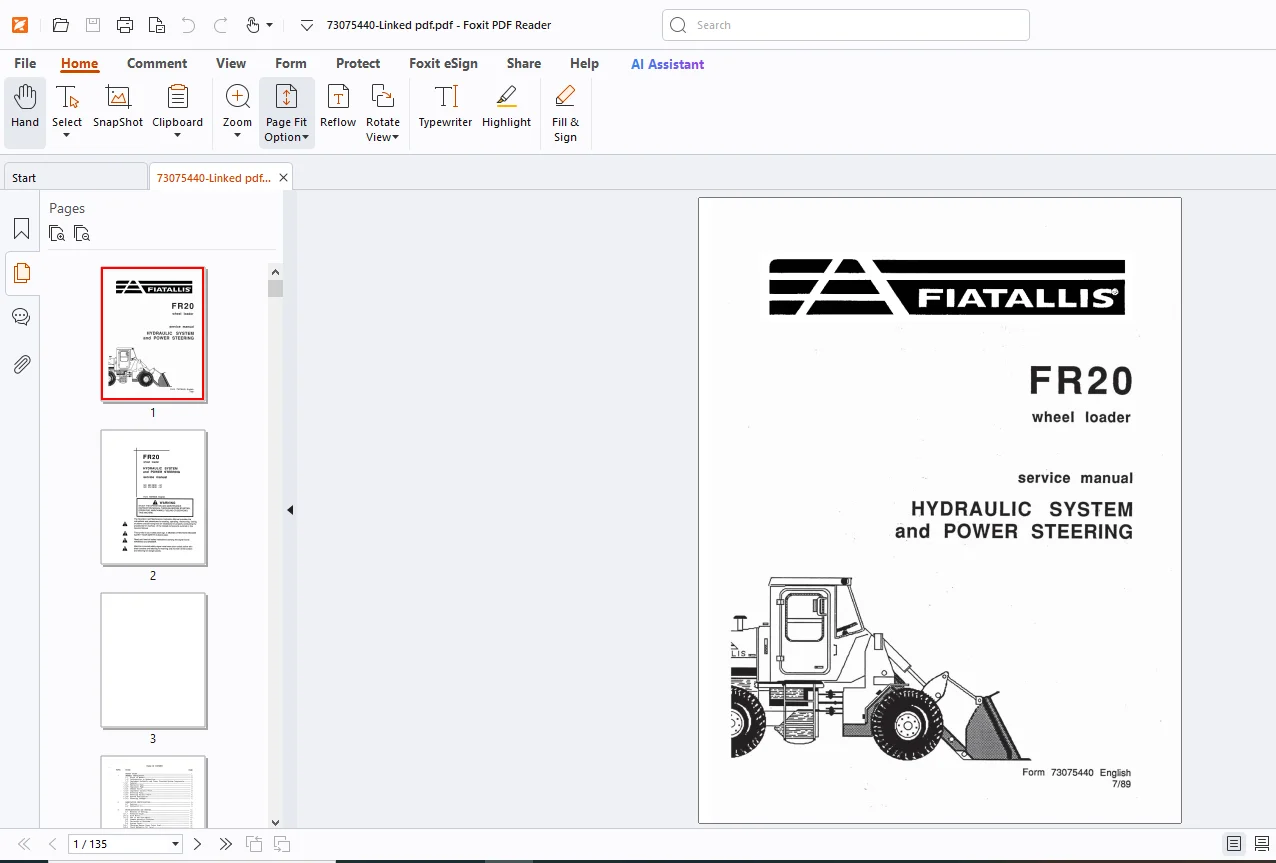

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FR20 Wheel Loader (Hydraulic System & Power Steering)Service Manual – PDF DOWNLOAD

FN 73075440

Table of Contents 4
Safety Rules 8
Topic 1 – General Description 15
Topic 2 – Lubrication Specifications 22
Topic 3 – Troubleshooting and Testing 23
Topic 4 – Hydraulic Pump Repair 39
Topic 5 – Hydraulic Valve Repair 59
Topic 6 – Hydraulic Cylinder Repair 92
Topic 7 – Steering Gear and Linkage 116
Topic 8 – Hydraulic Tank 126
Topic 9 – Hydraulic Fittings, Hoses and Tubing 130
Topic 10 – Service Tools 135

DESCRIPTION:

Fiatallis FR20 Wheel Loader (Hydraulic System & Power Steering)Service Manual – PDF DOWNLOAD

FN 73075440

• Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling, or servicing machine.
• Read and head all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feat inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate service or maintain this machine.
• Always check work area for dangerous features. The follow- ing are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, back fils, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a sold support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high sip resistant sole material
• For your personal protection. Do not attempt to climb on or off machine while machine is in motion.
  Never leave the machine unattended with the engine running.
• Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any

  reason.
