Fiatallis FR20 Wheel Loader Service Manual – PDF

Description

Fiatallis FR20 Wheel Loader(Transmission) Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FR20 Wheel Loader(Transmission) Service Manual – PDF DOWNLOAD

FN 73075625

Language : English
Pages : 154
Downloadable : Yes
File Type : PDF

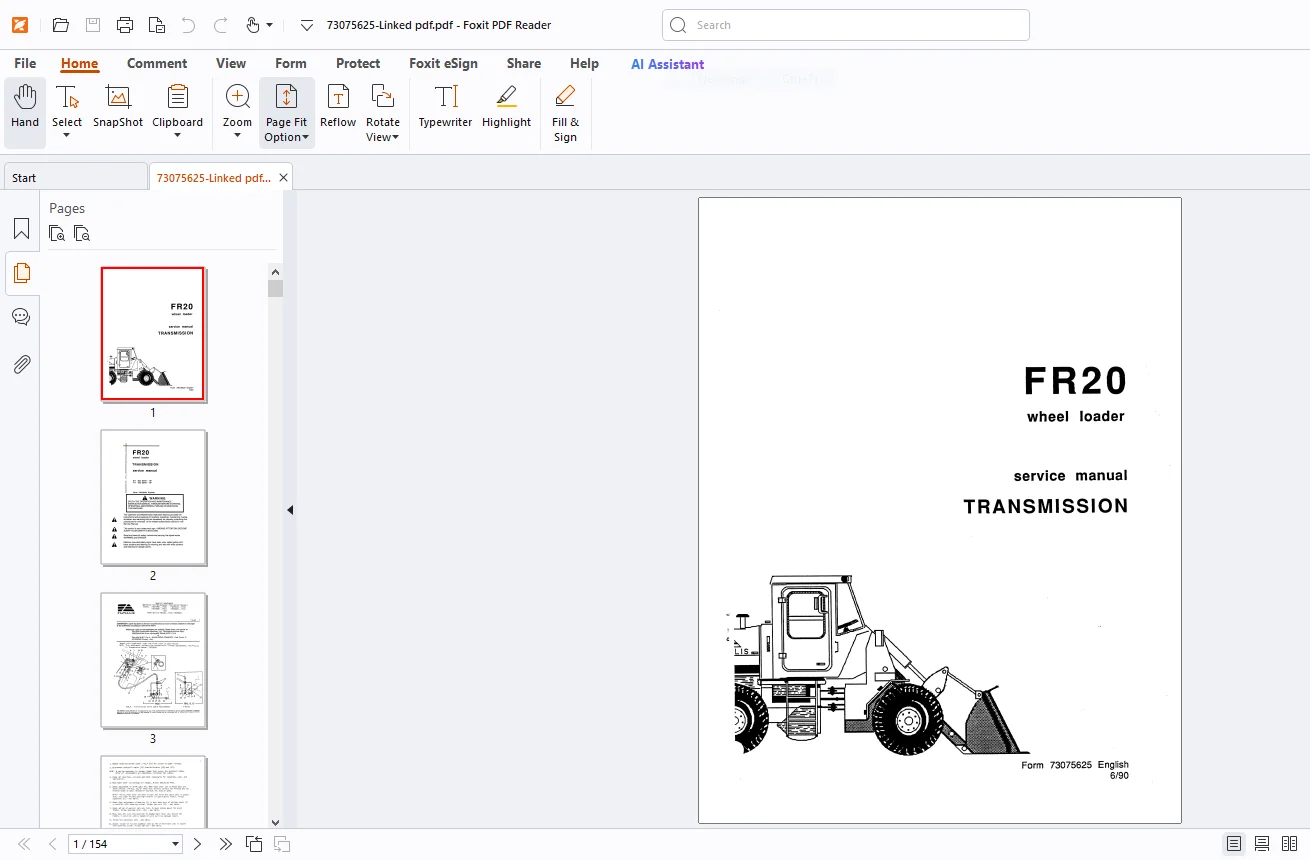

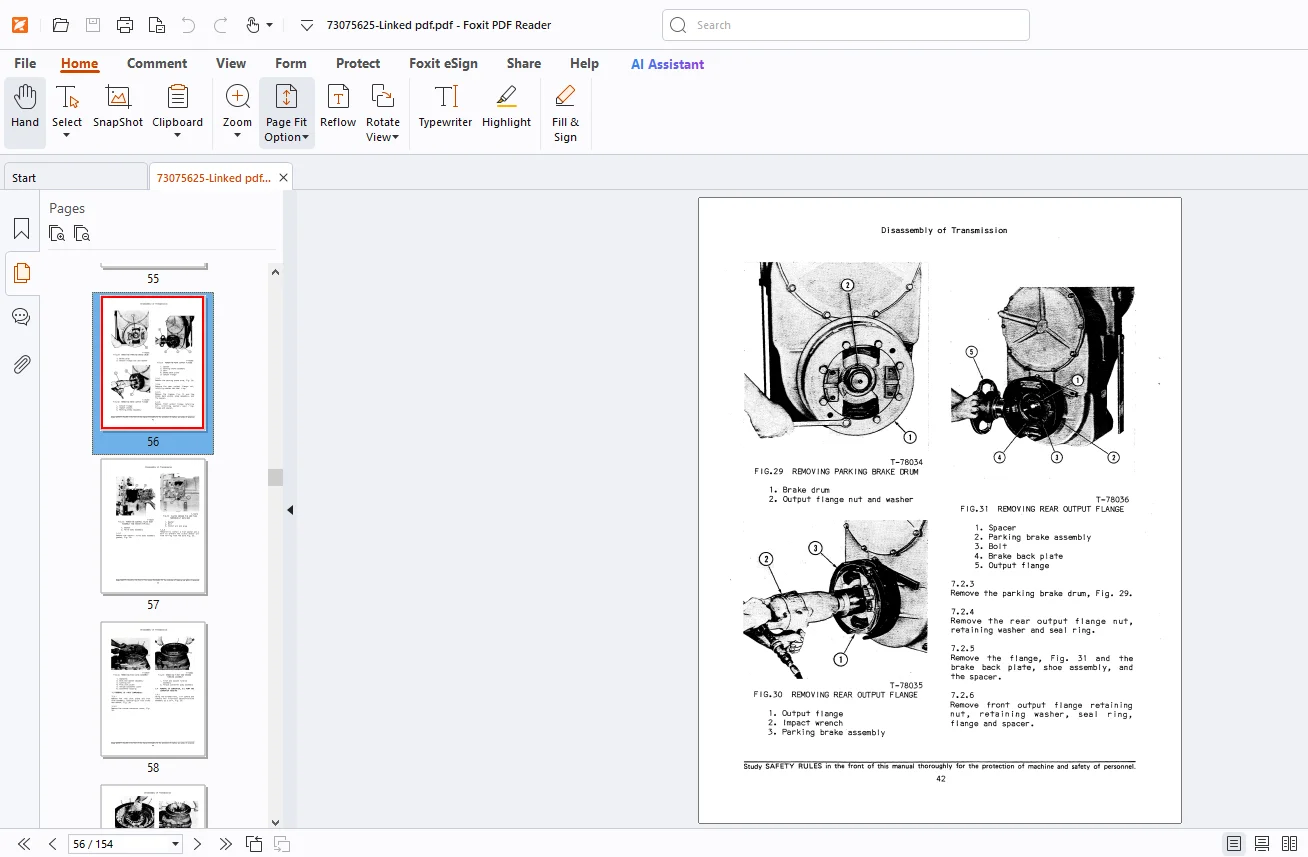

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FR20 Wheel Loader(Transmission) Service Manual – PDF DOWNLOAD

FN 73075625

Special Supplement Operation and Maintenance Instruction Manuals Forms: 73071996 – FR20, 73076519 – FR15, 73074898 – FR10, 73076629 – FR12 and FR20 Service Manual, Form 73075625 3
Table of Contents 6
Topic 1 – General Information 16
Topic 2 – Lubrication Specifications and Capacity 34
Topic 3 – Preventive Maintenance 35
Topic 4 – Trouble Shooting 39
Topic 5 – Transmission Removal and Installation 42
Topic 6 – General Overhaul Information 50
Topic 7 – Disassembly of Transmission 55
Topic 8 – Rebuild of Subassemblies 72
Topic 9 – Assembly of Transmission 100
Topic 10 – Service Specifications 118
Topic 11 – Service Tools 151

DESCRIPTION:

Fiatallis FR20 Wheel Loader(Transmission) Service Manual – PDF DOWNLOAD

FN 73075625

• Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling, or servicing machine.
• Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
  Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate service or maintain this machine.
• Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
  An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
  Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material.
• For your personal protection. Do not attempt to climb on or off machine while machine is in motion.
  Never leave the machine unattended with the engine running.
• Always lock up machine when leaving it unattended. Return keys to authorized security. Head all shut down procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason,
