Fiatallis FR10 FR12 FR15 Wheel Loader Brakes & Air System Engine Service Manual FN 73148730

Description

Fiatallis FR10 FR12 FR15 Wheel Loader Brakes & Air System Engine Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FR10 FR12 FR15 Wheel Loader Brakes & Air System Engine Service Manual – PDF DOWNLOAD

FN 73148730

Language : English
Pages : 105
Downloadable : Yes
File Type : PDF

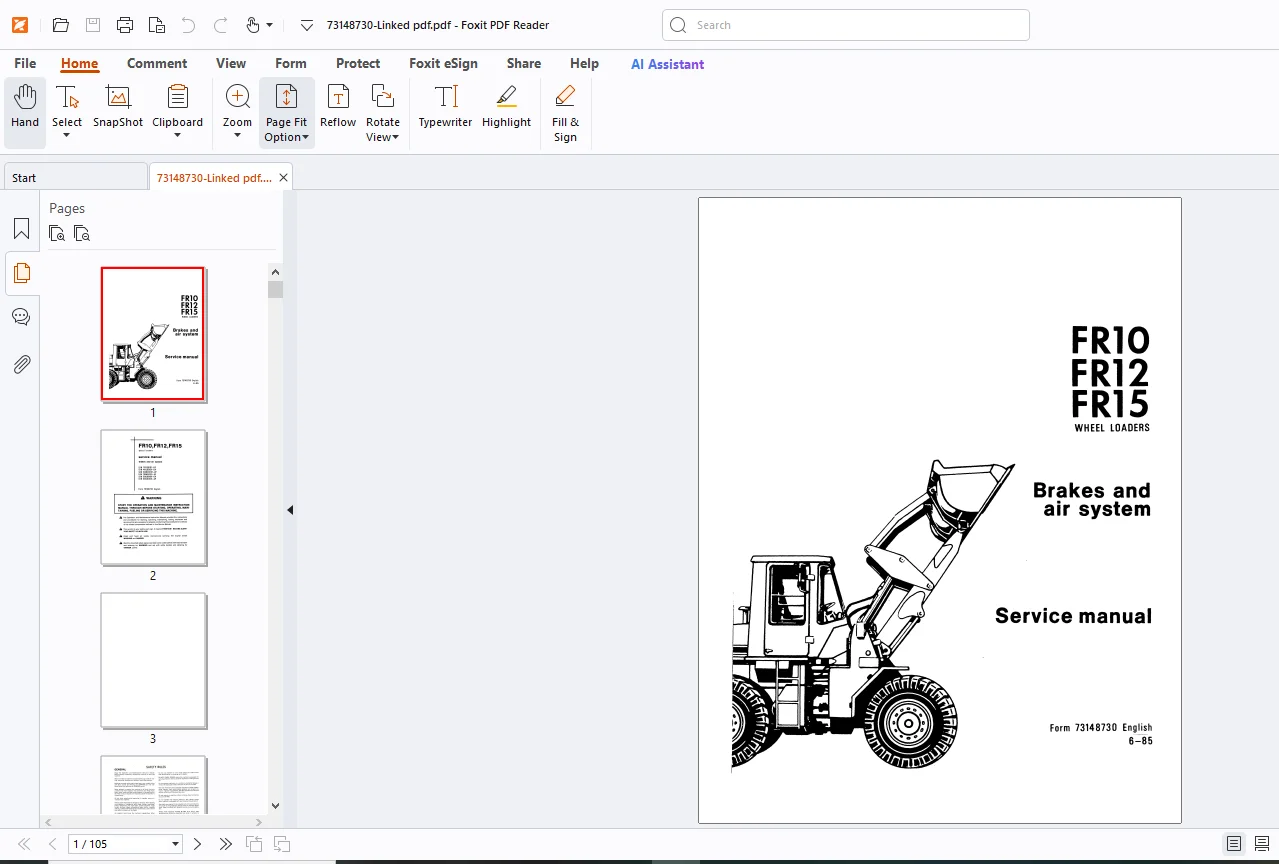

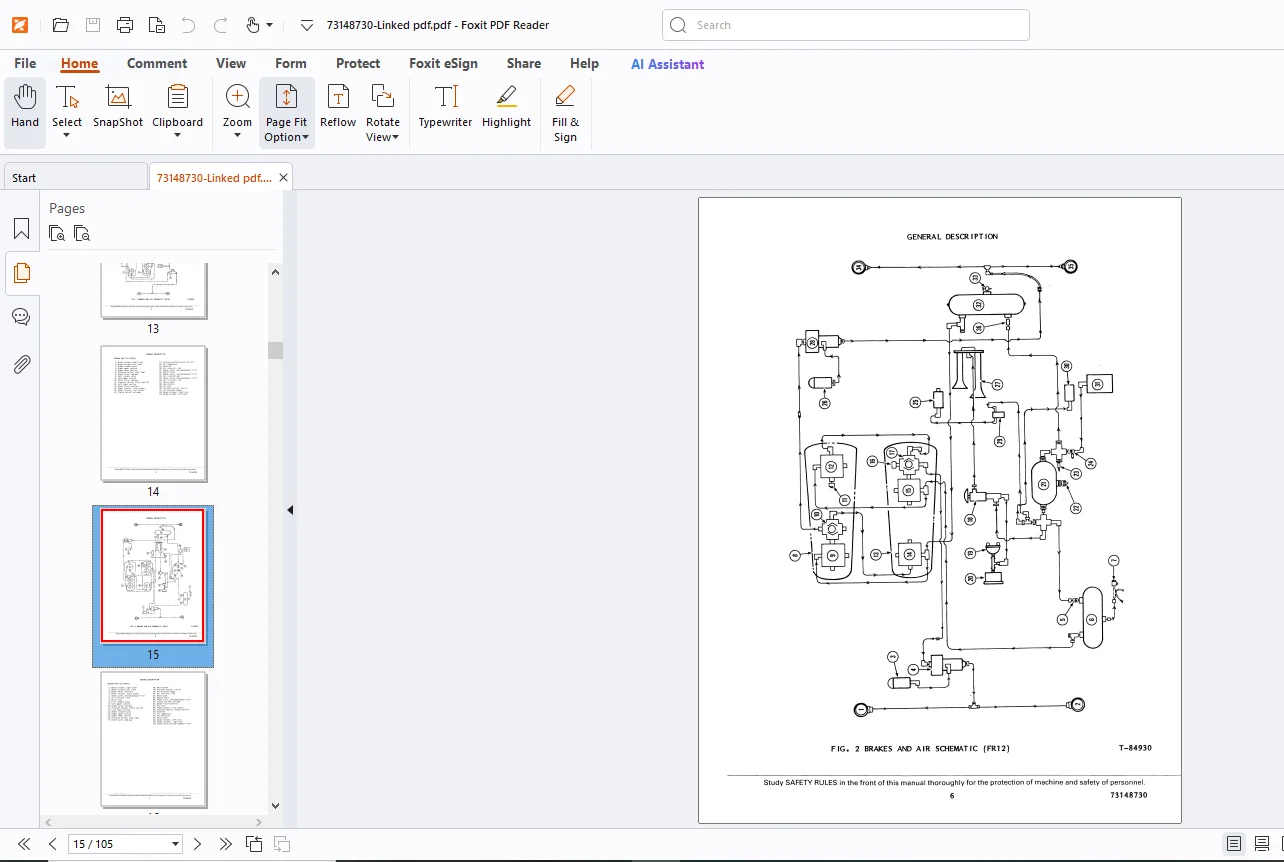

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FR10 FR12 FR15 Wheel Loader Brakes & Air System Engine Service Manual – PDF DOWNLOAD

FN 73148730

Safety Rules 4
Foreword 10
Table of Contents 11
Topic 1 – General Description 12
Topic 2 – Troubleshooting 19
Topic 3 – Air Compressor (FR10 & FR12) 22
Topic 4 – Air Compressor (FR15) 31
Topic 5 – Governor & Unloader Valve 35
Topic 6 – Air Tanks 41
Topic 8 – Valves 46
Topic 9 – Air Application Valve 48
Topic 10 – Power Cluster (FR10, FR12, & FR15) 53
Topic 11 – Pressure Converter (FR15) 62
Topic 12 – Service Brakes 70
Topic 13 – Bleeding Brake System 81
Topic 14 – Alcohol Injector 83
Topic 15 – Air Pressure Gauge 86
Topic 16 – Air Horn 87
Topic 17 – Low Air Pressure & Brake Light Switch 90
Topic 18 – Parking Brake 91
Topic 19 – Clutch Cut-Off 95
Topic 20 – Unloader Valve & Schematics 96
Topic 21 – Tests 101

DESCRIPTION:

Fiatallis FR10 FR12 FR15 Wheel Loader Brakes & Air System Engine Service Manual – PDF DOWNLOAD

FN 73148730

SAFETY:

GENERAL:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine.
• Read and heed all machine-mounted safety signs before star ting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate, service or maintain this machine.
• Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, overhangs, timber, demolitions, fire, high walls, dropoff, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas.
• Use extreme care when in areas such as these An operator must know the machine’s capabilities. When working on slopes or near dropoffs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of con Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps, grab rails and handles at all times.
• Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material For your personal protection, do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running.
• Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shutdown procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason.
• Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned, or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job.
• Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equipment requirements. Do not carry loose objects in pockets that might fall unnoticed into open compartments
