Fiatallis FR 10 FR 12 Wheel Loader Service Manual – PDF

Description

Fiatallis FR 10 FR 12 Wheel Loader Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FR 10 FR 12 Wheel Loader Service Manual – PDF DOWNLOAD

FN 73145530

Language : English
Pages : 98
Downloadable : Yes
File Type : PDF

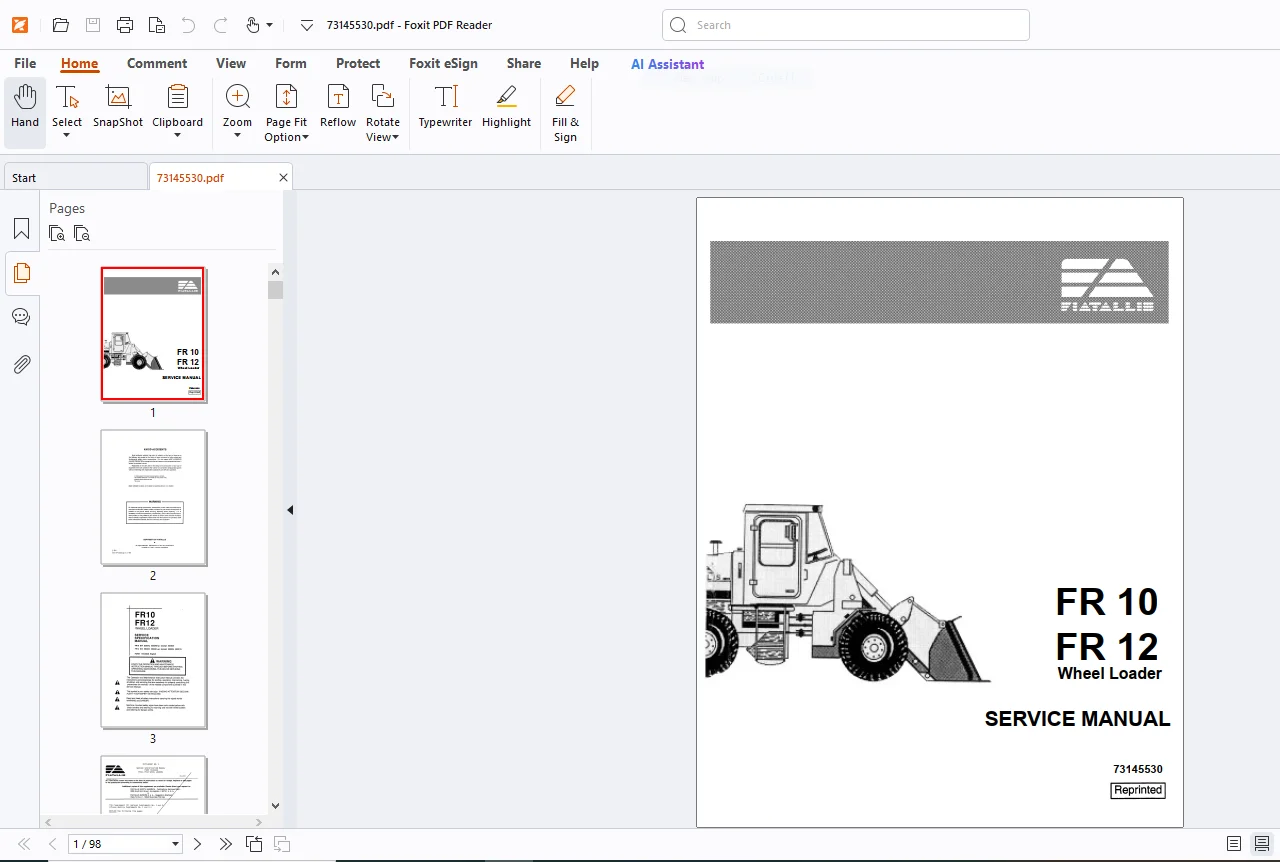

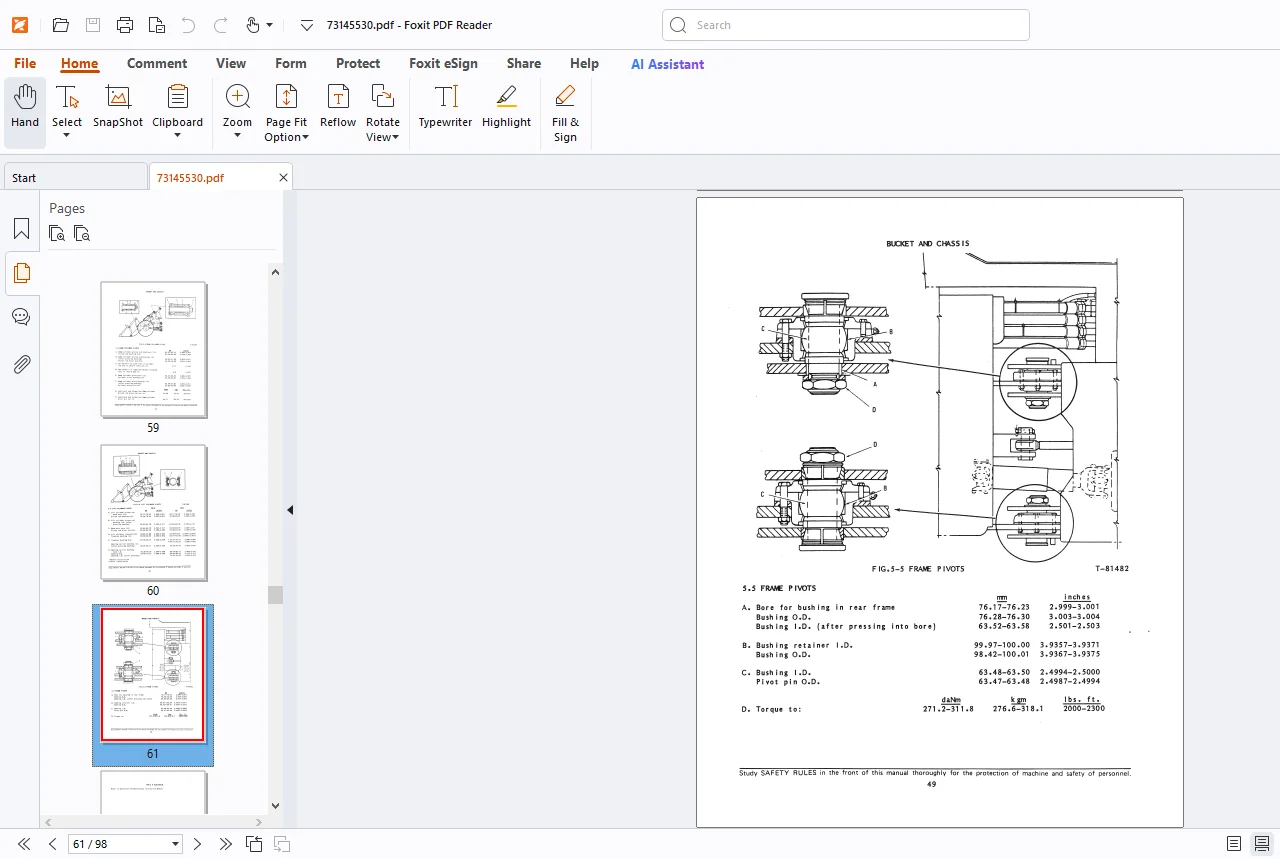

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FR 10 FR 12 Wheel Loader Service Manual – PDF DOWNLOAD

FN 73145530

1. GENERAL MACHINE DATA
   1.1 Model Identification
2. Engine
   2.1 Fuel Injection
   2.2 Fan
   2.3 Cooling
   2.4 Air Cleaner
3. Power Train
   3.1 Torque Converter
   3.2 Transmission
   3.3 Transmission Pump
   3.3.1 Oil Pressure
   3.4 Axle Assemblies, Front and Rear
   3.4.1 Differential Carrier, Front and Rear
   3.5 Tires
   3.6 Maximum Speeds with Standard Tires
   3.7 Wheel Brakes, Front and Rear
   3.8 Compressor, Air
   3.9 Parking Brake
4. Implement and Steering Hydraulics
   4.1 Hydraulic Tank
   4.2 Implement and Steering Pump
   4.3 Implement Control Valve
   4.4 Implement Relief Valve Pressures
   4.5 Secondary Priority Valve
   4.6 Implement Cylinders
   4.7 Main Priority Valve
   4.8 Crossover Relief Valve
   4.9 Implement Response Time
5. Electrical
6. Capacities (Approximate Refill)
7. Axle Weights
8. Performance Data
9. Overall Dimensions
10. Lubrication Specifications
    10.1 Engine
    10.2 Cylinder Sleeve and Piston
    10.3 Engine Block Bore & Cylinder Sleeve
    10.4 Piston, Piston Rings and Piston Pin
    10.5 Connecting Rod, Rod Bushing, and Piston Pin
    10.6 Connecting Rod Parallelism
    10.7 Crankshaft Main Bearings and Connecting Rod Journals
    10.8 Camshaft Housing, Bushings and Journals
    10.9 Valve Lifter and Lifter Housing Bore
    10.10 Valves, Seats and Guides
    10.11 Cylinder Head Torquing Sequence
    10.12 Rocker Arm Shaft, Supports and Rocker Arms
    10.13 Special Torque Values
    10.14 Standard Engine Torque Data
11. Implement and Steering Hydraulics
    11.1 Lift Cylinder
    11.2 Dump Cylinder
    11.3 Steering Cylinder
    11.4 Lift/Dump Cylinder Repair
    11.5 Troubleshooting and Testing
    11.6 Hydraulic Fittings, Hoses, and Tubing
    11.7 Implement and Steering Pump
12. Bucket and Chassis
    12.1 Bucket Pivots
    12.2 Boom Pivots
    12.3 Dump Cylinder Pivots
    12.4 Lift Cylinder Pivots
    12.5 Frame Pivots
13. Torque Converter and Transmission
    13.1 Oil Flow Schematic Explanations
    13.2 Torque Converter
    13.3 Converter Drive
    13.4 Implement Pump Drive
    13.5 Transmission Housing
    13.6 Transmission Output Drives
    13.7 Clutches, Forward and First Range
    13.8 Clutches, Reverse and Second Range
    13.9 Clutches, Third and Fourth Range
    13.10 Transmission Control Valve
14. Brakes and Air
    14.1 Air System Schematic
    14.2 Brake Booster (Front & Rear)
    14.3 Automatic Air Drain Valve and Brake Reservoir
    14.4 Service Brake Head Assembly
    14.5 Dual Air Application (Treadle) Valve
15. Axle Specifications
    15.1 General
    15.2 Planetary Axle Ends
    15.3 Differential
    15.4 Service Tools
16. Schematics, Steering, Transmission

DESCRIPTION:

Fiatallis FR 10 FR 12 Wheel Loader Service Manual – PDF DOWNLOAD

FN 73145530

GENERAL:

SAFETY RULES:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine.
• Read and heed all machine-mounted safety signs before star sing, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow
  with black border and lettering for WARNING and red with white border and lettering for DANGER points
  Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat.
• Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate, service or maintain this machine.
• Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, overhangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these
  An operator must know the machine’s capabilities. When working on slopes or near dropoffs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps, grab rails and handles at all times.
• Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material
• For your personal protection, do not attempt to climb on or off machine while machine is in motion,
  Never leave the machine unattended with the engine running.
• Always lock up machine when leaving it unattended. Return keys to authorized security, Head at shutdown procedures of the Operation and Maintenance instruction Manual. Always set the parking brake when leaving the machine for any reason,
• Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, tom clothing, scarves, unbuttoned, or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equipment requirements.
• Do not carry loose objects in pockets that might fall unnoticed into open compartments.

G.B 28/03/25
