Fiatallis FR 10 FR 12 FR 15 Wheel Loader Service Manual – PDF

Description

Fiatallis FR 10 FR 12 FR 15 Wheel Loader(Bucket & Chassis)Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FR 10 FR 12 FR 15 Wheel Loader(Bucket & Chassis) Service Manual – PDF DOWNLOAD

FN 73149162

Language : English
Pages : 68
Downloadable : Yes
File Type : PDF

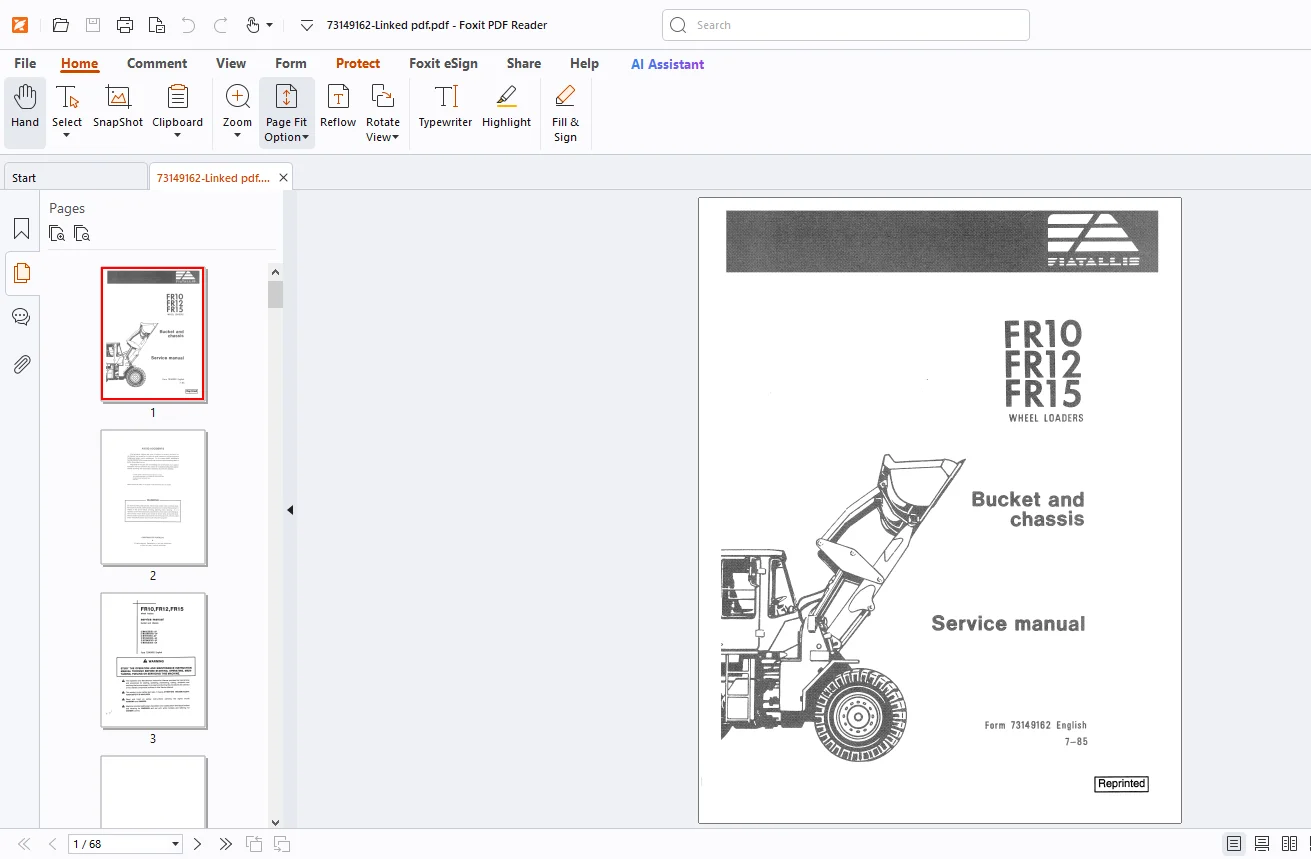

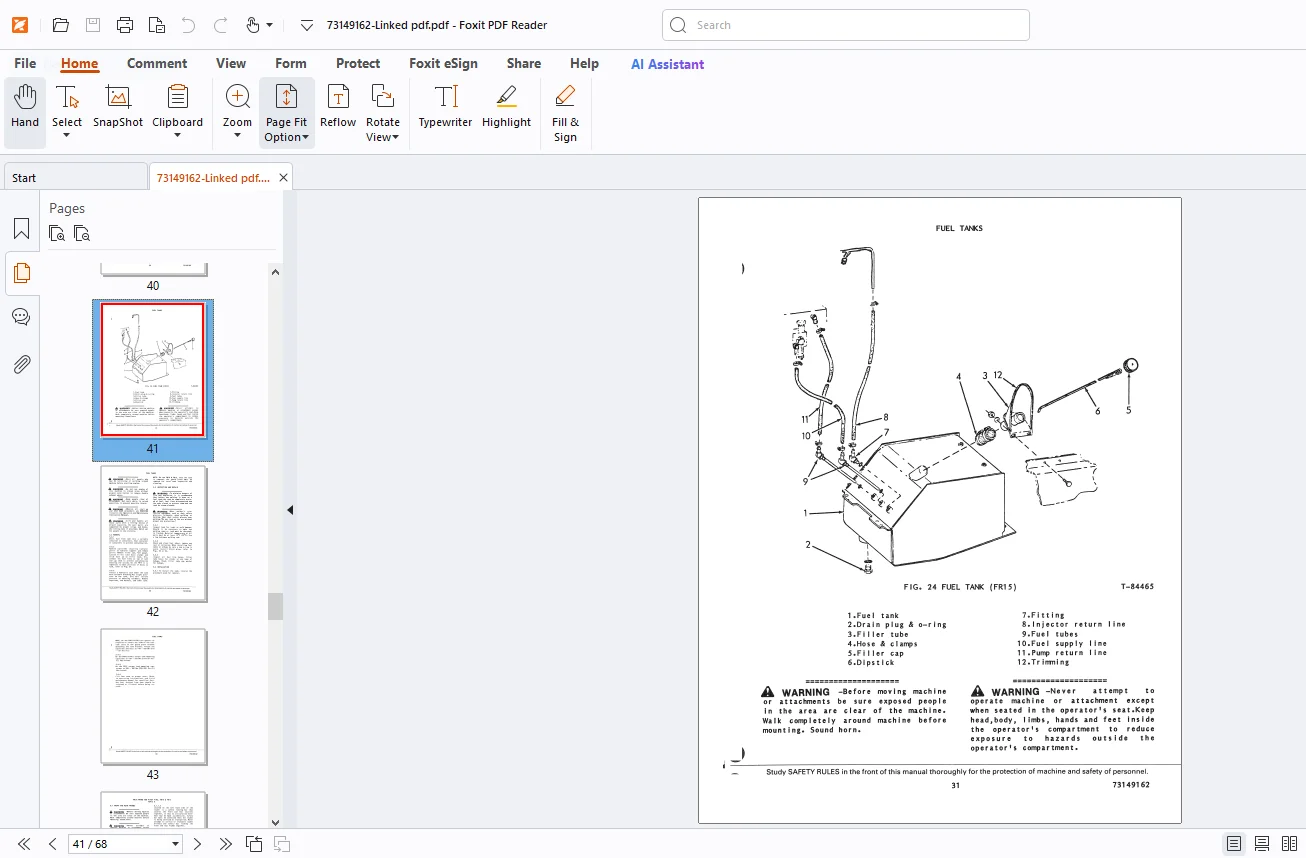

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FR 10 FR 12 FR 15 Wheel Loader(Bucket & Chassis) Service Manual – PDF DOWNLOAD

FN 73149162

Safety Rules 5
Foreword 11
Table of Contents 12
Topic 1 – General Description 13
Topic 2 – Bucket & Linkage 19
Topic 3 – Fenders, Ladder, Hood, Side Panels and Hand Rails 29
Topic 4 – Platform and Seat Assembly 35
Topic 5 – Fuel Tanks 40
Topic 6 – Main Frame and Pivot Pins, Fr10 & FR 12 44
Topic 7 – Main Frame and Pivot Pins, Fr15 51
Topic 8 – Linkage Wear Limits 55
Topic 9 – Rops Cab 57
Topic 10 – Multi-Purpose Bucket (Special Equipment) 63

DESCRIPTION:

Fiatallis FR 10 FR 12 FR 15 Wheel Loader(Bucket & Chassis) Service Manual – PDF DOWNLOAD

FN 73149162

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine.
• Read and heed all machine-mounted safety signs before star ting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate, service or maintain this machine.
• Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, overhangs timber, demolitions, fire, high walls, dropoff, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these
  An operator must know the machine’s capabilities.
• When working on slopes or near dropoffs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control
• Do not jump on or off machine. Keep two hands and one foot or two feet and one hand, in contact with steps, grab rails and handles at all times.
• Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material
• For your personal protection, do not attempt to climb on or off machine while machine is in motion,
  Never leave the machine unattended with the engine running.
• Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shutdown procedures of the Operation and Maintenance Instruction Manual Always set the parking brake when leaving the machine for any reason.
• Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned, or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equipment requirements.
