Fiatallis FL7 FD7 Crawler Dozer Service Manual – PDF

Description

Fiatallis FL7 FD7 Crawler Dozer Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FL7 FD7 Crawler Dozer Service Manual – PDF DOWNLOAD

FN 60406191

Language : English
Pages : 60
Downloadable : Yes
File Type : PDF

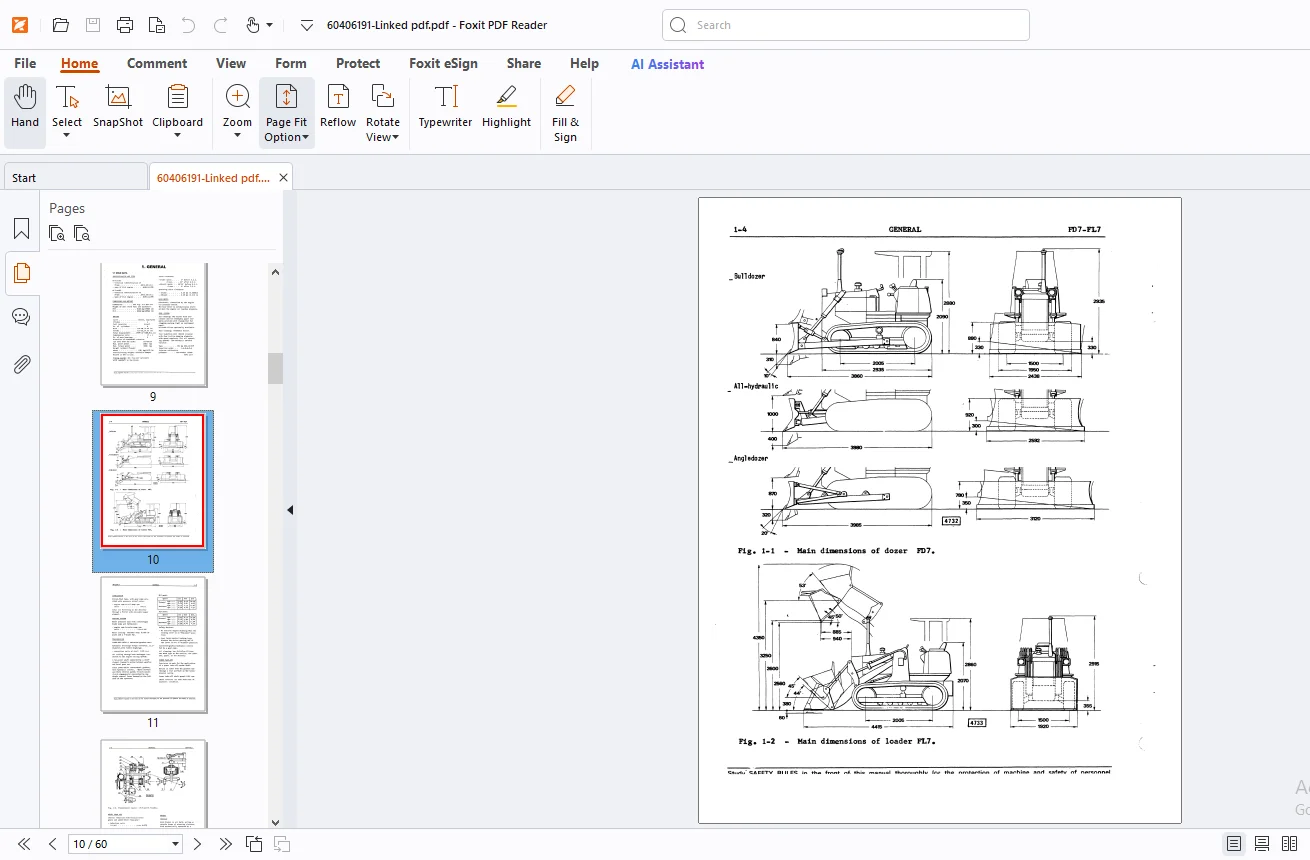

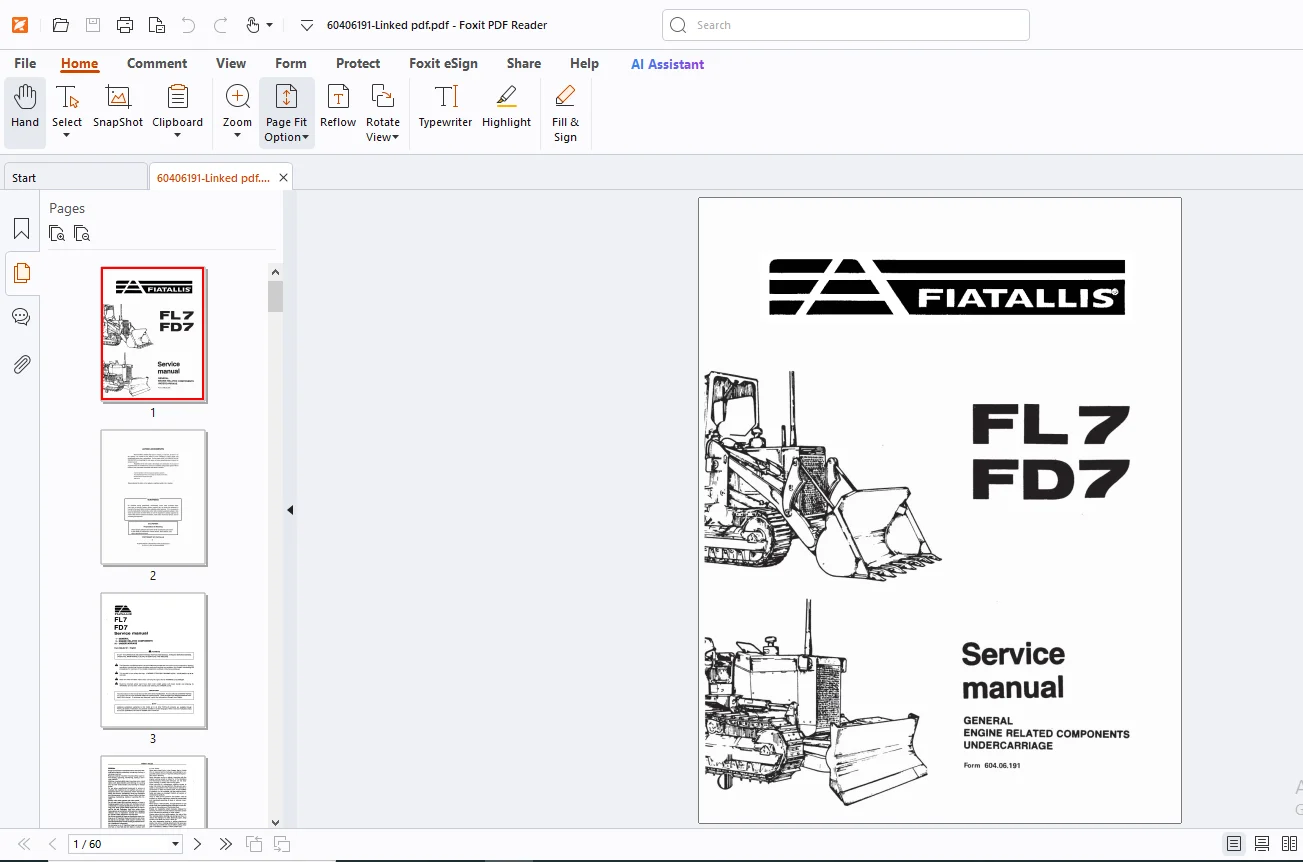

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FL7 FD7 Crawler Dozer Service Manual – PDF DOWNLOAD

FN 60406191

Table of Contents 7
1 General 9
2 Engine Related Components 25
10 Undercarriage 31

DESCRIPTION:

Fiatallis FL7 FD7 Crawler Dozer Service Manual – PDF DOWNLOAD

FN 60406191

GENERAL:

SAFETY RULES:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling.or servising machine.
• Read and heed all machine-mounted safety signs be- fore starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black borders and lettering for warning and red with white borders and lettering for danger points
• Do not allow unauthorized personnel to service or maintain this machine. Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting. operating, maintaining, fueling or servicing this ma chine.
• Always wear safety glasses with side shields. Do not wear rings, wrist watches, jewelry, or loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vest, or respirators. Consult your employer for specific safety equipment requirements.
• Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls may also be inadvertently moved causing accidental machine or equipment movement.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with stops and grabrais and handles at all times.
• Machine should not be serviced with anyone in the operator’s seat unless they are qualified to operate the machine and are assisting in the servicing. Keep operator’s compartment, stepping points, grab- rails and handles clean of foreign objects, oil, grease, mud or snow accumulation to minimize the danger ger of
  Clean mud org hine slipping or stumbling. Count or operate the machine before attempting to or grease from shoes Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat. Keep operator’s compartment clear of loose objects.
• If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, do not raise or lower attachments from any position other than when seated in the operator’s seat. Before starting machine or moving attachment or tool. make sure to set brakes, sound horn and call for an all clear. Raise attachment slowly.
• Always block with external support any linkage, parts, or machine according to local or national requirements. Never allow anyone to walk under or be near unblo cked raised equipment.

G.B 27/03/25
