Fiatallis FL 20 Crawler Loader Service Manual – PDF

Description

Fiatallis FL 20 Crawler Loader Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FL 20 Crawler Loader Service Manual – PDF DOWNLOAD

FN 60406315

Language : English
Pages : 54
Downloadable : Yes
File Type : PDF

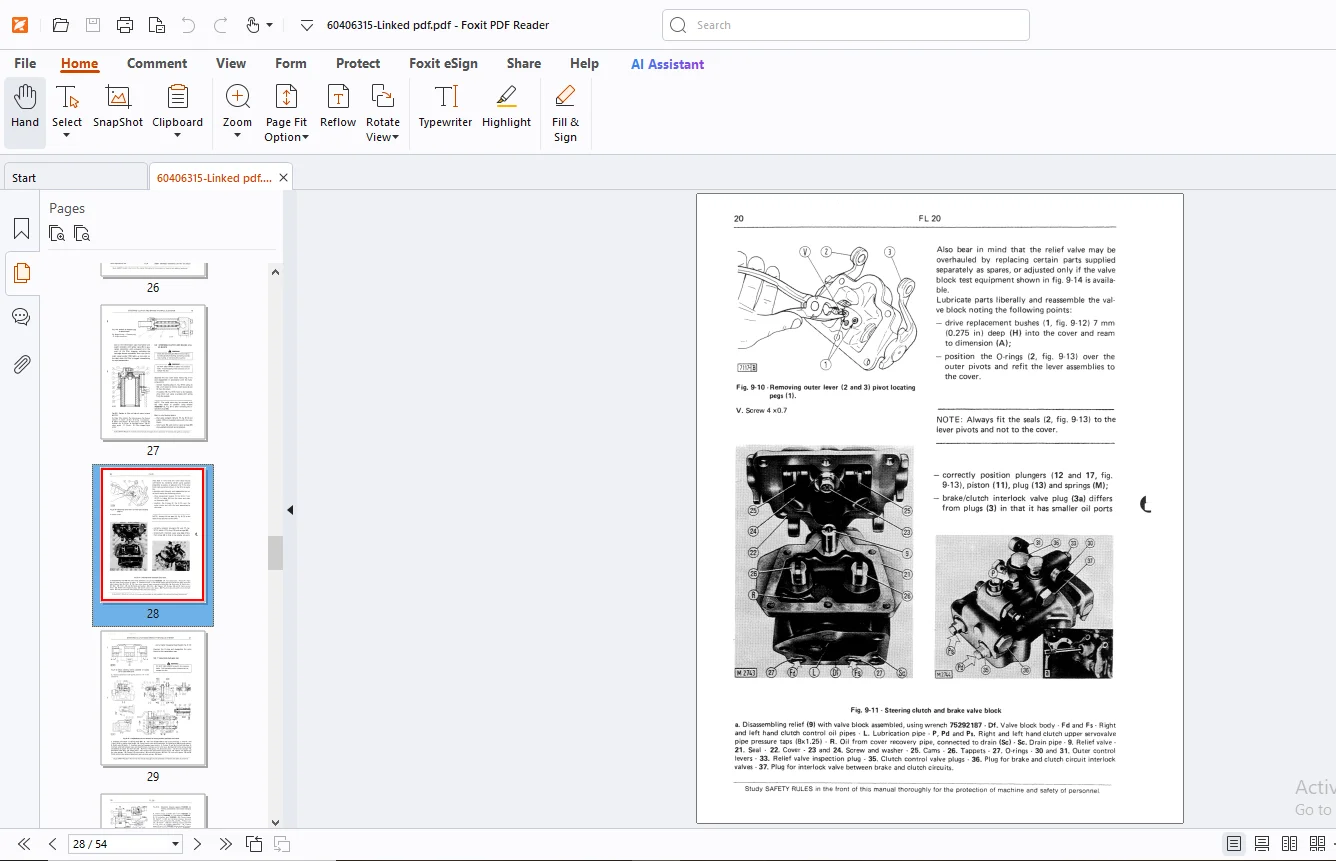

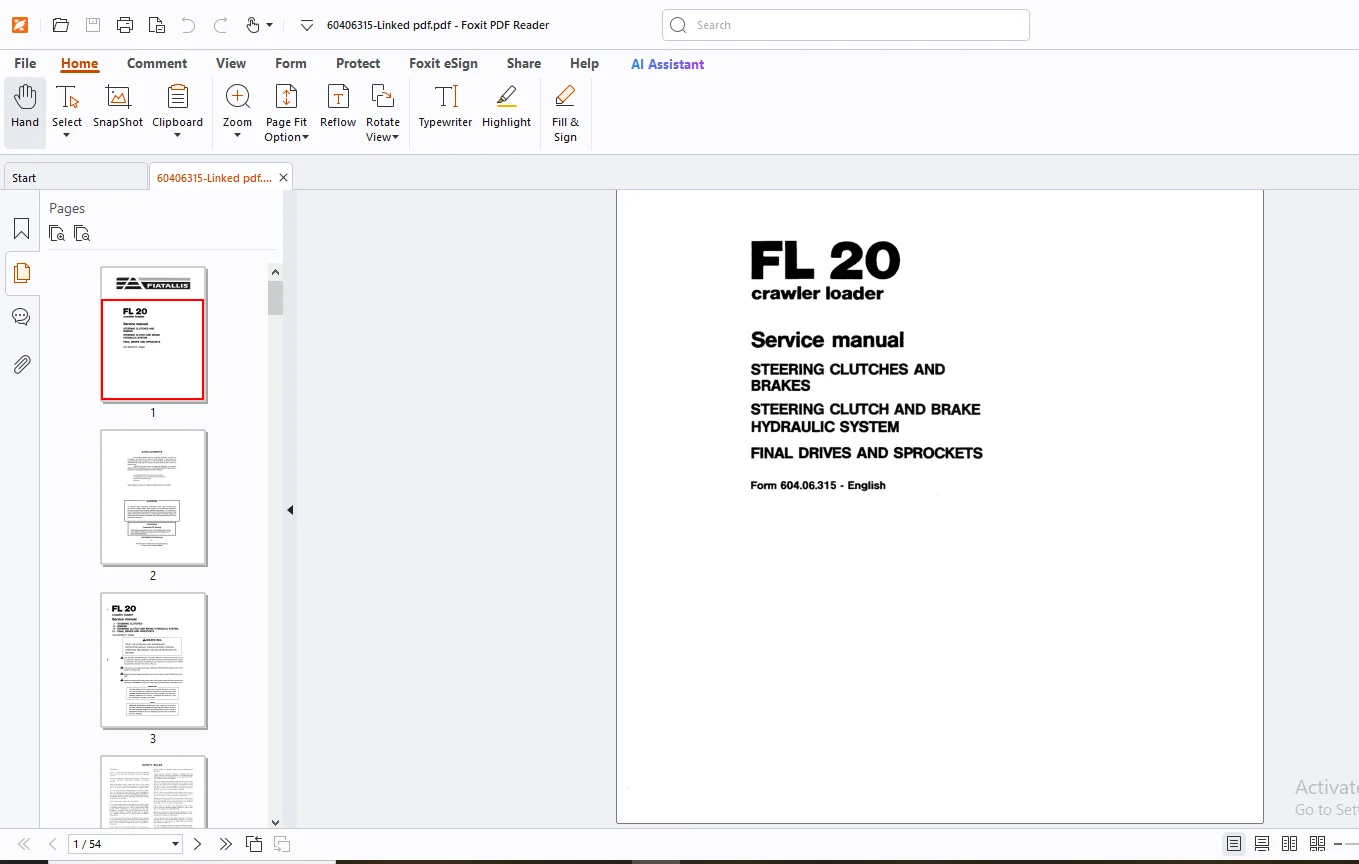

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FL 20 Crawler Loader Service Manual – PDF DOWNLOAD

FN 60406315

7 Steering Clutches 7
8 Brakes 15
9 Steering Clutch and Brake Hydraulic System 19
10 Final Drive and Sprockets 39

DESCRIPTION:

Fiatallis FL 20 Crawler Loader Service Manual – PDF DOWNLOAD

FN 60406315

GENERAL:

SAFETY RULES:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine Read and heed all machine mounted safety signs before starting operating. maintaining. fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black borders and lettering for warning and red with white borders and lettering for danger points. Do not allow unauthorized personnel to service or maintain this machine.
• Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling or servicing this machine. Always wear safety glasses with side shields.
• Do not wear rings, wrist watches, jewelry, or loose or hang ing apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators.
• Consult your employer for specific safety equipment requirements Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls may also be inadvert ently moved causing accidental machine or equipment movement Do not jump on or off machine.
• Keep two hands and one foot, or two feet and one hand, in contact with steps and grab-rails and handles at all times. Machine should not be serviced with anyone in the opera tor’s seat unless they are qualified to operate the machine and are assisting in the servicing.
• Keep operator’s compartment, stepping points, grab-rails and handles clean of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempt- ing to mount or operate the machine.
• Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat Keep operator’s compartment clear of loose objects. If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, do not raise or lower attachments from any position other than when seated in the operator’s seat.
• Before starting machine or moving attachment or tool, make sure to set brakes, sound horn and call for an all clear. Raise attach ment slowly Always block with external support any linkage or part on machine that requires work under the raised linkage, parts, or machine according to local or national requirements.
• Never allow anyone to walk under or be near unblocked raised equipment. Avoid working or walking under raised blocked equipment unless you are assured of your safety. Never place head, body, limbs, fingers, feet or hands into an exposed portion between uncontrolled or unguarded
