Fiatallis FL 20 Crawler Loader Technical Service Manual PDF Download

Description

Fiatallis FL 20 Crawler Loader(Undercarriage Equipment)Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FL 20 Crawler Loader(Undercarriage Equipment)Service Manual – PDF DOWNLOAD

FN 60406109

Language : English
Pages : 80
Downloadable : Yes
File Type : PDF

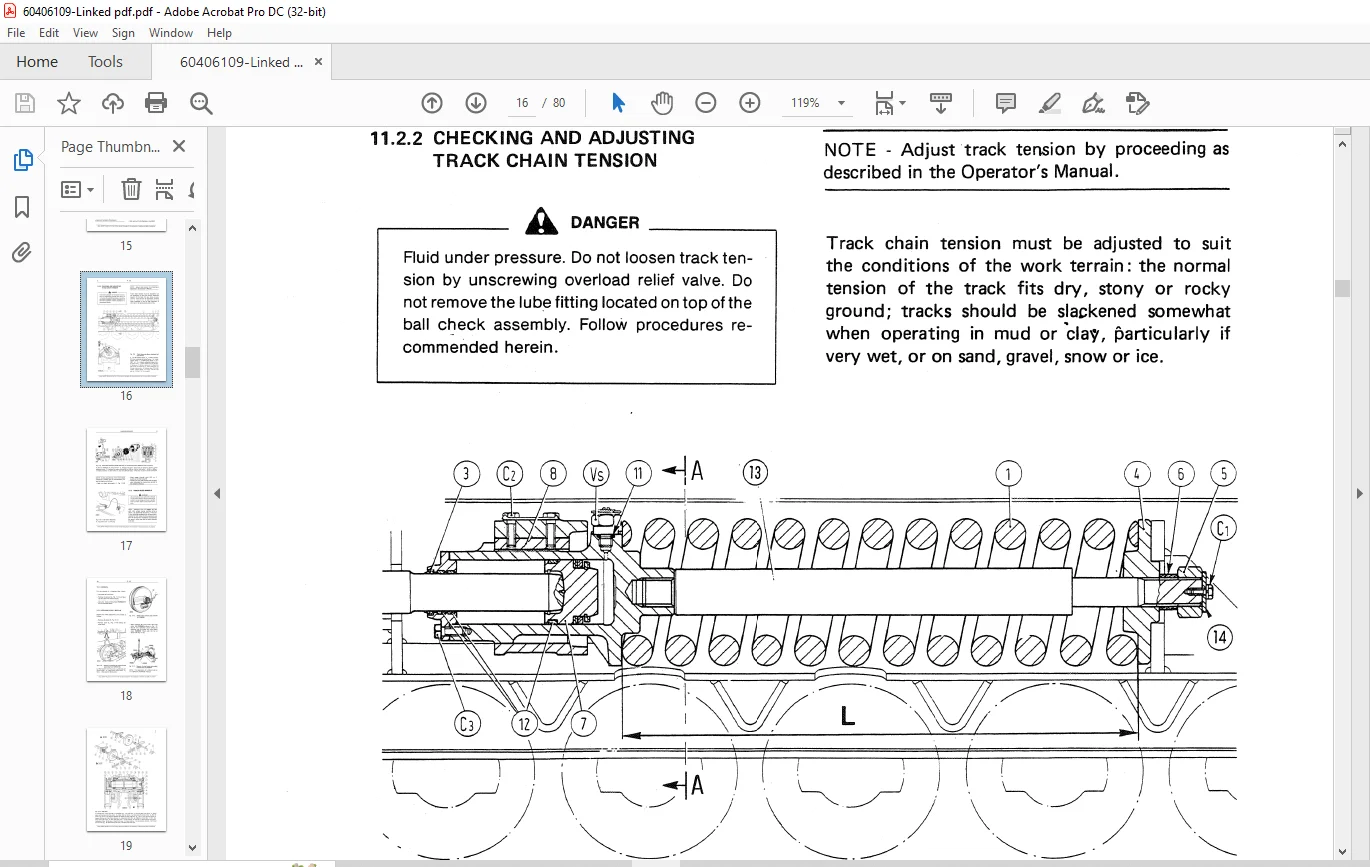

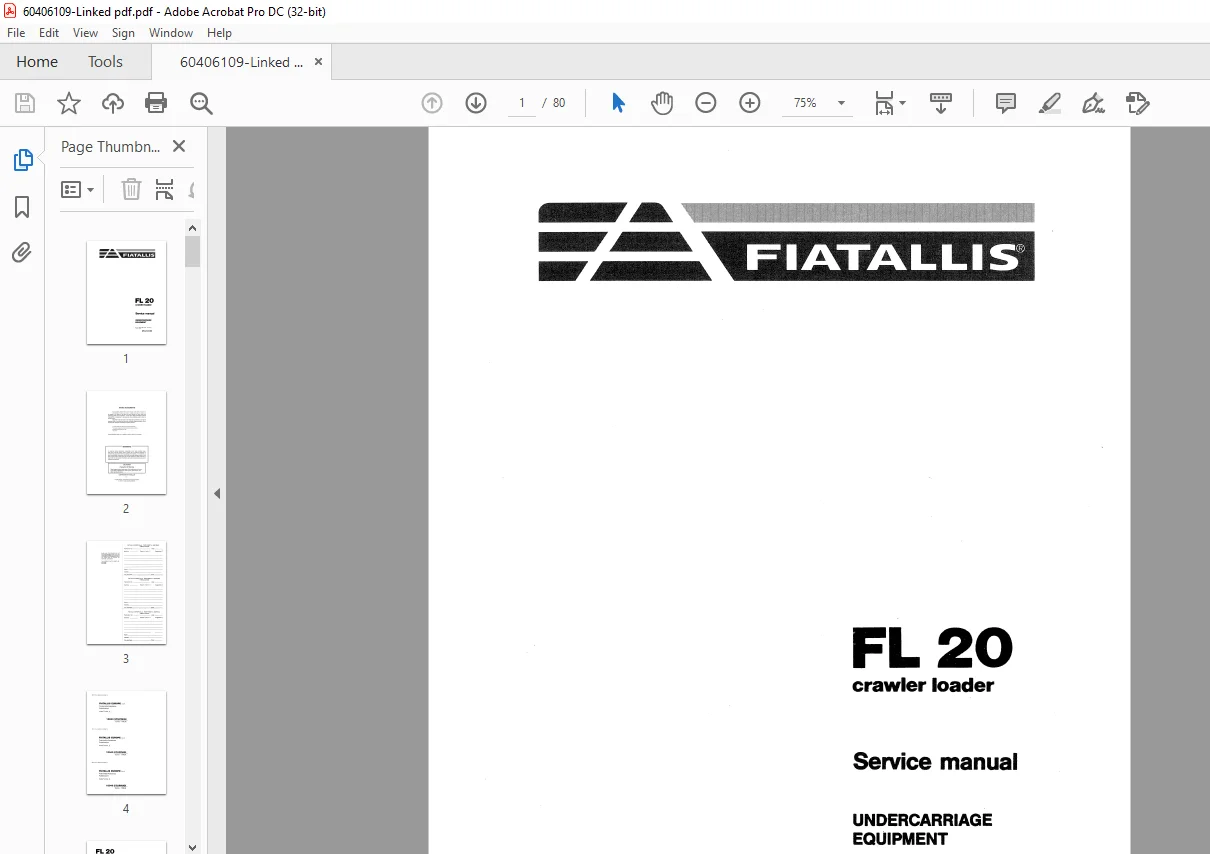

IMAGES PREVIEW OF THE MANUAL:

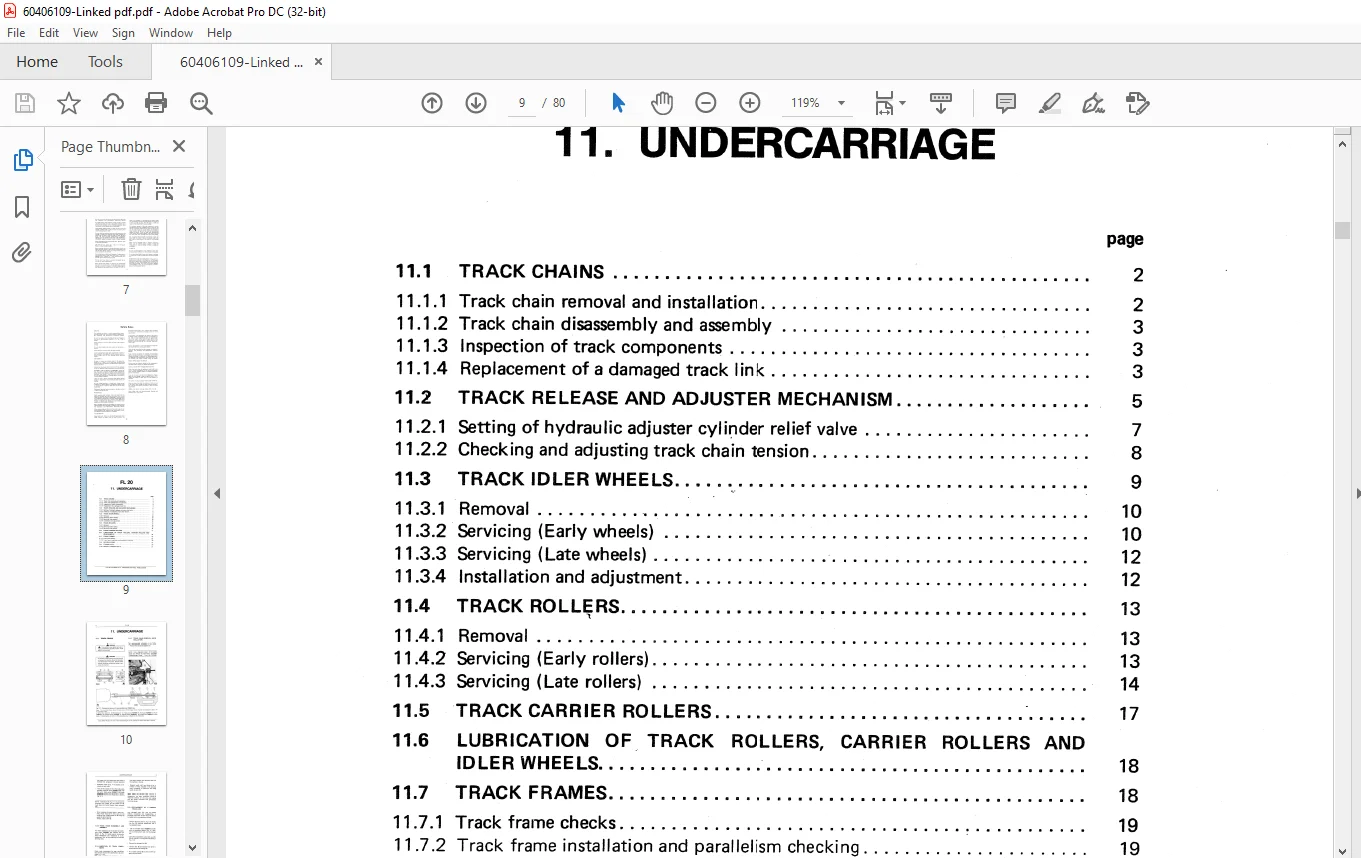

TABLE OF CONTENTS:

Fiatallis FL 20 Crawler Loader(Undercarriage Equipment)Service Manual – PDF DOWNLOAD

FN 60406109

11. Undercarriage

Page 2

• 11.1 Track Chains

  • 11.1.1 Track Chain Removal and Installation
  • 11.1.2 Track Chain Disassembly and Assembly
  • 11.1.3 Inspection of Track Components
  • 11.1.4 Replacement of a Damaged Track Link
• 11.2 Track Release and Adjuster Mechanism
  • 11.2.1 Setting of Hydraulic Adjuster Cylinder Relief Valve
  • 11.2.2 Checking and Adjusting Track Chain Tension

• 11.3 Track Idler Wheels

  • 11.3.1 Removal
  • 11.3.2 Servicing (Early Wheels)
  • 11.3.3 Servicing (Late Wheels)
  • 11.3.4 Installation and Adjustment

• 11.4 Track Rollers

  • 11.4.1 Removal
  • 11.4.2 Servicing (Early Rollers)
  • 11.4.3 Servicing (Late Rollers)
• 11.5 Track Carrier Rollers

• 11.6 Lubrication of Track Rollers, Carrier Rollers, and Idler Wheels

• 11.7 Track Frames

  • 11.7.1 Track Frame Checks
  • 11.7.2 Track Frame Installation and Parallelism Checking
• 11.8 Specifications
• 11.9 Torque Data
• 11.10 Special Purpose Tools

12. Loader Hydraulic System

Page 30

• 12.1 Description and Operation

  • 12.1.1 Control Valve
  • 12.1.2 Hydraulic Bucket Positioner
  • 12.1.3 Hydraulic Pump
  • 12.1.4 Hydraulic Boom Lift Kick-Out and Quick Lower Valve

• 12.2 Hydraulic Oil Tank and Oil Filters

  • 12.2.1 Filters
  • 12.2.2 Tank Removal
• 12.3 Hydraulic Pump
  • 12.3.1 Removal
  • 12.3.2 Pump Drive Overhaul
  • 12.3.3 Pump Overhaul
  • 12.3.4 Output Test

• 12.4 Control Valve

  • 12.4.1 Removal
  • 12.4.2 Disassembly and Overhaul
  • 12.4.3 Assembly
  • 12.4.4 Control Valve Hydraulic Bench Test
  • 12.4.5 On-Machine Pressure Relief Valve Check and Adjustment

• 12.5 Hydraulic Boom Lift Kick-Out and Quick Lower Valve

  • 12.5.1 Valve Block
  • 12.5.2 Hydraulic Boom Lift Kick-Out
  • 12.5.3 Overhaul
  • 12.5.4 Adjustment
• 12.6 Hydraulic Bucket Positioner
  • 12.6.1 Overhaul
  • 12.6.2 Bucket Cutting Edge Penetration Angle Adjustment
• 12.7 Bucket and Linkage
  • 12.7.1 Removal
• **12.8 Single Lever Control
• 12.9 Lift and Dump Cylinders
• 12.10 Ripper
• 12.11 Trouble-shooting
  • 12.11.1 Trouble, Causes, and Remedy
  • 12.11.2 Loader Performance Check
  • 12.11.3 Loader Control Test
  • 12.11.4 On-Machine Pilot Valve Check and Adjustment
• 12.12 Specifications and Data
• 12.13 Torque Specifications
• 12.14 Service Tools

DESCRIPTION:

Fiatallis FL 20 Crawler Loader(Undercarriage Equipment)Service Manual – PDF DOWNLOAD

FN 60406109

GENERAL:

• Study the Operation and Maintenance Instruction Manual before starting, uperating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black borders and lettering for warning and red with white borders and lettering for danger points. Do not allow unauthorized personnel to service or main- tain this machine. Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures.
• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling or servicing this machine. Always wear safety glasses with side shields. Do not wear rings, wrist watches, jewelry, or loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts.
• Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respiratoes. Consult your employer for specific safety equipment requirements. Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
• Controls may also be inadvertently moved causing accidental machine or equipment movement Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps and grab-rails and handles at all times. Machine should not be serviced with anyone in the opera- tor’s seat unless they are qualified to operate the machine and are assisting in the servicing.
• Keep operator’s compartment, stepping points, grab-rails and handles clean of foreign objects, o, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat. Keep operator’s compartment clear of loose objects. If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, do not raise or lower attachments from any position other than when seated in the operator’s seat.
• Before starting machine or moving attachment or tool, make sure to set brakes, sound horn and call for an all clear. Raise attachment slowly. Always block with external support any linkage or part on machine that requires work under the raised linkage, parts, or machine according to local or national requirements.
• Never allow anyone to walk under or be near unblocked. raised equipment. Avoid working or walking under raised blocked equipment unless you are assured of your safety.

G.B 26/03/25
