Fiatallis FH200 Hydraulic Excavator Service Manual – PDF

Description

Fiatallis FH200 Hydraulic Excavator Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FH200 Hydraulic Excavator Service Manual – PDF DOWNLOAD

FN 73158520

Language : English
Pages : 796
Downloadable : Yes
File Type : PDF

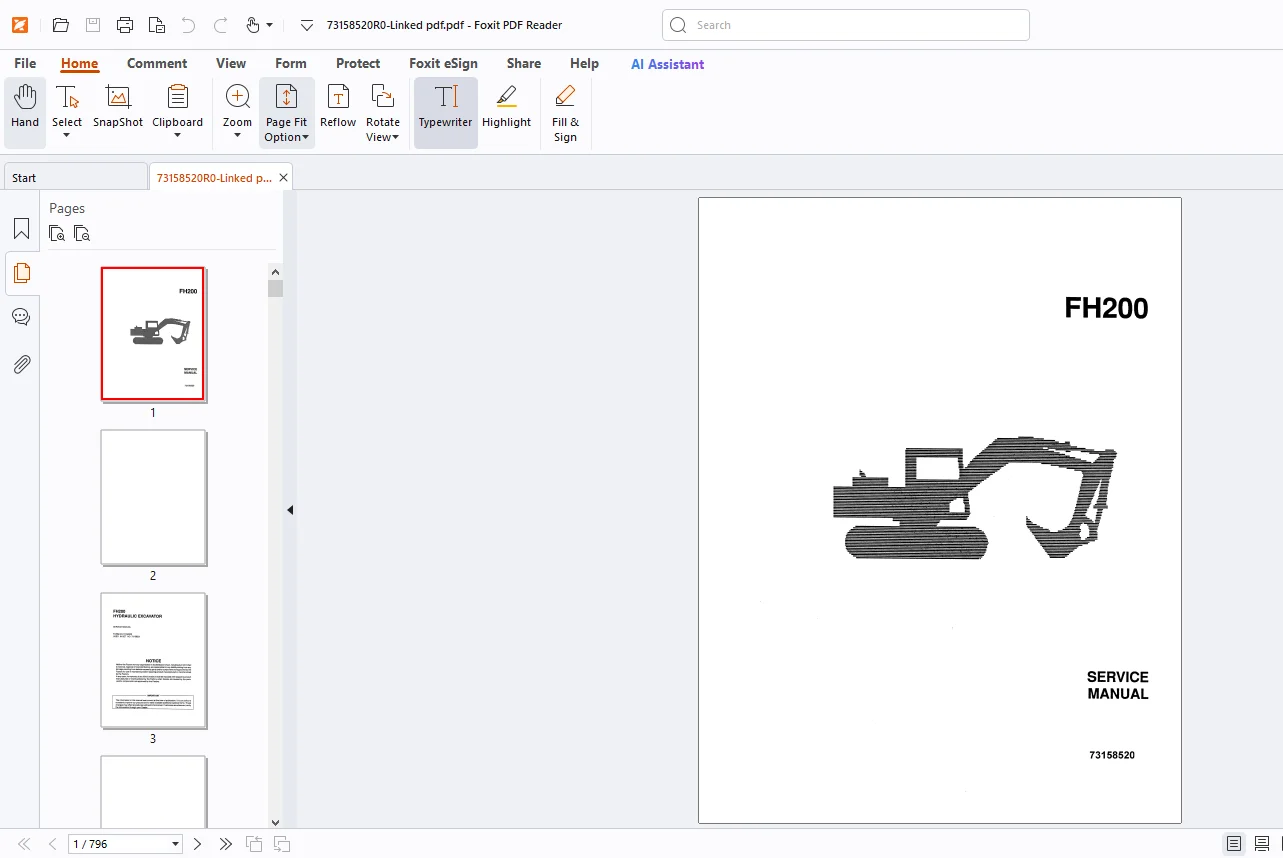

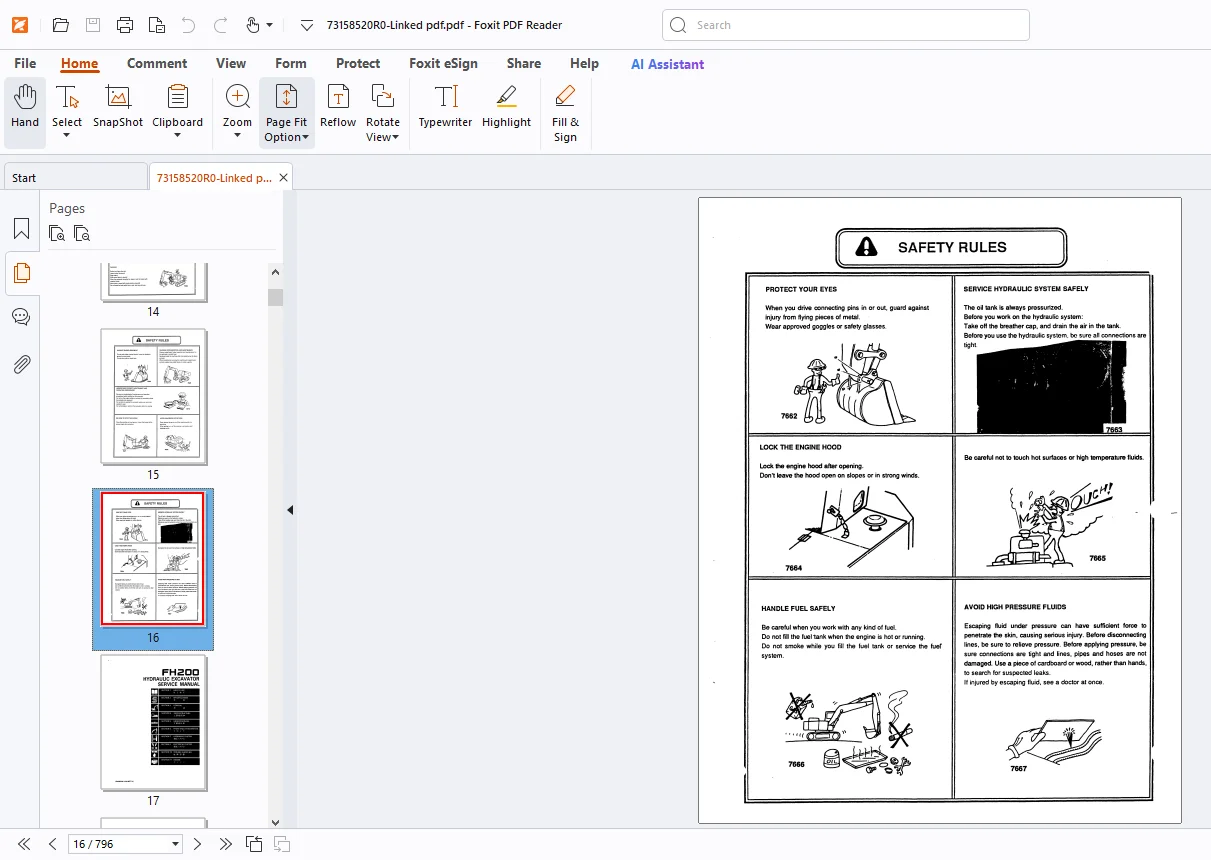

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FH200 Hydraulic Excavator Service Manual – PDF DOWNLOAD

FN 73158520

Table of Contents 17
Section 1 – How to Use 19
Section 2 – Specifications 29
Section 3 – General 35
Section 4 – Superstructure 69
Section 5 – Undercarriage 369
Section 6 – Front-End Attachments 505
Section 7 – Hydraulic System 549
Section 9 – Electrical 615
Section 10 – Troubleshooting 667
Section 11 – Engine Related Components 767

DESCRIPTION:

Fiatallis FH200 Hydraulic Excavator Service Manual – PDF DOWNLOAD

FN 73158520

GENERAL:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling. or servicing machine.
• Read and head all machine-mounted safety signs be fore starting, operating, maintaining, fueling or servicing machine Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate, service or maintain this machine. Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, overhangs, timber demolitions, fire, high walls, drop-offs, back fils, rough terrain, dinches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas.
• Use extreme care when in areas such as these. Never exceed the lifting capacity of the machine. An operator must know the machine’s capabilities. When working on slones or near drop-offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Be careful when the sprocket is under the cab; the direction of movement of the transport levers will be opposite of direction of machine movement.
• Know the working range of the machine. Always check height, width and weight restrictions in the working area, and be sure the machine will not exceed these limitations. Provide clearance for rear super-structure swing by barricading area to discourage entry. Use recommended buckets for machine, taking into ac count weight of material, load ability and heaping characteristics of material, terrain and other pertinent job factors.
• When counterweights have been provided, do not work machine if they have been removed. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps, grab rails and handles at all times. Do not use controls or hoses as handholds when clim- bing on or off machine.
• Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental ma chine or equipment movement Keep operator’s compartment stepping points.
