Fiatallis FD40 Crawler Tractor Cab Service Manual- PDF

Description

Fiatallis FD40 Crawler Tractor Cab Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FD40 Crawler Tractor Cab Service Manual – PDF DOWNLOAD

FN 73149519

Language : English
Pages : 64
Downloadable : Yes
File Type : PDF

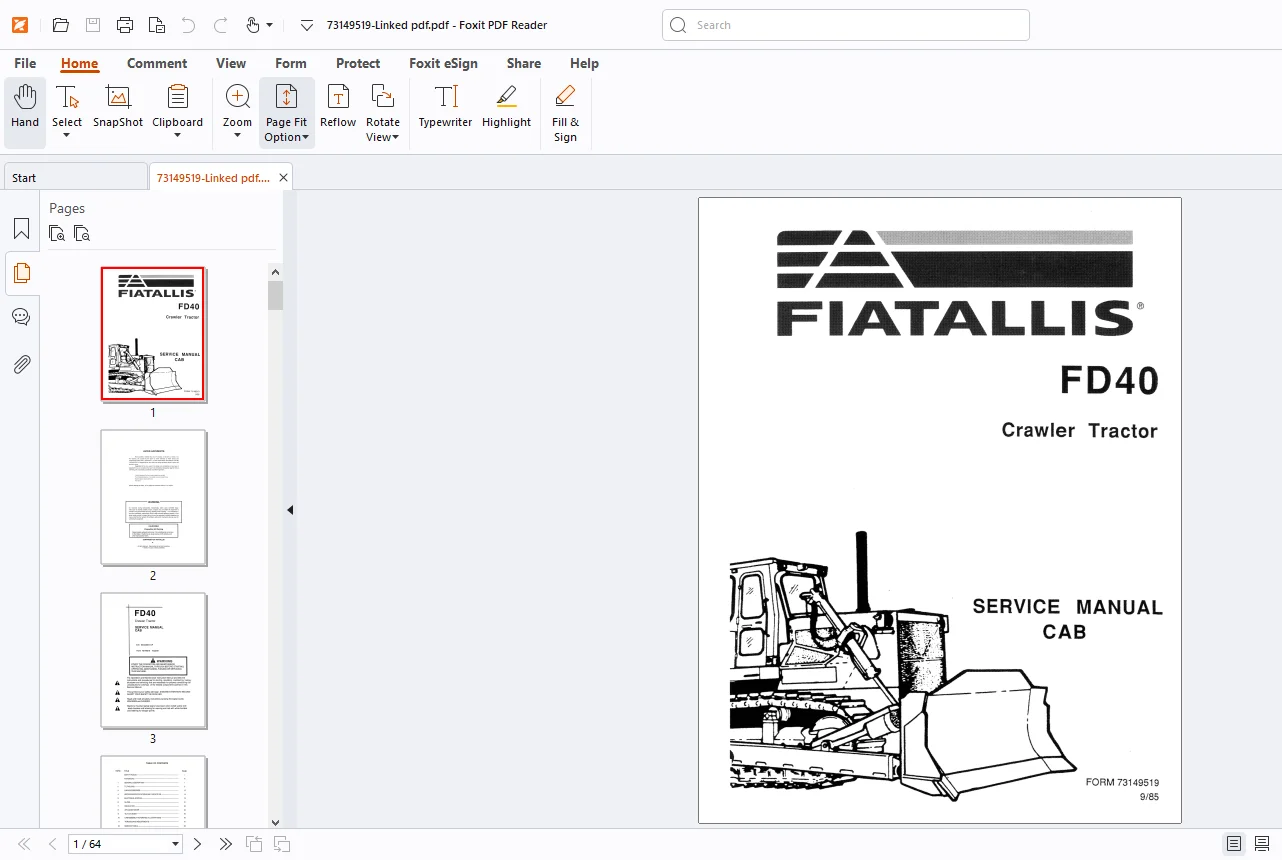

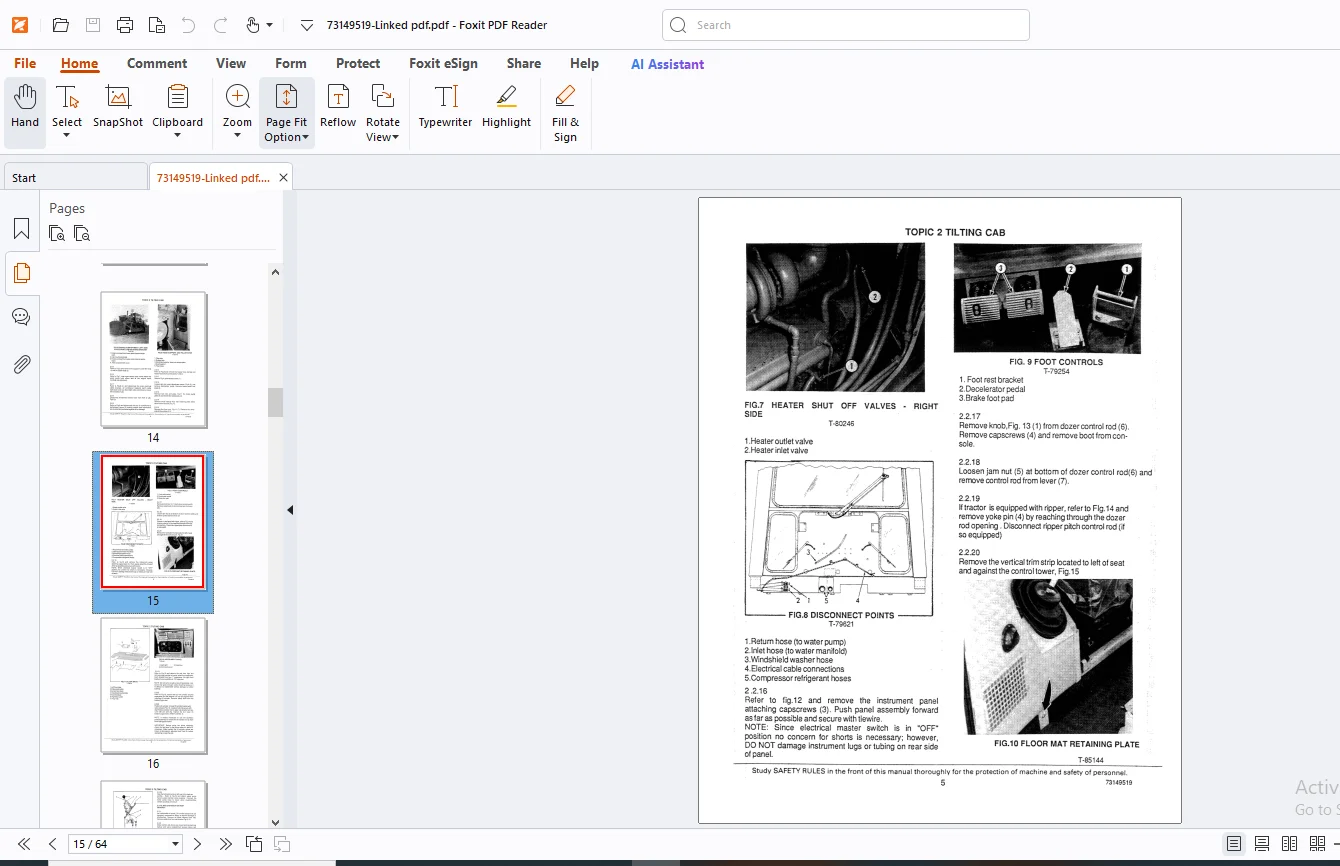

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FD40 Crawler Tractor Cab Service Manual – PDF DOWNLOAD

FN 73149519

TABLE OF CONTENTS 4
SAFETY RULES 5
FOREWORD10
GENERAL DESCRIPTION11
TILTING CAB13
CAB ACCESSORIES22
SERVICES,SPECIFICATIONS AND CAPACITIES24
ELECTRICAL SYSTEM29
GLASS31
INSULATION32
AIR CONDITIONER33
TILT CYLINDER50
CABVASSEMBLY REFERENCE ILLUSTRATIONS53
TORQUES AND ADJUSTMENTS61
SERVICE TOOLS63

DESCRIPTION:

Fiatallis FD40 Crawler Tractor Cab Service Manual – PDF DOWNLOAD

FN 73149519

GENERAL:

SAFETY RULES:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling. or servicing machine. Read and heed all machine-mounted safety signs before slarting, operating. maintaining. fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seal. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate, service or maintain this machine. Always check work area for dangerous features.
• The following are examples of dangerous work areas: slopes. overhangs, timber, demolitions, fire, high walls. drop off, backfills. rough terrain. ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop offs be aJert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps, grab rails and handles at all times. Do not use controls or hoses as handholds when climbing on or off machine.
• Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping pOints, grab-rails and handles clear of foreign objects, oi!, grease, mud or snow accumulation to minimize the danger of slipping or stumbling.
• Clean mud or grease from shoes before attempting to mount or operate the machine. Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material.
• For your personal protection, do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security.
• Heed aU shutdown procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason. Do not wear rings, wrist watches, jewelry, loose or hanging apparel.
• such as ties, torn clothing, scarves, unbuttoned, or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors. safety glasses or goggles, reflector vests, or respirators.
• Consult your employer for specific safety equipment requirements. Do not carry loose objects in pockets that might fall unnoticed into open compartments.
