Fiatallis F65C FG65C-T Motor Grader Operation & Maintenance Instruction Manual 73161388 – PDF DOWNLOAD

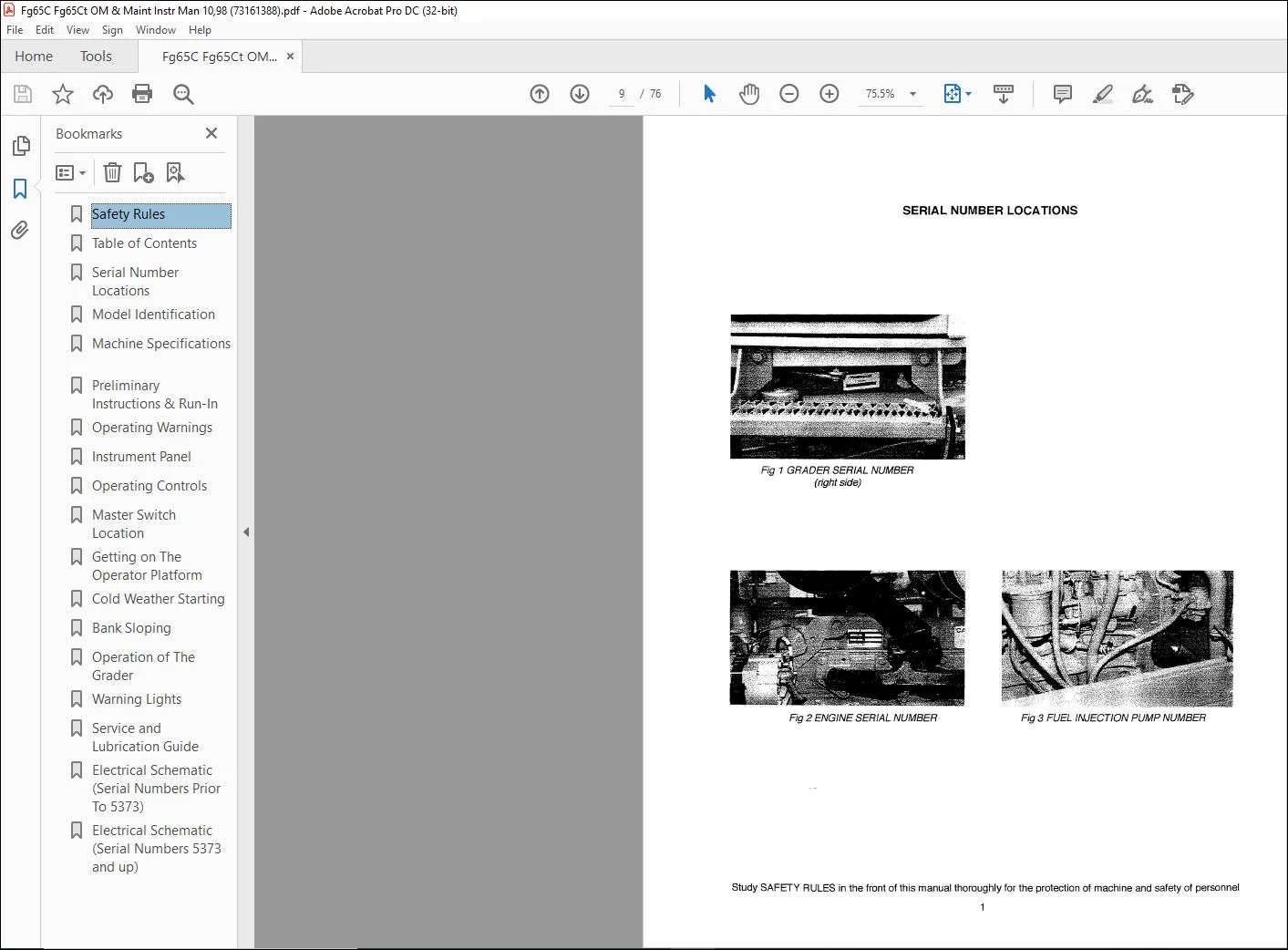

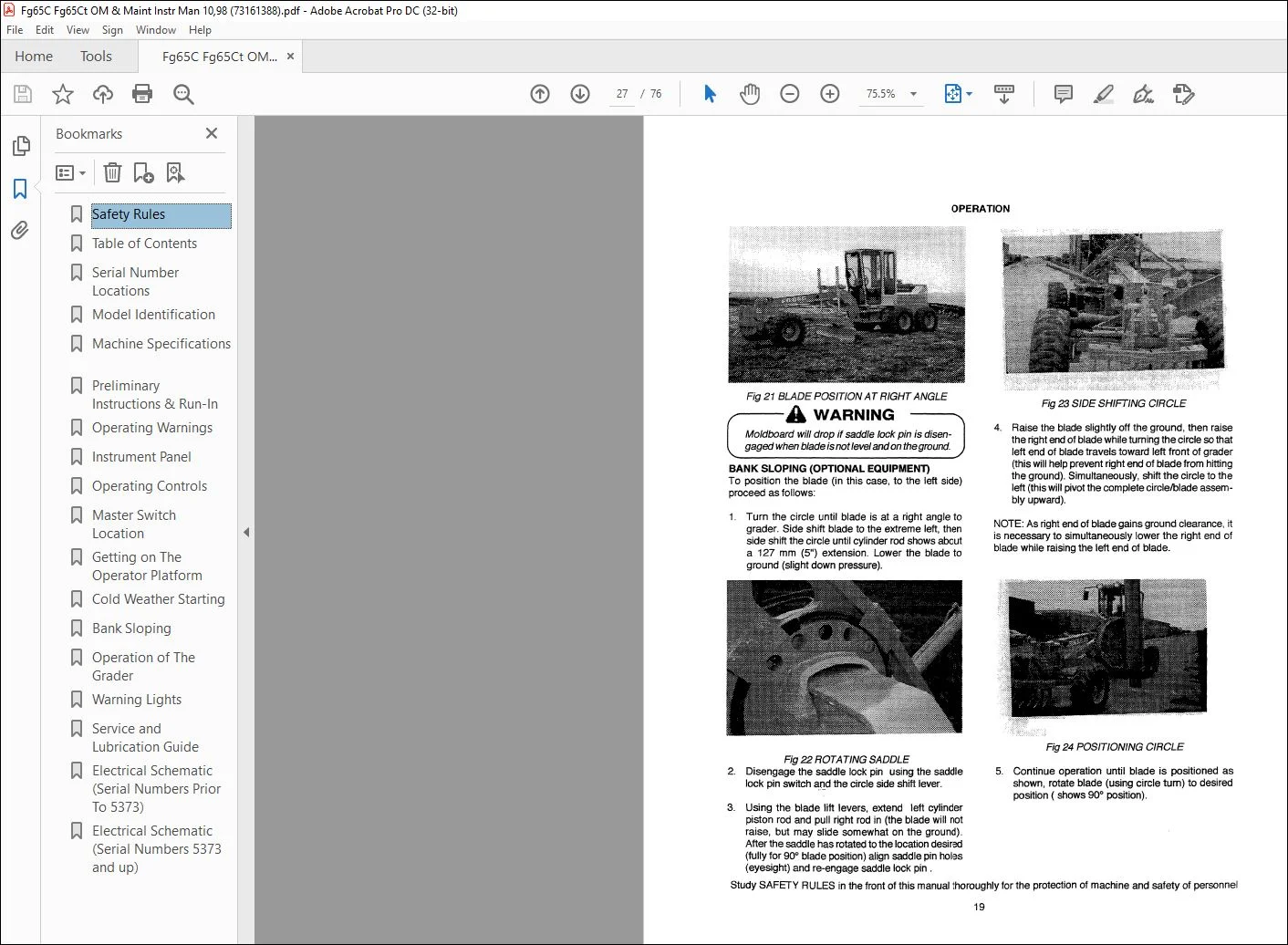

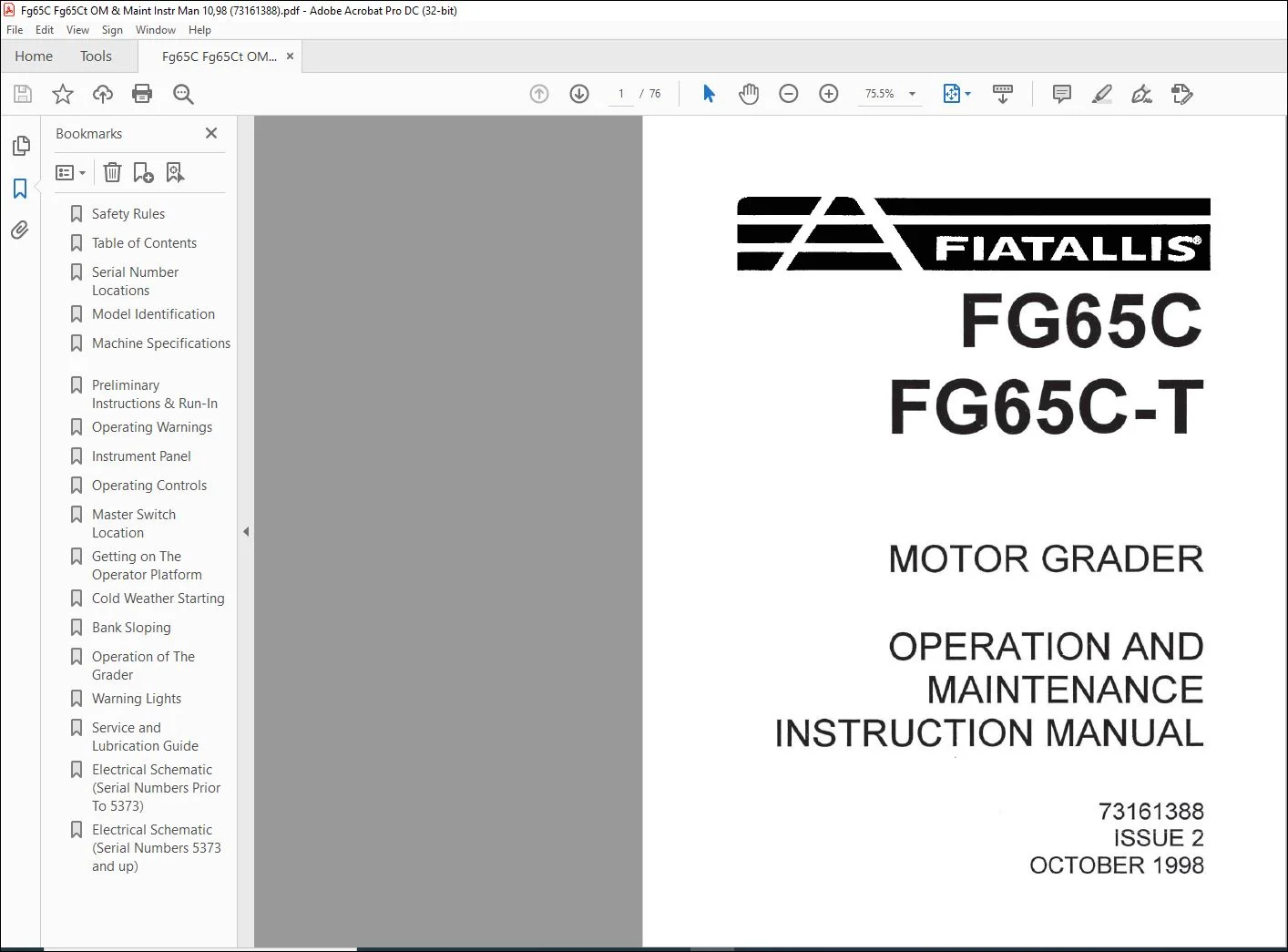

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Fiatallis F65C FG65C-T Motor Grader Operation & Maintenance Instruction Manual 73161388 – PDF DOWNLOAD
GENERAL:
Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. .lead and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
- Never attempt to operate the machine or its tools from any position other than seated in the operators seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
- Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, back fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
- An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine.
- Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operators compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. aean mud or grease from shoes before attempting to mount or operate the machine.
- Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection. Do not attempt to climb on or off machine while machine is in motion.
- Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason.
TABLE OF CONTENTS:
Fiatallis F65C FG65C-T Motor Grader Operation & Maintenance Instruction Manual 73161388 – PDF DOWNLOAD
SAFETY RULES i – vi
Serial number positions 1
Model identification 2
Machine specifications 3
Preliminary instruction 7
Run-in 9
Operating warnings 10
Instrument panel 1 O
Operating controls 12
Master switch location 14
Getting on the operator platform 15
Cold weather starting 16
Bank sloping 19
Operation of the grader 20
Warning lights 22
Service guide 24
Lubrication guide , 25
1 o hour service 27
50 hour service 29
250 hour service 32
500 hour service 36
1000 hour service 40
2000 hour service 44
Periodic service 46
Electrical schematic (prior to Serial Number 5373)
Battery to Alternator Circuit 50
Fuses Circuit 51
Transmission Circuit 52
Warning Lights Circuit 53
Headlight Circuit 54
Implement Circuit 55
Wiper Circuit 56
Blower Circuit 57
Cab Light Circuit 58
Electrical schematic (Serial Number 5373 & up)
Battery to Alternator Circuit 59
Fuses Circuit 60
Transmission Circuit 61
Warning Lights Circuit 62
Headlight Circuit 63
Implement Circuit 64
Wiper Circuit 65
Blower Circuit 66
Worklight Circuit 67
